Preface

Kubernetes has become the de facto standard for container orchestration, with over 96% of organizations using or evaluating Kubernetes according to the CNCF Annual Survey 2023. As organizations increasingly adopt cloud-native technologies, the demand for skilled Kubernetes administrators has skyrocketed. The ability to deploy, manage, troubleshoot, and secure Kubernetes clusters is now a critical skill for infrastructure engineers, DevOps professionals, and system administrators worldwide.

To provide a standardized way to validate these essential skills, the Cloud Native Computing Foundation (CNCF), in collaboration with the Linux Foundation, created the Certified Kubernetes Administrator (CKA) program. Since its launch in 2017, the CKA has become one of the most sought-after certifications in the industry. According to the CNCF Annual Report 2024, over 250,000 professionals have earned CNCF certifications, with the Kubernetes certifications representing the majority of this achievement. The report also highlights that the Kubestronaut program, recognizing professionals who earn all Kubernetes certifications, reached 1,500 members in its first year alone, demonstrating the strong commitment to comprehensive Kubernetes expertise.

The CKA certification validates that you have the skills, knowledge, and competency to perform the responsibilities of a Kubernetes administrator. Unlike traditional multiple-choice exams, the CKA is a rigorous, performance-based test that requires you to solve real-world problems in a live Kubernetes environment under time pressure. With a pass rate historically hovering around 60%, earning this certification demonstrates genuine hands-on expertise that employers value.

This study guide will prepare you to pass the CKA certification exam by covering all topics in the curriculum. We’ll explore cluster architecture, installation and configuration, workload management, networking, storage, and troubleshooting. Throughout this journey, you’ll gain practical experience with the kubectl and kubeadm command-line tool and learn the best practices that will serve you well both in the exam and in real-world scenarios.

Who This Book Is For

This book is for system administrators, DevOps engineers, infrastructure architects, and anyone who wants to prepare for the CKA exam. While the content covers all aspects of the exam curriculum, readers should have basic knowledge of Linux, containers, and fundamental Kubernetes concepts.

If you are completely new to Kubernetes, I recommend that you first read Kubernetes: Up and Running by Brendan Burns, Joe Beda, Kelsey Hightower, and Lachlan Evenson (O’Reilly) or Kubernetes in Action by Marko Lukša (Manning Publications).

The CKA should not be confused with the Certified Kubernetes Application Developer (CKAD). While there is topic overlap, the CKA focuses on cluster administration, installation, and maintenance tasks rather than application deployment and management. For those interested in the complete Kubernetes certification path, the CNCF offers a certification bundle that includes CKA, CKAD, and CKS (Certified Kubernetes Security Specialist).

What You Will Learn

The content of this book follows the official CKA exam curriculum, covering cluster architecture, installation and configuration, workload management, networking, storage, and troubleshooting. Given the breadth of Kubernetes functionality, it’s impossible to cover every configuration option without duplicating the official documentation. Test takers are encouraged to reference the Kubernetes documentation during the exam, as it’s an allowed resource.

Practical experience is crucial for passing the exam. Each chapter contains a “Sample Exercises” section with practice questions that mirror the exam format. Solutions to these exercises are available in Appendix A.

What’s New in the Second Edition

The CNCF regularly updates the CKA curriculum to keep pace with Kubernetes evolution and industry needs. The curriculum update effective February 18, 2025, brings significant changes that reflect how Kubernetes is actually used in production environments today. The exam now uses Kubernetes v1.33, and this second edition has been completely updated to cover all the new topics while removing outdated content.

Based on the official program changes and CNCF announcements, here are the major curriculum changes:

New topics added

Gateway API

A major addition to the curriculum, the Gateway API represents the future of ingress traffic management in Kubernetes. This modern alternative to traditional Ingress resources provides more expressive routing rules, better multi-tenancy support, and extensible traffic management capabilities. You’ll learn how to implement and manage Gateway resources, HTTPRoutes, and GatewayClasses.

Helm

Package management with Helm is now part of the CKA curriculum. You’ll need to understand how to use Helm for deploying applications, managing releases, and working with Helm charts. This reflects the reality that Helm has become the de facto standard for Kubernetes application packaging.

Kustomize

Declarative configuration management using Kustomize is now required knowledge. The curriculum covers how to use Kustomize for managing environment-specific configurations without templating, a critical skill for managing applications across multiple environments.

Custom Resource Definitions (CRDs) and Operators

Understanding how to extend Kubernetes through CRDs and work with Operators is now essential. This addition reflects the widespread adoption of the Operator pattern in production Kubernetes environments.

Container Runtime Interfaces

The curriculum now includes coverage of extension interfaces like CNI (Container Network Interface), CSI (Container Storage Interface), and CRI (Container Runtime Interface). Understanding these interfaces is crucial for troubleshooting and configuring production clusters.

Expanded CoreDNS Coverage

While DNS was always part of the curriculum, there’s now expanded focus on CoreDNS configuration, troubleshooting DNS issues, and understanding service discovery mechanics in detail.

Network Policies

Network policies are now explicitly mentioned in the curriculum. You’ll need to understand how to define and enforce network policies to control traffic flow between Pods, namespaces, and external endpoints. This addition emphasizes the growing importance of network segmentation and security in multi-tenant clusters.

Pod Admission and Scheduling

The topic “Configure Pod admission and scheduling” has been made more prominent in the curriculum. This includes deeper coverage of scheduling mechanisms, node affinity, taints and tolerations, pod priority and preemption, and admission controllers. The increased emphasis reflects the complexity of workload placement in production clusters.

Topics removed or de-emphasized

The competency “Provision underlying infrastructure to deploy a Kubernetes cluster” has been removed, acknowledging that most organizations now use managed Kubernetes platforms rather than provisioning infrastructure from scratch.

Structural changes

While the five main domains (Cluster Architecture, Installation & Configuration; Workloads & Scheduling; Services & Networking; Storage; and Troubleshooting) remain the same, the competencies within each domain have been updated to reflect modern practices.

The exam continues to be performance-based with a 2-hour time limit, but the scenarios now better reflect real-world tasks that administrators face when managing production Kubernetes clusters.

Additionally, I’ve included an “Exam Review Guide” in Appendix B that maps all curriculum topics to corresponding chapters and provides quick reference links to the Kubernetes documentation.

Conventions Used in This Book

The following typographical conventions are used in this book:

Italic

Indicates new terms, URLs, email addresses, filenames, and file extensions.

Constant width

Used for program listings, as well as within paragraphs to refer to program elements such as variable or function names, databases, data types, environment variables, statements, and keywords.

Constant width bold

Shows commands or other text that should be typed literally by the user.

Constant width italic

Shows text that should be replaced with user-supplied values or by values determined by context.

Tip

This element signifies a tip or suggestion.

Note

This element signifies a general note.

Warning

This element indicates a warning or caution.

Using Code Examples

The source code for all examples and exercises in this book is available on GitHub. The repository is distributed under the Apache License 2.0. The code is free to use in commercial and open source projects. If you encounter an issue in the source code or if you have a question, open an issue in the GitHub issue tracker. I’m happy to have a conversation and fix any issues that might arise.

This book is here to help you get your job done. In general, if example code is offered with this book, you may use it in your programs and documentation. You do not need to contact us for permission unless you’re reproducing a significant portion of the code. For example, writing a program that uses several chunks of code from this book does not require permission. Selling or distributing examples from O’Reilly books does require permission. Answering a question by citing this book and quoting example code does not require permission. Incorporating a significant amount of example code from this book into your product’s documentation does require permission.

We appreciate, but generally do not require, attribution. An attribution usually includes the title, author, publisher, and ISBN. For example: "Certified Kubernetes Administrator (CKA) Study Guide, by Benjamin Muschko (O’Reilly). Copyright 2025 Automated Ascent, LLC, 978-1-098-XXXXX-X.”

If you feel your use of code examples falls outside fair use or the permission given above, feel free to contact us at permissions@oreilly.com.

O’Reilly Online Learning

Note

For more than 40 years, O’Reilly Media has provided technology and business training, knowledge, and insight to help companies succeed.

Our unique network of experts and innovators share their knowledge and expertise through books, articles, and our online learning platform. O’Reilly’s online learning platform gives you on-demand access to live training courses, in-depth learning paths, interactive coding environments, and a vast collection of text and video from O’Reilly and 200+ other publishers. For more information, visit http://oreilly.com.

How to Contact Us

Please address comments and questions concerning this book to the publisher:

  • O’Reilly Media, Inc.
  • 1005 Gravenstein Highway North
  • Sebastopol, CA 95472
  • 800-998-9938 (in the United States or Canada)
  • 707-827-0515 (international or local)
  • 707-829-0104 (fax)

We have a web page for this book, where we list errata, examples, and any additional information. You can access this page at https://oreil.ly/cka-2ed.

Email bookquestions@oreilly.com to comment or ask technical questions about this book.

For news and information about our books and courses, visit http://oreilly.com.

Watch us on YouTube: http://youtube.com/oreillymedia

Find us on LinkedIn: https://linkedin.com/company/oreilly-media

Follow the author on GitHub: https://github.com/bmuschko

Follow the author’s blog: https://bmuschko.com

Acknowledgments

Every book project is a long journey and would not be possible without the help of the editorial staff and technical reviewers. Special thanks go to [Technical Reviewers TBD] for their detailed technical guidance and feedback. I would also like to thank the editors at O’Reilly Media, John Devins and Corbin Collins, for their continued support and encouragement.

Part I. Introduction

The introduction part of the book touches on the most important aspects of the exam and orients Kubernetes beginners to the lay of the land without introducing too much complexity.

The following chapters cover these concepts:

  • Chapter 1 discusses the exam objectives, curriculum, and tips and tricks for passing the exam.

  • Chapter 2 is a short and sweet overview on Kubernetes. This chapter summarizes the purpose and benefits of Kubernetes and provides an overview of its architecture and components.

  • Chapter 3 discusses how to interact with a Kubernetes cluster using the command line tool kubectl. The tool is going to be your only user interface during the exam. We’ll compare imperative and declarative commands, their pros and cons, as well as time-saving techniques for the exam.

Chapter 1. Exam Details and Resources

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 1st chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

This chapter addresses the most frequently asked questions by candidates preparing to successfully pass the Certified Kubernetes Administrator (CKA) exam. Later chapters will give you a summary of Kubernetes’ benefits and architecture and how to interact with a Kubernetes cluster using kubectl.

Kubernetes Certification Learning Path

The CNCF offers five different Kubernetes certifications. Figure 1-1 categorizes each of them by target audience.

kubernetes learning path
Figure 1-1. Kubernetes certifications learning path

The target audience for associate-level certifications is beginners to the cloud and Kubernetes. Associate-level certification exams use a multiple-choice format. You will not have to interact with a Kubernetes cluster in an interactive environment.

Practitioner-level certifications are meant for developers and administrators with preexisting Kubernetes experience. Exams in this category require you to solve problems in multiple Kubernetes environments hands-on. You will find that the CKA is geared to administrators of a Kubernetes cluster and does not require any other certification as a prerequisite.

If you pass all Kubernetes certifications, you can call yourself a Kubestronaut. The Kubestronaut program recognizes community members that are able to demonstrate their skills in the most important core areas of Kubernetes.

Let’s have a brief look at each certification to see if the CKA is the right fit for you.

Kubernetes and Cloud Native Associate (KCNA)

KCNA is an entry-level certification program for anyone interested in cloud-native application development, runtime environments, and tooling. While the exam does cover Kubernetes, it does not expect you to interact with a cluster hands-on. This exam consists of multiple-choice questions and is suitable to candidates interested in the topic with a broad exposure to the ecosystem.

Kubernetes and Cloud Native Security Associate (KCSA)

The KCSA verifies your basic knowledge of security concepts and their application in a Kubernetes cluster. The breadth, depth, and format of the program is definitely more advanced than the KCNA. I personally would not categorize this exam as suitable to beginners to security concepts. You may want to take the KCSA after gaining more hands-on and in-depth exposure to Kubernetes, as the exam questions can be quite hard to answer.

Certified Kubernetes Application Developer (CKAD)

The CKAD exam focuses on verifying your ability to build, configure, and deploy a microservices-based application to Kubernetes. You are not expected to actually implement an application; however, the exam is suitable for developers familiar with topics like application architecture, runtimes, and programming languages.

Certified Kubernetes Administrator (CKA)

The target audience for the CKA exam are DevOps practitioners, system administrators, and site reliability engineers. This exam tests your ability to perform in the role of a Kubernetes administrator, which includes tasks like cluster, network, storage, and beginner-level security management, with emphasis on troubleshooting scenarios.

Certified Kubernetes Security Specialist (CKS)

The CKS exam expands on the topics verified by the CKA exam. Passing the CKA is a prerequisite before you can sign up for the CKS exam. For this certification, you are expected to have a deeper knowledge of Kubernetes security. The curriculum covers topics like applying best practices for building containerized applications and ensuring a secure Kubernetes runtime environment.

Exam Objectives

Kubernetes clusters need to be installed, configured, and maintained by skilled professionals. That’s the job of a Kubernetes administrator. The CKA certification program verifies a deep understanding of the typical administration tasks encountered on the job, more specifically Kubernetes cluster maintenance, networking, storage solutions, and troubleshooting applications and cluster nodes.

This book focuses on getting you ready for the CKA exam. I will give a little bit of background on why Kubernetes is important to administrators before dissecting the topics important to the exam.

Kubernetes version used during the exam

At the time of writing, the exam is based on Kubernetes 1.33. All content in this book will follow the features, APIs, and command-line support for that version. It’s possible that future versions will break backward compatibility. While preparing for the certification, review the Kubernetes release notes and practice with the Kubernetes version used during the exam to avoid unpleasant surprises. The exam environment will be aligned with the most recent Kubernetes minor version within approximately four to eight weeks of the Kubernetes release date.

Curriculum

The following overview lists the high-level sections, or domains, of the exam and their scoring weights:

  • 25%: Cluster Architecture, Installation and Configuration

  • 15%: Workloads and Scheduling

  • 20%: Servicing and Networking

  • 10%: Storage

  • 30%: Troubleshooting

The next sections detail each domain.

Cluster Architecture, Installation and Configuration

This section of the curriculum dives deep into all aspects of Kubernetes clusters. It covers the fundamental architecture of Kubernetes, including the distinction between the control plane and worker nodes, high-availability configurations, and the tools needed for installing, upgrading, and maintaining a cluster. Additionally, you’ll explore key extension interfaces and learn practical skills such as installing a cluster from scratch, upgrading its version, and backing up/restoring the etcd database.

The Cloud Native Computing Foundation (CNCF) has also incorporated related topics into this domain. For instance, mastering Role-Based Access Control (RBAC) is essential for administrators to effectively manage access to cluster resources. You’ll also become proficient in installing Kubernetes operators and using tools like Kustomize and Helm to discover and deploy cluster components efficiently.

Workloads and Scheduling

Administrators must have a solid understanding of Kubernetes concepts essential for managing cloud-native applications effectively. The domain focuses on these critical aspects. It covers key resources such as Deployments, ReplicaSets, and configuration management using ConfigMaps and Secrets.

When a new Pod is created, the Kubernetes scheduler assigns it to an available node based on predefined criteria. Scheduling rules, such as node affinity and taints/tolerations, help fine-tune this process to meet specific requirements. For exam preparation, it’s crucial to grasp the various factors and concepts involved in Kubernetes’ scheduling algorithm to ensure optimal workload placement and performance.

Servicing and Networking

A cloud-native microservice rarely operates in isolation. More often than not, it interacts with other microservices or external systems. For administrators, understanding Pod-to-Pod communication, exposing applications to external clients, and configuring cluster networking is crucial for maintaining a fully functional system.

This domain of the exam evaluates your knowledge of essential Kubernetes networking primitives, including Services, Ingress, NetworkPolicy, and the Gateway API. Mastering these components ensures you can effectively manage and secure communication within and outside the cluster.

Storage

This domain focuses on the various types of volumes used for reading and writing data in Kubernetes. As an administrator, you must understand how to create, configure, and manage these volumes effectively.

Persistent Volumes (PVs) play a crucial role in ensuring data persistence, even after a cluster node restarts. You’ll need to demonstrate the ability to mount a Persistent Volume to a specific path within a container and understand the underlying mechanics. Additionally, it’s essential to grasp the differences between static and dynamic provisioning to manage storage resources efficiently.

Troubleshooting

In production Kubernetes clusters, issues are bound to arise. Applications may misbehave, become unresponsive, or even become completely inaccessible. Additionally, cluster nodes might crash or face configuration problems. Developing effective troubleshooting strategies is critical to quickly identifying and resolving these situations to minimize downtime and disruption.

This domain carries the highest scoring weight in the exam. You will encounter realistic scenarios that require you to diagnose problems and implement the appropriate solutions. Mastering these skills ensures you can maintain the stability and reliability of Kubernetes environments under pressure.

Involved Kubernetes Primitives

Some of the exam objectives can be covered by understanding the relevant core Kubernetes primitives. Be aware that the exam combines multiple concepts in a single problem. Refer to Figure 1-2 as a guide to the applicable Kubernetes resources and their relationships.

kubernetes primitives
Figure 1-2. Kubernetes primitives relevant to the exam

Documentation

During the exam, you are permitted to open a well-defined list of web pages as a reference. You can freely browse those pages and copy-paste code to the exam terminal.

The official Kubernetes documentation includes the reference manual, and the blog. In addition, you can also browse the Helm documentation.

  • Reference manual: https://kubernetes.io/docs

  • Blog: https://kubernetes.io/blog

  • Helm: https://helm.sh/docs

Having the Kubernetes documentation pages at hand is extremely valuable, but make sure you know where to find the relevant information within those pages. In preparation for the test, read all the documentation pages from start to end at least once. Don’t forget the search functionality of the official documentation pages. For reference, Appendix B maps the exam objectives to the book chapters covering the topics and the relevant Kubernetes documentation pages.

Using the documentation efficiently

Using a search term will likely lead you to the right documentation pages quicker than navigating the menu items. Copying and pasting code snippets from the documentation into the console of the exam environment works reasonably well. You may have to adjust the YAML indentation manually as the proper formatting can get lost in the process.

Exam Environment and Tips

To take the exam, you must purchase a registration voucher, which can be acquired on the CNCF training and certification web page. On occasion, the CNCF offers discounts for the voucher (e.g., around the US Thanksgiving holiday). Those discount offers are often announced on the Linux Foundation LinkedIn page.

After you purchase the voucher, you can schedule a time for the exam with PSI, the company conducting the test virtually. In-person exams at a testing facility are not available. On the day of your scheduled test, you’ll be asked to log into the test platform with a URL provided to you by email. You’ll be asked to enable the audio and video feed on your computer to discourage cheating. A proctor will oversee your actions via audio/video feed and terminate the session if they think you are not following the rules.

Exam attempts

The voucher you purchased grants two attempts to pass the exam. I recommend preparing reasonably well before taking the test on the first attempt. It will give you a fair chance to pass the test and provide a good impression of the exam environment and the complexity of the questions. Don’t sweat it if you do not pass the test on the first attempt. You’ve got another free shot.

The exam has a time limit of two hours. During that time, you’ll need to solve hands-on problems on a real, predefined Kubernetes cluster. Every question will state the cluster you need to work on. This practical approach to gauge a candidate’s skill set is superior to tests with multiple-choice questions, as you can translate the knowledge directly on tasks performed on the job.

I highly recommend reading the FAQ for the exam. You will find answers to most of your pressing questions there, including system requirements for your machine, scoring, certification renewal, and retake requirements.

Candidate Skills

The certification assumes that you have a basic understanding of Kubernetes. You should be familiar with Kubernetes internals, its core concepts, and the command-line tool kubectl. The CNCF offers a free “Introduction to Kubernetes” course for beginners to Kubernetes.

Your background is likely more on the end of an application developer, although it doesn’t really matter which programming language you’re most accustomed to. Here’s a brief overview of the background knowledge you need to increase your likelihood of passing the exam:

Kubernetes architecture and concepts

The exam won’t ask you to install a Kubernetes cluster from scratch. Read up on the basics of Kubernetes and its architectural components. Reference Chapter 2 for a jump start on Kubernetes’ architecture and concepts.

The kubectl CLI tool

The kubectl command-line tool is the central tool you will use during the exam to interact with the Kubernetes cluster. Even if you have only a little time to prepare for the exam, it’s essential to practice how to operate kubectl, as well as its commands and their relevant options. You will have no access to the web dashboard UI during the exam. Chapter 3 provides a short summary of the most important ways of interacting with a Kubernetes cluster.

Kubernetes cluster maintenance tools

Installing a Kubernetes cluster from scratch and upgrading the Kubernetes version of an existing cluster is performed using the tool kubeadm. It’s important to understand its usage and the relevant process to walk through the process. Reference Chapter 4 for more information. Additionally, you need to have a good understanding of the tools etcdctl and etcdutl including their command-line options for backing up and restoring the etcd database covered in Chapter 5.

Working knowledge of a container runtime engine

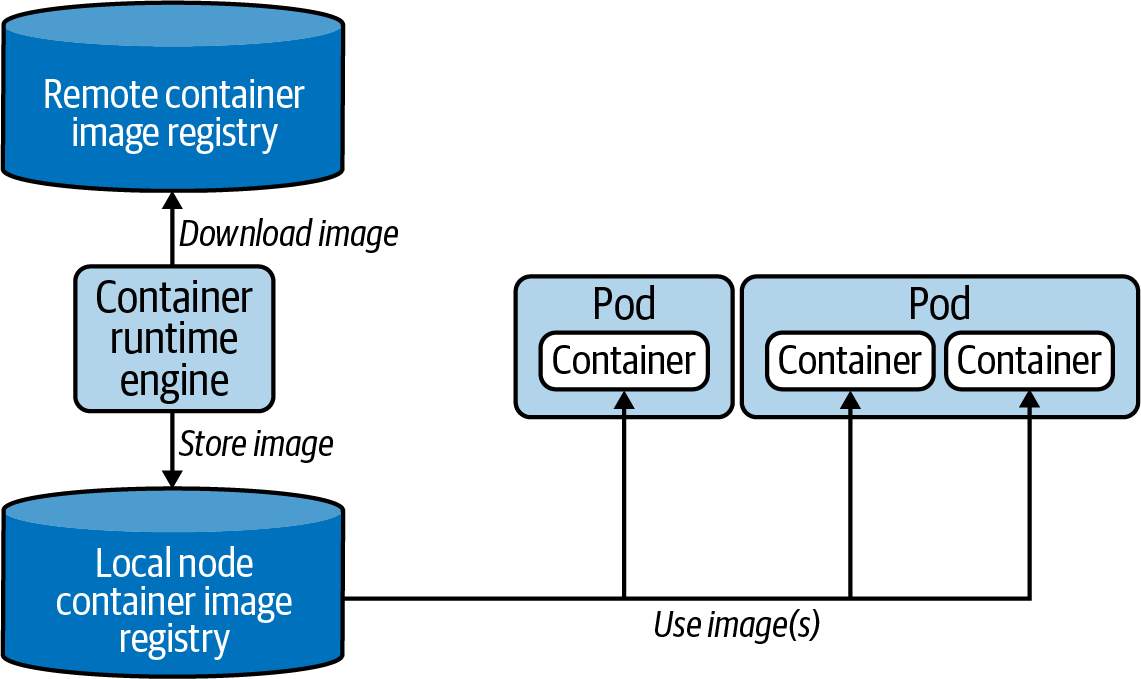

Kubernetes uses a container runtime engine for managing images. The default container runtime engine in Kubernetes is containerd. At a minimum, understand the difference between container images and containers, and their purpose. This topic goes beyond the coverage of this book and isn’t directly tested for in the exam.

Other relevant tools

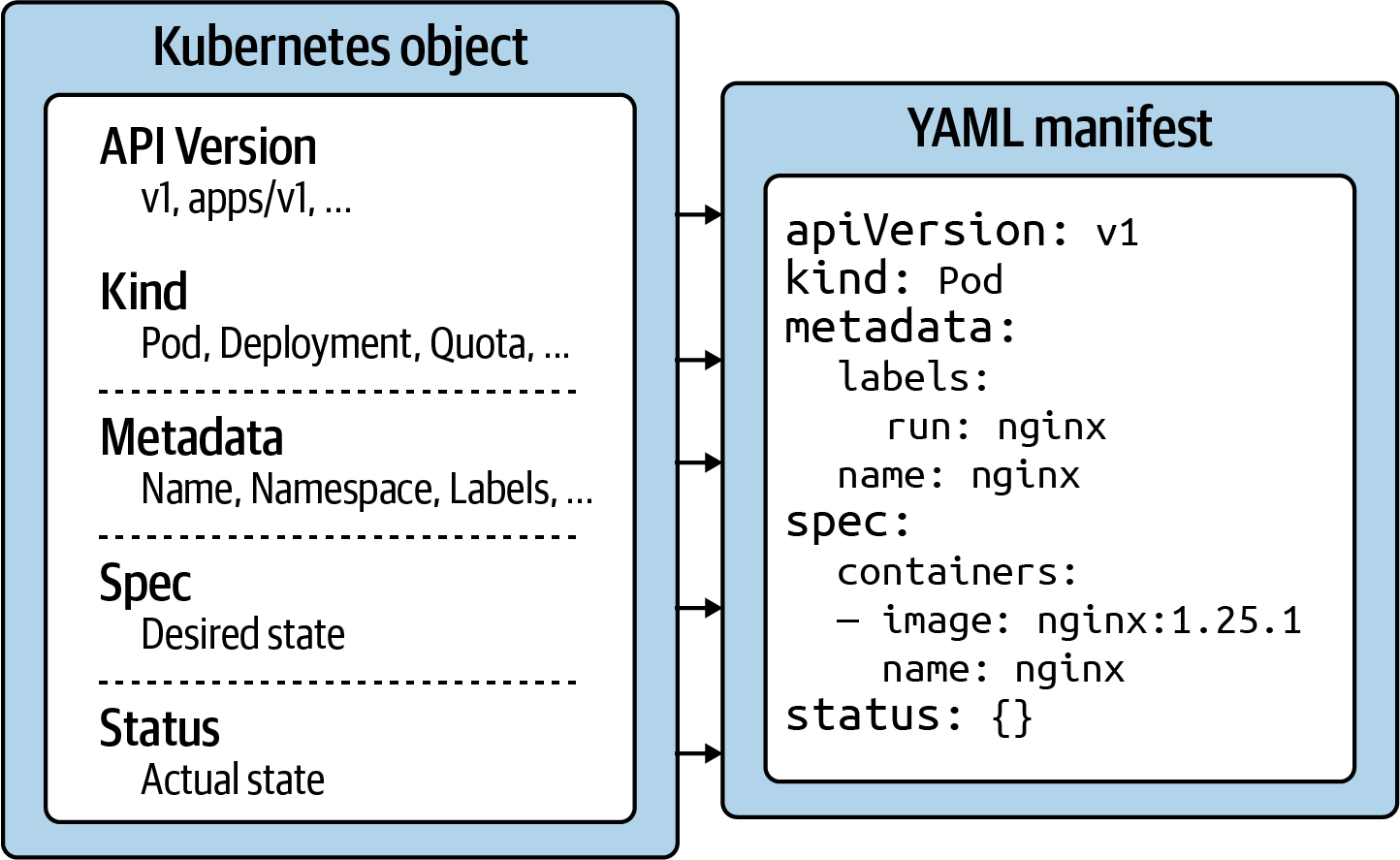

Kubernetes objects are represented by YAML or JSON. The content of this book will use examples in YAML, as it is more commonly used than JSON in the Kubernetes world. You will have to edit YAML during the exam to create a new object declaratively or when modifying the configuration of a live object. Ensure that you have a good handle on basic YAML syntax, data types, and indentation conforming to the specification. How do you edit the YAML definitions, you may ask? From the terminal, of course. The exam terminal environment comes with the tools vi and vim preinstalled. Practice the keyboard shortcuts for common operations, (especially how to exit the editor). The last tool I want to mention is GNU Bash. It’s imperative that you understand the basic syntax and operators of the scripting language. It’s absolutely possible that you may have to read, modify, or even extend a multiline Bash command running in a container.

Time Management

Candidates have two hours to complete the exam, and at least 66% of the answers to the tasks need to be correct to pass. Many tasks consist of multiple steps. Although the Linux Foundation doesn’t provide a scoring breakdown, I’d assume that partially correct answers will score a portion of the points.

When taking the test, you will notice that the given time limit will put you under a lot of pressure. That’s intentional. The Linux Foundation expects Kubernetes practitioners to be able to apply their knowledge to real-world scenarios by finding solutions to problems in a timely fashion.

The exam will present you with a mix of problems. Some are short and easy to solve; others require more context and take more time. Personally, I tried to tackle the easy problems first to score as many points as possible without getting stuck on the harder questions. I marked any questions I could not solve immediately in the notepad functionality integrated in the exam environment. During the second pass, revisit the questions you skipped and try to solve them as well. Optimally, you will be able to work through all the problems in the allotted time.

Command-Line Tips and Tricks

Given that the command line is your solitary interface to the Kubernetes cluster, it’s essential that you become extremely familiar with the kubectl tool and its available options. This section provides tips and tricks for making their use more efficient and productive.

Setting a Context and Namespace

The exam environment comes with multiple Kubernetes clusters already set up for you. Take a look at the instructions for a high-level, technical overview of those clusters. Each of the exam tasks need to be solved on a designated cluster, as outlined in its description. Furthermore, the instructions will ask you to work in a namespace other than default. Make sure to set the context and namespace as the first course of action before working on a question. The following command sets the context and the namespace as a one-time action:

$ kubectl config set-context <context-of-question> \
  --namespace=<namespace-of-question>
$ kubectl config use-context <context-of-question>

You can find a more detailed discussion of the context concept and the corresponding kubectl commands in “Authentication with kubectl”.

For specific tasks, e.g. the upgrade process of a cluster node, you will need to open an interactive shell to the host machine of a cluster node. Use the ssh <nodename> command to achieve that.

Using the Alias for kubectl

In the course of the exam, you will have to execute the kubectl command tens or even hundreds of times. You might be an extremely fast typist; however, there’s no point in fully spelling out the executable over and over again. The exam environment already sets up the alias k for the kubectl command.

In preparation for the exam, you can set up the same behavior on your machine. The following alias command maps the letter k to the full kubectl command:

$ alias k=kubectl
$ k version

Using kubectl Command Auto-Completion

Memorizing kubectl commands and command-line options takes a lot of practice. The exam environment comes with auto-completion enabled by default. You can find instructions for setting up auto-completion for the shell on your machine in the Kubernetes documentation.

Internalize Resource Short Names

Many of the kubectl commands can be quite lengthy. For example, the command for managing Persistent volume claims is persistentvolumeclaims. Spelling out the full command can be error-prone and time-consuming. Thankfully, some of the longer commands come with a short-form usage. The command api-resources lists all available commands plus their short names:

$ kubectl api-resources
NAME                    SHORTNAMES  APIGROUP  NAMESPACED  KIND
...
persistentvolumeclaims  pvc                   true        PersistentVolumeClaim
...

Using pvc instead of persistentvolumeclaims results in a more concise and expressive command execution, as shown here:

$ kubectl describe pvc my-claim

Practicing and Practice Exams

Hands-on practice is extremely important when it comes to passing the exam. For that purpose, you’ll need a functioning Kubernetes cluster environment. The following options stand out:

  • I found it useful to run one or many virtual machines using Vagrant and VirtualBox. Those tools help with creating an isolated Kubernetes environment that is easy to bootstrap and dispose on demand.

  • It is relatively easy to install a simple Kubernetes cluster on your developer machine. The Kubernetes documentation provides various installation options, depending on your operating system. Minikube is useful when it comes to experimenting with more advanced features like Ingress or storage classes, as it provides the necessary functionality as add-ons that can be installed with a single command. Alternatively, you can also give kind a try, another tool for running local Kubernetes clusters.

  • If you’re a subscriber to the O’Reilly Learning Platform, you have unlimited access to scenarios running a Kubernetes sandbox environment. In addition, you can test your knowledge with the help of the CKA practice test in the form of interactive labs.

  • Killercoda hosts interactive scenarios for the exam contributed by the Kubernetes community.

You may also want to try one of the following commercial learning and practice resources:

  • Killer Shell is a simulator with sample exercises for all Kubernetes certifications. If you purchase a voucher for the exam, you will be allowed two free sessions.

  • Other online training providers offer video courses for the exam, some of which include an integrated Kubernetes practice environment. I would like to mention KodeKloud and A Cloud Guru. You’ll need to purchase a subscription to access the content for each course individually.

Summary

The exam is a completely hands-on test that requires you to solve problems in multiple Kubernetes clusters. You’re expected to understand, use, and configure the Kubernetes primitives relevant to application developers. The exam curriculum subdivides those focus areas and puts different weights on topics, which determines their contributions to the overall score. Even though focus areas are grouped meaningfully, the curriculum doesn’t necessarily follow a natural learning path, so it’s helpful to cross-reference chapters in the book in preparation for the exam.

In this chapter, we discussed the exam environment and how to navigate it. The key to acing the exam is intense practice of kubectl to solve real-world scenarios. The next two chapters in Part I will provide a jump start to Kubernetes.

All chapters that discuss domain details give you an opportunity to practice hands-on. You will find sample exercises at the end of each chapter.

Chapter 2. Kubernetes in a Nutshell

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 2nd chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

It’s helpful to get a quick rundown of what Kubernetes is and how it works if you are new to the space. Many tutorials and 101 courses are available on the web, but I would like to summarize the most important background information and concepts in this chapter. In the course of this book, I’ll reference cluster node components, so feel free to come back to this information at any time.

What Is Kubernetes?

To understand what Kubernetes is, first let’s define microservices and containers.

Microservice architectures call for developing and executing pieces of the application stack as individual services, and those services have to communicate with one another. If you decide to operate those services in containers, you will need to manage a lot of them while at the same time thinking about cross-cutting concerns like scalability, security, persistence, and load balancing.

Tools like buildkit and Podman package software artifacts into a container image. Container runtime engines like Docker Engine and containerd use the image to run a container. This works great on developer machines for testing purposes or for ad-hoc executions, e.g., as part of a continuous integration (CI) pipeline.

Kubernetes is a container orchestration tool that helps with operating hundreds or even thousands of containers on physical machines, virtual machines, or in the cloud. Kubernetes can also fulfill those cross-cutting concerns mentioned earlier. The container runtime engine integrates with Kubernetes. Whenever a container creation is triggered, Kubernetes will delegate life cycle aspects to the container runtime engine.

The most essential primitive in a Kubernetes is a Pod. The Pod can run one or many containers while at the same time adding cross-cutting concerns like security requirements and resource consumption expectations. Have a look at Chapter 9 to learn about those aspects.

Features

The previous section touched on some features provided by Kubernetes. Here, I am going to dive a little deeper by explaining those features in more detail:

Declarative model

You do not have to write imperative code using a programming language to tell Kubernetes how to operate an application. All you need to do as an end user is to declare a desired state. The desired state can be defined using a YAML or JSON manifest that conforms to an API schema. Kubernetes then maintains the state and recovers it in case of a failure.

Autoscaling

You will want to scale up resources when your application load increases, and scale down when traffic to your application decreases. This can be achieved in Kubernetes by manual or automated scaling. The most practical, optimized option is to let Kubernetes automatically scale resources needed by a containerized application.

Application management

Changes to applications, e.g., new features and bug fixes, are usually baked into a container image with a new tag. You can easily roll out those changes across all containers running them using Kubernetes’ convenient replication feature. If needed, Kubernetes also allows for rolling back to a previous application version in case of a blocking bug or if a security vulnerability is detected.

Persistent storage

Containers offer only a temporary filesystem. Upon restart of the container, all data written to the filesystem is lost. Depending on the nature of your application, you may need to persist data for longer, for example, if your application interacts with a database. Kubernetes offers the ability to mount storage required by application workloads.

Networking

To support a microservices architecture, the container orchestrator needs to allow for communication between containers, and from end users to containers from outside of the cluster. Kubernetes employs internal and external load balancing for routing network traffic.

High-Level Architecture

Architecturally, a Kubernetes cluster consists of control plane nodes and worker nodes, as shown in Figure 2-1. Each node runs on infrastructure provisioned on a physical or virtual machine, or in the cloud. The number of nodes you want to add to the cluster and their topology depends on the application resource needs.

kubernetes architecture
Figure 2-1. Kubernetes cluster nodes and components

Control plane nodes and worker nodes have specific responsibilities:

Control plane node

This node exposes the Kubernetes API through the API server and manages the nodes that make up the cluster. It also responds to cluster events, for example, when the end user requested to scale up the number of Pods to distribute the load for an application. Production clusters employ a highly available (HA) architecture that usually involves three or more control plane nodes.

Worker node

The worker node executes workload in containers managed by Pods. Every worker node needs a container runtime engine installed on the host machine to be able to manage containers.

In the next two sections, we’ll look at the essential components embedded in those nodes to fulfill their tasks. Add-ons like cluster DNS are not discussed explicitly here. See the Kubernetes documentation for more details.

Control Plane Node Components

The control plane node requires a specific set of components to perform its job. The following list of components will give you an overview:

API server

The API server exposes the API endpoints clients use to communicate with the Kubernetes cluster. For example, if you execute the tool kubectl, a command-line based Kubernetes client, you will make a RESTful API call to an endpoint exposed by the API server as part of its implementation. The API processing procedure inside of the API server will ensure aspects like authentication, authorization, and admission control. For more information on that topic, see Chapter 6.

Scheduler

The scheduler is a background process that watches for new Kubernetes Pods with no assigned nodes and assigns them to a worker node for execution.

Controller manager

The controller manager watches the state of your cluster and implements changes where needed. For example, if you make a configuration change to an existing object, the controller manager will try to bring the object into the desired state.

Etcd

Cluster state data needs to be persisted over time so it can be reconstructed upon a node or even a full cluster restart. That’s the responsibility of etcd, an open source software Kubernetes integrates with. At its core, etcd is a key-value store used to persist all data related to the Kubernetes cluster.

Common Node Components

Kubernetes employs components that are leveraged by all nodes independent of their specialized responsibility:

Kubelet

The kubelet runs on every node in the cluster; however, it makes the most sense on a worker node. The reason is that the control plane node usually doesn’t execute workload, and the worker node’s primary responsibility is to run workload. The kubelet is an agent that makes sure that the necessary containers are running in a Pod. You could say that the kubelet is the glue between Kubernetes and the container runtime engine and ensures that containers are running and healthy.

Kube proxy

The kube proxy is a network proxy that runs on each node in a cluster to maintain network rules and enable network communication. In part, this component is responsible for implementing the Service concept covered in Chapter 17.

Container runtime

As mentioned earlier, the container runtime is the software responsible for managing containers. Kubernetes can be configured to choose from a range of different container runtime engines. While you can install a container runtime engine on a control plane, it’s not necessary as the control plane node usually doesn’t handle workload.

Advantages

This section points out some of the most important advantages of Kubernetes, which are summarized here:

Portability

A container runtime engine can manage a container independent of its runtime environment. The container image bundles everything it needs to work, including the application’s binary or code, its dependencies, and its configuration. Kubernetes can run applications in a container in on-premise and cloud environments. As an administrator, you can choose the platform you think is most suitable to your needs without having to rewrite the application. Many cloud offerings provide product-specific, opt-in features. While using product-specific features helps with operational aspects, be aware that they will diminish your ability to switch easily between platforms.

Resilience

Kubernetes is designed as a declarative state machine. Controllers are reconciliation loops that watch the state of your cluster, then make or request changes where needed. The goal is to move the current cluster state closer to the desired state.

Scalability

Enterprises run applications at scale. Just imagine how many software components retailers like Amazon, Walmart, or Target need to operate to run their businesses. Kubernetes can scale the number of Pods based on demand or automatically according to resource consumption or historical trends.

API based

Kubernetes exposes its functionality through APIs. We learned that every client needs to interact with the API server to manage objects. It is easy to implement a new client that can make RESTful API calls to exposed endpoints.

Extensibility

The API aspect stretches even further. Sometimes, the core functionality of Kubernetes doesn’t fulfill your custom needs, but you can implement your own extensions to Kubernetes. With the help of specific extension points, the Kubernetes community can build custom functionality according to their requirements, e.g., monitoring or logging solutions.

Summary

Kubernetes is software for managing containerized applications at scale. Every Kubernetes cluster consists of at least a single control plane node and a worker node. The control plane node is responsible for scheduling the workload and acts as the single entrypoint to manage its functionality. Worker nodes handle the workload assigned to them by the control plane node.

Kubernetes is a production-ready runtime environment for companies wanting to operate microservice architectures while also supporting nonfunctional requirements like scalability, security, load balancing, and extensibility.

The next chapter will explain how to interact with a Kubernetes cluster using the command-line tool kubectl. You will learn how run it to manage objects, an essential skill for acing the exam.

Chapter 3. Interacting with Kubernetes

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 3rd chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

As an application developer, you will want to interact with the Kubernetes cluster to manage objects that operate your application. Every call to the cluster is accepted and processed by the API server component. There are various ways to perform a call to the API server. For example, you can use a web-based dashboard, a command-line tool like kubectl, or a direct HTTPS request to the RESTful API endpoints.

The exam does not test the use of a visual user interface for interacting with the Kubernetes cluster. Your only client for solving exam questions is kubectl. This chapter will touch on the Kubernetes API primitives and objects, as well as the different ways to manage objects with kubectl.

API Primitives and Objects

Kubernetes primitives are the basic building blocks anchored in the Kubernetes architecture for creating and operating an application on the platform. Even as a beginner to Kubernetes, you might have heard of the terms Pod, Deployment, and Service, all of which are Kubernetes primitives. There are many more that serve a dedicated purpose in the Kubernetes architecture.

To draw an analogy, think back to the concepts of object-oriented programming. In object-oriented programming languages, a class defines the blueprint of a real-world functionality: its properties and behavior. A Kubernetes primitive is the equivalent of a class. The instance of a class in object-oriented programming is an object, managing its own state and having the ability to communicate with other parts of the system. Whenever you create a Kubernetes object, you produce such an instance.

For example, a Pod in Kubernetes is the class of which there can be many instances with their own identity. Every Kubernetes object has a system-generated unique identifier (also known as UID) to clearly distinguish between the entities of a system. Later, we’ll look at the properties of a Kubernetes object. Figure 3-1 illustrates the relationship between a Kubernetes primitive and an object.

kubernetes object identity

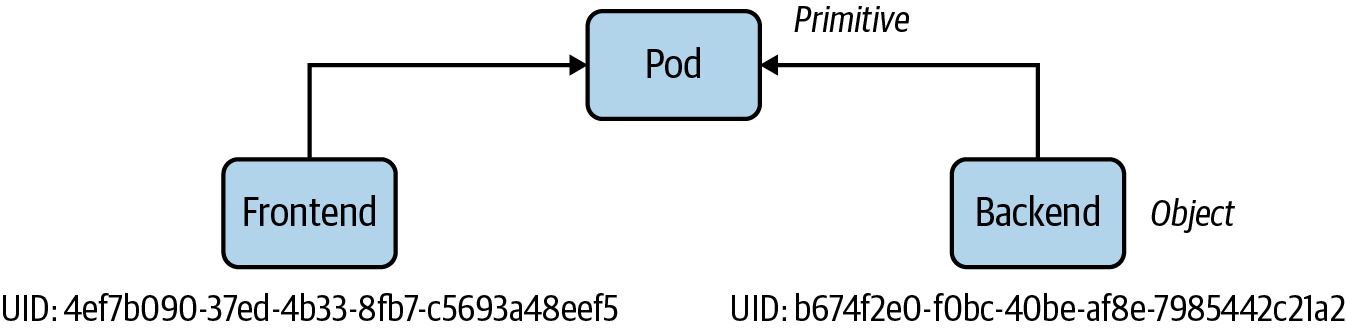

Figure 3-1. Kubernetes object identity

Every Kubernetes primitive follows a general structure, which you can observe if you look deeper at a manifest of an object, as shown in Figure 3-2. The primary markup language used for a Kubernetes manifest is YAML.

kubernetes object structure
Figure 3-2. Kubernetes object structure

Let’s look at each section and its relevance within the Kubernetes system:

API version

The Kubernetes API version defines the structure of a primitive and uses it to validate the correctness of the data. The API version serves a similar purpose as XML schemas to an XML document or JSON schemas to a JSON document. The version usually undergoes a maturity process—for example, from alpha to beta to final. Sometimes you see different prefixes separated by a slash (apps). You can list the API versions compatible with your cluster version by running the command kubectl api-versions.

Kind

The kind defines the type of primitive—e.g., a Pod or a Service. It ultimately answers the question, “What kinds of resource are we dealing with here?”

Metadata

Metadata describes higher-level information about the object—e.g., its name, what namespace it lives in, or whether it defines labels and annotations. This section also defines the UID.

Spec

The specification (spec for short) declares the desired state—e.g., how should this object look after it has been created? Which image should run in the container, or which environment variables should be set?

Status

The status describes the actual state of an object. The Kubernetes controllers and their reconciliation loops constantly try to transition a Kubernetes object from the desired state into the actual state. The object has not yet been materialized if the YAML status shows the value {}.

With this basic structure in mind, let’s look at how to create a Kubernetes object with the help of kubectl.

Using kubectl

kubectl is the primary tool for interacting with the Kubernetes clusters from the command line. The exam is exclusively focused on the use of kubectl. Therefore, it’s paramount to understand its ins and outs and practice its use heavily.

This section provides you with a brief overview of its typical usage pattern. Let’s start by looking at the syntax for running commands. A kubectl execution consists of a command, a resource type, a resource name, and optional command line flags:

$ kubectl [command] [TYPE] [NAME] [flags]

The command specifies the operation you’re planning to run. Typical commands are verbs like create, get, describe, or delete. Next, you’ll need to provide the resource type you’re working on, either as a full resource type or its short form. For example, you could work on a service here or use the short form, svc.

The name of the resource identifies the user-facing object identifier, effectively the value of metadata.name in the YAML representation. Be aware that the object name is not the same as the UID. The UID is an autogenerated, Kubernetes-internal object reference that you usually don’t have to interact with. The name of an object has to be unique across all objects of the same resource type within a namespace.

Finally, you can provide zero to many command line flags to describe additional configuration behavior. A typical example of a command-line flag is the --port flag, which exposes a Pod’s container port.

Figure 3-3 shows a full kubectl command in action.

kubectl usage pattern
Figure 3-3. Kubectl usage pattern

Over the course of this book, we’ll explore the kubectl commands that will make you the most productive during the exam. There are many more, however, and they usually go beyond the ones you’d use on a day-to-day basis as an application developer. Next up, we’ll have a deeper look at the create command, the imperative way to create a Kubernetes object. We’ll also compare the imperative object creation approach with the declarative approach.

Managing Objects

You can create objects in a Kubernetes cluster in two ways: imperatively or declaratively. The following sections describe each approach, including their benefits, drawbacks, and use cases.

Imperative Object Management

Imperative object management does not require a manifest definition. You’ll use kubectl to drive the creation, modification, and deletion of objects with a single command and one or many command-line options. See the Kubernetes documentation for a more detailed description of imperative object management.

Creating objects

Use the run or create command to create an object on the fly. Any configuration needed at runtime is provided by command-line options. The benefit of this approach is the fast turnaround time without the need to wrestle with YAML structures. The following run command creates a Pod named frontend that executes the container image nginx:1.24.0 in a container with the exposed port 80:

$ kubectl run frontend --image=nginx:1.24.0 --port=80
pod/frontend created

Updating objects

The configuration of live objects can still be modified. kubectl supports this use case by providing the edit or patch command.

The edit command opens an editor with the raw configuration of the live object. Changes to the configuration will be applied to the live object after exiting the editor. The command will open the editor defined by the KUBE_EDITOR, or EDITOR environment variables, or fall back to vi for Linux or notepad for Windows. This command demonstrates the use of the edit command for the Pod live object named frontend:

$ kubectl edit pod frontend

The patch command allows for fine-grained modification of a live object on an attribute level using a JSON merge patch. The following example illustrates the use of patch command to update the container image tag assigned to the Pod created earlier. The -p flag defines the JSON structure used to modify the live object:

$ kubectl patch pod frontend -p '{"spec":{"containers":[{"name":"frontend",\
"image":"nginx:1.25.1"}]}}'
pod/frontend patched

Deleting objects

You can delete a Kubernetes object at any time. During the exam, the need may arise if you made a mistake while solving a problem and want to start from scratch to ensure a clean slate. In a production Kubernetes environment, you’ll want to delete objects that are no longer needed. The following delete command deletes the Pod object by its name frontend:

$ kubectl delete pod frontend
pod "frontend" deleted

Upon execution of the delete command, Kubernetes tries to delete the targeted object gracefully so that there’s minimal impact on the end user. If the object cannot be deleted within the default grace period (30 seconds), the kubelet attempts to forcefully kill the object.

During the exam, end user impact is not a concern. The most important goal is to complete all tasks in the time granted to the candidate. Therefore, waiting on an object to be deleted gracefully is a waste of time. You can force an immediate deletion of an object with the command-line option with the --now option. The following command kills the Pod named nginx using a SIGKILL signal:

$ kubectl delete pod nginx --now

Declarative Object Management

Declarative object management requires one or several manifests in the format of YAML or JSON describing the desired state of an object. You create, update, and delete objects using this approach.

The benefit of using the declarative method is reproducibility and improved maintenance, as the file is checked into version control in most cases. The declarative approach is the recommended way to create objects in production environments.

More information on declarative object management can be found in the Kubernetes documentation.

Creating objects

The declarative approach creates objects from a manifest (in most cases, a YAML file) using the apply command. The command works by pointing to a file, a directory of files, or a file referenced by an HTTP(S) URL using the -f option. If one or more of the objects already exist, the command will synchronize the changes made to the configuration with the live object.

To demonstrate the functionality, we’ll assume the following directories and configuration files. The following commands create objects from a single file, from all files within a directory, and from all files in a directory recursively. Refer to files in the book’s GitHub repository if you want to give it a try. Later chapters will explain the purpose of the primitives used here:

.
├── app-stack
│   ├── mysql-pod.yaml
│   ├── mysql-service.yaml
│   ├── web-app-pod.yaml
│   └── web-app-service.yaml
├── nginx-deployment.yaml
└── web-app
    ├── config
    │   ├── db-configmap.yaml
    │   └── db-secret.yaml
    └── web-app-pod.yaml

Creating an object from a single file:

$ kubectl apply -f nginx-deployment.yaml
deployment.apps/nginx-deployment created

Creating objects from multiple files within a directory:

$ kubectl apply -f app-stack/
pod/mysql-db created
service/mysql-service created
pod/web-app created
service/web-app-service created

Creating objects from a recursive directory tree containing files:

$ kubectl apply -f web-app/ -R
configmap/db-config configured
secret/db-creds created
pod/web-app created

Creating objects from a file referenced by an HTTP(S) URL:

$ kubectl apply -f https://raw.githubusercontent.com/bmuschko/\
cka-study-guide/master/ch03/object-management/nginx-deployment.yaml
deployment.apps/nginx-deployment created

The apply command keeps track of the changes by adding or modifying the annotation with the key kubectl.kubernetes.io/last-applied-configuration. Here’s an example of the annotation in the output of the get pod command:

$ kubectl get pod web-app -o yaml
apiVersion: v1
kind: Pod
metadata:
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"v1","kind":"Pod","metadata":{"annotations":{}, \
      "labels":{"app":"web-app"},"name":"web-app","namespace":"default"}, \
      "spec":{"containers":[{"envFrom":[{"configMapRef":{"name":"db-config"}}, \
      {"secretRef":{"name":"db-creds"}}],"image":"bmuschko/web-app:1.0.1", \
      "name":"web-app","ports":[{"containerPort":3000,"protocol":"TCP"}]}], \
      "restartPolicy":"Always"}}
...

Updating objects

Updating an existing object is done with the same apply command. All you need to do is to change the configuration file and then run the command against it. Example 3-1 modifies the existing configuration of a Deployment in the file nginx-deployment.yaml. I added a new label with the key team and changed the number of replicas from 3 to 5.

Example 3-1. Modified configuration file for a Deployment
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment
  labels:
    app: nginx
    team: red
spec:
  replicas: 5
...

The following command applies the changed configuration file. As a result, the number of Pods controlled by the underlying ReplicaSet is 5:

$ kubectl apply -f nginx-deployment.yaml
deployment.apps/nginx-deployment configured

The Deployment’s kubectl.kubernetes.io/last-applied-configuration annotation reflects the latest change to the configuration:

$ kubectl get deployment nginx-deployment -o yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"apps/v1","kind":"Deployment","metadata":{"annotations":{}, \
      "labels":{"app":"nginx","team":"red"},"name":"nginx-deployment", \
      "namespace":"default"},"spec":{"replicas":5,"selector":{"matchLabels": \
      {"app":"nginx"}},"template":{"metadata":{"labels":{"app":"nginx"}}, \
      "spec":{"containers":[{"image":"nginx:1.14.2","name":"nginx", \
      "ports":[{"containerPort":80}]}]}}}}
...

Deleting objects

While you can delete objects using the apply command by providing the options --prune -l <labels>, it is recommended to delete an object using the delete command and point it to the configuration file. The following command deletes a Deployment and the objects it controls (ReplicaSet and Pods):

$ kubectl delete -f nginx-deployment.yaml
deployment.apps "nginx-deployment" deleted

You can use the --now option to forcefully delete Pods, as described in “Deleting objects”.

Hybrid Approach

Sometimes you may want to go with a hybrid approach. You can start by using the imperative method to produce a manifest file without actually creating an object. You do so by executing the run or create command with the command-line options -o yaml and --dry-run=client:

$ kubectl run frontend --image=nginx:1.25.1 --port=80 \
  -o yaml --dry-run=client > pod.yaml

You can now use the generate YAML manifest as a starting point to make further modifications before creating the object. Simply open the file with an editor, change the content, and execute the declarative apply command:

$ vim pod.yaml
$ kubectl apply -f pod.yaml
pod/frontend created

Which Approach to Use?

During the exam, using imperative commands is the most efficient and quickest way to manage objects. Not all configuration options are exposed through command-line flags, which may force you into using the declarative approach. The hybrid approach can help here.

GitOps and Kubernetes

GitOps is a practice that leverages source code checked into Git repositories to automate infrastructure management, specifically in cloud-native environments powered by Kubernetes. Tools such as Argo CD and Flux implement GitOps principles to deploy applications to Kubernetes through a declarative approach. Teams responsible for overseeing real-world Kubernetes clusters and the applications within them are highly likely to adopt the declarative approach.

While creating objects imperatively can optimize the turnaround time, in a real-world Kubernetes environment you’ll most certainly want to use the declarative approach. A YAML manifest file represents the ultimate source of truth of a Kubernetes object. Version-controlled files can be audited and shared, and they store a history of changes in case you need to revert to a previous revision.

Summary

Kubernetes represents its functionality for deploying and operating a cloud-native application with the help of primitives. Each primitive follows a general structure: the API version, the kind, the metadata, and the desired state of the resources, also called the spec. Upon creation or modification of the object, the Kubernetes scheduler automatically tries to ensure that the actual state of the object follows the defined specification. Every live object can be inspected, edited, and deleted.

Kubectl acts as a CLI-based client to interact with the Kubernetes cluster. You can use its commands and flags to manage Kubernetes objects. The imperative approach provides a fast turnaround time for managing objects with a single command, as long as you memorize the available flags. More complex configuration calls for the use of a YAML manifest to define a primitive. Use the declarative command to instantiate objects from that definition. The YAML manifest is usually checked into version control and offers a way to track changes to the configuration.

Part II. Cluster Architecture, Installation and Configuration

This domain explains the concepts you’d expect every Kubernetes administrator to be familiar with: the installation, maintenance, and configuration of the cluster. We’ll discuss the processes, tools, and Kubernetes primitives and concepts involved by example.

The following chapters cover these concepts:

  • Chapter 4 expands on the discussion of architectural aspects applicable to a Kubernetes cluster. The content then provides an overview on the installation and update process for a Kubernetes cluster using kubeadm.

  • Chapter 5 focuses on a specific aspect of cluster maintenance: ensuring the data stored in etcd is backed up periodically and can be restored in case of a disaster that makes the data unreadable.

  • Chapter 6 first sets the stage on explaining the processing phases every API request has to go through before being handled. The chapter will then primarily concentrate on the authorization phase by explaining Role-Based Access Control (RBAC).

  • Chapter 7 touches on the Operator pattern, a concept used to extend the core functionality of the Kubernetes functionality. You will learn how to inspect and interact with existing Custom Resource Definitions (CRDs) as a schema for instantiating objects to implement custom requirements not natively covered by Kubernetes.

  • Chapter 8 discusses the use of the open source tools Helm and Kustomize for deploying more complex application stacks or cluster components.

Chapter 4. Cluster Installation and Upgrade

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 4th chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

The first domain of the curriculum refers to typical tasks you’d expect of a Kubernetes administrator. Those tasks include understanding the architectural components of a Kubernetes cluster, setting up a cluster from scratch, and maintaining a cluster going forward. At the end of this chapter, you will understand the tools and procedures for installing and maintaining a Kubernetes cluster.

Coverage of Curriculum Objectives

This chapter addresses the following curriculum objective:

  • Prepare underlying infrastructure for installing a Kubernetes cluster

  • Understand extension interfaces (CNI, CSI, CRI, etc.)

  • Create and manage Kubernetes clusters using kubeadm

  • Manage the lifecycle of Kubernetes clusters

  • Implement and configure a highly-available control plane

Provisioning the Infrastructure

The infrastructure required by Kubernetes cluster nodes consist of servers, networks, and the storage. Provisioning of the infrastructure is done by configuring those resources on-premises or in the cloud, optimally in an automated fashion. That’s the purpose of infrastructure automation tools like Ansible and Terraform.

Even though “provisioning the infrastructure” has been mentioned in the curriculum exam, a detailed discussion of this topic would go beyond the scope of this book and isn’t directly related to Kubernetes. If you are more interested in the topic, have a look at the book Infrastructure as Code, 3rd Edition by Kief Morris (O’Reilly Media 2025).

Understanding Extension Interfaces

Chapter 2 laid the foundation for understanding the Kubernetes architecture, node types, and their cluster components. Kubernetes’ architecture has been designed to be flexible, modular, and extensible so that the core functionality of the platform can be expanded. You can extend the cluster using so-called extensions. Extensions are components that can be plugged into the platform to support custom functionality not native to Kubernetes. Those plugins usually include functions like network plugins, device plugins, and storage plugins.

This section talks about critical interfaces that you will need to understand as a Kubernetes administator:

  • Container Network Interface (CNI)

  • Container Runtime Interface (CRI)

  • Container Storage Interface (CSI)

Container Network Interface (CNI)

The CNI is a specification and the corresponding libraries for writing plugins to configure network interfaces in Linux containers. In Kubernetes, the CNI is responsible for establishing network connections between Pods running in the cluster. You will need to install a CNI plugin in the control plane node(s) for them to function properly. “Installing a Pod Network Add-on” demonstrates the installation process of a CNI.

Container Runtime Interface (CRI)

The container runtime is responsible for managing the lifecycle of containers and ensuring that containers receive the resources they requested. Kubernetes uses containerd as its default container runtime, however, you can swap it out with a different container runtime if needed. The CRI is an API facilitating the interaction between Kubernetes and different container runtimes.

Container Storage Interface (CSI)

Despite the fact that Kubernetes provides a Volume plugin system, it was hard to integrate third-party storage solutions. In response, CSI was developed to as a standard to implement plugins for integrating arbitrary block and file storage systems to containerized workloads.

Using kubeadm

The low-level command-line tool for performing cluster bootstrapping operations is called kubeadm. It is not meant for provisioning the underlying infrastructure.

To install kubeadm, follow the installation instructions in the official Kubernetes documentation. While not explicitly stated in the CKA frequently asked questions (FAQ) page, you can assume that the kubeadm executable has been preinstalled for you.

The following sections describe the processes for creating and managing a Kubernetes cluster on a high level and will use kubeadm heavily. For more detailed information, see the step-by-step Kubernetes reference documentation I will point out for each of the tasks.

Installing a Cluster

The most basic topology of a Kubernetes cluster consists of a single node that acts as the control plane and the worker node at the same time. By default, many developer-centric Kubernetes installations like minikube or Docker Desktop start with this configuration. While a single-node cluster may be a good option for a Kubernetes playground, it is not a good foundation for scalability and high-availability reasons. At the very least, you will want to create a cluster with a single control plane and one or many nodes handling the workload.

This section explains how to install a cluster with a single control plane and one worker node. You can repeat the worker node installation process to add more worker nodes to the cluster. You can find a full description of the installation steps in the official Kubernetes documentation. Figure 4-1 illustrates the installation process.

cluster installation process

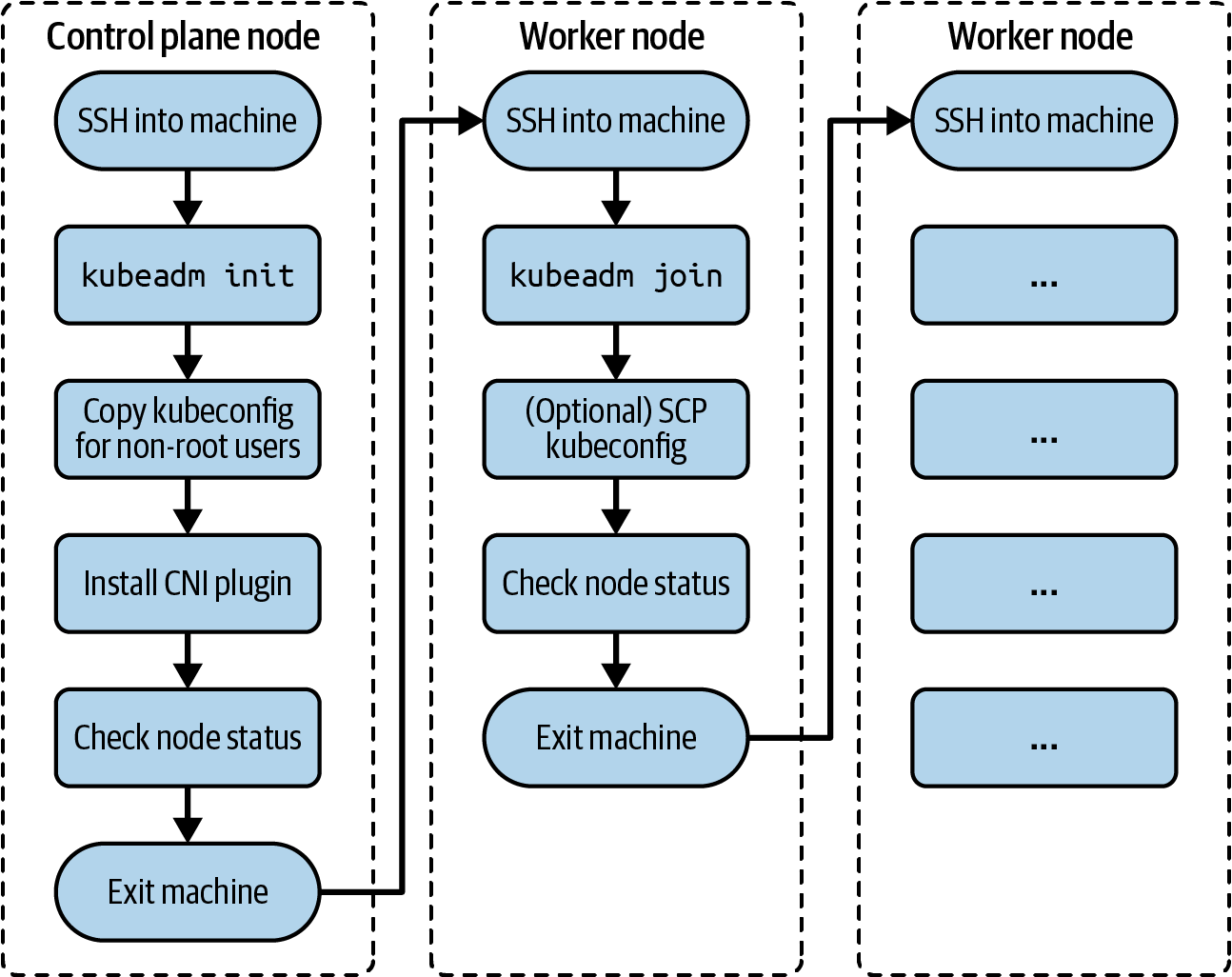

Figure 4-1. Process for a cluster installation process

Initializing the Control Plane Node

Start by initializing the control plane on the control plane node. The control plane is the machine responsible for hosting the API server, etcd, and other components important to managing the Kubernetes cluster.

Open an interactive shell to the control plane node using the ssh command. The following command targets the control plane node named kube-control-plane running Ubuntu 24.10:

$ ssh kube-control-plane
Welcome to Ubuntu 24.10 (GNU/Linux 6.11.0-8-generic aarch64)
...

Initialize the control plane using the kubeadm init command. You will need to add the following two command-line options: provide the IP addresses for the Pod network with the option --pod-network-cidr. With the option --apiserver-advertise-address, you can declare the IP address the API Server will advertise to listen on.

By default, kubeadm uses its own version to determine the control plane node’s version. For example, if you use kubeadm version 1.31.1, then it will use version 1.31.1 for the initialized node. You can provide the desired Kubernetes version by providing the --kubernetes-version option, though it is recommended to use the kubeadm version you want to use for the nodes.

The console output renders a kubeadm join command. Keep that command around for later. It is important for joining worker nodes to the cluster in a later step.

Retrieving the join command for worker nodes

You can always retrieve the join command by running kubeadm token create --print-join-command on the control plane node should you lose it.

The following command uses 10.244.0.0/16 for the Classless Inter-Domain Routing (CIDR):

$ sudo kubeadm init --pod-network-cidr=10.244.0.0/16
...
To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
  https://kubernetes.io/docs/concepts/cluster-administration/addons/

Then you can join any number of worker nodes by running the following on \
each as root:

kubeadm join 172.16.0.5:6443 --token fi8io0.dtkzsy9kws56dmsp \
    --discovery-token-ca-cert-hash \
    sha256:cc89ea1f82d5ec460e21b69476e0c052d691d0c52cce83fbd7e403559c1ebdac

After the init command has finished, run the necessary commands from the console output to start the cluster as nonroot user:

$ mkdir -p $HOME/.kube
$ sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
$ sudo chown $(id -u):$(id -g) $HOME/.kube/config

Installing a Pod Network Add-on

You must deploy a Container Network Interface (CNI) plugin so that Pods can communicate with each other. You can pick from a wide range of networking plugins listed in the Kubernetes documentation. Popular plugins include Flannel, Calico, and Cilium. Sometimes you will see the term add-ons in the documentation, which is synonymous with plugin.

The exam will most likely ask you to install a specific add-on. Most of the installation instructions live on external web pages which are not permitted to be used during the exam. Make sure that you search for the relevant instructions in the official Kubernetes documentation. For example, you can find the installation instructions for Flannel here.

Installing Flannel using kubectl

The following command installs the Flannel objects via the released YAML manifest:

$ kubectl apply -f https://github.com/flannel-io/flannel/releases/latest/\
download/kube-flannel.yml
namespace/kube-flannel created
serviceaccount/flannel created
clusterrole.rbac.authorization.k8s.io/flannel created
clusterrolebinding.rbac.authorization.k8s.io/flannel created
configmap/kube-flannel-cfg created
daemonset.apps/kube-flannel-ds created

The YAML manifest hard-codes the Pod CIDR to the value 10.244.0.0/16. If you want to change that value, you’d have to download the YAML manifest first, edit the corresponding value, and then apply the manifest.

Installing Flannel using Helm

You may decide to install Flannel using Helm instead, either because you prefer the installation method or because you want to more conveniently provide a custom Pod CIDR. Helm offers the --set option to inject the custom value. The following command shows the use of Helm to install Flannel. Refer to “Working with Helm” to learn more about the use of Helm.

$ kubectl create ns kube-flannel
$ kubectl label --overwrite ns kube-flannel pod-security.kubernetes.io/\
enforce=privileged
$ helm repo add flannel https://flannel-io.github.io/flannel/
$ helm install flannel --set podCidr="10.244.0.0/16" --namespace kube-flannel \
  flannel/flannel
namespace/kube-flannel created
namespace/kube-flannel labeled
"flannel" has been added to your repositories
NAME: flannel
LAST DEPLOYED: Wed Jan 29 23:03:33 2025
NAMESPACE: kube-flannel
STATUS: deployed
REVISION: 1
TEST SUITE: None

Both installation methods, the YAML manifest and the Helm chart, create the Flannel Pod into the namespace kube-flannel. Wait until the Pod observes the “Running” status. You can check on the Pod’s details with the following command:

$ kubectl get pods -n kube-flannel
NAME                    READY   STATUS    RESTARTS   AGE
kube-flannel-ds-h6455   1/1     Running   0          25s

Verify that the control plane node indicates the “Ready” status using the command kubectl get nodes. It might take a couple of seconds before the node transitions from the “NotReady” status to the “Ready” status. You have an issue with your node installation if the status transition does not occur. Refer to Part VI for debugging strategies:

$ kubectl get nodes
NAME                 STATUS   ROLES           AGE     VERSION
kube-control-plane   Ready    control-plane   5m31s   v1.31.1

Exit the control plane node using the exit command:

$ exit
logout
...

Joining the Worker Nodes

Worker nodes are responsible for handling the workload scheduled by the control plane. Examples of workloads are Pods, Deployments, Jobs, and CronJobs. To add a worker node to the cluster so that it can be used, you will have to run a couple of commands, as described next.

Open an interactive shell to the worker node using the ssh command. The following command targets the worker node named kube-worker-1 running Ubuntu 24.10:

$ ssh kube-worker-1
Welcome to Ubuntu 24.10 (GNU/Linux 6.11.0-8-generic aarch64)
...

Run the kubeadm join command provided by the kubeadm init console output on the control plane node. The following command shows an example. Remember that the token and SHA256 hash will be different for you:

$ sudo kubeadm join 172.16.0.5:6443 --token fi8io0.dtkzsy9kws56dmsp \
  --discovery-token-ca-cert-hash \
  sha256:cc89ea1f82d5ec460e21b69476e0c052d691d0c52cce83fbd7e403559c1ebdac
[preflight] Running pre-flight checks
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with \
'kubectl -n kube-system get cm kubeadm-config -o yaml'
[kubelet-start] Writing kubelet configuration to file \
"/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with \
flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Starting the kubelet
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...

This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.

Run 'kubectl get nodes' on the control plane to see this node join the cluster.

You won’t be able to run the kubectl get nodes command from the worker node without copying the administrator kubeconfig file from the control plane node. Follow the instructions in the Kubernetes documentation to do so or log back into the control plane node. Here, we are just going to log back into the control plane node. You should see that the worker node has joined the cluster and is in a “Ready” status:

$ ssh kube-control-plane
Welcome to Ubuntu 24.10 (GNU/Linux 6.11.0-8-generic aarch64)
...
$ kubectl get nodes
NAME                 STATUS   ROLES           AGE     VERSION
kube-control-plane   Ready    control-plane   2m14s   v1.31.1
kube-worker-1        Ready    <none>          6m43s   v1.31.1

You can repeat the process for any other worker node you want to add to the cluster.

Managing a Highly Available Cluster

Single control plane clusters are easy to install; however, they present an issue when the node is lost. Once the control plane node becomes unavailable, any ReplicaSet running on a worker node cannot re-create a Pod due to the inability to talk back to the scheduler running on a control plane node. Moreover, clusters cannot be accessed externally anymore (e.g., via kubectl), as the API server cannot be reached.

High-availability (HA) clusters help with scalability and redundancy. For the exam, you will need to have a basic understanding about configuring them and their implications. Given the complexity of standing up an HA cluster, it’s unlikely that you’ll be asked to perform the steps during the exam. For a full discussion on setting up HA clusters, see the relevant page in the Kubernetes documentation.

Stacked etcd Topology

The stacked etcd topology involves creating two or more control plane nodes where etcd is colocated on the node. Figure 4-2 shows a representation of the topology with three control plane nodes.

stacked etcd topology
Figure 4-2. Stacked etcd topology with three control plane nodes

Each of the control plane nodes hosts the API server, the scheduler, and the controller manager. Worker nodes communicate with the API server through a load balancer. It is recommended to operate this cluster topology with a minimum of three control plane nodes for redundancy reasons due to the tight coupling of etcd to the control plane node. By default, kubeadm will create an etcd instance when joining a control plane node to the cluster.

External etcd Node Topology

The external etcd node topology separates etcd from the control plane node by running it on a dedicated machine. Figure 4-3 shows a setup with three control plane nodes, each of which runs etcd on a different machine.

external etcd node topology

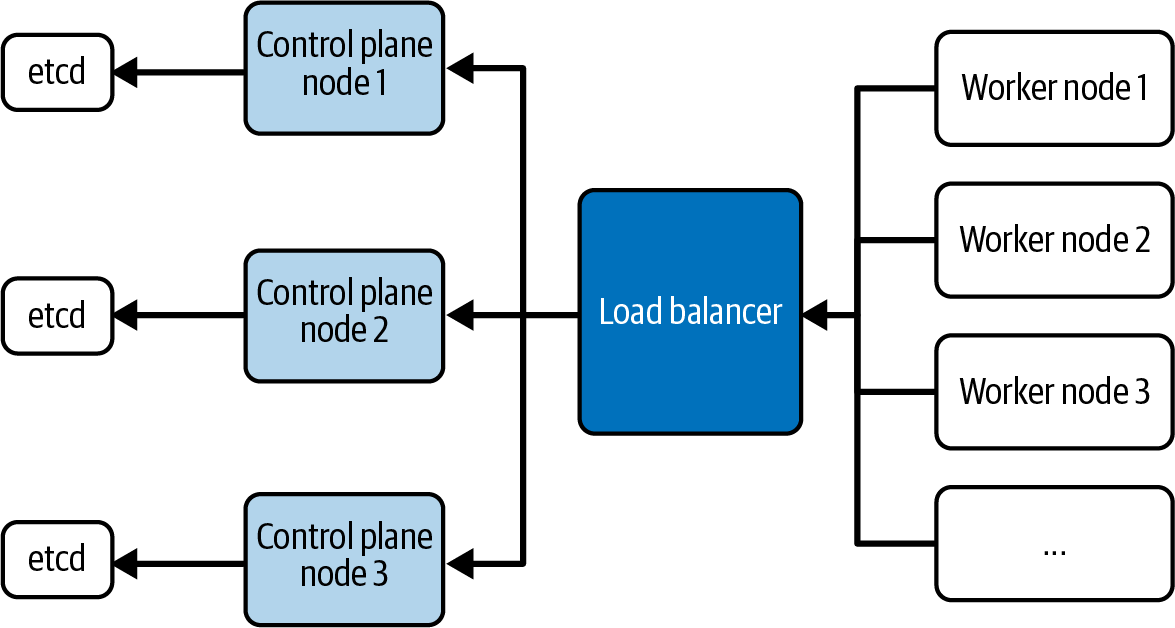

Figure 4-3. External etcd node topology

Similar to the stacked etcd topology, each control plane node hosts the API server, the scheduler, and the controller manager. The worker nodes communicate with them through a load balancer. The main difference here is that the etcd instances run on a separate host. This topology decouples etcd from other control plane functionality and therefore has less of an impact on redundancy when a control plane node is lost. As you can see in the illustration, this topology requires twice as many hosts as the stacked etcd topology.

Upgrading a Cluster Version

Over time, you will want to upgrade the Kubernetes version of an existing cluster to pick up bug fixes and new features. The upgrade process has to be performed in a controlled manner to avoid the disruption of workload currently in execution and to prevent the corruption of cluster nodes.

It is recommended to upgrade from a minor version to a next higher one (e.g., from 1.18.0 to 1.19.0), or from a patch version to a higher one (e.g., from 1.18.0 to 1.18.3). Abstain from jumping up multiple minor versions to avoid unexpected side effects. You can find a full description of the upgrade steps in the official Kubernetes documentation. Figure 4-4 illustrates the upgrade process.

cluster version upgrade
Figure 4-4. Process for a cluster version upgrade

Upgrading control plane nodes

As explained earlier, a Kubernetes cluster may employ one or many control plane nodes to better support high-availability and scalability concerns. When upgrading a cluster version, this change needs to happen for control plane nodes one at a time.

Pick one of the control plane nodes that contains the kubeconfig file (located at /etc/kubernetes/admin.conf), and open an interactive shell to the control plane node using the ssh command. The following command targets the control plane node named kube-control-plane running Ubuntu 24.10:

$ ssh kube-control-plane
Welcome to Ubuntu 24.10 (GNU/Linux 6.11.0-8-generic aarch64)
...

First, check the nodes and their Kubernetes versions. In this setup, all nodes run on version 1.31.1. We are dealing with only a single control plane node and a single worker node:

$ kubectl get nodes
NAME                 STATUS   ROLES           AGE     VERSION
kube-control-plane   Ready    control-plane   4m54s   v1.31.1
kube-worker-1        Ready    <none>          3m18s   v1.31.1

Start by upgrading the kubeadm version. Identify the version you’d like to upgrade to. On Ubuntu machines, you can use the following apt-get command. The version format usually includes a patch version (e.g., 1.20.7-00). Check the Kubernetes documentation if your machine is running a different operating system:

$ sudo apt update
...
$ sudo apt-cache madison kubeadm
   kubeadm | 1.31.5-1.1 | https://pkgs.k8s.io/core:/stable:/v1.31/deb  Packages
   kubeadm | 1.31.4-1.1 | https://pkgs.k8s.io/core:/stable:/v1.31/deb  Packages
   kubeadm | 1.31.3-1.1 | https://pkgs.k8s.io/core:/stable:/v1.31/deb  Packages
   kubeadm | 1.31.2-1.1 | https://pkgs.k8s.io/core:/stable:/v1.31/deb  Packages
   kubeadm | 1.31.1-1.1 | https://pkgs.k8s.io/core:/stable:/v1.31/deb  Packages
   kubeadm | 1.31.0-1.1 | https://pkgs.k8s.io/core:/stable:/v1.31/deb  Packages

Upgrade kubeadm to a target version. Say you’d want to upgrade to version 1.31.5-1.1. The following series of commands installs kubeadm with that specific version and checks the currently installed version to verify:

$ sudo apt-mark unhold kubeadm && sudo apt-get update && sudo apt-get install \
  -y kubeadm=1.31.5-1.1 && sudo apt-mark hold kubeadm
Canceled hold on kubeadm.
...
Unpacking kubeadm (1.31.5-1.1) over (1.31.1-1.1) ...
Setting up kubeadm (1.31.5-1.1) ...
kubeadm set on hold.
$ sudo apt-get update && sudo apt-get install -y --allow-change-held-packages \
  kubeadm=1.31.5-1.1
...
kubeadm is already the newest version (1.31.5-1.1).
0 upgraded, 0 newly installed, 0 to remove and 94 not upgraded.
$ kubeadm version
kubeadm version: &version.Info{Major:"1", Minor:"31", GitVersion:"v1.31.5", \
GitCommit:"af64d838aacd9173317b39cf273741816bd82377", GitTreeState:"clean", \
BuildDate:"2025-01-15T14:39:21Z", GoVersion:"go1.22.10", Compiler:"gc", \
Platform:"linux/arm64"}

Check which versions are available to upgrade to and validate whether your current cluster is upgradable. You can see in the output of the following command that we could upgrade to version 1.31.5:

$ sudo kubeadm upgrade plan
...
[upgrade] Fetching available versions to upgrade to
[upgrade/versions] Cluster version: 1.31.5
[upgrade/versions] kubeadm version: v1.31.5
I0130 22:26:53.887541   13574 version.go:261] remote version is \
much newer: v1.32.1; falling back to: stable-1.31
[upgrade/versions] Target version: v1.31.5
[upgrade/versions] Latest version in the v1.31 series: v1.31.

As described in the console output, we’ll start the upgrade for the control plane. The process may take a couple of minutes. You may have to upgrade the CNI plugin as well. Follow the provider instructions for more information:

$ sudo kubeadm upgrade apply v1.31.5
...
[upgrade/version] You have chosen to change the cluster version to "v1.31.5"
[upgrade/versions] Cluster version: v1.31.5
[upgrade/versions] kubeadm version: v1.31.5
...
[upgrade/successful] SUCCESS! Your cluster was upgraded to "v1.31.5". Enjoy!

[upgrade/kubelet] Now that your control plane is upgraded, please proceed \
with upgrading your kubelets if you haven't already done so.

Drain the control plane node by evicting the workload. Any new workload won’t be schedulable on the node until uncordoned:

$ kubectl drain kube-control-plane --ignore-daemonsets
node/kube-control-plane cordoned
WARNING: ignoring DaemonSet-managed Pods: kube-system/calico-node-qndb9, \
kube-system/kube-proxy-vpvms
evicting pod kube-system/calico-kube-controllers-65f8bc95db-krp72
evicting pod kube-system/coredns-f9fd979d6-2brkq
pod/calico-kube-controllers-65f8bc95db-krp72 evicted
pod/coredns-f9fd979d6-2brkq evicted
node/kube-control-plane evicted

Upgrade the kubelet and the kubectl tool to the same version:

$ sudo apt-mark unhold kubelet kubectl && sudo apt-get update && sudo \
  apt-get install -y kubelet=1.31.5-1.1 kubectl=1.31.5-1.1 && sudo apt-mark \
  hold kubelet kubectl
...
Setting up kubelet (1.31.5-1.1) ...
Setting up kubectl (1.31.5-1.1) ...
kubelet set on hold.
kubectl set on hold.

Restart the kubelet process:

$ sudo systemctl daemon-reload
$ sudo systemctl restart kubelet

Reenable the control plane node back so that the new workload can become schedulable:

$ kubectl uncordon kube-control-plane
node/kube-control-plane uncordoned

The control plane nodes should now show the usage of Kubernetes 1.31.5:

$ kubectl get nodes
NAME                 STATUS   ROLES           AGE   VERSION
kube-control-plane   Ready    control-plane   21h   v1.31.5
kube-worker-1        Ready    <none>          21h   v1.31.1

Exit the control plane node using the exit command:

$ exit
logout
...

Upgrading worker nodes

Pick one of the worker nodes and open an interactive shell to the node using the ssh command. The following command targets the worker node named kube-worker-1 running Ubuntu 24.10:

$ ssh kube-worker-1
Welcome to Ubuntu 24.10 (GNU/Linux 6.11.0-8-generic aarch64)
...

Upgrade kubeadm to a target version. This is the same command you used for the control plane node, as explained earlier:

$ sudo apt-mark unhold kubeadm && sudo apt-get update && sudo apt-get install \
  -y kubeadm=1.31.5-1.1 && sudo apt-mark hold kubeadm
Canceled hold on kubeadm.
...
Unpacking kubeadm (1.31.5-1.1) over (1.31.1-1.1) ...
Setting up kubeadm (1.31.5-1.1) ...
kubeadm set on hold.
$ kubeadm version
kubeadm version: &version.Info{Major:"1", Minor:"31", GitVersion:"v1.31.5", \
GitCommit:"af64d838aacd9173317b39cf273741816bd82377", GitTreeState:"clean", \
BuildDate:"2025-01-15T14:39:21Z", GoVersion:"go1.22.10", Compiler:"gc", \
Platform:"linux/arm64"}

Upgrade the kubelet configuration:

$ sudo kubeadm upgrade node
[upgrade] Reading configuration from the cluster...
[upgrade] FYI: You can look at this config file with \
'kubectl -n kube-system get cm kubeadm-config -o yaml'
[preflight] Running pre-flight checks
[preflight] Skipping prepull. Not a control plane node.
[upgrade] Skipping phase. Not a control plane node.
[upgrade] Skipping phase. Not a control plane node.
[upgrade] Backing up kubelet config file to \
/etc/kubernetes/tmp/kubeadm-kubelet-config3058962439/config.yaml
[kubelet-start] Writing kubelet configuration to file \
"/var/lib/kubelet/config.yaml"
[upgrade] The configuration for this node was successfully updated!
[upgrade] Now you should go ahead and upgrade the kubelet package \
using your package manager.

Drain the worker node by evicting the workload. Any new workload won’t be schedulable on the node until uncordoned:

$ kubectl drain kube-worker-1 --ignore-daemonsets
node/kube-worker-1 cordoned
WARNING: ignoring DaemonSet-managed Pods: kube-system/calico-node-2hrxg, \
kube-system/kube-proxy-qf6nl
evicting pod kube-system/calico-kube-controllers-65f8bc95db-kggbr
evicting pod kube-system/coredns-f9fd979d6-7zm4q
evicting pod kube-system/coredns-f9fd979d6-tlmhq
pod/calico-kube-controllers-65f8bc95db-kggbr evicted
pod/coredns-f9fd979d6-7zm4q evicted
pod/coredns-f9fd979d6-tlmhq evicted
node/kube-worker-1 evicted

Upgrade the kubelet and the kubectl tool with the same command used for the control plane node:

$ sudo apt-mark unhold kubelet kubectl && sudo apt-get update && sudo apt-get \
  install -y kubelet=1.31.5-1.1 kubectl=1.31.5-1.1 && sudo apt-mark hold kubelet \
  kubectl
...
Setting up kubelet (1.31.5-1.1) ...
Setting up kubectl (1.31.5-1.1) ...
kubelet set on hold.
kubectl set on hold.

Restart the kubelet process:

$ sudo systemctl daemon-reload
$ sudo systemctl restart kubelet

Reenable the worker node so that the new workload can become schedulable:

$ kubectl uncordon kube-worker-1
node/kube-worker-1 uncordoned

Listing the nodes should now show version 1.31.5 for the worker node. You won’t be able to run kubectl get nodes from the worker node without copying the administrator kubeconfig file from the control plane node. Follow the instructions in the Kubernetes documentation to do so or log back into the control plane node:

$ kubectl get nodes
NAME                 STATUS   ROLES           AGE   VERSION
kube-control-plane   Ready    control-plane   24h   v1.31.5
kube-worker-1        Ready    <none>          24h   v1.31.5

Exit the worker node using the exit command:

$ exit
logout
...

Summary

As a Kubernetes administrator, you need to be familiar with typical tasks involving the management of the cluster nodes. The primary tool for installing new nodes and upgrading a node version is kubeadm. The cluster topology of such a cluster can vary. For optimal results with redundancy and scalability, consider configuring the cluster with a high-availability setup that uses three or more control plane nodes and dedicated etcd hosts.

Exam Essentials

Understand why you need to provision infrastructure

Every cluster node needs to run on a physical or virtual machine. Provisioning the hardware is the job of an administrator, though you will not have to have hands-on experience for the exam. Explore the manual and automated approaches for provisioning hardware as you will need it for installing a cluster.

Know how to create a Kubernetes cluster from scratch

Installing new cluster nodes and upgrading the version of an existing cluster node are typical tasks performed by a Kubernetes administrator. You do not need to memorize all the steps involved. The documentation provides a step-by-step, easy-to-follow manual for those operations. During the exam, pull the relevant documentation and copy-paste the commands.

Practice the cluster upgrade process

The cluster upgrade process involves executing more commands than the installation process. It’s important to remember that you only jump up by a single minor version or multiple patch versions before tackling the next higher version. I’d suggest you open the upgrade documentation page and walk through the process a couple of times.

Have a theoretical understanding of high-availability cluster topologies

High-availability clusters help with redundancy and scalability. For the exam, you will need to understand the different HA topologies, though it’s unlikely that you’ll have to configure one of them as the process would involve a suite of different hosts.

Sample Exercises

Solutions to these exercises are available in Appendix A.

  1. Create a cluster with four nodes, one control plane node, and three worker nodes.

    Create a Pod named nginx that uses the container image nginx:1.27.4-alpine.

    Identify the node the Pod has been scheduled on.

    Evict all Pods from the node that runs the Pod at once. Do not use the kubectl delete pod command to perform the operation. Ensure that the Pod is not running anymore.

    Prerequisite: To create a cluster with 4 nodes using minikube, run the command minikube start --nodes 4.

  2. Navigate to the directory app-a/ch04/upgrade-cluster-version of the checked-out GitHub repository bmuschko/cka-study-guide.

    Start up the VMs running the cluster using the command vagrant up. The cluster consists of a single control plane node named kube-control-plane, and one worker node named kube-worker-1. Open an interactive shell into the control plane node and inspect the currently-used Kubernetes version by listing all the nodes.

    Upgrade all nodes of the cluster from Kubernetes 1.32.1 to 1.32.2.

    Once done, shut down the cluster using vagrant destroy -f.

    Prerequisite: This exercise requires the installation of the tools Vagrant and a VMware provider.

Chapter 5. Backing Up and Restoring etcd

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 5th chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

Kubernetes stores both the declared and observed states of the cluster in the distributed etcd key-value store. It’s important to have a backup plan in place that can help you with restoring the data in case of data corruption. Backing up the data should happen periodically in short time frames to avoid losing as little historical data as possible.

Coverage of Curriculum Objectives

This chapter addresses the following curriculum objective:

  • Manage the lifecycle of Kubernetes clusters

Using the etcd Adminstration Utilities

The backup process stores the ectd data in a so-called snapshot file. This snapshot file can be used to restore the etcd data at any given time. You can encrypt the snapshot file to protect sensitive information. The tool etcdctl is used to create a backup snapshot file. Restoring the etcd data from the snapshot file requires to the use of the tool etcdutl.

As an administrator, you will need to understand how to use the tools for both operations. You may need to install etcdctl and etcdutl if they are not available on the control plane node yet. You can find installation instructions in the etcd GitHub repository. Figure 5-1 visualizes the etcd backup and restoration process.

etcd backup restore process
Figure 5-1. Process for a backing up and restoring etcd

Depending on your cluster topology, your cluster may consist of one or many etcd instances. Refer to “Managing a Highly Available Cluster” for more information on how to set it up. The following sections explain a single-node etcd cluster setup. You can find additional instructions on the backup and restoration process for multinode etcd clusters in the official Kubernetes documentation.

Backing Up etcd

Open an interactive shell to the machine hosting etcd using the ssh command. The following command targets the control plane node named kube-control-plane running Ubuntu 24.04 LTS:

$ ssh kube-control-plane
Welcome to Ubuntu 24.04 LTS (GNU/Linux 6.8.0-51-generic x86_64)
...

Check the installed version of etcdctl to verify that the tool has been installed. On this node, the version is 3.5.15:

$ etcdctl version
etcdctl version: 3.5.15
API version: 3.5

Etcd is deployed as a Pod in the kube-system namespace. Inspect the version by describing the Pod. In the following output, you will find that the version is 3.5.15-0:

$ kubectl get pods -n kube-system
NAME                                       READY   STATUS    RESTARTS   AGE
...
etcd-kube-control-plane                    1/1     Running   0          33m
...
$ kubectl describe pod etcd-kube-control-plane -n kube-system
...
Containers:
  etcd:
    Container ID:  containerd://47a6cf3ed27d455be6c9b782d2e35ee77b429ee5c0b \
    3c6c3d6282628f6492b15
    Image:         registry.k8s.io/etcd:3.5.15-0
    Image ID:      registry.k8s.io/etcd@sha256:a6dc63e6e8cfa0307d7851762fa6 \
    b629afb18f28d8aa3fab5a6e91b4af60026a
...

The same describe command reveals the configuration of the etcd service. Look for the value of the option --listen-client-urls for the endpoint URL. In the following output, the host is localhost, and the port is 2379. The server certificate is located at /etc/kubernetes/pki/etcd/server.crt defined by the option --cert-file. The CA certificate can be found at /etc/kubernetes/pki/etcd/ca.crt specified by the option --trusted-ca-file:

$ kubectl describe pod etcd-kube-control-plane -n kube-system
...
Containers:
  etcd:
    ...
    Command:
      etcd
      ...
      --cert-file=/etc/kubernetes/pki/etcd/server.crt
      --key-file=/etc/kubernetes/pki/etcd/server.key
      --listen-client-urls=/etc/kubernetes/pki/etcd/server.key
      --trusted-ca-file=/etc/kubernetes/pki/etcd/ca.crt
...

Use the etcdctl command to create the backup with version 3 of the tool. For a good starting point, copy the command from the official Kubernetes documentation. Provide the mandatory command-line options --cacert, --cert, and --key. The option --endpoints is not needed as we are running the command on the same server as etcd. After running the command, the file /opt/etcd-backup.db has been created:

$ sudo ETCDCTL_API=3 etcdctl --cacert=/etc/kubernetes/pki/etcd/ca.crt \
  --cert=/etc/kubernetes/pki/etcd/server.crt \
  --key=/etc/kubernetes/pki/etcd/server.key \
  snapshot save /opt/etcd-backup.db
...
Snapshot saved at /opt/etcd-backup.db

Exit the node using the exit command:

$ exit
logout
...

Restoring etcd

You created a backup of etcd and stored it in a safe space. There’s nothing else to do at this time. Effectively, it’s your insurance policy that becomes relevant when disaster strikes. In the case of a disaster scenario, the data in etcd gets corrupted or the machine managing etcd experiences a physical storage failure. That’s the time when you want to pull out the etcd backup for restoration.

To restore etcd from the backup, use the etcdutl snapshot restore command. At a minimum, provide the --data-dir command-line option.

Note

The snapshot restore command for the etcdctl executable has been deprecated and will be removed with the release of etcd 3.6. Use the etcdutl executable instead.

Here, we are using the data directory /tmp/from-backup. After running the command, you should be able to find the restored backup in the directory /var/lib/from-backup:

$ sudo ETCDCTL_API=3 etcdutl --data-dir=/var/lib/from-backup snapshot restore \
  /opt/etcd-backup.db
...
$ sudo ls /var/lib/from-backup
member

Edit the YAML manifest of the etcd Pod, which can be found at /etc/kubernetes/manifests/etcd.yaml. Change the value of the attribute spec.volumes.hostPath with the name etcd-data from the original value /var/lib/etcd to /var/lib/from-backup:

$ cd /etc/kubernetes/manifests/
$ sudo vim etcd.yaml
...
spec:
  volumes:
  ...
  - hostPath:
      path: /var/lib/from-backup
      type: DirectoryOrCreate
    name: etcd-data
...

The etcd-kube-control-plane Pod will be re-created, and it points to the restored backup directory:

$ kubectl get pod etcd-kube-control-plane -n kube-system
NAME                      READY   STATUS    RESTARTS   AGE
etcd-kube-control-plane   1/1     Running   0          5m1s

In case the Pod doesn’t transition into the “Running” status, try to delete it manually with the command kubectl delete pod etcd-kube-control-plane -n kube-system.

Exit the node using the exit command:

$ exit
logout
...

Summary

Backing up the etcd database should be performed as a periodic process to prevent the loss of crucial data in the event of a node or storage corruption. You can use the tool etcdctl to back up and the tool etcdutl restore etcd from the control plane node or via an API endpoint.

Exam Essentials

Practice backing up etcd

Backing up etcd requires the installation of a compatible version of the etcdctl executable. You can identify the version of etcd by inspecting the container image tag used to run the etcd Pod (assuming we are talking about a cluster without high-availability characteristics). The etcd process run in the container of the Pod also list the command line flags needed to drive the backup process. In the exam, you can assume that the etcdctl executable has been preinstalled.

Know how to restore etcd

Restoring etcd requires the use of the executable etcdutl. You will need to point the command to the snapshot file created in the backup process, and a target directory used to extract the etcd data in. Just extracting the etcd data into a directory doesn’t tell the etcd process to use it. You need to configure the host path to the directory in the configuration for etcd.

Sample Exercises

Solutions to these exercises are available in Appendix A.

  1. Navigate to the directory app-a/ch05/etcd-backup-restore of the checked-out GitHub repository bmuschko/cka-study-guide. Start up the VMs running the cluster using the command vagrant up. The cluster consists of a single control plane node named kube-control-plane, and one worker node named kube-worker-1. Open an interactive shell into the control plane node and inspect the currently-used Kubernetes version by listing all the nodes.

    SSH into the control plane node host machine. Identify the Pod that runs the etcd executable. Inspect the details of the Pod to find out which version of etcd it is running. Write the version to the file etcd-version.txt.

    Once done, shut down the cluster using vagrant destroy -f.

    Prerequisite: This exercise requires the installation of the tools Vagrant and a VMware provider.

  2. Navigate to the directory app-a/ch05/etcd-backup-restore of the checked-out GitHub repository bmuschko/cka-study-guide. Start up the VMs running the cluster using the command vagrant up. The cluster consists of a single control plane node named kube-control-plane, and one worker node named kube-worker-1. Open an interactive shell into the control plane node and inspect the currently-used Kubernetes version by listing all the nodes.

    The etcdctl and etcdutl tool have been preinstalled on the node kube-control-plane. Back up etcd to the snapshot file /opt/etcd.bak. Restore etcd from the snapshot file. Use the data directory /var/bak.

    Once done, shut down the cluster using vagrant destroy -f.

    Prerequisite: This exercise requires the installation of the tools Vagrant and a VMware provider.

Chapter 6. Authentication, Authorization, and Admission Control

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 6th chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

The API server is the gateway to the Kubernetes cluster. Any human user, client (e.g., kubectl), cluster component, or service account will access the API server by making a RESTful API call via HTTPS. It is the central point for performing operations like creating a Pod or deleting a Service.

In this chapter, we’ll focus on the security-specific aspects relevant to the API server. For a detailed discussion on the inner workings of the API server and use of the Kubernetes API, refer to Managing Kubernetes by Brendan Burns and Craig Tracey (O’Reilly, 2018).

Coverage of Curriculum Objectives

This chapter addresses the following curriculum objective:

  • Manage role based access control (RBAC)

Processing an API Request

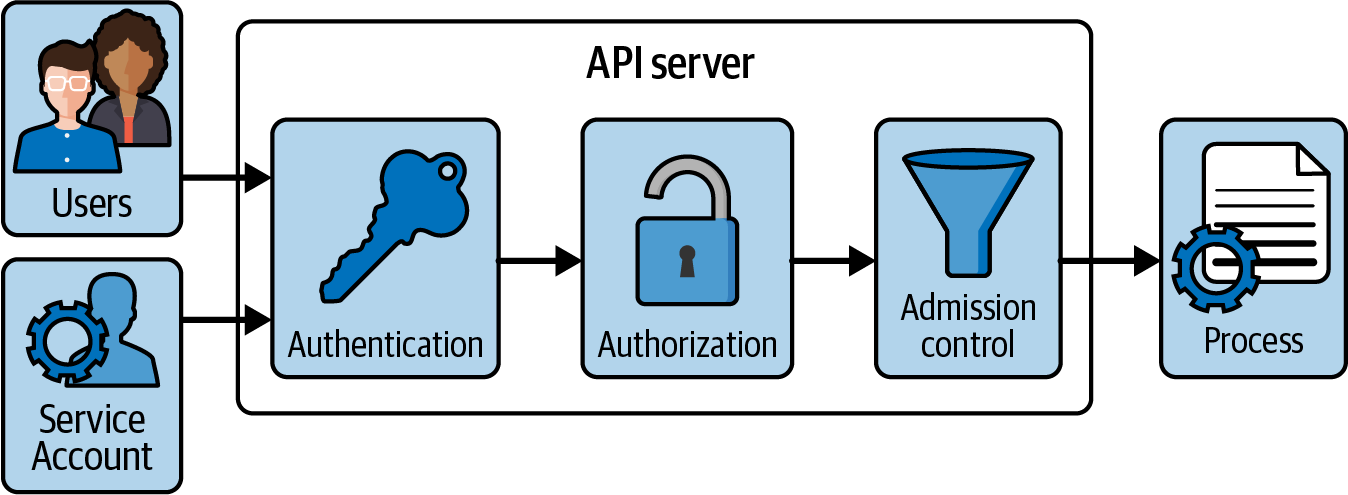

Figure 6-1 illustrates the stages a request goes through when a call is made to the API server. For reference, you can find more information in the Kubernetes documentation.

api server request processing
Figure 6-1. API server request processing

The first stage of request processing is authentication. Authentication validates the identity of the caller by inspecting the client certificates or bearer tokens. If the bearer token is associated with a service account, then it will be verified here.

The second stage determines if the identity provided in the first stage can access the verb and HTTP path request. Therefore, stage two deals with authorization of the request, which is implemented with the standard Kubernetes RBAC model. Here, we ensure that the service account is allowed to list Pods or create a new Service object if that has been requested.

The third stage of request processing deals with admission control. Admission control verifies whether the request is well formed or potentially needs to be modified before the request is processed. An admission control policy could, for example, ensure that the request for creating a Pod includes the definition of a specific label. If the request doesn’t define the label, then it is rejected.

Authentication with kubectl

Developers interact with the Kubernetes API by running the kubectl command line tool. Whenever you execute a command with kubectl, the underlying HTTPS call to the API server needs to authenticate.

The Kubeconfig

Credentials for the use of kubectl are stored in the file $HOME/.kube/config, also known as the kubeconfig file. The kubeconfig file defines the API server endpoints of the clusters we want to interact with, as well as a list of users registered with the cluster, including their credentials in the form of client certificates. The mapping between a cluster and user for a given namespace is called a context. kubectl uses the currently selected context to know which cluster to talk to and which credentials to use.

Note

You can point the environment variable KUBECONFIG to a set of kubeconfig files. At runtime, kubectl will merge the contents of the set of defined kubeconfig files and use them. By default, KUBECONFIG is not set and falls back to $HOME/.kube/config.

Example 6-1 shows a kubeconfig file. Be aware that file paths assigned in the example are user-specific and may differ in your own environment. You can find a detailed description of all configurable attributes in the Config resource type API documentation.

Example 6-1. A kubeconfig file
apiVersion: v1
kind: Config
clusters:                   1
- cluster:
    certificate-authority: /Users/bmuschko/.minikube/ca.crt
    extensions:
    - extension:
        last-update: Mon, 09 Oct 2023 07:33:01 MDT
        provider: minikube.sigs.k8s.io
        version: v1.30.1
      name: cluster_info
    server: https://127.0.0.1:63709
  name: minikube
contexts:                   2
- context:
    cluster: minikube
    user: bmuschko
  name: bmuschko
- context:
    cluster: minikube
    extensions:
    - extension:
        last-update: Mon, 09 Oct 2023 07:33:01 MDT
        provider: minikube.sigs.k8s.io
        version: v1.30.1
      name: context_info
    namespace: default
    user: minikube
  name: minikube
current-context: minikube   3
preferences: {}
users:                      4
- name: bmuschko
  user:
    client-key-data: <REDACTED>
- name: minikube
  user:
    client-certificate: /Users/bmuschko/.minikube/profiles/minikube/client.crt
    client-key: /Users/bmuschko/.minikube/profiles/minikube/client.key
1

A list of referential names to clusters and their API server endpoints.

2

A list of referential names to contexts (a combination of cluster and user).

3

The currently selected context.

4

A list of referential names to users and their credentials.

User management is handled by the cluster administrator. The administrator creates a user representing the developer and hands the relevant information (username and credentials) to the human wanting to interact with the cluster via kubectl. Alternatively, it is also possible to integrate with external identity providers for authentication purposes, e.g., via OpenID Connect.

Creating a new user manually consists of multiple steps, as described in the Kubernetes documentation. The developer would then add the user to the kubeconfig file on the machine intended to interact with the cluster.

Managing Kubeconfig Using kubectl

You do not have to manually edit the kubeconfig file(s) to change or add configuration. Kubectl provides commands for reading and modifying its contents. The following commands provide an overview. You can find additional examples for commands in the kubectl cheatsheet.

To view the merged contents of the kubeconfig file(s), run the following command:

$ kubectl config view
apiVersion: v1
kind: Config
clusters:
...

To render the currently selected context, use the current-context subcommand. The context named minikube is the active one:

$ kubectl config current-context
minikube

To change the context, provide the name with the use-context subcommand. Here, we are switching to the context bmuschko:

$ kubectl config use-context bmuschko
Switched to context "bmuschko".

To register a user with the kubeconfig file(s), use the set-credentials subcommand. We are choosing to assign the username myuser and point to the client certificate by providing the corresponding CLI flags:

$ kubectl config set-credentials myuser \
  --client-key=myuser.key --client-certificate=myuser.crt \
  --embed-certs=true

For the exam, familiarize yourself with the kubectl config command. Every task in the exam will require you to work with a specific context and/or namespace.

Authorization with Role-Based Access Control

We’ve learned that the API server will try to authenticate any request sent using kubectl by verifying the provided credentials. An authenticated request will then need be checked against the permissions assigned to the requestor. The authorization phase of the API processing workflow checks if the operation is permitted against the requested API resource.

In Kubernetes, those permissions can be controlled using Role-Based Access Control (RBAC). In a nutshell, RBAC defines policies for users, groups, and service accounts by allowing or disallowing access to manage API resources. Enabling and configuring RBAC is mandatory for any organization with a strong emphasis on security.

Setting permissions is the responsibility of a cluster administrator. The following sections briefly cover the effects of RBAC on requests from users and service accounts.

RBAC Overview

RBAC helps with implementing a variety of use cases:

  • Establishing a system for users with different roles to access a set of Kubernetes resources

  • Controlling processes (associated with a service account) running in a Pod and performing operations against the Kubernetes API

  • Limiting the visibility of certain resources per namespace

RBAC consists of three key building blocks, as shown in Figure 6-2. Together, they connect API primitives and their allowed operations to the so-called subject, which is a user, a group, or a service account.

rbac key building blocks

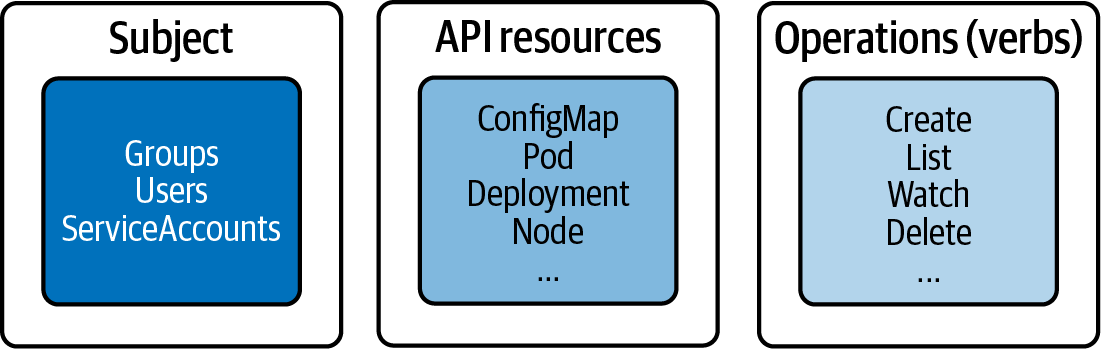

Figure 6-2. RBAC key building blocks

Each block’s responsibilities are as follows:

Subject

The user or service account that wants to access a resource

Resource

The Kubernetes API resource type (e.g., a Deployment or node)

Verb

The operation that can be executed on the resource (e.g., creating a Pod or deleting a Service)

Understanding RBAC API Primitives

With these key concepts in mind, let’s look at the Kubernetes API primitives that implement the RBAC functionality:

Role

The Role API primitive declares the API resources and their operations this rule should operate on in a specific namespace. For example, you may want to say “allow listing and deleting of Pods,” or you may express “allow watching the logs of Pods,” or even both with the same Role. Any operation that is not spelled out explicitly is disallowed as soon as it is bound to the subject.

RoleBinding

The RoleBinding API primitive binds the Role object to the subject(s) in a specific namespace. It is the glue for making the rules active. For example, you may want to say “bind the Role that permits updating Services to the user John Doe.”

Figure 6-3 shows the relationship between the involved API primitives. Keep in mind that the image renders only a selected list of API resource types and operations.

rbac primitives

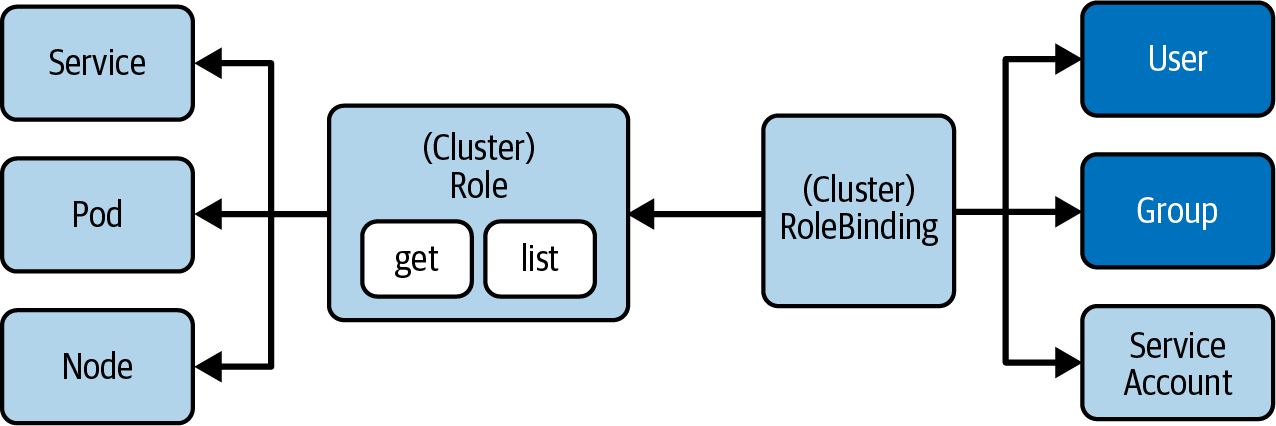

Figure 6-3. RBAC primitives

The following sections demonstrate the namespace-wide usage of Roles and RoleBindings, but the same operations and attributes apply to cluster-wide Roles and RoleBindings, discussed in “Namespace-Wide and Cluster-Wide RBAC”.

Default User-Facing Roles

Kubernetes defines a set of default Roles. You can assign them to a subject via a RoleBinding or define your own, custom Roles depending on your needs. Table 6-1 describes the default user-facing Roles.

Table 6-1. Default user-facing Roles
Default ClusterRole Description

cluster-admin

Allows read and write access to resources across all namespaces.

admin

Allows read and write access to resources in namespace including Roles and RoleBindings.

edit

Allows read and write access to resources in namespace except Roles and RoleBindings. Provides access to Secrets.

view

Allows read-only access to resources in namespace except Roles, RoleBindings, and Secrets.

To define new Roles and RoleBindings, you will have to use a context that allows for creating or modifying them, that is, cluster-admin or admin.

Creating Roles

Roles can be created imperatively with the create role command. The most important options for the command are --verb for defining the verbs, aka operations, and --resource for declaring a list of API resources (core primitives as well as CRDs). The following command creates a new Role for the resources Pod, Deployment, and Service with the verbs list, get, and watch:

$ kubectl create role read-only --verb=list,get,watch \
  --resource=pods,deployments,services
role.rbac.authorization.k8s.io/read-only created

Declaring multiple verbs and resources for a single imperative create role command can be declared as a comma-separated list for the corresponding command-line option or as multiple arguments. For example, --verb=list,get,watch and --verb=list --verb=get --verb=watch carry the same instructions. You also can use the wildcard “*” to refer to all verbs or resources.

The command-line option --resource-name spells out one or many object names that the policy rules should apply to. A name of a Pod could be nginx and listed here with its name. Providing a list of resource names is optional. If no names have been provided, then the provided rules apply to all objects of a resource type.

The declarative approach can become a little lengthy. As you can see in Example 6-2, the section rules lists the resources and verbs. Resources with an API group, like Deployments that use the API version apps/v1, need to explicitly declare it under the attribute apiGroups. All other resources (e.g., Pods and Services), simply use an empty string, as their API version doesn’t contain a group. Be aware that the imperative command for creating a Role automatically determines the API group.

Example 6-2. A YAML manifest defining a Role
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: read-only
rules:
- apiGroups:
  - ""
  resources:
  - pods
  - services
  verbs:
  - list
  - get
  - watch
- apiGroups:      1
  - apps
  resources:
  - deployments
  verbs:
  - list
  - get
  - watch
1

Any resource that belongs to an API group needs to be listed as an explicit rule in addition to the API resources that do not belong to an API group.

Listing Roles

Once the Role has been created, its object can be listed. The list of Roles renders only the name and the creation timestamp. Each of the listed roles does not give away any of its details:

$ kubectl get roles
NAME        CREATED AT
read-only   2021-06-23T19:46:48Z

Rendering Role Details

You can inspect the details of a Role using the describe command. The output renders a table that maps a resource to its permitted verbs:

$ kubectl describe role read-only
Name:         read-only
Labels:       <none>
Annotations:  <none>
PolicyRule:
  Resources         Non-Resource URLs  Resource Names  Verbs
  ---------         -----------------  --------------  -----
  pods              []                 []              [list get watch]
  services          []                 []              [list get watch]
  deployments.apps  []                 []              [list get watch]

This cluster has no resources created, so the list of resource names in the following console output is currently empty.

Creating RoleBindings

The imperative command creating a RoleBinding object is create rolebinding. To bind a Role to the RoleBinding, use the --role command-line option. The subject type can be assigned by declaring the options --user, --group, or --serviceaccount. The following command creates the RoleBinding with the name read-only-binding to the user called bmuschko:

$ kubectl create rolebinding read-only-binding --role=read-only --user=bmuschko
rolebinding.rbac.authorization.k8s.io/read-only-binding created

Example 6-3 shows a YAML manifest representing the RoleBinding. You can see from the structure that a role can be mapped to one or many subjects. The data type is an array indicated by the dash character under the attribute subjects. At this time, only the user bmuschko has been assigned.

Example 6-3. A YAML manifest defining a RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: read-only-binding
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: read-only
subjects:
- apiGroup: rbac.authorization.k8s.io
  kind: User
  name: bmuschko

Listing RoleBindings

The most important information the list of RoleBindings displays is the associated Role. The following command shows that the RoleBinding read-only-binding has been mapped to the Role read-only:

$ kubectl get rolebindings
NAME                ROLE             AGE
read-only-binding   Role/read-only   24h

The output does not provide an indication of the subjects. You will need to render the details of the object for more information, as described in the next section.

Rendering RoleBinding Details

RoleBindings can be inspected using the describe command. The output renders a table of subjects and the assigned role. The following example renders the descriptive representation of the RoleBinding named read-only-binding:

$ kubectl describe rolebinding read-only-binding
Name:         read-only-binding
Labels:       <none>
Annotations:  <none>
Role:
  Kind:  Role
  Name:  read-only
Subjects:
  Kind  Name      Namespace
  ----  ----      ---------
  User  bmuschko

Seeing the RBAC Rules in Effect

Let’s see how Kubernetes enforces the RBAC rules for the scenario we set up so far. First, we’ll create a new Deployment with the cluster-admin permissions. In minikube, those permissions are available to the context minikube by default:

$ kubectl config current-context
minikube
$ kubectl create deployment myapp --image=:1.25.2 --port=80 --replicas=2
deployment.apps/myapp created

Now, we’ll switch the context for the user bmuschko:

$ kubectl config use-context bmuschko-context
Switched to context "bmuschko-context".

Remember that the user bmuschko is permitted to list Deployments. We’ll verify that by using the get deployments command:

$ kubectl get deployments
NAME    READY   UP-TO-DATE   AVAILABLE   AGE
myapp   2/2     2            2           8s

The RBAC rules allow listing Deployments, Pods, and Services only. The following command tries to list the ReplicaSets, which results in an error:

$ kubectl get replicasets
Error from server (Forbidden): replicasets.apps is forbidden: User "bmuschko" \
cannot list resource "replicasets" in API group "apps" in the namespace "default"

A similar behavior can be observed when trying to use verbs other than list, get, or watch. The following command tries to delete a Deployment:

$ kubectl delete deployment myapp
Error from server (Forbidden): deployments.apps "myapp" is forbidden: User \
"bmuschko" cannot delete resource "deployments" in API group "apps" in the \
namespace "default"

At any given time, you can check a user’s permissions with the auth can-i command. The command gives you the option to list all permissions or check a specific permission:

$ kubectl auth can-i --list --as bmuschko
Resources          Non-Resource URLs   Resource Names   Verbs
...
pods               []                  []               [list get watch]
services           []                  []               [list get watch]
deployments.apps   []                  []               [list get watch]
$ kubectl auth can-i list pods --as bmuschko
yes

Namespace-Wide and Cluster-Wide RBAC

Roles and RoleBindings apply to a particular namespace. You will have to specify the namespace when creating both objects. Sometimes, a set of Roles and RoleBindings needs to apply to multiple namespaces or even to the whole cluster. For a cluster-wide definition, Kubernetes offers the API resource types ClusterRole and ClusterRoleBinding. The configuration elements are effectively the same. The only difference is the value of the kind attribute:

  • To define a cluster-wide Role, use the imperative subcommand clusterrole or the kind ClusterRole in the YAML manifest.

  • To define a cluster-wide RoleBinding, use the imperative subcommand clusterrolebinding or the kind ClusterRoleBinding in the YAML manifest.

ClusterRoles and ClusterRoleBindings not only set up cluster-wide permissions to a namespaced resource, but they can also be used to set up permissions for non-namespaced resources like CRDs and nodes.

Aggregating RBAC Rules

Existing ClusterRoles can be aggregated to avoid having to redefine a new, composed set of rules that likely leads to duplication of instructions. For example, say you wanted to combine a user-facing role with a custom Role. An aggregated ClusterRule can merge rules via label selection without having to copy-paste the existing rules into one.

Say we defined two ClusterRoles shown in Example 6-4 and Example 6-5. The ClusterRole list-pods allows for listing Pods and the ClusterRole delete-services allows for deleting Services.

Example 6-4. A YAML manifest defining a ClusterRole for listing Pods
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: list-pods
  namespace: rbac-example
  labels:
    rbac-pod-list: "true"
rules:
- apiGroups:
  - ""
  resources:
  - pods
  verbs:
  - list
Example 6-5. A YAML manifest defining a ClusterRole for deleting Services
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: delete-services
  namespace: rbac-example
  labels:
    rbac-service-delete: "true"
rules:
- apiGroups:
  - ""
  resources:
  - services
  verbs:
  - delete

To aggregate those rules, ClusterRoles can specify an aggregationRule. This attribute describes the label selection rules. Example 6-6 shows an aggregated ClusterRole defined by an array of matchLabels criteria. The ClusterRole does not add its own rules as indicated by rules: []; however, there’s no limiting factor that would disallow it.

Example 6-6. A YAML manifest defining a ClusterRole with aggregated rules
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: pods-services-aggregation-rules
  namespace: rbac-example
aggregationRule:
  clusterRoleSelectors:
  - matchLabels:
      rbac-pod-list: "true"
  - matchLabels:
      rbac-service-delete: "true"
rules: []

We can verify the proper aggregation behavior of the ClusterRole by describing the object. You can see in the following output that both ClusterRoles, list-pods and delete-services, have been taken into account:

$ kubectl describe clusterroles pods-services-aggregation-rules -n rbac-example
Name:         pods-services-aggregation-rules
Labels:       <none>
Annotations:  <none>
PolicyRule:
  Resources  Non-Resource URLs  Resource Names  Verbs
  ---------  -----------------  --------------  -----
  services   []                 []              [delete]
  pods       []                 []              [list]

For more information on ClusterRole label selection rules, see the official documentation. The page also explains how to aggregate the default user-facing ClusterRoles.

Working with Service Accounts

We’ve been using the kubectl executable to run operations against a Kubernetes cluster. Under the hood, its implementation calls the API server by making an HTTP call to the exposed endpoints. Some applications running inside of a Pod may have to communicate with the API server as well. For example, the application may ask for specific cluster node information or available namespaces.

Pods can use a service account to authenticate with the API server through an authentication token. A Kubernetes administrator assigns rules to a service account via RBAC to authorize access to specific resources and actions as illustrated in Figure 6-4.

service account

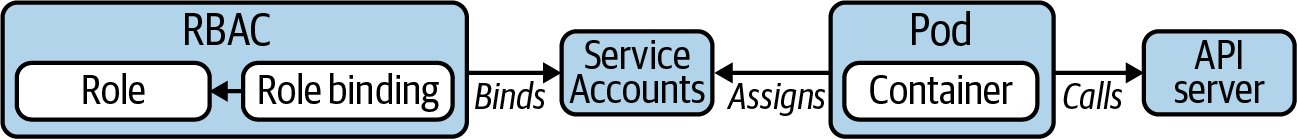

Figure 6-4. Using a service account to communicate with an API server

A Pod doesn’t necessarily need to be involved in the process. Other use cases call for leveraging a service account outside of a Kubernetes cluster. For example, you may want to communicate with the API server as part of a CI/CD pipeline automation step. The service account can provide the credentials to authenticate with the API server.

The Default Service Account

So far, we haven’t defined a service account for a Pod. If not assigned explicitly, a Pod uses the default service account, which has the same permissions as an unauthenticated user. This means that the Pod cannot view or modify the cluster state or list or modify any of its resources. The default service account can however request basic cluster information via the assigned system:discovery Role.

You can query for the available service accounts with the subcommand serviceaccounts. You should see only the default service account listed in the output:

$ kubectl get serviceaccounts
NAME      SECRETS   AGE
default   0         4d

While you can execute the kubectl operation to delete the default service account, Kubernetes will reinstantiate the service account immediately.

Creating a Service Account

You can create a custom service account object using the imperative and declarative approach. This command creates a service account object with the name cicd-bot. The assumption here is to use the service account for calls to the API server made by a CI/CD pipeline:

$ kubectl create serviceaccount cicd-bot
serviceaccount/cicd-bot created

You can also represent the service account in the form of a manifest. In its simplest form, the definition assigns the kind ServiceAccount and a name, as shown in Example 6-7.

Example 6-7. YAML manifest for a service account
apiVersion: v1
kind: ServiceAccount
metadata:
  name: cicd-bot

You can set a couple of configuration options for a service account. For example, you may want to disable automounting of the authentication token when assigning the service account to a Pod. Although you will not need to understand those configuration options for the exam, it makes sense to dive deeper into security best practices by reading up on them in the Kubernetes documentation.

Setting Permissions for a Service Account

It’s important to limit the permissions to only the service accounts that are necessary for the application to function. The next sections will explain how to achieve this to minimize the potential attack surface.

For this scenario to work, you’ll need to create a ServiceAccount object and assign it to the Pod. Service accounts can be tied in with RBAC and assigned a Role and RoleBinding to define which operations they should be allowed to perform.

Binding the service account to a Pod

As a starting point, we will set up a Pod that lists all Pods and Deployments in the namespace k97 by calling the Kubernetes API. The call is made as part of an infinite loop every ten seconds. The response from the API call will be written to standard output accessible via the Pod’s logs.

Accessing the API server endpoint

Accessing the Kubernetes API from a Pod is straightforward. Instead of using the IP address and port for the API server Pod, you can simply refer to a Service named kubernetes.default.svc instead. This special Service lives in the default namespace and is stood up by the cluster automatically.

To authenticate against the API server, we’ll send a bearer token associated with the service account used by the Pod. The default behavior of a service account is to auto-mount API credentials on the path /var/run/secrets/kubernetes.io/serviceaccount/token. We’ll simply get the contents of the file using the cat command-line tool and send them along as a header for the HTTP request. Example 6-8 defines the namespace, the service account, and the Pod in a single YAML manifest file: setup.yaml.

Example 6-8. YAML manifest for assigning a service account to a Pod
apiVersion: v1
kind: Namespace
metadata:
  name: k97
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: sa-api
  namespace: k97
---
apiVersion: v1
kind: Pod
metadata:
  name: list-objects
  namespace: k97
spec:
  serviceAccountName: sa-api   1
  containers:
  - name: pods
    image: alpine/curl:3.14
    command: ['sh', '-c', 'while true; do curl -s -k -m 5 -H \
              "Authorization: Bearer $(cat /var/run/secrets/kubernetes.io/ \
              serviceaccount/token)" https://kubernetes.default.svc.cluster. \
              local/api/v1/namespaces/k97/pods; sleep 10; done']   2
  - name: deployments
    image: alpine/curl:3.14
    command: ['sh', '-c', 'while true; do curl -s -k -m 5 -H \
              "Authorization: Bearer $(cat /var/run/secrets/kubernetes.io/ \
              serviceaccount/token)" https://kubernetes.default.svc.cluster. \
              local/apis/apps/v1/namespaces/k97/deployments;
              sleep 10; done']                                     3
1

The service account referenced by name used for communicating with the Kubernetes API.

2

Performs an API call to retrieve the list of Pods in the namespace k97.

3

Performs an API call to retrieve the list of Deployments in the namespace k97.

Create the objects from the YAML manifest with the following command:

$ kubectl apply -f setup.yaml
namespace/k97 created
serviceaccount/sa-api created
pod/list-objects created

Verifying the default permissions

The Pod named list-objects makes a call to the API server to retrieve the list of Pods and Deployments in dedicated containers. The container pods performs the call to list Pods. The container deployments sends a request to the API server to list Deployments.

As explained in the Kubernetes documentation, the default RBAC policies do not grant any permissions to service accounts outside of the kube-system namespace. The logs of the containers pods and deployments return an error message indicating that the service account sa-api is not authorized to list the resources:

$ kubectl logs list-objects -c pods -n k97
{
  "kind": "Status",
  "apiVersion": "v1",
  "metadata": {},
  "status": "Failure",
  "message": "pods is forbidden: User \"system:serviceaccount:k97:sa-api\" \
              cannot list resource \"pods\" in API group \"\" in the \
              namespace \"k97\"",
  "reason": "Forbidden",
  "details": {
    "kind": "pods"
  },
  "code": 403
}
$ kubectl logs list-objects -c deployments -n k97
{
  "kind": "Status",
  "apiVersion": "v1",
  "metadata": {},
  "status": "Failure",
  "message": "deployments.apps is forbidden: User \
              \"system:serviceaccount:k97:sa-api\" cannot list resource \
              \"deployments\" in API group \"apps\" in the namespace \
              \"k97\"",
  "reason": "Forbidden",
  "details": {
    "group": "apps",
    "kind": "deployments"
  },
  "code": 403
}

Next up, we’ll stand up a Role and RoleBinding object with the required API permissions to perform the necessary calls.

Creating the Role

Start by defining the Role named list-pods-role shown in Example 6-9 in the file role.yaml. The set of the rules adds only the Pod resource and the verb list.

Example 6-9. YAML manifest for a Role that allows listing Pods
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: list-pods-role
  namespace: k97
rules:
- apiGroups: [""]
  resources: ["pods"]
  verbs: ["list"]

Create the object by pointing to its corresponding YAML manifest file:

$ kubectl apply -f role.yaml
role.rbac.authorization.k8s.io/list-pods-role created

Creating the RoleBinding

Example 6-10 defines the YAML manifest for the RoleBinding in the file rolebinding.yaml. The RoleBinding maps the Role list-pods-role to the service account named sa-pod-api and applies it only to the namespace k97.

Example 6-10. YAML manifest for a RoleBinding attached to a service account
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: serviceaccount-pod-rolebinding
  namespace: k97
subjects:
- kind: ServiceAccount
  name: sa-api
roleRef:
  kind: Role
  name: list-pods-role
  apiGroup: rbac.authorization.k8s.io

Create both RoleBinding objects using the apply command:

$ kubectl apply -f rolebinding.yaml
rolebinding.rbac.authorization.k8s.io/serviceaccount-pod-rolebinding created

Verifying the granted permissions

With the granted list permissions, the service account can now properly retrieve all the Pods in the k97 namespace. The curl command in the pods container succeeds, as shown in the following output:

$ kubectl logs list-objects -c pods -n k97
{
  "kind": "PodList",
  "apiVersion": "v1",
  "metadata": {
    "resourceVersion": "628"
  },
  "items": [
      {
        "metadata": {
          "name": "list-objects",
          "namespace": "k97",
          ...
      }
  ]
}

We did not grant any permissions to the service account for other resources. Listing the Deployments in the k97 namespace still fails. The following output shows the response from the curl command in the deployments namespace:

$ kubectl logs list-objects -c deployments -n k97
{
  "kind": "Status",
  "apiVersion": "v1",
  "metadata": {},
  "status": "Failure",
  "message": "deployments.apps is forbidden: User \
              \"system:serviceaccount:k97:sa-api\" cannot list resource \
              \"deployments\" in API group \"apps\" in the namespace \
              \"k97\"",
  "reason": "Forbidden",
  "details": {
    "group": "apps",
    "kind": "deployments"
  },
  "code": 403
}

Feel free to modify the Role object to allow listing Deployment objects as well.

Admission Control

The last phase of processing a request to the API server is admission control. Admission control is implemented by admission controllers. An admission controller provides a way to approve, deny, or mutate a request before it takes effect.

Admission controllers can be registered with the configuration of the API server. By default, the configuration file can be found at /etc/kubernetes/manifests/kube-apiserver.yaml. It is the cluster administrator’s job to manage the API server configuration. The following command-line invocation of the API server enables the admission control plugins named NamespaceLifecycle, PodSecurity, and LimitRanger:

$ kube-apiserver --enable-admission-plugins=NamespaceLifecycle,PodSecurity,\
  LimitRanger

Developers will inadvertently use admission control plugins that have been configured by the administrator. One example is the LimitRanger and the ResourceQuota, I’ll discuss in “Working with Limit Ranges” and “Working with Resource Quotas”.

Summary

The API server processes requests to the Kubernetes API. Every request has to go through three phases: authentication, authorization, and admission control. Every phase can short-circuit the processing. For example, if the credentials sent with the request cannot be authenticated, then the request will be dropped immediately.

We looked at examples of all phases. The authentication phase covered kubectl as the client making a call to the Kubernetes API. The kubeconfig file serves as configuration source for named cluster, users, and their credentials. In Kubernetes, authorization is handled by RBAC. We learned the Kubernetes primitives that let you configure permissions for API resources tied to one or many subjects.

Finally, we briefly examined the purpose of admission control and listed some plugins that act as controllers for validating or mutating a request to the Kubernetes API.

Exam Essentials

Practice interacting with the Kubernetes API

This chapter demonstrated some ways to communicate with the Kubernetes API. We performed API requests by switching to a user context and with the help of a RESTful API call using curl. Explore the Kubernetes API and its endpoints on your own for broader exposure.

Understand the implications of defining RBAC rules for users and service accounts

Anonymous user requests to the Kubernetes API will not allow any substantial operations. For requests coming from a user or a service account, you will need to carefully analyze permissions granted to the subject. Learn the ins and outs of defining RBAC rules by creating the relevant objects to control permissions. Service accounts automount a token when used in a Pod. Expose the token as a volume only if you are intending to make API calls from the Pod.

Be aware of the purpose of admission control

The API server comes with preconfigured admission control plugins that support the functionality of Kubernetes primitives like the LimitRange. For the exam, you will not have to have a deep understanding of enabling or configuring admission control plugins.

Sample Exercises

Solutions to these exercises are available in Appendix A.

  1. Navigate to the directory app-a/ch06/rbac-aggregation of the checked-out GitHub repository bmuschko/cka-study-guide.

    Create a ClusterRole with the name service-view to the API resources services with the operations get and list. Create the RoleBinding named ellasmith-service-view in the development namespace. Map the user ellasmith to the ClusterRole service-view.

    Create a ClusterRole with the name combined. Aggregate cluster roles based on the matching label key-value pair rbac.cka.cncf.com/aggregate: "true". Render the selected rules of the ClusterRole combined. How many rules do you see?

    Create a ClusterRole with the name deployment-modify to the API resources deployments with the operations create, delete, patch, and update. Assign the label key-value pair rbac.cka.cncf.com/aggregate: "true". Render the selected rules of the ClusterRole combined. How many rules do you see?

    Run a command to figure out if the user ellasmith can list Services in the namespace development. Write the output of the command to the file list-services-ellasmith.txt. The output is either no or yes.

    Run a command to figure out if the user ellasmith can watch Deployments in the namespace production. Write the output of the command to the file watch-deployments-ellasmith.txt. The output is either no or yes.

    Prerequisite: This exercise requires the installation of the tools Vagrant and a VMware provider.

  2. Create the ServiceAccount named api-access in a new namespace called apps.

    Create a ClusterRole with the name api-clusterrole, and create a ClusterRoleBinding named api-clusterrolebinding. Map the ServiceAccount from the previous step to the API resources pods with the operations watch, list, and get.

    Create a Pod named operator with the image nginx:1.21.1 in the namespace apps. Expose the container port 80. Assign the ServiceAccount api-access to the Pod. Create another Pod named disposable with the image nginx:1.21.1 in the namespace rm. Do not assign the ServiceAccount to the Pod.

    Open an interactive shell to the Pod named operator. Use the command-line tool curl to make an API call to list the Pods in the namespace rm. What response do you expect? Use the command-line tool curl to make an API call to delete the Pod disposable in the namespace rm. Does the response differ from the first call? You can find information about how to interact with Pods using the API via HTTP in the reference guide.

Chapter 7. Operators and Custom Resource Definitions (CRDs)

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 7th chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

Kubernetes comes with a core feature set to fulfill the basic needs for running application stacks with a standard set of primitives. For custom use cases, Kubernetes allows for installing extensions to the platform, so-called operators.

A Custom Resource Definition (CRD) is a Kubernetes extension mechanism (often bundled with an operator) for introducing custom API primitives to fulfill requirements not covered by built-in primitives.

This chapter will focus on the installation and configuration of operators, as well the interaction with provided CRDs.

Coverage of Curriculum Objectives

This chapter addresses the following curriculum objective:

  • Understand CRDs, install and configure operators

Working with Operators

Operators extend the core behavior of the Kubernetes cluster without actually changing the Kubernetes code. You can think of the operator as a plugin to the platform. Operators typically automate tasks that would have to be performed by humans, such as deploying, configuring, scaling, upgrading, and managing applications.

The Operator Pattern

An operator usually consists of two components, one or more Custom Resource Definitions (CRD) and a controller. CRDs can be understood as the schema that defines the blueprint for a custom object, and then the instantiation of those objects with the newly introduced type, also called the Custom Resources (CR).

For a CRD to be useful, it has to be backed by a controller. Controllers interact with the Kubernetes API and implement the reconciliation logic that interacts with CRD objects.

The combination of CRDs and controllers is commonly referred to as the operator pattern. The exam does not require you to have an understanding of controllers; therefore, their implementation won’t be covered in this chapter.

Figure 7-1 shows the operator patterns with all its moving parts.

operator pattern
Figure 7-1. The Kubernetes operator pattern

Discovering Operators

The Kubernetes community has implemented many useful operators discoverable on Operator Hub or Artifact Hub.

A prominent operator is the External Secrets Operator that helps with integrating external Secret managers, like AWS Secrets Manager and HashiCorp Vault, with Kubernetes. Another is the Crossplane Operator which helps with creating and managing cloud resources using declarative syntax.

To demonstrate the functionality of Operator Hub, we are going to search and install the popular Argo CD Operator, a declarative, GitOps continuous delivery tool for Kubernetes that automates deployments by continuously monitoring applications and synchronizing them with the desired state defined in Git repositories.

In your browser, open the URL for Operator Hub and enter the term argo cd into the search box named Search OperatorHub…​. You will receive a result, shown in Figure 7-2.

operatorhub argocd search result

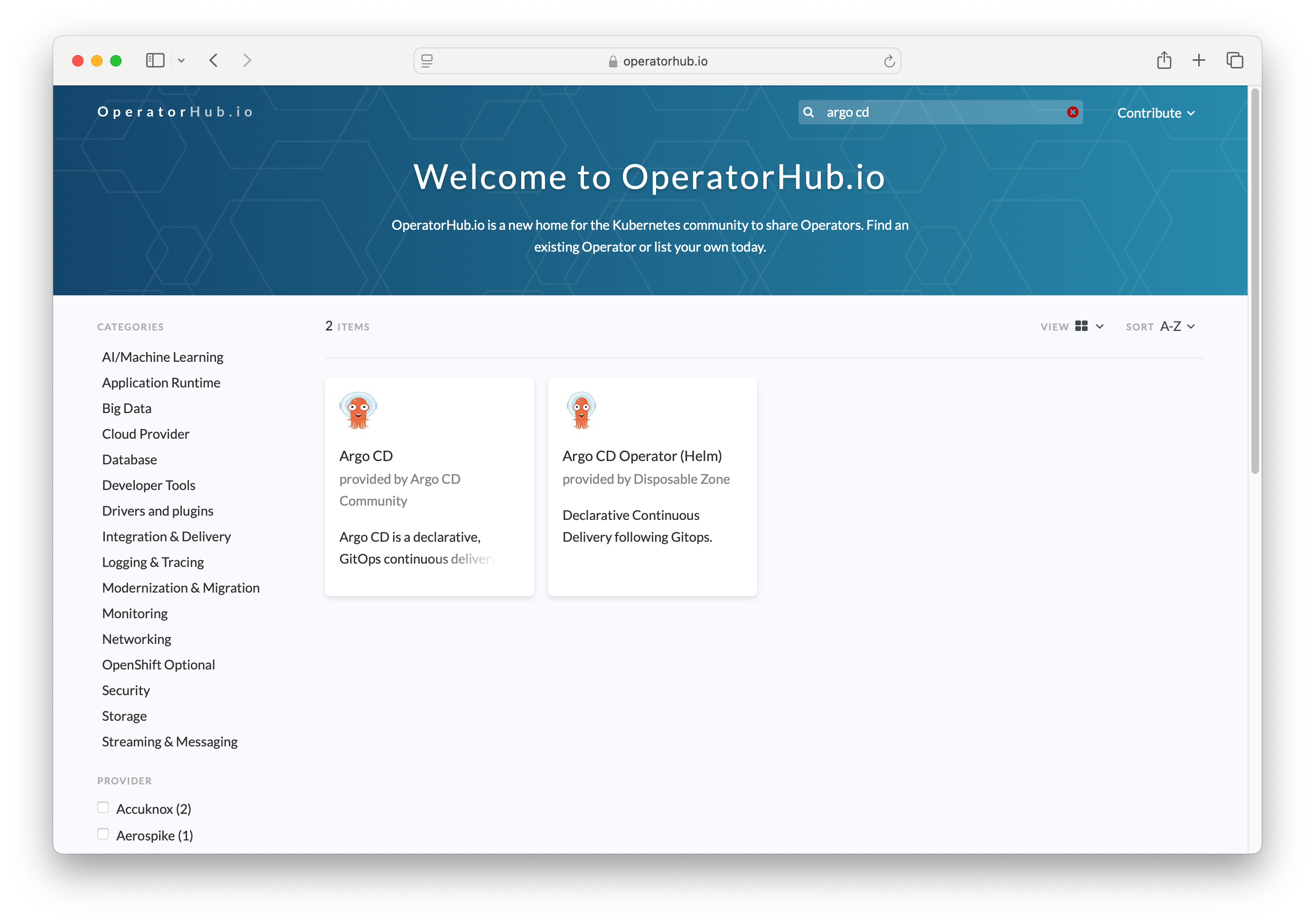

Figure 7-2. A search result on Operator Hub

Clicking on the Argo CD panel will bring you to the details of the Argo CD Operator, shown in Figure 7-3.

operatorhub argocd operator

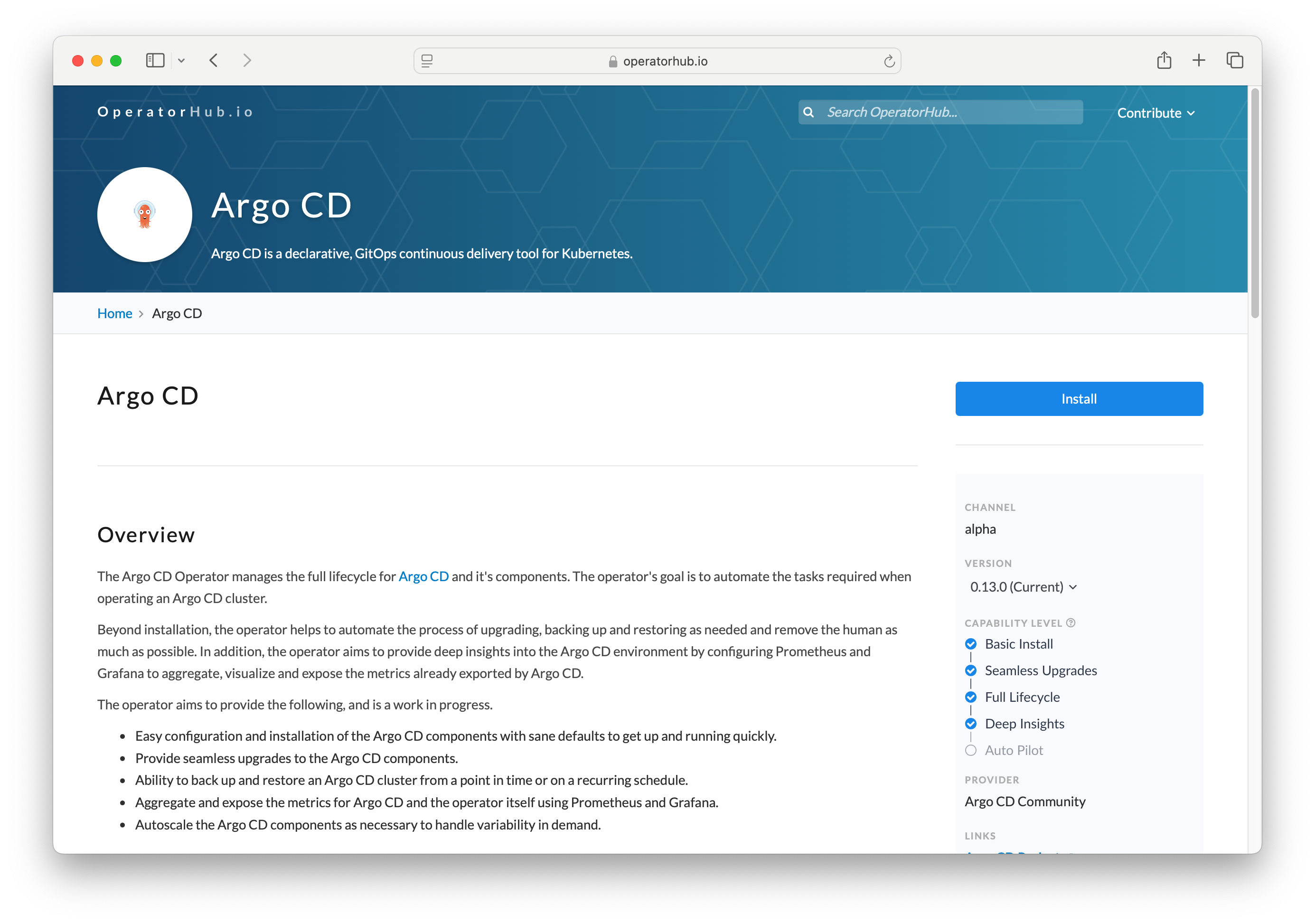

Figure 7-3. The Argo CD Operator on Operator Hub

The page describes the functionality of the operator including a high-level overview on the provided CRDs. To be able to create CRs from the CRDs, we’ll first need to install the operator.

Installing Operators

You can install many of those operators with a single kubectl command execution or by using the Helm executable. For more information on using Helm, see Chapter 8.

Clicking the Install button on Operator Hub brings up the installation instructions, as shown in Figure 7-4.

operatorhub argocd operator install

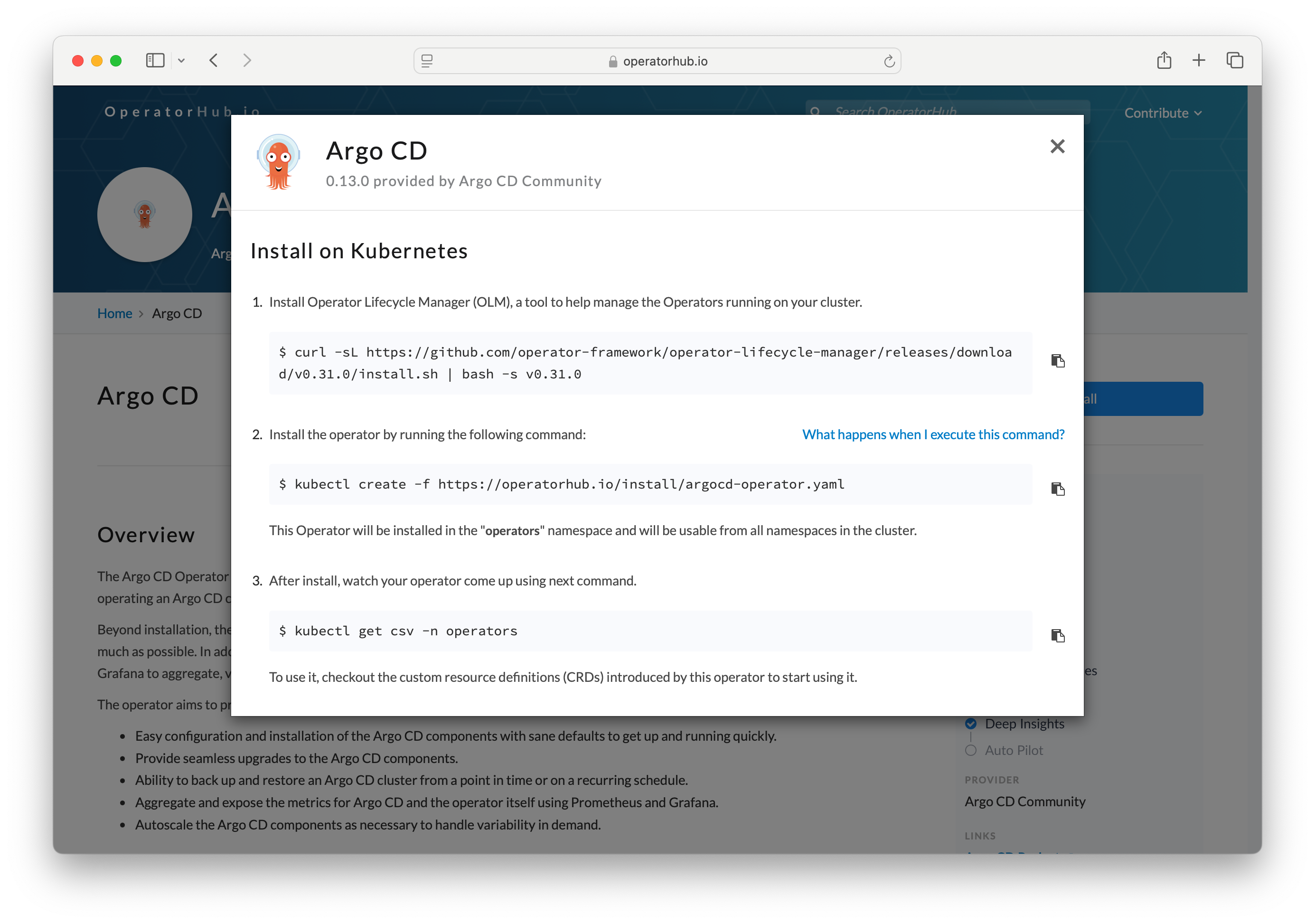

Figure 7-4. The Argo CD Operator installation instructions

As shown on the installation page for the operator, we’ll use the Operator Lifecycle Manager (OLM), a tool to help manage the operators running on your cluster. This is a one-time operation:

$ curl -sL https://github.com/operator-framework/operator-lifecycle-manager/\
releases/download/v0.31.0/install.sh | bash -s v0.31.0

Next, we’ll install the Argo CD Operator which will place the operator objects into the operators namespace:

$ kubectl create -f https://operatorhub.io/install/argocd-operator.yaml
subscription.operators.coreos.com/my-argocd-operator created

You can follow the installation process by running the following command. A valid installation finishes with the Succeeded phase in the rendered output of the command.

$ kubectl get csv -n operators
NAME                      DISPLAY   VERSION   REPLACES                  PHASE
argocd-operator.v0.13.0   Argo CD   0.13.0    argocd-operator.v0.12.0   Succeeded

You are now ready to use the operator. Please refer to the next sections in the chapter to interact with the installed CRDs.

Working with Custom Resource Definitions (CRDs)

For the exam, you will need to understand how to discover CRD schemas provided by external operators and how to interact with objects that follow the CRD schema.

Discovering CRDs

The Argo CD Operator provides a couple of CRDs like the Application, ApplicationSet, AppProject, and some more. You can find their high-level purpose described below.

  • Application: An Application is a group of Kubernetes resources as defined by a manifest.

  • ApplicationSet: An ApplicationSet is a group or set of Application resources.

  • AppProject: An AppProject is a logical grouping of Argo CD Applications.

Run the following command to list all installed CRDs. You will find the Argo CD CRDs in the command output:

$ kubectl get crds
NAME                                          CREATED AT
applications.argoproj.io                      2025-03-21T23:02:40Z
applicationsets.argoproj.io                   2025-03-21T23:02:39Z
appprojects.argoproj.io                       2025-03-21T23:02:39Z
argocdexports.argoproj.io                     2025-03-21T23:02:39Z
argocds.argoproj.io                           2025-03-21T23:02:39Z
notificationsconfigurations.argoproj.io       2025-03-21T23:02:39Z

As with any other Kubernetes object, you can render the details. The details of the CRD will reveal the kind, API group and version, and its properties. This command inspects the Application CRD.

$ kubectl describe crd applications.argoproj.io

For brevity, I do not show the lengthy output. In the next section, we are going to create a CR for the Application CRD.

Instantiating a CR for one of the CRDs

The Application CRD describes a schema for defining an application representation that lives in a Git repository so that it can be deployed to a Kubernetes cluster.

For that purpose, create a new YAML manifest of kind Application in the file nginx-application.yaml. as shown in Example 7-1. You may recognize some of the properties used when you rendered the CRD schema.

Example 7-1. Instantiation of CR for the Application CRD
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: nginx
spec:
  project: default
  source:
    repoURL: https://github.com/bmuschko/cka-study-guide.git
    targetRevision: HEAD
    path: ./ch07/nginx
  destination:
    server: https://kubernetes.default.svc
    namespace: default

Create a new object from the YAML manifest:

kubectl apply -f nginx-application.yaml
application.argoproj.io/nginx created

Interacting with a CR

You can interact with the CR like any other object in Kubernetes. All kubectl create, read, update, and delete (CRUD) functions are available. For example, to list the object use the describe command. The following command shows the operations in action:

$ kubectl describe application nginx
ame:         nginx
Namespace:    default
Labels:       <none>
Annotations:  <none>
API Version:  argoproj.io/v1alpha1
Kind:         Application
...

To delete the object, use the delete command, as shown here:

$ kubectl delete application nginx
application.argoproj.io "nginx" deleted

We demonstrated that an operator can install CRDs into the cluster, and that we can create CR from the CRDs and interact with them.

Going deeper using Argo CD would require a chapter on its own and is beyond the coverage of the certification. For more information on Argo CD, check out the book Argo CD: Up and Running by Andrew Block and Christian Hernandez (O’Reilly, 2025).

Inspecting the controller

The Argo CD CRs just represent data and won’t be useful by themselves. A controller acts as a reconciliation process by inspecting the state of CR objects via calls to the Kubernetes API to perform a deployment process to the cluster.

The Argo CD Operator runs the controller logic within a Pod managed by a Deployment. You can discover the Argo CD controller objects as follows:

$ kubectl get deployments,pods -n operators
NAME                                                 READY   UP-TO-DATE   ...
deployment.apps/argocd-operator-controller-manager   1/1     1            ...

NAME                                                      READY   STATUS    ...
pod/argocd-operator-controller-manager-6998544bff-zx8bg   1/1     Running   ...

Because we installed the operator using OLM, the controller Pod would be placed into the operators namespace to keep them seperate from other objects in the cluster. You can scale the number of replicas as needed by changing the configuration of the Deployment.

Summary

Kubernetes refers to the CRD and the corresponding controller as the operator pattern. The Kubernetes community has implemented many operators to fulfill custom requirements. You can install them into your cluster to reuse the functionality.

A CRD schema defines the structure of a custom resource. The schema includes the group, name, version, and its configurable attributes. New objects of this kind, so-called CRs, can be created after registering the schema. You can interact with a custom object using kubectl with the same CRUD commands used by any other primitive.

CRDs realize their full potential when combined with a controller implementation. The controller implementation inspects the state of specific custom objects and reacts based on their discovered state.

Exam Essentials

Know how to install operators

Operators built and managed by the Kubernetes community are available on searchable sites like Artifact Hub and Operator Hub. You will find installation instructions on the corresponding web pages. You do not have to memorize them for the exam. If you want to explore further, install an open source operator, such as the Prometheus operator or the Jaeger operator.

Acquire a high-level understanding of configurable options for a CRD schema

You are not expected to implement a custom CRD schema. All you need to know is how to discover and interact with them using kubectl. Practice the definition of a CR in the form of a YAML manifest, and create the objects for it. Controller implementations are definitely outside the scope of the exam.

Sample Exercises

Solutions to these exercises are available in Appendix A.

  1. You decide to manage a MongoDB installation in Kubernetes with the help of the official community operator. This operator provides a CRD. After installing the operator, you will interact with the CRD.

    Navigate to the directory app-a/ch07/mongodb-operator of the checked-out GitHub repository bmuschko/cka-study-guide. Install the operator using the following command: kubectl apply -f mongodbcommunity.mongodb.com_mongodb​community.yaml.

    List all CRDs using the appropriate kubectl command. Can you identify the CRD that was installed by the installation procedure?

    Inspect the schema of the CRD. What are the type and property names of this CRD?

  2. Navigate to the directory app-a/ch07/backup-crd of the checked-out GitHub repository bmuschko/cka-study-guide.

    Create the CRD from the file backup-resource.yaml. Retrieve the details for the Backup custom resource created in the previous step.

    Create a CR named nginx-backup for the CRD in the default namespace. Provide the following property values:

    • cronExpression: 0 0 * * *

    • podName: nginx

    • path: /usr/local/nginx

    Retrieve the details for the nginx-backup object created in the previous step.

Chapter 8. Helm and Kustomize

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 8th chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

Kubernetes objects can be created, modified, and deleted by using imperative kubectl commands or by running a kubectl command against a configuration file declaring the desired state of an object, a so-called manifest. The primary definition language of a manifest is YAML, though you can opt for JSON, which is the less widely adopted format among the Kubernetes community. It’s recommended that development teams commit and push those configuration files to version control repositories as it will help with tracking and auditing changes over time.

Modeling an application in Kubernetes often requires a set of supporting objects, each of which can have its own manifest. For example, you may want to create a Deployment that runs the application on five Pods, a ConfigMap to inject configuration data as environment variables, and a Service for exposing network access.

It is not practical to manage a full application stack by running individual kubectl commands. That is where open source tools like Helm and Kustomize come into play. They allow you conveniently manage the lifecycle of application stacks and cluster components as one single unit, while at the same time allowing for customization at the time of deployment.

Coverage of Curriculum Objectives

This chapter addresses the following curriculum objective:

  • Use Helm and Kustomize to install cluster components

Working with Helm

Helm is a templating engine and package manager for a set of Kubernetes manifests. At runtime, it replaces placeholders in YAML template files with actual, end-user-defined values. The artifact produced by the Helm executable is a so-called chart file that bundles the manifests that comprise the API resources of an application. You can upload the chart file to a chart repository so that other teams can be use it to deploy the bundled manifests. The Helm ecosystem offers a wide range of reusable charts for common use cases searchable on Artifact Hub (for example, for running Grafana or PostgreSQL).

Due to the wealth of functionality available to Helm, we’ll discuss only the basics. The exam does not expect you be a Helm expert; rather, it wants you to be familiar with the workflow of installing existing packages with Helm. Building and publishing your own charts is outside the scope of the exam. For more detailed information on Helm, see the user documentation. The version of Helm used to describe the functionality here is 3.17.2.

Managing an Existing Chart

As a developer, you want to reuse existing functionality instead of putting in the work to define and configure it yourself. For example, you may want to install the open source monitoring service Prometheus on your cluster.

Prometheus requires the installation of multiple Kubernetes primitives. Thankfully, the Kubernetes community provided a Helm chart making it very easy to install and configure all the moving parts in the form of a Kubernetes operator. Revisit Chapter 7 to refresh your memory on the moving parts of the operator pattern.

The following list shows the typical workflow for consuming and managing a Helm chart. Most of those steps need to use the helm executable:

  1. Identifying the chart you’d like to install

  2. Adding the repository containing the chart

  3. Installing the chart from the repository

  4. Verifying the Kubernetes objects that have been installed by the chart

  5. Rendering the list of installed charts

  6. Upgrading an installed chart

  7. Uninstalling a chart if its functionality is no longer needed

The following sections will explain each of the steps.

Identifying a Chart

Over the years, the Kubernetes community implemented and published thousands of Helm charts. Artifact Hub provides a web-based search capability for discovering charts by keyword.

Say you wanted to find a chart that installs the continuous integration solution Jenkins. All you’d need to do is to enter the term jenkins into the search box and press the Enter key. Figure 8-1 shows the list of results in Artifact Hub.

artifact hub search jenkins

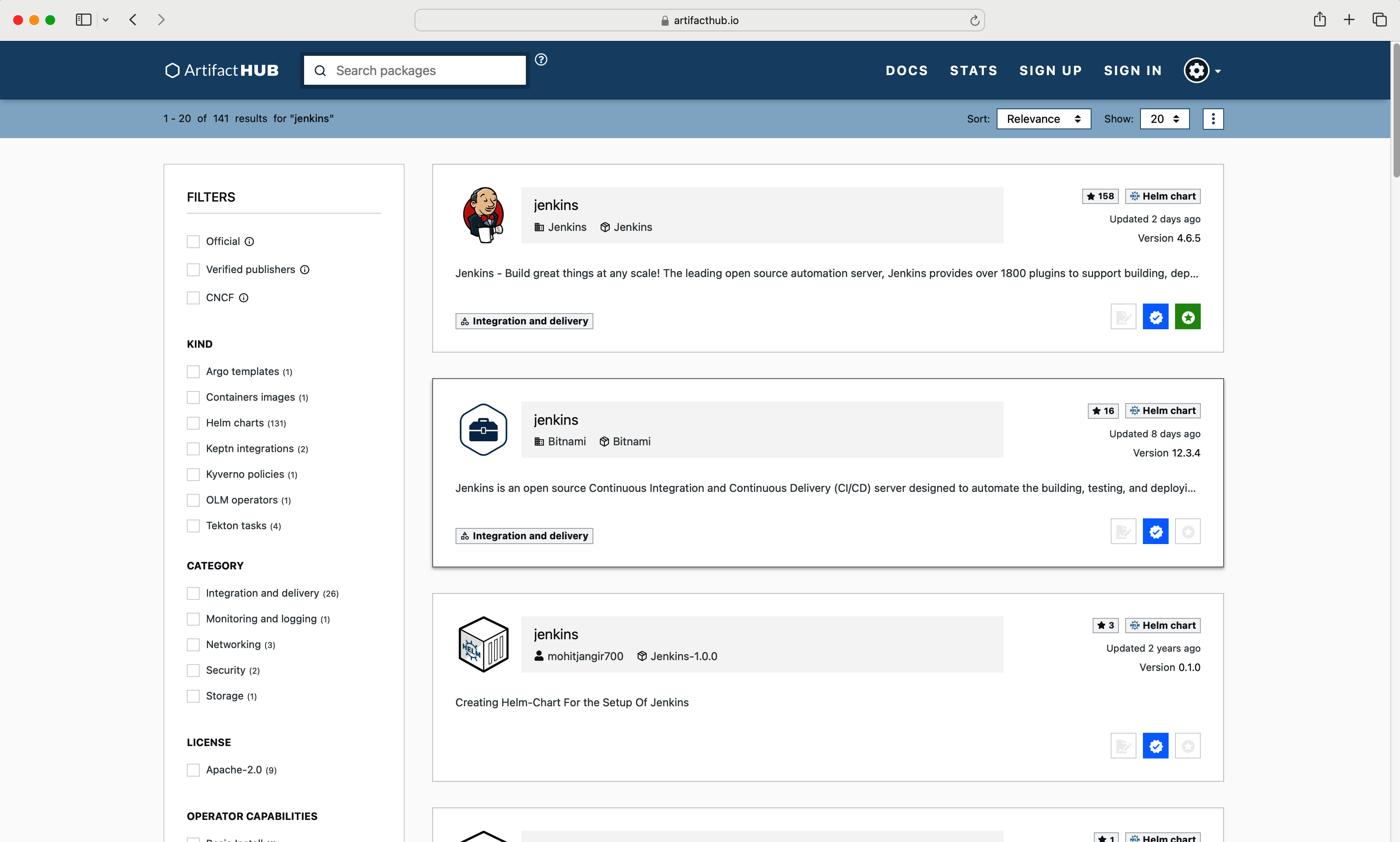

Figure 8-1. Searching for a Jenkins chart on Artifact Hub

At the time of writing, there are 141 matches for the search term. You will be able to inspect details about the chart by clicking on one of the search results, which includes a high-level description and the repository that the chart file resides in. Moreover, you can inspect the templates bundled with the chart file, indicating the objects that will be created upon installation and their configuration options. Figure 8-2 shows the page for the official Jenkins chart.

artifact hub jenkins chart details

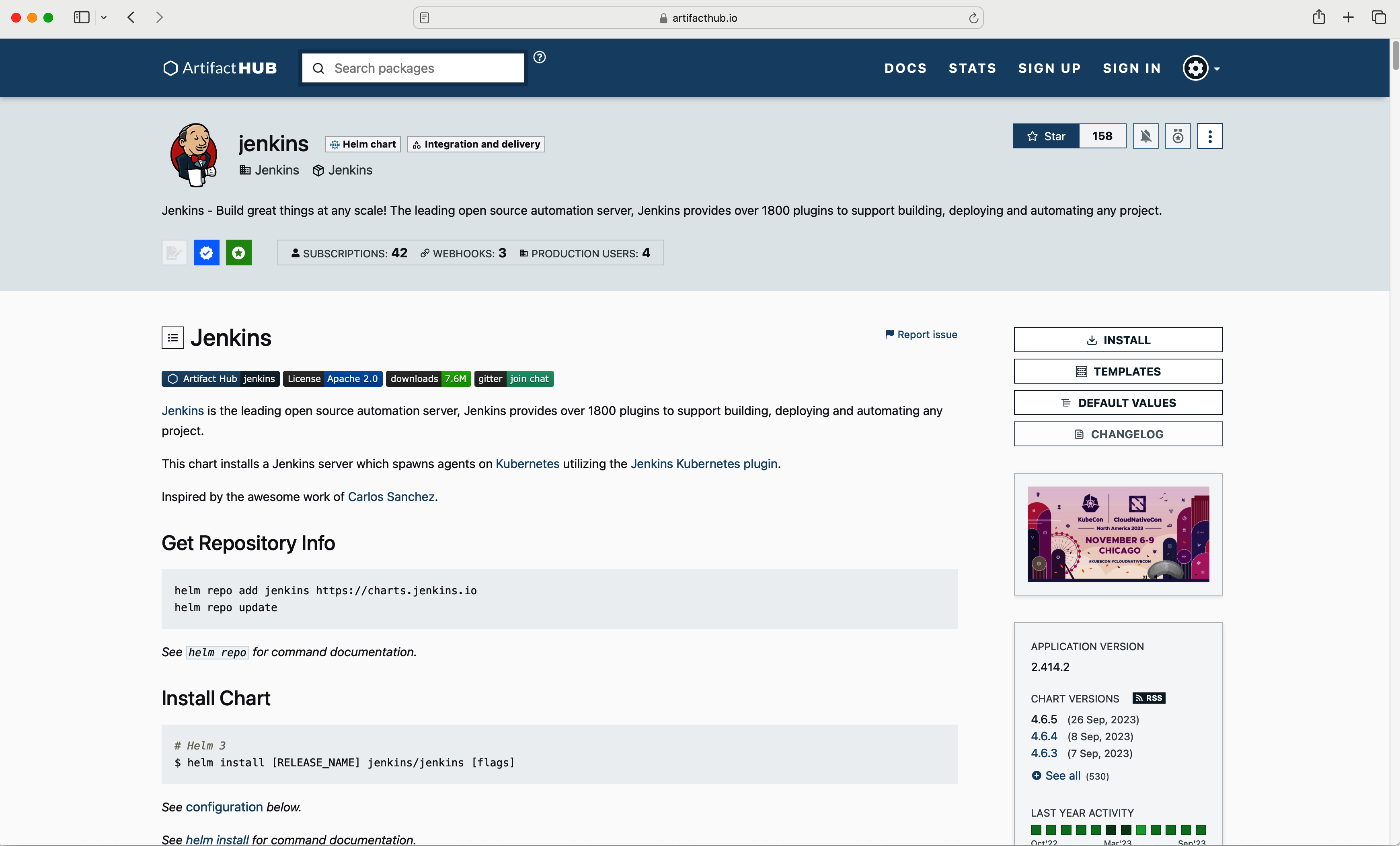

Figure 8-2. Jenkins chart details

You cannot install a chart directly from Artifact Hub. You must install it from the repository hosting the chart file.

Adding a Chart Repository

The chart description may mention the repository that hosts the chart file. Alternatively, you can click the Install button to render repository details and the command for adding it. Figure 8-3 shows the contextual pop-up that appears after clicking Install.

By default, a Helm installation defines no external repositories. The following command shows how to list all registered repositories. No repositories have been registered yet:

$ helm repo list
Error: no repositories to show
artifact hub jenkins chart install
Figure 8-3. Jenkins chart installation instructions

As you can see from the pop-up, the chart file lives in the repository with the URL https://charts.jenkins.io. We will need to add this repository. This is an one-time operation. You can install other charts from that repository or you can update a chart that originated from that repository with commands discussed in a later section.

You need to provide a name for the repository when registering one. Make the repository name as descriptive as possible. The following command registers the repository with the name jenkinsci:

$ helm repo add jenkinsci https://charts.jenkins.io/
"jenkinsci" has been added to your repositories

Listing the repositories now shows the mapping between name and URL:

$ helm repo list
NAME        URL
jenkinsci   https://charts.jenkins.io/

You permanently added the repository to the Helm installation.

Searching for a Chart in a Repository

The Install pop-up window already provided the command to install the chart. You can also search the repository for available charts in case you do not know their names or latest versions. Add the --versions flag to list all available versions:

$ helm search repo jenkinsci
NAME                CHART VERSION   APP VERSION   DESCRIPTION
jenkinsci/jenkins   5.8.26          2.492.2       ...

At the time of writing, the latest version available is 5.8.26. This may be different if you run the command on your machine, given that the Jenkins project may have released a newer version.

Installing a Chart

Let’s assume that the latest version of the Helm chart contains a security vulnerability. Therefore, we decide to install the Jenkins chart with the previous version, 5.8.25. You need to assign a name to be able to identify an installed chart. The name we’ll use here is my-jenkins:

$ helm install my-jenkins jenkinsci/jenkins --version 5.8.25
NAME: my-jenkins
LAST DEPLOYED: Wed Mar 26 13:48:50 2025
NAMESPACE: default
STATUS: deployed
REVISION: 1
...

The chart automatically created the Kubernetes objects in the default namespace. You can use the following command to discover the most important resource types:

$ kubectl get all
NAME               READY   STATUS    RESTARTS   AGE
pod/my-jenkins-0   2/2     Running   0          12m

NAME                       TYPE        CLUSTER-IP       EXTERNAL-IP    ...
service/my-jenkins         ClusterIP   10.99.166.189    <none>         ...
service/my-jenkins-agent   ClusterIP   10.110.246.141   <none>         ...

NAME                          READY   AGE
statefulset.apps/my-jenkins   1/1     12m

The chart has been installed with the default configuration options. You can inspect those default values by clicking the Default Values button on the chart page, as shown in Figure 8-4.

artifact hub jenkins chart default values

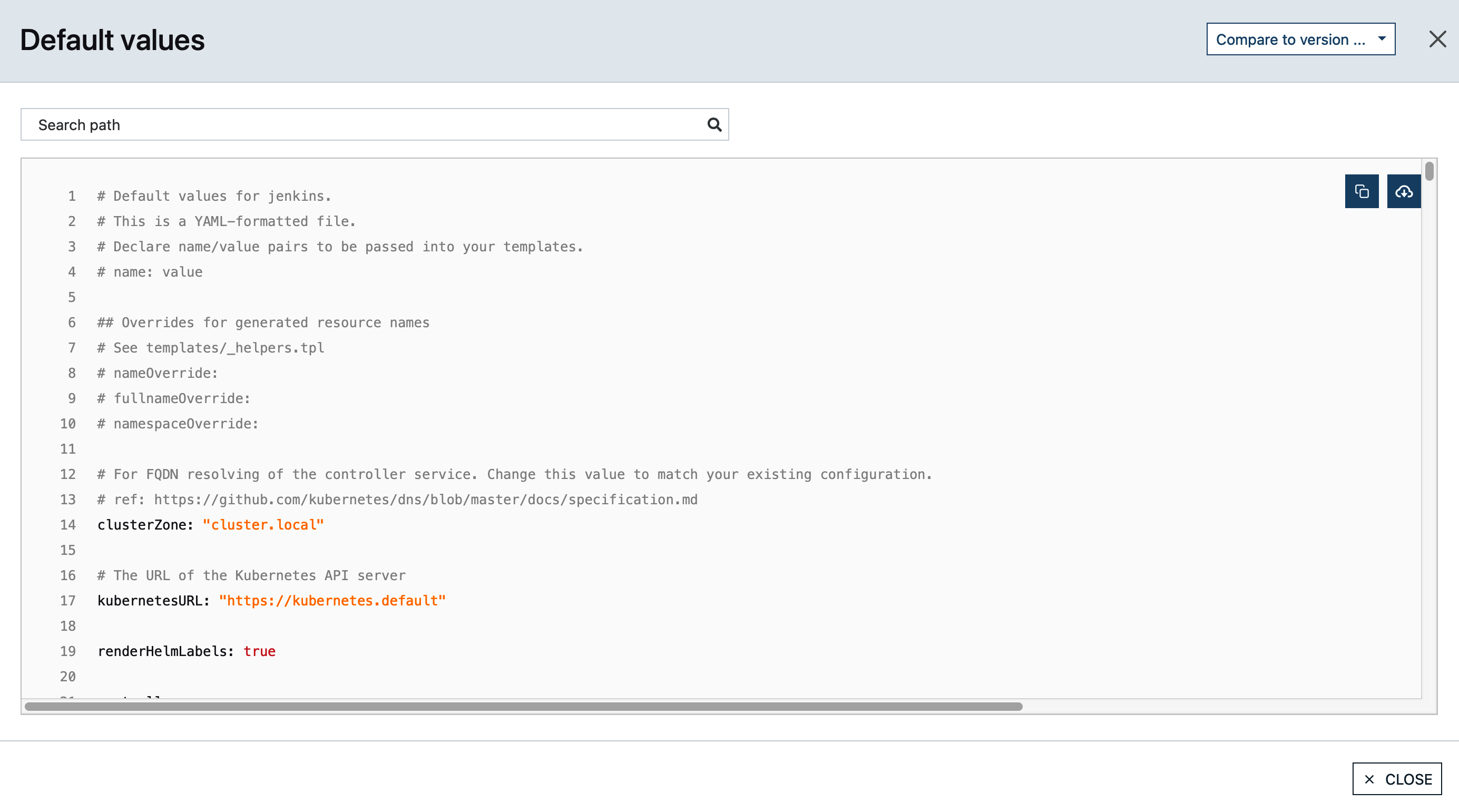

Figure 8-4. Jenkins chart default values

You can also discover those configuration options using the following command. The output shown renders only a subset of values, the admin username and its password, represented by controller.adminUser and controller.adminPassword:

$ helm show values jenkinsci/jenkins
...
controller:
  # When enabling LDAP or another non-Jenkins identity source, the built-in \
  # admin account will no longer exist.
  # If you disable the non-Jenkins identity store and instead use the Jenkins \
  # internal one,
  # you should revert controller.adminUser to your preferred admin user:
  adminUser: "admin"
  # adminPassword: <defaults to random>
...

You can customize any configuration value when installing the chart. To pass configuration data during the install processing, use one of the following flags:

  • --values: Specifies the overrides in the form of a pointer to a YAML manifest file.

  • --set: Specifies the overrides directly from the command line.

For more information, see “Customizing the Chart Before Installing” in the Helm documentation.

You can decide to install the chart into a custom namespace. Use the -n flag to provide the name of an existing namespace. Add the flag --create-namespace to automatically create the namespace if it doesn’t exist yet.

The following command shows how to customize some of the values and the namespace used during the installation process:

$ helm install my-jenkins jenkinsci/jenkins --version 4.6.4 \
--set controller.adminUser=boss --set controller.adminPassword=password \
-n jenkins --create-namespace

We specifically set the username and the password for the admin user. Helm created the objects controlled by the chart into the jenkins namespace.

Listing Installed Charts

Charts can live in the default namespace or a custom namespace. You can inspect the list of installed charts using the helm list command. If you do not know which namespace, simply add the --all-namespaces flag to the command:

$ helm list --all-namespaces
NAME         NAMESPACE   REVISION   UPDATED         STATUS     CHART
my-jenkins   default     1          2023-09-28...   deployed   jenkins-4.6.4

The output of the command includes the column NAMESPACE that shows the namespace used by a particular chart. Similar to the use of kubectl, the helm list command provides the option -n for spelling out a namespace. Providing no flag(s) with the command will return the result for the default namespace.

Upgrading an Installed Chart

Upgrading an installed chart usually means moving to a new chart version. You can poll for new versions available in the repository by running this command:

$ helm repo update
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "jenkinsci" chart repository
Update Complete. *Happy Helming!*

What if you want to upgrade your existing chart installation to a newer chart version? Run the following command to upgrade the chart to that specific version with the default configuration:

$ helm upgrade my-jenkins jenkinsci/jenkins --version 5.8.26
Release "my-jenkins" has been upgraded. Happy Helming!
...

As with the install command, you will have to provide custom configuration values if you want to tweak the chart’s runtime behavior when upgrading a chart.

Uninstalling a Chart

Sometimes you no longer need to run a chart. The command for uninstalling a chart is straightforward, as shown here. It will delete all objects controlled by the chart. Don’t forgot to provide the -n flag if you previously installed the chart into a namespace other than default:

$ helm uninstall my-jenkins
release "my-jenkins" uninstalled

Executing the command may take up to 30 seconds, as Kubernetes needs to wait for the workload grace period to end.

Working with Kustomize

Kustomize is a tool introduced with Kubernetes 1.14 that aims to make manifest management more convenient. It supports three different use cases:

  • Generating manifests from other sources. For example, creating a ConfigMap and populating its key-value pairs from a properties file.

  • Adding common configuration across multiple manifests. For example, adding a namespace and a set of labels for a Deployment and a Service.

  • Composing and customizing a collection of manifests. For example, setting resource boundaries for multiple Deployments.

The central file needed for Kustomize to work is the kustomization file. The standardized name for the file is kustomization.yaml and cannot be changed. A kustomization file defines the processing rules Kustomize works upon.

Kustomize is fully integrated with kubectl and can be executed in two modes: rendering the processing output on the console or creating the objects. Both modes can operate on a directory, tarball, Git archive, or URL as long as they contain the kustomization file and referenced resource files:

Rendering the produced output

The first mode uses the kustomize subcommand to render the produced result on the console but does not create the objects. This command works similarly to the dry-run option you might know from the run command:

$ kubectl kustomize <target>
Creating the objects

The second mode uses the apply command in conjunction with the -k command-line option to apply the resources processed by Kustomize, as explained in the previous section:

$ kubectl apply -k <target>

The following sections demonstrate each of the use cases by a single example. For a full coverage on all possible scenarios, refer to the documentation or the Kustomize GitHub repository.

Composing Manifests

One of the core functionalities of Kustomize is to create a composed manifest from other manifests. Combining multiple manifests into a single one may not seem that useful by itself, but many of the other features described later will build upon this capability. Say you wanted to compose a manifest from a Deployment and a Service resource file. All you need to do is to place the resource files into the same folder as the kustomization file:

.
├── kustomization.yaml
├── web-app-deployment.yaml
└── web-app-service.yaml

The kustomization file lists the resources in the resources section, as shown in Example 8-1.

Example 8-1. A kustomization file combining two manifests
resources:
- web-app-deployment.yaml
- web-app-service.yaml

As a result, the kustomize subcommand renders the combined manifest containing all of the resources separated by three hyphens (---) to denote the different object definitions:

$ kubectl kustomize ./
apiVersion: v1
kind: Service
metadata:
  labels:
    app: web-app-service
  name: web-app-service
spec:
  ports:
  - name: web-app-port
    port: 3000
    protocol: TCP
    targetPort: 3000
  selector:
    app: web-app
  type: NodePort
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: web-app-deployment
  name: web-app-deployment
spec:
  replicas: 3
  selector:
    matchLabels:
      app: web-app
  template:
    metadata:
      labels:
        app: web-app
    spec:
      containers:
      - env:
        - name: DB_HOST
          value: mysql-service
        - name: DB_USER
          value: root
        - name: DB_PASSWORD
          value: password
        image: bmuschko/web-app:1.0.1
        name: web-app
        ports:
        - containerPort: 3000

Generating Manifests from Other Sources

Earlier in this chapter, we learned that ConfigMaps and Secrets can be created by pointing them to a file containing the actual configuration data for it. Kustomize can help with the process by mapping the relationship between the YAML manifest of those configuration objects and their data. Furthermore, we’ll want to inject the created ConfigMap and Secret in a Pod as environment variables. In this section, you will learn how to achieve this with the help of Kustomize.

The following file and directory structure contains the manifest file for the Pod and the configuration data files we need for the ConfigMap and Secret. The mandatory kustomization file lives on the root level of the directory tree:

.
├── config
│   ├── db-config.properties
│   └── db-secret.properties
├── kustomization.yaml
└── web-app-pod.yaml

In kustomization.yaml, you can define that the ConfigMap and Secret object should be generated with the given name. The name of the ConfigMap is supposed to be db-config, and the name of the Secret is going to be db-creds. Both of the generator attributes, configMapGenerator and secretGenerator, reference an input file used to feed in the configuration data. Any additional resources can be spelled out with the resources attribute. Example 8-2 shows the contents of the kustomization file.

Example 8-2. A kustomization file using a ConfigMap and Secret generator
configMapGenerator:
- name: db-config
  files:
  - config/db-config.properties
secretGenerator:
- name: db-creds
  files:
  - config/db-secret.properties
resources:
- web-app-pod.yaml

Kustomize generates ConfigMaps and Secrets by appending a suffix to the name. You can see this behavior when creating the objects using the apply command. The ConfigMap and Secret can be referenced by name in the Pod manifest:

$ kubectl apply -k ./
configmap/db-config-t4c79h4mtt unchanged
secret/db-creds-4t9dmgtf9h unchanged
pod/web-app created
Note

This naming strategy can be configured with the attribute generatorOptions in the kustomization file. See the documentation for more information.

Let’s also try the kustomize subcommand. Instead of creating the objects, the command renders the processed output on the console:

$ kubectl kustomize ./
apiVersion: v1
data:
  db-config.properties: |-
    DB_HOST: mysql-service
    DB_USER: root
kind: ConfigMap
metadata:
  name: db-config-t4c79h4mtt
---
apiVersion: v1
data:
  db-secret.properties: REJfUEFTU1dPUkQ6IGNHRnpjM2R2Y21RPQ==
kind: Secret
metadata:
  name: db-creds-4t9dmgtf9h
type: Opaque
---
apiVersion: v1
kind: Pod
metadata:
  labels:
    app: web-app
  name: web-app
spec:
  containers:
  - envFrom:
    - configMapRef:
        name: db-config-t4c79h4mtt
    - secretRef:
        name: db-creds-4t9dmgtf9h
    image: bmuschko/web-app:1.0.1
    name: web-app
    ports:
    - containerPort: 3000
      protocol: TCP
  restartPolicy: Always

Adding Common Configuration Across Multiple Manifests

Application developers usually work on an application stack set comprised of multiple manifests. For example, an application stack could consist of a frontend microservice, a backend microservice, and a database. It’s common practice to use the same, cross-cutting configuration for each of the manifests. Kustomize offers a range of supported fields (e.g., namespace, labels, or annotations). Refer to the documentation to learn about all supported fields.

For the next example, we’ll assume that a Deployment and a Service live in the same namespace and use a common set of labels. The namespace is called persistence and the label is the key-value pair team: helix. Example 8-3 illustrates how to set those common fields in the kustomization file.

Example 8-3. A kustomization file using a common field
namespace: persistence
commonLabels:
  team: helix
resources:
- web-app-deployment.yaml
- web-app-service.yaml

To create the referenced objects in the kustomization file, run the apply command. Make sure to create the persistence namespace beforehand:

$ kubectl create namespace persistence
namespace/persistence created
$ kubectl apply -k ./
service/web-app-service created
deployment.apps/web-app-deployment created

The YAML representation of the processed files looks as follows:

$ kubectl kustomize ./
apiVersion: v1
kind: Service
metadata:
  labels:
    app: web-app-service
    team: helix
  name: web-app-service
  namespace: persistence
spec:
  ports:
  - name: web-app-port
    port: 3000
    protocol: TCP
    targetPort: 3000
  selector:
    app: web-app
    team: helix
  type: NodePort
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: web-app-deployment
    team: helix
  name: web-app-deployment
  namespace: persistence
spec:
  replicas: 3
  selector:
    matchLabels:
      app: web-app
      team: helix
  template:
    metadata:
      labels:
        app: web-app
        team: helix
    spec:
      containers:
      - env:
        - name: DB_HOST
          value: mysql-service
        - name: DB_USER
          value: root
        - name: DB_PASSWORD
          value: password
        image: bmuschko/web-app:1.0.1
        name: web-app
        ports:
        - containerPort: 3000

Customizing a Collection of Manifests

Kustomize can merge the contents of a YAML manifest with a code snippet from another YAML manifest. Typical use cases include adding security context configuration to a Pod definition or setting resource boundaries for a Deployment. The kustomization file allows for specifying different patch strategies like patchesStrategicMerge and patchesJson6902. For a deeper discussion on the differences between patch strategies, refer to the documentation.

Example 8-4 shows the contents of a kustomization file that patches a Deployment definition in the file nginx-deployment.yaml with the contents of the file security-context.yaml.

Example 8-4. A kustomization file defining a patch
resources:
- nginx-deployment.yaml
patchesStrategicMerge:
- security-context.yaml

The patch file shown in Example 8-5 defines a security context on the container-level for the Pod template of the Deployment. At runtime, the patch strategy tries to find the container named nginx and enhances the additional configuration.

Example 8-5. The patch YAML manifest
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment
spec:
  template:
    spec:
      containers:
      - name: nginx
        securityContext:
          runAsUser: 1000
          runAsGroup: 3000
          fsGroup: 2000

The result is a patched Deployment definition, as shown in the output of the kustomize subcommand shown next. The patch mechanism can be applied to other files that require a uniform security context definition:

$ kubectl kustomize ./
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: nginx
  name: nginx-deployment
spec:
  replicas: 3
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - image: nginx:1.14.2
        name: nginx
        ports:
        - containerPort: 80
        securityContext:
          fsGroup: 2000
          runAsGroup: 3000
          runAsUser: 1000

Key Differences Between Helm and Kustomize

On the surface, Helm and Kustomize may seem to solve the same problems. Here, we want to identify the key difference between those tools so that you can make an educated decision based on the use cases you are trying to fulfill.

Ease of use

Kustomize is bundled with the kubectl command line. You do not need to install another tool, nor do you have learn another templating engine.

Helm requires the installation of an executable and requires you to become familiar with its commands and workflow.

Learning curve

Kustomize builds upon the knowledge of an administrator or developer familiar with writing Kubernetes YAML manifests.

Helm has a steeper learning curse. You will have to become familiar with its package management system, the notation for its templating engine, and how to pass in user-defined values upon invocation.

Packaging

Kustomize doesn’t require the end user to produce an archive file. All you need is a set of YAML manifests and the kustomization.yaml file, which you would check into a Git repository.

Helm on the other hand requires the creation of a metadata file named Chart.yaml, default values represented in a file named values.yaml, and a set of template files in a templates subdirectory. To be able to distribute the Helm chart, you’ll need to package it into a TAR file.

Release versioning

Kustomize solely focuses on generating the desired state in a cluster through YAML manifests. You can track changes over time by Git commit hashes or tags to indicate a version.

Helm’s rigid project structure requires the definition of a chart version inside of the Chart.yaml file. Every time you make a change, you’d bump up the version number, often represented by semantic versioning.

Helm and Kustomize are Kubernetes tools used to automate the process of deploying objects into a cluster. Carefully analyze your technical requirements, business objectives, and the skillset of team members before deciding for either of the tools. You may even determine that you should use both tools to manage application stacks in Kubernetes. Most Kubernetes GitOps tools, e.g. Argo CD or Flux, support Helm and Kustomize.

Summary

Helm has evolved to become a de facto tool for deploying application stacks to Kubernetes. The artifact that contains the manifest files, default configuration values, and metadata is called a chart. A team or an individual can publish charts to a chart repository. Users can discover a published chart through the Artifact Hub user interface and install it to a Kubernetes cluster.

One of the primary developer workflows when using Helm consists of finding, installing, and upgrading a chart with a specific version. You start by registering the repository containing chart files you want to consume. The helm install command downloads the chart file and stores it in a local cache. It also creates the Kubernetes objects described by the chart.

The installation process is configurable. A developer can provide overrides for customizable configuration values. The helm upgrade command lets you upgrade the version of an already installed chart. To uninstall a chart and delete all Kubernetes objects managed by the chart, run the helm uninstall command.

Additional tools emerged for more convenient manifest management. Kustomize is fully integrated with the kubectl tool chain. It helps with the generation, composition, and customization of manifests.

Exam Essentials

Assume that the Helm and Kustomize executable is preinstalled

Unfortunately, the exam FAQ does not mention any details about the Helm and Kustomize executable. It’s fair to assume that it will be preinstalled for you and therefore you do not need to memorize installation instructions.

Become familiar with Artifact Hub

Artifact Hub provides a web-based UI for Helm charts. It’s worthwhile to explore the search capabilities and the details provided by individual charts, more specifically the repository the chart file lives in, and its configurable values. During the exam, you’ll likely not be asked to navigate to Artifact Hub because its URL hasn’t been listed as one of the permitted documentation pages. You can assume that the exam question will provide you with the repository URL.

Practice commands needed to consume existing Helm charts

The exam does not ask you to build and publish your own chart file. All you need to understand is how to consume an existing chart. You will need to be familiar with the helm repo add command to register a repository, the helm search repo to find available chart versions, and the helm install command to install a chart. You should have a basic understanding of the upgrade process for an already installed Helm chart using the helm upgrade command.

Sample Exercises

Solutions to these exercises are available in Appendix A.

  1. In this exercise, you will use Helm to install Kubernetes objects needed for the open source monitoring solution Prometheus. The easiest way to install Prometheus on top of Kubernetes is with the help of the prometheus-operator Helm chart.

    You can search for the kube-prometheus-stack on Artifact Hub. Add the repository to the list of known repositories accessible by Helm with the name prometheus-community.

    Update to the latest information about charts from the respective chart repository.

    Run the Helm command for listing available Helm charts and their versions. Identify the latest chart version for kube-prometheus-stack.

    Install the the chart kube-prometheus-stack. List the installed Helm chart.

    List the Service named prometheus-operated created by the Helm chart. The object resides in the default namespace.

    Use the kubectl port-forward command to forward the local port 8080 to the port 9090 of the Service. Open a browser and bring up the Prometheus dashboard.

    Stop port forwarding and uninstall the Helm chart.

  2. Create the directory named manifests. Within the directory, create two files: pod.yaml and configmap.yaml. The pod.yaml file should define a Pod named nginx with the image nginx:1.21.1. The configmap.yaml file defines a ConfigMap named logs-config with the key-value pair dir=/etc/logs/traffic.log. Create both objects with a single, declarative command.

    Modify the ConfigMap manifest by changing the value of the key dir to /etc/logs/traffic-log.txt. Apply the changes. Delete both objects with a single declarative command.

    Use Kustomize to set a common namespace t012 for the resource file pod.yaml. The file pod.yaml defines the Pod named nginx with the image nginx:1.21.1 without a namespace. Run the Kustomize command that renders the transformed manifest on the console.

Part III. Workloads and Scheduling

The Workloads and Scheduling domain encompasses the foundational Kubernetes primitives used for deploying applications in enterprise environments. It also covers the key concepts and mechanisms that drive how workloads are efficiently admitted, scheduled and distributed across worker nodes, ensuring optimal resource utilization and performance.

The following chapters cover these concepts:

  • Chapter 9 evolves around the Pod, the essential primitive for running workload in Kubernetes. The chapter also explains the namespace primitive, a way to logically group objects.

  • Chapter 10 shows how to centrally define configuration data with ConfigMaps and Secrets and the different ways to consume the configuration data from a Pod.

  • Chapter 11 demonstrates how to manage a set of Pods to run workload using the Deployment and ReplicaSet primitives by example. You’ll learn about the built-in deployment strategies supported by the Deployment to roll out changes across its replicas.

  • Chapter 12 explains how to scale the number of Pods controlled by a ReplicaSet manually by providing a discrete number and automatically by defining resource threshold metrics with a Horizontal Pod Autoscaler.

  • Chapter 13 is all about resource management. You will learn about container resource requirements and their impact on Pod scheduling and runtime behavior. This chapter will also cover enforcing aggregate resource consumption of objects living in a specific namespace with the help of resource quotas. Finally, we’ll dive into governing resource consumption for specific resource types with limit ranges.

  • Chapter 14 expands on lessons learned in the previous chapter. You will get to know other concepts that influence if and how a Pod can be scheduled on specific nodes.

Chapter 9. Pods and Namespaces

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 9th chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

The most important primitive in the Kubernetes API is the Pod. A Pod lets you run a containerized application. In practice, you’ll often encounter a one-to-one mapping between a Pod and a container; however, the use cases we discussed benefit from declaring more than one container in a single Pod.

In addition to running a container, a Pod can consume other services like storage, configuration data, and much more. Therefore, think of a Pod as a wrapper for running containers while at the same time being able to mix in cross-cutting and specialized Kubernetes features.

Coverage of Curriculum Objectives

The curriculum doesn’t explicitly mention coverage of Pods and namespaces. However, you will definitely need to understand those primitives as they are essential for running workload in Kubernetes.

Working with Pods

In this chapter, we will look at working with a Pod running only a single container. I’ll discuss all important kubectl commands for creating, modifying, interacting, and deleting using imperative and declarative approaches.

Creating Pods

The Pod definition needs to state an image for every container. Upon creating the Pod object, imperatively or declaratively, the scheduler will assign the Pod to a node, and the container runtime engine will check if the container image already exists on that node. If the image doesn’t exist yet, the engine will download it from a container image registry. By default the registry is Docker Hub. As soon as the image exists on the node, the container is instantiated and will run. Figure 9-1 demonstrates the execution flow.

kubelet container images
Figure 9-1. Container Runtime Interface interaction with container images

The run command is the central entry point for creating Pods imperatively. Let’s talk about its usage and the most important command line options you should memorize and practice. Say you wanted to run a Hazelcast instance inside of a Pod. The container should use the latest Hazelcast image, expose port 5701, and define an environment variable. In addition, you also want to assign two labels to the Pod. The following imperative command combines this information and does not require any further editing of the live object:

$ kubectl run hazelcast --image=hazelcast/hazelcast:5.1.7 \
  --port=5701 --env="DNS_DOMAIN=cluster" --labels="app=hazelcast,env=prod"

The run command offers a wealth of command line options. Execute the kubectl run --help or refer to the Kubernetes documentation for a broad overview. For the exam, you’ll not need to understand every command. Table 9-1 lists the most commonly used options.

Table 9-1. Important kubectl run command line options
Option Example value Description

--image

nginx:1.25.1

The image for the container to run.

--port

8080

The port that this container exposes.

--rm

N/A

Deletes the Pod after command in the container finishes. See “Creating a Temporary Pod” for more information.

--env

PROFILE=dev

The environment variables to set in the container.

--labels

app=frontend

A comma-separated list of labels to apply to the Pod.

Some developers are more used to creating Pods from a YAML manifest. Probably you’re already accustomed to the declarative approach because you’re using it at work. You can express the same configuration for the Hazelcast Pod by opening the editor, copying a Pod YAML code snippet from the Kubernetes online documentation, and modifying it to your needs. Example 9-1 shows the Pod manifest saved in the file pod.yaml:

Example 9-1. Pod YAML manifest
apiVersion: v1
kind: Pod
metadata:
  name: hazelcast                      1
  labels:                              2
    app: hazelcast
    env: prod
spec:
  containers:
  - name: hazelcast
    image: hazelcast/hazelcast:5.1.7   3
    env:                               4
    - name: DNS_DOMAIN
      value: cluster
    ports:
    - containerPort: 5701              5
1

Assigns the name of hazelcast to the Pod.

2

Specifies labels to the Pod.

3

Declares the container image to be executed in the container of the Pod.

4

Injects one or many environment variables to the container.

5

Number of port to expose on the Pod’s IP address.

Creating the Pod from the manifest is straightforward. Simply use the create or apply command, as shown here and explained in “Managing Objects”:

$ kubectl apply -f pod.yaml
pod/hazelcast created

Listing Pods

Now that you have created a Pod, you can further inspect its runtime information. The kubectl command offers a command for listing all Pods running in the cluster: get pods. The following command renders the Pod named hazelcast:

$ kubectl get pods
NAME        READY   STATUS    RESTARTS   AGE
hazelcast   1/1     Running   0          17s

Real-world Kubernetes clusters can run hundreds of Pods at the same time. If you know the name of the Pod of interest, it’s often easier to query by name. You would still see only a single Pod:

$ kubectl get pods hazelcast
NAME        READY   STATUS    RESTARTS   AGE
hazelcast   1/1     Running   0          17s

Pod Life Cycle Phases

Because Kubernetes is a state engine with asynchronous control loops, it’s possible that the status of the Pod doesn’t show a Running status right away when listing the Pods. It usually takes a couple of seconds to retrieve the image and start the container. Upon Pod creation, the object goes through several life cycle phases, as shown in Figure 9-2.

pod lifecycle phases

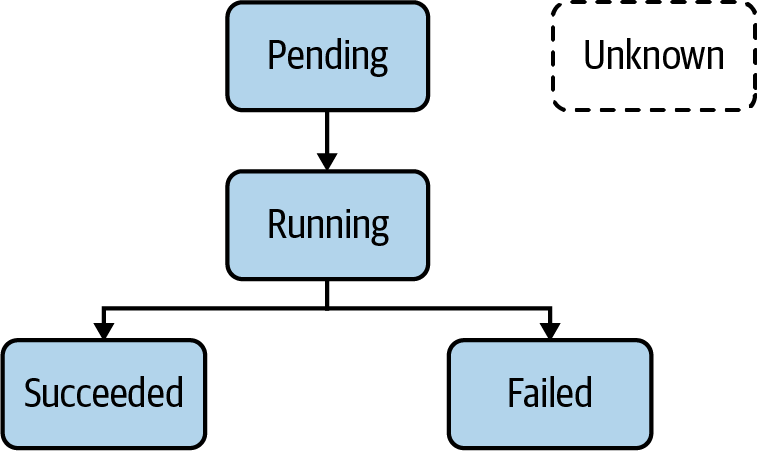

Figure 9-2. Pod life cycle phases

Understanding the implications of each phase is important as it gives you an idea about the operational status of a Pod. For example, during the exam you may be asked to identify a Pod with an issue and further debug the object. Table 9-2 describes all Pod life cycle phases.

Table 9-2. Pod life cycle phases
Option Description

Pending

The Pod has been accepted by the Kubernetes system, but one or more of the container images has not been created.

Running

At least one container is still running or is in the process of starting or restarting.

Succeeded

All containers in the Pod terminated successfully.

Failed

Containers in the Pod terminated,; at least one failed with an error.

Unknown

The state of Pod could not be obtained.

The Pod life cycle phases should not be confused with container states within a Pod. Containers can have one of the three possible states: Waiting, Running, and Terminated. You can read more about container states in the Kubernetes documentation.

Container-Level Restarts

Every Pod provides container-level restart capabilities. If a container fails, the kubelet cluster component will restart it based on its configured restart policy.

The restart policy of a Pod can be set using the attribute spec.restartPolicy. Possible values for this attribute include Always, OnFailure, and Never, as shown in Table 9-3. The default value is Always if the attribute has not been set explicitly.

Table 9-3. Container-level restart options
Option Description

Always

Automatically restarts the container after any termination.

OnFailure

Only restarts the container if it exits with an error (non-zero exit status).

Never

Does not automatically restart the terminated container.

Example 9-2 shows the usage of the attribute in a Pod manifest.

Example 9-2. Setting a Pod’s restart policy
apiVersion: v1
kind: Pod
metadata:
  name: hazelcast
spec:
  containers:
  - name: hazelcast
    image: hazelcast/hazelcast:5.1.7
  restartPolicy: Never

The attribute applies to a Pod’s application containers and init containers. Sidecar containers ignore the attribute; they will automatically apply the value Always.

Rendering Pod Details

The rendered table produced by the get command provides high-level information about a Pod. But what if you needed a deeper look at the details? The describe command can help:

$ kubectl describe pods hazelcast
Name:               hazelcast
Namespace:          default
Priority:           0
PriorityClassName:  <none>
Node:               docker-desktop/192.168.65.3
Start Time:         Wed, 20 May 2020 19:35:47 -0600
Labels:             app=hazelcast
                    env=prod
Annotations:        <none>
Status:             Running
IP:                 10.1.0.41
Containers:
  ...
Events:
  ...

The terminal output contains the metadata information of a Pod, the containers it runs, and the event log, such as failures when the Pod was scheduled. The example output has been condensed to show just the metadata section. You can expect the output to be very lengthy.

There’s a way to be more specific about the information you want to render. You can combine the describe command with a Unix grep command if you want to identify the image for running in the container:

$ kubectl describe pods hazelcast | grep Image:
    Image:          hazelcast/hazelcast:5.1.7

Accessing Logs of a Pod

As application developers, we know very well what to expect in the log files produced by the application we implemented. Runtime failures may occur when operating an application in a container. The logs command downloads the log output of a container. The following output indicates that the Hazelcast server started up successfully:

$ kubectl logs hazelcast
...
May 25, 2020 3:36:26 PM com.hazelcast.core.LifecycleService
INFO: [10.1.0.46]:5701 [dev] [4.0.1] [10.1.0.46]:5701 is STARTED

It’s very likely that more log entries will be produced as soon as the container receives traffic from end users. You can stream the logs with the command line option -f. This option is helpful if you want to see logs in real time.

Kubernetes tries to restart a container under certain conditions, such as if the image cannot be resolved on the first try. Upon a container restart, you won’t have access to the logs of the previous container; the logs command renders the logs only for the current container. However, you can still get back to the logs of the previous container by adding the -p command line option. You may want to use the option to identify the root cause that triggered a container restart.

Executing a Command in Container

Some situations require you to get the shell to a running container and explore the filesystem. Maybe you want to inspect the configuration of your application or debug its current state. You can use the exec command to open a shell in the container to explore it interactively, as follows:

$ kubectl exec -it hazelcast -- /bin/sh
# ...

Notice that you do not have to provide the resource type. This command only works for a Pod. The two dashes (--) separate the exec command and its options from the command you want to run inside of the container.

It’s also possible to execute a single command inside of a container. Say you wanted to render the environment variables available to containers without having to be logged in. Just remove the interactive flag -it and provide the relevant command after the two dashes:

$ kubectl exec hazelcast -- env
...
DNS_DOMAIN=cluster

Creating a Temporary Pod

The command executed inside of a Pod—usually an application implementing business logic—is meant to run infinitely. Once the Pod has been created, it will stick around. Under certain conditions, you want to execute a command in a Pod just for troubleshooting. This use case doesn’t require a Pod object to run beyond the execution of the command. That’s where temporary Pods come into play.

The run command provides the flag --rm, which will automatically delete the Pod after the command running inside of it finishes. Say you want to render all environment variables using env to see what’s available inside of the container. The following command achieves exactly that:

$ kubectl run busybox --image=busybox:1.36.1 --rm -it --restart=Never -- env
...
HOSTNAME=busybox
pod "busybox" deleted

The last message rendered in the output clearly states that the Pod was deleted after command execution.

Using a Pod’s IP Address for Network Communication

Every Pod is assigned an IP address upon creation. You can inspect a Pod’s IP address by using the -o wide command-line option for the get pod command or by describing the Pod. The IP address of the Pod in the following console output is 10.244.0.5:

$ kubectl run nginx --image=nginx:1.25.1 --port=80
pod/nginx created
$ kubectl get pod nginx -o wide
NAME    READY   STATUS    RESTARTS   AGE   IP           NODE       \
NOMINATED NODE   READINESS GATES
nginx   1/1     Running   0          37s   10.244.0.5   minikube   \
<none>           <none>
$ kubectl get pod nginx -o yaml
...
status:
  podIP: 10.244.0.5
...

The IP address assigned to a Pod is unique across all nodes and namespaces. This is achieved by assigning a dedicated subnet to each node when registering it. When creating a new Pod on a node, the IP address is leased from the assigned subnet. This is handled by the networking life cycle manager kube-proxy along with the Domain Name Service (DNS) and the Container Network Interface (CNI).

You can easily verify the behavior by creating a temporary Pod that calls the IP address of another Pod using the command-line tool curl or wget:

$ kubectl run busybox --image=busybox:1.36.1 --rm -it --restart=Never \
  -- wget 172.17.0.4:80
Connecting to 172.17.0.4:80 (172.17.0.4:80)
saving to 'index.html'
index.html           100% |********************************|   615  0:00:00 ETA
'index.html' saved
pod "busybox" deleted

It’s important to understand that the IP address is not considered stable over time. A Pod restart leases a new IP address. Therefore, this IP address is often referred to as virtual IP address. Building a microservices architecture—where each of the applications runs in its own Pod with the need to communicate between each other with a stable network interface—requires a different concept: the Service. Refer to Chapter 17 for more information.

Configuring Pods

The curriculum expects you to feel comfortable with editing YAML manifests either as files or as live object representations. This section shows you some typical configuration scenarios you may face during the exam. Later chapters will deepen your knowledge by touching on other configuration aspects.

Declaring environment variables

Applications need to expose a way to make their runtime behavior configurable. For example, you may want to inject the URL to an external web service or declare the username for a database connection. Environment variables are a common option to provide this runtime configuration.

Avoid creating container images per environment

It might be tempting to say, “Hey, let’s create a container image for any target deployment environment we need, including its configuration.” That’s a bad idea. One of the practices of continuous delivery and the Twelve-Factor App principles is to build a deployable artifact for a commit just once. In this case, the artifact is the container image. Deviating configuration runtime behavior should be controllable by injecting runtime information when instantiating the container. You can use environment variables to control the behavior as needed.

Defining environment variables in a Pod YAML manifest is relatively easy. Add or enhance the section env of a container. Every environment variable consists of a key-value pair, represented by the attributes name and value. Kubernetes does not enforce or sanitize typical naming conventions for environment variable keys, though it is recommended to follow the standard of using upper-case letters and the underscore character (_) to separate words.

To illustrate a set of environment variables, look at Example 9-3. The code snippet describes a Pod that runs a Java-based application using the Spring Boot framework.

Example 9-3. YAML manifest for a Pod defining environment variables
apiVersion: v1
kind: Pod
metadata:
  name: spring-boot-app
spec:
  containers:
  - name: spring-boot-app
    image: bmuschko/spring-boot-app:1.5.3
    env:
    - name: SPRING_PROFILES_ACTIVE
      value: prod
    - name: VERSION
      value: '1.5.3'

The first environment variable named SPRING_PROFILES_ACTIVE defines a pointer to a so-called profile. A profile contains environment-specific properties. Here, we are pointing to the profile that configures the production environment. The environment variable VERSION specifies the application version. Its value corresponds to the tag of the image and can be exposed by the running application to display the value in the user interface.

Defining a command with arguments

Many container images already define an ENTRYPOINT or CMD instruction. The command assigned to the instruction is automatically executed as part of the container startup. For example, the Hazelcast image we used earlier defines the instruction CMD ["/opt/hazelcast/start-hazelcast.sh"].

In a Pod definition, you can either redefine the image ENTRYPOINT and CMD instructions or assign a command to execute for the container if it hasn’t been specified by the image. You can provide this information with the help of the command and args attributes for a container. The command attribute overrides the image’s ENTRYPOINT instruction. The args attribute replaces the CMD instruction of an image.

Imagine you wanted to provide a command to an image that doesn’t provide one yet. As usual, there are two different approaches: imperative and declarative. We’ll generate the YAML manifest with the help of the run command. The Pod should use the busybox:1.36.1 image and execute a shell command that renders the current date every 10 seconds in an infinite loop:

$ kubectl run mypod --image=busybox:1.36.1 -o yaml --dry-run=client \
  > pod.yaml -- /bin/sh -c "while true; do date; sleep 10; done"

You can see in the generated but condensed pod.yaml file shown in Example 9-4 that the command has been turned into an args attribute. Kubernetes specifies each argument on a single line.

Example 9-4. A YAML manifest containing an args attribute
apiVersion: v1
kind: Pod
metadata:
  name: mypod
spec:
  containers:
  - name: mypod
    image: busybox:1.36.1
    args:
    - /bin/sh
    - -c
    - while true; do date; sleep 10; done

You could have achieved the same by a combination of the command and args attributes if you were to handcraft the YAML manifest. Example 9-5 shows a different approach.

Example 9-5. A YAML manifest containing command and args attributes
apiVersion: v1
kind: Pod
metadata:
  name: mypod
spec:
  containers:
  - name: mypod
    image: busybox:1.36.1
    command: ["/bin/sh"]
    args: ["-c", "while true; do date; sleep 10; done"]

You can quickly verify if the declared command actually does its job. First, create the Pod instance, then tail the logs:

$ kubectl apply -f pod.yaml
pod/mypod created
$ kubectl logs mypod -f
Fri May 29 00:49:06 UTC 2020
Fri May 29 00:49:16 UTC 2020
Fri May 29 00:49:26 UTC 2020
...

Deleting a Pod

Sooner or later you’ll want to delete a Pod. During the exam, you may be asked to delete a Pod. Or possibly, you made a configuration mistake and want to start the question from scratch:

$ kubectl delete pod hazelcast
pod "hazelcast" deleted

Keep in mind that Kubernetes tries to delete a Pod gracefully. This means that the Pod will try to finish active requests to the Pod to avoid unnecessary disruption to the end user. A graceful deletion operation can take anywhere from 5 to 30 seconds, time you don’t want to waste during the exam. See Chapter 1 for more information on how to speed up the process.

An alternative way to delete a Pod is to point the delete command to the YAML manifest you used to create it. The behavior is the same:

$ kubectl delete -f pod.yaml
pod "hazelcast" deleted

To save time during the exam, you can circumvent the grace period by adding the --now option to the delete command. Avoid using the --now flag in production Kubernetes environments.

Working with Namespaces

Namespaces are an API construct to avoid naming collisions, and they represent a scope for object names. A good use case for namespaces is to isolate the objects by team or responsibility.

Namespaces for objects

The content in this chapter demonstrates the use of namespaces for Pod objects. Namespaces are not a concept applicable only to Pods though. Most object types can be grouped by a namespace.

Most questions in the exam will ask you to execute the command in a specific namespace that has been set up for you. The following sections briefly touch on the basic operations needed to deal with a namespace.

Listing Namespaces

A Kubernetes cluster starts out with a couple of initial namespaces. You can list them with the following command:

$ kubectl get namespaces
NAME              STATUS   AGE
default           Active   157d
kube-node-lease   Active   157d
kube-public       Active   157d
kube-system       Active   157d

The default namespace hosts objects that haven’t been assigned to an explicit namespace. Namespaces starting with the prefix kube- are not considered end user-namespaces. They have been created by the Kubernetes system. You will not have to interact with them as an application developer.

Creating and Using a Namespace

To create a new namespace, use the create namespace command. The following command uses the name code-red:

$ kubectl create namespace code-red
namespace/code-red created
$ kubectl get namespace code-red
NAME       STATUS   AGE
code-red   Active   16s

Example 9-6 shows the corresponding representation as a YAML manifest.

Example 9-6. Namespace YAML manifest
apiVersion: v1
kind: Namespace
metadata:
  name: code-red

Once the namespace is in place, you can create objects within it. You can do so with the command line option --namespace or its short-form -n. The following commands create a new Pod in the namespace code-red and then list the available Pods in the namespace:

$ kubectl run pod --image=nginx:1.25.1 -n code-red
pod/pod created
$ kubectl get pods -n code-red
NAME   READY   STATUS    RESTARTS   AGE
pod    1/1     Running   0          13s

Setting a Namespace Preference

Providing the --namespace or -n command line option for every command is tedious and error-prone. You can set a permanent namespace preference if you know that you need to interact with a specific namespace you are responsible for. The first command shown sets the permanent namespace code-red. The second command renders the currently set permanent namespace:

$ kubectl config set-context --current --namespace=code-red
Context "minikube" modified.
$ kubectl config view --minify | grep namespace:
    namespace: code-red

Subsequent kubectl executions do not have to spell out the namespace code-red:

$ kubectl get pods
NAME   READY   STATUS    RESTARTS   AGE
pod    1/1     Running   0          13s

You can always switch back to the default namespace or another custom namespace using the config set-context command:

$ kubectl config set-context --current --namespace=default
Context "minikube" modified.

Deleting a Namespace

Deleting a namespace has a cascading effect on the object existing in it. Deleting a namespace will automatically delete its objects:

$ kubectl delete namespace code-red
namespace "code-red" deleted
$ kubectl get pods -n code-red
No resources found in code-red namespace.

Summary

The exam puts a strong emphasis on the concept of a Pod, a Kubernetes primitive responsible for running an application in a container. A Pod can define one or many containers that use a container image. Upon its creation, the container image is resolved and used to bootstrap the application. Every Pod can be further customized with the relevant YAML configuration.

Exam Essentials

Know how to interact with Pods

A Pod runs an application inside of a container. You can check on the status and the configuration of the Pod by inspecting the object with the kubectl get or kubectl describe commands. Get familiar with the life cycle phases of a Pod to be able to quickly diagnose errors. The command kubectl logs can be used to download the container log information without having to shell into the container. Use the command kubectl exec to further explore the container environment, e.g., to check on processes or to examine files.

Understand advanced Pod configuration options

Sometimes you have to start with the YAML manifest of a Pod and then create the Pod declaratively. This could be the case if you wanted to provide environment variables to the container or declare a custom command. Practice different configuration options by copy-pasting relevant code snippets from the Kubernetes documentation.

Practice using a custom namespace

Most questions in the exam will ask you to work within a given namespace. You need to understand how to interact with that namespace from kubectl using the options --namespace and -n. To avoid accidentally working on the wrong namespace, know how to permanently set a namespace.

Sample Exercises

Solutions to these exercises are available in Appendix A.

  1. Create a new Pod named nginx running the image nginx:1.17.10. Expose the container port 80. The Pod should live in the namespace named j43.

    Get the details of the Pod including its IP address.

    Create a temporary Pod that uses the busybox:1.36.1 image to execute a wget command inside of the container. The wget command should access the endpoint exposed by the nginx container. You should see the HTML response body rendered in the terminal.

    Get the logs of the nginx container.

    Add the environment variables DB_URL=postgresql://mydb:5432 and DB_USERNAME=admin to the container of the nginx Pod.

    Open a shell for the nginx container and inspect the contents of the current directory ls -l. Exit out of the container.

  2. Create a YAML manifest for a Pod named loop in the namespace j43 that runs the busybox:1.36.1 image in a container. The container should run the following command: for i in {1..10}; do echo "Welcome $i times"; done. Create the Pod from the YAML manifest. What’s the status of the Pod?

    Edit the Pod named loop. Change the command to run in an endless loop. Each iteration should echo the current date.

    Inspect the events and the status of the Pod loop.

Chapter 10. ConfigMaps and Secrets

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 10th chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

Kubernetes dedicates two primitives to defining configuration data: the ConfigMap and the Secret. Both primitives are completely decoupled from the life cycle of a Pod, which enables you to change their configuration data values without necessarily having to redeploy the Pod.

In essence, ConfigMaps and Secrets store a set of key-value pairs. Those key-value pairs can be injected into a container as environment variables, or they can be mounted as a Volume. Figure 10-1 illustrates the options.

consuming configuration data

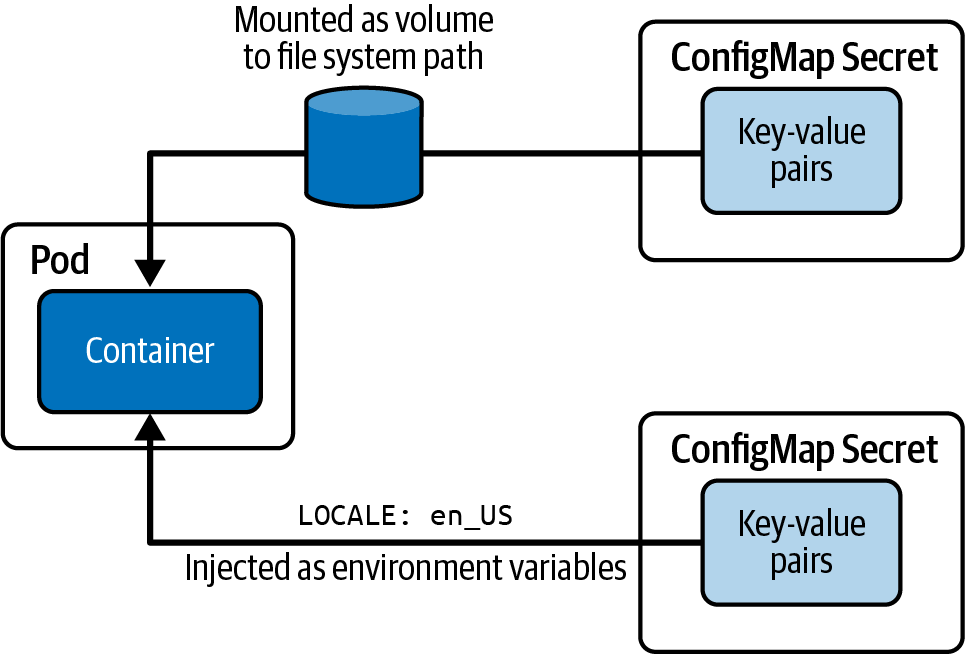

Figure 10-1. Consuming configuration data

The ConfigMap and Secret may look almost identical in purpose and structure on the surface; however, there is a slight but significant difference. A ConfigMap stores plain-text data, for example connection URLs, runtime flags, or even structured data like a JSON or YAML content. Secrets are better suited for representing sensitive data like passwords, API keys, or SSL certificates and store the data in base64-encoded form.

Encryption of ConfigMap and Secret data

The cluster component that stores data of a ConfigMap and Secret object is etcd. Etcd manages this data in unencrypted form by default. You can configure encryption of data in etcd, as described in the Kubernetes documentation. Etcd encryption is not within the scope of the exam.

This chapter references the concept of Volumes heavily. Refer to Chapter 15 to refresh your memory on the mechanics of consuming a Volume in a Pod.

Coverage of Curriculum Objectives

This chapter addresses the following curriculum objectives:

  • Use ConfigMaps and Secrets to configure applications

Working with ConfigMaps

Applications often implement logic that uses configuration data to control runtime behavior. Examples for configuration data include a connection URL and network communication options (like the number of retries or timeouts) to third-party services that differ between target deployment environments.

It’s not unusual that the same configuration data needs to be made available to multiple Pods. Instead of copy-pasting the same key-value pairs across multiple Pod definitions, you can choose to centralize the information in a ConfigMap object. The ConfigMap object holds configuration data and can be consumed by as many Pods as you want. Therefore, you will need to modify the data in only one location should you need to change it.

Creating a ConfigMap

You can create a ConfigMap by emitting the imperative create configmap command. This command requires you to provide the source of the data as an option. Kubernetes distinguishes the four different options shown in Table 10-1.

Table 10-1. Source options for data parsed by a ConfigMap
Option Example Description

--from-literal

--from-literal=locale=en_US

Literal values, which are key-value pairs as plain text

--from-env-file

--from-env-file=config.env

A file that contains key-value pairs and expects them to be environment variables

--from-file

--from-file=app-config.json

A file with arbitrary contents

--from-file

--from-file=config-dir

A directory with one or many files

It’s easy to confuse the options --from-env-file and --from-file. The option --from-env-file expects a file that contains environment variables in the format KEY=value separated by a new line. The key-value pairs follow typical naming conventions for environment variables (e.g., the key is uppercase, and individual words are separated by an underscore character). Historically, this option has been used to process Docker Compose .env file, though you can use it for any other file containing environment variables.

The --from-env-file option does not enforce or normalize the typical naming conventions for environment variables. The option --from-file points to a file or directory containing any arbitrary content. It’s an appropriate option for files with structured configuration data to be read by an application (e.g., a properties file, a JSON file, or an XML file).

The following command shows the creation of a ConfigMap in action. We are simply providing the key-value pairs as literals:

$ kubectl create configmap db-config --from-literal=DB_HOST=mysql-service \
  --from-literal=DB_USER=backend
configmap/db-config created

The resulting YAML object looks like the one shown in Example 10-1. As you can see, the object defines the key-value pairs in a section named data. A ConfigMap does not have a spec section.

Example 10-1. ConfigMap YAML manifest
apiVersion: v1
kind: ConfigMap
metadata:
  name: db-config
data:
  DB_HOST: mysql-service
  DB_USER: backend

You may have noticed that the key assigned to the ConfigMap data follows the typical naming conventions used by environment variables. The intention is to consume them as such in a container.

Consuming a ConfigMap as Environment Variables

With the ConfigMap created, you can now inject its key-value pairs as environment variables into a container. Example 10-2 shows the use of spec.containers[].envFrom[].configMapRef to reference the ConfigMap by name.

Example 10-2. Injecting ConfigMap key-value pairs into the container
apiVersion: v1
kind: Pod
metadata:
  name: backend
spec:
  containers:
  - image: bmuschko/web-app:1.0.1
    name: backend
    envFrom:
    - configMapRef:
        name: db-config

After creating the Pod from the YAML manifest, you can inspect the environment variables available in the container by running the env Unix command:

$ kubectl exec backend -- env
...
DB_HOST=mysql-service
DB_USER=backend
...

The injected configuration data will be listed among environment variables available to the container.

Mounting a ConfigMap as a Volume

Another way to configure applications at runtime is by processing a machine-readable configuration file. Say we have decided to store the database configuration in a JSON file named db.json with the structure shown in Example 10-3.

Example 10-3. A JSON file used for configuring database information
{
    "db": {
      "host": "mysql-service",
      "user": "backend"
    }
}

Given that we are not dealing with literal key-value pairs, we need to provide the option --from-file when creating the ConfigMap object:

$ kubectl create configmap db-config --from-file=db.json
configmap/db-config created

Example 10-4 shows the corresponding YAML manifest of the ConfigMap. You can see that the file name becomes the key; the contents of the file has used a multiline value.

Example 10-4. ConfigMap YAML manifest defining structured data
apiVersion: v1
kind: ConfigMap
metadata:
  name: db-config
data:
  db.json: |-                        1
    {
       "db": {
          "host": "mysql-service",
          "user": "backend"
       }
    }
1

The multiline string syntax (|-) used in this YAML structure removes the line feed and removes the trailing blank lines. For more information, see the YAML syntax for multiline string.

The Pod mounts the ConfigMap as a volume to a specific path inside of the container with read-only permissions. The assumption is that the application will read the configuration file when starting up. Example 10-5 demonstrates the YAML definition.

Example 10-5. Mounting a ConfigMap as a volume
apiVersion: v1
kind: Pod
metadata:
  name: backend
spec:
  containers:
  - image: bmuschko/web-app:1.0.1
    name: backend
    volumeMounts:
    - name: db-config-volume
      mountPath: /etc/config
  volumes:
  - name: db-config-volume
    configMap:                      1
      name: db-config
1

Assign the volume type for referencing a ConfigMap object by name.

To verify the correct behavior, open an interactive shell to the container. As you can see in the following commands, the directory /etc/config contains a file with the key we used in the ConfigMap. The content represents the JSON configuration:

$ kubectl exec -it backend -- /bin/sh
# ls -1 /etc/config
db.json
# cat /etc/config/db.json
{
    "db": {
      "host": "mysql-service",
      "user": "backend"
    }
}

The application code can now read the file from the mount path and configure the runtime behavior as needed.

Working with Secrets

Data stored in ConfigMaps represent arbitrary plain-text key-value pairs. In comparison to the ConfigMap, the Secret primitive is meant to represent sensitive configuration data. A typical example for Secret data is a password or an API key for authentication.

Values stored in a Secret are only encoded, not encrypted

Secrets expect the value of each entry to be Base64-encoded. Base64 encodes only a value, but it doesn’t encrypt it. Therefore, anyone with access to its value can decode it without problems. Therefore, storing Secret manifests in the source code repository alongside other resource files should be avoided.

It’s somewhat unfortunate that the Kubernetes project decided to choose the term “Secret” to represent sensitive data. The nomenclature implies that data is actually secret and therefore encrypted. You can select from a range of options to keep sensitive data secure in real-world projects.

Bitnami Sealed Secrets is a production-ready and proven Kubernetes operator that uses asymmetric crypto encryption for data. The manifest representation of the data, the CRD SealedSecret, is safe to be stored in a public source code repository. You cannot decrypt this data yourself. The controller installed with the operator is the only entity that can decrypt the data. Another option is to store sensitive data in external secrets managers, e.g., HashiCorp Vault or AWS Secrets Manager, and integrate them with Kubernetes. The External Secrets Operator synchronizes Secrets from external APIs into Kubernetes. The exam only expects you to understand the built-in Secret primitive, covered in the following sections.

Creating a Secret

You can create a Secret with the imperative command create secret. In addition, a mandatory subcommand needs to be provided that determines the type of Secret. Table 10-2 lists the different types. Kubernetes assigns the value in the Internal Type column to the type attribute in the live object. “Specialized Secret types” discusses other Secret types and their use cases.

Table 10-2. Options for creating a Secret
CLI option Description Internal Type

generic

Creates a Secret from a file, directory, or literal value

Opaque

docker-registry

Creates a Secret for use with a Docker registry, e.g., to pull images from a private registry when requested by a Pod

kubernetes.io/dockercfg

tls

Creates a TLS Secret

kubernetes.io/tls

The most commonly used Secret type is generic. The options for a generic Secret are exactly the same as for a ConfigMap, as shown in Table 10-3.

Table 10-3. Source options for data parsed by a Secret
Option Example Description

--from-literal

--from-literal=password=secret

Literal values, which are key-value pairs as plain text

--from-env-file

--from-env-file=config.env

A file that contains key-value pairs and expects them to be environment variables

--from-file

--from-file=id_rsa=~/.ssh/id_rsa

A file with arbitrary contents

--from-file

--from-file=config-dir

A directory with one or many files

To demonstrate the functionality, let’s create a Secret of type generic. The command sources the key-value pairs from the literals provided as a command-line option:

$ kubectl create secret generic db-creds --from-literal=pwd=s3cre!
secret/db-creds created

When created using the imperative command, a Secret will automatically Base64-encode the provided value. This can be observed by looking at the produced YAML manifest. You can see in Example 10-6 that the value s3cre! has been turned into czNjcmUh, the Base64-encoded equivalent.

Example 10-6. A Secret with Base64-encoded values
apiVersion: v1
kind: Secret
metadata:
  name: db-creds
type: Opaque       1
data:
  pwd: czNjcmUh    2
1

The value Opaque for the type has been assigned to represent generic sensitive data.

2

The plain-text value has been Base64-encoded automatically if the object has been created imperatively.

If you start with the YAML manifest to create the Secret object, you will need to create the Base64-encoded value if you want to assign it to the data attribute. A Unix tool that does the job is base64. The following command achieves exactly that:

$ echo -n 's3cre!' | base64
czNjcmUh

As a reminder, if you have access to a Secret object or its YAML manifest then you can decode the Base64-encoded value at any time with the base64 Unix tool. Therefore, you may as well specify the value in plain-text when defining the manifest, which is discussed in the next section.

Defining Secret data with plain-text values

Having to generate and assign Base64-encoded values to Secret manifests can become cumbersome. The Secret primitive offers the stringData attribute as a replacement for the data attribute. With stringData, you can assign plain-text values in the manifest file, as shown in Example 10-7.

Example 10-7. A Secret with plain-text values
apiVersion: v1
kind: Secret
metadata:
  name: db-creds
type: Opaque
stringData:      1
  pwd: s3cre!    2
1

The stringData attribute allows assigning plain-text key-value pairs.

2

The value referenced by the pwd key was provided in plain-text format.

Kubernetes will automatically Base64-encode the s3cre! value upon creation of the object from the manifest. The result is the live object representation shown in Example 10-8, which you can retrieve with the command kubectl get secret db-creds -o yaml.

Example 10-8. A Secret live object
apiVersion: v1
kind: Secret
metadata:
  name: db-creds
type: Opaque
data:              1
  pwd: czNjcmUh!   2
1

The live object of a Secret always uses the data attribute even though you may have used stringData in the manifest.

2

The value has been Base64-encoded upon creation.

You can represent arbitrary Secret data using the Opaque type. Kubernetes offers specialized Secret types you can choose from should the data fit specific uses cases. The next section discusses those specialized Secret types.

Specialized Secret types

Instead of using the Opaque Secret type, you can also use one of the specialized types to represent configuration data for particular use cases. The type kubernetes.io/basic-auth is meant for basic authentication and expects the keys username and password. At the time of writing, Kubernetes does not validate the correctness of the assigned keys.

The created object from this definition automatically Base64-encodes the values for both keys. Example 10-9 illustrates a YAML manifest for a Secret with type kubernetes.io/basic-auth.

Example 10-9. Usage of the Secret type kubernetes.io/basic-auth
apiVersion: v1
kind: Secret
metadata:
  name: secret-basic-auth
type: kubernetes.io/basic-auth
stringData:                      1
  username: bmuschko             2
  password: secret               2
1

Uses the stringData attribute to allow for assigning plain-text values.

2

Specifies the mandatory keys required by the kubernetes.io/basic-auth Secret type.

Consuming a Secret as Environment Variables

Consuming a Secret as environment variables works similar to the way you’d do it for ConfigMaps. Here, you’d use the YAML expression spec.containers[].env⁠From​[].secretRef to reference the name of the Secret. Example 10-10 injects the Secret named secret-basic-auth as environment variables into the container named backend.

Example 10-10. Injecting Secret key-value pairs into the container
apiVersion: v1
kind: Pod
metadata:
  name: backend
spec:
  containers:
  - image: bmuschko/web-app:1.0.1
    name: backend
    envFrom:
    - secretRef:
        name: secret-basic-auth

Inspecting the environment variables in the container reveals that the Secret values do not have to be decoded. That’s something Kubernetes does automatically. Therefore, the running application doesn’t need to implement custom logic to decode the value. Note that Kubernetes does not verify or normalize the typical naming conventions of environment variables, as you can see in the following output:

$ kubectl exec backend -- env
...
username=bmuschko
password=secret
...

Remapping environment variable keys

Sometimes, key-value pairs stored in a Secret do not conform to typical naming conventions for environment variables or can’t be changed without impacting running services. You can redefine the keys used to inject an environment variable into a Pod with the spec.containers[].env[].valueFrom attribute. Example 10-11 turns the key username into USER and the key password into PWD.

Example 10-11. Remapping environment variable keys for Secret entries
apiVersion: v1
kind: Pod
metadata:
  name: backend
spec:
  containers:
  - image: bmuschko/web-app:1.0.1
    name: backend
    env:
    - name: USER
      valueFrom:
        secretKeyRef:
          name: secret-basic-auth
          key: username
    - name: PWD
      valueFrom:
        secretKeyRef:
          name: secret-basic-auth
          key: password

The resulting environment variables available to the container now follow the typical conventions for environment variables, and we changed how they are consumed by the application code:

$ kubectl exec backend -- env
...
USER=bmuschko
PWD=secret
...

The same mechanism of reassigning environment variables works for ConfigMaps. You’d use the attribute spec.containers[].env[].valueFrom.configMapRef instead.

Mounting a Secret as a Volume

To demonstrate mounting a Secret as a volume, we’ll create a new Secret of type kubernetes.io/ssh-auth. This Secret type captures the value of an SSH private key that you can view using the command cat ~/.ssh/id_rsa. To process the SSH private key file with the create secret command, it needs to be available as a file with the name ssh-privatekey:

$ cp ~/.ssh/id_rsa ssh-privatekey
$ kubectl create secret generic secret-ssh-auth --from-file=ssh-privatekey \
  --type=kubernetes.io/ssh-auth
secret/secret-ssh-auth created

Mounting the Secret as a volume follows the two-step approach: define the volume first and then reference it as a mount path for one or many containers. The volume type is called secret as used in Example 10-12.

Example 10-12. Mounting a Secret as a volume
apiVersion: v1
kind: Pod
metadata:
  name: backend
spec:
  containers:
  - image: bmuschko/web-app:1.0.1
    name: backend
    volumeMounts:
    - name: ssh-volume
      mountPath: /var/app
      readOnly: true                1
  volumes:
  - name: ssh-volume
    secret:
      secretName: secret-ssh-auth   2
1

Files provided by the Secret mounted as volume cannot be modified.

2

Note that the attribute secretName that points to the Secret name is not the same as for the ConfigMap (which is name).

You will find the file named ssh-privatekey in the mount path /var/app. To verify, open an interactive shell and render the file contents. The contents of the file are not Base64-encoded:

$ kubectl exec -it backend -- /bin/sh
# ls -1 /var/app
ssh-privatekey
# cat /var/app/ssh-privatekey
-----BEGIN RSA PRIVATE KEY-----
Proc-Type: 4,ENCRYPTED
DEK-Info: AES-128-CBC,8734C9153079F2E8497C8075289EBBF1
...
-----END RSA PRIVATE KEY-----

Summary

Application runtime behavior can be controlled either by injecting configuration data as environment variables or by mounting a volume to a path. In Kubernetes, this configuration data is represented by the API resources ConfigMap and Secret in the form of key-value pairs. A ConfigMap is meant for plain-text data, and a Secret encodes the values in Base64 to obfuscate the values. Secrets are a better fit for sensitive information like credentials and SSH private keys.

Exam Essentials

Practice creating ConfigMap objects with the imperative and declarative approaches

The quickest ways to create those objects are the imperative kubectl create configmap commands. Understand how to provide the data with the help of different command line flags. The ConfigMap specifies plain-text key-value pairs in the data section of YAML manifest.

Practice creating Secret objects with the imperative and declarative approaches

Creating a Secret using the imperative command kubectl create secret does not require you to Base64-encode the provided values. kubectl performs the encoding operation automatically. The declarative approach requires the Secret YAML manifest to specify a Base64-encoded value with the data section. You can use the stringData convenience attribute in place of the data attribute if you prefer providing a plain-text value. The live object will use a Base64-encoded value. Functionally, there’s no difference at runtime between the use of data and stringData.

Understand the purpose of specialized Secret types

Secrets offer specialized types, e.g., kubernetes.io/basic-auth or kuber⁠netes​.io/service-account-token, to represent data for specific use cases. Read up on the different types in the Kubernetes documentation and understand their purpose.

Know how to inspect ConfigMap and Secret data

The exam may confront you with existing ConfigMap and Secret objects. You need to understand how to use the kubectl get or the kubectl describe command to inspect the data of those objects. The live object of a Secret will always represent the value in a Base64-encoded format.

Exercise the consumption of ConfigMaps and Secrets in Pods

The primary use case for ConfigMaps and Secrets is the consumption of the data from a Pod. Pods can inject configuration data into a container as environment variables or mount the configuration data as Volumes. For the exam, you need to be familiar with both consumption methods.

Sample Exercises

Solutions to these exercises are available in Appendix A.

  1. In this exercise, you will first create a ConfigMap from a YAML configuration file as a source. Later, you’ll create a Pod, consume the ConfigMap as Volume, and inspect the key-value pairs as files.

    Navigate to the directory app-a/ch10/configmap of the checked-out GitHub repository bmuschko/cka-study-guide. Inspect the YAML configuration file named application.yaml.

    Create a new ConfigMap named app-config from that file.

    Create a Pod named backend that consumes the ConfigMap as Volume at the mount path /etc/config. The container runs the image nginx:1.23.4-alpine.

    Shell into the Pod and inspect the file at the mounted Volume path.

  2. You will first create a Secret from literal values in this exercise. Next, you’ll create a Pod and consume the Secret as environment variables. Finally, you’ll print out its values from within the container.

    Create a new Secret named db-credentials with the key/value pair db-password=passwd.

    Create a Pod named backend that uses the Secret as an environment variable named DB_PASSWORD and runs the container with the image nginx:1.23.4-alpine.

    Shell into the Pod and print out the created environment variables. You should be able to find the DB_PASSWORD variable.

Chapter 11. Deployments and ReplicaSets

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 11th chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

A major strength of Kubernetes lies in its ability to scale applications seamlessly and manage replication with ease. To enable these capabilities, Kubernetes provides two primitives: Deployments and ReplicaSets.

In this chapter, you’ll learn how to create a Deployment, which leverages a ReplicaSet behind the scenes to manage and scale a group of identical Pods. Deployments also make it easy to roll out updates to your application and, if needed, roll back to a previous version—all with minimal downtime and maximum control.

Coverage of Curriculum Objectives

This chapter addresses the following curriculum objectives:

  • Understand application deployments and how to perform rolling update and rollbacks

  • Understand the primitives used to create robust, self-healing, application deployments

Working with Deployments

The primitive for running an application in a container is the Pod. Using a single instance of a Pod to operate an application has its flaws—it represents a single point of failure because all traffic targeting the application is funneled to this Pod. This behavior is specifically problematic when the load increases due to higher demand (e.g., during peak shopping season for an e-commerce application or when an increasing number of microservices communicate with a centralized microservice functionality, e.g. an authentication provider).

Another important aspect of running an application in a Pod is failure tolerance. The scheduler cluster component will not reschedule a Pod in the case of a node failure, which can lead to a system outage for end users. In this chapter, we’ll look at the Kubernetes mechanics that support application scalability and failure tolerance.

A ReplicaSet is a Kubernetes API resource that controls multiple, identical instances of a Pod running the application, so-called replicas. It has the capability of scaling the number of replicas up or down on demand. Moreover, it knows how to roll out a new version of the application across all replicas.

A Deployment abstracts the functionality of ReplicaSet and manages it internally. In practice, this means you do not have to create, modify, or delete ReplicaSet objects yourself. The Deployment keeps a history of application versions and can roll back to an older version to counteract a blocking or potentially costly production issue. Furthermore, it offers the capability of scaling the number of replicas.

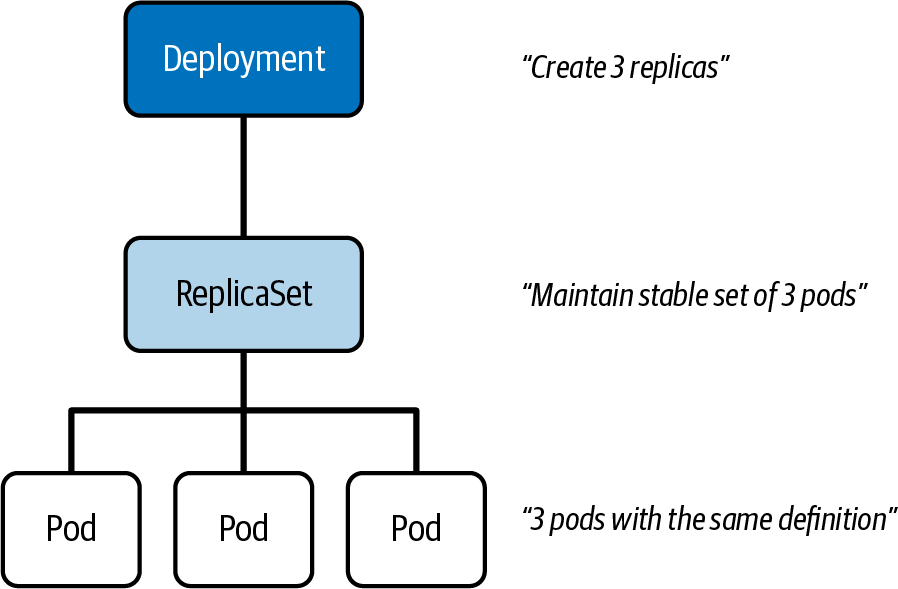

Figure 11-1 illustrates the relationship between a Deployment, a ReplicaSet, and its controlled replicas.

deployment replicaset
Figure 11-1. Relationship between a Deployment and a ReplicaSet

The following sections explain how to manage Deployments, including scaling and rollout features.

Creating Deployments

You can create a Deployment using the imperative command create deployment. The command offers a range of options, some of which are mandatory. At a minimum, you need to provide the name of the Deployment and the container image. The Deployment passes this information to the ReplicaSet, which uses it to manage the replicas. The default number of replicas created is 1; however, you can define a higher number of replicas using the option --replicas.

Let’s observe the command in action. The following command creates the Deployment named app-cache, which runs the object cache Memcached inside the container on four replicas:

$ kubectl create deployment app-cache --image=memcached:1.6.8 --replicas=4
deployment.apps/app-cache created

The mapping between the Deployment and the replicas it controls happens through label selection. When you run the imperative command, kubectl sets up the mapping for you. Example 11-1 shows the label selection in the YAML manifest. This YAML manifest can be used to create a Deployment declaratively or by inspecting the live object created by the previous imperative command.

Example 11-1. A YAML manifest for a Deployment
apiVersion: apps/v1
kind: Deployment
metadata:
  name: app-cache
  labels:
    app: app-cache
spec:
  replicas: 4
  selector:
    matchLabels:
      app: app-cache
  template:
    metadata:
      labels:
        app: app-cache
    spec:
      containers:
      - name: memcached
        image: memcached:1.6.8

When created by the imperative command, app is the label key the Deployment uses by default. You can find this key in three different places in the YAML output:

  1. metadata.labels

  2. spec.selector.matchLabels

  3. spec.template.metadata.labels

For label selection to work properly, the assignment of spec.selector.matchLabels and spec.template.metadata needs to match, as shown in Figure 11-2.

The values of metadata.labels is irrelevant for mapping the Deployment to the Pod template. As you can see in the figure, the label assignment to metadata.labels has been changed deliberately to deploy: app-cache to underline that it is not important for the Deployment to Pod template selection.

deployment label selection

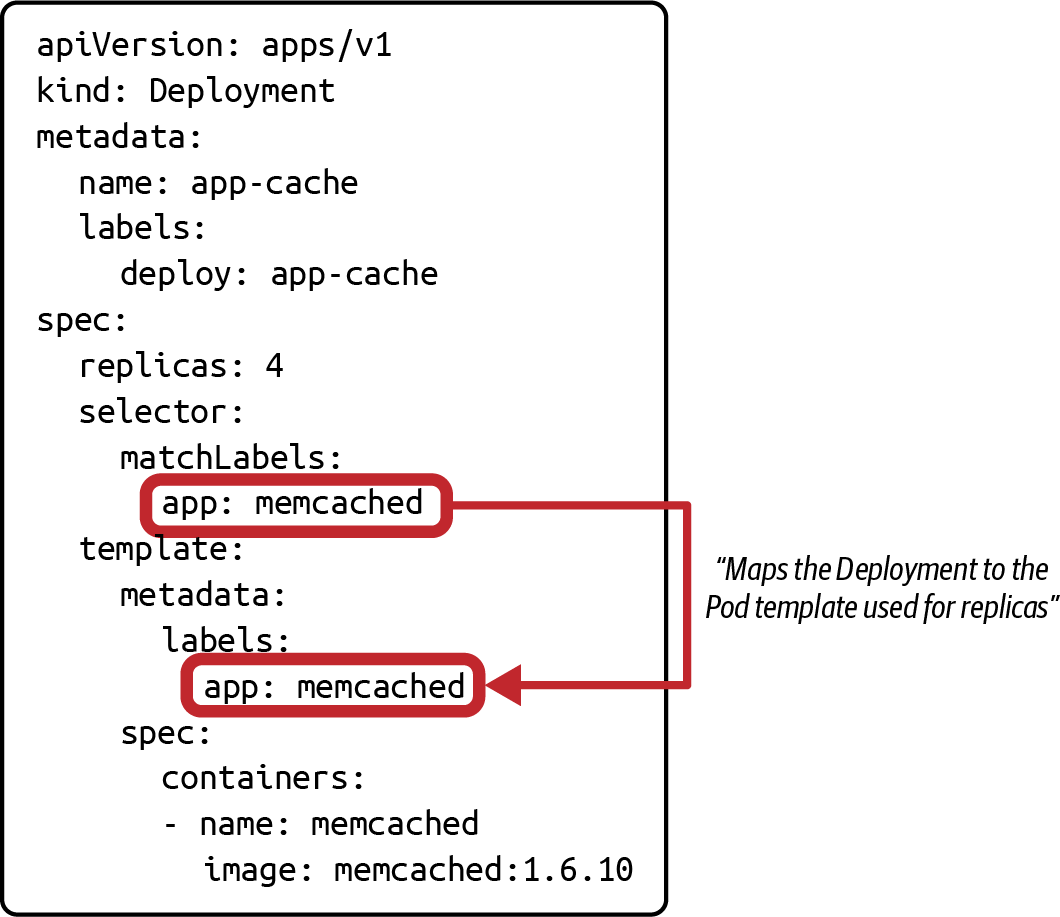

Figure 11-2. Deployment label selection

Listing Deployments, ReplicaSets, and Their Pods

You can inspect a Deployment after its creation by using the get deployments command. The output of the command renders the important details of its replicas, as shown here:

$ kubectl get deployments
NAME        READY   UP-TO-DATE   AVAILABLE   AGE
app-cache   4/4     4            4           125m

The column titles relevant to the replicas controlled by the Deployment are shown in Table 11-1.

Table 11-1. Runtime replica information when listing deployments
Column Title Description

READY

Lists the number of replicas available to end users in the format of <ready>/<desired>. The number of desired replicas corresponds to the value of spec.replicas.

UP-TO-DATE

Lists the number of replicas that have been updated to achieve the desired state.

AVAILABLE

Lists the number of replicas available to end users.

You can identify the Pods controlled by the Deployment by their naming prefix. In the case of the previously created Deployment, the names for ReplicaSet and its Pods start with app-cache-. The hash following the prefix is autogenerated and appended to the name upon creation:

$ kubectl get replicasets,pods
NAME                                   DESIRED   CURRENT   READY   AGE
replicaset.apps/app-cache-596bc5586d   4         4         4       6h5m

NAME                         READY   STATUS    RESTARTS   AGE
app-cache-596bc5586d-84dkv   1/1     Running   0          6h5m
app-cache-596bc5586d-8bzfs   1/1     Running   0          6h5m
app-cache-596bc5586d-rc257   1/1     Running   0          6h5m
app-cache-596bc5586d-tvm4d   1/1     Running   0          6h5m

Rendering Deployment Details

You can render the details of a Deployment. Those details include the label selection criteria, which can be extremely valuable when troubleshooting a misconfigured Deployment. The following output provides the full gist:

$ kubectl describe deployment app-cache
Name:                   app-cache
Namespace:              default
CreationTimestamp:      Sat, 07 Aug 2021 09:44:18 -0600
Labels:                 app=app-cache
Annotations:            deployment.kubernetes.io/revision: 1
Selector:               app=app-cache
Replicas:               4 desired | 4 updated | 4 total | 4 available | \
                        0 unavailable
StrategyType:           RollingUpdate
MinReadySeconds:        0
RollingUpdateStrategy:  25% max unavailable, 25% max surge
Pod Template:
  Labels:  app=app-cache
  Containers:
   memcached:
    Image:        memcached:1.6.10
    Port:         <none>
    Host Port:    <none>
    Environment:  <none>
    Mounts:       <none>
  Volumes:        <none>
Conditions:
  Type           Status  Reason
  ----           ------  ------
  Progressing    True    NewReplicaSetAvailable
  Available      True    MinimumReplicasAvailable
OldReplicaSets:  <none>
NewReplicaSet:   app-cache-596bc5586d (4/4 replicas created)
Events:          <none>

You might have noticed that the output contains a reference to a ReplicaSet. The purpose of a ReplicaSet is to replicate a set of identical Pods. You do not need to deeply understand the core functionality of a ReplicaSet for the exam. Just be aware that the Deployment automatically creates the ReplicaSet and uses the Deployment’s name as a prefix for the ReplicaSet, similar to the Pods it controls. In the case of the previous Deployment named app-cache, the name of the ReplicaSet is app-⁠cache-​596bc5586d.

Replica Replacement

The ReplicaSet in Kubernetes ensures that a specified number of replicas are running at all times. If a Pod fails or is deleted, Kubernetes automatically creates a replacement Pod to maintain the desired replica count. This behavior is one of Kubernetes’ key self-healing capabilities.

You can easily observe this in action by manually deleting one of the Pods managed by the ReplicaSet. Let’s assume the ReplicaSet and Pod objects shown here:

$ kubectl get replicasets,pods
NAME                                   DESIRED   CURRENT   READY   AGE
replicaset.apps/app-cache-596bc5586d   4         4         4       6h47m

NAME                             READY   STATUS    RESTARTS   AGE
pod/app-cache-596bc5586d-84dkv   1/1     Running   0          6h47m
pod/app-cache-596bc5586d-8bzfs   1/1     Running   0          6h47m
pod/app-cache-596bc5586d-rc257   1/1     Running   0          6h47m
pod/app-cache-596bc5586d-tvm4d   1/1     Running   0          6h47m

You can delete any of the Pods controlled by the ReplicaSet, i.e. the Pod named app-cache-596bc5586d-rc257:

$ kubectl delete pod app-cache-596bc5586d-rc257
pod "app-cache-596bc5586d-rc257" deleted

Shortly after deleting the Pod manually, a new one will be created by the ReplicaSet. You can easily identify the newly-created Pod by its “AGE” value. In the following output, the Pod is only 5 seconds old:

$ kubectl get replicasets,pods
NAME                                   DESIRED   CURRENT   READY   AGE
replicaset.apps/app-cache-596bc5586d   4         4         4       6h47m

NAME                             READY   STATUS    RESTARTS   AGE
pod/app-cache-596bc5586d-84dkv   1/1     Running   0          6h47m
pod/app-cache-596bc5586d-8bzfs   1/1     Running   0          6h47m
pod/app-cache-596bc5586d-lwflz   1/1     Running   0          5s
pod/app-cache-596bc5586d-tvm4d   1/1     Running   0          6h47m

Similar to the Deployment, other workload primitives like the StatefulSet and the DaemonSet manage a ReplicaSet to control a set of replicas.

For the StatefulSet, the replica replacement behavior is the same as for the Deployment. If a Pod fails as part of a DaemonSet, the control plane node ensures that the Pod replacement is run on the same node it was scheduled on before. The primitives StatefulSet and DaemonSet are out-of-scope for the exam, however, later chapters may mention them again.

Deleting a Deployment

A Deployment takes full charge of the creation and deletion of the objects it controls: ReplicaSets and Pods. When you delete a Deployment, the corresponding objects are deleted as well. Say you are dealing with the following set of objects shown in the output:

$ kubectl get deployments,replicasets,pods
NAME                        READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/app-cache   4/4     4            4           6h47m

NAME                                   DESIRED   CURRENT   READY   AGE
replicaset.apps/app-cache-596bc5586d   4         4         4       6h47m

NAME                             READY   STATUS    RESTARTS   AGE
pod/app-cache-596bc5586d-84dkv   1/1     Running   0          6h47m
pod/app-cache-596bc5586d-8bzfs   1/1     Running   0          6h47m
pod/app-cache-596bc5586d-rc257   1/1     Running   0          6h47m
pod/app-cache-596bc5586d-tvm4d   1/1     Running   0          6h47m

Run the delete deployment command for a cascading deletion of its managed objects:

$ kubectl delete deployment app-cache
deployment.apps "app-cache" deleted
$ kubectl get deployments,replicasets,pods
No resources found in default namespace.

Performing Rolling Updates and Rollbacks

A Deployment fully abstracts rollout and rollback capabilities by delegating this responsibility to the ReplicaSet(s) it manages. Once a user changes the definition of the Pod template in a Deployment, Kubernetes will create a new ReplicaSet that applies the changes to the replicas it controls and then shut down the previous ReplicaSet. In this section, we’ll see both scenarios: deploying a new version of an application and reverting to an old version of an application.

Updating a Deployment’s Pod Template

You can choose from a range of options to update the definition of replicas controlled by a Deployment. Any of those options is valid, but they vary in ease of use and operational environment.

Applying changes declaratively

In real-world projects, you should check your manifest files into version control. Changes to the definition would then be made by directly editing the file. The kubectl apply can update a live object by pointing to the changed manifest:

$ kubectl apply -f deployment.yaml

Editing the object from the default editor

The kubectl edit command lets you change the Pod template interactively by modifying the live object’s manifest in an editor. To edit the Deployment live object named web-server, use the following command:

$ kubectl edit deployment web-server

Updating the container image imperatively

The imperative kubectl set image command changes only the container image assigned to a Pod template by selecting the name of the container. For example, you could use this command to assign the image nginx:1.25.2 to the container named nginx in the Deployment web-server:

$ kubectl set image deployment web-server nginx=nginx:1.25.2

Replacing an existing object

The kubectl replace command lets you replace the existing Deployment with a new definition that contains your change to the manifest. The optional --force flag first deletes the existing object and then creates it from scratch. The following command assumes that you changed the container image assignment in deployment.yaml:

$ kubectl replace -f deployment.yaml

Updating fields of an object using a JSON patch

The command kubectl patch requires you to provide the merges as a patch to update a Deployment. The following command shows the operation in action. Here, you are sending the changes to be made in the form of a JSON structure:

$ kubectl patch deployment web-server -p '{"spec":{"template":{"spec":\
{"containers":[{"name":"nginx","image":"nginx:1.25.2"}]}}}}'

Rolling Out a New Revision

The Deployment primitive employs rolling update as the default deployment strategy, also referred to as ramped deployment. It’s called “ramped” because the Deployment gradually transitions replicas from the old version to a new version in batches. The Deployment automatically creates a new ReplicaSet for the desired change after the user updates the Pod template.

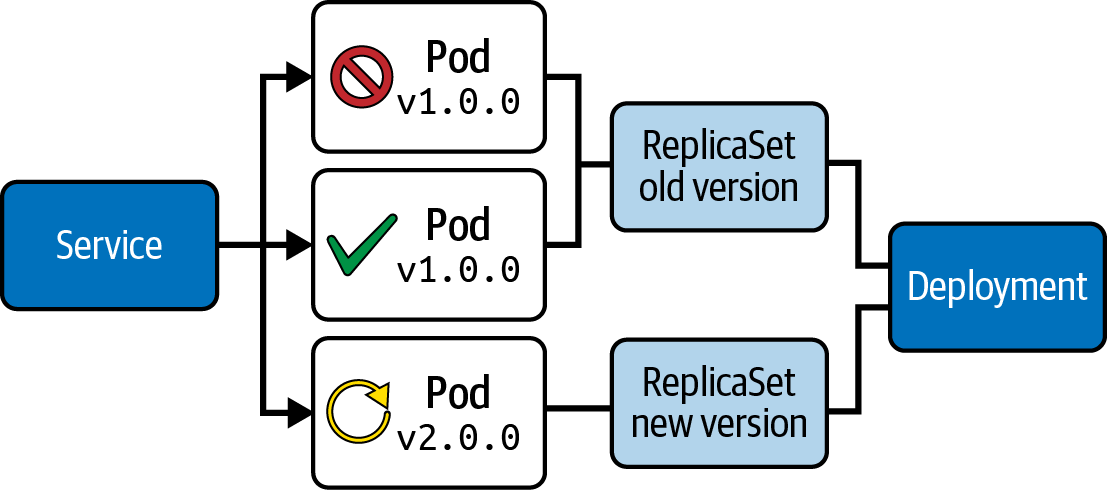

Figure 11-3 shows a snapshot in time during the rollout process.

deployment strategy rolling update
Figure 11-3. The rolling update strategy

In this scenario, the user initiated an update of the application version from 1.0.0 to 2.0.0. As a result, the Deployment creates a new ReplicaSet and starts up Pods running the new application version while at the same time scaling down the old version. The Service routes network traffic to either the old or new version of the application. The runtime behavior of the deployment strategy can be further customized. Refer to the documentation to see the configuation options.

Say you want to upgrade the version of Memcached from 1.6.8 to 1.6.10 to benefit from the latest features and bug fixes. All you need to do is change the desired state of the object by updating the Pod template. The command set image offers a quick, convenient way to change the image of a Deployment, as shown in the following command:

$ kubectl set image deployment app-cache memcached=memcached:1.6.10
deployment.apps/app-cache image updated

You can check the current status of a rollout that’s in progress using the command rollout status. The output indicates the number of replicas that have already been updated since emitting the command:

$ kubectl rollout status deployment app-cache
Waiting for rollout to finish: 2 out of 4 new replicas have been updated...
deployment "app-cache" successfully rolled out

Kubernetes keeps track of the changes you make to a Deployment over time in the rollout history. Every change is represented by a revision. When changing the Pod template of a Deployment—for example, by updating the image—the Deployment triggers the creation of a new ReplicaSet. The Deployment will gradually migrate the Pods from the old ReplicaSet to the new one. You can check the rollout history by running the following command. You will see two revisions listed:

$ kubectl rollout history deployment app-cache
deployment.apps/app-cache
REVISION  CHANGE-CAUSE
1         <none>
2         <none>

The first revision was recorded for the original state of the Deployment when you created the object. The second revision was added for changing the image tag.

Note

By default, a Deployment persists for a maximum of 10 revisions in its history. You can change the limit by assigning a different value to spec.revisionHistoryLimit.

To get a more detailed view of the revision, run the following command. You can see that the image uses the value memcached:1.6.10:

$ kubectl rollout history deployments app-cache --revision=2
deployment.apps/app-cache with revision #2
Pod Template:
  Labels:	app=app-cache
	pod-template-hash=596bc5586d
  Containers:
   memcached:
    Image:	memcached:1.6.10
    Port:	<none>
    Host Port:	<none>
    Environment:	<none>
    Mounts:	<none>
  Volumes:	<none>

The rolling update strategy ensures that the application is always available to end users. This approach implies that two versions of the same application are available during the update process. As an application developer, you have to be aware that convenience doesn’t come without potential side effects. If you happen to introduce a breaking change to the public API of your application, you might temporarily break consumers, as they could hit revision 1 or 2 of the application.

You can change the default deployment strategy by providing a different value to the attribute spec.strategy.type; however, consider the trade-offs. The value Recreate kills all Pods first, then creates new Pods with the latest revision, causing potential downtime for consumers.

Adding a Change Cause for a Revision

The rollout history renders the column CHANGE-CAUSE. You can populate the information for a revision to document why you introduced a new change or which kubectl command you use to make the change.

By default, changing the Pod template does not automatically record a change cause. To add a change cause to the current revision, add an annotation with the reserved key kubernetes.io/change-cause to the Deployment object. The following imperative annotate command assigns the change cause “Image updated to 1.6.10”:

$ kubectl annotate deployment app-cache kubernetes.io/change-cause=\
"Image updated to 1.6.10"
deployment.apps/app-cache annotated

The rollout history now renders the change cause value for the current revision:

$ kubectl rollout history deployment app-cache
deployment.apps/app-cache
REVISION  CHANGE-CAUSE
1         <none>
2         Image updated to 1.6.10

Rolling Back to a Previous Revision

Problems can arise in production that require swift action. For example, the container image you just rolled out contains a crucial bug. Kubernetes gives you the option to roll back to one of the previous revisions in the rollout history. You can achieve this by using the rollout undo command. To pick a specific revision, provide the command-line option --to-revision. The command rolls back to the previous revision if you do not provide the option. Here, we are rolling back to revision 1:

$ kubectl rollout undo deployment app-cache --to-revision=1
deployment.apps/app-cache rolled back

As a result, Kubernetes performs a rolling update to all replicas with the revision 1.

Rollbacks and persistent data

The rollout undo command does not restore any persistent data associated with applications. Rather, it simply restores to a new instance of the previous declared state of the ReplicaSet.

The rollout history now lists revision 3. Given that we rolled back to revision 1, there’s no more need to keep that entry as a duplicate. Kubernetes simply turns revision 1 into 3 and removes 1 from the list:

$ kubectl rollout history deployment app-cache
deployment.apps/app-cache
REVISION  CHANGE-CAUSE
2         Image updated to 1.16.10
3         <none>

Summary

The Deployment is an essential primitive for providing declarative updates and life cycle management of Pods. The ReplicaSet performs the heavy lifting of managing those Pods, commonly referred to as replicas. Application developers do not have to interact directly with the ReplicaSet; a Deployment manages the ReplicaSet under the hood.

ReplicaSets can easily roll out and roll back revisions of the application represented by an image running in the container. In this chapter you learned about the commands for controlling the revision history and its operations.

Exam Essentials

Know the ins and outs of a Deployment

Given that a Deployment is such a central primitive in Kubernetes, you can expect that the exam will test you on it. Know how to create and configure a Deployment.

Understand how the ReplicaSet supports replication

Learn how to scale to multiple replicas. One of the superior features of a ReplicaSet is its rollout functionality for new revisions. Practice how to roll out a new revision, inspect the rollout history, and roll back to a previous revision.

Differentiate the built-in deployment strategies

Learn how to configure the built-in strategies in the Deployment primitive and their options for fine-tuning the runtime behavior. You can implement even more sophisticated deployment scenarios with the help of the Deployment and Service primitives. Examples are the blue-green and canary deployment strategies, which require a multi-phased rollout process, but will not be covered by the exam.

Sample Exercises

Solutions to these exercises are available in Appendix A.

  1. A team member wrote a Deployment manifest but has trouble with creating the object from it. Help with finding the issue.

    Navigate to the directory app-a/ch11/misconfigured-deployment of the checked-out GitHub repository bmuschko/cka-study-guide.

    Run a kubectl command to create the Deployment object defined in the file fix-me-deployment.yaml. Inspect the error message. Fix the Deployment manifest so that the object can be created.

  2. Create a Deployment named nginx with 3 replicas. The Pods should use the nginx:1.23.0 image and the name nginx. The Deployment uses the label tier=backend. The Pod template should use the label app=v1.

    List the Deployment and ensure that the correct number of replicas is running.

    Update the image to nginx:1.23.4.

    Verify that the change has been rolled out to all replicas.

    Assign the change cause “Pick up patch version” to the revision.

    Have a look at the Deployment rollout history. Revert the Deployment to revision 1.

    Ensure that the Pods use the image nginx:1.23.0.

Chapter 12. Scaling Workloads

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 12th chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

There are several reasons why scaling a workload becomes necessary, particularly to maintain optimal performance under increasing demand. For example, an application may experience a surge in users as it gains popularity, or it may need to process larger volumes of data over time.

In Kubernetes, scaling a workload can be achieved in two primary ways: by increasing the resources allocated to each Pod (vertical scaling), or by adjusting the number of Pods running concurrently (horizontal scaling). Horizontal scaling is especially effective for handling fluctuating workloads, ensuring the application remains responsive and resilient under varying levels of demand.

In this chapter, you’ll learn how to manually scale the number of replicas as a reaction to increased application load. Furthermore, we’ll explore the API primitive HorizontalPodAutoscaler, which allows you to automatically scale the managed set of Pods based on resource thresholds such as CPU and memory. We won’t get into vertical scaling as the exam won’t cover it.

Coverage of Curriculum Objectives

This chapter addresses the following curriculum objective:

  • Configure workload autoscaling

Manual Scaling of Workload

Manual scaling of workloads requires specifying a fixed number of Pods to run. This number should be informed by real-world usage metrics gathered from production environments or estimated through load testing during development.

However, because application traffic can fluctuate unexpectedly—rising sharply or tapering off—you’ll need to continuously monitor and adjust the number of Pods to match demand. Failing to do so can lead to over-provisioning, which wastes resources, or under-provisioning, which can degrade performance and user experience.

Manually Scaling a Deployment

Scaling (up or down) the number of replicas controlled by a Deployment is a straightforward process. You can either manually edit the live object using the edit deployment command and change the value of the attribute spec.replicas, or you can use the imperative scale deployment command. In real-world production environments, you want to edit the Deployment YAML manifest, check it into version control, and apply the changes. The following command increases the number of replicas from four to six:

$ kubectl scale deployment app-cache --replicas=6
deployment.apps/app-cache scaled

You can observe the creation of replicas in real time using the -w command line flag. You’ll see a change of status for the newly created Pods turning from Container​Creat⁠ing to Running:

$ kubectl get pods -w
NAME                         READY   STATUS              RESTARTS   AGE
app-cache-5d6748d8b9-6cc4j   1/1     ContainerCreating   0          11s
app-cache-5d6748d8b9-6rmlj   1/1     Running             0          28m
app-cache-5d6748d8b9-6z7g5   1/1     ContainerCreating   0          11s
app-cache-5d6748d8b9-96dzf   1/1     Running             0          28m
app-cache-5d6748d8b9-jkjsv   1/1     Running             0          28m
app-cache-5d6748d8b9-svrxw   1/1     Running             0          28m

Manually scaling the number of replicas takes a bit of guesswork. You will still have to monitor the load on your system to see if your number of replicas is sufficient to handle the incoming traffic.

Manually Scaling a StatefulSet

Another API primitive that can be scaled manually is the StatefulSet. StatefulSets are meant for managing stateful applications by a set of Pods (e.g., databases). Similar to a Deployment, the StatefulSet defines a Pod template; however, each of its replicas guarantees a unique and persistent identity. Similar to a Deployment, a StatefulSet uses a ReplicaSet to manage the replicas.

We are not going to look at StatefulSets in more detail, but you can read more about them in the documentation. The reason I am discussing the StatefulSet primitive here is that it can be manually scaled in a similar fashion as the Deployment.

Let’s say we’d deal with the YAML definition for a StatefulSet that runs and exposes a Redis database, as illustrated in Example 12-1.

Example 12-1. A YAML manifest for a StatefulSet
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: redis
spec:
  selector:
    matchLabels:
      app: redis
  replicas: 1
  serviceName: "redis"
  template:
    metadata:
      labels:
        app: redis
    spec:
      containers:
      - name: redis
        image: redis:6.2.5
        command: ["redis-server", "--appendonly", "yes"]
        ports:
        - containerPort: 6379
          name: web
        volumeMounts:
        - name: redis-vol
          mountPath: /data
  volumeClaimTemplates:
  - metadata:
      name: redis-vol
    spec:
      accessModes: ["ReadWriteOnce"]
      resources:
        requests:
          storage: 1Gi

After its creation, listing the StatefulSet shows the number of replicas in the “READY” column. As you can see in the following output, the number of replicas was set to 1:

$ kubectl apply -f redis.yaml
service/redis created
statefulset.apps/redis created
$ kubectl get statefulset redis
NAME    READY   AGE
redis   1/1     2m10s
$ kubectl get pods
NAME      READY   STATUS    RESTARTS   AGE
redis-0   1/1     Running   0          2m

The scale command we explored in the context of a Deployment works here as well. In the following command, we scale the number of replicas from one to three:

$ kubectl scale statefulset redis --replicas=3
statefulset.apps/redis scaled
$ kubectl get statefulset redis
NAME    READY   AGE
redis   3/3     3m43s
$ kubectl get pods
NAME      READY   STATUS    RESTARTS   AGE
redis-0   1/1     Running   0          101m
redis-1   1/1     Running   0          97m
redis-2   1/1     Running   0          97m

It’s important to mention that the process for scaling down a StatefulSet requires all replicas to be in a healthy state. Any long-term, unresolved issues in Pods controlled by a StatefulSet can lead to a situation that can result in the application becoming unavailable to end users.

Autoscaling of Workload

Another way to scale a Deployment is with the help of a HorizontalPodAutoscaler (HPA). The HPA is an API primitive that defines rules for automatically scaling the number of replicas under certain conditions. Common scaling conditions include a target value, an average value, or an average utilization of a specific metric (e.g., for CPU and/or memory). Refer to the MetricTarget API for more information.

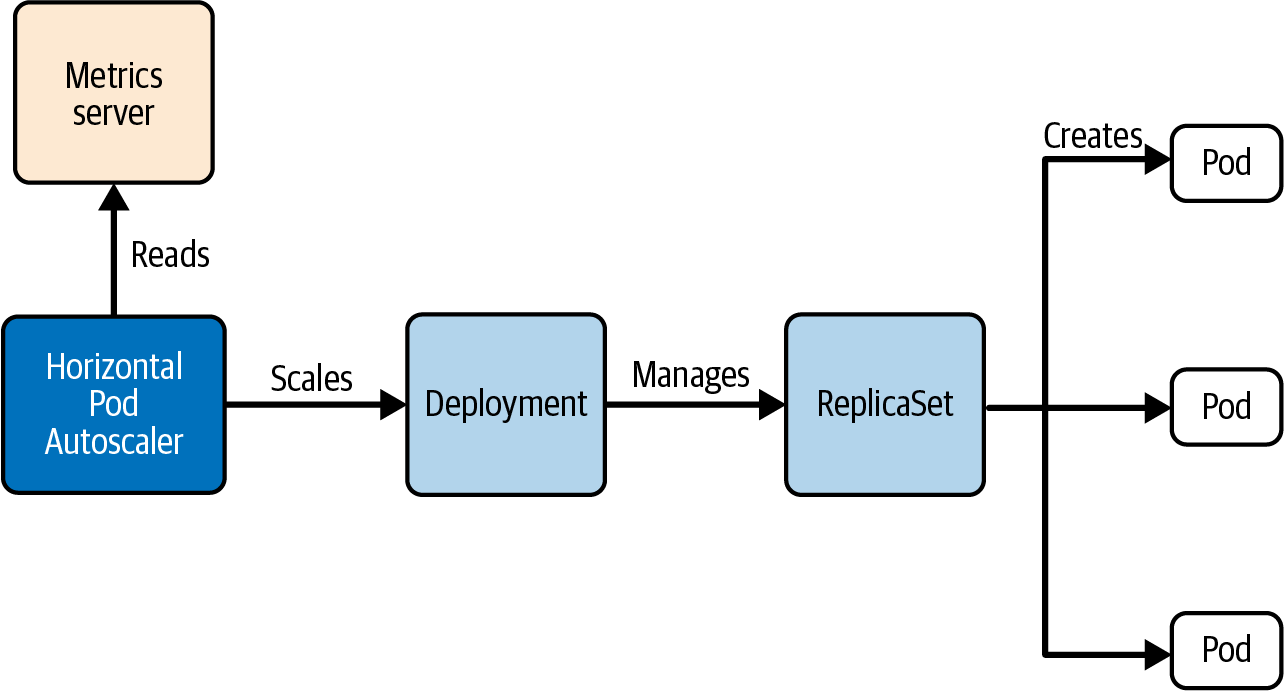

Figure 12-1 shows an overview architecture diagram involving an HPA.

autoscaling deployment
Figure 12-1. Autoscaling a Deployment

Prerequisites for Autoscaling

An HPA only works on scalable resources like the Deployment, ReplicaSet, and the StatefulSet. It cannot scale standalone Pods. For an HPA to work, a couple of prequisites need to be fulfilled:

  • The metrics server needs to be installed. Without it, the HPA cannot retrieve the necessary metrics to evaluate Pod performance. Collecting metrics may take a couple of minutes initially after installing the component.

  • The container resource requests need to be defined. For CPU-based autoscaling, your Pods must define spec.containers[].resources.requests.cpu. For memory-based autoscaling, spec.containers[].resources.requests.memory is required. These values provide the baseline for calculating utilization.

  • The cluster must have sufficient CPU and memory resources to schedule new Pods.

Creating Horizontal Pod Autoscalers

Let’s say you want to define average CPU utilization of CPU as the scaling condition. At runtime, the HPA checks the metrics collected by the metrics server to determine if the average maximum CPU or memory usage across all replicas of a Deployment is less than or greater than the defined threshold.

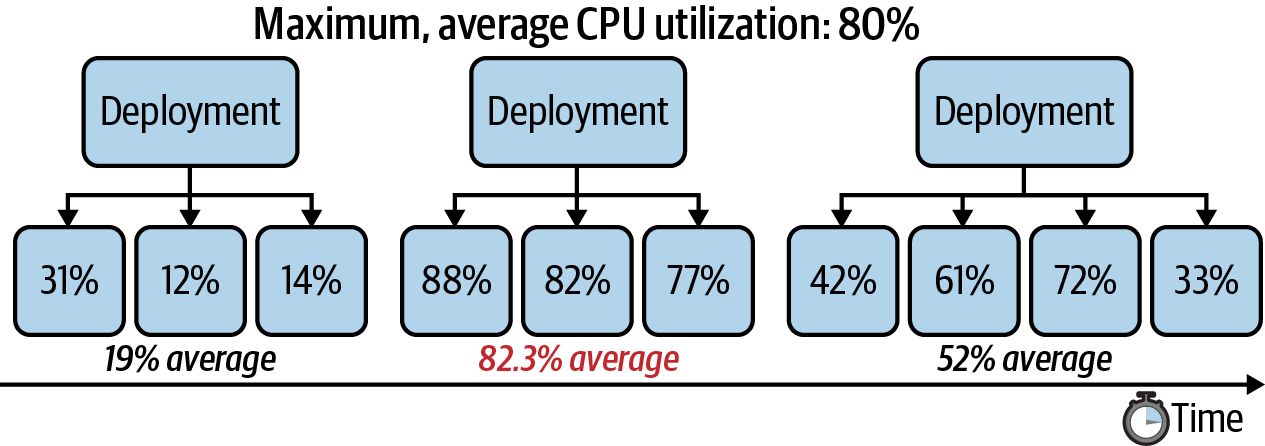

Figure 12-2 shows the use of an HPA that will scale up the number of replicas if an average of 80% CPU utilization is reached across all available Pods controlled by the Deployment.

horizonal pod autoscaler
Figure 12-2. Autoscaling a Deployment horizontally

You can use the autoscale deployment command to create an HPA for an existing Deployment. The option --cpu-percent defines the average maximum CPU usage threshold. At the time of writing, the imperative command doesn’t offer an option for defining the average maximum memory utilization threshold. The options --min and --max provide the minimum number of replicas to scale down to and the maximum number of replicas the HPA can create to handle the increased load, respectively:

$ kubectl autoscale deployment app-cache --cpu-percent=80 --min=3 --max=5
horizontalpodautoscaler.autoscaling/app-cache autoscaled

This command is a great shortcut for creating an HPA for a Deployment. The YAML manifest representation of the HPA object looks like Example 12-2.

Example 12-2. A YAML manifest for an HPA
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: app-cache
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: app-cache
  minReplicas: 3
  maxReplicas: 5
  metrics:
  - resource:
      name: cpu
      target:
        averageUtilization: 80
        type: Utilization
    type: Resource

Listing Horizontal Pod Autoscalers

The short-form command for a Horizontal Pod Autoscaler is hpa. Listing all of the HPA objects transparently describes their current state: the CPU utilization and the number of replicas at this time:

$ kubectl get hpa
NAME        REFERENCE              TARGETS         MINPODS   MAXPODS   REPLICAS \
  AGE
app-cache   Deployment/app-cache   <unknown>/80%   3         5         4        \
  58s

If the Pod template of the Deployment does not define CPU resource requirements or if the CPU metrics cannot be retrieved from the metrics server, the left-side value of the column “TARGETS” says <unknown>. Example 12-3 sets the resource requirements for the Pod template so that the HPA can work properly. You can learn more about defining resource requirements in “Working with Resource Requirements”.

Example 12-3. Setting CPU resource requirements for Pod template
# ...
spec:
  # ...
  template:
    # ...
    spec:
      containers:
      - name: memcached
        # ...
        resources:
          requests:
            cpu: 250m
          limits:
            cpu: 500m

Once traffic hits the replicas, the current CPU usage is shown as a percentage. Here the average maximum CPU utilization is 15%:

$ kubectl get hpa
NAME        REFERENCE              TARGETS   MINPODS   MAXPODS   REPLICAS   AGE
app-cache   Deployment/app-cache   15%/80%   3         5         4          58s

Rendering Horizontal Pod Autoscaler Details

The event log of an HPA can provide additional insight into the rescaling activities. Rendering the HPA details can be a great tool for overseeing when the number of replicas was scaled up or down, as well as their scaling conditions:

$ kubectl describe hpa app-cache
Name:                                                  app-cache
Namespace:                                             default
Labels:                                                <none>
Annotations:                                           <none>
CreationTimestamp:                                     Sun, 15 Aug 2021 \
                                                       15:54:11 -0600
Reference:                                             Deployment/app-cache
Metrics:                                               ( current / target )
  resource cpu on pods  (as a percentage of request):  0% (1m) / 80%
Min replicas:                                          3
Max replicas:                                          5
Deployment pods:                                       3 current / 3 desired
Conditions:
  Type            Status  Reason            Message
  ----            ------  ------            -------
  AbleToScale     True    ReadyForNewScale  recommended size matches current size
  ScalingActive   True    ValidMetricFound  the HPA was able to successfully \
  calculate a replica count from cpu resource utilization (percentage of request)
  ScalingLimited  True    TooFewReplicas    the desired replica count is less \
  than the minimum replica count
Events:
  Type    Reason             Age   From                       Message
  ----    ------             ----  ----                       -------
  Normal  SuccessfulRescale  13m   horizontal-pod-autoscaler  New size: 3; \
  reason: All metrics below target

Defining Multiple Scaling Metrics

You can define more than a single resource type as a scaling metric. As you can see in Example 12-4, we are inspecting CPU and memory utilization to determine if the replicas of a Deployment need to be scaled up or down.

Example 12-4. A YAML manifest for a HPA with multiple metrics
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: app-cache
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: app-cache
  minReplicas: 3
  maxReplicas: 5
  metrics:
  - type: Resource
    resource:
      name: cpu
      target:
        type: Utilization
        averageUtilization: 80
  - type: Resource
    resource:
      name: memory
      target:
        type: AverageValue
        averageValue: 500Mi

To ensure that the HPA determines the currently used resources, we’ll set the memory resource requirements for the Pod template as well, as shown in Example 12-5.

Example 12-5. Setting memory resource requirements for Pod template
...
spec:
  ...
  template:
    ...
    spec:
      containers:
      - name: memcached
        ...
        resources:
          requests:
            cpu: 250m
            memory: 100Mi
          limits:
            cpu: 500m
            memory: 500Mi

Listing the HPA renders both metrics in the TARGETS column, as in the output of the get command shown here:

$ kubectl get hpa
NAME        REFERENCE              TARGETS                 MINPODS   MAXPODS \
  REPLICAS   AGE
app-cache   Deployment/app-cache   1994752/500Mi, 0%/80%   3         5       \
  3          2m14s

Summary

Scaling workloads manually requires deep insight into the requirements and the load of an application. A Horizontal Pod Autoscaler can automatically scale the number of replicas based on CPU and memory thresholds observed at runtime.

Exam Essentials

Understand the difference between manual and automatic scaling

Kubernetes workloads can be scaled either manually or automatically. In real-world scenarios, autoscaling is the preferred approach, as it allows the number of replicas to adjust dynamically based on actual resource consumption relative to defined thresholds. This ensures optimal performance and resource efficiency without the need for constant manual oversight.

Identify if autoscaling prerequisites are fulfilled

For the HPA to function correctly, it’s essential to have the metrics server installed and to define resource requests for your containers. Without these in place, the HPA won’t have the necessary data to make informed scaling decisions, rendering it ineffective.

Know how to instantiate and configure a Horizontal Pod Autoscaler

An HPA YAML manifest is built around three essential components: the scaling target (the named resource the HPA will manage e.g. a Deployment or a ReplicaSet), the minimum and maximum number of replicas the HPA can scale between, and the scaling rules - the conditions that trigger scaling, typically based on resource usage thresholds like CPU or memory utilization.

Sample Exercises

Solutions to these exercises are available in Appendix A.

  1. Define a Deployment named hello-world with 3 replicas in a YAML file named hello-world-deployment.yaml. The Pod template of the Deployment should use container image bmuschko/nodejs-hello-world:1.0.0. Create the object from the YAML file.

    Scale the number of replicas to 8 by modifying the YAML file. Apply the changes and verify that all 8 replicas are running.

  2. Create a Deployment named nginx with 1 replica. The Pod template of the Deployment should use container image nginx:1.23.4; set the CPU resource request to 0.5 and the memory resource request/limit to 500Mi.

    Create a HorizontalPodAutoscaler for the Deployment named nginx-hpa that scales to a minimum of 3 and a maximum of 8 replicas. Scaling should happen based on an average CPU utilization of 75% and an average memory utilization of 60%.

    Inspect the HorizontalPodAutoscaler object and identify the currently-utilized resources. How many replicas do you expect to exist?

Chapter 13. Resource Requirements, Limits, and Quotas

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 13th chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

Workload executed in Pods will consume a certain amount of resources (e.g., CPU and memory). You should define resource requirements for those applications. On a container level, you can define a minimum amount of resources needed to run the application, as well as the maximum amount of resources the application is allowed to consume. Application developers should determine the right-sizing with load tests or at runtime by monitoring the resource consumption.

Note

Kubernetes measures CPU resources in millicores and memory resources in bytes. That’s why you might see resources defined as 600m or 100Mi. For a deep dive on those resource units, it’s worth cross-referencing the section “Resource units in Kubernetes” in the official documentation.

Kubernetes administrators can put measures in place to enforce the use of available resource capacity. This chapter discusses two Kubernetes primitives in this realm, the ResourceQuota and the LimitRange. The ResourceQuota defines aggregate resource constraints on a namespace level. A LimitRange is a policy that constrains or defaults the resource allocations for a single object of a specific type (such as for a Pod or a PersistentVolumeClaim).

Coverage of Curriculum Objectives

This chapter addresses the following curriculum objective:

  • Configure Pod admission and scheduling (limits, node affinity, etc.)

Working with Resource Requirements

It’s recommended practice that you specify resource requests and limits for every container. Determining those resource expectations is not always easy, specifically for applications that haven’t been exercised in a production environment yet. Load testing the application early during the development cycle can help with analyzing the resource needs. Further adjustments can be made by monitoring the application’s resource consumption after deploying it to the cluster.

Defining Container Resource Requests

One metric that comes into play for workload scheduling is the resource request defined by the containers in a Pod. Commonly used resources that can be specified are CPU and memory. The scheduler ensures that the node’s resource capacity can fulfill the resource requirements of the Pod. More specifically, the scheduler determines the sum of resource requests per resource type across all containers defined in the Pod and compares them with the node’s available resources.

Each container in a Pod can define its own resource requests. Table 13-1 describes the available options including an example value.

Table 13-1. Options for resource requests
YAML attribute Description Example value

spec.containers[].resources.requests.cpu

CPU resource type

500m (five hundred millicpu)

spec.containers[].resources.requests.memory

Memory resource type

64Mi (2^26 bytes)

spec.containers[].resources.requests.hugepages-<size>

Huge page resource type

hugepages-2Mi: 60Mi

spec.containers[].resources.requests.ephemeral-storage

Ephemeral storage resource type

4Gi

To clarify the uses of these resource requests, we’ll look at an example definition. The Pod YAML manifest shown in Example 13-1 defines two containers, each with its own resource requests. Any node that is allowed to run the Pod needs to be able to support a minimum memory capacity of 320Mi and 1250m CPU, the sum of resources across both containers.

Example 13-1. Setting container resource requests
apiVersion: v1
kind: Pod
metadata:
  name: rate-limiter
spec:
  containers:
  - name: business-app
    image: bmuschko/nodejs-business-app:1.0.0
    ports:
    - containerPort: 8080
    resources:
      requests:
        memory: "256Mi"
        cpu: "1"
  - name: ambassador
    image: bmuschko/nodejs-ambassador:1.0.0
    ports:
    - containerPort: 8081
    resources:
      requests:
        memory: "64Mi"
        cpu: "250m"

It’s certainly possible that a Pod cannot be scheduled due to insufficient resources available on the nodes. In those cases, the event log of the Pod will indicate this situation with the reasons PodExceedsFreeCPU or PodExceedsFreeMemory. For more information on how to troubleshoot and resolve this situation, see the relevant section in the documentation.

Defining Container Resource Limits

Another metric you can set for a container is the resource limits. Resource limits ensure that the container cannot consume more than the allotted resource amounts. For example, you could express that the application running in the container should be constrained to 1000m of CPU and 512Mi of memory.

Depending on the container runtime used by the cluster, exceeding any of the allowed resource limits results in a termination of the application process running in the container or results in the system preventing the allocation of resources beyond the limits. For an in-depth discussion on how resource limits are treated by the container runtime Docker Engine, see the documentation.

Table 13-2 describes the available options including an example value.

Table 13-2. Options for resource limits
YAML attribute Description Example value

spec.containers[].resources.limits.cpu

CPU resource type

500m (500 millicpu)

spec.containers[].resources.limits.memory

Memory resource type

64Mi (2^26 bytes)

spec.containers[].resources.limits.hugepages-<size>

Huge page resource type

hugepages-2Mi: 60Mi

spec.containers[].resources.limits.ephemeral-storage

Ephemeral storage resource type

4Gi

Example 13-2 shows the definition of limits in action. Here, the container named business-app cannot use more than 256Mi of memory. The container named ambassador defines a limit of 64Mi of memory.

Example 13-2. Setting container resource limits
apiVersion: v1
kind: Pod
metadata:
  name: rate-limiter
spec:
  containers:
  - name: business-app
    image: bmuschko/nodejs-business-app:1.0.0
    ports:
    - containerPort: 8080
    resources:
      limits:
        memory: "256Mi"
  - name: ambassador
    image: bmuschko/nodejs-ambassador:1.0.0
    ports:
    - containerPort: 8081
    resources:
      limits:
        memory: "64Mi"

Defining Container Resource Requests and Limits

To provide Kubernetes with the full picture of your application’s resource expectations, you must specify resource requests and limits for every container. Example 13-3 combines resource requests and limits in a single YAML manifest.

Example 13-3. Setting container resource requests and limits
apiVersion: v1
kind: Pod
metadata:
  name: rate-limiter
spec:
  containers:
  - name: business-app
    image: bmuschko/nodejs-business-app:1.0.0
    ports:
    - containerPort: 8080
    resources:
      requests:
        memory: "256Mi"
        cpu: "1"
      limits:
        memory: "256Mi"
  - name: ambassador
    image: bmuschko/nodejs-ambassador:1.0.0
    ports:
    - containerPort: 8081
    resources:
      requests:
        memory: "64Mi"
        cpu: "250m"
      limits:
        memory: "64Mi"

Assigning static container resource requirements is an approximation process. You want to maximize an efficient utilization of resources in your Kubernetes cluster. Unfortunately, the Kubernetes documentation does not offer a lot of guidance on best practices. The blog post “For the Love of God, Stop Using CPU Limits on Kubernetes” provides the following guidance:

  • Always define memory requests.

  • Always define memory limits.

  • Always set your memory requests equal to your limit.

  • Always define CPU requests.

  • Do not use CPU limits.

After launching your application to production, you still need to monitor your application resource consumption patterns. Review resource consumption at runtime and keep track of actual scheduling behavior and potential undesired behaviors once the application receives load. Finding a happy medium can be frustrating. Projects like Goldilocks and KRR emerged to provide recommendations and guidance on appropriately determining resource requests. Other options, like the container resize policies introduced in Kubernetes 1.27, allow for more fine-grained control over how containers’ CPU and memory resources are resized automatically at runtime.

Working with Resource Quotas

The Kubernetes primitive ResourceQuota establishes the usable, maximum amount of resources per namespace. Once put in place, the Kubernetes scheduler will take care of enforcing those rules. The following list should give you an idea of the rules that can be defined:

  • Setting an upper limit for the number of objects that can be created for a specific type (e.g., a maximum of three Pods).

  • Limiting the total sum of compute resources (e.g., 3Gi of RAM).

  • Expecting a Quality of Service (QoS) class for a Pod (e.g., BestEffort to indicate that the Pod must not make any memory or CPU limits or requests).

Creating ResourceQuotas

Creating a ResourceQuota object is usually a task that a Kubernetes administrator would take on, but it’s relatively easy to define and create such an object. First, create the namespace the quota should apply to:

$ kubectl create namespace team-awesome
namespace/team-awesome created

Next, define the ResourceQuota in YAML. To demonstrate the functionality of a ResourceQuota, add constraints to the namespace, as shown in Example 13-4.

Example 13-4. Defining hard resource limits with a ResourceQuota
apiVersion: v1
kind: ResourceQuota
metadata:
  name: awesome-quota
  namespace: team-awesome
spec:
  hard:
    pods: 2                   1
    requests.cpu: "1"         2
    requests.memory: 1024Mi   2
    limits.cpu: "4"           3
    limits.memory: 4096Mi     3
1

Limit the number of Pods to 2.

2

Define the minimum resources requested across all Pods in a non-terminal state to 1 CPU and 1024Mi of RAM.

3

Define the maximum resources used by all Pods in a non-terminal state to 4 CPUs and 4096Mi of RAM.

You’re ready to create a ResourceQuota for the namespace:

$ kubectl create -f awesome-quota.yaml
resourcequota/awesome-quota created

Rendering ResourceQuota Details

You can render a table overview of used resources vs. hard limits using the kubectl describe command:

$ kubectl describe resourcequota awesome-quota -n team-awesome
Name:            awesome-quota
Namespace:       team-awesome
Resource         Used  Hard
--------         ----  ----
limits.cpu       0     4
limits.memory    0     4Gi
pods             0     2
requests.cpu     0     1
requests.memory  0     1Gi

The “Hard” column lists the same values you provided with the ResourceQuota definition. Those values won’t change also long as you don’t modify the object’s specification. Under the “Used” column, you can find the actual aggregate resource consumption within the namespace. At this time, all values are 0 given that no Pods have been created yet.

Exploring a ResourceQuota’s Runtime Behavior

With the quota rules in place for the namespace team-awesome, we’ll want to see its enforcement in action. We’ll start by creating more than the maximum number of Pods, which is two. To test this, we can create Pods with any definition we like. For example, we use a bare-bones definition that runs the image nginx:1.25.3 in the container, as shown in Example 13-5.

Example 13-5. A Pod without resource requirements
apiVersion: v1
kind: Pod
metadata:
  name: nginx
  namespace: team-awesome
spec:
  containers:
  - image: nginx:1.25.3
    name: nginx

From that YAML definition stored in nginx-pod.yaml, let’s create a Pod and see what happens. In fact, Kubernetes will reject the creation of the object with the following error message:

$ kubectl apply -f nginx-pod.yaml
Error from server (Forbidden): error when creating "nginx-pod.yaml": \
pods "nginx" is forbidden: failed quota: awesome-quota: must specify \
limits.cpu for: nginx; limits.memory for: nginx; requests.cpu for: \
nginx; requests.memory for: nginx

Because we defined minimum and maximum resource quotas for objects in the namespace, we have to ensure that Pod objects actually define resource requests and limits. Modify the initial definition by updating the instruction under resources, as shown in Example 13-6.

Example 13-6. A Pod with resource requirements
apiVersion: v1
kind: Pod
metadata:
  name: nginx
  namespace: team-awesome
spec:
  containers:
  - image: nginx:1.25.3
    name: nginx
    resources:
      requests:
        cpu: "0.5"
        memory: "512Mi"
      limits:
        cpu: "1"
        memory: "1024Mi"

We should be able to create two uniquely named Pods—nginx1 and nginx2—with that manifest; the combined resource requirements still fit with the boundaries defined in the ResourceQuota:

$ kubectl apply -f nginx-pod1.yaml
pod/nginx1 created
$ kubectl apply -f nginx-pod2.yaml
pod/nginx2 created
$ kubectl describe resourcequota awesome-quota -n team-awesome
Name:            awesome-quota
Namespace:       team-awesome
Resource         Used  Hard
--------         ----  ----
limits.cpu       2     4
limits.memory    2Gi   4Gi
pods             2     2
requests.cpu     1     1
requests.memory  1Gi   1Gi

You may be able to imagine what would happen if we tried to create another Pod with the definition of nginx1 and nginx2. It will fail for two reasons. The first reason is that we’re not allowed to create a third Pod in the namespace, as the maximum number is set to two. The second reason is that we’d exceed the allotted maximum for requests.cpu and requests.memory. The following error message provides us with this information:

$ kubectl apply -f nginx-pod3.yaml
Error from server (Forbidden): error when creating "nginx-pod3.yaml": \
pods "nginx3" is forbidden: exceeded quota: awesome-quota, requested: \
pods=1,requests.cpu=500m,requests.memory=512Mi, used: pods=2,requests.cpu=1,\
requests.memory=1Gi, limited: pods=2,requests.cpu=1,requests.memory=1Gi

Working with Limit Ranges

In the previous section, you learned how a resource quota can restrict the consumption of resources within a specific namespace in aggregate. For individual Pod objects, the resource quota cannot set any constraints. That’s where the limit range comes in. The enforcement of LimitRange rules happens during the admission control phase when processing an API request.

The LimitRange is a Kubernetes primitive that constrains or defaults the resource allocations for specific object types:

  • Enforces minimum and maximum compute resources usage per Pod or container in a namespace

  • Enforces minimum and maximum storage request per PersistentVolumeClaim in a namespace

  • Enforces a ratio between request and limit for a resource in a namespace

  • Sets default requests/limits for compute resources in a namespace and automatically injects them into containers at runtime

Defining more than one LimitRange in a namespace

It is best to create only a single LimitRange object per namespace. Default resource requests and limits specified by multiple LimitRange objects in the same namespace causes non-deterministic selection of those rules. Only one of the default definitions will win, but you can’t predict which one.

Creating LimitRanges

The LimitRange offers a list of configurable constraint attributes. All are described in great detail in the Kubernetes API documentation for a LimitRangeSpec. Example 13-7 shows a YAML manifest for a LimitRange that uses some of the constraint attributes.

Example 13-7. A limit range defining multiple constraint criteria
apiVersion: v1
kind: LimitRange
metadata:
  name: cpu-resource-constraint
spec:
  limits:
  - type: Container   1
    defaultRequest:   2
      cpu: 200m
    default:          3
      cpu: 200m
    min:              4
      cpu: 100m
    max:              4
      cpu: "2"
1

The context to apply the constraints to. In this case, to a container running in a Pod.

2

The default CPU resource request value assigned to a container if not provided.

3

The default CPU resource limit value assigned to a container if not provided.

4

The minimum and maximum CPU resource request and limit value assignable to a container.

As usual, we can create an object from the manifest with the kubectl create or kubectl apply command. The definition of the LimitRange has been stored in the file cpu-resource-constraint-limitrange.yaml:

$ kubectl apply -f cpu-resource-constraint.yaml
limitrange/cpu-resource-constraint created

The constraints will be applied automatically when creating new objects. Changing the constraints for an existing LimitRange object won’t have any effect on already running Pods.

Rendering LimitRange Details

Live LimitRange objects can be inspected using the kubectl describe command. The following command renders the details of the LimitRange object named cpu-resource-constraint:

$ kubectl describe limitrange cpu-resource-constraint
Name:       cpu-resource-constraint
Namespace:  default
Type        Resource  Min   Max  Default Request  Default Limit   ...
----        --------  ---   ---  ---------------  -------------
Container   cpu       100m  2    200m             200m            ...

The output of the command renders each limit constraint on a single line. Any constraint attribute that has not been set explicitly by the object will show a dash character (-) as the assigned value.

Exploring a LimitRange’s Runtime Behavior

Let’s demonstrate what effect the LimitRange has on the creation of Pods. We will walk through two different use cases:

  1. Automatically setting resource requirements if they have not been provided by the Pod definition.

  2. Preventing the creation of a Pod if the declared resource requirements are forbidden by the LimitRange.

Setting default resource requirements

The LimitRange defines a default CPU resource request of 200m and a default CPU resource limit of 200m. That means if a Pod is about to be created, and it doesn’t define a CPU resource request and limit, the LimitRange will automatically assign the default values.

Example 13-8 shows a Pod definition without resource requirements.

Example 13-8. A Pod defining no resource requirements
apiVersion: v1
kind: Pod
metadata:
  name: nginx-without-resource-requirements
spec:
  containers:
  - image: nginx:1.25.3
    name: nginx

Creating the object from the contents stored in the file nginx-without-resource-requirements.yaml will work as expected:

$ kubectl apply -f nginx-without-resource-requirements.yaml
pod/nginx-without-resource-requirements created

The Pod object will be mutated in two ways. First, the default resource requirements set by the LimitRange are applied. Second, an annotation with the key kubernetes.io/limit-ranger will be added that provides meta information on what has been changed. You can find both pieces of information in the output of the describe command:

$ kubectl describe pod nginx-without-resource-requirements
...
Annotations:      kubernetes.io/limit-ranger: LimitRanger plugin set: cpu \
request for container nginx; cpu limit for container nginx
...
Containers:
  nginx:
    ...
    Limits:
      cpu: 200m
    Requests:
      cpu: 200m
...

Enforcing resource requirements

The LimitRange can enforce resource limits as well. For the LimitRange object we created earlier, the minimum amount of CPU was set to 100m, and the maximum amount of CPU was set to 2. To see the enforcement behavior in action, we’ll create a new Pod as shown in Example 13-9.

Example 13-9. A Pod defining CPU resource requests and limits
apiVersion: v1
kind: Pod
metadata:
  name: nginx-with-resource-requirements
spec:
  containers:
  - image: nginx:1.25.3
    name: nginx
    resources:
      requests:
        cpu: "50m"
      limits:
        cpu: "3"

The resource requirements of this Pod do not follow the constraints expected by the LimitRange object. The CPU resource request is less than 100m, and the CPU resource limit is higher than 2. As a result, the object won’t be created and an appropriate error message will be rendered:

$ kubectl apply -f nginx-with-resource-requirements.yaml
Error from server (Forbidden): error when creating "nginx-with-resource-\
requirements.yaml": pods "nginx-with-resource-requirements" is forbidden: \
[minimum cpu usage per Container is 100 m, but request is 50 m, maximum cpu \
usage per Container is 2, but limit is 3]

The error message provides some guidance on expected resource definitions. Unfortunately, the message doesn’t point to the name of the LimitRange object enforcing those expectations. Proactively check if a LimitRange object has been created for the namespace and what parameters have been set using kubectl get limitranges.

Summary

Resource requests are one of the many factors that the kube-scheduler algorithm considers when making decisions on which node a Pod can be scheduled. A container can specify requests using spec.containers[].resources.requests. The scheduler chooses a node based on its available hardware capacity. The resource limits ensure that the container cannot consume more than the allotted resource amounts. Limits can be defined for a container using the attribute spec.containers[].resources.limits. Should an application consume more than the allowed amount of resources (e.g., due to a memory leak in the implementation), the container runtime will likely terminate the application process.

A resource quota defines the computing resources (e.g., CPU, RAM, and ephemeral storage) available to a namespace to prevent unbounded consumption by Pods running it. Accordingly, Pods have to work within those resource boundaries by declaring their minimum and maximum resource expectations. You can also limit the number of resource types (like Pods, Secrets, or ConfigMaps) that are allowed to be created. The Kubernetes scheduler will enforce those boundaries upon a request for object creation.

The limit range is different from the ResourceQuota in that it defines resource constraints for a single object of a specific type. It can also help with governance for objects by specifying resource default values that should be applied automatically should the API create request not provide the information.

Exam Essentials

Experience the effects of resource requirements on scheduling and autoscaling

A container defined by a Pod can specify resource requests and limits. Work through scenarios where you define those requirements individually and together for single- and multi-container Pods. Upon creation of the Pod, you should be able to see the effects on scheduling the object on a node. Furthermore, practice how to identify the available resource capacity of a node.

Understand the purpose and runtime effects of resource quotas

A ResourceQuota defines the resource boundaries for objects living within a namespace. The most commonly used boundaries apply to computing resources. Practice defining them and understand their effect on the creation of Pods. It’s important to know the command for listing the hard requirements of a ResourceQuota and the resources currently in use. You will find that a ResourceQuota offers other options. Discover them in more detail for a broader exposure to the topic.

Understand the purpose and runtime effects of limit ranges

A LimitRange can specify resource constraints and defaults of specific primitives. Should you run into a situation where you receive an error message upon creation of an object, check if a limit range object enforces those constraints. Unfortunately, the error message does not point out the object that enforces it so you may have to proactively list LimitRange objects to identify the constraints.

Sample Exercises

Solutions to these exercises are available in Appendix A.

  1. You have been tasked with creating a Pod for running an application in a container. During application development, you ran a load test for figuring out the minimum amount of resources needed and the maximum amount of resources the application is allowed to grow to. Define those resource requests and limits for the Pod.

    Define a Pod named hello-world running the container image bmuschko/nodejs-hello-world:1.0.0. The container exposes the port 3000.

    Add a Volume of type emptyDir and mount it in the container path /var/log.

    For the container, specify the following minimum number of resources:

    • CPU: 100m

    • Memory: 500Mi

    • Ephemeral storage: 1Gi

    For the container, specify the following maximum number of resources:

    • Memory: 500Mi

    • Ephemeral storage: 2Gi

    Create the Pod from the YAML manifest. Inspect the Pod details. Which node does the Pod run on?

  2. In this exercise, you will create a resource quota with specific CPU and memory limits for a new namespace. Pods created in the namespace will have to adhere to those limits.

    Create a ResourceQuota named app under the namespace rq-demo using the following YAML definition in the file resourcequota.yaml:

    apiVersion: v1
    kind: ResourceQuota
    metadata:
      name: app
    spec:
      hard:
        pods: "2"
        requests.cpu: "2"
        requests.memory: 500Mi

    Create a new Pod that exceeds the limits of the resource quota requirements, e.g., by defining 1Gi of memory but stays below the CPU, e.g., 0.5. Write down the error message.

    Change the request limits to fulfill the requirements to ensure that the Pod can be created successfully. Write down the output of the command that renders the used amount of resources for the namespace.

  3. A LimitRange can restrict resource consumption for Pods in a namespace, and assign default computing resources if no resource requirements have been defined. You will practice the effects of a LimitRange on the creation of a Pod in different scenarios.

    Navigate to the directory app-a/ch13/limitrange of the checked-out GitHub repository bmuschko/cka-study-guide. Inspect the YAML manifest definition in the file setup.yaml. Create the objects from the YAML manifest file.

    Create a new Pod named pod-without-resource-requirements in the namespace d92 that uses the container image nginx:1.23.4-alpine without any resource requirements. Inspect the Pod details. What resource definitions do you expect to be assigned?

    Create a new Pod named pod-with-more-cpu-resource-requirements in the namespace d92 that uses the container image nginx:1.23.4-alpine with a CPU resource request of 400m and limits of 1.5. What runtime behavior do you expect to see?

    Create a new Pod named pod-with-less-cpu-resource-requirements in the namespace d92 that uses the container image nginx:1.23.4-alpine with a CPU resource request of 350m and limits of 400m. What runtime behavior do you expect to see?

Chapter 14. Pod Scheduling

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 14th chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

The scheduler is the cluster component responsible for deciding which node to select for running a Pod. In this chapter, you will learn about the general scheduling algorithm and the Kubernetes concepts that let you express soft and hard requirements for influencing the scheduling decisions.

Coverage of Curriculum Objectives

This chapter addresses the following curriculum objective:

  • Configure Pod admission and scheduling (limits, node affinity, etc.)

Pod Scheduling Algorithm

Initially a Pod created by an end user does not have a node assigned. That’s the job of the scheduler cluster component. The scheduler runs in a scheduling loop watching for unscheduled Pods. It will then evaluate available nodes to choose the most suitable one.

Finding a fitting node follows a two-step approach: filtering and scoring. The filtering step determines the list of nodes feasible for running a Pod (e.g. by checking the available hardware capacity). The scoring step ranks the remaining nodes to select the most suitable to run the workload. Scheduling decisions include resource requirements, affinity and anti-affinity specifications, and many more. You can find a visualization of the Pod scheduling algorithm in Figure 14-1.

pod scheduling algorithm
Figure 14-1. Pod scheduling algorithm

Pods and their container(s) can define requirements that help with determining the node. If the requirements cannot be met by any of the nodes, then the Pod stays unscheduled until the scheduler checks again. Otherwise, the scheduler picks the node with the highest score and places the Pod on it.

Setting Up a Multi-Node Development Cluster

The effects of scheduling requirements is best explained by demonstrating them on a multi-node cluster. For the remainder of this chapter, I am going to use a cluster with one control plane node and three worker nodes, as shown here:

$ kubectl get nodes
NAME             STATUS   ROLES           AGE     VERSION
multi-node       Ready    control-plane   2m33s   v1.32.2
multi-node-m02   Ready    <none>          2m22s   v1.32.2
multi-node-m03   Ready    <none>          2m15s   v1.32.2
multi-node-m04   Ready    <none>          2m9s    v1.32.2

Setting up a multi-node cluster with a Kubernetes environment is pretty easy to achieve. Most development cluster implementations like minikube and kind offer an option to initiate more than a single node. The following command creates a four-node cluster with the name prefix multi-node using minikube.

$ minikube start --kubernetes-version=v1.32.2 --nodes=4 -p multi-node

Refer to the documentation of the Kubernetes development cluster of your choice for more information on applicable configuration options.

Determining the Node a Pod Runs on

The prerequiste for being able to schedule a Pod is that the scheduler is functional. The scheduler process runs in a Pod on the control plane node. You can use the following command to find the scheduler Pod. Make sure that the Pod has the Running status.

$ kubectl get pods -n kube-system
NAME                        READY   STATUS    RESTARTS   AGE
kube-scheduler-multi-node   1/1     Running   0          5m10s

You can find out which node a Pod runs with the kubectl get or kubectl describe command. The following commands show variations of their usage:

$ kubectl get pod nginx -o=wide
NAME    READY   STATUS    RESTARTS   AGE     IP           NODE             ...
nginx   1/1     Running   0          3m49s   10.244.2.2   multi-node-m03   ...
$ kubectl get pod nginx -o yaml | grep nodeName:
  nodeName: multi-node-m03
$ kubectl describe pod nginx
Name:             nginx
Namespace:        default
Priority:         0
Service Account:  default
Node:             multi-node-m03/192.168.49.4
...

Pod Scheduling Options

The scheduler does a reasonably good job of assigning a Pod to a feasible node. Under certain conditions, you may want to restrict which node a Pod can run on, or define a preferred selection criteria. This is usually expressed by using label selection.

Kubernetes offers a variety of Pod scheduling options, each of which can be combined with one another. In this chapter, I am going to discuss the following concepts, however, there are more you can select from:

  • Node selector: A hard requirement to determine which node the Pod needs to run on.

  • Node affinity and anti-affinity: A more flexible requirement for defining hard or soft requirements for node selection.

  • Taints and tolerations: A way to safe-guard specific nodes from scheduling Pods on them based on conditions and requirements.

  • Pod topology spread constraints: Defines how to spread Pods across different topologies, i.e. regions and zones.

Working with Node Selectors

The node selector defines a hard requirement for scheduling a Pod on specific nodes. To use the node selector, label one or many nodes with a specific label key-value pair. When defining a Pod in a YAML manifest, select the label from the Pod via the attribute spec.nodeSelector.

A typical example for using the node selector is to ensure that Pods end up running on a node with specific hardware. Input/output-intensive applications that require fast disk access, e.g. as supported by SSD volumes, could make good use of this concept.

Figure 14-2 illustrates a cluster with three nodes. Node 1 has the label disk=ssd and node 2 has the label disk=hdd. Pod 1 can only be scheduled on node 1 as it defines the matching node selector, and therefore on none of the other nodes. Pod 2 cannot be scheduled on any of the nodes, as the node selector doesn’t match any of the nodes’ labels. Pod 1 and Pod 2 cannot be scheduled on node 3.

node selector scenarios
Figure 14-2. Node selector scenarios

Labeling a node

Following the described use case of running applications only on nodes that provide SSD volume access, we’ll first need to assign a specific label key-value pair. The following command uses the imperative kubectl label command to assign the label disk=ssd to the node named multi-node-m03:

$ kubectl label node multi-node-m03 disk=ssd
node/multi-node-m03 labeled

You can find the assigned labels for all nodes when listing them with the --show-labels option:

$ kubectl get nodes --show-labels
NAME             STATUS   ROLES           AGE   VERSION   LABELS
multi-node       Ready    control-plane   14m   v1.32.2   ...
multi-node-m02   Ready    <none>          14m   v1.32.2   ...
multi-node-m03   Ready    <none>          14m   v1.32.2   ...
multi-node-m04   Ready    <none>          14m   v1.32.2   ...,disk=ssd,...

Next up, you will need to select this label from the Pod that should be scheduled on the node multi-node-m03.

Assigning a node selector to a Pod

The only addition to the typical structure is the definition of the spec.nodeSelector attribute, as show in Example 14-1.

Example 14-1. Assigning a node selector
apiVersion: v1
kind: Pod
metadata:
  name: app
spec:
  nodeSelector:           1
    disk: ssd             2
  containers:
  - name: nginx
    image: nginx:1.27.1
1

Defines a node selector for the Pod

2

The label key-value pair used to determine a suitable node

Note

The node selector is not limited to a single label key-value pair. Selecting a map of labels is completely valid.

The Pod with this definition can only be scheduled on the node that provides the matching label. You can verify that the Pod runs on the expected node with the same command described in “Determining the Node a Pod Runs on”.

Working with Node Affinity and Anti-Affinity

In Kubernetes, the spec.nodeSelector field is used to define strict scheduling constraints—it allows you to specify hard requirements that a node must satisfy for a Pod to be scheduled on it. While simple and straightforward, the node selector is limited to exact key-value label matches and does not support advanced logic.

For more flexible and expressive scheduling rules, you should use node affinity, defined under spec.affinity.nodeAffinity in the Pod specification. Node affinity allows you to match nodes using label selector expressions, enabling more complex criteria such as logical operators (In, NotIn, Exists, etc.) and prioritized preferences.

Coming back to the previous use case, you may want to run Pods on nodes that support SSD-based volumes or volumes with slower storage devices if the primary preference cannot be fulfilled.

Figure 14-3 shows the node affinity concept in action. In this scenario, Pod 1 can be scheduled on node 1 or node 2 based on the defined set-based label selection.

node affinity scenarios
Figure 14-3. Node affinity scenarios

Node anti-affinity is useful in situation where you want to prevent Pods to be scheduled on specific nodes. This is particularly helpful in high-availablity situations where you want to spread Pods across different zones or regions.

Assigning a node affinity to a Pod

In short, node affinity effectively replaces the node selector for most use cases, offering greater precision and control over workload placement. Example 14-2 shows the same Pod definition we saw earlier, but in this case it allows for placing the Pod on a node where the assigned label key-value pair is disk=ssd or disk=hdd.

Example 14-2. Assigning node affinity
apiVersion: v1
kind: Pod
metadata:
  name: app
spec:
  affinity:
    nodeAffinity:                                       1
      requiredDuringSchedulingIgnoredDuringExecution:   2
        nodeSelectorTerms:
        - matchExpressions:                             3
          - key: disk                                   4
            operator: In                                4
            values:                                     4
            - ssd                                       4
            - hdd                                       4
  containers:
  - name: nginx
    image: nginx:1.27.1
1

Defines a node affinity for the Pod

2

The node affinity type that will be adhered to when scheduling the Pod

3

The expression for finding matching nodes

4

A set-based label requirement

Node affinity types

Beyond supporting set-based expressions, node affinity also introduces specific types that control when the rules are applied. One commonly used type is: requiredDuringSchedulingIgnoredDuringExecution. This setting means that the affinity rules are strictly enforced only at the time of scheduling—when the Pod is initially assigned to a node. Once the Pod is running, any changes to the node affinity rules are ignored and will not trigger rescheduling.

This isn’t the only available node affinity type. Table 14-1 shows the list. Types starting with requiredDuringScheduling express a hard requirement, and types starting with preferredDuringScheduling express a soft requirement, a preference which the schedule doesn’t have to adhere to in case no fitting node can be determined.

Table 14-1. Node affinity types
Type Description

requiredDuringSchedulingIgnoredDuringExecution

Rules that must be met for a Pod to be scheduled onto a node.

preferredDuringSchedulingIgnoredDuringExecution

Rules that specify preferences that the scheduler will try to enforce but will not guarantee.

At the time of writing, none of the node affinity types support modifying an already scheduled Pod, as indicated by the IgnoredDuringExecution suffix. The Kubernetes team may decide to change that in a future release.

Node affinity operators

In the previous example, you saw one of the node affinity operators in action, the In operator. The In operator is an operator that defines a requirement to find a label value as part of a given set of strings. You can select other operators to define node affinity requirements, as listed in Table 14-2.

Table 14-2. Node affinity operators
Operator Behavior

In

A node has an assigned label value in the given set of strings.

NotIn

Only those nodes are selected that do not have an assigned label value in he given set of strings.

Exists

A node has a label key assigned to it that matches the given string.

DoesNotExist

A node does not have a label key assigned to it that matches the given string.

Gt

A node does not have a label key assigned to it that matches the given string.

Lt

A node does not have a label key assigned to it that matches the given string.

There are two operators, NotIn and DoesNotExist, that negate the selective effects of their counterparts In and Exists. Those operators are used to define a node anti-affinity behavior.

Assigning a node anti-affinity to a Pod

Node anti-affinity rules are typically used to prevent certain Pods from being scheduled on the same nodes, based on labels. An essential tool for defining anti-affinity behavior is the operator. Example 14-3 uses the NotIn operator to repel Pods from a set of nodes with the given label values.

Example 14-3. Assigning node anti-affinity
apiVersion: v1
kind: Pod
metadata:
  name: app
spec:
  affinity:
    nodeAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        nodeSelectorTerms:
        - matchExpressions:
          - key: disk
            operator: NotIn                                1
            values:
            - ssd
            - ebs
  containers:
  - name: nginx
    image: nginx:1.27.1
1

Defines a node anti-affinity by way of using a negating condition

In essence, node anti-affinity does not require you to learn a new API or new attributes when defining a Pod. Its usage primary boils down to the operator you select to define the node affinity rule.

Working with Taints and Tolerations

Similar to node anti-affinity, taints and tolerations represent another way in Kubernetes to influence where Pods can be scheduled, but they serve different purposes and work in fundamentally different ways. Node anti-affinity is meant to be used to spread or separate workload across nodes, whereas taints and tolerations are used for node isolation and workload protection.

The main purpose of taints and tolerations is to prevent Pods from being scheduled on a node unless they explicitly tolerate that node’s taint. You’d add the taint to a node to say, “don’t schedule anything here unless it tolerates the taint.” Then in the Pod, you’d add a toleration if you want it to become schedulable on the tainted node.

A typical use case for using taints and tolerations is the need to ensures that Pods are not scheduled on control plane nodes. Control plane nodes use the taint node-role.kubernetes.io/control-plane:NoSchedule to prevent Pods from being scheduled on them unless they provide a corresponding toleration.

In Figure 14-4, you can see a scenario that demonstrates the use of taints and tolerations. Node 1 and 3 tolerates Pod 1 and Pod 2. Node 2 only accepts Pod 1.

taints tolerations scenarios
Figure 14-4. Taints and tolerations scenarios

Let’s demonstrate the process of adding a taint to a node and a toleration to a Pod by example.

Tainting a node

A taint on a node marks it as unsuitable for certain Pods unless those Pods explicitly state they can tolerate it. A taint consists of three parts-key, value and effect—​formatted as key=value:effect. The key and value portions represent a simple, free-form key-value pair, similar to a label assignment. The effect describes the runtime treatment of the taint by the scheduler.

Use the imperative kubectl taint command to add a taint to a node. The following command adds the taint special=true:NoSchedule to the node named multi-node-m02:

$ kubectl taint node multi-node-m02 special=true:NoSchedule
node/multi-node-m02 tainted

The scheduler now considers this taint during Pod placement. To view the assigned taints of a node, run the kubectl get or kubectl describe command. The following command renders the YAML representation of the node multi-node-m02 and then finds the relevant information in the output by combining it with the Linux grep command:

$ kubectl get node multi-node-m02 -o yaml | grep -C 3 taints:
...
spec:
  taints:
  - effect: NoSchedule
    key: special
    value: "true"

Taint effects

The taint shown in the previous example used the NoSchedule effect, which is a hard block for any Pod that doesn’t come with the relevant toleration. You can choose from other taint effects, explained in Table 14-3.

Table 14-3. Taint effects
Effect Description

NoSchedule

Unless a Pod has matching toleration, it won’t be scheduled on the node.

PreferNoSchedule

Try not to place a Pod that does not tolerate the taint on the node, but it is not required.

NoExecute

Evict Pod from node if already running on it. No future scheduling on the node.

In short, you can think of the available taint effects and their runtime enforcement in the following way. The effect NoSchedule is a hard block. PreferNoSchedule offers a soft suggestion. Lastly, NoExecute not only blocks Pods without the corresponding toleration but also evicts already running Pods that can’t fulfill the requirement.

Assigning a toleration to a Pod

To enable a Pod to run on a tainted node, you must add a toleration to the Pod specification that precisely matches the key, value, and effect of the node’s taint. This tells the scheduler that the Pod is allowed to tolerate the taint and may be placed on the node despite the restriction.

Example 14-4 shows a matching toleration assigned to a Pod for the taint special=true:NoSchedule.

Example 14-4. Assigning a toleration
apiVersion: v1
kind: Pod
metadata:
  name: app
spec:
  tolerations:             1
  - key: "special"         2
    operator: "Equal"      3
    value: "true"          4
    effect: "NoSchedule"   5
  containers:
  - name: nginx
    image: nginx:1.27.1
1

The attribute that lets you define one or more tolerations

2

The key of the toleration that needs to match the taint

3

A toleration “matches” a taint if the keys are the same and the effects are the same

4

The value of the toleration that needs to match the taint

5

The runtime effect

The usage of the effect in a toleration is required in most practical cases. If your toleration is missing the effect, it won’t match any taint. Leaving off the effect is considered optional only when using the operator Exists is used and you want to tolerate all taints with a specific key (regardless of value). Nevertheless, even in this scenario, specifying the effect is recommended.

Working with Pod Topology Spread Constraints

Pod topology spread constraints control how Pods are distributed across your cluster to improve availability, resilience, and resource utilization. They define rules for how Pods of a certain group (typically in the same Deployment) should be spread across topology domains (like zones, nodes, or racks). You can define the the Pod topology spread constraint in the Pod API with the attribute spec.topologySpreadConstraints.

Assigning a topology spread constraint to a Pod

Example 14-5 shows an example for a Deployment YAML definition with 6 replicas of an app and ensures that they are evenly spread across availability zones.

Example 14-5. Assigning a topology spread constraint to a Pod
apiVersion: apps/v1
kind: Deployment
metadata:
  name: web
spec:
  replicas: 6
  selector:
    matchLabels:
      app: web
  template:
    metadata:
      labels:
        app: web
    spec:
      topologySpreadConstraints:
      - maxSkew: 1                                 1
        topologyKey: topology.kubernetes.io/zone   2
        whenUnsatisfiable: DoNotSchedule           3
        labelSelector:                             4
          matchLabels:                             4
            app: web                               4
      containers:
      - name: nginx
        image: nginx:1.27.1
1

The difference in Pod count between zones must not exceed 1.

2

Uses the node label, in this case the reserved label for defining the Pods spread across availability zones

3

What to do if a spread cannot be satisfied

4

Applies the spread rule only for Pods with the given label(s)

Topology spread constraint effects at runtime

There are a couple of important facts to mention on how the concept behaves at runtime. Pod topology spread constraints only affect newly-scheduled Pods, they do not rebalance existing Pods. You can define multiple constraints, e.g. a spread by zones and node hostnames. Be aware that the use of the concept can lead to unschedulable Pods if constraints are too strict and resources are limited.

Summary

Kubernetes Pod scheduling is the process of assigning Pods to available nodes in a cluster based on various criteria. By default, the Kubernetes scheduler considers resource requirements, node availability, and constraints like taints, tolerations, and node selectors.

Developers can influence scheduling using node affinity, which expresses preferences for particular node labels, and Pod affinity/anti-affinity, which controls whether Pods are co-located or separated. Taints and tolerations allow nodes to repel certain pods unless those Pods explicitly tolerate the taint. Resource requests and limits guide the scheduler in ensuring Pods are only placed on nodes with sufficient CPU and memory. Topology spread constraints help evenly distribute Pods across failure domains like zones or nodes.

Exam Essentials

Be able to identify the node a Pod runs on

As an end user to Kubernetes, you can easily find out which node a Pod runs on. Become familiar with the relevant kubectl commands that give you access to this information. During the exam, you may be asked which Pods run on which nodes of the cluster.

Understand the ins and outs of Pod scheduling options

You’ll need to be familiar with a wide range of Pod scheduling concepts. Tasks in the exam may ask you select the most suitable concept to define soft or hard requirements for specific scheduling scenarios. Most likely, the Pod scheduling concept is spelled out explicitly, and you will need to be able to apply the syntax appropriately.

Sample Exercises

Solutions to these exercises are available in Appendix A.

  1. Inspect the existing nodes and their assigned labels. Pick one available node and label it with the key-value pair color=green. Pick a second node and label it with the key-value pair color=red.

    Define a Pod with the image nginx:1.27.1 in the YAML manifest file pod.yaml. Use the nodeSelector assignment to schedule the Pod on the node with the label color=green. Create the Pod and ensure that the correct node has been used to run the Pod.

    Change the Pod definition to schedule it on nodes with the label color=green or color=red. Verify that the Pod runs on the correct node.

  2. Define a Pod with the image nginx:1.27.1 in the YAML manifest file pod.yaml. Create the Pod and check which node the Pod is running on.

    Add a taint to the node. Set it to exclusive: yes. The effect should be NoExecute.

    Modify the live Pod object by adding the following toleration: It should be equal to the taint key-value pair and have the effect NoExecute.

    Observe the running behavior of the Pod. If your cluster has more than a single node where do you expect the Pod to run?

    Remove the taint from the node. Do you expect the Pod to still run on the node?

Part IV. Storage

The Storage domain in the curriculum focuses on managing persistent data in Kubernetes clusters. This critical area ensures applications can reliably store and access data beyond the lifecycle of individual Pods.

The following chapters cover these concepts:

  • Chapter 15 explains the general mechanism of making a directory available to containers in a Pod for the purpose of persisting and sharing data.

  • Chapter 16 describes the provisioning of a storage resource that provides durable data storage for applications running in Pods that survives Pod restarts, rescheduling, and failures.

Chapter 15. Volumes

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 15th chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

When container images are instantiated as containers, the container needs context—context to CPU, memory, and I/O resources. Pods provide the network and the filesystem context for the containers within. The network is provided as the Pod’s virtual IP address, and the filesystem is mounted to the hosting node’s filesystem.

Applications running in the container can interact with the filesystem as part of the Pod context. A container’s temporary filesystem is isolated from any other container or Pod and is not persisted beyond a Pod restart.

Essentially, a volume is a directory that’s shareable between multiple containers of a Pod. Figure 15-1 illustrates the differences between the temporary filesystem of a container and the use of a volume.

tmp file system volume

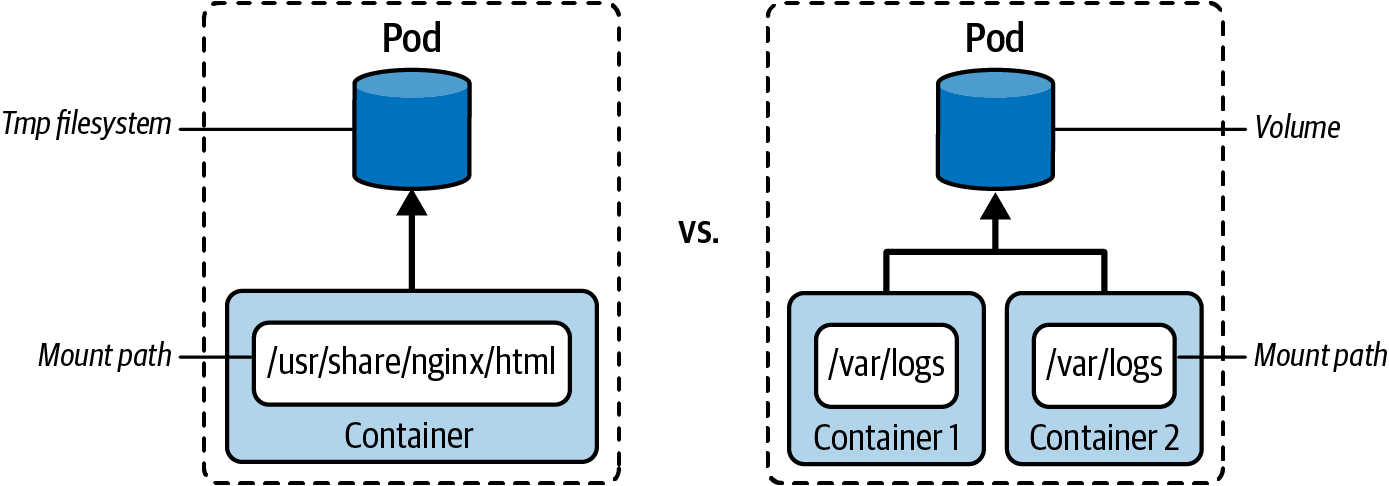

Figure 15-1. A container using the temporary filesystem versus a volume

In this chapter, you will learn about the different volume types and the process for defining and mounting a volume in a container.

Coverage of Curriculum Objectives

The curriculum doesn’t explicitly mention coverage of volume basics. However, you will definitely need to understand this concept for persistent volumes described in the next chapter.

Purpose of Volumes

In a nutshell, the Kubernetes volume concept aims to fulfill the goals described below.

Data Persistence

Applications running in a container can use the temporary filesystem to read and write files. In the case of a container crash or a cluster/node restart, the kubelet will restart the container. Any data that had been written to the temporary filesystem is lost and cannot be retrieved anymore. The container effectively starts with a clean slate again. Volumes can provide persistent storage that survives container restarts, ensuring important data isn’t lost.

Data Sharing

There are many uses cases for wanting to mount a volume in a container. One of the most prominent use cases are multi-container Pods that use a volume to exchange data between a main application container and a sidecar, enabling them to share files and communicate through the filesystem.

Decoupling storage from containers

Volumes abstract storage details from the application, allowing you to change storage backends without modifying container images.

Volume Types

Every volume needs to define a type. The type determines the medium that backs the volume and its runtime behavior. The Kubernetes documentation offers a long list of volume types. Some of the types—for example, azureDisk, awsElasticBlockStore, or gcePersistentDisk—are available only when running the Kubernetes cluster in a specific cloud provider. Many of those cloud provider-specific volume types have already been deprecated.

Table 15-1 shows a reduced list of volume types that I deem to be most relevant to the exam.

Table 15-1. Volume types relevant to exam
Type Description

emptyDir

Empty directory in Pod with read/write access. Persisted for only the lifespan of a Pod. A good choice for cache implementations or data exchange between containers of a Pod.

hostPath

File or directory from the host node’s filesystem.

configMap, secret

Provides a way to inject configuration data. For practical examples, see Chapter 10.

nfs

An existing Network File System (NFS) share. Preserves data after Pod restart.

persistentVolumeClaim

Claims a persistent volume. For more information, see “Creating PersistentVolumeClaims”.

Creating and Accessing Volumes

Defining a volume for a Pod requires two steps. First, you need to declare the volume itself using the attribute spec.volumes[]. As part of the definition, you provide the name and the type. Just declaring the volume won’t be sufficient, though. Second, the volume needs to be mounted to a path of the consuming container via spec.containers[].volumeMounts[]. The mapping between the volume and the volume mount occurs by the matching name.

From the YAML manifest stored in the file pod-with-volume.yaml and shown in Example 15-1, you can see the definition of a volume with type emptyDir. The volume has been mounted to the path /usr/share/nginx/html inside of the container named nginx and to the path /data inside of the container named sidecar.

Example 15-1. A Pod defining and mounting a volume
apiVersion: v1
kind: Pod
metadata:
  name: business-app
spec:
  volumes:
  - name: shared-data
    emptyDir: {}                         1
  containers:
  - name: nginx
    image: nginx:1.27.1
    volumeMounts:
    - name: shared-data
      mountPath: /usr/share/nginx/html   2
  - name: sidecar
    image: busybox:1.37.0
    volumeMounts:
    - name: shared-data
      mountPath: /data                   2
1

Specifies a volume of type emptyDir. The curly braces mean that we don’t want to provide additional configuration, e.g. a size limit.

2

Mounts the volume to containers with different mount paths inside of the container.

Let’s create the Pod from the YAML definition above. The Pod runs two containers.

$ kubectl apply -f pod-with-volume.yaml
pod/business-app created
$ kubectl get pod business-app
NAME           READY   STATUS    RESTARTS   AGE
business-app   2/2     Running   0          43s

The following commands open an interactive shell to the container named nginx after the Pod’s creation and then navigate to the mount path. You can see that the volume type emptyDir initializes the mount path as an empty directory.

$ kubectl exec business-app -it -c nginx -- /bin/sh
# cd /usr/share/nginx/html
# pwd
/usr/share/nginx/html
# ls
# touch example.html
# ls
example.html

New files and directories can be created as needed without limitations.

Read-only Volume Mounts

Some data is only meant for consumption, for example configuration data provided through a volume. You can mark a volume mount to be read-only. Kubernetes will prevent any write operation on that volume mount. It’s important to understand that other containers may use the same volume in read-write mode.

To make a volume mount read-only, assign the value true to the attribute spec.containers[].volumeMounts[].readOnly, as shown in Example 15-2.

Example 15-2. A mount path marked as read-only
apiVersion: v1
kind: Pod
metadata:
  name: business-app
spec:
  volumes:
  - name: shared-data
    emptyDir: {}
  containers:
  - name: nginx
    image: nginx:1.27.1
    volumeMounts:
    - name: shared-data
      mountPath: /usr/share/nginx/html
      readOnly: true                     1
1

Prevents write operations for this mount path.

Read-only mounts are not recursively read-only. You can force the behavior though by setting the attribute .spec.containers[].volumeMounts[].recursiveReadOnly to true.

Summary

Kubernetes offers the concept of a Volume to implement the use case. A Pod mounts a Volume to a path in the container. Kubernetes offers a wide range of Volume types to fulfill different requirements. You can select from ephemeral volumes and persistent volumes.

Exam Essentials

Understand the need and use cases for a volume

Many production-ready application stacks running in a cloud-native environment need to persist data. Read up on common use cases and explore recipes that describe typical scenarios. You can find some examples in the O’Reilly books Kubernetes Best Practices, and Cloud Native DevOps with Kubernetes.

Practice defining and consuming volumes

Volumes are a cross-cutting concept applied in different areas of the exam. Know where to find the relevant documentation for defining a volume and the multitude of ways to consume a volume from a container. Definitely revisit Chapter 10 for a deep dive on how to mount ConfigMaps and Secrets as a volume.

Sample Exercises

Solutions to these exercises are available in Appendix A.

  1. Create a Pod YAML manifest with two containers that use the image alpine:3.12.0. Provide a command for both containers that keep them running forever.

    Define a Volume of type emptyDir for the Pod. Container 1 should mount the Volume to path /etc/a, and container 2 should mount the Volume to path /etc/b.

    Open an interactive shell for container 1 and create the directory data in the mount path. Navigate to the directory and create the file hello.txt with the contents “Hello World.” Exit out of the container.

    Open an interactive shell for container 2 and navigate to the directory /etc/b/data. Inspect the contents of file hello.txt. Exit out of the container.

Chapter 16. Persistent Volumes

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 16th chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

Persistent volumes are a specific category of the wider concept of volumes with the capability of persisting data beyond a Pod restart. The mechanics for persistent volumes are slightly more complex. The persistent volume is the resource that actually persists the data to an underlying physical storage.

The persistent volume claim represents the connecting resource between a Pod and a persistent volume responsible for requesting the storage.

Finally, the Pod needs to claim the persistent volume and mount it to a directory path available to the containers running inside of the Pod.

Figure 16-1 shows the relationship between the Pod, the persistent volume claim, and the persistent volume.

pvc relationship

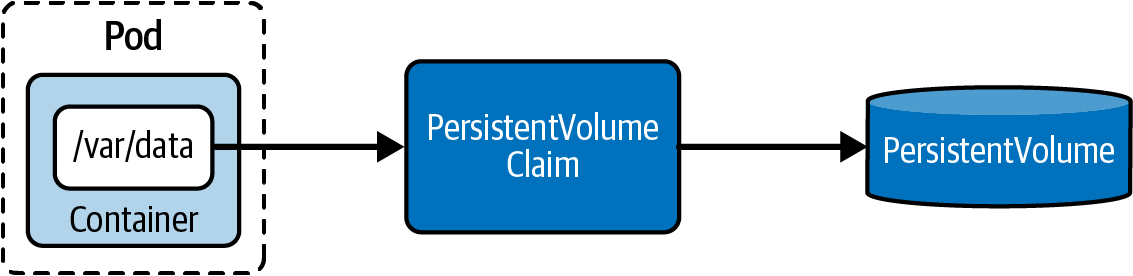

Figure 16-1. Claiming a PersistentVolume from a Pod

Coverage of Curriculum Objectives

This chapter addresses the following curriculum objective:

  • Implement storage classes and dynamic volume provisioning

  • Configure volume types, access modes and reclaim policies

  • Manage persistent volumes and persistent volume claims

Working with Persistent Volumes

Data stored on Volumes outlives a container restart. In many applications, the data lives far beyond the life cycles of the applications, container, Pod, nodes, and even the clusters themselves. Data persistence ensures the life cycles of the data are decoupled from the life cycles of the cluster resources. A typical example would be data persisted by a database. That’s the responsibility of a persistent volume. Kubernetes models persistent data with the help of two primitives: the PersistentVolume and the PersistentVolumeClaim.

The PersistentVolume is the primitive representing a piece of storage in a Kubernetes cluster. It is completely decoupled from the Pod and therefore has its own life cycle. The object captures the source of the storage (e.g., storage made available by a cloud provider). A PersistentVolume is either provided by a Kubernetes administrator or assigned dynamically by mapping to a storage class.

The PersistentVolumeClaim requests the resources of a PersistentVolume—for example, the size of the storage and the access type. In the Pod, you will use the type persistentVolumeClaim to mount the abstracted PersistentVolume by using the PersistentVolumeClaim.

Volume Types

Kubernetes supports several types of persistent volumes to accommodate different storage backends and use cases. Each type has its own characteristics and is suitable for specific scenarios. Table 15-1 lists the most commonly-used persistent volume types that are not deprecated.

Table 16-1. Persistent volume types
Type Description

hostPath

Mounts a file or directory from the host node’s filesystem into the Pod. Useful for development and testing but not recommended for production multi-node clusters as it ties the Pod to a specific node.

local

Represents a mounted local storage device such as a disk, partition, or directory. Provides better performance than remote storage but requires node affinity to ensure Pods are scheduled on the correct node.

nfs

Allows multiple Pods to share the same Network File System (NFS) mount. Supports ReadWriteMany access mode and is useful for sharing data between Pods across nodes.

csi

Container Storage Interface driver that provides a standardized way to expose storage systems to containerized workloads. Most modern storage solutions use CSI drivers.

fc

Fibre Channel volume that allows existing FC storage to be attached to Pods. Requires FC hardware and proper configuration on nodes.

iscsi

iSCSI (Internet Small Computer Systems Interface) volume that allows existing iSCSI storage to be mounted to Pods. Provides block-level storage over IP networks.

The choice of volume type depends on your infrastructure, performance requirements, and whether you need the storage to be shared across multiple Pods or nodes. For cloud environments, CSI drivers are typically provided by cloud providers (like AWS EBS CSI driver, GCE PD CSI driver, or Azure Disk CSI driver) to integrate with their native storage services.

Static versus Dynamic Provisioning

A PersistentVolume can be created statically or dynamically. If you go with the static approach, then you first need to create a storage device and then reference it by explicitly creating an object of kind PersistentVolume. The dynamic approach doesn’t require you to create a PersistentVolume object. It will be automatically created from the PersistentVolumeClaim by setting a storage class name using the attribute spec.storageClassName.

A storage class is an abstraction concept that defines a class of storage device (e.g., storage with slow or fast performance) used for different application types. It’s the job of a Kubernetes administrator to set up storage classes. For a deeper discussion on storage classes, see “Storage Classes”. For now, we’ll focus on the static provisioning of PersistentVolumes.

Creating PersistentVolumes

When you create a PersistentVolume object yourself, we refer to the approach as static provisioning. A PersistentVolume can be created only by using the manifest-first approach. At this time, kubectl doesn’t allow the creation of a PersistentVolume using the create command. Every PersistentVolume needs to define the storage capacity using spec.capacity and an access mode set via spec.accessModes. See “Configuration Options for a PersistentVolume” for more information on the configuration options available to a PersistentVolume.

Example 16-1 creates a PersistentVolume named db-pv with a storage capacity of 1Gi and read/write access by a single node. The attribute hostPath mounts the directory /data/db from the host node’s filesystem. We’ll store the YAML manifest in the file db-pv.yaml.

Example 16-1. YAML manifest defining a PersistentVolume
apiVersion: v1
kind: PersistentVolume
metadata:
  name: db-pv
spec:
  capacity:              1
    storage: 1Gi         1
  accessModes:           2
    - ReadWriteOnce      2
  hostPath:
    path: /data/db
1

The storage capacity available to persistent volume.

2

The read-write access modes applicable to the persistent volume.

When you inspect the created PersistentVolume, you’ll find most of the information you provided in the manifest. The status Available indicates that the object is ready to be claimed. The reclaim policy determines what should happen with the PersistentVolume after it has been released from its claim. By default, the object will be retained. The following example uses the short-form command pv to avoid having to type persistentvolume:

$ kubectl apply -f db-pv.yaml
persistentvolume/db-pv created
$ kubectl get pv db-pv
NAME    CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS    \
  CLAIM   STORAGECLASS   REASON   AGE
db-pv   1Gi        RWO            Retain           Available \
                                  10s

Configuration Options for a PersistentVolume

A PersistentVolume offers a variety of configuration options that determine their innate runtime behavior. For the exam, it’s important to understand the volume mode, access mode, and reclaim policy configuration options.

Volume mode

The volume mode handles the type of device. That’s a device either meant to be consumed from the filesystem or backed by a block device. The most common case is a filesystem device. You can set the volume mode using the attribute spec.volumeMode. Table 16-2 shows all available volume modes.

Table 16-2. PersistentVolume volume modes
Type Description

Filesystem

Default. Mounts the volume into a directory of the consuming Pod. Creates a filesystem first if the volume is backed by a block device and the device is empty.

Block

Used for a volume as a raw block device without a filesystem on it.

The volume mode is not rendered by default in the console output of the get pv command. You will need to provide the -o wide command-line option to see the VOLUMEMODE column, as shown here:

$ kubectl get pv -o wide
NAME    CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS    \
CLAIM   STORAGECLASS   REASON   AGE   VOLUMEMODE
db-pv   1Gi        RWO            Retain           Available \
                                19m   Filesystem

Access mode

Each PersistentVolume can express how it can be accessed using the attribute spec.accessModes. For example, you can define that the volume can be mounted only by a single Pod in a read or write mode or that a volume is read-only but accessible from different nodes simultaneously. Table 16-3 provides an overview of the available access modes. The short-form notation of the access mode is usually rendered in outputs of specific commands, e.g., get pv or describe pv.

Table 16-3. PersistentVolume access modes
Type Short Form Description

ReadWriteOnce

RWO

Read/write access by a single node

ReadOnlyMany

ROX

Read-only access by many nodes

ReadWriteMany

RWX

Read/write access by many nodes

ReadWriteOncePod

RWOP

Read/write access mounted by a single Pod

The following command parses the access modes from the PersistentVolume named db-pv. As you can see, the returned value is an array underlining the fact that you can assign multiple access modes at once:

$ kubectl get pv db-pv -o jsonpath='{.spec.accessModes}'
["ReadWriteOnce"]

Reclaim policy

Optionally, you can also define a reclaim policy for a PersistentVolume. The reclaim policy specifies what should happen to a PersistentVolume object when the bound PersistentVolumeClaim is deleted (see Table 16-4). For dynamically created PersistentVolumes, the reclaim policy can be set via the attribute .reclaimPolicy in the storage class. For statically created PersistentVolumes, use the attribute spec.persistentVolumeReclaimPolicy in the PersistentVolume definition.

Table 16-4. PersistentVolume reclaim policies
Type Description

Retain

Default. When PersistentVolumeClaim is deleted, the PersistentVolume is “released” and can be reclaimed.

Delete

Deletion removes PersistentVolume and its associated storage.

Recycle

This value is deprecated. You should use one of the other values.

This command retrieves the assigned reclaim policy of the PersistentVolume named db-pv:

$ kubectl get pv db-pv -o jsonpath='{.spec.persistentVolumeReclaimPolicy}'
Retain

Node affinity

Node affinity allows you to constrain which nodes a PersistentVolume can be accessed from. This is particularly important for local storage types like local and hostPath volumes, which are physically tied to specific nodes. By defining node affinity rules, you ensure that Pods using the PersistentVolume are scheduled only on nodes that can actually access the underlying storage.

The node affinity is specified using the spec.nodeAffinity field in the PersistentVolume definition. It uses the same syntax as Pod node affinity, with required rules that must be satisfied for the volume to be accessible.

Example 16-2 illustrates an example of a PersistentVolume with node affinity that restricts it to specific nodes:

Example 16-2. Defining node affinity for a PersistentVolume
apiVersion: v1
kind: PersistentVolume
metadata:
  name: local-pv
spec:
  capacity:
    storage: 10Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: local-storage
  local:                                          1
    path: /mnt/data
  nodeAffinity:                                   2
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname             3
          operator: In
          values:
          - node01
          - node02
1

Uses the local volume type, which requires node affinity.

2

Defines node affinity rules for this PersistentVolume.

3

Restricts the volume to nodes with hostnames node01 or node02.

Common use cases for node affinity with PersistentVolumes include:

  • Local volumes: Must specify node affinity to indicate which node contains the storage.

  • Zone constraints: Ensuring volumes are accessed only from nodes in specific availability zones.

  • Hardware requirements: Restricting volumes to nodes with specific storage hardware (e.g., SSD nodes).

When a PersistentVolumeClaim binds to a PersistentVolume with node affinity, any Pod using that claim will be scheduled according to these constraints. If no suitable node is available, the Pod will remain in Pending status.

Important considerations:

  • Node affinity is required for local volume types.

  • The scheduler considers both the Pod’s node selectors and the PersistentVolume’s node affinity.

  • Changes to node labels after binding don’t affect existing mounted volumes.

  • For high availability, avoid overly restrictive node affinity rules.

Creating PersistentVolumeClaims

The next object we’ll need to create is the PersistentVolumeClaim. Its purpose is to bind the PersistentVolume to the Pod. Let’s look at the YAML manifest stored in the file db-pvc.yaml, shown in Example 16-3.

Example 16-3. Definition of a PersistentVolumeClaim
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: db-pvc
spec:
  accessModes:                1
    - ReadWriteOnce           1
  storageClassName: ""        2
  resources:                  3
    requests:                 3
      storage: 256Mi          3
1

The access modes we’re asking an unbound persistent volume to provide.

2

Uses an empty string assignment to indicate that we want to use static provisioning.

3

The minimum amount of storage an unbound persistent volume needs to have available.

What we’re saying is: “Give me a PersistentVolume that can fulfill the resource request of 256Mi and provides the access mode ReadWriteOnce.”

Static provisioning should use an empty string for the attribute spec.storageClassName if you do not want it to automatically assign the default storage class. The binding to an appropriate PersistentVolume happens automatically based on those criteria.

After creating the PersistentVolumeClaim, the status is set as Bound, which means that the binding to the PersistentVolume was successful. Once the associated binding occurs, nothing else can bind to it. The binding relationship is one-to-one. Nothing else can bind to the PersistentVolume once claimed. The following get command uses the short-form pvc instead of persistentvolumeclaim:

$ kubectl apply -f db-pvc.yaml
persistentvolumeclaim/db-pvc created
$ kubectl get pvc db-pvc
NAME     STATUS   VOLUME   CAPACITY   ACCESS MODES   STORAGECLASS   AGE
db-pvc   Bound    db-pv    1Gi        RWO                           111s

The PersistentVolume has not been mounted by a Pod yet. Therefore, inspecting the details of the object shows <none>. Using the describe command is a good way to verify if the PersistentVolumeClaim was mounted properly:

$ kubectl describe pvc db-pvc
...
Used By:       <none>
...

Binding by volume name

When creating a PersistentVolumeClaim, you can optionally specify the exact PersistentVolume you want to bind to using the spec.volumeName attribute. This creates a direct binding between the PersistentVolumeClaim and a specific PersistentVolume, bypassing the normal matching algorithm that considers storage size, access modes, and storage class.

This is useful in scenarios where:

  • You have pre-provisioned PersistentVolumes with specific characteristics.

  • You need to ensure a PersistentVolumeClaim binds to a particular PersistentVolume for compliance or data locality reasons.

  • You want to reuse an existing PersistentVolume that contains important data.

Example 16-4 shows an example of a PersistentVolumeClaim that explicitly binds to a PersistentVolume named db-pv:

Example 16-4. Binding a PersistentVolume to a PersistentVolumeClaim by name
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: specific-pvc
spec:
  volumeName: db-pv        1
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi
1

Explicitly binds this PersistentVolumeClaim to the PersistentVolume named db-pv.

When using volumeName, ensure that:

  • The specified PersistentVolume exists and is in Available status

  • The PersistentVolume’s capacity is greater than or equal to the PersistentVolumeClaim’s requested storage.

  • The access modes are compatible.

  • The storage classes match (or both are unset).

If these conditions aren’t met, the PersistentVolumeClaim will remain in Pending status.

Mounting PersistentVolumeClaims in a Pod

All that’s left is to mount the PersistentVolumeClaim in the Pod that wants to consume it. You already learned how to mount a volume in a Pod. The big difference here, shown in Example 16-5, is using spec.volumes[].persistentVolumeClaim and providing the name of the PersistentVolumeClaim.

Example 16-5. A Pod referencing a PersistentVolumeClaim
apiVersion: v1
kind: Pod
metadata:
  name: app-consuming-pvc
spec:
  volumes:
  - name: app-storage
    persistentVolumeClaim:   1
      claimName: db-pvc      2
  containers:
  - image: alpine:3.18.2
    name: app
    command: ["/bin/sh"]
    args: ["-c", "while true; do sleep 60; done;"]
    volumeMounts:
      - mountPath: "/mnt/data"
        name: app-storage
1

The volume type that selects a persistent volume claim by name.

2

The name of the persistent volume claim object we want to bind to.

Let’s assume we stored the configuration in the file app-consuming-pvc.yaml. After creating the Pod from the manifest, you should see the Pod transitioning into the Ready state. The describe command will provide additional information on the volume:

$ kubectl apply -f app-consuming-pvc.yaml
pod/app-consuming-pvc created
$ kubectl get pods
NAME                READY   STATUS    RESTARTS   AGE
app-consuming-pvc   1/1     Running   0          3s
$ kubectl describe pod app-consuming-pvc
...
Volumes:
  app-storage:
    Type:       PersistentVolumeClaim (a reference to a PersistentVolumeClaim \
                in the same namespace)
    ClaimName:  db-pvc
    ReadOnly:   false
...

The PersistentVolumeClaim now also shows the Pod that mounted it:

$ kubectl describe pvc db-pvc
...
Used By:       app-consuming-pvc
...

You can now go ahead and open an interactive shell to the Pod. Navigating to the mount path at /mnt/data gives you access to the underlying PersistentVolume:

$ kubectl exec app-consuming-pvc -it -- /bin/sh
/ # cd /mnt/data
/mnt/data # ls -l
total 0
/mnt/data # touch test.db
/mnt/data # ls -l
total 0
-rw-r--r--    1 root     root             0 Sep 29 23:59 test.db

Storage Classes

A storage class is a Kubernetes primitive that defines a specific type or “class” of storage. Typical storage characteristics can be the type (e.g., fast SSD storage versus remote cloud storage or the backup policy for storage). The storage class is used to provision a PersistentVolume dynamically based on its criteria.

In practice, this means that you do not have to create the PersistentVolume object yourself. The provisioner assigned to the storage class takes care of it. Most Kubernetes cloud providers come with a list of existing provisioners. Minikube already creates a default storage class named standard, which you can query with the following command:

$ kubectl get storageclass
NAME                 PROVISIONER                RECLAIMPOLICY \
  VOLUMEBINDINGMODE   ALLOWVOLUMEEXPANSION   AGE
standard (default)   k8s.io/minikube-hostpath   Delete        \
  Immediate           false                  108d

Creating storage classes

Storage classes can be created declaratively only with the help of a YAML manifest. At a minimum, you need to declare the provisioner. All other attributes are optional and use default values if not provided upon creation. Most provisioners let you set parameters specific to the storage type. Example 16-6 defines a storage class on Google Compute Engine denoted by the provisioner kubernetes.io/gce-pd.

Example 16-6. Definition of a storage class
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: fast
provisioner: kubernetes.io/gce-pd
parameters:
  type: pd-ssd
  replication-type: regional-pd

If you saved the YAML contents in the file fast-sc.yaml, then the following command will create the object. The storage class can be listed using the get storageclass command:

$ kubectl create -f fast-sc.yaml
storageclass.storage.k8s.io/fast created
$ kubectl get storageclass
NAME                 PROVISIONER                RECLAIMPOLICY \
  VOLUMEBINDINGMODE   ALLOWVOLUMEEXPANSION   AGE
fast                 kubernetes.io/gce-pd       Delete        \
  Immediate           false                  4s
...

Using storage classes

Provisioning a PersistentVolume dynamically requires assigning of the storage class when you create the PersistentVolumeClaim. Example 16-7 shows the usage of the attribute spec.storageClassName for assigning the storage class named standard.

Example 16-7. Using a storage class in a PersistentVolumeClaim
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: db-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 512Mi
  storageClassName: standard   1
1

Uses the storage class by its name to enable dynamic provisioning.

The corresponding PersistentVolume object will be created only if the storage class can provision a fitting PersistentVolume using its provisioner. It’s important to understand that Kubernetes does not render an error or warning message if it isn’t the case.

The following command renders the created PersistentVolumeClaim and PersistentVolume. As you can see, the name of the dynamically provisioned PersistentVolume uses a hash to ensure a unique naming:

$ kubectl get pv,pvc
NAME                                                       CAPACITY \
  ACCESS MODES  RECLAIM POLICY  STATUS  CLAIM           STORAGECLASS \
  REASON  AGE
persistentvolume/pvc-b820b919-f7f7-4c74-9212-ef259d421734   512Mi \
    RWO           Delete          Bound   default/db-pvc  standard \
                  2s

NAME                          STATUS  VOLUME                                  \
CAPACITY  ACCESS MODES  STORAGECLASS  AGE
persistentvolumeclaim/db-pvc  Bound   pvc-b820b919-f7f7-4c74-9212-ef259d421734 \
512Mi     RWO           standard      2s

The steps for mounting the PersistentVolumeClaim from a Pod are the same as for static and dynamic provisioning. Refer to “Mounting PersistentVolumeClaims in a Pod” for more information.

Summary

PersistentVolumes even store data beyond a Pod or cluster/node restart. Those objects are decoupled from the Pod’s lifecycle and are therefore represented by a Kubernetes primitive. The PersistentVolumeClaim abstracts the underlying implementation details of a PersistentVolume and acts as an intermediary between the Pod and PersistentVolume. A PersistentVolume can be provisioned statically by creating the object or dynamically with the help of a provisioner assigned to a storage class.

Exam Essentials

Internalize the mechanics of defining and consuming a PersistentVolume

Creating a PersistentVolume involves a couple of moving parts. Understand the configuration options for PersistentVolumes and PersistentVolumeClaims and how they play together. Try to emulate situations that prevent a successful binding of a PersistentVolumeClaim. Then fix the situation by taking counteractions. Internalize the short-form commands pv and pvc to save precious time during the exam.

Know the differences between static and dynamic provisioning of a PersistentVolume

A PersistentVolume can be created statically by creating the object from a YAML manifest using the create command. Alternatively, you can let Kubernetes provision a PersistentVolume dynamically without your direct involvement. For this to happen, assign a storage class to the PersistentVolumeClaim. The provisioner of the storage class takes care of creating the PersistentVolume object for you.

Sample Exercises

Solutions to these exercises are available in Appendix A.

  1. Create a PersistentVolume named logs-pv that maps to the hostPath /var/logs. The access mode should be ReadWriteOnce and ReadOnlyMany. Provision a storage capacity of 5Gi. Ensure that the status of the PersistentVolume shows Available.

    Create a PersistentVolumeClaim named logs-pvc. It uses ReadWriteOnce access. Request a capacity of 2Gi. Ensure that the status of the PersistentVolume shows Bound.

    Mount the PersistentVolumeClaim in a Pod running the image nginx at the mount path /var/log/nginx.

    Open an interactive shell to the container and create a new file named my-nginx.log in /var/log/nginx. Exit out of the Pod.

    Delete the Pod and re-create it with the same YAML manifest. Open an interactive shell to the Pod, navigate to the directory /var/log/nginx, and find the file you created before.

  2. Navigate to the directory app-a/ch16/dynamic-provisioning of the checked-out GitHub repository bmuschko/cka-study-guide. Inspect the YAML manifest definition in the file local-path-storage-0.0.31.yaml. Create the objects from the YAML manifest file.

    Create a PersistentVolumeClaim named db-pvc in the namespace persistence. The access it uses is ReadWriteOnce. Request a capacity of 10Mi. Use the storageclass name local-path.

    Ensure that the status of the PersistentVolumeClaim object shows Pending. A PersistentVolume object should not have been provisioned yet.

    Mount the PersistentVolumeClaim in a Pod named app-consuming-pvc in the namespace persistence at the mount path /mnt/data. The container should use the image alpine:3.21.3.

    Wait until the Pod transitions into the “Running” status. Ensure that the PersistentVolume object has been created dynamically.

    Open an interactive shell to the container, and create a new file named test.db in /mnt/data. Exit out of the Pod.

Part V. Servicing & Networking

The domain Servicing & Networking covers the Kubernetes primitives important for establishing and restricting communication between microservices running in the cluster, or outside consumers. More specifically, this domain covers the primitives Services and Ingresses, as well as network policies.

The following chapters cover these concepts:

  • Chapter 17 introduces the Services resource type. You will learn how to expose a microservice inside of the cluster to other portions of the system. Services also allows for making an application accessible to end users outside of the cluster.

  • Chapter 18 starts by explaining why a Service is often not good enough for exposing an application to outside consumers. The Ingress primitive can expose a load-balanced endpoint to consumers accessible via HTTP(S).

  • Chapter 19 discusses the replacement API for the traditional Ingress primitive. The chapter explains the limitations of Ingress while providing an overview of the Gateway API CRDs, as well as migration strategies.

  • Chapter 20 explains the need for network policies from a security perspective. By default, Kubernetes’ Pod-to-Pod communication is unrestricted; however, you want to implement the principle of least privilege to ensure that only those Pods can talk to other Pods required by your architectural needs. Limiting network communication between Pods will decrease the potential attack surface.

Chapter 17. Services

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 17th chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

In “Using a Pod’s IP Address for Network Communication”, we learned that you can communicate with a Pod by its IP address. A restart of a Pod will automatically assign a new virtual cluster IP address. Therefore, other parts of your system cannot rely on the Pod’s IP address if they need to talk to one another.

Building a microservices architecture, where each of the components runs in its own Pod with the need to communicate with each other through a stable network interface, requires a different primitive, the Service.

The Service implements an abstraction layer on top of Pods, assigning a fixed virtual IP fronting all the Pods with matching labels, and that virtual IP is called Cluster IP. This chapter will focus on the ins and outs of Services, and most importantly the exposure of Pods inside and outside of the cluster based on their declared type.

Accessing a Service in minikube

Accessing Services of type NodePort and LoadBalancer in minikube requires special handling. Refer to the documentation for detailed instructions.

Coverage of Curriculum Objectives

This chapter addresses the following curriculum objective:

  • Understand connectivity between Pods

  • Use ClusterIP, NodePort, LoadBalancer service types and endpoints

  • Understand and use CoreDNS

Working with Services

In a nutshell, Services provide discoverable names and load balancing to a set of Pods. The Service remains agnostic from IP addresses with the help of the Kubernetes DNS control-plane component, an aspect we’ll discuss in “Discovering the Service by DNS lookup”. Similar to a Deployment, the Service determines the Pods it works on with the help of label selection.

Figure 17-1 illustrates the functionality. Pod 1 receives traffic as its assigned label matches with the label selection defined in the Service. Pod 2 does not receive traffic as it defines a nonmatching label.

service traffic routing
Figure 17-1. Service traffic routing based on label selection

Note that it is possible to create a Service without a label selector to support other scenarios. Refer to the relevant Kubernetes documentation for more information.

Services and Deployments

Services are a complementary concept to Deployments. Services route network traffic to a set of Pods, and Deployments manage a set of Pods, the replicas. While you can use both concepts in isolation, it is recommended to use Deployments and Services together. The primary reason is the ability to scale the number of replicas and at the same time being able to expose an endpoint to funnel network traffic to those Pods.

Service Types

Every Service defines a type. The type is responsible for exposing the Service inside and/or outside of the cluster. Table 17-1 lists the Service types relevant to the exam.

Table 17-1. Service types
Type Description

ClusterIP

Exposes the Service on a cluster-internal IP. Reachable only from within the cluster. Kubernetes uses a round-robin algorithm to distribute traffic evenly among the targeted Pods.

NodePort

Exposes the Service on each node’s IP address at a static port. Accessible from outside of the cluster. The Service type does not provide any load balancing across multiple nodes.

LoadBalancer

Exposes the Service externally using a cloud provider’s load balancer.

Other Service types, e.g. ExternalName or the headless Service, can be defined; however, we’ll not address them in this book as they are not within the scope of the exam. For more information, refer to the Kubernetes documentation.

Service type inheritance

The Service types just mentioned, ClusterIP, NodePort, and LoadBalancer, make a Service accessible with different levels of exposure. It’s imperative to understand that those Service types also build on top of each other. Figure 17-2 shows the relationship between different Service types.

service type layers

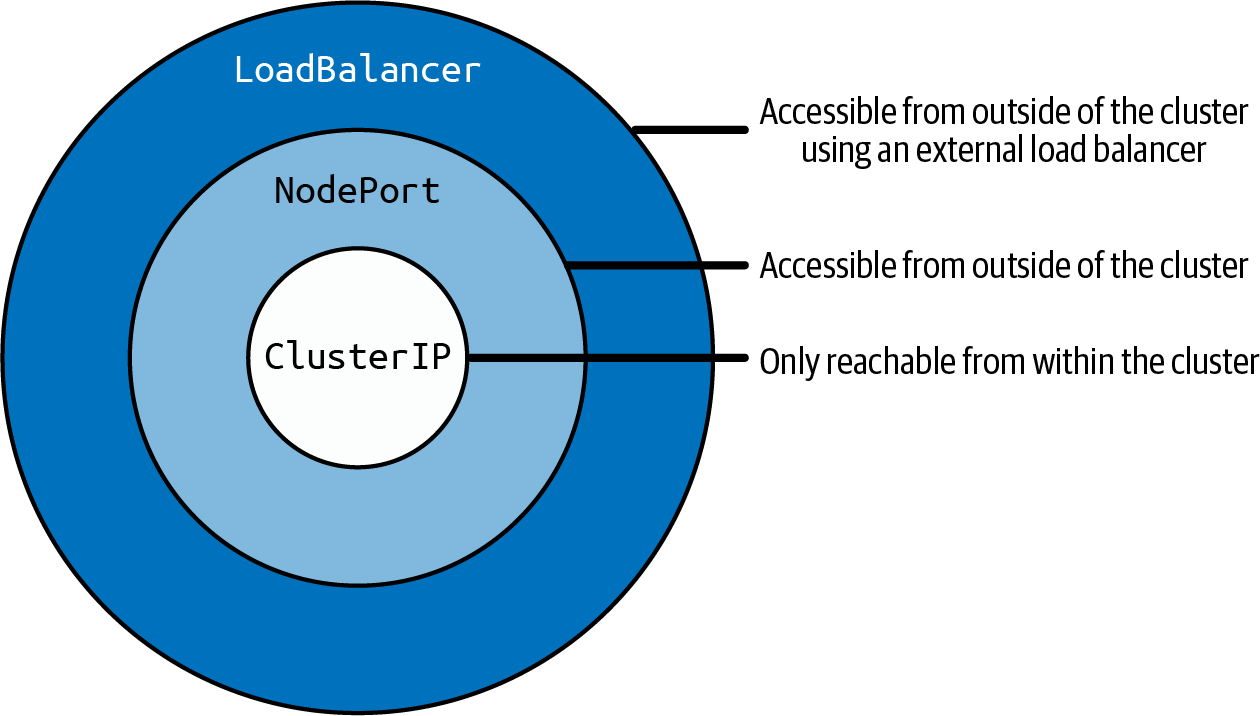

Figure 17-2. Network accessibility characteristics for Service types

For example, creating a Service of type NodePort means that the Service will bear the network accessibility characteristics of a ClusterIP Service type as well. In turn, a NodePort Service is accessible from within and from outside of the cluster. This chapter demonstrates each Service type by example. You will find references to the inherited exposure behavior in the following sections.

When to use which Service type?

When building a microservices architecture, the question arises which Service type to choose to implement certain use cases. We briefly discuss this question here.

The ClusterIP Service type is suitable for use cases that call for exposing a microservice to other Pods within the cluster. Say you have a frontend microservice that needs to connect to one or many backend microservices. To properly implement the scenario, you’d stand up a ClusterIP Service that routes traffic to the backend Pods. The frontend Pods would then talk to that Service.

The NodePort Service type is often mentioned as a way to expose an application to consumers external to the cluster. Consumers will have to know the node’s IP address and the statically assigned port to connect to the Service. That’s problematic for multiple reasons. First, the node port is usually allocated dynamically. Therefore, you won’t typically know it in advance. Second, providing the node’s IP address will funnel the network traffic only through a single node so you will not have load balancing at your disposal. Finally, by opening a publicly available node port, you are at risk of increasing the attack surface of your cluster. For all these reasons, a NodePort Service is primarily used for development or testing purposes, and less so in production environments.

The LoadBalancer Service type makes the application available to outside consumers through an external IP address provided by an external load balancer. Network traffic will be distributed across multiple nodes in the cluster. This solution works great for production environments, but keep in mind that every provisioned load balancer will accrue costs and can lead to an expensive infrastructure bill. A more cost-effective solution is the use of an Ingress, discussed in Chapter 18.

Port Mapping

A Service uses label selection to determine the set of Pods to forward traffic to. Successful routing of network traffic depends on the port mapping.

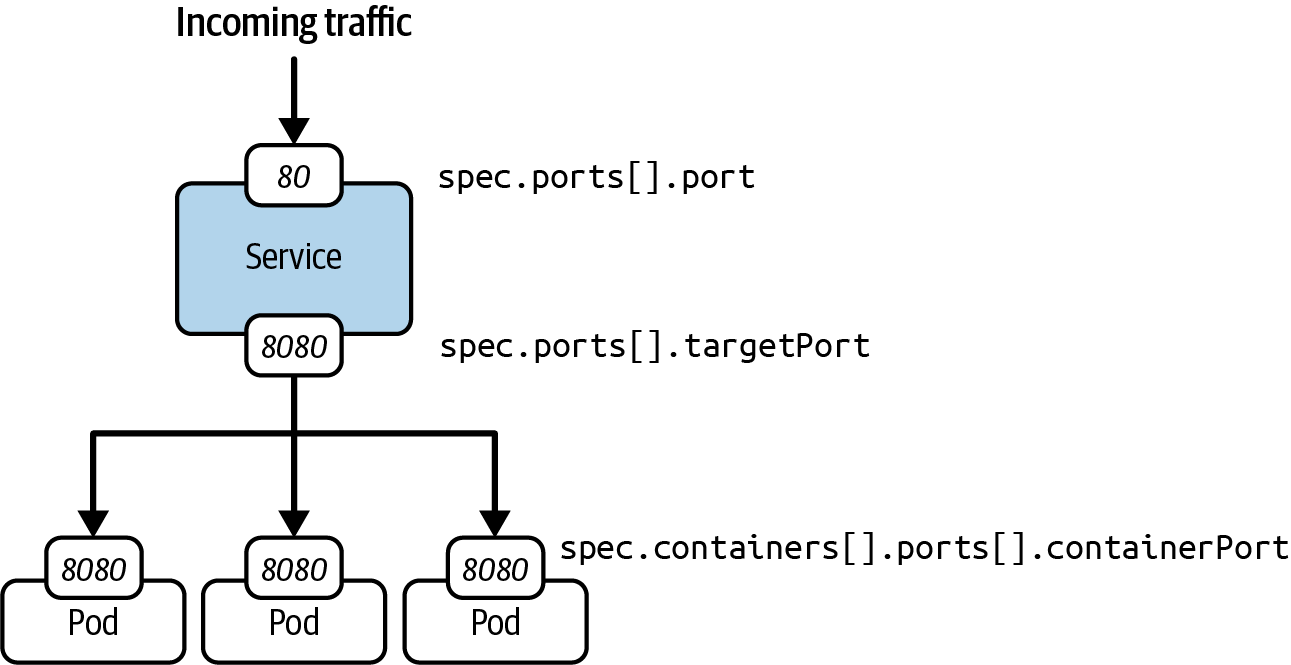

Figure 17-3 shows a Service that accepts incoming traffic on port 80. That’s the port defined by the attribute spec.ports[].port in the manifest. Any incoming traffic is then routed toward the target port, represented by spec.ports[].targetPort.

service port mapping
Figure 17-3. Service port mapping

The target port is the same port as defined by the container with spec.containers[].ports[].containerPort running inside the label-selected Pod. In this example, that’s port 8080. The selected Pod(s) will receive traffic only if the Service’s target port and the container port match.

Creating Services

You can create Services in a variety of ways, some of which are more appropriate for the exam as they provide a fast turnaround. Let’s discuss the imperative approach first.

A Service needs to select a Pod by a matching label. The Pod created by the following run command is called echoserver, which exposes the application on the container port 8080. Internally, it automatically assigns the label key-value pair run=echoserver to the object:

$ kubectl run echoserver --image=k8s.gcr.io/echoserver:1.10 --restart=Never \
  --port=8080
pod/echoserver created

You can create a Service object using the create service command. Make sure to provide the Service type as a mandatory argument. Here we are using the type clusterip. The command-line option --tcp specifies the port mapping. Port 80 exposes the Service to incoming network traffic. Port 8080 targets the container port exposed by the Pod:

$ kubectl create service clusterip echoserver --tcp=80:8080
service/echoserver created

An even faster workflow of creating a Pod and Service together can be achieved with a run command and the --expose option. The following command creates both objects in one swoop while establishing the proper label selection. This command-line option is a good choice during the exam to save time if you are asked to create a Pod and a Service:

$ kubectl run echoserver --image=k8s.gcr.io/echoserver:1.10 --restart=Never \
  --port=8080 --expose
service/echoserver created
pod/echoserver created

It’s actually more common to use a Deployment and Service that work together. The following set of commands creates a Deployment with five replicas and then uses the expose deployment command to instantiate the Service object. The port mapping can be provided with the options --port and --target-port:

$ kubectl create deployment echoserver --image=k8s.gcr.io/echoserver:1.10 \
  --replicas=5
deployment.apps/echoserver created
$ kubectl expose deployment echoserver --port=80 --target-port=8080
service/echoserver exposed

Example 17-1 shows the representation of a Service in the form of a YAML manifest. The Service declares the key-value app=echoserver for label selection and defines the port mapping from 80 to 8080.

Example 17-1. A Service defined by a YAML manifest
apiVersion: v1
kind: Service
metadata:
  name: echoserver
spec:
  selector:
    run: echoserver    1
  ports:               2
  - port: 80
    targetPort: 8080
1

Selects all Pods with the given label assignment.

2

Defines incoming and outgoing ports of the Service. The outgoing port needs to match the container port of the selected Pods.

The Service YAML manifest shown does not assign an explicit type. A Service object that does not specify a value for the attribute spec.type will default to ClusterIP upon creation.

Listing Services

Listing all Services presents a table view that includes the Service type, the cluster IP address, an optional external IP address, and the incoming port(s). Here, you can see the output for the echoserver Pod we created earlier:

$ kubectl get services
NAME         TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE
echoserver   ClusterIP   10.109.241.68   <none>        80/TCP    6s

Kubernetes assigns a cluster IP address given that the Service type is ClusterIP. An external IP address is not available for this Service type. The Service is accessible on port 80.

Rendering Service Details

You may want to drill into the details of a Service for troubleshooting purposes. That might be the case if the incoming traffic to a Service isn’t routed properly to the set of Pods you expect to handle the request.

The describe service command renders valuable information about the configuration of a Service. The configuration relevant to troubleshooting a Service is the value of the fields Selector, IP, Port, TargetPort, and Endpoints. A common source of misconfiguration is incorrect label selection and port assignment. Make sure that the selected labels are actually available in the Pods intended to route traffic to and that the target port of the Service matches the exposed container port of the Pods.

Take a look at the output of the following describe command. It’s the details for a Service created for five Pods controlled by a Deployment. The Endpoints attribute lists a range of endpoints, one for each of the Pods:

$ kubectl describe service echoserver
Name:              echoserver
Namespace:         default
Labels:            app=echoserver
Annotations:       <none>
Selector:          app=echoserver
Type:              ClusterIP
IP Family Policy:  SingleStack
IP Families:       IPv4
IP:                10.109.241.68
IPs:               10.109.241.68
Port:              <unset>  80/TCP
TargetPort:        8080/TCP
Endpoints:         172.17.0.4:8080,172.17.0.5:8080,172.17.0.7:8080 + 2 more...
Session Affinity:  None
Events:            <none>

An endpoint is a resolvable network endpoint, which serves as the virtual IP address and container port of a Pod. If a Service does not render any endpoints then you are likely dealing with a misconfiguration.

Kubernetes represents endpoints by a dedicated primitive that you can query for. The Endpoint object is created at the same time you instantiate the Service object. The following command lists the endpoints for the Service named echoserver:

$ kubectl get endpoints echoserver
NAME         ENDPOINTS                                                     AGE
echoserver   172.17.0.4:8080,172.17.0.5:8080,172.17.0.7:8080 + 2 more...   8m5s

The details of the endpoints give away the full list of IP addresses and ports combinations:

$ kubectl describe endpoints echoserver
Name:         echoserver
Namespace:    default
Labels:       app=echoserver
Annotations:  endpoints.kubernetes.io/last-change-trigger-time: \
              2021-11-15T19:09:04Z
Subsets:
  Addresses:          172.17.0.4,172.17.0.5,172.17.0.7,172.17.0.8,172.17.0.9
  NotReadyAddresses:  <none>
  Ports:
    Name     Port  Protocol
    ----     ----  --------
    <unset>  8080  TCP

Events:  <none>

The ClusterIP Service Type

ClusterIP is the default Service type. It exposes the Service on a cluster-internal IP address. That means the Service can be accessed only from a Pod running inside of the cluster and not from outside of the cluster (e.g., if you were to make a call to the Service from your local machine). Figure 17-4 illustrates the accessibility of a Service with type ClusterIP.

service clusterip

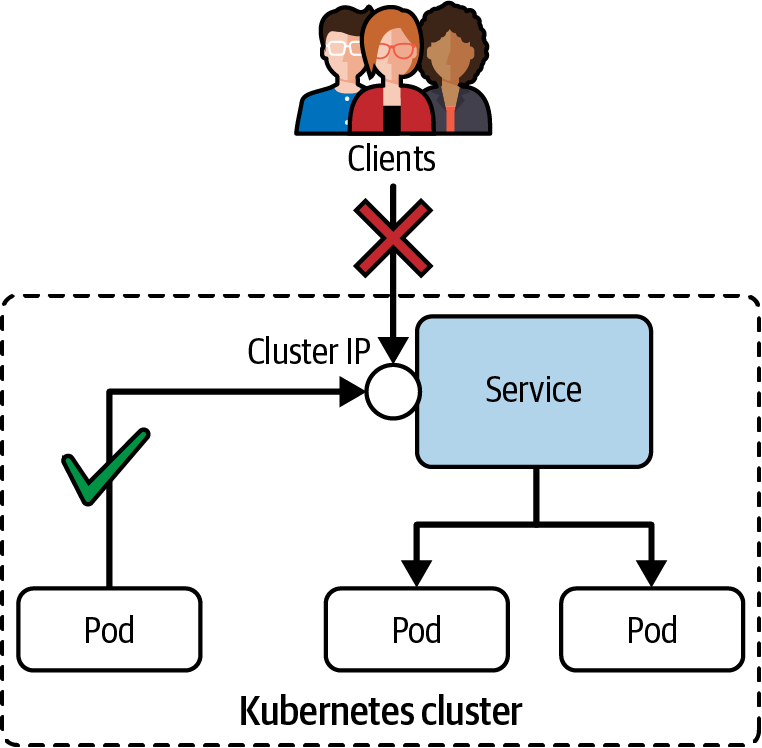

Figure 17-4. Accessibility of a Service with the type ClusterIP

Creating and Inspecting the Service

We will create a Pod and a corresponding Service to demonstrate the runtime behavior of the ClusterIP Service type. The Pod named echoserver exposes the container port 8080 and specifies the label app=echoserver. The Service defines port 5005 for incoming traffic, which is forwarded to outgoing port 8080. The label selection matches the Pod we set up:

$ kubectl run echoserver --image=k8s.gcr.io/echoserver:1.10 --restart=Never \
  --port=8080 -l app=echoserver
pod/echoserver created
$ kubectl create service clusterip echoserver --tcp=5005:8080
service/echoserver created

Inspecting the live object with the command kubectl get service echoserver -o yaml will render the assigned cluster IP address. Example 17-2 shows a abbreviated version of the Service runtime representation.

Example 17-2. A ClusterIP Service object at runtime
apiVersion: v1
kind: Service
metadata:
  name: echoserver
spec:
  type: ClusterIP          1
  clusterIP: 10.96.254.0   2
  selector:
    app: echoserver
  ports:
  - port: 5005
    targetPort: 8080
    protocol: TCP
1

The Service type set to ClusterIP.

2

The cluster IP address assigned to the Service at runtime.

The cluster IP address that makes the Service available in this example is 10.96.254.0. Listing the Service object is an alternative way to render the information we need to make a call to the Service:

$ kubectl get service echoserver
NAME         TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)    AGE
echoserver   ClusterIP   10.96.254.0   <none>        5005/TCP   8s

Next up, we’ll try to make a call to the Service.

Accessing the Service

You can access the Service using a combination of the cluster IP address and the incoming port: 10.96.254.0:5005. Making a request from any other machine residing outside of the cluster will fail, as illustrated by the following wget command:

$ wget 10.96.254.0:5005 --timeout=5 --tries=1
--2021-11-15 15:45:36--  http://10.96.254.0:5005/
Connecting to 10.96.254.0:5005... failed: Operation timed out.
Giving up.

Accessing the Service from a Pod from within the cluster properly routes the request to the Pod matching the label selection:

$ kubectl run tmp --image=busybox:1.36.1 --restart=Never -it --rm \
  -- wget 10.96.254.0:5005
Connecting to 10.96.254.0:5005 (10.96.254.0:5005)
saving to 'index.html'
index.html           100% |********************************|   408  0:00:00 ETA
'index.html' saved
pod "tmp" deleted

Apart from using the cluster IP address and the port, you can also discover a Service by DNS name and environment variables available to containers.

Discovering the Service by DNS lookup

Kubernetes registers every Service by its name with the help of its DNS service named CoreDNS. Internally, CoreDNS will store the Service name as a hostname and maps it to the cluster IP address. Accessing a Service by its DNS name instead of an IP address is much more convenient and expressive when building microservice architectures.

You can verify the correct service discovery by running a Pod in the same namespace that makes a call to the Service by using its hostname and incoming port:

$ kubectl run tmp --image=busybox:1.36.1 --restart=Never -it --rm \
  -- wget echoserver:5005
Connecting to echoserver:5005 (10.96.254.0:5005)
saving to 'index.html'
index.html           100% |********************************|   408  0:00:00 ETA
'index.html' saved
pod "tmp" deleted

It’s not uncommon to make a call from a Pod to a Service that lives in a different namespace. Referencing just the hostname of the Service does not work across namespaces. You need to append the namespace as well. The following makes a call from a Pod in the other namespace to the Service in the default namespace:

$ kubectl run tmp --image=busybox:1.36.1 --restart=Never -it --rm \
  -n other -- wget echoserver.default:5005
Connecting to echoserver.default:5005 (10.96.254.0:5005)
saving to 'index.html'
index.html           100% |********************************|   408  0:00:00 ETA
'index.html' saved
pod "tmp" deleted

The full hostname for a Service is echoserver.default.svc.cluster.local. The string svc describes the type of resource we are communicating with. CoreDNS uses the default value cluster.local as a domain name (which is configurable if you want to change it). You do not have to spell out the full hostname when communicating with a Service.

Discovering the Service by environment variables

You may find it easier to use the Service connection information directly from the application running in a Pod. The kubelet makes the cluster IP address and port for every active Service available as environment variables. The naming convention for Service-related environments variable are <SERVICE_NAME>_SERVICE_HOST and <SERVICE_NAME>_SERVICE_PORT.

Availability of Service environment variables

Make sure you create the Service before instantiating the Pod. Otherwise, those environment variables won’t be populated.

You can check on the actual key-value pairs by listing the environment variables of the container, as follows:

$ kubectl exec -it echoserver -- env
ECHOSERVER_SERVICE_HOST=10.96.254.0
ECHOSERVER_SERVICE_PORT=8080
...

The name of the Service, echoserver, does not include any special characters. That’s why the conversion to the environment variable key is easy; the Service name was simply upper-cased to conform to environment variable naming conventions. Any special characters (such as dashes) in the Service name will be replaced by underscore characters. You need to make sure that the Service has been created before starting a Pod if you want those environment variables populated.

The NodePort Service Type

Declaring a Service with type NodePort exposes access through the node’s IP address and can be resolved from outside of the Kubernetes cluster. The node’s IP address can be reached in combination with a port number in the range of 30000 and 32767 (also called the node port), assigned automatically upon the creation of the Service. Figure 17-5 illustrates the routing of traffic to Pods via a NodePort-type Service.

service nodeport

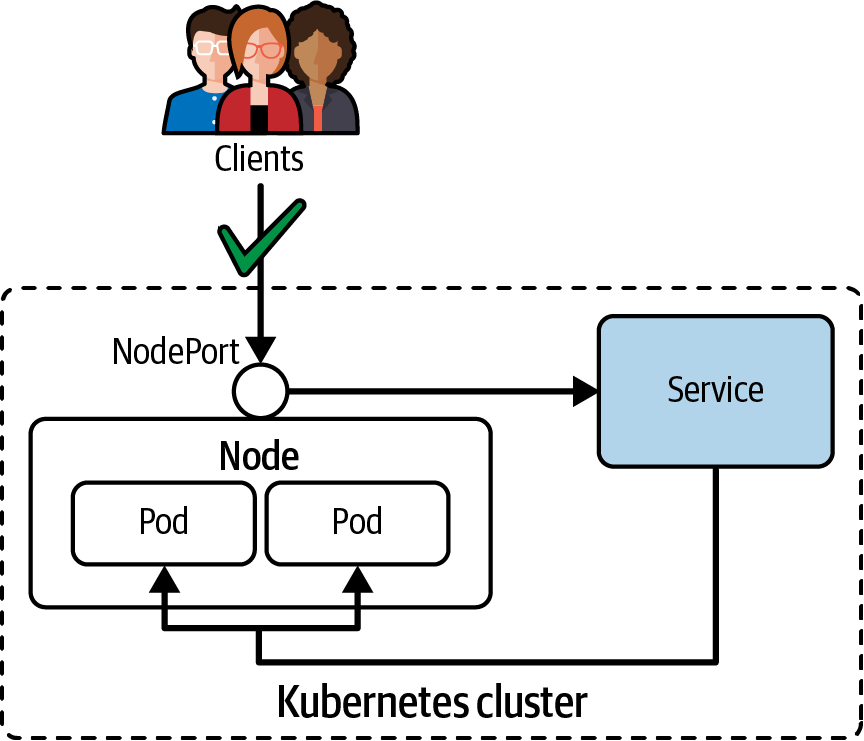

Figure 17-5. Accessibility of a Service with the type NodePort

The node port is opened on every node in the cluster, and its value is global and unique at the cluster-scope level. To avoid port conflicts, it’s best to not define the exact node port and to let Kubernetes find an available port.

Creating and Inspecting the Service

The next two commands create a Pod and a Service of type NodePort. The only difference here is that nodeport is provided instead of clusterip as a command-line option:

$ kubectl run echoserver --image=k8s.gcr.io/echoserver:1.10 --restart=Never \
  --port=8080 -l app=echoserver
pod/echoserver created
$ kubectl create service nodeport echoserver --tcp=5005:8080
service/echoserver created

The runtime representation of the Service object is shown in Example 17-3. It’s important to point out that the node port will be assigned automatically. Keep in mind NodePort (capital N) is the Service type, whereas nodePort (lowercase n) is the key for the value.

Example 17-3. A NodePort Service object at runtime
apiVersion: v1
kind: Service
metadata:
  name: echoserver
spec:
  type: NodePort           1
  clusterIP: 10.96.254.0
  selector:
    app: echoserver
  ports:
  - port: 5005
    nodePort: 30158        2
    targetPort: 8080
    protocol: TCP
1

The Service type set to NodePort.

2

The statically-assigned node port that makes the Service accessible from outside of the cluster.

Once the Service is created, you can list it. You will find that the port representation contains the statically assigned port that makes the Service accessible:

$ kubectl get service echoserver
NAME         TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)          AGE
echoserver   NodePort    10.101.184.152   <none>        5005:30158/TCP   5s

In this output, the node port is 30158 (identifiable by the separating colon). The incoming port 5005 is still available for the purpose of resolving the Service from within the cluster.

Accessing the Service

From within the cluster, you can still access the Service using the cluster IP address and port number. This Service displays exactly the same behavior as if it were of type ClusterIP:

$ kubectl run tmp --image=busybox:1.36.1 --restart=Never -it --rm \
  -- wget 10.101.184.152:5005
Connecting to 10.101.184.152:5005 (10.101.184.152:5005)
saving to 'index.html'
index.html           100% |********************************|   414  0:00:00 ETA
'index.html' saved
pod "tmp" deleted

From outside of the cluster, you need to use the IP address of any worker node in the cluster and the statically assigned port. One way to determine the worker node’s IP address is by rendering the node details. Another option is to use the status.hostIP attribute value of a Pod, which is the IP address of the worker node the Pod runs on.

The node IP address here is 192.168.64.15. It can be used to call the Service from outside of the cluster:

$ kubectl get nodes -o \
  jsonpath='{ $.items[*].status.addresses[?(@.type=="InternalIP")].address }'
192.168.64.15
$ wget 192.168.64.15:30158
--2021-11-16 14:10:16--  http://192.168.64.15:30158/
Connecting to 192.168.64.15:30158... connected.
HTTP request sent, awaiting response... 200 OK
Length: unspecified [text/plain]
Saving to: ‘index.html’
...

The LoadBalancer Service Type

The last Service type to discuss in this book is the LoadBalancer. This Service type provisions an external load balancer, primarily available to Kubernetes cloud providers, which exposes a single IP address to distribute incoming requests to the cluster nodes. The implementation of the load balancing strategy (e.g., round robin) is up to the cloud provider.

Load balancers for on-premises Kubernetes clusters

Kubernetes does not offer a native load balancer solution for on-premises clusters. Cloud providers are in charge of providing an appropriate implementation. The MetalLB project aims to fill the gap.

Figure 17-6 shows an architectural overview of the LoadBalancer Service type.

service loadbalancer

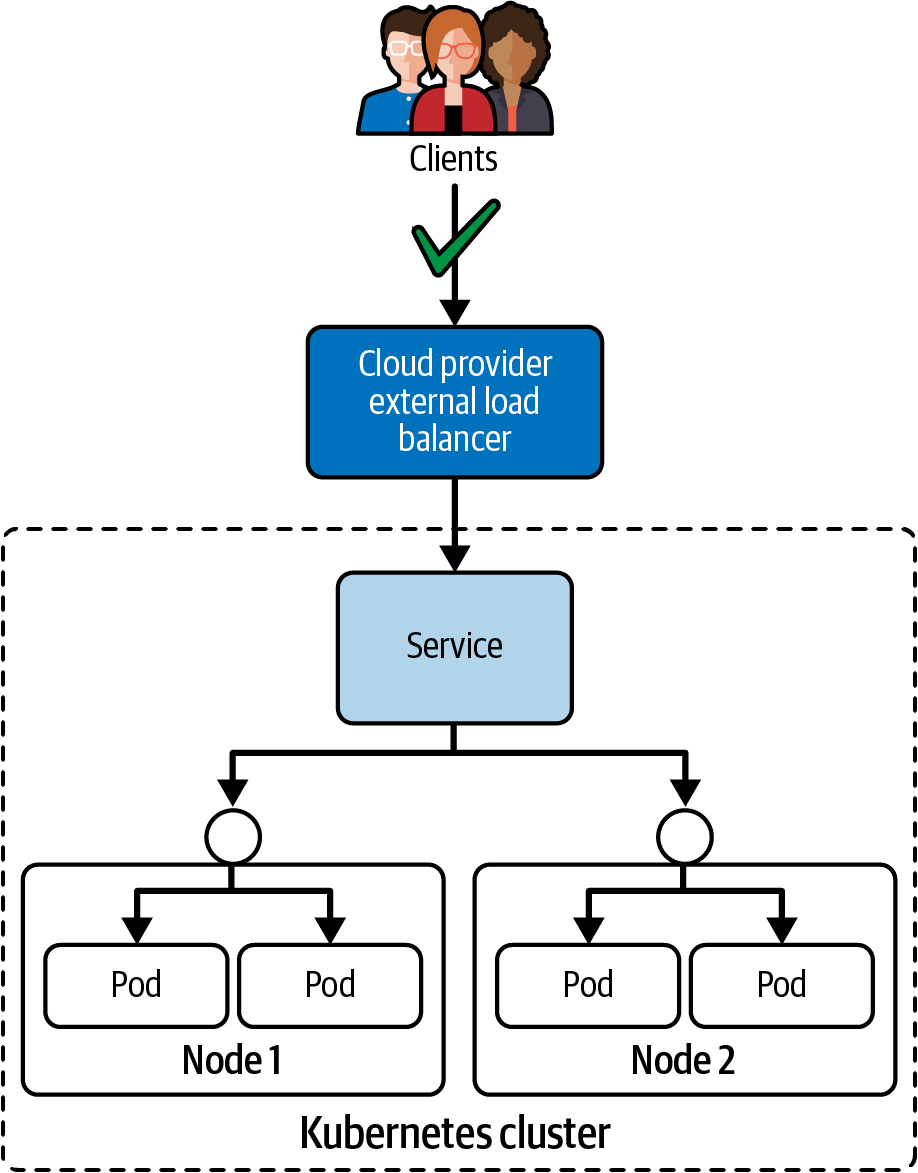

Figure 17-6. Accessibility of a Service with the type LoadBalancer

As you can see from the illustration, the load balancer routes traffic between different nodes, as long as the targeted Pods fulfill the requested label selection.

Creating and Inspecting the Service

To create a Service as a load balancer, set the type to LoadBalancer in the manifest or by using the create service loadbalancer command:

$ kubectl run echoserver --image=k8s.gcr.io/echoserver:1.10 --restart=Never \
  --port=8080 -l app=echoserver
pod/echoserver created
$ kubectl create service loadbalancer echoserver --tcp=5005:8080
service/echoserver created

The runtime characteristics of a LoadBalancer Service type look similar to the ones provided by the NodePort Service type. The main difference is that the external IP address column has a value, as shown in Example 17-4.

Example 17-4. A LoadBalancer Service object at runtime
apiVersion: v1
kind: Service
metadata:
  name: echoserver
spec:
  type: LoadBalancer            1
  clusterIP: 10.96.254.0
  loadBalancerIP: 10.109.76.157   2
  selector:
    app: echoserver
  ports:
  - port: 5005
    targetPort: 8080
    nodePort: 30158
    protocol: TCP
1

The Service type set to LoadBalancer.

2

The external IP address assigned to the Service at runtime.

Listing the Service renders the external IP address, which is 10.109.76.157, as demonstrated by this command:

$ kubectl get service echoserver
NAME         TYPE           CLUSTER-IP      EXTERNAL-IP     PORT(S)          AGE
echoserver   LoadBalancer   10.109.76.157   10.109.76.157   5005:30642/TCP   5s

Given that the external load balancer needs to be provisioned by the cloud provider, it may take a little time until the external IP address becomes available.

Accessing the Service

To call the Service from outside of the cluster, use the external IP address and its incoming port:

$ wget 10.109.76.157:5005
--2021-11-17 11:30:44--  http://10.109.76.157:5005/
Connecting to 10.109.76.157:5005... connected.
HTTP request sent, awaiting response... 200 OK
Length: unspecified [text/plain]
Saving to: ‘index.html’
...

As discussed, a LoadBalancer Service is also accessible in the same way as you would access a ClusterIP or NodePort Service.

Summary

Kubernetes assigns a unique IP address for every Pod in the cluster. Pods can communicate with each other using that IP address; however, you cannot rely on the IP address to be stable over time. That’s why Kubernetes provides the Service resource type.

A Service forwards network traffic to a set of Pods based on label selection and port mappings. Every Service needs to assign a type that determines how the Service becomes accessible from within or outside of the cluster. The Service types relevant to the exam are ClusterIP, NodePort, and LoadBalancer. CoreDNS, the DNS server for Kubernetes, allows Pods to access the Service by hostname from the same and other namespaces.

Exam Essentials

Understand the purpose of a Service

Pod-to-Pod communication via their IP addresses doesn’t guarantee a stable network interface over time. A restart of the Pod will lease a new virtual IP address. The purpose of a Service is to provide that stable network interface so that you can operate complex microservice architecture that runs in a Kubernetes cluster. In most cases, Pods call a Service by hostname. The hostname is provided by the DNS server named CoreDNS running as a Pod in the kube-system namespace.

Practice how to access a Service for each type

The exam expects you to understand the differences between the Service types ClusterIP, NodePort, and LoadBalancer. Depending on the assigned type, a Service becomes accessible from inside the cluster or from outside the cluster.

Work through Service troubleshooting scenarios

It’s easy to get the configuration of a Service wrong. Any misconfiguration won’t allow network traffic to reach the set of Pod it was intended for. Common misconfigurations include incorrect label selection and port assignments. The kubectl get endpoints command will give you an idea which Pods a Service can route traffic to.

Sample Exercises

Solutions to these exercises are available in Appendix A.

  1. You need to expose a web application that runs on port 8080 and has a metrics endpoint on port 9090. The application should be accessible from outside the cluster.

    Create a Deployment named webapp using the image nginxdemos/hello:0.4-plain-text with 3 replicas.

    Create a Service named webapp-service of type NodePort that exposes port 80 as port 80 (name it web), exposes port 9090 as port 9090 (name it metrics). Set the NodePort for the web port to 30080. Use appropriate selectors to target your Deployment.

    Verify the Service is working by accessing it through the ClusterIP.

  2. You have a backend database and a frontend application. The frontend needs to connect to the database using service discovery. Both should only be accessible within the cluster.

    Create a Deployment named database with 1 replica using image mysql:9.4.0 with these environment variables: MYSQL_ROOT_PASSWORD=secretpass and MYSQL_DATABASE=myapp.

    Create a ClusterIP Service named database-service that exposes port 3306 and targets the database Pods.

    Create a Deployment named frontend with 2 replicas using image busybox:1.35 that runs a command to continuously test the database connection using the following command: sh -c "while true; do nc -zv database-service 3306; sleep 5; done"

    Verify that the frontend Pods can resolve and connect to the database Service.

Chapter 18. Ingresses

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 18th chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

Chapter 17 delved into the purpose and creation of the Service primitive. Once there’s a need to expose the application to external consumers, selecting an appropriate Service type becomes crucial. The most practical choice often involves creating a Service of type LoadBalancer. Such a Service offers load balancing capabilities by assigning an external IP address accessible to consumers outside the Kubernetes cluster.

However, opting for a LoadBalancer Service for each externally reachable application has drawbacks. In a cloud provider environment, each Service triggers the provisioning of an external load balancer, resulting in increased costs. Additionally, managing a collection of LoadBalancer Service objects can lead to administrative challenges, as a new object must be established for each externally accessible microservice.

To mitigate these issues, the Ingress primitive comes into play, offering a singular, load-balanced entry point to an application stack. An Ingress possesses the ability to route external HTTP(S) requests to one or more Services within the cluster based on an optional, DNS-resolvable host name and URL context path. This chapter will guide you through the creation and access of an Ingress.

Coverage of Curriculum Objectives

This chapter addresses the following curriculum objective:

  • Know how to use Ingress controllers and Ingress resources

Accessing an Ingress in minikube

Accessing an Ingress in minikube requires special handling. Refer to the Kubernetes tutorial “Set up Ingress on Minikube with the NGINX Ingress Controller” for detailed instructions.

Working with Ingresses

The Ingress exposes HTTP (and optionally HTTPS) routes to clients outside of the cluster through an externally-reachable URL. The routing rules configured with the Ingress determine how the traffic should be routed. Cloud provider Kubernetes environments will often deploy an external load balancer. The Ingress receives a public IP address from the load balancer. You can configure rules for routing traffic to multiple Services based on specific URL context paths, as shown in Figure 18-1.

ingress traffic routing

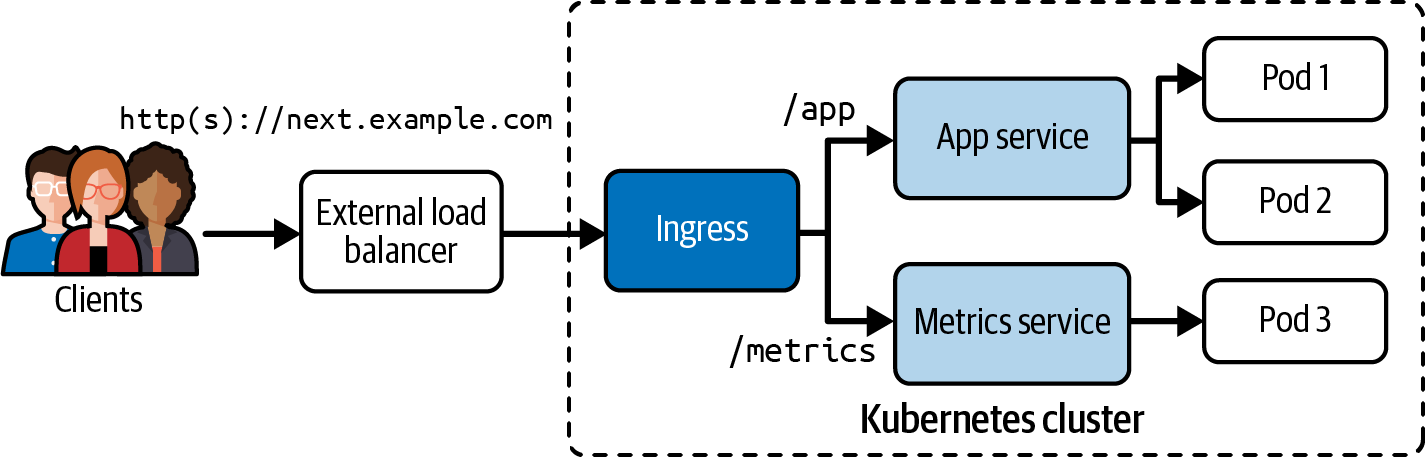

Figure 18-1. Managing external access to the Services via HTTP(S)

The scenario depicted in Figure 18-1 instantiates an Ingress as the sole entry point for HTTP(S) calls to the domain name “next.example.com.” Based on the provided URL context, the Ingress directs the traffic to either of the fictional Services: one designed for a business application and the other for fetching metrics related to the application.

Specifically, the URL context path /app is routed to the App Service responsible for managing the business application. Conversely, sending a request to the URL context /metrics results in the call being forwarded to the Metrics Service, which is capable of returning relevant metrics.

Installing an Ingress Controller

For Ingress to function, an Ingress controller is essential. This controller assesses the set of rules outlined by an Ingress, dictating the routing of traffic. The choice of Ingress controller often depends on the specific use cases, requirements, and preferences of the Kubernetes cluster administrator. Noteworthy examples of production-grade Ingress controllers include the F5 NGINX Ingress Controller or the AKS Application Gateway Ingress Controller. Additional options can be explored in the Kubernetes documentation.

You should find at least one Pod that runs the Ingress controller after installing it. This output renders the Pod created by the NGINX Ingress controller residing in the namespace ingress-nginx:

$ kubectl get pods -n ingress-nginx
NAME                                        READY   STATUS      RESTARTS   AGE
ingress-nginx-admission-create-qqhrp        0/1     Completed   0          60s
ingress-nginx-admission-patch-56z26         0/1     Completed   1          60s
ingress-nginx-controller-7c6974c4d8-2gg8c   1/1     Running     0          60s

Once the Ingress controller Pod transitions into the “Running” status, you can assume that the rules defined by Ingress objects will be evaluated.

Deploying Multiple Ingress Controllers

Certainly, deploying multiple Ingress controllers within a single cluster is a feasible option, especially if a cloud provider has preconfigured an Ingress controller in the Kubernetes cluster. The Ingress API introduces the attribute spec.ingressClassName to facilitate the selection of a specific controller implementation by name. To identify all installed Ingress classes, you can use the following command:

$ kubectl get ingressclasses
NAME    CONTROLLER             PARAMETERS   AGE
nginx   k8s.io/ingress-nginx   <none>       14m

Kubernetes determines the default Ingress class by scanning for the annotation ingressclass.kubernetes.io/is-default-class: "true" within all Ingress class objects. In scenarios where Ingress objects do not explicitly specify an Ingress class using the attribute spec.ingressClassName, they automatically default to the Ingress class marked as the default through this annotation. This mechanism provides flexibility in managing Ingress classes and allows for a default behavior when no specific class is specified in individual Ingress objects.

Configuring Ingress Rules

When creating an Ingress, you have the flexibility to define one or multiple rules. Each rule encompasses the specification of an optional host, a set of URL context paths, and the backend responsible for routing the incoming traffic. This structure allows for fine-grained control over how external HTTP(S) requests are directed within the Kubernetes cluster, catering to different services based on specified conditions. Table 18-1 describes the three rules.

Table 18-1. Ingress rules
Type Example Description

An optional host

next.example.com

If provided, the rules apply to that host. If no host is defined, all inbound HTTP(S) traffic is handled (e.g., if made through the IP address of the Ingress).

A list of paths

/app

Incoming traffic must match the host and path to correctly forward the traffic to a Service.

The backend

app-service:8080

A combination of a Service name and port.

An Ingress controller can optionally define a default backend that is used as a fallback route should none of the configured Ingress rules match. You can learn more about it in the documentation of the Ingress primitive.

Creating Ingresses

You can create an Ingress with the imperative create ingress command. The main command-line option you need to provide is --rule, which defines the rules in a comma-separated fashion. The notation for each key-value pair is <host>/<path>=<service>:<port>. Let’s create an Ingress object with two rules:

$ kubectl create ingress next-app \
  --rule="next.example.com/app=app-service:8080" \
  --rule="next.example.com/metrics=metrics-service:9090"
ingress.networking.k8s.io/next-app created

If you look at the output of the create ingress --help command, more fine-grained rules can be specified.

Support for TLS termination

Port 80 for HTTP traffic is implied, as we didn’t specify a reference to a TLS Secret object. If you have specified tls=mysecret in the rule definition, then the port 443 would be listed here as well. For more information on enabling HTTPS traffic, see the Kubernetes documentation. The exam does not cover configuring TLS termination for an Ingress.

Using a YAML manifest to define Ingress is often more intuitive and preferred by many. It provides a clearer and more structured way to express the desired configuration. The Ingress defined as a YAML manifest is shown in Example 18-1.

Example 18-1. An Ingress defined by a YAML manifest
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: next-app
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /$1   1
spec:
  rules:
  - host: next.example.com                            2
    http:
      paths:
      - backend:
          service:
            name: app-service
            port:
              number: 8080
        path: /app
        pathType: Exact
  - host: next.example.com                            3
    http:
      paths:
      - backend:
          service:
            name: metrics-service
            port:
              number: 9090
        path: /metrics
        pathType: Exact
1

Assigns a NGINX ingress-specific annotation for rewriting the URL.

2

Defines the rule that maps the app-service backend to the URL next.example.com/app.

3

Defines the rule that maps the metrics-service backend to the URL next.example.com/metrics.

The Ingress YAML manifest contains one major difference from the live object representation created by the imperative command: the assignment of an Ingress controller annotation. Some Ingress controller implementations provide annotations to customize their behavior. You can find the full list of annotations that come with the NGINX Ingress controller in the corresponding documentation.

Defining Path Types

The previous YAML manifest demonstrates one of the options for specifying a path type via the attribute spec.rules[].http.paths[].pathType. The path type defines how an incoming request is evaluated against the declared path. Table 18-2 indicates the evaluation for incoming requests and their paths. See the Kubernetes documentation for a more comprehensive list.

Table 18-2. Ingress path types
Path Type Rule Incoming Request

Exact

/app

Matches /app but does not match /app/test or /app/

Prefix

/app

Matches /app and /app/ but does not match /app/test

The key distinction between the Exact and Prefix path types lies in their treatment of trailing slashes. The Prefix path type focuses solely on the provided prefix of a URL context path, allowing it to accommodate requests with URLs that include a trailing slash. In contrast, the Exact path type is more stringent, requiring an exact match of the specified URL context path without considering a trailing slash.

Listing Ingresses

Listing Ingresses can be achieved with the get ingress command. You will see some of the information you specified when creating the Ingress (e.g., the hosts):

$ kubectl get ingress
NAME       CLASS   HOSTS              ADDRESS        PORTS   AGE
next-app   nginx   next.example.com   192.168.66.4   80      5m38s

The Ingress automatically selected the default Ingress class nginx configured by the Ingress controller. You can find the information under the CLASS column. The value listed under the ADDRESS columns is the IP address provided by the external load balancer.

Rendering Ingress Details

The describe ingress command is a valuable tool for obtaining detailed information about an Ingress resource. It presents the rules in a clear table format, which aids in understanding the routing configurations. Additionally, when troubleshooting, it’s essential to pay attention to any additional messages or events.

In the provided output, it’s evident that there might be an issue with the Services named app-service and metrics-service that are mapped in the Ingress rules. This discrepancy between the specified services and their existence can lead to routing errors:

$ kubectl describe ingress next-app
Name:             next-app
Labels:           <none>
Namespace:        default
Address:          192.168.66.4
Ingress Class:    nginx
Default backend:  <default>
Rules:
  Host              Path  Backends
  ----              ----  --------
  next.example.com
                    /app       app-service:8080 (<error: endpoints \
                    "app-service" not found>)
                    /metrics   metrics-service:9090 (<error: endpoints \
                    "metrics-service" not found>)
Annotations:        <none>
Events:
  Type    Reason  Age                   From                      ...
  ----    ------  ----                  ----                      ...
  Normal  Sync    6m45s (x2 over 7m3s)  nginx-ingress-controller  ...

Furthermore, observing the event log that shows syncing activity by the Ingress controller is crucial. Any warnings or errors in this log can provide insights into potential issues during the synchronization process.

To address the problem, ensure that the specified Services in the Ingress rules actually exist and are accessible within the Kubernetes cluster. Additionally, review the event log for any relevant messages that might indicate the cause of the discrepancy.

Let’s resolve the issue of not being able to route to the backends configured in the Ingress object. The following commands create the Pods and Services:

$ kubectl run app --image=k8s.gcr.io/echoserver:1.10 --port=8080 \
  -l app=app-service
pod/app created
$ kubectl run metrics --image=k8s.gcr.io/echoserver:1.10 --port=8080 \
  -l app=metrics-service
pod/metrics created
$ kubectl create service clusterip app-service --tcp=8080:8080
service/app-service created
$ kubectl create service clusterip metrics-service --tcp=9090:8080
service/metrics-service created

Inspecting the Ingress object doesn’t show any errors for the configured rules. If you’re now able to see a list of resolvable backends along with the corresponding Pod virtual IP addresses and ports, the Ingress object is correctly configured, and the backends are recognized and accessible:

$ kubectl describe ingress next-app
Name:             next-app
Labels:           <none>
Namespace:        default
Address:          192.168.66.4
Ingress Class:    nginx
Default backend:  <default>
Rules:
  Host              Path  Backends
  ----              ----  --------
  next.example.com
                    /app       app-service:8080 (10.244.0.6:8080)
                    /metrics   metrics-service:9090 (10.244.0.7:8080)
Annotations:        <none>
Events:
  Type    Reason  Age                From                      Message
  ----    ------  ----               ----                      -------
  Normal  Sync    13m (x2 over 13m)  nginx-ingress-controller  Scheduled for sync

It’s worth coming back to the Ingress details if you experience any issues with routing traffic through an Ingress endpoint.

Accessing an Ingress

To enable the routing of incoming HTTP(S) traffic through the Ingress and subsequently to the configured Service, it’s crucial to set up a DNS entry mapping to the external address. This typically involves configuring either an A record or a CNAME record. The ExternalDNS project is a valuable tool that can assist in managing these DNS records automatically.

For local testing on a Kubernetes cluster on your machine, follow these steps:

  1. Find the IP address of the load balancer used by the Ingress.

  2. Add the IP address to hostname mapping to your /etc/hosts file.

By adding the IP address to your local /etc/hosts file, you simulate the DNS resolution locally, allowing you to test the behavior of the Ingress without relying on actual DNS records:

$ kubectl get ingress next-app \
  --output=jsonpath="{.status.loadBalancer.ingress[0]['ip']}"
192.168.66.4
$ sudo vim /etc/hosts
...
192.168.66.4   next-app

You can now send HTTP requests to the backend. This call matches the Exact path rule and therefore returns a HTTP 200 response code from the application:

$ wget next.example.com/app --timeout=5 --tries=1
--2021-11-30 19:34:57--  http://next.example.com/app
Resolving next.example.com (next.example.com)... 192.168.66.4
Connecting to next.example.com (next.example.com)|192.168.66.4|:80... \
connected.
HTTP request sent, awaiting response... 200 OK

This next call uses a URL with a trailing slash. The Ingress path rule doesn’t support this case, and therefore the call doesn’t go through. You will receive a HTTP 404 response code. For the second call to work, you’d have to change the path rule to Prefix:

$ wget next.example.com/app/ --timeout=5 --tries=1
--2021-11-30 15:36:26--  http://next.example.com/app/
Resolving next.example.com (next.example.com)... 192.168.66.4
Connecting to next.example.com (next.example.com)|192.168.66.4|:80... \
connected.
HTTP request sent, awaiting response... 404 Not Found
2021-11-30 15:36:26 ERROR 404: Not Found.

You can observe the same behavior for the Metrics Service configured with the URL context path metrics. Feel free to try that out as well.

Summary

The resource type Ingress defines rules for routing cluster-external HTTP(S) traffic to one or many Services. Each rule defines a URL context path to target a Service. For an Ingress to work, you first need to install an Ingress controller. An Ingress controller periodically evaluates those rules and ensures that they apply to the cluster. To expose the Ingress, a cloud provider usually stands up an external load balancer that lends an external IP address to the Ingress.

Exam Essentials

Know the difference between a Service and an Ingress

An Ingress is not to be confused with a Service. The Ingress is meant for routing cluster-external HTTP(S) traffic to one or many Services based on an optional hostname and mandatory path. A Service routes traffic to a set of Pods.

Understand the role of an Ingress controller

An Ingress controller needs to be installed before an Ingress can function properly. Without installing an Ingress controller, Ingress rules will have no effect. You can choose from a range of Ingress controller implementations, all documented on the Kubernetes documentation page. Assume that an Ingress controller will be preinstalled for you in the exam environment.

Practice the definition of Ingress rules

You can define one or many rules in an Ingress. Every rule consists of an optional host, the URL context path, and the Service DNS name and port. Try defining more than a single rule and how to access the endpoint. You will not have to understand the process for configuring TLS termination for an Ingress—this aspect is covered by the CKS exam.

Sample Exercises

Solutions to these exercises are available in Appendix A.

  1. Your company has two microservices running in the same Kubernetes cluster: A frontend application that serves the main website, and an API backend service that handles API requests. Both services need to be accessible from outside the cluster through the same domain name (app.example.com) but with different URL paths. Use the NGINX Ingress controller.

    Create a namespace called webapp. Deploy two applications: a frontend application (use nginx:1.29.1-alpine image, name: frontend, 2 replicas), and an API application (use the httpd:2.4.65-alpine image, name: api, 2 replicas).

    Create ClusterIP Services for both Deployments, a frontend Service on port 80, an API Service on port 80.

    Create an Ingress resource that uses the host app.example.com and routes the paths / and /app to the frontend Service. It also routes /api to the api Service. Use the nginx Ingress class. Verify the proper Ingress configuration by making a call to it.

  2. Your team wants to implement a blue-green deployment strategy using Ingress. You need to create an Ingress configuration that can switch traffic between two versions of an application, with the ability to do canary testing before full switchover. The team decided to use the NGINX Ingress controller. You may reference the controller-specific annotations from the documentation.

    Create a namespace called production-apps. Deploy two versions of an application: A blue version (current) named app-blue with 3 replicas with the container image nginxdemos/hello:0.3-plain-text, and a green version (new) named app-green with 3 replicas with the container image nginxdemos/hello:0.4-plain-text.

    Create 3 Ingress resources in the production-apps namespace. A main ingress routing to blue version, a canary ingress for testing green version (20% traffic). Assign the hostname app.production.com. The traffic routing should look as follows. Default traffic goes to blue version. 20% of traffic goes to green version (canary).

    Add an entry in /etc/hosts that maps the load balancer IP address to the host app.production.com. Verify access to the Ingresses via this hostname. Test the blue-green traffic routing distribution.

Chapter 19. Gateway API

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 19th chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

The Gateway API is a collection of Kubernetes resources that provide advanced traffic management capabilities for cluster ingress. As a more expressive and extensible alternative to the traditional Ingress resource, the Gateway API offers role-oriented design, support for multiple protocols beyond HTTP/HTTPS, and enhanced traffic routing features.

The Gateway API replaces the Ingress primitive and is becoming increasingly important as organizations adopt this modern approach to managing external traffic.

As a candidate to the exam, you will need to understand how to deploy the Gateway API and instantiate the relevant objects to stand up ingress access to your cluster.

Coverage of Curriculum Objectives

This chapter addresses the following curriculum objective:

  • Use the Gateway API to manage Ingress traffic

Why is the Ingress Primitive not Sufficient?

The Ingress API is the standard Kubernetes way to configure external HTTP/HTTPS load balancing for Services, however, it has limitations. While the Ingress supports TLS termination and simple content-based request routing of HTTP traffic, real world use cases call for more advanced features. Enhancing the existing Ingress API model of the Ingress wouldn’t allow adding those features easily for a variety of reasons.

Ingress controller-specific extensibility

Advanced features like traffic splitting, rating limiting, request/response manipulation are provided by non-portable annotations for specific Ingress implementations.

Insufficient permission model

The Ingress API is not well suited for multi-tenant environments that call for a strong permission model.

In this chapter, I am not going to discuss all possible configuration options and features of the Gateway API. That would go beyond the necessary coverage of the exam, however, I will explain how you can model ingress HTTP traffic similar to what you learned in Chapter 18. See the Gateway API documentation that explains how to implement other use cases.

Working with the Gateway API

The Gateway API is the official successor to the Ingress primitive representing a superset of Ingress functionality, while at the same time enabling more advanced use cases.

You can think of the Gateway API as a unified and standardized API for managing traffic into and out of a Kubernetes cluster instead of having to choose from individual Ingress implementations. Product-specific annotations are not needed anymore to configure routing options. The Gateway API offers a flexible way to incorporate similar features. Effectively, the Gateway API is a universal specification supported by a wide range of different implementations.

Instead of handling one single primitive like the Ingress, the Gateway API splits up responsibilities into multiple primitives explained in the next section.

Gateway API Resources

The Gateway API introduces a layered approach to traffic management through four primary resource types that work together to handle incoming traffic.

Gateway

Defines an instance of traffic handling infrastructure, such as a cloud load balancer.

GatewayClass

Each Gateway is associated with a GatewayClass, which describes the actual kind of gateway controller that will handle traffic for the Gateway.

HTTPRoute/GRPCRoute

Defines HTTP or GRPC-specific rules for mapping traffic from a Gateway listener to a representation of backend network endpoints. These endpoints are often represented as a Service.

ReferenceGrant

Can be used to enable cross-namespace references within the Gateway API, e.g. routes may forward traffic to backends in other namespaces.

Managing those Gateway API resources falls within the responsibility of different personas, as shown in Figure 19-1.

gateway api personas
Figure 19-1. Gateway API resources managed by personas

The GatewayClass is provided by platform providers, e.g. the cloud provider. The Gateway and ReferenceGrant is installed by the Kubernetes cluster administrator. Lastly, the HTTPRoute and GRPCRoute are created by application developers.

The prominent Gateway API use case I want to demonstrate in this chapter is how to route HTTP ingress traffic to multiple services based on a context URL. Figure 19-2 illustrates the use case.

gateway api http traffic routing
Figure 19-2. Gateway API HTTP traffic routing

Before we can actually create the objects shown in the visualization, we’ll need to tell the Kubernetes cluster about the Gateway API CRDs.

Installing the Gateway API CRDs

At the time of writing, the Gateway API resources do not ship with the standard set of Kubernetes API resources. You will have to install the Gateway API in the form of Custom Resource Definitions. The following command installs version 1.3.0 of the CRDs.

$ kubectl apply -f https://github.com/kubernetes-sigs/gateway-api/releases/\
download/v1.3.0/standard-install.yaml
customresourcedefinition.apiextensions.k8s.io/\
gatewayclasses.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/\
gateways.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/\
grpcroutes.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/\
httproutes.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/\
referencegrants.gateway.networking.k8s.io created

You will now be able to list the CRDs by searching for the API group used by the Gateway API resources.

$ kubectl get crds | grep gateway.networking.k8s.io
gatewayclasses.gateway.networking.k8s.io    2025-08-07T18:14:16Z
gateways.gateway.networking.k8s.io          2025-08-07T18:14:16Z
grpcroutes.gateway.networking.k8s.io        2025-08-07T18:14:16Z
httproutes.gateway.networking.k8s.io        2025-08-07T18:14:16Z
referencegrants.gateway.networking.k8s.io   2025-08-07T18:14:17Z

See the official Github repository for more information on the Gateway API.

Deploying a Gateway Controller

The Gateway API requires a controller implementation to function. Different controllers offer various features and performance characteristics. For this example, we’ll use the Envoy Gateway implementation installed by Helm.

helm install eg oci://docker.io/envoyproxy/gateway-helm --version v1.4.2 \
  -n envoy-gateway-system --create-namespace

You will want to wait until the Gateway implementation becomes fully functional.

$ kubectl wait --timeout=5m -n envoy-gateway-system deployment/envoy-gateway \
  --for=condition=Available
deployment.apps/envoy-gateway condition met

With the prerequisites in place, we’ll set up everything needed to use the Gateway API to route ingress HTTP traffic to a Service backend.

Creating GatewayClasses

Depending on the Kubernetes environment you are operating in, you may or may not have to create a GatewayClass. Cloud provider Kubernetes clusters should already come with one.

In case you want to create your own GatewayClass, you will first have to determine the Gateway controller name. The controller name depends on the controller implementation installed. You can usually look up the controller name in its documentation.

The controller name for Envoy is gateway.envoyproxy.io/gatewayclass-controller. Create the file gateway-class.yaml with the contents shown in Example 19-1.

Example 19-1. A GatewayClass that uses the envoy GatewayClass controller
apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
  name: envoy
spec:
  controllerName: gateway.envoyproxy.io/gatewayclass-controller   1
1

The reference to the controller installed by the Helm chart.

Run the following command to create the GatewayClass object:

$ kubectl apply -f gateway-class.yaml
gatewayclass.gateway.networking.k8s.io/envoy created

To list GatewayClass objects, run the following command:

$ kubectl get gatewayclasses
NAME    CONTROLLER                                      ACCEPTED   AGE
envoy   gateway.envoyproxy.io/gatewayclass-controller   True       31s

You should see the object we created earlier, and potentially other GatewayClass objects that came with the Kubernetes environment.

Creating Gateways

With the GatewayClass established, create a Gateway resource to handle incoming traffic. Create a file named gateway.yaml and populate the content, as shown in Example 19-2.

Example 19-2. A Gateway exposing a HTTP listener
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: hello-world-gateway
spec:
  gatewayClassName: envoy   1
  listeners:
    - name: http
      protocol: HTTP        2
      port: 80              2
1

References the GatewayClass by name.

2

The listener accepting HTTP traffic on port 80.

Run the following command to create the Gateway object:

$ kubectl apply -f gateway.yaml
gateway.gateway.networking.k8s.io/hello-world-gateway created

You list the Gateway object with the command below:

$ kubectl get gateways
NAME                  CLASS   ADDRESS   PROGRAMMED   AGE
hello-world-gateway   envoy             False        16s

There’s only one additional object to set up to finalize the HTTP traffic routing, the HTTPRoute object.

Creating HTTPRoutes

Store the definition of the HTTPRoute in the YAML manifest file named httproute.yaml, shown in Example 19-3. For brevity, this chapter will not demonstrate how to create Service backends. Please reference Chapter 17 for more information.

Example 19-3. A HTTPRoute routing traffic to a Service backend
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: hello-world-httproute
spec:
  parentRefs:
    - name: hello-world-gateway
  hostnames:
    - "hello-world.exposed"    1
  rules:
    - backendRefs:
        - group: ""            2
          kind: Service        2
          name: web            2
          port: 3000           2
          weight: 1            3
      matches:
        - path:
            type: PathPrefix   4
            value: /           4
1

The hostname to make traffic routing available for.

2

The Service backend to route the traffic to.

3

Determines the proportion of traffic that will be sent to that specific Service.

4

The routing rules based on the requested URL context.

Run the following command to create the HTTPRoute object:

$ kubectl apply -f httproute.yaml
httproute.gateway.networking.k8s.io/hello-world-httproute created

You can list all HTTPRoute objects with the command shown below:

$ kubectl get httproutes
NAME                    HOSTNAMES                 AGE
hello-world-httproute   ["hello-world.exposed"]   64s

Accessing the Gateway

Accessing the Gateway differs depending on the Kubernetes cluster you are using. Follow the instructions in the section based on your Kubernetes cluster setup and assumes that you don’t have external load balancer support.

Get the name of the Envoy Service created by the example Gateway and assign it to the environment variable ENVOY_SERVICE.

$ export ENVOY_SERVICE=$(kubectl get svc -n envoy-gateway-system \
--selector=gateway.envoyproxy.io/owning-gateway-namespace=default,\
gateway.envoyproxy.io/owning-gateway-name=hello-world-gateway \
-o jsonpath='{.items[0].metadata.name}')

Port forward to the Envoy Service:

$ kubectl -n envoy-gateway-system port-forward service/${ENVOY_SERVICE} 8889:80 &
[2] 93490
Forwarding from 127.0.0.1:8889 -> 10080
Forwarding from [::1]:8889 -> 10080

With the relevant entry in /etc/hosts, you should be able to make a call to the Gateway.

$ curl hello-world.exposed:8889
Handling connection for 8889
Hello World

In this example, the backend returns with the message “Hello World”. A successful response may look different depending on the implementation details of your application.

Ingress to Gateway API Migration

The Gateway API represents the next evolution of traffic management in Kubernetes, designed to eventually replace the traditional Ingress resource.

The transition typically involves replacing Ingress resources with Gateway and HTTPRoute combinations. A single Gateway resource can handle multiple applications through different Route resources, similar to how an Ingress Controller works but with cleaner separation of responsibilities.

The Gateway API graduated to stable status for core features in late 2023. While Ingress remains supported and widely used, major ingress controllers like NGINX, Istio, and Envoy Gateway now offer Gateway API implementations. Organizations should evaluate migration based on their need for advanced traffic management features and operational complexity requirements.

Most migrations follow a phased approach: deploying Gateway API alongside existing Ingress, gradually migrating applications, and eventually deprecating Ingress resources. Many controllers support both APIs simultaneously, allowing for smooth transitions without service disruption.

The official conversion tool named ingress2gateway automatically translates Ingress resources to Gateway API equivalents. It handles basic conversions and provides a foundation for more complex migrations.

Summary

The Gateway API represents the future of Kubernetes ingress management, offering powerful features while maintaining clarity through its role-oriented design. As more organizations adopt this standard, proficiency with the Gateway API becomes an essential skill for Kubernetes administrators.

Exam Essentials

Check on existing GatewayClasses

Remember that exam environment may have pre-installed Gateway controllers, so always check available GatewayClasses before creating resources.

Understand the Gateway API CRDs

Practice creating different Gateway configurations, experiment with various HTTPRoute patterns, and understand how the components work together to build a solid foundation for managing production traffic.

Sample Exercises

Solutions to these exercises are available in Appendix A.

  1. You are tasked with setting up ingress traffic management for a new application using the Gateway API. The application consists of two services that need to be accessible from outside the cluster. Use the NGINX Gateway Fabric controller implementation.

    Create a Deployment named web-app with 2 replicas using the nginx:1.21 image in the default namespace. Create a Deployment named api-app with 2 replicas using the httpd:2.4 image in the default namespace. Expose both Deployments as ClusterIP Services on port 80. You can shortcut the setup by applying the YAML file setup.yaml in the directory app-a/ch19/basic-gateway of the checked-out GitHub repository bmuschko/cka-study-guide.

    Create a Gateway named main-gateway in the default namespace. Configure it to listen on port 80 for HTTP traffic. Use the hostname example.local. Create an HTTPRoute named app-routes that routes traffic with path /web to the web-app Service. It also routes traffic with path /api to the api-app Service. Define path prefix matching.

    Check that the Gateway is ready and has an assigned IP/hostname. Verify that the HTTPRoute is accepted and bound to the Gateway, then test connectivity to the Gateway.

  2. Your organization needs to set up a production-ready Gateway configuration that handles HTTP traffic for applications across multiple namespaces. Use the NGINX Gateway Fabric controller implementation.

    Create two namespaces named production and staging. In the production namespace, create a Deployment named prod-web with 3 replicas using nginx:1.22 image. Create a ClusterIP Service exposing port 80 which routes traffic to the replicas of prod-web. In the staging namespace, create a Deployment named staging-web with 2 replicas using nginx:1.21 image. Create a ClusterIP Service exposing port 80. Create a ClusterIP Service exposing port 80 which routes traffic to the replicas of staging-web. You can shortcut the setup by applying the YAML file setup.yaml in the directory app-a/ch19/cross-namespace-gateway of the checked-out GitHub repository bmuschko/cka-study-guide.

    Create a Gateway named gateway in the production namespace. Configure a HTTP listener on port 80. Use the hostname example.com.

    Create an HTTPRoute named prod-route in the production namespace. The object should route traffic with path /app to the prod-web Service, uses exact path matching, and attaches to the gateway. Create another HTTPRoute named staging-route in the staging namespace. The object should route traffic with path /staging to the staging-web Service, uses path prefix matching, and attaches to the gateway in the production namespace. Configure proper cross-namespace reference policy. Add request headers to identify the environment (production vs. staging).

    Verify the correct HTTP routing. The production route should only respond to the exact path /app. The staging route should respond to /staging. Both routes should successfully serve the nginx welcome page.

Chapter 20. Network Policies

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 20th chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

The uniqueness of the IP address assigned to a Pod is maintained across all nodes and namespaces. This is accomplished by allocating a dedicated subnet to each registered node during its creation. The Container Network Interface (CNI) plugin handles the leasing of IP addresses from the assigned subnet when a new Pod is created on a node. Consequently, Pods on a node can seamlessly communicate with all other Pods running on any node within the cluster.

Network policies in Kubernetes function similarly to firewall rules, specifically designed for governing Pod-to-Pod communication. These policies include rules specifying the direction of network traffic (ingress and/or egress) for one or multiple Pods within a namespace or across different namespaces. Additionally, these rules define the targeted ports for communication. This fine-grained control enhances security and governs the flow of traffic within the Kubernetes cluster.

Coverage of Curriculum Objectives

This chapter addresses the following curriculum objective:

  • Define and enforce Network Policies

Working with Network Policies

Within a Kubernetes cluster, any Pod can talk to any other Pod without restrictions using its IP address or DNS name, even across namespaces. Not only does unrestricted inter-Pod communication pose a potential security risk, it also makes it harder to understand the mental communication model of your architecture. A network policy defines the rules that control traffic from and to a Pod, as illustrated in Figure 20-1.

network policies from to pods
Figure 20-1. Network policies define traffic from and to a Pod

For example, there’s no good reason to allow a backend application running in a Pod to talk directly to the frontend application running in another Pod. The communication should be directed from the frontend Pod to the backend Pod.

Installing a Network Policy Controller

A network policy cannot work without a network policy controller. The network policy controller evaluates the collection of rules defined by a network policy. You can find instructions for a wide range of network policy controllers in the Kubernetes documentation.

Cilium is a CNI that implements a network policy controller. You can install Cilium on cloud provider and on-prem Kubernetes clusters. Refer to the installation instructions for detailed information. Once it is installed, you should find at least two Pods running Cilium and the Cilium Operator in the kube-system namespace:

$ kubectl get pods -n kube-system
NAME                               READY   STATUS    RESTARTS       AGE
cilium-k5td6                       1/1     Running   0              110s
cilium-operator-f5dcdcc8d-njfbk    1/1     Running   0              110s

You can now assume that the rules defined by network policy objects will be evaluated. Additionally, you can use the Cilium command line tool to validate the proper installation.

Creating a Network Policy

Label selection plays a crucial role in defining which Pods a network policy applies to. We already saw the concept in action in other contexts (e.g., the Deployments and the Service). Furthermore, a network policy defines the direction of the traffic, to allow or disallow. In the context of a network policy, incoming traffic is called ingress, and outgoing traffic is called egress. For ingress and egress, you can whitelist the sources of traffic like Pods, IP addresses, or ports.

Network policies do not apply to Services

In most cases, you’d set up Service objects to funnel network traffic to Pods based on label and port selection. Network policies do not involve Services at all. All rules are namespace- and Pod-specific.

The creation of network policies is best explained by example. Let’s say you’re dealing with the following scenario: you’re running a Pod that exposes an API to other consumers. For example, a Pod that processes payments for other applications. The company you’re working for is migrating applications from a legacy payment processor to a new one. Therefore, you’ll want to allow access only from the applications that are capable of properly communicating with it. Right now, you have two consumers—a grocery store and a coffee shop—each running their application in a separate Pod. The coffee shop is ready to consume the API of the payment processor, but the grocery store isn’t. Figure 20-2 shows the Pods and their assigned labels.

network policy api allow

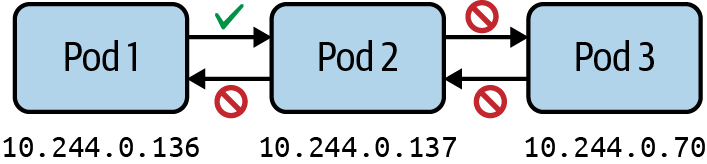

Figure 20-2. Limiting traffic to and from a Pod

Before creating a network policy, we’ll stand up the Pods to represent the scenario:

$ kubectl run grocery-store --image=nginx:1.25.3-alpine \
  -l app=grocery-store,role=backend --port 80
pod/grocery-store created
$ kubectl run payment-processor --image=nginx:1.25.3-alpine \
  -l app=payment-processor,role=api --port 80
pod/payment-processor created
$ kubectl run coffee-shop --image=nginx:1.25.3-alpine \
  -l app=coffee-shop,role=backend --port 80

Given Kubernetes’ default behavior of allowing unrestricted Pod-to-Pod communication, the three Pods will be able to talk to one another. The following commands verify the behavior. The grocery store and coffee shop Pods perform a wget call to the payment processor Pod’s IP address:

$ kubectl get pod payment-processor --template '{{.status.podIP}}'
10.244.0.136
$ kubectl exec grocery-store -it -- wget --spider --timeout=1 10.244.0.136
Connecting to 10.244.0.136 (10.244.0.136:80)
remote file exists
$ kubectl exec coffee-shop -it -- wget --spider --timeout=1 10.244.0.136
Connecting to 10.244.0.136 (10.244.0.136:80)
remote file exists

You cannot create a new network policy with the imperative create command. Instead, you will have to use the declarative approach. The YAML manifest in Example 20-1, stored in the file networkpolicy-api-allow.yaml, shows a network policy for the scenario described previously.

Example 20-1. Declaring a NetworkPolicy with YAML
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: api-allow
spec:
  podSelector:                     1
    matchLabels:
      app: payment-processor
      role: api
  ingress:                         2
  - from:
    - podSelector:
        matchLabels:
          app: coffee-shop
1

Selects the Pod the policy should apply to by label selection.

2

Allows incoming traffic from the Pod with matching labels within the same namespace.

A network policy defines a couple of important attributes, which together form its set of rules. Table 20-1 shows the attributes on the spec level.

Table 20-1. Spec attributes of a network policy
Attribute Description

podSelector

Selects the Pods in the namespace to apply the network policy to.

policyTypes

Defines the type of traffic (i.e., ingress and/or egress) the network policy applies to.

ingress

Lists the rules for incoming traffic. Each rule can define from and ports sections.

egress

Lists the rules for outgoing traffic. Each rule can define to and ports sections.

You can specify ingress and egress rules independently using spec.ingress.from[] and spec.egress.to[]. Each rule consists of a Pod selector, an optional namespace selector, or a combination of both. Table 20-2 lists the relevant attributes for the to and from selectors.

Table 20-2. Attributes of a network policy to and from selectors
Attribute Description

podSelector

Selects Pods by label(s) in the same namespace as the network policy that should be allowed as ingress sources or egress destinations.

namespaceSelector

Selects namespaces by label(s) for which all Pods should be allowed as ingress sources or egress destinations.

namespaceSelector and podSelector

Selects Pods by label(s) within namespaces by label(s).

Let’s see the effect of the network policy in action. Create the network policy object from the manifest:

$ kubectl apply -f networkpolicy-api-allow.yaml
networkpolicy.networking.k8s.io/api-allow created

The network policy prevents calling the payment processor from the grocery store Pod. Accessing the payment processor from the coffee shop Pod works perfectly, as the network policy’s Pod selector matches the Pod’s assigned label app=coffee-shop:

$ kubectl exec grocery-store -it -- wget --spider --timeout=1 10.244.0.136
Connecting to 10.244.0.136 (10.244.0.136:80)
wget: download timed out
command terminated with exit code 1
$ kubectl exec coffee-shop -it -- wget --spider --timeout=1 10.244.0.136
Connecting to 10.244.0.136 (10.244.0.136:80)
remote file exists

As a developer, you may be dealing with network policies that have been set up for you by other team members or administrators. You need to know about the kubectl commands for listing and inspecting network policy objects to understand their effects on the directional network traffic between microservices.

Listing Network Policies

Listing network policies works the same as any other Kubernetes primitive. Use the get command in combination with the resource type networkpolicy, or its short-form, netpol. For the previous network policy, you see a table that renders the name and Pod selector:

$ kubectl get networkpolicy api-allow
NAME         POD-SELECTOR                     AGE
api-allow    app=payment-processor,role=api   83m

It’s unfortunate that the output of the command doesn’t give a lot of information about the ingress and egress rules. To retrieve more information, you have to dig into the details.

Rendering Network Policy Details

You can inspect the details of a network policy using the describe command. The output renders all the important information: Pod selector, and ingress and egress rules:

$ kubectl describe networkpolicy api-allow
Name:         api-allow
Namespace:    default
Created on:   2024-01-10 09:06:59 -0700 MST
Labels:       <none>
Annotations:  <none>
Spec:
  PodSelector:     app=payment-processor,role=api
  Allowing ingress traffic:
    To Port: <any> (traffic allowed to all ports)
    From:
      PodSelector: app=coffee-shop
  Not affecting egress traffic
  Policy Types: Ingress

The network policy details don’t draw a clear picture of the Pods that have been selected based on its rules. You can create Pods that match the rules and do not match the rules to verify the network policy’s desired behavior.

Visualizing network policies

Defining the rules of network policies correctly can be challenging. The page networkpolicy.io provides a visual editor for network policies that renders a graphical representation in the browser.

As explained earlier, every Pod can talk to other Pods running on any node of the cluster, which exposes a potential security risk. An attacker able to gain access to a Pod theoretically can try to compromise another Pod by communicating with it by its virtual IP address.

Applying Default Network Policies

The principle of least privilege is a fundamental security concept, and it’s highly recommended when it comes to restricting Pod-to-Pod network traffic in Kubernetes. The idea is to initially disallow all traffic and then selectively open up only the necessary connections based on the application’s architecture and communication requirements.

You can lock down Pod-to-Pod communication with the help of a default network policy. Default network policies are custom policies set up by administrators to enforce restrictive communication patterns by default.

To demonstrate the functionality of such a default network policy, we’ll set up two Pods in the namespace internal-tools. Within the namespace, all Pods will be able to communicate with each other:

$ kubectl create namespace internal-tools
namespace/internal-tools created
$ kubectl run metrics-api --image=nginx:1.25.3-alpine --port=80 \
  -l app=api -n internal-tools
pod/metrics-api created
$ kubectl run metrics-consumer --image=nginx:1.25.3-alpine --port=80 \
  -l app=consumer -n internal-tools
pod/metrics-consumer created

Let’s create a default network policy that denies all ingress and egress network traffic in the namespace. We’ll store the network policy in the file networkpolicy-deny-all.yaml.

Example 20-2. Disallowing all traffic with the default policy
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: default-deny-all
  namespace: internal-tools
spec:
  podSelector: {}                  1
  policyTypes:                     2
  - Ingress                        2
  - Egress                         2
1

The curly braces for spec.podSelector mean “apply to all Pods in the namespace.”

2

Defines the types of traffic the rule should apply to, in this case ingress and egress traffic.

Create the network policy from the manifest:

$ kubectl apply -f networkpolicy-deny-all.yaml
networkpolicy.networking.k8s.io/default-deny-all created

The network policy prevents any network communication between the Pods in the internal-tools namespace, as shown here:

$ kubectl get pod metrics-api --template '{{.status.podIP}}' -n internal-tools
10.244.0.182
$ kubectl exec metrics-consumer -it -n internal-tools \
  -- wget --spider --timeout=1 10.244.0.182
Connecting to 10.244.0.182 (10.244.0.182:80)
wget: download timed out
command terminated with exit code 1
$ kubectl get pod metrics-consumer --template '{{.status.podIP}}' \
  -n internal-tools
10.244.0.70
$ kubectl exec metrics-api -it -n internal-tools \
  -- wget --spider --timeout=1 10.244.0.70
Connecting to 10.244.0.70 (10.244.0.70:80)
wget: download timed out
command terminated with exit code 1

With those default deny constraints in place, you can define more detailed rules and loosen restrictions gradually. Network policies are additive. It’s common practice to now set up additional network policies that will open up directional traffic, but only the ones that are really required.

Restricting Access to Specific Ports

Controlling access at the port level is a critical aspect of network security in Kubernetes. If not explicitly defined by a network policy, all ports are accessible, which can pose security risks. For instance, if you have an application running in a Pod that exposes port 80 to the outside world, leaving all other ports open widens the attack vector unnecessarily. Port rules can be specified for ingress and egress as part of a network policy. The definition of a network policy in Example 20-3 allows access on port 80.

Example 20-3. Definition of a network policy allowing ingress access on port 8080
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: port-allow
  namespace: internal-tools
spec:
  podSelector:
    matchLabels:
      app: api
  ingress:
  - from:
    - podSelector:
        matchLabels:
          app: consumer
    ports:                         1
    - protocol: TCP                1
      port: 80                     1
1

Only allows incoming traffic on port 80.

When defining network policies, only allow those ports that are required for implementing your architectural needs. All other ports should be locked down.

Summary

Intra-Pod communication or communication between two containers of the same Pod is completely unrestricted in Kubernetes. Network policies instate rules to control the network traffic either from or to a Pod. You can think of network policies as firewall rules for Pods. It’s best practice to start with a “deny all traffic” rule to minimize the attack vector.

From there, you can open access as needed. Learning about the intricacies of network policies requires a bit of hands-on practice, as it is not directly apparent if the rules work as expected.

Exam Essentials

Understand the purpose and effects of network policies

By default, Pod-to-Pod communication is unrestricted. Instantiate a default deny rule to restrict Pod-to-Pod network traffic with the principle of least privilege. The attribute spec.podSelector of a network policy selects the target Pod the rules apply to based on label selection. The ingress and egress rules define Pods, namespaces, IP addresses, and ports for allowing incoming and outgoing traffic.

Know how to implement the principle of least privilege

Network policies can be aggregated. A default deny rule can disallow ingress and/or egress traffic. An additional network policy can open up those rules with a more fine-grained definition.

Explore common network policy scenarios

To explore common scenarios, look at the GitHub repository named “Kubernetes Network Policy Recipes”. The repository comes with a visual representation for each scenario and walks you through the steps to set up the network policy and the involved Pods. This is a great practice resource.

Sample Exercises

Solutions to these exercises are available in Appendix A.

  1. Your cluster has two teams working in separate namespaces. You need to implement network policies that control cross-namespace communication.

    Navigate to the directory app-a/ch20/cross-namespace-control of the checked-out GitHub repository bmuschko/cka-study-guide. Create the objects from the YAML manifest setup.yaml. Inspect the objects in the namespaces team-alpha and team-beta.

    Create a NetworkPolicy in team-alpha namespace that allows the alpha-app Pod to connect only to the team-beta namespace and denies all other egress traffic except DNS.

    Create a NetworkPolicy in the team-beta namespace that allows the beta-app Pod to receive traffic from team-alpha namespace on port 80 and denies all other ingress traffic.

    Test the policies to ensure that the alpha-app Pod can reach the beta-app Pod. The alpha-app Pod cannot reach external sites and the beta-app Pod cannot receive traffic from other sources.

  2. You have a three-tier application with frontend, backend, and database components. You need to implement network policies to ensure only the backend Pod can access the database, while the frontend can only communicate with the backend Pod.

    Navigate to the directory app-a/ch20/database-access-control of the checked-out GitHub repository bmuschko/cka-study-guide. Create the objects from the YAML manifest setup.yaml. Inspect the objects in the namespace production.

    Create a NetworkPolicy named database-policy that applies to Pods with label tier=database. It should only allow ingress from Pods with label tier=backend on port 6379.

    Create a NetworkPolicy named backend-policy that applies to Pods with label tier=backend. It should only allow ingress from Pods with label tier=frontend on port 80. Allow egress to Pods with label tier=database on port 6379. Allow DNS resolution on port 53.

    Create a default deny-all Ingress policy for the production namespace.

    Verify your policies by testing connectivity: The frontend Pod should not be able to reach database. The frontend Pod should be able to reach the backend Pod. The backend Pod should be able to reach database Pod.

Part VI. Troubleshooting

The Troubleshooting domain of the exam focuses on diagnosing and resolving issues across the entire Kubernetes stack, from cluster-level problems to application-specific failures. Key competencies include identifying and fixing problems with cluster components, troubleshooting node failures and resource constraints, monitoring resource utilization for both cluster infrastructure and applications, analyzing container logs and output streams for debugging, and resolving service connectivity and networking issues such as DNS problems, network policies, and service endpoint configurations.

The following chapters cover these concepts:

  • Chapter 21 covers troubleshooting strategies for pods and containers in Kubernetes, teaching developers to diagnose issues systematically from high-level object analysis down to specific details, including using metrics server for resource monitoring and troubleshooting services and networking to identify root causes.

  • Chapter 22 covers troubleshooting Kubernetes infrastructure issues, including diagnosing and fixing problems with cluster components and resolving node failures. You’ll learn techniques using kubectl, system logs, and service status checks to identify root causes and quickly restore cluster functionality in production environments.

Chapter 21. Troubleshooting Applications

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 21th chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

When operating an application in a production Kubernetes cluster, failures are almost inevitable. You can’t completely leave this job up to the Kubernetes administrator—it’s your responsibility as an application developer to be able to troubleshoot issues for the Kubernetes objects you designed and deployed.

In this chapter, we’ll look at troubleshooting strategies that can help with identifying the root cause of an issue so that you can take action and correct the failure appropriately. The strategies discussed here start with the high-level perspective of a Kubernetes object and then drill into more detail as needed.

Coverage of Curriculum Objectives

This chapter addresses the following curriculum objectives:

  • Manage and evaluate container output streams

  • Troubleshoot services and networking

  • Monitor cluster and application resource usage

Troubleshooting Pods

In most cases, creating a Pod is no issue. You simply emit the run, create, or apply commands to instantiate the Pod. If the YAML manifest is formed properly, Kubernetes accepts your request, so the assumption is that everything works as expected. To verify the correct behavior, the first thing you’ll want to do is to check the Pod’s high-level runtime information. The operation could involve other Kubernetes objects like a Deployment responsible for rolling out multiple replicas of a Pod.

Retrieving High-Level Information

To retrieve the information, run either the kubectl get pods command for just the Pods running in the namespace or the kubectl get all command to retrieve the most prominent object types in the namespace (which includes Deployments). You will want to look at the columns READY, STATUS, and RESTARTS. In the optimal case, the number of ready containers matches the number of containers you defined in the spec. For a single-container Pod, the READY column would say 1/1.

The status should say Running to indicate that the Pod entered the proper life cycle state. Be aware that it’s totally possible that a Pod renders a Running state, but the application isn’t actually working properly. If the number of restarts is greater than 0, then you might want to check the logic of the liveness probe (if defined) and identify the reason a restart was necessary.

The following Pod observes the status ErrImagePull and makes 0/1 containers available to incoming traffic. In short, this Pod has a problem:

$ kubectl get pods
NAME              READY   STATUS         RESTARTS   AGE
misbehaving-pod   0/1     ErrImagePull   0          2s

After working with Kubernetes for a while, you’ll automatically recognize common error conditions. Table 21-1 lists some of those error statuses and explains how to fix them.

Table 21-1. Common Pod error statuses
Status Root cause Potential fix

ImagePullBackOff or ErrImagePull

Image could not be pulled from registry.

Check correct image name, check that image name exists in registry, verify network access from node to registry, ensure proper authentication.

CrashLoopBackOff

Application or command run in container crashes.

Check command executed in container, ensure that image can properly execute (e.g., by creating a container with Docker).

CreateContainerConfigError

ConfigMap or Secret referenced by container cannot be found.

Check correct name of the configuration object, verify the existence of the configuration object in the namespace.

Inspecting Events

You might not encounter any of those error statuses. But there’s still a chance of the Pod having a configuration issue. You can retrieve detailed information about the Pod using the kubectl describe pod command to inspect its events.

The following output belongs to a Pod that tries to mount a Secret that doesn’t exist. Instead of rendering a specific error message, the Pod gets stuck with the status ContainerCreating:

$ kubectl get pods
NAME         READY   STATUS              RESTARTS   AGE
secret-pod   0/1     ContainerCreating   0          4m57s
$ kubectl describe pod secret-pod
...
Events:
Type    Reason      Age                  From              Message
----    ------      ----                 ----              -------
Normal  Scheduled   <unknown>            default-scheduler Successfully \
                                                           assigned
                                                           default/secret-pod \
                                                           to minikube
Warning FailedMount 3m15s                kubelet, minikube Unable to attach or \
                                                           mount volumes: \
                                                           unmounted \
                                                           volumes=[mysecret], \
                                                           unattached volumes= \
                                                           [default-token-bf8rh \
                                                           mysecret]: timed out \
                                                           waiting for the \
                                                           condition
Warning FailedMount 68s (x10 over 5m18s) kubelet, minikube MountVolume.SetUp \
                                                           failed for volume \
                                                           "mysecret" : secret \
                                                           "mysecret" not found
Warning FailedMount 61s                  kubelet, minikube Unable to attach or \
                                                           mount volumes: \
                                                           unmounted volumes= \
                                                           [mysecret], \
                                                           unattached \
                                                           volumes=[mysecret \
                                                           default-token-bf8rh \
                                                           ]: timed out \
                                                           waiting for the \
                                                           condition

Another helpful command is kubectl get events. The output of the command lists the events across all Pods for a given namespace. You can use additional command-line options to further filter and sort events:

$ kubectl get events
LAST SEEN   TYPE      REASON            OBJECT               MESSAGE
3m14s       Warning   BackOff           pod/custom-cmd       Back-off \
                                                             restarting \
                                                             failed container
2s          Warning   FailedNeedsStart  cronjob/google-ping  Cannot determine \
                                                             if job needs to \
                                                             be started: too \
                                                             many missed start \
                                                             time (> 100). Set \
                                                             or decrease \
                                                             .spec. \
                                                             startingDeadline \
                                                             Seconds or check \
                                                             clock skew

Sometimes troubleshooting won’t be enough. You may have to dig into the application runtime behavior and configuration in the container.

Using Port Forwarding

In production environments, you’ll operate an application in multiple Pods controlled by a ReplicaSet. It’s not unusual that one of those replicas experiences a runtime issue. Instead of troubleshooting the problematic Pod from a temporary Pod from within the cluster, you can also forward the traffic to a Pod through a tunneled HTTP connection. This is where the port-forward command comes into play.

Let’s demonstrate the behavior. The following command creates a new Deployment running nginx in three replicas:

$ kubectl create deployment nginx --image=nginx:1.24.0 --replicas=3 --port=80
deployment.apps/nginx created

The resulting Pod will have unique names derived from the name of the Deployment. Say the Pod nginx-595dff4799-ph4js has an issue you want to troubleshoot:

$ kubectl get pods
NAME                     READY   STATUS    RESTARTS   AGE
nginx-595dff4799-pfgdg   1/1     Running   0          6m25s
nginx-595dff4799-ph4js   1/1     Running   0          6m25s
nginx-595dff4799-s76s8   1/1     Running   0          6m25s

The port-forward command forwards HTTP connections from a local port to a port exposed by a Pod. This exemplary command forwards port 2500 on your local machine to the container port 80 running in the Pod nginx-595dff4799-ph4js:

$ kubectl port-forward nginx-595dff4799-ph4js 2500:80
Forwarding from 127.0.0.1:2500 -> 80
Forwarding from [::1]:2500 -> 80

The port-forward command does not return. You have to open another terminal to perform calls to the Pod via port forwarding. The following command simply checks if the Pod is accessible from your local machine using curl:

curl -Is localhost:2500 | head -n 1
HTTP/1.1 200 OK

The HTTP response code 200 clearly shows that we can access the Pod from outside of the cluster. The port-forward command is not meant to run for a long time. Its primary purpose is for testing or troubleshooting a Pod without having to expose it with the help of a Service.

Troubleshooting Containers

You can interact with the container for a deep-dive into the application’s runtime environment. The next sections will discuss how to inspect logs, open an interactive shell to a container, and debug containers that do not provide a shell.

Note

The commands described in the following sections apply to init and sidecar containers as well. Use the -c or --container command line flag to target a specific container if you are running more than a single one.

Inspecting Logs

When troubleshooting a Pod, you can retrieve the next level of details by downloading and inspecting its logs. You may or may not find additional information that points to the root cause of a misbehaving Pod, but it’s definitely worth a look. The YAML manifest shown in Example 21-1 defines a Pod running a shell command.

Example 21-1. A Pod running a failing shell command
apiVersion: v1
kind: Pod
metadata:
  name: incorrect-cmd-pod
spec:
  containers:
  - name: test-container
    image: busybox:1.36.1
    command: ["/bin/sh", "-c", "unknown"]

After creating the object, the Pod fails with the status CrashLoopBackOff. Running the logs command reveals that the command run in the container has an issue:

$ kubectl create -f crash-loop-backoff.yaml
pod/incorrect-cmd-pod created
$ kubectl get pods incorrect-cmd-pod
NAME                READY   STATUS              RESTARTS   AGE
incorrect-cmd-pod   0/1     CrashLoopBackOff    5          3m20s
$ kubectl logs incorrect-cmd-pod
/bin/sh: unknown: not found

The logs command provides two helpful options. The option -f streams the logs, meaning you’ll see new log entries as they’re being produced in real time. The option --previous gets the logs from the previous instantiation of a container, which is helpful if the container has been restarted.

Opening an Interactive Shell

If any of the previous commands don’t point you to the root cause of the failing Pod, it’s time to open an interactive shell to a container. As an application developer, you’ll know best what behavior to expect from the application at runtime. Inspect the running processes by using the Unix or Windows utility tools, depending on the image run in the container.

Say you encounter a situation where a Pod seems to work properly on the surface, as shown in Example 21-2.

Example 21-2. A Pod periodically writing the current date to a file
apiVersion: v1
kind: Pod
metadata:
  name: failing-pod
spec:
  containers:
  - args:
    - /bin/sh
    - -c
    - while true; do echo $(date) >> ~/tmp/curr-date.txt; sleep \
      5; done;
    image: busybox:1.36.1
    name: failing-pod

After creating the Pod, you check the status. It says Running; however, when making a request to the application, the endpoint reports an error. Next, you check the logs. The log output renders an error message that points to a nonexistent directory. Apparently, the directory that the application needs hasn’t been set up correctly:

$ kubectl create -f failing-pod.yaml
pod/failing-pod created
$ kubectl get pods failing-pod
NAME          READY   STATUS    RESTARTS   AGE
failing-pod   1/1     Running   0          5s
$ kubectl logs failing-pod
/bin/sh: can't create /root/tmp/curr-date.txt: nonexistent directory

The exec command opens an interactive shell to further investigate the issue. In the following code, we’re using the Unix tools mkdir, cd, and ls inside of the running container to fix the problem. Obviously, the better mitigation strategy is to create the directory from the application or provide an instruction in the Dockerfile:

$ kubectl exec failing-pod -it -- /bin/sh
# mkdir -p ~/tmp
# cd ~/tmp
# ls -l
total 4
-rw-r--r-- 1 root root 112 May 9 23:52 curr-date.txt

Interacting with a Distroless Container

Some images run in containers are designed to be very minimal for security reasons. For example, the Google distroless images don’t have any Unix utility tools preinstalled. You can’t even open a shell to a container, as it doesn’t come with a shell.

Incorporating security best practices for container images

Shipping container images with accessible shells and running with the root user is commonly discouraged as these aspects can be used as potential attack vectors. Check out the CKS certification to learn more about security concerns in Kubernetes.

One of Google’s distroless images is k8s.gcr.io/pause:3.1, shown in Example 21-3.

Example 21-3. Running a distroless image
apiVersion: v1
kind: Pod
metadata:
  name: minimal-pod
spec:
  containers:
  - image: k8s.gcr.io/pause:3.1
    name: pause

As you can see in the following exec command, the image doesn’t provide a shell:

$ kubectl create -f minimal-pod.yaml
pod/minimal-pod created
$ kubectl get pods minimal-pod
NAME          READY   STATUS    RESTARTS   AGE
minimal-pod   1/1     Running   0          8s
$ kubectl exec minimal-pod -it -- /bin/sh
OCI runtime exec failed: exec failed: container_linux.go:349: starting \
container process caused "exec: \"/bin/sh\": stat /bin/sh: no such file \
or directory": unknown
command terminated with exit code 126

Kubernetes offers the concept of ephemeral containers. Those containers are meant to be disposable and have no resilience features like probes. You can deploy an ephemeral container for troubleshooting minimal containers that would usually not allow the use of the exec command.

Kubernetes 1.18 introduced a new debug command that can inject an ephemeral container to a running Pod for debugging purposes. The following command adds the ephemeral container running the image busybox to the Pod named minimal-pod and opens an interactive shell for it:

$ kubectl alpha debug -it minimal-pod --image=busybox
Defaulting debug container name to debugger-jf98g.
If you don't see a command prompt, try pressing enter.
/ # pwd
/
/ # exit
Session ended, resume using 'kubectl alpha attach minimal-pod -c \
debugger-jf98g -i -t' command when the pod is running

Troubleshooting Services and Networking

A Service provides a unified network interface for Pods. For full coverage on networking aspects in Kubernetes, see Chapter 17. Here, I want to point out troubleshooting techniques for this primitive.

Service and networking problems in Kubernetes are among the most challenging issues to diagnose because they involve multiple layers: Pod networking, service discovery, DNS resolution, network policies, and ingress controllers. These issues typically manifest as connection timeouts, refused connections, or intermittent failures that can cripple application functionality.

Diagnosing Service-to-Pod Label Selection

In case you can’t reach the Pods that should map to the Service, start by ensuring that the label selector matches with the assigned labels of the Pods. You can query the information by describing the Service and then render the labels of the available Pods with the option --show-labels. The following example does not have matching labels and therefore wouldn’t apply to any of the Pods running in the namespace:

$ kubectl describe service myservice
...
Selector:          app=myapp
...
$ kubectl get pods --show-labels
NAME                     READY   STATUS    RESTARTS   AGE     LABELS
myapp-68bf896d89-qfhlv   1/1     Running   0          7m39s   app=hello
myapp-68bf896d89-tzt55   1/1     Running   0          7m37s   app=world

Diagnosing Service-to-Pod Port Mapping

Services must correctly map ports between the Service definition and the selected Pod’s containers. Check if the port mapping from the target port of the Service to the container port of the Pod is configured correctly. Both ports need to match or the network traffic wouldn’t be routed properly:

$ kubectl get service myapp -o yaml | grep targetPort:
    targetPort: 80
$ kubectl get pods myapp-68bf896d89-qfhlv -o yaml | grep containerPort:
    - containerPort: 80

Inspecting the Service’s Endpoints

A straightforward way to check if label selection and port mapping is set up properly is to inspect the Service’s endpoints. Service Endpoints are API objects that represent the network addresses (IP addresses and ports) of the Pods backing a Service.

Use the get endpoints command to render a Service’s endpoints. Ensure that the output lists the number of Pod IP addresses and container ports expected to be selected by the Service.

$ kubectl get endpoints myservice
NAME        ENDPOINTS                     AGE
myservice   172.17.0.5:80,172.17.0.6:80   9m31s

If the output of the command does not render any endpoints then you know that either label selection or port mapping has not been configured correctly in the Service.

Verifying Accessibility Scope

Different service types (ClusterIP, NodePort, LoadBalancer) have different accessibility scopes. By default, the Service type is ClusterIP, which means that a Pod can be reached through the Service only if queried from the same node inside of the cluster. First, check the Service type.

$ kubectl get services
NAME         TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE
myservice    ClusterIP   10.99.155.165   <none>        80/TCP    15m
...

If you think that ClusterIP is the proper type you wanted to assign, open an interactive shell from a temporary Pod inside the cluster and run a curl or wget command:

$ kubectl run tmp --image=busybox:1.37.0 -it --rm -- wget 10.99.155.165:80

DNS Resolution Problems

Instead of using the cluster-internal IP address to access a ClusterIP Service, you will likely want to use the Services’ DNS name instead.

$ kubectl run tmp --image=busybox:1.37.0 -it --rm -- wget myservice:80

Before jumping to any conclusions, remember that Services in different namespaces require fully qualified domain names (FQDN). The more bullet proof option to check accessibility to a Service is to include the namespace.

$ kubectl run tmp --image=busybox:1.37.0 -it --rm -- wget \
  myservice.default.svc.cluster.local:80

DNS issues can prevent Pods from resolving service names, causing application failures. It’s possible that the CoreDNS Pods are currently not running. You can check by executing the following command:

$ kubectl get pods -n kube-system -l k8s-app=kube-dns

To scan the CoreDNS logs for error message, run the following command:

$ kubectl logs -n kube-system -l k8s-app=kube-dns --tail=50

CoreDNS logs reveal DNS-related problems through various error patterns that help identify the root cause of service discovery failures. Common issues include upstream connectivity problems where CoreDNS cannot reach external DNS servers, resolution failures for Services that don’t exist or are incorrectly referenced, communication breakdowns with the Kubernetes API server preventing Service discovery, configuration problems causing routing loops or processing errors, and performance issues from either excessive query loads or insufficient resources. By recognizing these patterns in the logs, you can quickly determine whether the problem lies in network connectivity, configuration, or resource allocation.

Network Policy Restrictions

Network Policies in Kubernetes act as a firewall at the Pod level, controlling which Pods can communicate with each other and what external traffic is allowed. When network policies are implemented, they follow a “default deny” model—once any network policy selects a Pod, that Pod becomes isolated and can only receive traffic explicitly allowed by policies.

This security feature, while essential for production environments, frequently causes mysterious connectivity issues where applications that previously worked suddenly experience timeouts or connection refused errors. Common symptoms include pods being unable to reach services they depend on, health checks failing, cross-namespace communication breaking, or external traffic being blocked unexpectedly.

The challenge with troubleshooting network policies lies in their implicit nature—there’s no immediate error message indicating that a network policy is blocking traffic; instead, connections simply fail silently.

Debugging requires systematically checking if network policies exist in the namespace, understanding which Pods they select through their podSelector, examining the ingress and egress rules to see what traffic is permitted, and testing connectivity from different source Pods to identify exactly where the policy enforcement is occurring.

The following command checks if any network policies exist in the namespace production:

$ kubectl get networkpolicies -n production

To see which Pods are affected by network policies, render its details. The following command assumes that we found the network policy api-policy to exist:

$ kubectl describe networkpolicy api-policy -n production

Lastly, try to test connectivity from one Pod to another one either directly or through a Service in the same namespace. The following command runs a curl command against a Service named backend-service:

$ kubectl exec -it frontend-pod -n production -- curl http://backend-service:8080

If this times out, but the backend is running, it’s fair to assume that the network policy comes into play here.

Inspecting Resource Metrics

Deploying software to a Kubernetes cluster is only the start of operating an application long term. Developers need to understand their applications’ resource consumption patterns and behaviors, with the goal of providing a scalable and reliable service.

In the Kubernetes world, monitoring tools like Prometheus and Datadog help with collecting, processing, and visualizing information over time. The exam does not expect you to be familiar with third-party monitoring, logging, tracing, and aggregation tools; however, it is helpful to have a basic understanding of the underlying Kubernetes infrastructure responsible for collecting usage metrics. The following are examples of typical metrics:

  • Number of nodes in the cluster

  • Health status of nodes

  • Node performance metrics such as CPU, memory, disk space, network

  • Pod-level performance metrics such as CPU and memory consumption

This responsibility falls to the metrics server, a cluster-wide aggregator of resource usage data. As shown in Figure 21-1, kubelets running on nodes collect metrics and send them to the metrics server.

metrics server

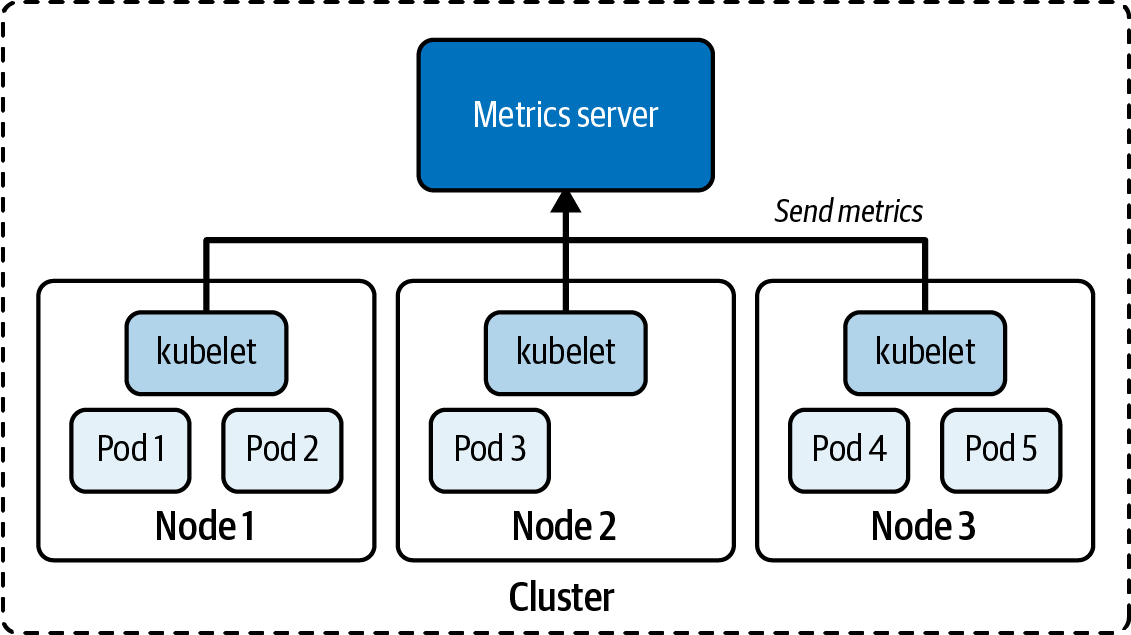

Figure 21-1. Data collection for the metrics server

The metrics server stores data in memory and does not persist data over time. If you are looking for a solution that keeps historical data, then you need to look into commercial options. Refer to the documentation for more information on its installation process.

If you’re using Minikube as your practice environment, enabling the metrics-server add-on is straightforward using the following command:

$ minikube addons enable metrics-server
The 'metrics-server' addon is enabled

You can now query for metrics of cluster nodes and Pods with the top command:

$ kubectl top nodes
NAME       CPU(cores)   CPU%   MEMORY(bytes)   MEMORY%
minikube   283m         14%    1262Mi          32%
$ kubectl top pod frontend
NAME       CPU(cores)   MEMORY(bytes)
frontend   0m           2Mi

It takes a couple of minutes after the installation of the metrics server before it has gathered information about resource consumption. Rerun the kubectl top command if you receive an error message.

Summary

We discussed strategies for approaching failed or misbehaving Pods. The main goal is to diagnose the root cause of a failure and then fix it by taking the right action. Troubleshooting Pods doesn’t have to be hard. With the right kubectl commands in your tool belt, you can rule out root causes one by one to get a clearer picture.

Effective Kubernetes network troubleshooting follows a systematic approach that begins with verifying the fundamentals, ensuring pods are running, Services have healthy endpoints, and DNS resolution is functioning, before moving to more complex investigations. Most importantly, understand the capabilities and limitations of each service type (ClusterIP for internal traffic, NodePort for node-level access, and LoadBalancer for external exposure) to set appropriate expectations and choose the right troubleshooting approach for each scenario.

The Kubernetes ecosystem provides a lot of options for collecting and processing metrics of your cluster over time. Among those options are commercial monitoring tools like Prometheus and Datadog. Many of those tools use the metrics server as the source of truth for those metrics. We also briefly touched on the installation process and the kubectl top command for retrieving metrics from the command line.

Exam Essentials

Know how to troubleshoot applications

Applications running in a Pod can easily break due to misconfiguration. Think of possible scenarios that can occur and try to model them proactively to represent a failure situation. Then using the commands get, logs, and exec, get to the bottom of the issue and fix it. Try to dream up obscure scenarios to become more comfortable with finding and fixing application issues for different resource types. Refer to the Kubernetes documentation to learn more about debugging other Kubernetes resource types.

Make accessing container logs your daily bread and butter

Accessing container logs is straightforward. Simply use the logs command. Practice the use of all relevant command-line options. The option -c targets a specific container. The option does not have to be used explicitly for single-container Pods. The option -f tails the log entries if you want to see live processing in an application. The -p option can be used for accessing logs if the container needed to be restarted, but you still want to take a look at the previous container logs.

Know how to diagnose networking issues

Follow a systematic approach: first verify basic connectivity and DNS, then check service endpoints and selectors, examine port configurations, investigate any network policies, and finally test the complete traffic path from source to destination. Always remember that the exam environment may have pre-configured network policies or specific networking plugins that affect troubleshooting strategies.

Learn how to retrieve and interpret resource metrics

Monitoring a Kubernetes cluster is an important aspect of successfully operating in a real-world environment. You should read up on commercial monitoring products and which data the metrics server can collect. You can assume that the exam environment provides you with an installation of the metrics server. Learn how to use the kubectl top command to render Pod and node resource metrics and how to interpret them.

Sample Exercises

Solutions to these exercises are available in Appendix A.

  1. In this exercise, you will practice your troubleshooting skills by inspecting a misconfigured Pod. Navigate to the directory app-a/ch21/troubleshooting-pod of the checked-out GitHub repository bmuschko/cka-study-guide.

    Create a new Pod from the YAML manifest in the file setup.yaml. Check the Pod’s status. Do you see any issue?

    Render the logs of the running container and identify an issue. Shell into the container. Can you verify the issue based on the rendered log message?

    Suggest solutions that can fix the root cause of the issue.

  2. Kate is a developer in charge of implementing a web-based application stack. She is not familiar with Kubernetes, and asked if you could help out. The relevant objects have been created; however, connection to the application cannot be established from within the cluster. Help Kate with fixing the configuration of her YAML manifests.

    Navigate to the directory app-a/ch21/troubleshooting-service of the checked-out GitHub repository bmuschko/cka-study-guide. Create the objects from the YAML manifest setup.yaml. Inspect the objects in the namespace y72.

    Create a temporary Pod using the image busybox:1.36.1 in the namespace y72. The container command should make a wget call to the Service web-app. The wget call will not be able to establish a successful connection to the Service.

    Identify the root cause for the connection issue and fix it. Verify the correct behavior by repeating the previous step. The wget call should return a successful response.

  3. You will inspect the metrics collected by the metrics server. Navigate to the directory app-a/ch21/stress-test of the checked-out GitHub repository bmuschko/cka-study-guide. The current directory contains the YAML manifests for three Pods, stress-1-pod.yaml, stress-2-pod.yaml, and stress-3-pod.yaml. Inspect those manifest files.

    Create the namespace stress-test and the Pods inside of the namespace.

    Use the data available through the metrics server to identify which of the Pods consumes the most memory.

    Prerequisite: You will need to install the metrics server if you want to be able to inspect actual resource metrics. You can find installation instructions on the project’s GitHub page.

Chapter 22. Troubleshooting Clusters

A Note for Early Release Readers

With Early Release ebooks, you get books in their earliest form—the author’s raw and unedited content as they write—so you can take advantage of these technologies long before the official release of these titles. This will be the 22th chapter of the final book. Please note that the GitHub repo will be made active later on. If you’d like to be actively involved in reviewing and commenting on this draft, please reach out to the editor at ccollins@oreilly.com.

When a Kubernetes cluster experiences infrastructure-level failures, the impact can be catastrophic. Pods refuse to schedule, applications become unreachable, and entire nodes disappear from the cluster, potentially affecting hundreds of workloads simultaneously. Unlike application-specific issues that might affect a single service, problems with cluster components and nodes strike at the very foundation of your Kubernetes environment, making their swift diagnosis and resolution critical for maintaining system availability.

This chapter equips you with the skills to troubleshoot these infrastructure-level problems. You’ll learn to decode node conditions, investigate why nodes transition to NotReady states, resolve resource pressure situations, and trace Pod scheduling failures back to their root causes.

Coverage of Curriculum Objectives

This chapter addresses the following curriculum objectives:

  • Troubleshoot clusters and nodes

  • Troubleshoot cluster components

Inspecting the Status of Cluster Nodes

There are many influencing factors that can render a Kubernetes cluster faulty on the component level. It’s a good idea to list the nodes available in the cluster to identify potential issues:

$ kubectl get nodes
NAME                 STATUS   ROLES           AGE     VERSION
control-plane-node   Ready    control-plane   2m45s   v1.33.2
worker-node-1        Ready    <none>          2m36s   v1.33.2
worker-node-2        Ready    <none>          2m29s   v1.33.2
worker-node-3        Ready    <none>          2m22s   v1.33.2

The output will give you a lay of the land. You can easily identify the responsibility of each node from the ROLES column, the Kubernetes version used, and the current health status.

There are a couple of things to look out for when identifying issues at a high level:

  • Is the health status for the node anything other than “Ready”?

  • Does the version of a node deviate from the version of other nodes?

In the following sections you can find individual sections on troubleshooting control plane nodes versus worker nodes.

Inspecting the Status of Cluster Components

Among those components available on the control plane node are the following:

  • kube-apiserver: Exposes the Kubernetes API used by clients like kubectl for managing objects.

  • etcd: A key-value store for storing the cluster data.

  • kube-scheduler: Selects nodes for Pods that have been scheduled but not created.

  • kube-controller-manager: Runs controller processes (e.g., the job controller responsible for Job object execution).

  • cloud-controller-manager (optional): Links cloud provider–specific API to the Kubernetes cluster. This controller is not available in on-premise cluster installations of Kubernetes.

In addition to the components running specifically on the control-plane nodes, every node (control-plane and worker nodes) can contain the following components:

  • kubelet: Ensures that all Pods are running, including their containers.

  • kube-proxy (optional): Maintains the network rules on nodes to implement Services.

  • Container runtime: The software component responsible for running containers.

To discover those components and their status, list the Pods available in the namespace kube-system. Be aware that some components do not run in a Pod, e.g. the kubelet or the container runtime. Here, you can find the list of components:

$ kubectl get pods -n kube-system
NAME                      READY   STATUS    RESTARTS      AGE
etcd                      1/1     Running   1 (11d ago)   29d
kube-apiserver            1/1     Running   1 (11d ago)   29d
kube-controller-manager   1/1     Running   1 (11d ago)   29d
kube-scheduler            1/1     Running   1 (11d ago)   29d
...

Any status that does not show “Running” should be inspected further. You can retrieve the logs for control-plane component Pods in the same fashion you do for any other Pod, using the logs command. The following command downloads the logs for the kube-apiserver component:

$ kubectl logs kube-apiserver -n kube-system

Troubleshooting Node Issues

Control plane nodes are the critical components for keeping a cluster operational. As described in “Managing a Highly Available Cluster”, a cluster can consist of more than one control plane node to ensure a high degree of uptime. Detecting that one of the control plane nodes is faulty should be treated with extreme urgency to avoid compromising high-availability characteristics. For more information on troubleshooting techniques and root-cause analysis, reference the Kubernetes documentation.

Rendering cluster information

To further diagnose issues on the control plane node, run the command kubectl cluster-info. As you can see in the following output, the command renders the addresses of the control plane and other cluster services:

$ kubectl cluster-info
Kubernetes control plane is running at https://192.168.64.21:8443
CoreDNS is running at https://192.168.64.21:8443/api/v1/namespaces/ \
kube-system/services/kube-dns:dns/proxy

To further debug and diagnose cluster problems, use kubectl cluster-info dump.

For a detailed view of the cluster logs, append the dump subcommand. Due to the pages and pages of log messages, we won’t render the output in this book. Parse through the message to see if you can find any errors:

$ kubectl cluster-info dump

Node showing NotReady status

Worker nodes are responsible for managing the workload. Make sure you have a sufficient number of worker nodes available to distribute the load. For a deeper discussion on how to join worker nodes to a cluster, see Chapter 4.

Any of the nodes available in a cluster can transition into an error state. It’s your job as a Kubernetes administrator to identify those situations and fix them in a timely manner. When listing the nodes of a cluster, you may see that a worker node is not in the “Ready” state, which is a good indicator that it’s not available to handle the workload. In the output of the get nodes command, you can see that the node named worker-1 is in the “NotReady” state:

$ kubectl get nodes
NAME            STATUS     ROLES           AGE     VERSION
control-plane   Ready      control-plane   4d20h   v1.33.2
worker-1        NotReady   <none>          4d20h   v1.33.2
worker-2        Ready      <none>          4d20h   v1.33.2

The “NotReady” state means that the node is unused and will accumulate operational costs without actually scheduling workload. There might be a variety of reasons why the node entered this state. The following list shows the most common reasons:

  • Insufficient resources: The node may be low on memory or disk space.

  • Issues with the kubelet process: The process may have crashed or stopped on the node. Therefore, it cannot communicate with the API server running on any of the control plane nodes anymore.

  • Issues with kube-proxy: The Pod running kube-proxy is responsible for network communication from within the cluster and from the outside. The Pod transitioned into a nonfunctional state.

SSH into the relevant worker node(s) and start your investigation.

Checking available resources

A good way to identify the root cause of an unavailable worker node is to look at its details. The describe node command renders the section labeled “Conditions”:

$ kubectl describe node worker-1
....
Conditions:
  Type                 Status  LastHeartbeatTime               \
    LastTransitionTime                Reason                       Message
  ----                 ------  -----------------               \
    ------------------                ------                       -------
  NetworkUnavailable   False   Thu, 20 Jan 2022 18:12:13 +0000 \
    Thu, 20 Jan 2022 18:12:13 +0000   CalicoIsUp               \
        Calico is running on this node
  MemoryPressure       False   Tue, 25 Jan 2022 15:59:18 +0000 \
    Thu, 20 Jan 2022 18:11:47 +0000   KubeletHasSufficientMemory \
      kubelet has sufficient memory available
  DiskPressure         False   Tue, 25 Jan 2022 15:59:18 +0000 \
    Thu, 20 Jan 2022 18:11:47 +0000   KubeletHasNoDiskPressure \
        kubelet has no disk pressure
  PIDPressure          False   Tue, 25 Jan 2022 15:59:18 +0000 \
    Thu, 20 Jan 2022 18:11:47 +0000   KubeletHasSufficientPID  \
        kubelet has sufficient PID available
  Ready                True    Tue, 25 Jan 2022 15:59:18 +0000 \
    Thu, 20 Jan 2022 18:12:07 +0000   KubeletReady             \
        kubelet is posting ready status. AppArmor enabled
...

The table contains information about the resources available to the node, as well as an indication of other services like networking. See if any of the resource types render the status True or Unknown, which means that there’s an issue with the particular resource. You can further troubleshoot unavailable resources with a system-level command.

To check on memory and the number of processes running, use the top command:

$ top
top - 18:45:09 up 1 day,  2:21,  1 user,  load average: 0.13, 0.13, 0.15
Tasks: 116 total,   3 running,  70 sleeping,   0 stopped,   0 zombie
%Cpu(s):  1.5 us,  0.8 sy,  0.0 ni, 97.7 id,  0.0 wa,  0.0 hi,  0.0 si,  0.0 st
KiB Mem :  1008552 total,   134660 free,   264604 used,   609288 buff/cache
KiB Swap:        0 total,        0 free,        0 used.   611248 avail Mem
...

To check on the available disk space, use the command df:

$ df -h
Filesystem      Size  Used Avail Use% Mounted on
udev            480M     0  480M   0% /dev
tmpfs            99M  1.0M   98M   2% /run
/dev/sda1        39G  2.7G   37G   7% /
tmpfs           493M     0  493M   0% /dev/shm
tmpfs           5.0M     0  5.0M   0% /run/lock
tmpfs           493M     0  493M   0% /sys/fs/cgroup
vagrant         1.9T  252G  1.6T  14% /vagrant
tmpfs            99M     0   99M   0% /run/user/1000

Checking the kubelet process

Some conditions rendered by the describe node command mention the kubelet process. If you look at the Message column, you might get an idea if the kubelet process is running properly. To troubleshoot a misbehaving kubelet process, run the following systemctl command:

$ systemctl status kubelet
● kubelet.service - kubelet: The Kubernetes Node Agent
   Loaded: loaded (/lib/systemd/system/kubelet.service; enabled; \
   vendor preset: enabled)
  Drop-In: /etc/systemd/system/kubelet.service.d
           └─10-kubeadm.conf
   Active: active (running) since Thu 2022-01-20 18:11:41 UTC; 5 days ago
     Docs: https://kubernetes.io/docs/home/
 Main PID: 6537 (kubelet)
    Tasks: 15 (limit: 1151)
   CGroup: /system.slice/kubelet.service
           └─6537 /usr/bin/kubelet \
           --bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.conf \
           --kubeconfig=/etc/kubernetes/kubelet.conf \
           --config=/var/lib/kubelet/config.yaml --network-lines 1-10/10

The most important information in the output is the value of the Active attribute. If it says something other than “active (running),” then you will need to dig deeper. Use journalctl to take a look at the log files of the process:

$ journalctl -u kubelet.service
-- Logs begin at Thu 2022-01-20 18:10:41 UTC, end at
Tue 2022-01-25 18:44:05 UTC. --
Jan 20 18:11:31 worker-1 systemd[1]: Started kubelet: The Kubernetes Node Agent.
Jan 20 18:11:31 worker-1 systemd[1]: kubelet.service: Current command vanished \
from the unit file, execution of the command list won't be resumed.
Jan 20 18:11:31 worker-1 systemd[1]: Stopping kubelet: The Kubernetes
Node Agent...
Jan 20 18:11:31 worker-1 systemd[1]: Stopped kubelet: The Kubernetes Node Agent.
Jan 20 18:11:31 worker-1 systemd[1]: Started kubelet: The Kubernetes Node Agent.
....

You will want to restart the process once you have identified the issue in the logs and fixed it:

$ systemctl restart kubelet

Checking certificate validity

Sometimes, the certificate used by the kubelet can expire. Make sure that the values for the attributes Issuer and Not After are correct:

$ openssl x509 -in /var/lib/kubelet/pki/kubelet.crt -text
Certificate:
    Data:
        Version: 3 (0x2)
        Serial Number: 2 (0x2)
        Signature Algorithm: sha256WithRSAEncryption
        Issuer: CN = worker-1-ca@1642702301
        Validity
            Not Before: Jan 20 17:11:41 2022 GMT
            Not After : Jan 20 17:11:41 2023 GMT
        Subject: CN = worker-1@1642702301
        ...

For a quick rundown of all certificates in the cluster’s Public Key Infrastructure (PKI), you can use the following command.

$ kubeadm certs check-expiration
[check-expiration] Reading configuration from the cluster...
[check-expiration] FYI: You can look at this config file with 'kubectl -n \
kube-system get cm kubeadm-config -o yaml'

CERTIFICATE                EXPIRES                  RESIDUAL TIME   ...
admin.conf                 Aug 31, 2026 14:28 UTC   364d            ...
apiserver                  Aug 31, 2026 14:28 UTC   364d            ...
apiserver-etcd-client      Aug 31, 2026 14:28 UTC   364d            ...
apiserver-kubelet-client   Aug 31, 2026 14:28 UTC   364d            ...
controller-manager.conf    Aug 31, 2026 14:28 UTC   364d            ...
etcd-healthcheck-client    Aug 31, 2026 14:28 UTC   364d            ...
etcd-peer                  Aug 31, 2026 14:28 UTC   364d            ...
etcd-server                Aug 31, 2026 14:28 UTC   364d            ...
front-proxy-client         Aug 31, 2026 14:28 UTC   364d            ...
scheduler.conf             Aug 31, 2026 14:28 UTC   364d            ...
super-admin.conf           Aug 31, 2026 14:28 UTC   364d            ...

CERTIFICATE AUTHORITY   EXPIRES                  RESIDUAL TIME   ...
ca                      Aug 29, 2035 14:28 UTC   9y              ...
etcd-ca                 Aug 29, 2035 14:28 UTC   9y              ...
front-proxy-ca          Aug 29, 2035 14:28 UTC   9y              ...

You can renew all certificates necessary to run the control plane with the following command:

$ kubeadm certs renew all

You must restart the kube-apiserver, kube-controller-manager, kube-scheduler and etcd, so that they can use the new certificates.

Checking the kube-proxy Pod

The kube-proxy components run in a set of dedicated Pods in the namespace kube-system. You can clearly identify the Pods by their naming prefix kube-proxy and the appended hash. Verify if any of the Pods states a different status than “Running.” Each of the kube-proxy Pods runs on a dedicated worker node. You can add the -o wide option to render the node the Pod is running on in a new column:

$ kubectl get pods -n kube-system
NAME               READY   STATUS    RESTARTS   AGE
...
kube-proxy-csrww   1/1     Running   0          4d22h
kube-proxy-fjd48   1/1     Running   0          4d22h
kube-proxy-tvf52   1/1     Running   0          4d22h

Take a look at the event log for kube-proxy Pods that seem to have an issue. The following command describes the Pod named kube-proxy-csrww. In addition, you might find more information in the event log of the corresponding DaemonSet:

$ kubectl describe pod kube-proxy-csrww -n kube-system
$ kubectl describe daemonset kube-proxy -n kube-system

The logs may come in handy as well. You will be able to check the logs only for the kube-proxy Pod that runs on the specific worker node:

$ kubectl describe pod kube-proxy-csrww -n kube-system | grep Node:
Node:                 worker-1/10.0.2.15
$ kubectl logs kube-proxy-csrww -n kube-system

Summary

Troubleshooting Kubernetes clusters and nodes requires a deep understanding of component interactions, systematic investigation skills, and familiarity with various debugging tools. The scenarios covered in this chapter represent common real-world issues you’ll encounter when managing Kubernetes infrastructure. By mastering these troubleshooting techniques, you’ll be able to quickly diagnose and resolve cluster-level problems, minimizing downtime and maintaining service reliability.

Exam Essentials

Master quick node diagnostics and recovery

In the exam, you must rapidly identify why nodes are “NotReady” and fix them within minutes. Memorize this sequence: kubectl get nodes, kubectl describe node <node-name>, check the “Conditions” section for specific issues (MemoryPressure, DiskPressure, PIDPressure, Ready). Know how to SSH into nodes and use systemctl status kubelet, systemctl restart kubelet, and journalctl -u kubelet | tail -50 to diagnose and fix kubelet issues.

Know system Pod locations and recovery commands

You must instantly recognize and fix control plane component failures. Remember that static pods (API server, controller-manager, scheduler, etcd) have their manifests in the directory /etc/kubernetes/manifests and their logs accessible via kubectl logs <component>-<node-name> -n kube-system. For crashed components, know that editing the manifest file directly will trigger the kubelet to restart the Pod automatically.

Fix Pod scheduling issues

Understand how node issues prevent Pod scheduling and know the quick fixes. When Pods are “Pending”, check for node taints (kubectl describe node | grep Taint), verify node capacity (kubectl describe node | grep -A5 "Allocated resources"), and look for cordoned nodes (kubectl get nodes | grep SchedulingDisabled). Master these recovery commands: kubectl uncordon <node> to enable scheduling, kubectl taint nodes <node> <taint-key>- to remove taints (note the minus sign), and kubectl drain <node> --ignore-daemonsets --delete-emptydir-data for node maintenance.

Sample Exercises

Solutions to these exercises are available in Appendix A.

  1. Your team reports that applications are not scaling properly. Upon investigation, you notice one of the worker nodes is having issues and new Pods are not being scheduled there.

    This exercise assumes that you run a cluster with 3 nodes: one control-plane node, and two worker nodes. The names of the worker node are worker-node-1 and worker-node-2.

    Navigate to the directory app-a/ch22/troubleshooting-worker-node of the checked-out GitHub repository bmuschko/cka-study-guide. Transfer the file setup.sh to the worker-node-2. SSH into the host machine of worker-node-2 node. Execute the script. For proper execution of the script, make sure that you have kubectl installed on worker-node-2 beforehand and can authenticate with the API server of the control-plane node.

    Identify why worker-node-2 is not accepting new Pods. Fix all issues preventing the node from functioning properly. Ensure the node can accept new Pod scheduling. Verify the fix by running a test Pod on that specific node.

  2. The cluster is experiencing issues with Pod scheduling. New deployments are creating ReplicaSets, but Pods remain in “Pending” state despite having sufficient resources on nodes.

    This exercise assumes that you run a cluster with at least one control-plane node, and one worker node. The name of the control-plane node is control-plane.

    Navigate to the directory app-a/ch22/troubleshooting-control-plane-node of the checked-out GitHub repository bmuschko/cka-study-guide. Transfer the file setup.sh to the control-plane node. SSH into the host machine of control-plane. Execute the script.

    Create a Deployment named test-app with the container image nginx:1.29.1 with 3 replicas.

    Identify which cluster component is failing on the control-plane node. Diagnose the root cause of the failure. Fix the component to restore proper cluster operation. Verify that Pod scheduling is working again.

Appendix A. Answers to Review Questions

Chapter 4, Cluster Installation and Upgrade

  1. List the cluster nodes using the following command. You should see

    $ kubectl get nodes
    NAME           STATUS   ROLES           AGE     VERSION
    minikube       Ready    control-plane   2m20s   v1.32.2
    minikube-m02   Ready    <none>          2m10s   v1.32.2
    minikube-m03   Ready    <none>          2m3s    v1.32.2
    minikube-m04   Ready    <none>          116s    v1.32.2


    Schedule the Pod using the following imperative command.

    $ kubectl run nginx --image=nginx:1.27.4-alpine


    You can identify the node the Pod is running, as shown below. The Pod is running on the node named minikube-m02.

    $ kubectl get pod nginx -o jsonpath='{.spec.nodeName}'
    minikube-m02


    Use the kubectl drain command to evict all Pods on a node. Here, the node name is minikube-m02. You’ll need to use the --ignore-daemonsets flag to only delete Pods that are not managed by a DaemonSet, and the --force flag to delete Pods without a controller.

    $ kubectl drain minikube-m02 --ignore-daemonsets --force
    evicting pod default/nginx
    pod/nginx evicted
    node/minikube-m02 drained

  2. The solution to this sample exercise requires a lot of manual steps. The following commands do not render their output.

    Open an interactive shell to the control plane node using Vagrant:

    $ vagrant ssh kube-control-plane


    Upgrade kubeadm to version 1.32.2 and apply it:

    $ sudo apt-mark unhold kubeadm && sudo apt-get update && sudo apt-get \
      install -y kubeadm=1.32.2-1.1 && sudo apt-mark hold kubeadm
    $ sudo kubeadm upgrade apply v1.32.2


    Drain the node, upgrade the kubelet and kubectl, restart the kubelet, and uncordon the node:

    $ kubectl drain kube-control-plane --ignore-daemonsets
    $ sudo apt-get update && sudo apt-get install -y \
      --allow-change-held-packages kubelet=1.32.2-1.1 kubectl=1.32.2-1.1
    $ sudo systemctl daemon-reload
    $ sudo systemctl restart kubelet
    $ kubectl uncordon kube-control-plane


    The version of the node should now say v1.32.2. Exit the node:

    $ kubectl get nodes
    $ exit


    Open an interactive shell to the worker node using Vagrant. Repeat all of the following steps for the other worker nodes:

    $ vagrant ssh kube-worker-1


    Upgrade kubeadm to version 1.32.2 and apply it to the node:

    $ sudo apt-get update && sudo apt-get install -y \
      --allow-change-held-packages kubeadm=1.32.2-1.1
    $ sudo kubeadm upgrade node


    Drain the node, upgrade the kubelet and kubectl, restart the kubelet, and uncordon the node:

    $ kubectl drain kube-worker-1 --ignore-daemonsets
    $ sudo apt-get update && sudo apt-get install -y \
      --allow-change-held-packages kubelet=1.32.2-1.1 kubectl=1.32.2-1.1
    $ sudo systemctl daemon-reload
    $ sudo systemctl restart kubelet
    $ kubectl uncordon kube-worker-1


    The version of the node should now say v1.32.2. Exit the node:

    $ kubectl get nodes
    $ exit


Chapter 5, Backing Up and Restoring etcd

  1. Open an interactive shell to the control plane node using Vagrant.

    $ vagrant ssh kube-control-plane


    The etcd Pod runs in the kube-system namespace. Identify the Pod by listing all Pods in the namespace. You should find the Pod named etcd-kube-control-plane.

    $ kubectl get pods -n kube-system


    The etcd Pod only runs a single container. You can render the details of the Pod using the kubectl get or kubectl describe command. To select only the container image, use the following JSONPath.

    $ kubectl get pod etcd-kube-control-plane -n kube-system \
      -o jsonpath="{.spec.containers[0].image}"


    The container uses the image registry.k8s.io/etcd:3.5.16-0. The etcd version used is 3.5.16. Write the version to the file named etcd-version.txt. You can view all released etcd versions in the corresponding GitHub repository.

    $ echo "3.5.16" > etcd-version.txt


    Exit the node:

    $ exit

  2. The solution to this sample exercise requires a lot of manual steps. The following commands do not render their output.

    Open an interactive shell to the control plane node using Vagrant.

    $ vagrant ssh kube-control-plane


    Determine the parameters of the Pod etcd-kube-control-plane by describing it. Use the correct parameter values to create a snapshot file:

    $ kubectl describe pod etcd-kube-control-plane -n kube-system
    $ sudo ETCDCTL_API=3 etcdctl --cacert=/etc/kubernetes/pki/etcd/ca.crt \
      --cert=/etc/kubernetes/pki/etcd/server.crt \
      --key=/etc/kubernetes/pki/etcd/server.key snapshot save /opt/etcd.bak


    Restore the backup from the snapshot file. Edit the etcd YAML manifest and change the value of spec.volumes.hostPath.path for the volume named etcd-data to /var/bak:

    $ sudo ETCDCTL_API=3 etcdutl --data-dir=/var/bak snapshot restore \
      /opt/etcd.bak
    $ sudo vim /etc/kubernetes/manifests/etcd.yaml


    After a short while, the Pod etcd-kube-control-plane should transition back into the “Running” status. Exit the node:

    $ kubectl get pod etcd-kube-control-plane -n kube-system
    $ exit


Chapter 6, Authentication, Authorization, and Admission Control

  1. Use the kubectl create clusterrole command to create the Role imperatively:

    $ kubectl create clusterrole service-view --verb=get,list \
      --resource=services


    If you’d rather start with the YAML file, use content shown in the file service-view-clusterrole.yaml:

    apiVersion: rbac.authorization.k8s.io/v1
    kind: ClusterRole
    metadata:
      name: service-view
    rules:
    - apiGroups: [""]
      resources: ["services"]
      verbs: ["get", "list"]

    Create the ClusterRole from the YAML file:

    $ kubectl apply -f service-view-clusterrole.yaml


    Use the kubectl create rolebinding command to create the RoleBinding imperatively:

    $ kubectl create rolebinding ellasmith-service-view --user=ellasmith \
      --clusterrole=service-view -n development


    The declarative approach of the RoleBinding could look like the one in the file ellasmith-service-view-rolebinding.yaml:

    apiVersion: rbac.authorization.k8s.io/v1
    kind: RoleBinding
    metadata:
      name: ellasmith-service-view
      namespace: development
    roleRef:
      apiGroup: rbac.authorization.k8s.io
      kind: ClusterRole
      name: service-view
    subjects:
    - kind: User
      name: ellasmith
      apiGroup: rbac.authorization.k8s.io

    Create the RoleBinding from the YAML file:

    $ kubectl apply -f ellasmith-service-view-rolebinding.yaml


    Use the kubectl create clusterrole command to create the ClusterRole imperatively:

    $ kubectl create clusterrole combined \
      --aggregation-rule="rbac.cka.cncf.com/aggregate=true"


    If you’d rather start with the YAML file, use content shown in the file combined-clusterrole.yaml:

    apiVersion: rbac.authorization.k8s.io/v1
    kind: ClusterRole
    metadata:
      name: combined
    aggregationRule:
      clusterRoleSelectors:
      - matchLabels:
          rbac.cka.cncf.com/aggregate: "true"
    rules: []

    Create the ClusterRole from the YAML file:

    $ kubectl apply -f combined-clusterrole.yaml


    Rendering the rules shows an empty list as no ClusterRoles were selected by label selection:

    $ kubectl describe clusterrole combined
    Name:         combined
    Labels:       <none>
    Annotations:  <none>
    PolicyRule:
      Resources  Non-Resource URLs  Resource Names  Verbs
      ---------  -----------------  --------------  -----


    Use the kubectl create clusterrole command to create the ClusterRole imperatively. The command does not provide an option for adding a label. Therefore, generating the YAML manifest using the dry-run option is a good start:

    $ kubectl create clusterrole deployment-modify \
      --verb=create,delete,patch,update --resource=deployments \
      --dry-run=client -o yaml > deployment-modify-clusterrole.yaml


    Modify the content shown in the file deployment-modify-clusterrole.yaml:

    apiVersion: rbac.authorization.k8s.io/v1
    kind: ClusterRole
    metadata:
      name: deployment-modify
      labels:
        rbac.cka.cncf.com/aggregate: "true"
    rules:
    - apiGroups: ["apps"]
      resources: ["deployments"]
      verbs: ["create", "delete", "patch", "update"]

    Create the ClusterRole from the YAML file:

    $ kubectl apply -f deployment-modify-clusterrole.yaml


    Rendering the rules for the Clusterrole combined lists the rules defined by the ClusterRole deployment-modify:

    $ kubectl describe clusterrole combined
    Name:         combined
    Labels:       <none>
    Annotations:  <none>
    PolicyRule:
      Resources         Non-Resource URLs  Resource Names  Verbs
      ---------         -----------------  --------------  -----
      deployments.apps  []                 []              [create \
      delete patch update]


    Listing Services is allowed for the user ellasmith in the namespace development. This is taken care by RoleBinding ellasmith-service-view:

    $ kubectl auth can-i list services --as=ellasmith --namespace=development
    yes


    Write the output the file list-services-ellasmith.txt.

    $ echo 'yes' > list-services-ellasmith.txt


    Watching Deployments is not allowed for the user ellasmith in the namespace production. The ClusterRole named deployment-modify only allows the verbs create, delete, patch, and update.

    $ kubectl auth can-i watch deployments --as=ellasmith --namespace=production
    no


    Write the output the file watch-deployments-ellasmith.txt.

    $ echo 'no' > watch-deployments-ellasmith.txt


    Deployments are allowed to be created, deleted, patched, and updated.

  2. First, create the namespace named apps. Then, we’ll create the ServiceAccount:

    $ kubectl create namespace apps
    $ kubectl create serviceaccount api-access -n apps


    Alternatively, you can use the declarative approach. Create the namespace from the definition in the file apps-namespace.yaml:

    apiVersion: v1
    kind: Namespace
    metadata:
      name: apps

    Create the namespace from the YAML file:

    $ kubectl apply -f apps-namespace.yaml


    Create a new YAML file called api-serviceaccount.yaml with the following contents:

    apiVersion: v1
    kind: ServiceAccount
    metadata:
      name: api-access
      namespace: apps

    Run the apply command to instantiate the ServiceAccount from the YAML file:

    $ kubectl create -f api-serviceaccount.yaml


    Use the create clusterrole command to create the ClusterRole imperatively:

    $ kubectl create clusterrole api-clusterrole --verb=watch,list,get \
      --resource=pods


    If you’d rather start with the YAML file, use content shown in the file api-clusterrole.yaml:

    apiVersion: rbac.authorization.k8s.io/v1
    kind: ClusterRole
    metadata:
      name: api-clusterrole
    rules:
    - apiGroups: [""]
      resources: ["pods"]
      verbs: ["watch","list","get"]

    Create the ClusterRole from the YAML file:

    $ kubectl apply -f api-clusterrole.yaml


    Use the create clusterrolebinding command to create the ClusterRoleBinding imperatively.

    $ kubectl create clusterrolebinding api-clusterrolebinding \
      --serviceaccount=apps:api-access --clusterrole=api-clusterrole


    The declarative approach of the ClusterRoleBinding could look like the one in the file api-clusterrolebinding.yaml:

    apiVersion: rbac.authorization.k8s.io/v1
    kind: ClusterRoleBinding
    metadata:
      name: api-clusterrolebinding
    roleRef:
      apiGroup: rbac.authorization.k8s.io
      kind: ClusterRole
      name: api-clusterrole
    subjects:
    - apiGroup: ""
      kind: ServiceAccount
      name: api-access
      namespace: apps

    Create the ClusterRoleBinding from the YAML file:

    $ kubectl apply -f api-clusterrolebinding.yaml


    Execute the run command to create the Pods in the different namespaces. You will need to create the namespace rm before you can instantiate the Pod disposable:

    $ kubectl run operator --image=nginx:1.21.1 --restart=Never \
      --port=80 --serviceaccount=api-access -n apps
    $ kubectl create namespace rm
    $ kubectl run disposable --image=nginx:1.21.1 --restart=Never \
      -n rm


    The following YAML manifest shows the rm namespace definition stored in the file rm-namespace.yaml:

    apiVersion: v1
    kind: Namespace
    metadata:
      name: rm

    The YAML representation of those Pods stored in the file api-pods.yaml could look as follows:

    apiVersion: v1
    kind: Pod
    metadata:
      name: operator
      namespace: apps
    spec:
      serviceAccountName: api-access
      containers:
      - name: operator
        image: nginx:1.21.1
        ports:
        - containerPort: 80
    ---
    apiVersion: v1
    kind: Pod
    metadata:
      name: disposable
      namespace: rm
    spec:
      containers:
      - name: disposable
        image: nginx:1.21.1

    Create the namespace and Pods from the YAML files:

    $ kubectl create -f rm-namespace.yaml
    $ kubectl create -f api-pods.yaml


    Determine the API server endpoint and the Secret access token of the ServiceAccount. You will need this information for making the API calls:

    $ kubectl config view --minify -o \
      jsonpath='{.clusters[0].cluster.server}'
    https://192.168.64.4:8443
    $ kubectl get secret $(kubectl get serviceaccount api-access -n apps \
      -o jsonpath='{.secrets[0].name}') -o jsonpath='{.data.token}' -n apps \
      | base64 --decode
    eyJhbGciOiJSUzI1NiIsImtpZCI6Ii1hOUhI...


    Open an interactive shell to the Pod named operator:

    $ kubectl exec operator -it -n apps -- /bin/sh


    Emit API calls for listing all Pods and deleting the Pod disposable living in the rm namespace. You will find that while the list operation is permitted, the delete operation isn’t:

    # curl https://192.168.64.4:8443/api/v1/namespaces/rm/pods --header \
    "Authorization: Bearer eyJhbGciOiJSUzI1NiIsImtpZCI6Ii1hOUhI..." \
    --insecure
    {
        "kind": "PodList",
        "apiVersion": "v1",
        ...
    }
    # curl -X DELETE https://192.168.64.4:8443/api/v1/namespaces \
    /rm/pods/disposable --header \
    "Authorization: Bearer eyJhbGciOiJSUzI1NiIsImtpZCI6Ii1hOUhI..." \
    --insecure
    {
      "kind": "Status",
      "apiVersion": "v1",
      "metadata": {

      },
      "status": "Failure",
      "message": "pods \"disposable\" is forbidden: User \
      \"system:serviceaccount:apps:api-access\" cannot delete \
      resource \"pods\" in
      API group \"\" in the namespace \"rm\"",
      "reason": "Forbidden",
      "details": {
        "name": "disposable",
        "kind": "pods"
      },
      "code": 403
    }

Chapter 7, Custom Resource Definitions (CRDs) and Operators

  1. Create the CRD from the provided URL:

    $ kubectl apply -f https://raw.githubusercontent.com/mongodb/\
    mongodb-kubernetes-operator/master/config/crd/bases/mongodbcommunity.\
    mongodb.com_mongodbcommunity.yaml
    customresourcedefinition.apiextensions.k8s.io/mongodbcommunity.\
    mongodbcommunity.mongodb.com created


    You can find the installed CRD named mongodbcommunity.mongodbcommunity.mongodb.com with the following command:

    $ kubectl get crds
    NAME                                            CREATED AT
    mongodbcommunity.mongodbcommunity.mongodb.com   2023-12-18T23:44:04Z


    One way to inspect the schema of the CRD is to use the kubectl describe command:

    $ kubectl describe crds mongodbcommunity.mongodbcommunity.mongodb.com


    You will find that the output of the command is very lengthy. Looking through the details, you will see that the type is called MongoDBCommunity. The CRD offers a lot of properties that can be set when instantiating an object of this type. See the documentation of the operator for more information.

  2. Create the object from the YAML manifest file:

    $ kubectl apply -f backup-resource.yaml
    customresourcedefinition.apiextensions.k8s.io/backups.example.com created


    You can interact with CRD using the following command. Make sure to spell out the full name of the CRD, backups.example.com:

    $ kubectl get crd backups.example.com
    NAME                  CREATED AT
    backups.example.com   2023-05-24T15:11:15Z
    $ kubectl describe crd backups.example.com
    ...


    Create the YAML manifest in file backup.yaml that uses the CRD kind Backup:

    apiVersion: example.com/v1
    kind: Backup
    metadata:
      name: nginx-backup
    spec:
      cronExpression: "0 0 * * *"
      podName: nginx
      path: /usr/local/nginx

    Create the object from the YAML manifest file:

    $ kubectl apply -f backup.yaml
    backup.example.com/nginx-backup created


    You can interact with the object using the built-in kubectl commands for any other Kubernetes API primitive:

    $ kubectl get backups
    NAME           AGE
    nginx-backup   24s
    $ kubectl describe backup nginx-backup
    ...


Chapter 8, Helm and Kustomize

  1. Add the Helm chart repository using the provided URL. The name assigned to the URL is prometheus-community:

    $ helm repo add prometheus-community https://prometheus-community.\
    github.io/helm-charts
    "prometheus-community" has been added to your repositories


    Update the chart information with the following command:

    $ helm repo update prometheus-community
    Hang tight while we grab the latest from your chart repositories...
    ...Successfully got an update from the "prometheus-community" \
    chart repository
    Update Complete. ⎈Happy Helming!⎈


    You can search published chart versions in the the repository named prometheus-community:

    $ helm search hub prometheus-community
    URL                                                  CHART VERSION   ...
    https://artifacthub.io/packages/helm/prometheus...   70.3.0          ...


    Install the latest version of the chart kube-prometheus-stack:

    $ helm install prometheus prometheus-community/kube-prometheus-stack
    NAME: prometheus
    LAST DEPLOYED: Wed Mar 26 14:14:53 2025
    NAMESPACE: default
    STATUS: deployed
    REVISION: 1
    ...


    The installed charts can be listed with the following command:

    $ helm list
    NAME         NAMESPACE   REVISION   UPDATED    ...
    prometheus   default     1          2025-03-26 ...


    One of the objects created by the chart is the Service named prometheus-operated. This Service exposes the Prometheus dashboard on port 9090:

    $ kubectl get service prometheus-operated
    NAME                  TYPE        CLUSTER-IP   EXTERNAL-IP   ...
    prometheus-operated   ClusterIP   None         <none>  ...


    Set up port forwarding from port 8080 to port 9090:

    $ kubectl port-forward service/prometheus-operated 8080:9090
    Forwarding from 127.0.0.1:8080 -> 9090
    Forwarding from [::1]:8080 -> 9090


    Open a browser and enter the URL http://localhost:8080/. You will be presented with the Prometheus dashboard.

    prometheus dashboard

    Uninstall the chart with the following command:

    $ helm uninstall prometheus
    release "prometheus" uninstalled

  2. Navigate to the folder containing the manifests directory. Create all objects contained in the manifests directory using the recursive apply command:

    $ kubectl apply -f manifests/ -R
    configmap/logs-config created
    pod/nginx created


    Modify the value of the key dir in the file configmap.yaml using an editor. Then update the live object of the ConfigMap using the following command:

    $ vim manifests/configmap.yaml
    $ kubectl apply -f manifests/configmap.yaml
    configmap/logs-config configured


    Delete all objects that have been created from the manifests directory using the recursive delete command:

    $ kubectl delete -f manifests/ -R
    configmap "logs-config" deleted
    pod "nginx" deleted


    Create the file kustomization.yaml. It should define the common attribute for the namespace and reference the resource with the file pod.yaml. The following YAML file shows its contents:

    namespace: t012
    resources:
    - pod.yaml

    Run the following kustomize command to render the transformed manifest as console output:

    $ kubectl kustomize ./
    apiVersion: v1
    kind: Pod
    metadata:
      name: nginx
      namespace: t012
    spec:
      containers:
      - image: nginx:1.21.1
        name: nginx


Chapter 9, Pods and Namespaces

  1. You can either use the imperative approach or the declarative approach. First, we’ll look at creating the namespace with the imperative approach:

    $ kubectl create namespace j43


    Create the Pod:

    $ kubectl run nginx --image=nginx:1.17.10 --port=80 --namespace=j43


    Alternatively, you can use the declarative approach. Create a new YAML manifest in the file called namespace.yaml with the following contents:

    apiVersion: v1
    kind: Namespace
    metadata:
      name: j43

    Create the namespace from the YAML manifest:

    $ kubectl apply -f namespace.yaml


    Create a new YAML manifest in the file nginx-pod.yaml with the following contents:

    apiVersion: v1
    kind: Pod
    metadata:
      name: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:1.17.10
        ports:
        - containerPort: 80

    Create the Pod from the YAML manifest:

    $ kubectl apply -f nginx-pod.yaml --namespace=j43


    You can use the command-line option -o wide to retrieve the IP address of the Pod:

    $ kubectl get pod nginx --namespace=j43 -o wide


    The same information is available if you query for the Pod details:

    $ kubectl describe pod nginx --namespace=j43 | grep IP:


    You can use the command-line options --rm and -it to start a temporary Pod. The following command assumes that the IP address of the Pod named nginx is 10.1.0.66:

    $ kubectl run busybox --image=busybox:1.36.1 --restart=Never --rm -it \
      -n j43 -- wget -O- 10.1.0.66:80


    To download the logs, use a simple logs command:

    $ kubectl logs nginx --namespace=j43


    Editing the live object is forbidden. You will receive an error message if you try to add the environment variables:

    $ kubectl edit pod nginx --namespace=j43


    You will have to re-create the object with a modified YAML manifest, but first you’ll have to delete the existing object:

    $ kubectl delete pod nginx --namespace=j43


    Edit the existing YAML manifest in the file nginx-pod.yaml:

    apiVersion: v1
    kind: Pod
    metadata:
      name: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:1.17.10
        ports:
        - containerPort: 80
        env:
        - name: DB_URL
          value: postgresql://mydb:5432
        - name: DB_USERNAME
          value: admin

    Apply the changes:

    $ kubectl apply -f nginx-pod.yaml --namespace=j43


    Use the exec command to open an interactive shell to the container:

    $ kubectl exec -it nginx --namespace=j43 -- /bin/sh
    # ls -l

  2. Combine the command-line options -o yaml and --dry-run=client to write the generated YAML to a file. Make sure to escape the double-quote characters of the string rendered by the echo command:

    $ kubectl run loop --image=busybox:1.36.1 -o yaml --dry-run=client \
      --restart=Never -- /bin/sh -c 'for i in 1 2 3 4 5 6 7 8 9 10; \
      do echo "Welcome $i times"; done' \
      > pod.yaml


    Create the Pod from the YAML manifest:

    $ kubectl apply -f pod.yaml --namespace=j43


    The status of the Pod will say Completed, as the executed command in the container does not run in an infinite loop:

    $ kubectl get pod loop --namespace=j43


    The container command cannot be changed for existing Pods. Delete the Pod so you can modify the manifest file and re-create the object:

    $ kubectl delete pod loop --namespace=j43


    Change the YAML manifest content:

    apiVersion: v1
    kind: Pod
    metadata:
      creationTimestamp: null
      labels:
        run: loop
      name: loop
    spec:
      containers:
      - args:
        - /bin/sh
        - -c
        - while true; do date; sleep 10; done
        image: busybox:1.36.1
        name: loop
        resources: {}
      dnsPolicy: ClusterFirst
      restartPolicy: Never
    status: {}

    Create the Pod from the YAML manifest:

    $ kubectl apply -f pod.yaml --namespace=j43


    You can describe the Pod events by grepping for the term:

    $ kubectl describe pod loop --namespace=j43 | grep -C 10 Events:


    You can simply delete the namespace, which will delete all objects within the namespace:

    $ kubectl delete namespace j43


Chapter 10, ConfigMaps and Secrets

  1. Create the ConfigMap and point to the text file upon creation:

    $ kubectl create configmap app-config --from-file=application.yaml
    configmap/app-config created


    The ConfigMap defines a single key-value pair. The key is the name of the YAML file, and the value is the contents of application.yaml:

    $ kubectl get configmap app-config -o yaml
    apiVersion: v1
    data:
      application.yaml: |-
        dev:
          url: http://dev.bar.com
          name: Developer Setup
        prod:
          url: http://foo.bar.com
          name: My Cool App
    kind: ConfigMap
    metadata:
      creationTimestamp: "2023-05-22T17:47:52Z"
      name: app-config
      namespace: default
      resourceVersion: "7971"
      uid: 00cf4ce2-ebec-48b5-a721-e1bde2aabd84


    Execute the run command in combination with the --dry-run flag to generate the file for the Pod:

    $ kubectl run backend --image=nginx:1.23.4-alpine -o yaml \
      --dry-run=client --restart=Never > pod.yaml


    The final YAML manifest should look similar to the following code snippet:

    apiVersion: v1
    kind: Pod
    metadata:
      labels:
        run: backend
      name: backend
    spec:
      containers:
      - image: nginx:1.23.4-alpine
        name: backend
        volumeMounts:
        - name: config-volume
          mountPath: /etc/config
      volumes:
      - name: config-volume
        configMap:
          name: app-config

    Create the Pod by pointing the apply command to the YAML manifest:

    $ kubectl apply -f pod.yaml
    pod/backend created


    Log into the Pod and navigate to the directory /etc/config. You will find the file application.yaml with the expected YAML content:

    $ kubectl exec backend -it -- /bin/sh
    / # cd /etc/config
    /etc/config # ls
    application.yaml
    /etc/config # cat application.yaml
    dev:
      url: http://dev.bar.com
      name: Developer Setup
    prod:
      url: http://foo.bar.com
      name: My Cool App
    /etc/config # exit

  2. It’s easy to create the Secret from the command line:

    $ kubectl create secret generic db-credentials --from-literal=\
    db-password=passwd
    secret/db-credentials created


    The imperative command automatically Base64-encodes the provided value of the literal. You can render the details of the Secret object from the command line. The assigned value to the key db-password is cGFzc3dk:

    $ kubectl get secret db-credentials -o yaml
    apiVersion: v1
    data:
      db-password: cGFzc3dk
    kind: Secret
    metadata:
      creationTimestamp: "2023-05-22T16:47:33Z"
      name: db-credentials
      namespace: default
      resourceVersion: "7557"
      uid: 2daf580a-b672-40dd-8c37-a4adb57a8c6c
    type: Opaque


    Execute the run command in combination with the --dry-run flag to generate the file for the Pod:

    $ kubectl run backend --image=nginx:1.23.4-alpine -o yaml \
      --dry-run=client --restart=Never > pod.yaml


    Edit the YAML manifest and create an environment that reads the key from the Secret while assigning a new name for it.

    apiVersion: v1
    kind: Pod
    metadata:
      labels:
        run: backend
      name: backend
    spec:
      containers:
      - image: nginx:1.23.4-alpine
        name: backend
        env:
          - name: DB_PASSWORD
            valueFrom:
              secretKeyRef:
                name: db-credentials
                key: db-password

    Create the Pod by pointing the apply command to the YAML manifest:

    $ kubectl apply -f pod.yaml
    pod/backend created


    You can find the environment variable in Base64-decoded form by shelling into the container and running the env command:

    $ kubectl exec -it backend -- env
    DB_PASSWORD=passwd


Chapter 11, Deployments and ReplicaSets

  1. Execute the command to create the Deployment object. You will see an error message.

    $ kubectl apply -f fix-me-deployment.yaml
    The Deployment "nginx-deployment" is invalid: spec.template.metadata.labels:\
     Invalid value: map[string]string{"app":"nginx"}: `selector` does not \
     match template `labels`


    The label selector does not match with the assigned labels in the Pod template. Change the manifest so that they line up. The manifest shown below uses run: server under spec.selector.matchLabels and spec.template.metadata.labels.

    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: nginx-deployment
      labels:
        app: nginx
    spec:
      replicas: 3
      selector:
        matchLabels:
          run: server
      template:
        metadata:
          labels:
            run: server
        spec:
          containers:
          - name: nginx
            image: nginx:1.14.2
            ports:
            - containerPort: 80

    You should now be able to create the object.

    $ kubectl apply -f fix-me-deployment.yaml
    deployment.apps/nginx-deployment created

  2. Create the YAML manifest for a Deployment in the file nginx-deployment.yaml. The label selector should match the labels assigned to the Pod template. The following code snippet shows the contents of the YAML manifest file:

    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: nginx
      labels:
        tier: backend
    spec:
      replicas: 3
      selector:
        matchLabels:
          app: v1
      template:
        metadata:
          labels:
            app: v1
        spec:
          containers:
          - image: nginx:1.23.0
            name: nginx

    Create the deployment by pointing it to the YAML manifest. Check on the Deployment status:

    $ kubectl apply -f nginx-deployment.yaml
    deployment.apps/nginx created
    $ kubectl get deployment nginx
    NAME    READY   UP-TO-DATE   AVAILABLE   AGE
    nginx   3/3     3            3           10s


    Set the new image and check the revision history:

    $ kubectl set image deployment/nginx nginx=nginx:1.23.4
    deployment.apps/nginx image updated
    $ kubectl rollout history deployment nginx
    deployment.apps/nginx
    REVISION  CHANGE-CAUSE
    1         <none>
    2         <none>
    $ kubectl rollout history deployment nginx --revision=2
    deployment.apps/nginx with revision #2
    Pod Template:
      Labels:	app=v1
    	pod-template-hash=5bd95c598
      Containers:
       nginx:
        Image:	nginx:1.23.4
        Port:	<none>
        Host Port:	<none>
        Environment:	<none>
        Mounts:	<none>
      Volumes:	<none>


    Add the change cause to the current revision by annotating the Deployment object:

    $ kubectl annotate deployment nginx kubernetes.io/change-cause=\
    "Pick up patch version"
    deployment.apps/nginx annotated


    The revision change cause can be inspected by rendering the rollout history:

    $ kubectl rollout history deployment nginx
    deployment.apps/nginx
    REVISION  CHANGE-CAUSE
    1         <none>
    2         Pick up patch version


    Now, scale the Deployment to 5 replicas. You should find 5 Pods controlled by the Deployment:

    $ kubectl scale deployment nginx --replicas=5
    deployment.apps/nginx scaled
    $ kubectl get pod -l app=v1
    NAME                    READY   STATUS    RESTARTS   AGE
    nginx-5bd95c598-25z4j   1/1     Running   0          3m39s
    nginx-5bd95c598-46mlt   1/1     Running   0          3m38s
    nginx-5bd95c598-bszvp   1/1     Running   0          48s
    nginx-5bd95c598-dwr8r   1/1     Running   0          48s
    nginx-5bd95c598-kjrvf   1/1     Running   0          3m37s


    Roll back to revision 1. You will see the new revision. Inspecting the revision should show the image nginx:1.23.0:

    $ kubectl rollout undo deployment/nginx --to-revision=1
    deployment.apps/nginx rolled back
    $ kubectl rollout history deployment nginx
    deployment.apps/nginx
    REVISION  CHANGE-CAUSE
    2         Pick up patch version
    3         <none>
    $ kubectl rollout history deployment nginx --revision=3
    deployment.apps/nginx with revision #3
    Pod Template:
      Labels:	app=v1
    	pod-template-hash=f48dc88cd
      Containers:
       nginx:
        Image:	nginx:1.23.0
        Port:	<none>
        Host Port:	<none>
        Environment:	<none>
        Mounts:	<none>
      Volumes:	<none>


Chapter 12, Scaling Workloads

  1. Create a new YAML file named hello-world-deployment.yaml with the contents shown below:

    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: hello-world
    spec:
      replicas: 3
      selector:
        matchLabels:
          run: hello-world
      template:
        metadata:
          labels:
            run: hello-world
        spec:
          containers:
          - image: bmuschko/nodejs-hello-world:1.0.0
            name: hello-world

    Create the Deployment object from the manifest file:

    $ kubectl apply -f hello-world-deployment.yaml
    deployment.apps/hello-world created


    Ensure the correct number of replicas. You should see 3 replicas ready.

    $ kubectl get deployment hello-world
    NAME          READY   UP-TO-DATE   AVAILABLE   AGE
    hello-world   3/3     3            3           32s


    Modify the YAML file hello-world-deployment.yaml by editing it will an editor. Change the value of the attribute `spec.replicas to 8. The following command uses vim.

    $ vim hello-world-deployment.yaml
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: hello-world
    spec:
      replicas: 8
    ...


    Apply the changes to the existing object.

    $ kubectl apply -f hello-world-deployment.yaml
    deployment.apps/hello-world configured


    Ensure the correct number of replicas. You should see 8 replicas ready.

    $ kubectl get deployment hello-world
    NAME          READY   UP-TO-DATE   AVAILABLE   AGE
    hello-world   8/8     8            8           56s

  2. Define the Deployment in the file nginx-deployment.yaml, as shown:

    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: nginx
    spec:
      replicas: 1
      selector:
        matchLabels:
          app: nginx
      template:
        metadata:
          labels:
            app: nginx
        spec:
          containers:
          - image: nginx:1.23.4
            name: nginx
            resources:
              requests:
                cpu: "0.5"
                memory: "500Mi"
              limits:
                memory: "500Mi"

    Create the Deployment object from the manifest file:

    $ kubectl apply -f nginx-deployment.yaml
    deployment.apps/nginx created


    Ensure that all Pods controlled by the Deployment transition into “Running” status:

    $ kubectl get deployment nginx
    NAME    READY   UP-TO-DATE   AVAILABLE   AGE
    nginx   1/1     1            1           49s
    $ kubectl get pods
    NAME                    READY   STATUS    RESTARTS   AGE
    nginx-5bbd9746c-9b4np   1/1     Running   0          24s


    Next, define the HorizontalPodAutoscaler with the given resource thresholds in the file nginx-hpa.yaml. The final manifest is shown here:

    apiVersion: autoscaling/v2
    kind: HorizontalPodAutoscaler
    metadata:
      name: nginx-hpa
    spec:
      scaleTargetRef:
        apiVersion: apps/v1
        kind: Deployment
        name: nginx
      minReplicas: 3
      maxReplicas: 8
      metrics:
      - type: Resource
        resource:
          name: cpu
          target:
            type: Utilization
            averageUtilization: 75
      - type: Resource
        resource:
          name: memory
          target:
            type: Utilization
            averageUtilization: 60

    Create the HorizontalPodAutoscaler object from the manifest file:

    $ kubectl apply -f nginx-hpa.yaml
    horizontalpodautoscaler.autoscaling/nginx-hpa created


    When you inspect the HorizontalPodAutoscaler object, you will find that the number of replicas will be scaled up to the minimum number 3 even though the Deployment defines only a single replica. At the time of running this command, Pods are not using a significant amount of CPU and memory. That’s why the current metrics show 0%:

    $ kubectl get hpa nginx-hpa
    NAME        REFERENCE          TARGETS          MINPODS   MAXPODS \
      REPLICAS   AGE
    nginx-hpa   Deployment/nginx   0%/60%, 0%/75%   3         8       \
      3          2m19s


Chapter 13, Resource Requirements, Limits, and Quotas

  1. Start by creating a basic definition of a Pod. The following YAML manifest defines the Pod named hello with a single container running the image bmuschko/nodejs-hello-world:1.0.0. Add a Volume of type emptyDir to the Pod and mount it in the container. Finally, define the resource requirements for the container:

    apiVersion: v1
    kind: Pod
    metadata:
      name: hello
    spec:
      containers:
      - image: bmuschko/nodejs-hello-world:1.0.0
        name: hello
        ports:
        - name: nodejs-port
          containerPort: 3000
        volumeMounts:
        - name: log-volume
          mountPath: "/var/log"
        resources:
          requests:
            cpu: 100m
            memory: 500Mi
            ephemeral-storage: 1Gi
          limits:
            memory: 500Mi
            ephemeral-storage: 2Gi
      volumes:
      - name: log-volume
        emptyDir: {}

    Create the Pod object with the following command:

    $ kubectl apply -f pod.yaml
    pod/hello created


    The cluster in this scenario consists of three nodes: one control plane node and two worker nodes. Be aware that your setup will likely look different:

    $ kubectl get nodes
    NAME           STATUS   ROLES           AGE   VERSION
    minikube       Ready    control-plane   65s   v1.32.2
    minikube-m02   Ready    <none>          44s   v1.32.2
    minikube-m03   Ready    <none>          26s   v1.32.2


    The -o wide flag renders the node that the Pod is running on, in this case the node named minikube-m03:

    $ kubectl get pod hello -o wide
    NAME    READY   STATUS    RESTARTS   AGE   IP           NODE
    hello   1/1     Running   0          25s   10.244.2.2   minikube-m03


    The details of the Pod provide information about the container’s resource requirements:

    $ kubectl describe pod hello
    ...
    Containers:
      hello:
        ...
        Limits:
          ephemeral-storage:  2Gi
          memory:             500Mi
        Requests:
          cpu:                100m
          ephemeral-storage:  1Gi
          memory:             500M
    ...

  2. First, create the namespace and the resource quota in the namespace:

    $ kubectl create namespace rq-demo
    namespace/rq-demo created
    $ kubectl apply -f resourcequota.yaml --namespace=rq-demo
    resourcequota/app created


    Inspect the details of the resource quota:

    $ kubectl describe quota app --namespace=rq-demo
    Name:            app
    Namespace:       rq-demo
    Resource         Used  Hard
    --------         ----  ----
    pods             0     2
    requests.cpu     0     2
    requests.memory  0     500Mi


    Next, create the YAML manifest in the file pod.yaml with more requested memory than available in the quota. Start by running the command kubectl run mypod --image=nginx -o yaml --dry-run=client --restart=Never > pod.yaml, and then edit the produced file. Remember to replace the resources attribute that has been created automatically:

    apiVersion: v1
    kind: Pod
    metadata:
      name: mypod
    spec:
      containers:
      - image: nginx
        name: mypod
        resources:
          requests:
            cpu: "0.5"
            memory: "1Gi"
      restartPolicy: Never

    Create the Pod and observe the error message:

    $ kubectl apply -f pod.yaml --namespace=rq-demo
    Error from server (Forbidden): error when creating "pod.yaml": pods \
    "mypod" is forbidden: exceeded quota: app, requested: \
    requests.memory=1Gi, used: requests.memory=0, limited: \
    requests.memory=500Mi


    Lower the memory settings to less than 500Mi (e.g., 255Mi) and create the Pod:

    $ kubectl apply -f pod.yaml --namespace=rq-demo
    pod/mypod created


    The consumed resources of the Pod can be viewed in column Used:

    $ kubectl describe quota --namespace=rq-demo
    Name:            app
    Namespace:       rq-demo
    Resource         Used   Hard
    --------         ----   ----
    pods             1      2
    requests.cpu     500m   2
    requests.memory  255Mi  500Mi

  3. Create the objects from the given YAML manifest. The file defines a namespace and a LimitRange object:

    $ kubectl apply -f setup.yaml
    namespace/d92 created
    limitrange/cpu-limit-range created


    Describing the LimitRange object gives away its container configuration details:

    $ kubectl describe limitrange cpu-limit-range -n d92
    Name:       cpu-limit-range
    Namespace:  d92
    Type        Resource  Min   Max   Default Request  Default Limit   ...
    ----        --------  ---   ---   ---------------  -------------
    Container   cpu       200m  500m  500m             500m            ...


    Define a Pod in the file pod-without-resource-requirements.yaml without any resource requirements:

    apiVersion: v1
    kind: Pod
    metadata:
      name: pod-without-resource-requirements
      namespace: d92
    spec:
      containers:
      - image: nginx:1.23.4-alpine
        name: nginx

    Create the Pod object using the apply command:

    $ kubectl apply -f pod-without-resource-requirements.yaml
    pod/pod-without-resource-requirements created


    A Pod without specified resource requirements will use the default request and limit defined by LimitRange, in this case 500m:

    $ kubectl describe pod pod-without-resource-requirements -n d92
    ...
    Containers:
      nginx:
        Limits:
          cpu:  500m
        Requests:
          cpu:  500m


    The Pod defined in the file pod-with-more-cpu-resource-requirements.yaml specifies a higher CPU resource limit than allowed by the LimitRange:

    apiVersion: v1
    kind: Pod
    metadata:
      name: pod-with-more-cpu-resource-requirements
      namespace: d92
    spec:
      containers:
      - image: nginx:1.23.4-alpine
        name: nginx
        resources:
          requests:
            cpu: 400m
          limits:
            cpu: 1.5

    As a result, the Pod will not be allowed to be scheduled:

    $ kubectl apply -f pod-with-more-cpu-resource-requirements.yaml
    Error from server (Forbidden): error when creating \
    "pod-with-more-cpu-resource-requirements.yaml": pods \
    "pod-with-more-cpu-resource-requirements" is forbidden: \
    maximum cpu usage per Container is 500m, but limit is 1500m


    Finally, define a Pod in the file pod-with-less-cpu-resource-requirements.yaml. The CPU resource request and limit fits within the boundaries of the LimitRange:

    apiVersion: v1
    kind: Pod
    metadata:
      name: pod-with-less-cpu-resource-requirements
      namespace: d92
    spec:
      containers:
      - image: nginx:1.23.4-alpine
        name: nginx
        resources:
          requests:
            cpu: 350m
          limits:
            cpu: 400m

    Create the Pod object using the apply command:

    $ kubectl apply -f pod-with-less-cpu-resource-requirements.yaml
    pod/pod-with-less-cpu-resource-requirements created


    The Pod uses the provided CPU resource request and limit:

    $ kubectl describe pod pod-with-less-cpu-resource-requirements -n d92
    ...
    Containers:
      nginx:
        Limits:
          cpu:  400m
        Requests:
          cpu:  350m


Chapter 14, Pod Scheduling

  1. The following solution demonstrates the use of a multi-node Minikube cluster. Listing the nodes renders the following output.

    $ kubectl get nodes
    NAME           STATUS   ROLES           AGE     VERSION
    minikube       Ready    control-plane   3m16s   v1.32.2
    minikube-m02   Ready    <none>          3m6s    v1.32.2
    minikube-m03   Ready    <none>          2m59s   v1.32.2


    Let’s assign the label color=green to the node minikube-m02 and the label color=red to the node minikube-m03.

    $ kubectl label nodes minikube-m02 color=green
    node/minikube-m02 labeled
    $ kubectl label nodes minikube-m03 color=red
    node/minikube-m03 labeled


    You can render the assign labels for all nodes using the --show-labels command line option.

    $ kubectl get nodes --show-labels
    NAME           STATUS   ROLES           AGE   VERSION   LABELS
    minikube       Ready    control-plane   27m   v1.32.2   ...
    minikube-m02   Ready    <none>          27m   v1.32.2   ...,color=green,...
    minikube-m03   Ready    <none>          26m   v1.32.2   ...,color=red,...


    The Pod manifest could look as such:

    apiVersion: v1
    kind: Pod
    metadata:
      name: app
    spec:
      nodeSelector:
        color: green
      containers:
      - name: nginx
        image: nginx:1.27.1

    Create the Pod and inspect the assigned node.

    $ kubectl apply -f pod.yaml
    pod/app created
    $ kubectl get pod app -o=wide
    NAME   READY   STATUS    RESTARTS   AGE   IP            NODE           ...
    app    1/1     Running   0          21s    10.244.1.2   minikube-m02   ...


    Change Pod manifest to use node affinity to schedule it on node minikube-m02 or minikube-m03. The resulting YAML definition would look like this:

    apiVersion: v1
    kind: Pod
    metadata:
      name: app
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
            - matchExpressions:
              - key: color
                operator: In
                values:
                - green
                - red
      containers:
      - name: nginx
        image: nginx:1.27.1

    First delete the Pod, then recreate it. The Pod should be scheduled on one of nodes.

    $ kubectl delete -f pod.yaml
    pod "app" deleted
    $ kubectl apply -f pod.yaml
    pod/app created
    $ kubectl get pod app -o=wide
    NAME   READY   STATUS    RESTARTS   AGE   IP           NODE           ...
    app    1/1     Running   0          12s   10.244.1.3   minikube-m02   ...

  2. The following solution demonstrates the use of a multi-node minikube cluster. Listing the nodes renders the following output.

    $ kubectl get nodes
    NAME           STATUS   ROLES           AGE     VERSION
    minikube       Ready    control-plane   3m16s   v1.32.2
    minikube-m02   Ready    <none>          3m6s    v1.32.2
    minikube-m03   Ready    <none>          2m59s   v1.32.2


    The Pod definition in the file pod.yaml could look as follows.

    apiVersion: v1
    kind: Pod
    metadata:
      name: app
    spec:
      containers:
      - name: nginx
        image: nginx:1.27.1

    Create the Pod and inspect the assigned node.

    $ kubectl apply -f pod.yaml
    pod/app created
    $ kubectl get pod app -o=wide
    NAME   READY   STATUS    RESTARTS   AGE   IP           NODE           ...
    app    1/1     Running   0          89s   10.244.2.2   minikube-m03   ...


    Add the taint to the node. In this case, the node is called minikube-m03.

    $ kubectl taint nodes minikube-m03 exclusive=yes:NoExecute
    node/minikube-m03 tainted


    The taint causes the Pod to be evicted.

    $ kubectl get pods
    No resources found in default namespace.


    Change the Pod manifest and add the toleration.

    apiVersion: v1
    kind: Pod
    metadata:
      name: app
    spec:
      tolerations:
      - key: "exclusive"
        operator: "Equal"
        value: "yes"
        effect: "NoExecute"
      containers:
      - name: nginx
        image: nginx:1.27.1

    With the toleration, the Pod will be allowed to be scheduled on the node minikube-m03 again.

    $ kubectl apply -f pod.yaml
    pod/app created
    $ kubectl get pod app -o=wide
    NAME   READY   STATUS    RESTARTS   AGE   IP           NODE           ...
    app    1/1     Running   0          9s    10.244.2.3   minikube-m03   ...


    Remove the taint from the node. The Pod will continue to run on the node.

    $ kubectl taint nodes minikube-m03 exclusive-
    node/minikube-m03 untainted
    $ kubectl get pod app -o=wide
    NAME   READY   STATUS    RESTARTS   AGE   IP           NODE           ...
    app    1/1     Running   0          37s   10.244.2.3   minikube-m03   ...


Chapter 15, Volumes

  1. Start by generating the YAML manifest using the run command in combination with the --dry-run option:

    $ kubectl run alpine --image=alpine:3.12.0 --dry-run=client \
      --restart=Never -o yaml -- /bin/sh -c "while true; do sleep 60; \
      done;" > multi-container-alpine.yaml
    $ vim multi-container-alpine.yaml


    After editing the Pod, the manifest could look like the following. The container names here are container1 and container2:

    apiVersion: v1
    kind: Pod
    metadata:
      creationTimestamp: null
      labels:
        run: alpine
      name: alpine
    spec:
      containers:
      - args:
        - /bin/sh
        - -c
        - while true; do sleep 60; done;
        image: alpine:3.12.0
        name: container1
        resources: {}
      - args:
        - /bin/sh
        - -c
        - while true; do sleep 60; done;
        image: alpine:3.12.0
        name: container2
        resources: {}
      dnsPolicy: ClusterFirst
      restartPolicy: Always
    status: {}

    Edit the YAML manifest further by adding the Volume and the mount paths for both containers.

    In the end, the Pod definition could look like this:

    apiVersion: v1
    kind: Pod
    metadata:
      creationTimestamp: null
      labels:
        run: alpine
      name: alpine
    spec:
      volumes:
      - name: shared-vol
        emptyDir: {}
      containers:
      - args:
        - /bin/sh
        - -c
        - while true; do sleep 60; done;
        image: alpine:3.12.0
        name: container1
        volumeMounts:
        - name: shared-vol
          mountPath: /etc/a
        resources: {}
      - args:
        - /bin/sh
        - -c
        - while true; do sleep 60; done;
        image: alpine:3.12.0
        name: container2
        volumeMounts:
        - name: shared-vol
          mountPath: /etc/b
        resources: {}
      dnsPolicy: ClusterFirst
      restartPolicy: Always
    status: {}

    Create the Pod and check if it has been created properly. You should see the Pod in Running status with two containers ready:

    $ kubectl apply -f multi-container-alpine.yaml
    pod/alpine created
    $ kubectl get pods
    NAME     READY   STATUS    RESTARTS   AGE
    alpine   2/2     Running   0          18s


    Use the exec command to shell into the container named container1. Create the file /etc/a/data/hello.txt with the relevant content:

    $ kubectl exec alpine -c container1 -it -- /bin/sh
    / # cd /etc/a
    /etc/a # ls -l
    total 0
    /etc/a # mkdir data
    /etc/a # cd data/
    /etc/a/data # echo "Hello World" > hello.txt
    /etc/a/data # cat hello.txt
    Hello World
    /etc/a/data # exit


    Use the exec command to shell into the container named container2. The contents of the file /etc/b/data/hello.txt should say “Hello World”:

    $ kubectl exec alpine -c container2 -it -- /bin/sh
    / # cat /etc/b/data/hello.txt
    Hello World
    / # exit


Chapter 16, Persistent Volumes

  1. Start by creating a new file named logs-pv.yaml. The contents could look as follows:

    kind: PersistentVolume
    apiVersion: v1
    metadata:
      name: logs-pv
    spec:
      capacity:
        storage: 5Gi
      accessModes:
        - ReadWriteOnce
        - ReadOnlyMany
      hostPath:
        path: /var/logs

    Create the PersistentVolume object and check its status:

    $ kubectl apply -f logs-pv.yaml
    persistentvolume/logs-pv created
    $ kubectl get pv
    NAME      CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS     CLAIM \
      STORAGECLASS   REASON   AGE
    logs-pv   5Gi        RWO,ROX        Retain           Available \
                              18s


    Create the file logs-pvc.yaml to define the PersistentVolumeClaim. The following YAML manifest shows its contents:

    kind: PersistentVolumeClaim
    apiVersion: v1
    metadata:
      name: logs-pvc
    spec:
      accessModes:
        - ReadWriteOnce
      resources:
        requests:
          storage: 2Gi
      storageClassName: ""

    Create the PersistentVolume object and check on its status:

    $ kubectl apply -f logs-pvc.yaml
    persistentvolumeclaim/logs-pvc created
    $ kubectl get pvc
    NAME       STATUS   VOLUME    CAPACITY   ACCESS MODES   STORAGECLASS   ...
    logs-pvc   Bound    logs-pv   5Gi        RWO,ROX                       ...


    Create the basic YAML manifest using the --dry-run command-line option:

    $ kubectl run nginx --image=nginx:1.25.1 --dry-run=client \
      -o yaml > nginx-pod.yaml


    Now, edit the file nginx-pod.yaml and bind the PersistentVolumeClaim to it:

    apiVersion: v1
    kind: Pod
    metadata:
      creationTimestamp: null
      labels:
        run: nginx
      name: nginx
    spec:
      volumes:
        - name: logs-volume
          persistentVolumeClaim:
            claimName: logs-pvc
      containers:
      - image: nginx:1.25.1
        name: nginx
        volumeMounts:
          - mountPath: "/var/log/nginx"
            name: logs-volume
        resources: {}
      dnsPolicy: ClusterFirst
      restartPolicy: Never
    status: {}

    Create the Pod using the following command and check its status:

    $ kubectl apply -f nginx-pod.yaml
    pod/nginx created
    $ kubectl get pods
    NAME    READY   STATUS    RESTARTS   AGE
    nginx   1/1     Running   0          8s


    Use the exec command to open an interactive shell to the Pod and create a file in the mounted directory:

    $ kubectl exec nginx -it -- /bin/sh
    # cd /var/log/nginx
    # touch my-nginx.log
    # ls
    access.log  error.log  my-nginx.log
    # exit


    After you re-create the Pod, the file stored on the PersistentVolume should still exist:

    $ kubectl delete pod nginx
    pod "nginx" deleted
    $ kubectl apply -f nginx-pod.yaml
    pod/nginx created
    $ kubectl exec nginx -it -- /bin/sh
    # cd /var/log/nginx
    # ls
    access.log  error.log  my-nginx.log
    # exit

  2. Create the file db-pvc.yaml to define the PersistentVolumeClaim. The following YAML manifest shows its contents:

    apiVersion: v1
    kind: PersistentVolumeClaim
    metadata:
      name: db-pvc
      namespace: persistence
    spec:
      accessModes:
        - ReadWriteOnce
      storageClassName: local-path
      resources:
        requests:
          storage: 128Mi

    Create the PersistentVolumeClaim object from the YAML manifest:

    $ kubectl apply -f db-pvc.yaml
    persistentvolumeclaim/db-pvc created


    Check the status of the PersistentVolumeClaim object:

    $ kubectl get pvc -n persistence
    NAME     STATUS    VOLUME   CAPACITY   ACCESS MODES   STORAGECLASS   ...
    db-pvc   Pending                                      local-path     ...


    The corresponding PeristentVolume object should not have been created yet.

    $ kubectl get pv -n persistence
    No resources found


    Create the basic YAML manifest using the --dry-run command-line option:

    $ kubectl run app-consuming-pvc --image=alpine:3.21.3 -n persistence \
      --dry-run=client --restart=Never -o yaml \
      -- /bin/sh -c "while true; do sleep 60; done;" \
      > alpine-pod.yaml


    Now, edit the file alpine-pod.yaml and bind the PersistentVolumeClaim to it:

    apiVersion: v1
    kind: Pod
    metadata:
      name: app-consuming-pvc
      namespace: persistence
    spec:
      volumes:
        - name: app-storage
          persistentVolumeClaim:
            claimName: db-pvc
      containers:
      - image: alpine:3.21.3
        name: app
        command: ["/bin/sh"]
        args: ["-c", "while true; do sleep 60; done;"]
        volumeMounts:
          - mountPath: "/mnt/data"
            name: app-storage
      restartPolicy: Never

    Create the Pod using the following command:

    $ kubectl apply -f alpine-pod.yaml
    pod/app-consuming-pvc created


    Ensure that the Pod transitions into the “Running” status:

    $ kubectl get pods -n persistence
    NAME                READY   STATUS    RESTARTS   AGE
    app-consuming-pvc   1/1     Running   0          8s


    The PersistentVolume object has been provisioned dynamically.

    $ kubectl get pv -n persistence
    NAME                                       CAPACITY   ACCESS MODES   ...
    pvc-af39068d-0cc2-4625-8a56-7b5207b79ace   128Mi      RWO            ...


    Use the exec command to open an interactive shell to the Pod, and create a file in the mounted directory:

    $ kubectl exec app-consuming-pvc -n persistence -it -- /bin/sh
    # cd /mnt/data
    # touch test.db
    # ls
    test.db
    # exit


    The file will be persisted in the PersistentVolume.

Chapter 17, Services

  1. Create the Deployment definition in the file deployment.yaml. Ensure to expose two container ports, 8080 and 9090.

    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: webapp
    spec:
      replicas: 3
      selector:
        matchLabels:
          app: webapp
      template:
        metadata:
          labels:
            app: webapp
        spec:
          containers:
          - name: webapp
            image: nginxdemos/hello:0.4-plain-text
            ports:
            - containerPort: 80
            - containerPort: 9090

    Define the Service in the file service.yaml. The most important part is the port mapping. Assign the static node port 30080 only to the web port mapping.

    apiVersion: v1
    kind: Service
    metadata:
      name: webapp-service
    spec:
      type: NodePort
      selector:
        app: webapp
      ports:
      - name: web
        port: 80
        targetPort: 80
        nodePort: 30080
      - name: metrics
        port: 9090
        targetPort: 9090

    Create the application Deployment and Service objects.

    $ kubectl apply -f deployment.yaml
    $ kubectl apply -f service.yaml


    Listing the Deployment and Service objects are going to look similar as shown below:

    $ kubectl get deployment,service
    NAME                     READY   UP-TO-DATE   AVAILABLE   AGE
    deployment.apps/webapp   3/3     3            3           6s

    NAME                     TYPE        CLUSTER-IP      EXTERNAL-IP   \
    PORT(S)                       AGE
    service/webapp-service   NodePort    10.111.80.190   <none>   \
         80:30080/TCP,9090:31231/TCP   6s


    To test accessibility from your host machine, you can configure port forwarding for the Service. Here, we are mapping the host port 9091 to the Service port 80.

    $ kubectl port-forward service/webapp-service 9091:80 &
    Forwarding from 127.0.0.1:9091 -> 80
    Forwarding from [::1]:9091 -> 80
    Handling connection for 9091


    You can now access the Service from your host machine using curl.

    $ curl localhost:9091
    Server address: 127.0.0.1:80
    Server name: webapp-6dc64898b-hwll6
    Date: 21/Aug/2025:02:09:01 +0000
    URI: /
    Request ID: b5e0f6324ad7bac1b513dba9d2c1cf64

  2. Create the database Deployment definition in the file database-deployment.yaml. Set the environment variables and expose the container port 3306.

    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: database
    spec:
      replicas: 1
      selector:
        matchLabels:
          app: database
      template:
        metadata:
          labels:
            app: database
        spec:
          containers:
          - name: mysql
            image: mysql:9.4.0
            env:
            - name: MYSQL_ROOT_PASSWORD
              value: secretpass
            - name: MYSQL_DATABASE
              value: myapp
            ports:
            - containerPort: 3306

    Define the database Service in the file database-service.yaml. Map the port 3306 to the target port 3306.

    apiVersion: v1
    kind: Service
    metadata:
      name: database-service
    spec:
      type: ClusterIP
      selector:
        app: database
      ports:
      - port: 3306
        targetPort: 3306

    Define the frontend Deployment in the file frontend-deployment.yaml. Ensure to define the command in the correct format.

    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: frontend
    spec:
      replicas: 2
      selector:
        matchLabels:
          app: frontend
      template:
        metadata:
          labels:
            app: frontend
        spec:
          containers:
          - name: frontend
            image: busybox:1.35
            command:
            - sh
            - -c
            - "while true; do nc -zv database-service 3306; sleep 5; done"

    Create the application Deployment and Service objects.

    $ kubectl apply -f database-deployment.yaml
    $ kubectl apply -f database-service.yaml
    $ kubectl apply -f frontend-deployment.yaml


    The frontend Pods can be selected by the label app=frontend. The logs of both Pods should indicate that the connection to the database Service could be established. An error message in the logs indicate a configuration issue.

    $ kubectl logs -l app=frontend
    database-service (10.101.125.103:3306) open
    database-service (10.101.125.103:3306) open


Chapter 18, Ingresses

  1. Define the namespace in the file namespace.yaml:

    apiVersion: v1
    kind: Namespace
    metadata:
      name: webapp

    The file deployment.yaml shows the frontend and api Deployments.

    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: frontend
      namespace: webapp
    spec:
      replicas: 2
      selector:
        matchLabels:
          app: frontend
      template:
        metadata:
          labels:
            app: frontend
        spec:
          containers:
          - name: frontend
            image: nginx:1.29.1-alpine
            ports:
            - containerPort: 80
    ---
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: api
      namespace: webapp
    spec:
      replicas: 2
      selector:
        matchLabels:
          app: api
      template:
        metadata:
          labels:
            app: api
        spec:
          containers:
          - name: api
            image: httpd:2.4.65-alpine
            ports:
            - containerPort: 80

    The file services.yaml defines the frontend and api Services.

    apiVersion: v1
    kind: Service
    metadata:
      name: frontend-service
      namespace: webapp
    spec:
      selector:
        app: frontend
      ports:
      - port: 80
        targetPort: 80
        protocol: TCP
      type: ClusterIP
    ---
    apiVersion: v1
    kind: Service
    metadata:
      name: api-service
      namespace: webapp
    spec:
      selector:
        app: api
      ports:
      - port: 80
        targetPort: 80
        protocol: TCP
      type: ClusterIP

    Lastly, define the Ingress in the file ingress.yaml.

    apiVersion: networking.k8s.io/v1
    kind: Ingress
    metadata:
      name: webapp-ingress
      namespace: webapp
      annotations:
        nginx.ingress.kubernetes.io/rewrite-target: /
    spec:
      ingressClassName: nginx
      rules:
      - host: app.example.com
        http:
          paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: frontend-service
                port:
                  number: 80
          - path: /app
            pathType: Prefix
            backend:
              service:
                name: frontend-service
                port:
                  number: 80
          - path: /api
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 80

    Create all objects from the YAML manifests.

    $ kubectl apply -f namespace.yaml
    $ kubectl apply -f deployments.yaml
    $ kubectl apply -f services.yaml
    $ kubectl apply -f ingress.yaml


    Map localhost to the hostname used by the Ingress object to make it accessible for local machine.

    sudo vim /etc/hosts
    127.0.0.1       app.example.com


    Inspect the Ingress object. Make sure that the value in the column “ADDRESS” has been populated.

    $ kubectl get ingress webapp-ingress -n webapp
    NAME             CLASS   HOSTS             ADDRESS        PORTS   AGE
    webapp-ingress   nginx   app.example.com   192.168.49.2   80      2m


    Test all Ingress endpoints by sending a curl request.

    $ curl -H "Host: app.example.com" http://localhost/
    $ curl -H "Host: app.example.com" http://localhost/app
    $ curl -H "Host: app.example.com" http://localhost/api

  2. We’ll use imperative commands to set up the backend objects to speed up the process. First, we’ll need to create the namespace production-apps.

    $ kubectl create namespace production-apps


    Then we’ll create the blue and green Deployment objects.

    $ kubectl create deployment app-blue \
      --image=nginxdemos/hello:0.3-plain-text \
      --replicas=3 -n production-apps
    $ kubectl create deployment app-green \
      --image=nginxdemos/hello:0.4-plain-text \
      --replicas=3 -n production-apps


    Next up, create the Service objects using the expose deployment command.

    $ kubectl expose deployment app-blue --name=app-blue-svc \
      --port=80 -n production-apps
    $ kubectl expose deployment app-green --name=app-green-svc \
      --port=80 -n production-apps


    Define the main Ingress in the file blue-ingress.yaml.

    apiVersion: networking.k8s.io/v1
    kind: Ingress
    metadata:
      name: app-main
      namespace: production-apps
    spec:
      ingressClassName: nginx
      rules:
      - host: app.production.com
        http:
          paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: app-blue-svc
                port:
                  number: 80

    Define the canary Ingress in the file green-ingress.yaml.

    apiVersion: networking.k8s.io/v1
    kind: Ingress
    metadata:
      name: app-canary-weight
      namespace: production-apps
      annotations:
        nginx.ingress.kubernetes.io/canary: "true"
        nginx.ingress.kubernetes.io/canary-weight: "20"
    spec:
      ingressClassName: nginx
      rules:
      - host: app.production.com
        http:
          paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: app-green-svc
                port:
                  number: 80

    Create the Ingress objects from the YAML manifests.

    $ kubectl apply -f blue-ingress.yaml
    $ kubectl apply -f green-ingress.yaml


    You can map localhost to the hostname used by the Ingress objects to make them accessible for local machine.

    sudo vim /etc/hosts
    127.0.0.1       app.production.com


    Inspect the Ingress objects. Make sure that the value in the column “ADDRESS” has been populated.

    $ kubectl get ingresses -n production-apps
    NAME                CLASS   HOSTS                ADDRESS        PORTS   ...
    app-canary-weight   nginx   app.production.com   192.168.49.2   80      ...
    app-main            nginx   app.production.com   192.168.49.2   80      ...


    To see the traffic routing distribution in action, run a curl command a for loop. You will see that most requests are routed to the “blue” Pod, and a subset of the requests are routed to the “green” Pods.

    for i in {1..10}; do curl -s -H "Host: app.production.com" \
      http://localhost | grep -o "Server name:.*"; done


Chapter 19, Gateway API

  1. You can find the installation instructions for the NGINX Gateway Fabric controller in the official documentation. Follow the instructions of your preferred installation method.

    Create the application Deployment and Service objects. You can use file setup.yaml to set them up at once. The solution provided in this file creates content on the container mount path at /usr/share/nginx/html/web for the web-app Pods, and content on the container mount path at /usr/local/apache2/htdocs/api for the api-app Pods.

    $ kubectl apply -f setup.yaml


    Ensure that the objects are available.

    $ kubectl get deployments,services,pods


    Configure Gateway API resources. Define the Gateway in the file gateway.yaml:

    apiVersion: gateway.networking.k8s.io/v1
    kind: Gateway
    metadata:
      name: main-gateway
    spec:
      gatewayClassName: nginx
      listeners:
      - name: http
        port: 80
        protocol: HTTP
        hostname: example.local

    Define the Gateway in the file httproute.yaml:

    apiVersion: gateway.networking.k8s.io/v1
    kind: HTTPRoute
    metadata:
      name: app-routes
    spec:
      parentRefs:
      - name: main-gateway
      hostnames:
      - example.local
      rules:
      - matches:
        - path:
            type: PathPrefix
            value: /web
        backendRefs:
        - name: web-app
          port: 80
      - matches:
        - path:
            type: PathPrefix
            value: /api
        backendRefs:
        - name: api-app
          port: 80

    Create the Gateway objects with the following command:

    $ kubectl apply -f gateway.yaml
    $ kubectl apply -f httproute.yaml


    Check if Gateway received the assignment of an IP address. This may take a few minutes.

    $ kubectl get gateway main-gateway -o \
      jsonpath='{.status.addresses[0].value}'


    The following command verifies that the status for the Accepted condition of the HTTPRoute renders True.

    $ kubectl get httproute app-routes -o \
      jsonpath='{.status.parents[*].conditions[?(@.type=="Accepted")].status}'


    Port forward to the Gateway:

    $ kubectl port-forward svc/main-gateway-nginx 8080:80 &


    You should be able to access the Gateway using curl.

    $ curl -H "Host: example.local" http://localhost:8080/web/
    $ curl -H "Host: example.local" http://localhost:8080/api/

  2. Create the namespaces and the applications running in them from the file setup.yaml.

    $ kubectl apply -f setup.yaml


    Configure the Gateway in the file gateway.yaml. Allow that routing is accepted from all namespaces.

    apiVersion: gateway.networking.k8s.io/v1
    kind: Gateway
    metadata:
      name: gateway
      namespace: production
    spec:
      gatewayClassName: nginx
      listeners:
      - name: http
        port: 80
        protocol: HTTP
        hostname: example.com
        allowedRoutes:
          namespaces:
            from: All

    Create the HTTPRoute in the production namespace in the file production-route.yaml.

    apiVersion: gateway.networking.k8s.io/v1
    kind: HTTPRoute
    metadata:
      name: prod-route
      namespace: production
    spec:
      parentRefs:
      - name: gateway
      hostnames:
      - example.com
      rules:
      - matches:
        - path:
            type: Exact
            value: /app
        backendRefs:
        - name: prod-web
          port: 80
        filters:
        - type: URLRewrite
          urlRewrite:
            path:
              type: ReplaceFullPath
              replaceFullPath: /
        - type: RequestHeaderModifier
          requestHeaderModifier:
            set:
            - name: X-Environment
              value: production

    Create the HTTPRoute in the staging namespace in the file staging-route.yaml.

    apiVersion: gateway.networking.k8s.io/v1
    kind: HTTPRoute
    metadata:
      name: staging-route
      namespace: staging
    spec:
      parentRefs:
      - name: gateway
        namespace: production
      hostnames:
      - example.com
      rules:
      - matches:
        - path:
            type: PathPrefix
            value: /staging
        backendRefs:
        - name: staging-web
          port: 80
        filters:
        - type: URLRewrite
          urlRewrite:
            path:
              type: ReplacePrefixMatch
              replacePrefixMatch: /
        - type: RequestHeaderModifier
          requestHeaderModifier:
            set:
            - name: X-Environment
              value: staging

    Create the ReferenceGrant for cross-namespace access in the file reference-grant.yaml.

    apiVersion: gateway.networking.k8s.io/v1beta1
    kind: ReferenceGrant
    metadata:
      name: allow-staging-to-gateway
      namespace: production
    spec:
      from:
      - group: gateway.networking.k8s.io
        kind: HTTPRoute
        namespace: staging
      to:
      - group: gateway.networking.k8s.io
        kind: Gateway
        name: gateway

    Create all HTTPRoute objects.

    $ kubectl apply -f gateway.yaml
    $ kubectl apply -f production-route.yaml
    $ kubectl apply -f staging-route.yaml
    $ kubectl apply -f reference-grant.yaml


    Port forward to the Gateway:

    $ kubectl port-forward -n production svc/gateway-nginx 8080:80 &


    You should be able to access the Gateway using curl.

    $ curl -H "Host: example.com" http://localhost:8080/app
    $ curl -H "Host: example.com" http://localhost:8080/staging


Chapter 20, Network Policies

  1. Create the NetworkPolicy for the Pods with the label assignment app=alpha-app in the file alpha-app-policy.yaml. The NetworkPolicy allows egress traffic to Pods in the namespace with the assigned label team=beta. It denies all other egress traffic except DNS signified by the port 53.

    apiVersion: networking.k8s.io/v1
    kind: NetworkPolicy
    metadata:
      name: alpha-app-policy
      namespace: team-alpha
    spec:
      podSelector:
        matchLabels:
          app: alpha-app
      policyTypes:
      - Egress
      egress:
      - to:
        - namespaceSelector:
            matchLabels:
              team: beta
      - to:
        ports:
        - protocol: UDP
          port: 53
        - protocol: TCP
          port: 53

    The NetworkPolicy defined in the file beta-app-policy.yaml looks a little simpler. It allows the beta-app Pod to receive traffic from team-alpha namespace on port 80.

    apiVersion: networking.k8s.io/v1
    kind: NetworkPolicy
    metadata:
      name: beta-app-policy
      namespace: team-beta
    spec:
      podSelector:
        matchLabels:
          app: beta-app
      policyTypes:
      - Ingress
      ingress:
      - from:
        - namespaceSelector:
            matchLabels:
              team: alpha
        ports:
        - protocol: TCP
          port: 80

    Create both NetworkPolicy objects.

    $ kubectl apply -f alpha-app-policy.yaml
    $ kubectl apply -f beta-app-policy.yaml


    Use the curl command to test the alpha-app Pod to make a call the beta-app Service in the team-beta namespace. The command should succeed.

    $ kubectl exec -it alpha-app -n team-alpha -- \
      curl -v --connect-timeout 2 \
      http://beta-app.team-beta.svc.cluster.local:8080


    Use the curl command to test the alpha-app Pod to an address on the internet. The command should fail.

    $ kubectl exec -it alpha-app -n team-alpha -- \
      curl -v --connect-timeout 2 http://google.com


    Use the curl command to test the connectivity to the beta-app Service from a temporary Pod in the same namespace. The command should fail.

    $ kubectl run test-pod --image=alpine/curl:8.14.1 -n team-beta --rm -it \
      --restart=Never -- curl -v --connect-timeout 2 http://beta-app:8080

  2. Network policies are additive which means you can apply them in any order. For make the changes more understandle, you may want to start with the deny policy first. The file default-deny-all.yaml shows the contents of the NetworkPolicy that denies all ingress communication within the production namespace.

    apiVersion: networking.k8s.io/v1
    kind: NetworkPolicy
    metadata:
      name: default-deny-ingress
      namespace: production
    spec:
      podSelector: {}
      policyTypes:
      - Ingress

    Create the NetworkPolicy for the database component in the file database-policy.yaml. The NetworkPolicy applies to the Pods with the label assignment tier=database and only allows ingress traffic from Pods with the label assignment tier=backend on port 6379.

    apiVersion: networking.k8s.io/v1
    kind: NetworkPolicy
    metadata:
      name: database-policy
      namespace: production
    spec:
      podSelector:
        matchLabels:
          tier: database
      policyTypes:
      - Ingress
      ingress:
      - from:
        - podSelector:
            matchLabels:
              tier: backend
        ports:
        - protocol: TCP
          port: 6379

    Create the NetworkPolicy for the backend component in the file backend-policy.yaml. This policy applies to Pods with the label assignment tier=backend. It allows incoming traffic from the frontend microservice and outgoing traffic to the database microservice.

    apiVersion: networking.k8s.io/v1
    kind: NetworkPolicy
    metadata:
      name: backend-policy
      namespace: production
    spec:
      podSelector:
        matchLabels:
          tier: backend
      policyTypes:
      - Ingress
      - Egress
      ingress:
      - from:
        - podSelector:
            matchLabels:
              tier: frontend
        ports:
        - protocol: TCP
          port: 80
      egress:
      - to:
        - podSelector:
            matchLabels:
              tier: database
        ports:
        - protocol: TCP
          port: 6379
      - to:
        ports:
        - protocol: UDP
          port: 53
        - protocol: TCP
          port: 53

    Create all NetworkPolicy objects.

    $ kubectl apply -f default-deny-all.yaml
    $ kubectl apply -f database-policy.yaml
    $ kubectl apply -f backend-policy.yaml


    Use the curl command to test the frontend Pod to test connectivity to the database Pod. We are using the telnet protocol here to ensure that can connect to the database port. The command should fail.

    $ kubectl exec -it frontend -n production -- curl -v --connect-timeout 2 \
      telnet://database:3306


    Use the curl command to test the frontend Pod to test connectivity to the backend Pod. The command should succeed.

    $ kubectl exec -it frontend -n production -- curl -v --connect-timeout 2 \
      http://backend:80


    Use the curl command to test the backend Pod to test connectivity to the database Pod. The command should succeed. Similar to the first command, we are using the the telnet protocol.

$ kubectl exec -it backend -n production -- curl -v --connect-timeout 2 \
  telnet://database:3306

Chapter 21, Troubleshooting Applications

  1. First, create the Pod using the given YAML content:

    $ kubectl apply -f setup.yaml
    pod/date-recorder created


    Inspecting the Pod’s status exposes no obvious issues. The status is “Running”:

    $ kubectl get pods
    NAME            READY   STATUS    RESTARTS   AGE
    date-recorder   1/1     Running   0          5s


    Render the logs of the container. The returned error message indicates that the file or directory /root/tmp/startup-marker.txt does not exist:

    $ kubectl logs date-recorder
    [Error: ENOENT: no such file or directory, open \
    '/root/tmp/startup-marker.txt'] {
      errno: -2,
      code: 'ENOENT',
      syscall: 'open',
      path: '/root/tmp/curr-date.txt'
    }


    We could try to open a shell to the container; however, the container image does not provide a shell:

    $ kubectl exec -it date-recorder -- /bin/sh
    OCI runtime exec failed: exec failed: unable to start container \
    process: exec: "/bin/sh": stat /bin/sh: no such file or \
    directory: unknown
    command terminated with exit code 126


    We can use the debug command to create a debugging container for troubleshooting. The --share-processes flag lets use share the running nodejs process:

    $ kubectl debug -it date-recorder --image=busybox --target=debian \
      --share-processes
    Targeting container "debian". If you don't see processes from this \
    container it may be because the container runtime doesn't support \
    this feature.
    Defaulting debug container name to debugger-rns89.
    If you don't see a command prompt, try pressing enter.
    / # ps
    PID   USER     TIME  COMMAND
        1 root      4:21 /nodejs/bin/node -e const fs = require('fs'); \
        let timestamp = Date.now(); fs.writeFile('/root/tmp/startup-m
       35 root      0:00 sh
       41 root      0:00 ps


    Apparently, the directory we want to write to does indeed not exist:

    $ kubectl exec failing-pod -it -- /bin/sh
    / # ls /root/tmp
    ls: /root/tmp: No such file or directory


    We’ll likely want to change the command running the original container to point to the directory that does exist upon container start. Alternatively, it may make sense to mount an ephemeral Volume to provide the directory, as shown here:

    apiVersion: v1
    kind: Pod
    metadata:
      name: date-recorder
    spec:
      containers:
      - name: debian
        image: gcr.io/distroless/nodejs20-debian11
        command: ["/nodejs/bin/node", "-e", "const fs = require('fs'); \
        let timestamp = Date.now(); fs.writeFile('/var/startup/\
        startup-marker.txt', timestamp.toString(), err => { if (err) { \
        console.error(err); } while(true) {} });"]
        volumeMounts:
        - mountPath: /var/startup
          name: init-volume
      volumes:
      - name: init-volume
        emptyDir: {}
  2. Create the objects from the setup.yaml file. You will see from the output that at least three objects have been created: a namespace, a Deployment, and a Service:

    $ kubectl apply -f setup.yaml
    namespace/y72 created
    deployment.apps/web-app created
    service/web-app created


    You can list all objects relevant to the scenario using the following command:

    $ kubectl get all -n y72
    NAME                           READY   STATUS    RESTARTS   AGE
    pod/web-app-5f77f59c78-8svdm   1/1     Running   0          10m
    pod/web-app-5f77f59c78-mhvjz   1/1     Running   0          10m

    NAME              TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)
    service/web-app   ClusterIP   10.106.215.153   <none>        80/TCP

    NAME                      READY   UP-TO-DATE   AVAILABLE   AGE
    deployment.apps/web-app   2/2     2            2           10m

    NAME                                 DESIRED   CURRENT   READY   AGE
    replicaset.apps/web-app-5f77f59c78   2         2         2       10m


    The Service named web-app is of type ClusterIP. You can access the Service only from within the cluster. Trying to connect to the Service by its DNS name from a temporary Pod in the same namespace won’t be allowed:

    $ kubectl run tmp --image=busybox --restart=Never -it --rm -n y72 \
      -- wget web-app
    Connecting to web-app (10.106.215.153:80)
    wget: can't connect to remote host (10.106.215.153): Connection refused
    pod "tmp" deleted
    pod y72/tmp terminated (Error)


    The endpoint for the Service web-app cannot be resolved, as shown by the following command:

    $ kubectl get endpoints -n y72
    NAME      ENDPOINTS   AGE
    web-app   <none>      15m


    Describing the Service object provides you will additional information, e.g., the label selector and the target port:

    $ kubectl describe service web-app -n y72
    Name:              web-app
    Namespace:         y72
    Labels:            <none>
    Annotations:       <none>
    Selector:          run=myapp
    Type:              ClusterIP
    IP Family Policy:  SingleStack
    IP Families:       IPv4
    IP:                10.106.215.153
    IPs:               10.106.215.153
    Port:              <unset>  80/TCP
    TargetPort:        3001/TCP
    Endpoints:         <none>
    Session Affinity:  None
    Events:            <none>


    Upon inspecting the Deployment, you will find that the Pod template uses the label assignment app=webapp. The container port is set to 3000. This information doesn’t match the configuration of the Service. The endpoints of the web-app Service now point to the IP address and container port of the replicas controlled by the Deployment:

    $ kubectl get endpoints -n y72
    NAME      ENDPOINTS                         AGE
    web-app   10.244.0.3:3000,10.244.0.4:3000   24m


    Edit the live object of the Service. Change the label selector from run=myapp to app=webapp, and the target port from 3001 to 3000:

    $ kubectl edit service web-app -n y72
    service/web-app edited


    After changing the Service configuration, you will find that you can open a connection to the Pod running the application:

    $ kubectl run tmp --image=busybox:1.36.1 --restart=Never -it --rm -n y72 \
      -- wget web-app
    Connecting to web-app (10.106.215.153:80)
    saving to 'index.html'
    index.html           100% |********************************| ...
    'index.html' saved
    pod "tmp" deleted

  3. Create the namespace with the imperative command:

    $ kubectl create ns stress-test
    namespace/stress-test created


    Create all Pods by pointing the apply command to the current directory:

    $ kubectl apply -f ./
    pod/stress-1 created
    pod/stress-2 created
    pod/stress-3 created


    Retrieve the metrics for the Pods from the metrics server using the top command:

    $ kubectl top pods -n stress-test
    NAME       CPU(cores)   MEMORY(bytes)
    stress-1   50m          77Mi
    stress-2   74m          138Mi
    stress-3   58m          94Mi


    The Pod with the highest amount of memory consumption is the Pod named stress-2. The metrics will look different on your machine given that the amount of consumed memory is randomized by the command executed per container.

Chapter 22, Troubleshooting Clusters

  1. List all nodes in the cluster. You will see that the node worker-2 shows the status NotReady,SchedulingDisabled.

    $ kubectl get nodes
    NAME            STATUS                        ROLES           AGE   VERSION
    control-plane   Ready                         control-plane   23m   v1.33.2
    worker-1        Ready                         <none>          23m   v1.33.2
    worker-2        NotReady,SchedulingDisabled   <none>          23m   v1.33.2


    Check why scheduling is disabled. The command renders a taint that indicates that workload cannot be scheduled on the node.

    $ kubectl describe node worker-node-2 | grep -i taint


    Check the node for any other conditions. You will see the message “Kubelet stopped posting node status.”

    $ kubectl describe node worker-node-2 | grep -A10 Conditions


    Uncordon the node to allow scheduling on the node again.

    $ kubectl uncordon worker-node-2


    Check if the kubelet is healthy on the worker node. SSH into the node and check kubelet status. You will see that the kubelet process is inactive.

    $ ssh worker-node-2
    $ sudo systemctl status kubelet


    Restart the kubelet process and verify that it is running properly.

    $ sudo systemctl restart kubelet
    $ sudo systemctl status kubelet


    Check the node status. All nodes should show “Ready” without “SchedulingDisabled”.

    $ kubectl get nodes


    Run a test pod specifically on worker-node-2. Verify that the Pod is running on the correct node.

    $ kubectl run test-pod --image=nginx:1.29.1 --overrides=\
    '{"spec":{"nodeSelector":{"kubernetes.io/hostname":"worker-node-2"}}}'
    $ kubectl get pod test-pod -o wide

  2. Create the Deployment with the parameters provided in the instructions.

    $ kubectl create deployment test-app --image=nginx:1.29.1 --replicas=3


    Check the status of the Pods controlled by the ReplicaSet. All Pods will have the status “Pending”.

    $ kubectl get pods
    NAME                        READY   STATUS    RESTARTS   AGE
    test-app-5d4d5b6c7b-h2x4m   0/1     Pending   0          2m
    test-app-5d4d5b6c7b-k9p3n   0/1     Pending   0          2m
    test-app-5d4d5b6c7b-x7v2q   0/1     Pending   0          2m


    Check why Pods are pending. Describe a pending Pod to see its events. The output indicates “no scheduler found”.

    $ kubectl describe pod test-app-5d4d5b6c7b-h2x4m | tail -10


    Check the Pods in the kube-system namespace. The scheduler is in ImagePullBackOff state.

    $ kubectl get pods -n kube-system | grep -E \
      "scheduler|controller|apiserver|etcd"


    Investigate the scheduler Pod. The scheduler is trying to use a non-existent image version.

    $ kubectl describe pod kube-scheduler-master-node -n kube-system \
      | grep -A5 Events


    Fix the scheduler manifest. SSH into the control-plane node. Edit the scheduler configuration manifest. Fix the scheduler manifest by changing the image tag to the version of control-plane node, e.g. v1.33.2.

    $ ssh control-plane
    $ sudo vi /etc/kubernetes/manifests/kube-scheduler.yaml


    Wait a moment for the kubelet to detect the change and restart the scheduler Pod. Once the scheduler Pod transitions back to normal operations, you can check for the test-app Pods again.

    $ kubectl get pods
    NAME                        READY   STATUS    RESTARTS   AGE
    test-app-5d4d5b6c7b-h2x4m   1/1     Running   0          8m
    test-app-5d4d5b6c7b-k9p3n   1/1     Running   0          8m
    test-app-5d4d5b6c7b-x7v2q   1/1     Running   0          8m


All Pods should be back to the “Running” status.

Appendix B. Exam Review Guide

This book covers all objectives relevant to the exam and more. The tables in this appendix map the exam objective to the corresponding book chapter. Furthermore, you will also find a reference to the Kubernetes documentation. Some foundational objectives important to the exam, such as Pods and namespaces, have not been listed explicitly in the curriculum; however, the book does cover them. You can use the mapping as a reference to review specific objectives in more detail.

Cluster Architecture, Installation & Configuration

Exam Objective Chapter Reference Documentation Tutorial

Manage role based access control (RBAC)

Chapter 6

Using RBAC Authorization, Role Based Access Control Good Practices

N/A

Prepare underlying infrastructure for installing a Kubernetes cluster

Chapter 4

N/A

N/A

Create and manage Kubernetes clusters using kubeadm

Chapter 4

kubeadm

Creating a cluster with kubeadm, Upgrading kubeadm clusters

Manage the lifecycle of Kubernetes clusters

Chapter 5

etcd

Backing up an etcd cluster, Restoring an etcd cluster

Implement and configure a highly-available control plane

Chapter 4

kubeadm, Options for Highly Available Topology

Creating Highly Available Clusters with kubeadm

Use Helm and Kustomize to install cluster components

Chapter 8

Helm, Kustomize

Declarative Management of Kubernetes Objects Using Kustomize, Managing Secrets using Kustomize

Understand extension interfaces (CNI, CSI, CRI, etc.)

Chapter 4

Infrastructure extensions, Compute, Storage, and Networking Extensions

N/A

Understand CRDs, install and configure operators

Chapter 7

Custom Resources, Operator pattern

Use Custom Resources

Workloads & Scheduling

Exam Objective Chapter Reference Documentation Tutorial

Understand application deployments and how to perform rolling update and rollbacks

Chapter 9, Chapter 11

Pods, Deployments, ReplicaSet

Performing a Rolling Update

Use ConfigMaps and Secrets to configure applications

Chapter 10

ConfigMaps, Secrets

Configure a Pod to Use a ConfigMap, Managing Secrets using kubectl, Managing Secrets using Configuration File

Configure workload autoscaling

Chapter 12

Scaling a Deployment

Running Multiple Instances of Your App, Horizontal Pod Autoscaling

Understand the primitives used to create robust, self-healing, application deployments

Chapter 11

Kubernetes Self-Healing, ReplicaSet

N/A

Configure Pod admission and scheduling (limits, node affinity, etc.)

Chapter 13, Chapter 14

Resource Management for Pods and Containers, Limit Ranges, Resource Quotas, Assigning Pods to Nodes, Taints and Tolerations, Pod Topology Spread Constraints

Assign Pods to Nodes using Node Affinity

Storage

Exam Objective Chapter Reference Documentation Tutorial

Implement storage classes and dynamic volume provisioning

Chapter 16

Persistent Volumes, Storage Classes

N/A

Configure volume types, access modes and reclaim policies

Chapter 16

Persistent Volumes

N/A

Manage persistent volumes and persistent volume claims

Chapter 16

PersistentVolumeClaims

Configure a Pod to Use a PersistentVolume for Storage

Servicing & Networking

Exam Objective Chapter Reference Documentation Tutorial

Understand connectivity between Pods

Chapter 17

DNS for Services and Pods

N/A

Define and enforce Network Policies

Chapter 20

Network Policies

Declare Network Policy

Understand ClusterIP, NodePort, LoadBalancer service types and endpoints

Chapter 17

Service

Connecting Applications with Services

Use the Gateway API to manage Ingress traffic

Chapter 19

Gateway API

N/A

Know how to use Ingress controllers and Ingress resources

Chapter 18

Ingress, Ingress Controllers

Set up Ingress on Minikube with the NGINX Ingress Controller

Understand and use CoreDNS

Chapter 17

CoreDNS

Using CoreDNS for Service Discovery

Troubleshooting

Exam Objective Chapter Reference Documentation Tutorial

Troubleshoot clusters and nodes

Chapter 22

N/A

Troubleshooting Clusters

Troubleshoot cluster components

Chapter 22

N/A

Troubleshooting Clusters

Monitor cluster and application resource usage

Chapter 21

Metrics Server, kubectl top

N/A

Manage and evaluate container output streams

Chapter 21

Pod and container logs

N/A

Troubleshoot services and networking

Chapter 21

N/A

Debug Services
