The display Property

The first step is to turn an element into a flex container. This is done with two new values for the well-known display property.

Two of the newer values for the display property have been added in the CSS Flexible Box Layout Module Level 1 specification: flex and inline-flex. The value of flex turns the element on which it is applied into a block-level flex container box. Similarly, the inline-flex value turns the element on which it is applied into a flex-container block, but the flex container is an inline-level flex container box.

Simply adding either of these display property values on an element turns the element into a flex container and the element’s children into flex items. By default, the children are all the same height, even if their contents would produce elements of different heights, as shown in Figure 1-6.

Figure 1-6. Adding display: flex; or display: inline-flex; creates a flex container

The inline-flex value makes the flex container behave like an inline-level element. It will be only as wide as needed, as declared, or as wide as one column if flex-direction is set to column (defined next). Like other inline-level elements, the inline-flex container sits together on a line with other inline-level elements, and is affected by the line-height and vertical alignment, which creates space for the descenders underneath the box by default. The flex value of the display property behaves like a block element.

If we want to create a navigation bar out of a group of links, it’s very simple. Simply display: flex;:

nav {
  display: flex;
}

<nav>
  <a href="/">Home</a>
  <a href="/about">About</a>
  <a href="/blog">Blog</a>
  <a href="/jobs">Careers</a>
  <a href="/contact">Contact Us</a>
</nav>

In the preceding code, with its display property set to flex, the <nav> is turned into a flex container, and its child links are all flex items. These links are flex-level boxes, semantically still links, but now flex items in their presentation. They are not inline-level boxes: rather, they participate in their container’s flex formatting context. Therefore, the whitespace is ignored:

nav {
  display: flex;
  border-bottom: 1px solid #ccc;
}
a {
  margin: 0 5px;
  padding: 5px 15px;
  border-radius: 3px 3px 0 0;
  background-color: #ddaa00;
  text-decoration: none;
  color: #ffffff;
}
a:hover, a:focus, a:active {
  background-color: #ffcc22;
  color: black;
}

With a little added CSS, we’ve got ourselves a simple tabbed navigation bar, as shown in Figure 1-7.

Figure 1-7. A simple tabbed navigation

A flex formatting context is similar to a block formatting context, except flex layout is used instead of block layout: floats do not intrude into the flex container, and the flex container’s margins do not collapse with the margins of its contents.

While there are similarities, flex containers are different from block containers. Some CSS properties do not apply in the flex context. The column-* properties, ::first-line and ::first-letter don’t apply when it comes to the flex container.

The flex-flow Shorthand Property

The flex-flow property lets you define the directions of the main and cross axes and whether the flex items can wrap to more than one line if needed.

The flex-flow shorthand property sets the flex-direction and flex-wrap properties to define the flex container’s wrapping and main and cross axes.

The default value of flex-direction is row. The default value of flex-wrap is nowrap. As long as display is set to flex or inline-flex, omitting flex-flow, flex-direction, and flex-wrap is the same as declaring any of the following three, which all mean the same thing:

flex-flow: row;
flex-flow: nowrap;
flex-flow: row nowrap;

In left-to-right writing modes, declaring any of the property values just listed or omitting the flex-flow property altogether will create a flex container with a horizontal main axis that doesn’t wrap, as shown in Figure 2-1. That’s not the look you’re going for. flex-flow can help. But you might be wondering why we’re introducing a shorthand property before you understand the component properties.

Figure 2-1. flex-flow: row;

While the specification’s authors encourage the use of the flex-flow shorthand, understanding flex-wrap and flex-direction, the two properties that make up this shorthand, is necessary. And, by learning about the values that make up the flex-flow shorthand, we’ll learn how to fix the unsightly layout shown in Figure 2-1.

The flex-direction Property

If you want your layout to go from top to bottom, left to right, right to left, or even bottom to top, you can use flex-direction to control the main axis along which the flex items get laid out.

The flex-direction property specifies how flex items are placed in the flex container. It defines the main axis of a flex container (see “Understanding axes”), which is the primary axis along which flex items are laid out.

Figure 2-2 shows the four values of flex-direction, including row, row-reverse, column, and column-reverse in left-to-right languages. Note that all flex properties discussed here, like all CSS properties, accept the global values of inherit, initial, and unset.

Figure 2-2. The four values of the flex-direction property when the language is left-to-right

We specified left-to-right languages, because the direction of the main axis for row—the direction the flex items are laid out in—is the direction of the current writing mode.

Preferably, we should have used the flex-flow shorthand property. The two right columns in Table 2-1 are equivalent, with the nowrap value being explained in the next section.

You can reverse this default direction with flex-direction: row-reverse.

The flex items will be laid out from top to bottom when flex-direction: column is set, and from bottom to top if flex-direction: column-reverse is set, as shown in Figure 2-2. Note if the CSS direction value is different from the dir attribute value on an element, the CSS property value takes precedence over the HTML attribute.

In horizontal writing modes, which includes left-to-right and right-to-left languages, setting flex-direction: row, flex-flow: row, flex-flow: row nowrap, or omitting both the longhand and shorthand properties so it defaults to row will set all the flex items horizontally, side to side. By default, they will all be aligned horizontally, along the main-axis line, in source order. In left-to-right languages, they will be aligned from left to right: the left side is referred to main-start and the right is main-end, for the start and end points of the main-axis. In right-to-left languages, the main direction is reversed: the flex items are side by side from right to left, with the main-axis going from left to right, the right side being main-start and left being main-end.

The row-reverse value is the same as row, except the flex items are laid out in the opposite direction of the text direction: the start and end points are reversed. The direction of the main-axis of the flex container is reversed by the row-reverse value. For left-to-right languages, like English, row-reverse will lay out all the flex items side to side from right to left, horizontally, with main-start being on the right and main-end now on the left. These are shown in the top two image examples in Figure 2-2.

Had the direction of the page or flex container been reversed, such as for Hebrew or Arabic, with the attribute dir="rtl" on the flex container or an ancestor in the HTML, or with direction: rtl on the flex container or container’s ancestor in the CSS, the direction of the row-reverse main axis, and therefore the flex items, would be inverted from the default, going left to right, as shown in Figure 2-3. Similarly, the writing-mode property impacts the direction in which the flex items are drawn to the page.

Figure 2-3. The four values of the flex-direction property when direction is right to left, demonstrated here with display: inline-flex

The column value will lay out the flex items from top to bottom. The column value sets the flex container’s main-axis to be the same orientation as the block axis of the current writing mode. This is the vertical axis in horizontal writing modes and the horizontal axis in vertical writing modes. Basically, it sets the flex-container’s main-axis to vertical in most cases.

There are vertically written languages, including Bopomofo, Egyptian hieroglyphs, Hiragana, Katakana, Han, Hangul, Meroitic cursive and hieroglyphs, Mongolian, Ogham, Old Turkic, Phags Pa, Yi, and sometimes Japanese. These languages are only vertical when a vertical writing mode is specified. If one isn’t, then all of those languages are horizontal. If a vertical writing mode is specified, then all of the content is vertical, whether one of the listed vertically written languages or even English.

With column, the flex items are displayed in the same order as declared in the source document, but from top to bottom instead of left to right, so the flex items are laid out one on top of the next instead of side by side:

nav {
  display: flex;
  flex-direction: column;
  border-right: 1px solid #ccc;
}
a {
  margin: 5px;
  padding: 5px 15px;
  border-radius: 3px;
  background-color: #ccc;
  text-decoration: none;
  color: black;
}
a:hover, a:focus, a:active {
  background-color: #aaa;
  text-decoration: underline;
}

Using similar markup to our preceding navigation example, by simply changing a few CSS properties, we can create a nice sidebar-style navigation.

For the navigation’s new layout, we changed the flex-direction from the default row to column, moved the border from the bottom to the right, and changed the colors, border-radius, and margin values, as seen in Figure 2-4.

Figure 2-4. Changing flex-direction can completely change the layout of your content

Figure 2-5. The four values of flex-direction property when writing mode is horizontal-tb

The column-reverse value is similar to column, except the main axis is reversed, with main-start being at the bottom, and main-end being at the top of the vertical main-axis, going upward, as laid out in the bottom-right example in Figure 2-3.

The reverse values only change the appearance. The speech order and tab order remains the same as the underlying markup.

What we’ve learned so far is super powerful and makes layout a breeze. If we include the navigation within a full document, we can see how simple layout can be with flexbox.

Let’s expand a little on our preceding HTML example, and include the navigation as a component within a home page:

<body>
  <header>
    <h1>My Page's title!</h1>
  </header>
  <nav>
      <a href="/">Home</a>
      <a href="/about">About</a>
      <a href="/blog">Blog</a>
      <a href="/jobs">Careers</a>
      <a href="/contact">Contact Us</a>
  </nav>
  <main>
      <article>
        <img alt="" src="img1.jpg">
        <p>This is some awesome content that is on the page.</p>
        <button>Go Somewhere</button>
      </article>
      <article>
        <img alt="" src="img2.jpg">
        <p>This is more content than the previous box, but less than
        the next.</p>
        <button>Click Me</button>
      </article>
      <article>
        <img alt="" src="img3.jpg">
        <p>We have lots of content here to show that content can grow, and
        everything can be the same size if you use flexbox.</p>
        <button>Do Something</button>
      </article>
  </main>
  <footer>Copyright © 2017</footer>
</body>

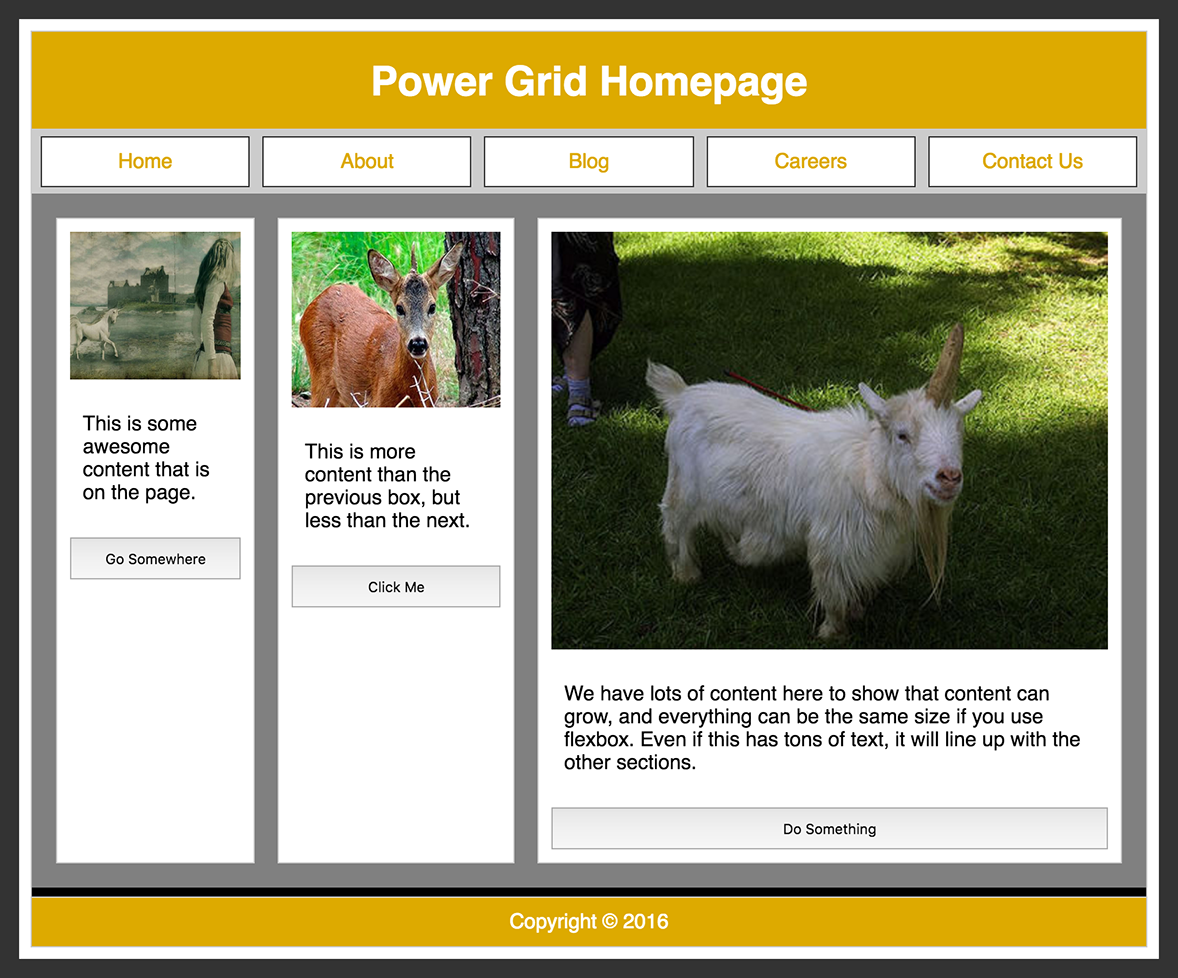

By simply adding a few lines of CSS, we’ve got a nicely laid out home page, as shown in Figure 2-6:

* {
  outline: 1px #ccc solid;
  margin: 10px;
  padding: 10px;
}
body, nav, main, article {
  display: flex;
}
body, article {
  flex-direction: column;
}

It took only two CSS property/value declarations to create the basic layout for a site home page.

Obviously there was some additional CSS. We added border, margin, and padding to all the elements so you can differentiate the flex items for the sake of learning (I wouldn’t put this less-than-attractive site in production). Otherwise, all we’ve done is simply declare the body, navigation, main, and articles as flex containers, making all the navigation, links, main, article, images, paragraphs, and buttons flex items. Yes, elements can be both flex items while being flex containers, as we see with the navigation, main, and articles in this case. The body and articles have column set as their flex directions, and we let nav and main default to row. Just two lines of CSS!

Figure 2-6. Home page layout using flex-direction: row and column

But what happens when the flex items’ main-dimension (their combined widths for row or combined heights for column) don’t fit within the flex container? We can either have them overflow, as shown in Figure 2-1, or we can allow them to wrap onto additional flex lines.

The flex-wrap Property

Thus far, the examples have shown a single row or column of flex items. If the flex items’ main-dimensions don’t all fit across the main-axis of the flex container, by default the flex items will not wrap. Rather, the flex items may shrink if allowed to do so via the flex item’s flex property (see “The flex Property”) and/or the flex items may overflow the bounding container box.

You can control this behavior. flex-wrap can be set on the container to allow the flex items to wrap onto multiple flex lines—rows or columns of flex items—instead of having flex items overflow the container or shrink as they remain on one line.

The flex-wrap property controls whether the flex container is limited to being a single-line container or is allowed to become multiline if needed. When the flex-wrap property is set to allow for multiple flex lines, whether the value of wrap or wrap-reverse is set determines whether any additional lines appear either before or after the original line of flex items.

By default, no matter how many flex items there are, all the flex items are drawn on a single line. This is often not what we want. That’s where flex-wrap comes into play. The wrap and wrap-reverse values allow the flex items to wrap onto additional flex lines when the constraints of the parent flex container are reached.

Figure 2-7 demonstrates the three values of the flex-wrap property when the flex-direction value is defaulting to row. When there are two or more flex lines, the second line and subsequent flex lines are added in the direction of the cross-axis.

Whether the additional flex lines are added above or below, as in the case of Figure 2-7, or to the left or to the right of the previous line is determined by whether wrap or wrap-reverse is set, by the flex-direction value, and by the writing mode.

Generally for wrap, the cross-axis goes from top to bottom for row and row-reverse and the horizontal direction of the language for column and column-reverse. The wrap-reverse value is similar to wrap, except that additional lines are added before the current line rather than after it.

When set to wrap-reverse, the cross axis direction is reversed: subsequent lines are drawn on top in the case of flex-direction: row and flex-direction: row-reverse and to the left of the previous column in the case of flex-direction: column and flex-direction: column-reverse. Similarly, in right-to-left languages, flex-flow: row wrap-reverse and flex-flow: row-reverse wrap-reverse, new lines will also be added on top, but for flex-flow: column wrap-reverse and flex-flow: column-reverse wrap-reverse new lines will be added to the right—the opposite of the language direction or writing mode, the direction of the inverted cross-axis.

Figure 2-7. The three values of the flex-wrap property

You may notice that in Figure 2-7, the new lines created in the wrap and wrap-reverse examples are not the same height as the first line. Flex lines are as tall or wide as their tallest or widest flex item within that line. The flex line’s main dimension is the main dimension of the flex container, while the flex line’s cross dimension grows to fit the cross-size of the flex item with the largest cross-size.

While the examples thus far are fairly simple, as you may have noticed from the two previous paragraphs, fully understanding all the complexities of flexbox is not. The preceding explanation introduced possibly confusing terms like main-axis, main-start, and main-end and cross-axis, cross-start, and cross-end. To fully grasp flexbox and all the flexbox properties, it is important to understand.

To understand flex layout you need to understand the physical directions, axes, and sizes affecting the flex container and its flex items. Fully understanding what the specification means when it uses these terms will make fully understanding flexbox much easier.

Understanding axes

Flex items are laid out along the main-axis. Flex lines are added in the direction of the cross-axis. The “main-” terms have to do with flex items. The “cross-” terms come into play on multiline flex containers: when wrap or wrap-reverse is set and the flex items actually wrap onto more than one line.

Up until we introduced flex-wrap, all the examples had a single line of flex items. That single line of flex items involved laying out the flex items along the main axis, in the main direction, from main-start to main-end. Depending of the flex-direction property, those flex items were laid out side by side, top to bottom or bottom to top, in one row or column along the direction of the main axis.

Table 2-2 summarizes the “main-” and “cross-” terms. It lists the dimensions and directions of the main-axis and cross-axis, along with their start point, end points, and directions for left-to-right writing mode layouts. In addition to describing the dimensions and direction of the flex container, these terms can be used to describe the direction and dimension of individual flex items.

Table 2-2. Dimensions and directions of the main- and cross-axis, along with their start point, end points, and directions in left-to-right layout

	Flex directions in left-to-right (LTR) writing modes
	row	row-reverse	column	column-reverse
main-axis	left to right	right to left	top to bottom	bottom to top
main dimension	horizontal	horizontal	vertical	vertical
main-start	left	right	top	bottom
main-end	right	left	bottom	top
main-size	width	width	height	height
cross dimension	vertical	vertical	horizontal	horizontal
cross-start	top	top	left	left
cross-end	bottom	bottom	right	right
cross-size	height	height	width	width

In the case of flex-flow: row (Figure 2-1), the sum of the main-sizes of the nonwrappable line of flex items was greater than the main-size of the flex container parent. In plainer English, the combined widths (and noncollapsed horizontal margins) of the flex items was wider than the width of the flex container.

In horizontal writing modes, for row and row-reverse, the main size refers to the widths of the flex items and flex container. In the case of column and column-reverse, the main size is height.

Figure 2-8 shows the axes and the direction of each axis for flex containers with a flex-direction of row, row-reverse, column, and column-reverse for LTR writing modes.

Figure 2-8. Axes for row, row-reverse, column, and column-reverse in LTR languages

The main-axis is the primary axis along which flex items are laid out, with flex items being drawn along the main-axis in the direction of main-start to main-end.

If all writing modes were from left to right and top to bottom, like in English, flex-direction would be less complex. For both RTL and LTR languages, flex-direction: row and flex-direction: row-reverse the main-axis is horizontal. For LTR languages, in the case of row, the main-start is on the left, and main-end is on the right. They’re inverted for row-reverse, with the main-start switching to the right and main-end now on the left. For column, the main axis is vertical, with main-start on top and main-end on the bottom. For column-reverse, the main-axis is also vertical, but with main-start on bottom and main-end is on the top.

As shown in Table 2-3, when the writing mode is right to left, like in Arabic and Hebrew, if you have dir="rtl" set in your HTML, or direction: rtl set in your CSS, the direction of the text will go from right to left. In these cases, the direction of row is reversed to be from right to left with main-start on the right and main-end on the left. Similarly, the main-axis for row-reverse will go from left to right, with main-start being on the right. For column, the main-start is still on the top and main-end is on the bottom, just like for left-to-right languages, as both are top-to-bottom languages.

Table 2-3. Dimensions and directions of the main- and cross-axis, along with their start points, end points, and directions when writing mode is right to left

	Flex directions in RTL writing modes
	row	row-reverse	column	column-reverse
main-axis	right to left	left to right	top to bottom	bottom to top
main dimension	horizontal	horizontal	vertical	vertical
main-start	right	left	top	bottom
main-end	left	right	bottom	top
main-size	width	width	height	height
cross dimension	vertical	vertical	horizontal	horizontal
cross-start	top	top	right	right
cross-end	bottom	bottom	left	left
cross-size	height	height	width	width

If your site has writing-mode: horizontal-tb set, as in Figure 2-5, the main-axis of the content for row and row-reverse will be vertical, while column and column-reverse are horizontal. The writing-mode property is starting to get support in browsers, with support in Edge and Firefox, prefixed support in Chrome, Safari, Android, and Opera, and support for an older syntax in Internet Explorer.

Note

While the CSS direction property along with unicode-bidi can be used to control the direction of text, don’t do it. It is recommended to use the dir attribute and CSS writing-mode property because HTML’s dir attribute concerns HTML content, and the writing-mode property concerns layout.

It’s important to understand things get reversed when writing direction is reversed. Now that you understand that, to make explaining (and understanding) flex layout much simpler, we’re going to make the rest of the explanations and examples all be based on left-to-right writing mode, but will include how writing mode impacts the flex properties and features discussed.

How your flex layout appears on the screen is determined in part by interactions between flex-flow—which includes flex-direction and flex-wrap—and the writing mode. We’ve covered the direction in which flex items are added to a line of flex items, but when the end of the flex line is reached, how are new flex lines added?

When thinking about flex-direction, we now know the flex items are going to start being laid out across the main axis of the flex container, starting from the main-start. The “cross-” directions come into play when it comes to adding additional lines of flex items, known as flex lines. When the flex-wrap property is used to allow the container to wrap if the flex items don’t fit onto one line, the cross directions determine the direction of additional lines in multiline flex containers.

While the laying out of the flex items on each flex line is done in the main direction, going from main-start to main-end, the wrapping to additional lines is done along the cross direction, from cross-start to cross-end.

The cross-axis is perpendicular to the main-axis. As we see in Figure 2-9, when we have horizontal rows of flex items, the cross-axis is vertical. Flex lines are added in the direction of the cross-axis. In these examples, with flex-flow: row wrap and flex-flow: row-reverse wrap set on horizontal languages, new flex lines are added below preceding flex lines.

The cross-size is the opposite of main-size, being height for row and row-reverse and width for column and column-reverse in both RTL and LTR languages. Flex lines are filled with items and placed into the container, with lines added starting on the cross-start side of the flex container and going toward the cross-end side.

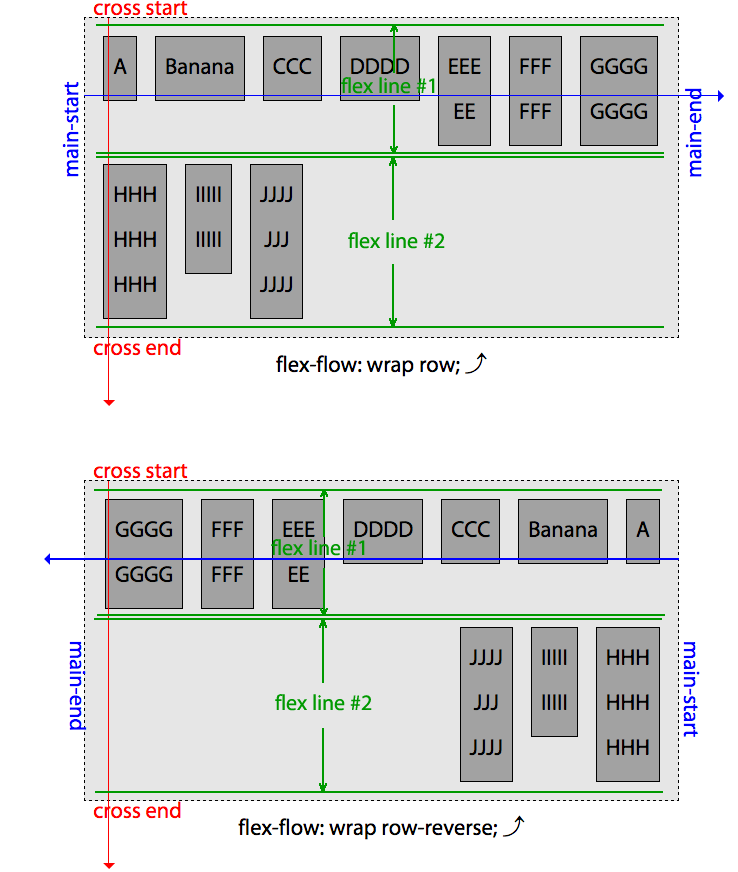

Figure 2-9. Flex lines on row and row-reverse when flex-wrap: wrap is set

The wrap-reverse value inverts the direction of the cross-axis. Normally for flex-direction of row and row-reverse, the cross-axis goes from top to bottom, with the cross-start on top and cross-end on the bottom, as shown in Figure 2-9. When flex-wrap is set to wrap-reverse, the cross-start and cross-end directions are swapped, with the cross-start on the bottom, cross-end on top, and the cross-axis going from bottom to top, as shown in Figure 2-7. Additional flex lines get added on top of, or above, the previous line.

If the flex-direction is set to column or column-reverse, by default the cross-axis goes from left to right in left-to-right languages, with new flex lines being added to the right of previous lines. As shown in Figure 2-10, when flex-wrap is set to wrap-reverse, the cross-axis is inverted, with cross-start being on the right, cross-end being on the left, the cross-axis going from right to left, with additional flex lines being added to the left of the previously drawn line.

Figure 2-10. Flex lines on column and column-reverse when flex-wrap: wrap-reverse is set

Note

We added align-items: flex-start (see “The align-items Property”) and align-content: flex-start (see “The align-content Property”) to the flex container in Figures 2-9 and 2-10 to enunciate the height and directions of the flex lines. These properties are covered in the following sections.

The flex-wrap property seemed fairly intuitive when it was first described. It turned out to be a bit more complex than it might have originally seemed. You may never implement reversed wrapping in a right-to-left language, but this is a “Definitive Guide.” Now that we have a better understanding of the “cross-” dimensions, let’s dig deeper into the flex-wrap property.

flex-wrap continued

The default value of nowrap prevents wrapping, so the cross- directions just discussed aren’t relevant when there is no chance of a second flex line. When additional lines are possible—when flex-wrap is set to wrap or wrap-reverse—those lines will be added in the cross direction, which is perpendicular to the main-axis. The first line starts at the cross-start with additional lines being added on the cross-end side.

The wrap-reverse value inverts the direction of the cross-axis. Normally for flex-direction of row and row-reverse, the cross-axis goes from top to bottom, with the cross-start on top and cross-end on the bottom. When flex-wrap is wrap-reverse, the cross-start and cross-end directions are swapped, with the cross-start on the bottom, cross-end on top, and the cross-axis going from bottom to top. Additional flex lines get added on top of the previous line.

You can invert the direction of the cross-axis, adding new lines on top or to the left of previous lines by including flex-wrap: wrap-reverse. In Figures 2-9, 2-10, and 2-11, the last example in each is wrap-reverse. You’ll notice the new line starts at the main-start, but is added in the inverse direction of the cross-axis set by the flex-direction property.

In Figure 2-11, the same flex-wrap values are repeated, but with a flex-direction: column property value instead of row. In this case, the flex items are laid out along the vertical axis. Just as with the first example in Figure 2-7, if wrapping is not enabled by the flex-wrap property, either because flex-wrap: nowrap is explicitly set on the container, or if the property is omitted and it defaults to nowrap, no new flex lines will be added, even if that means the flex items are drawn beyond the bounding box of the flex container.

With column, just like with row, if the flex items don’t fit within the flex container’s main dimension, they’ll overflow the flex container, unless explicitly forced with min-width: 0 or similar, in which case they shrink to fit, though flex items will not shrink to smaller than their border, padding and margins combined.

When "flex-direction: column; flex-wrap: wrap;" or "flex-flow: column wrap;" is set on a flex container, the flex item children are aligned along the main-axis. In LTR modes, the first flex item is placed in the top left, which is the main-start and cross-start respectively. If there is room, the next item will be placed below it, along the main-axis. If there isn’t enough room, the flex container will wrap the flex items onto new lines. The next flex item will be put on a new line, which in this case is a vertical line to the right of the previous line, as can be observed in the flex-flow: column wrap example, the top-right example in Figure 2-11.

Figure 2-11. The three values of flex-wrap property with a column flex-direction

Here, the flex items have wrapped onto 3 lines. The flex items are wrapping onto new lines as the height: 440px was set on the parent. Including a height forces the creation of new flex lines when the next flex item will not fit onto the current flex line.

As shown in the bottom-right example in Figure 2-11, when we include "flex-direction: column; flex-wrap: wrap-reverse;" or "flex-flow: column wrap-reverse;" and the main-axis is the vertical axis, flex items are added below the previous flex item, if they can fit within the parent container. Because of the wrap-reverse, the cross-axis is reversed meaning new lines are added in the opposite direction of the writing mode. As shown in this example and in Figure 2-10, with wrap-reverse, columns are laid out right to left, instead of left to right. The first column of flex items is on the leftmost side of the parent flex container. Any additional required columns will be added to the left of the previous column. Again, we’re assuming a left-to-right default writing mode for all the examples.

In this example, the flex items are different heights based on their content. When divided across three lines, the last line is not filled. Since subsequent lines are being added to the left of previous lines, the empty space, if there is any, will be on the bottom left (assuming justify-content, described next, is set or defaults to flex-start).

As you can see, flex-direction and flex-wrap have great impact on your layout and on each other. Because it’s generally important to set both if you’re going to set either, we are provided with the flex-flow property, which is simply shorthand for flex-direction and flex-wrap.

justify-content Examples

We took advantage of the default value in Figure 1-7, creating a left-aligned navigation bar. By changing the default value to justify-content: flex-end we can right align the navigation bar, as shown in Figure 2-22.

Figure 2-22. Right- and left-aligned navigation in LTR and RTL languages using justify-content

For right-to-left writing modes, we don’t have to alter the CSS. As shown in Figure 2-21, and as discussed in Chapter 1, flex items are grouped toward main-start. In English, main-start is on the left. For Hebrew, main-start is on the right.

By simply adding a single line to our CSS, we altered the appearance of our navigation example, making the English version flush to the right and the Hebrew translation flush to the left:

nav {
  display: flex;
  justify-content: flex-end;
  border-bottom: 1px solid #ccc;
}

We could have centered that navigation, as shown in Figure 2-23:

nav {
  display: flex;
  justify-content: center;
  border-bottom: 1px solid #ccc;
}

Figure 2-23. Changing the layout with one property value pair

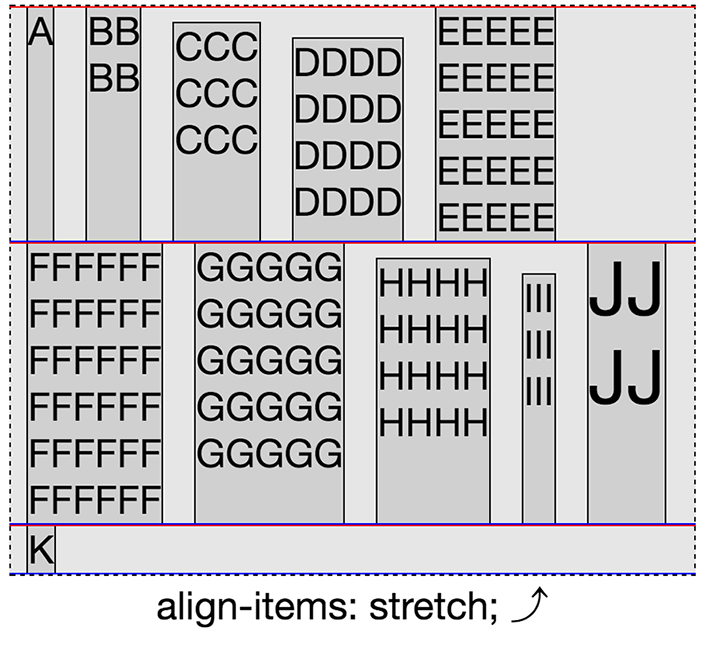

align-items: stretch

Figure 2-25. align-items: stretch

The default and the explicitly set align-items: stretch stretches all the stretchable flex items in a line to be as tall or wide as the tallest or widest flex item on the line. What does “stretchable” mean? While by default all the flex items will stretch to take up 100% of the cross-size, if min-height, min-width, max-height, max-width, width, or height are set, those properties will take precedence.

If set or defaulting to stretch, the flex items’ cross-start will be flush with the flex line’s cross-start, and the flex items’ cross-end will be flush with the flex line’s cross-end. The flex item with the largest cross-size will remain its default size, and the other flex items will stretch, growing to the size of that largest flex item on that same flex line. The cross-size of the flex items includes the margins, as demonstrated by items C, D, H, and I.

Figure 2-26. Effect of cross-axis margins on the align-items property

The size of the stretched flex item includes the margins on the cross-start and cross-end sides: it is the outer edge of the flex items’ margin that will be flush with cross-start and cross-end. This is the reason C, D, H, and I may appear smaller than the other flex items on their flex lines. They’re not. The outer edge of the top and bottom margins are flush with the cross-start and cross-end of the flex lines they occupy. Those flex lines are, in turn, as tall as the tallest item on the line (or as wide as the widest item when the cross dimension is horizontal).

Flex lines are only as tall as they need to be to contain their flex containers. In the five align-items figures, the line height of the flex line containing only K is much smaller than the line containing E, which is smaller than the line containing F. K has only one line of text, and no margin, whereas E has five lines of text. The second line, which includes F with six lines of text, making it even taller than the first line.

align-items: flex-start

The flex-start value lines up each flex items’ cross-start edge flush against the cross-start edge of their flex line. The flex item’s cross-start edge is on the outside of the margin: if a flex item has a margin that is greater than 0, flex item will not appear flush with the flex line’s cross-start edge, as seen in flex item C, D, H, and I, in Figure 2-27.

Figure 2-27. align-items: flex-start

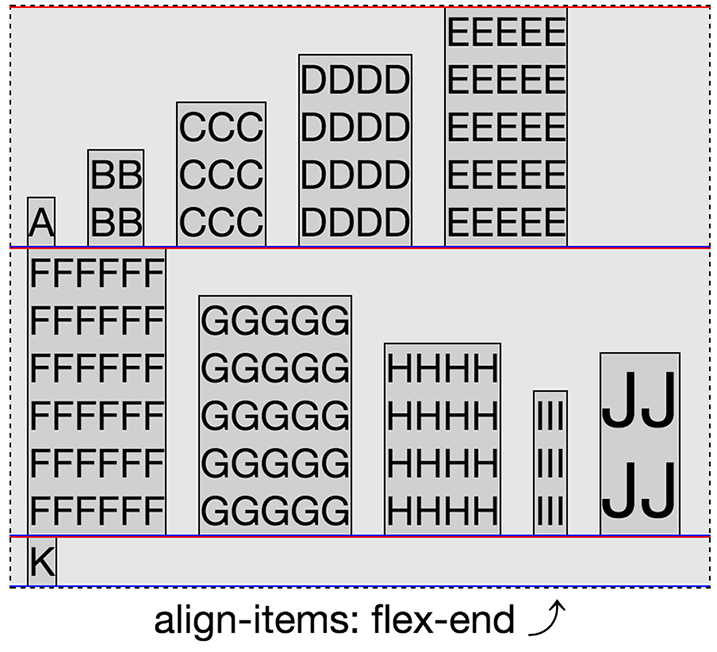

align-items: flex-end

Setting align-items: flex-end will align the cross-end edge of all the flex items along the cross-end edge of the line they are in as shown in Figure 2-28. In these examples, none of the flex items have a bottom margin greater than 0 px, so unlike our other examples, this example does not look jagged.

Figure 2-28. align-items: flex-end

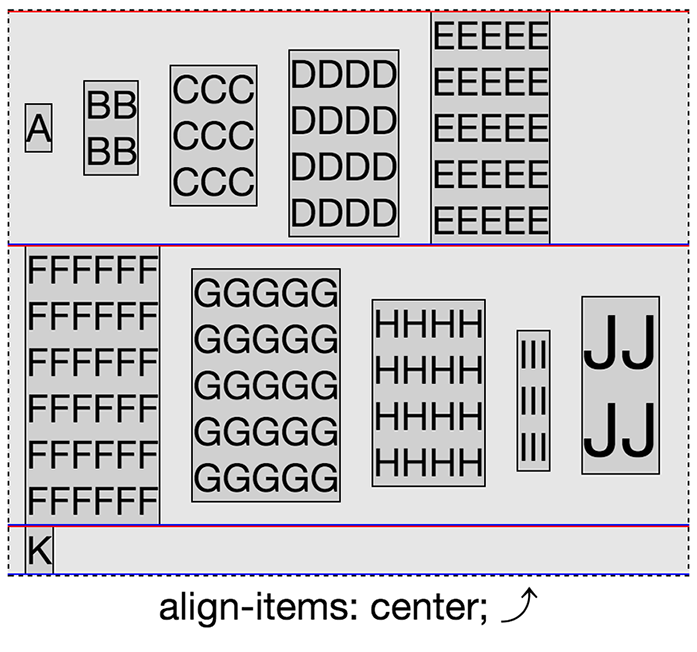

align-items: center

As shown in Figure 2-29, setting align-items: center will center the flex items’ cross-size along the middle point of the cross-axis of the line. The center is the midpoint between the outer edges of the margin, remembering flex item margins do not collapse. Because the cross-edge margins for C, D, H, and I are not symmetrical, the flex items do not appear centered along the cross-axis, even though they are. In LTR and RTL languages, in the case of flex-direction: row and row-reverse, the midpoint is the midpoint of the top margin, top border, top-padding, content or height, bottom padding, bottom border, and bottom margin. For flex-direction: column, and column-reverse, the midpoint is the midpoint of the left margin, left border, left-padding, content or width, right padding, right border, and right margin.

Figure 2-29. align-items: flex-center

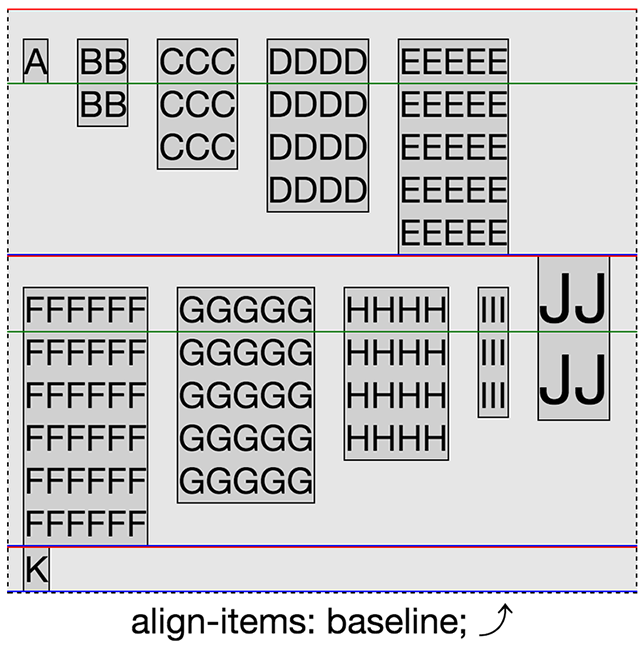

align-items: baseline

The baseline value may be a little more confusing. With baseline, the flex items in each line are all aligned at their baselines, which is basically the bottom of the first line of text, if there is any. The flex item on each flex line with the biggest distance between its baseline and its cross-start margin edge is placed flush against the cross-start edge of the line, with all other flex items’ baselines lined up with the baseline of that flex item.

Instead of aligning the cross-start of each flex item flush against the cross-start of each line, the flex items are aligned so their baselines align. In many implementations, baseline will look like flex-start, but will differ from the flex-start value if the flex items have different margins, padding, or border on the cross-start side, or if the first lines of content of the flex items don’t all have the same line heights.

You’ll notice that A, B, C, D, and E all seem aligned at top. What you may have missed is that they are not flush to the top—they are not flush against the red line. D has a top margin of 20 px. The outer edge of D’s top margin is flush against the cross-start of the flex line, which is flush with the top of the flex container. As previously noted, the distance between the cross-start line and baseline is determined by the item on the line that has the biggest distance between its outer margin on its cross-start side and its baseline. In the Figure 2-30 baseline example, the items with the largest distance on their own flex lines are D, J, and K. These items’ outer margins on the cross-start side are placed flush against the cross-start edge of their respective lines, and the other items in the same flex lines have their baseline lined up with D, J, and K’s baseline.

Figure 2-30. align-items: baseline

As A, B, C, D, and E all have the same line height, and D has the tallest top margin, they are aligned with D’s baseline, and D’s top margin is flush against the cross-start edge. When it comes to the first line, because they all have the same line height, border, and padding, it looks like they’re lined up like flex-start, but they are actually a little lower, accommodating for D’s top margin. The green line denotes where the baseline is.

In all the examples, we increased the font size for J to 3rem to create a flex item that had a different baseline from all the other flex items. Only when align-items: baseline is set does this impact the flex item alignment within the flex line, as shown in Figure 2-30. When align-items: baseline is set, the baselines of all the items in the second flex line are aligned with J’s baseline, as J is the flex item with the greatest space between the outer top margin and the bottom of the first line of text. Again, the green line denotes the approximate location of the baseline.

Additional Notes

The align-items property is set on the flex container and impacts all of the flex items within that flex container. If you want to change the alignment of one or more flex items, but not all, you can include the align-self property on the flex items you would like to align differently. The align-self takes the same values as align-items, and is discussed in Chapter 3.

You cannot override the alignment for anonymous flex items (nonempty text node children of flex containers): their align-self always matches the value of align-items of their parent flex container.

In the align-items examples, the flex container’s cross-size was as tall as it needed to be. No height was declared on the container, so it defaulted to height: auto. Because of this, the flex container grew to fit the content. You may have noticed the example flex containers were all the same height, and the flex line heights were the same across all examples.

Had the cross-size, in this case the height, been set to a specific size, there may have been extra space at cross-end, or not enough space to fit the content. Flexbox allows us to control the alignment of flex lines with the align-content property. The align-content property is the last property we need to focus on that applies to the flex container (versus the flex items). The align-content property only impacts flex line alignment in multiline flex containers.

Distribution of extra space

In Figure 2-31, each flex container has three flex lines. With a height of 480 px, the flex container is taller than the default combined heights of the 3 flex lines. The tallest items in each line—E, F, and K—are 150 px, 180 px, and 30 px, respectively, for a combined total of 360 px. Each flex container has an extra 120 px of free space in the cross-size direction. The cross-start side of each flex line is denoted with a red line, the cross-end side with a blue line; they may appear purple when they overlap. With five of the align-items values, the free space is distributed outside of the flex lines, as is more apparent in Figure 2-32. With stretch, the extra space is evenly distributed between all the flex lines, increasing their cross-size.

Figure 2-32. Distribution of extra space for the different values of align-content

Figure 2-32 reiterates the six possible values of the align-content property, with align-items: stretch and flex: 1 set to allow the flex items to grow to take up their entire lines to make the impact of the align-content values more apparent (and generally, to be less of an eyesore):

flex-container {
  display: flex;
  flex-flow: row wrap;
  align-items: stretch;
  border: 1px dashed;
  height: 480px;
}
flex-items {
  flex: 1;
}

Just like in the previous example, with a height of 480 px, and with flex lines 150 px, 180 px, and 30 px tall, we have 120 px of free space along the cross-direction distributed differently depending on the value of the align-content property:

480 - (150 + 180 + 30) = 120

As shown in the first examples in both Figures 2-31 and 2-32, with flex-start the 120 px is on the cross-end side. With flex-end the extra 120 px of available space is at the cross-start side. With center, the lines are centered, with 60 px of extra space at both the cross-start and cross-end sides, as shown in the top-right example of both figures. With space-between, there is 60 px between adjacent pairs of flex lines, as shown in the bottom-left examples. With space-around, the space is evenly distributed around each line: the 120 px is distributed evenly, putting 20 px of non-collapsed space on the cross-start and cross-end sides of each flex line, so there are 20 px of extra space at the cross-start and cross-end sides of the flex container and 40 px of space between adjacent flex lines.

The stretch value is different: with stretch the lines stretch with the extra space evenly distributed among the flex lines rather than between them. In this case, 40 px was added to each of the flex lines. You’ll note in the sixth example in both Figures 2-31 and 2-32, there is no area within the container that is not occupied by a flex line. Stretch is the default value, as you likely want to fill all the available space.

If there isn’t enough room for all the lines, they will overflow at cross-start, cross-end, or both, depending on the value of the align-content property, as shown in Figure 2-33.

Figure 2-33 shows the size align-content values when the flex lines overflow their parent flex container. The only difference in the CSS between this and Figure 2-31 is the height of the flex container. We defined height: 240px to create flex containers not tall enough to encompass all their child flex items:

flex-container {
  display: flex;
  flex-flow: row wrap;
  align-items: flex-start;
  border: 1px dashed;
  height: 240px;
}

If the flex lines overflow the flex container, flex-start, space-between, and stretch overflow the cross-end side, stretch and center overflow evenly both the cross-end and cross-start sides, and only flex-end overflows only on the cross-start side.

Figure 2-33. Appearance of the align-content property when lines are overflowing the container

align-content: flex-start

With align-content: flex-start, the cross-start edge of the first line of flex items will be flush against cross-start, with each subsequent line placed flush against the preceding line, as shown in Figure 2-34.

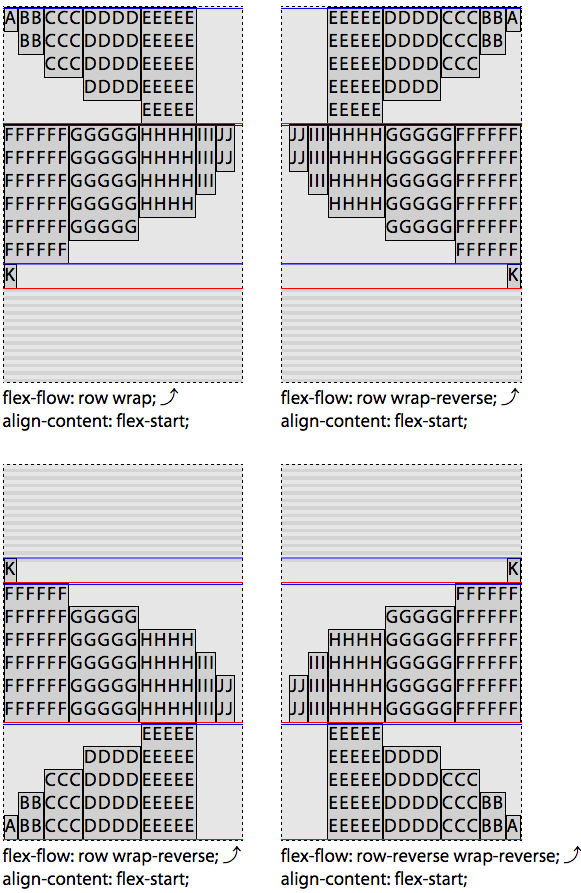

Figure 2-34. Remember, wrap-reverse inverts the cross-direction; with flex-start, the excess space or overflowing lines, if any, is always at cross-end

In other words, all the flex lines will be grouped together at the cross-start edge of the flex container. Note all the extra space (the extra 120 px in this case) is at cross-end. Remembering the cross-direction is inverted with flex-direction: wrap-reverse (see “The flex-direction Property”), as shown in Figure 2-15. If there isn’t enough room for all the lines, they will overflow at cross-end.

align-content: flex-end

With align-content: flex-end, the cross-end edge of the last line of flex items is placed flush with the cross-end edge of the flex container, and each preceding line is placed flush with the subsequent line, leaving all the extra whitespace at cross-start. In other words, all the flex lines will be grouped flush against the cross-end edge of the flex container. Should the content overflow the flex container, it will do so on cross-start side.

align-content: center

Declaring align-content: center groups the flex lines together, so they are flush against each other, just like they are grouped together with flex-start and flex-end, but in the center of the flex container.

center, flex-start, and flex-end all have each line’s cross-end being flush against the subsequent line’s cross-start. Instead of all the lines being grouped at the container cross-start as in flex-start or at cross-end as in flex-end, with align-content: center the group of lines is centered between the flex container’s cross-start and cross-end, with equal amounts of empty space—60 px on each side in this case—between the cross-start edge of the flex container and the cross-start edge of the first flex line, and between the cross-end edge of the flex container and the cross-end edge of the last flex line, as shown in the top-right example in 2-31 and 2-32. If the flex items overflow the flex container, the lines will overflow equally in both directions past the cross-start and cross-end edges of the container, as shown in the center-left example in Figure 2-33.

align-content: space-between

When align-content: space-between is set, the flex lines are evenly distributed in the flex container. The even distribution is based on the available space, not the size of the lines; the extra space is divided equally among the lines, not proportionally.

If we remember back to justify-content: space-between, the first flex item is flush against main-start. The second flex item, if there is one, is flush against main-end. The rest of the flex items, if there are any, are spread out with equal amounts of the free space distributed between the flex items. This is similar to how align-content: space-between works. If there is more than one flex line, the first line will be flush against the container’s cross-start, the last line will be flush against the container’s cross-end, and the available extra space is distributed evenly between the additional lines, if there are any. The extra space is distributed evenly, not proportionally. The space between any two flex lines within the flex container is equal, even if the cross-sizes of the multiple flex lines differ.

The middle line, if there is an odd number of lines, is not necessarily centered, as the lines don’t necessarily all have equivalent cross dimensions. Rather, the spacing between any two adjacent lines is the same: there is the same amount of space between the first and second line as there is between any other adjacent flex line, as shown in the bottom left example in Figure 2-32. In this case, we have 120 px total of free space, which gets divided equally, with half, or 60 px, between the first and second flex lines, and 60 px between the second and third flex lines:

120px / 2 = 60px

If there isn’t enough space to encompass all the flex lines, the free space is negative and align-content: space-between appearance is identical to flex-start, with the overflow on the cross-end side.

align-content: space around

The space-around value distributes the lines within a multiline flex container evenly, as if all the flex lines had equal, noncollapsing margins on both the cross-start and cross-end sides. Because there is an equal distribution of the extra available space around each line, the space between the edges of the container and the first and last flex lines is half the size of the distance between any two flex lines. The distribution of the extra space is shown in Figure 2-35.

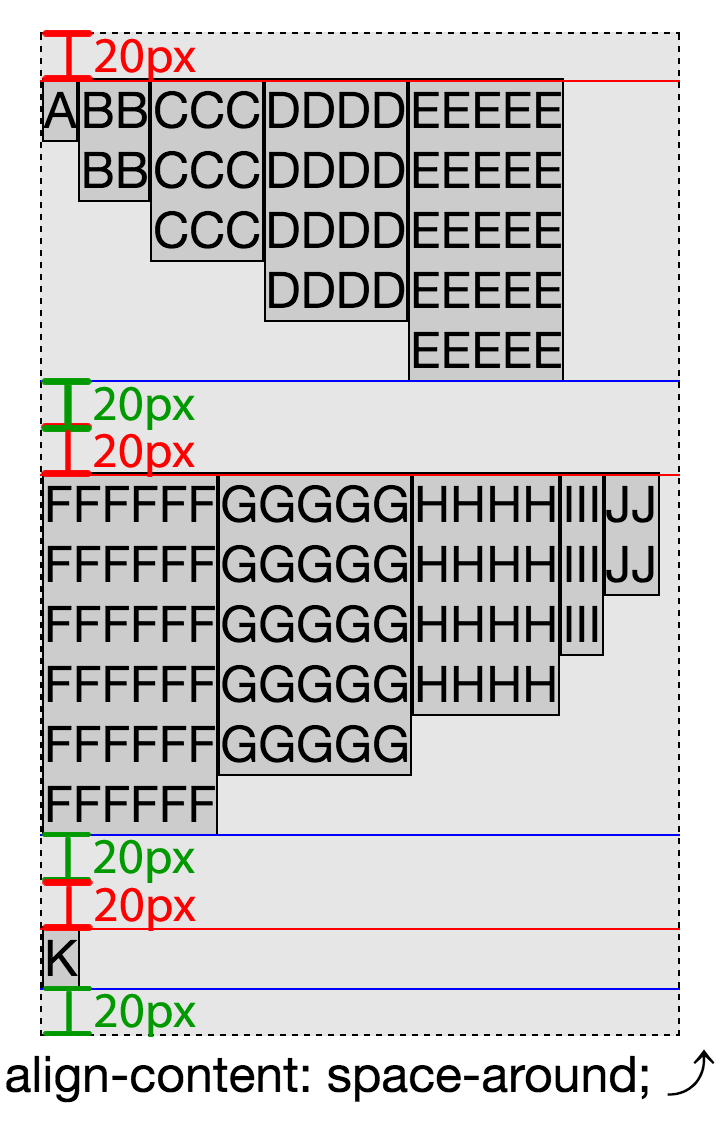

Figure 2-35. Distribution of free space when align-content: space-around is set

In this case we have 120 px of free space distributed to 3 flex lines, with half of each flex lines extra space being added to the cross-start edge and half being added to the cross-end edge:

    (120px / 3 lines) / 2 sides = 20px per side

In this example, there is 20 px on the outer sides of the flex lines, with twice that between any two adjacent flex lines. There is 20 px between the cross-start edge and the first line, 20 px between the cross-end edge and the last line, and 40 px (twice 20 px) between the first and second flex lines and the second and third flex lines.

If there isn’t enough room for the flex lines and they overflow the flex container, the free space is negative, and align-content: space-around value appears identical to center, with the overflow evenly distributed between the cross-start and cross-end sides.

align-content: stretch

Omitting the align-content property, or setting it explicitly to the align-content: stretch default value, makes the lines stretch to take up all the extra available space.

If you take a close look at Figure 2-32, you’ll note that stretch and space-between are actually quite different. In space-between, the extra space is distributed between the lines. In stretch, the extra space is divided into the number of lines and added to the lines. The original lines were 150 px, 180 px, and 30 px tall, respectively. When set to stretch, the extra 120 px is added to the lines in equal amounts. As we have three flex lines and 120 px of extra space, each flex line grows by 40 px, giving us flex lines that are 190 px, 220 px, and 70 px, respectively, as shown in Figure 2-36.

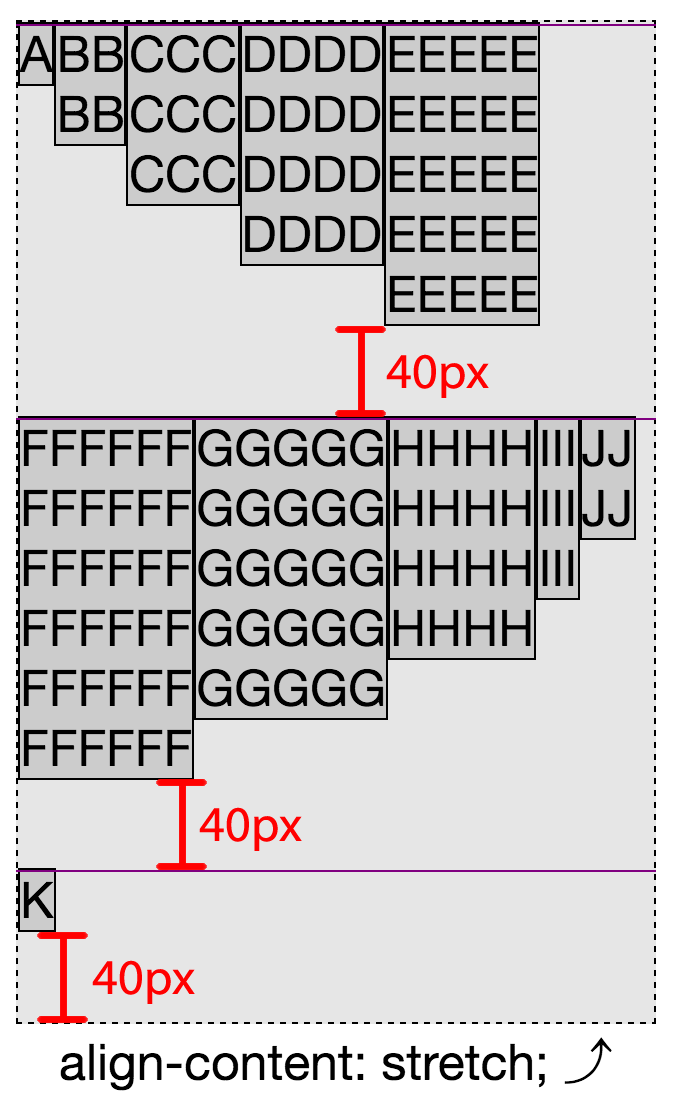

Figure 2-36. When set to stretch, the extra space is distributed equally, not proportionally, to each line

That extra space, in this example, appears at the cross-end of each individual line since we included align-items: flex-start. Had we used align-items: flex-end instead, the extra space in each line would have been apparent at the individual lines’ flex-start.

If there isn’t enough space to fit all the flex lines, the lines will behave as if set to flex-start, with the first flex line flush against the cross-start edge of the flex container.

We have been taking a look at properties of the flex container. It’s time to take a look at properties directly applied to flex items.

Flex Item Features

The margins of flex items do not collapse. The float and clear properties don’t have an effect on flex items, and do not take a flex item out of flow. Additionally, vertical-align has no effect on a flex item. However, the float property can still affect box generation by influencing the display property’s computed value, as the following code example shows:

aside {
  display: flex;
}
img {
  float: left;
}

<aside>
    <!-- this is a comment -->
    <h1>Header</h1>

    <img src="images/foo.jpg" alt="Foo Master">
    Some text
</aside>

In this example, the aside is the flex container. The comment and whitespace-only text nodes are ignored. The text node containing “some text” is wrapped in an anonymous flex item. The header, image, and text node containing “some text” are all flex items. As the image is a flex item, the float is ignored. Even though images and text nodes are inline-level nodes, being flex items, as long as they are not absolutely positioned, they are blockified:

aside {
  display: flex;
}

<aside>
    <!-- a comment -->
    <h1>Header</h1>

    <img src="images/foo.jpg" alt="foo master">
    Some text <a href="foo.html">with a link</a> and more text
</aside>

In the last example, the markup is similar to the code in the second example, with the addition of a link within the nonempty text node. In this case, we are creating five flex items. The comment and whitespace-only text nodes are ignored. The header, the image, the text node before the link, the link, and the text node after the link are all flex items. The text nodes containing “some text” and “and more text” are wrapped in anonymous flex items. As these two text node children of the <aside> are not contiguous, they are wrapped in separate anonymous flex items. The header, image, and link, being DOM nodes, can be targeted directly with CSS. The anonymous flex containers are not directly targetable.

min-width

In Figure 3-2, you’ll note the line that is set to the nowrap default overflows the flex container. This is because when it comes to flex items, the implied value of min-width is auto, rather than 0. Originally in the specification, if the items didn’t fit onto that single main-axis, they would shrink. However, the specification of min-width was altered. In the CSS 2.1 specification, the default value for min-width is 0. Now, for flex items, the implied minimum size is auto, not 0.

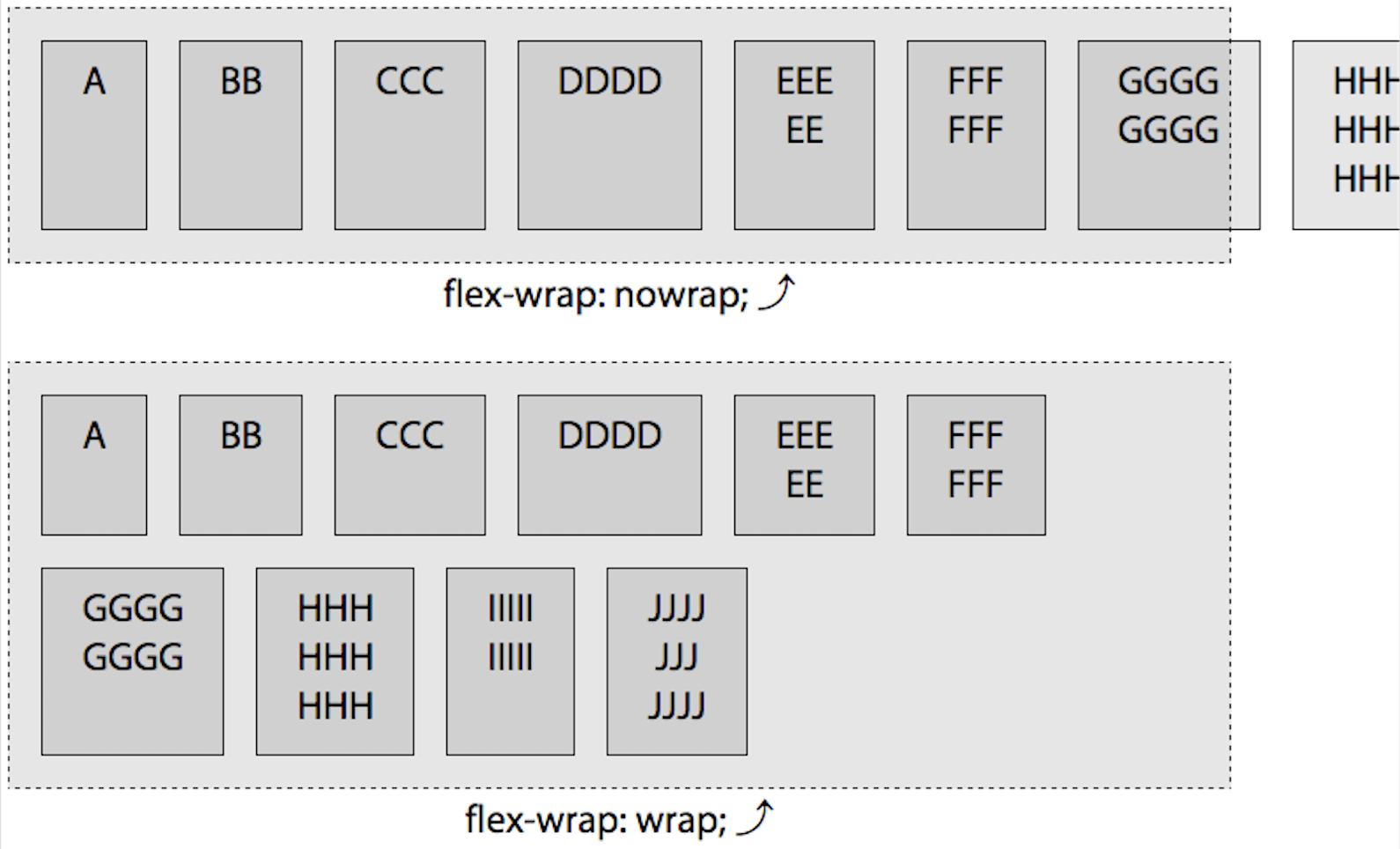

Figure 3-2. Flex items overflowing their container when min-width defaults to auto, unless wrapping is allowed

If you set the min-width to a width narrower than the computed value of auto—for example, if we declare min-width: 0;—the flex items in the nowrap example will shrink to be narrower than the flex items in containers that are not allowed to wrap, as shown in Figure 3-3. This is what Safari 9 displays by default, as it has not updated the implied min-width change. We’ll cover flex item width in greater depth in “The flex Property”.

Figure 3-3. Flex items in non-wrapping containers will shrink if the min-width is explicitly set to 0, which is the default in Safari 9

Non-Null Growth Factor

In the second example of Figure 3-4, the first two flex items, with a growth factor set to 0, will not grow. Only the third flex item has a value greater than 0, with flex-grow: 1 set, which means the single element with a positive growth factor value will take up all the extra available space.

The first two flex items with flex growth factor of 0 will remain at 100px wide, even if the content doesn’t fit. Only the third flex item is allowed to grow, and therefore it must grow, taking up the extra 450 pixels to become 550 px wide.

The growth factor needs to be a positive, non-null float value for the flex item to grow. In this example the growth factor was 1, but had it been 0.000001 or 10000000, the layout would be the same.

Growing Proportionally Based on Growth Factor

If all items are allowed to grow, the excess space is distributed proportionally based on the flex growth factors. In the third example, with two flex items having a growth factor of 1, and one flex item having a growth factor of 3, we have a total of five growth factors:

 (2 x 1) + (1 x 3) = 5

With 5 growth factors, and a total of 450 px needing to be distributed, each growth factor is worth 90 px:

450px / 5 = 90px.

Before being allowed to grow based on individual flex item’s growth factor, the flex items were each 100 px wide as set forth by the width property. With each growth factor being 90 px, we have 2 flex items with a width of 190 px each and the last flex item has a width of 370 px:

100px + (1 x 90px) = 190px
100px + (3 x 90px) = 370px

In the last example, we have a total of 2.5 growth factors:

 (2 x 0.5) + (1 x 1.5) = 2.5

With 2.5 growth factors, and a total of 450 px needing to be filled, each growth factor is worth 180 px:

450px / 2.5 = 180px

Again, the default flex item size was 100 px, with the flex basis defaulting to auto, leading us to have the exact same layout as in the second example. This demonstrates how the distribution of extra space is proportional. Again we see 2 flex items with a width of 190 px and the last flex item having a width of 370 px:

100px + (0.5 x 180px) = 190px
100px + (1.5 x 180px) = 370px

Had we declared growth factors of 0.1, 0.1, and 0.3, respectively, or 25, 25, 75, the layout would have been identical.

Growth Factor with Different Widths

As mentioned, the available space is distributed proportionally among the flex items in each flex row based on the flex growth factors, without regards to the original, underlying widths.

In Figure 3-5, in the second example, we have flex items that are 100 px, 250 px, and 100 px wide, with growth factors of 1, 1, and 3, respectively, in a container that is 750 px wide. This means we have 300 px of extra space to distribute among a total of 5 growth factors. Each growth factor is therefore 60 px, meaning the first and second flex items, with a growth factor of 1, will each grow by 60 px, and the last will grow by 180 px as the growth factor is set to 3.

Figure 3-5. The available space is evenly distributed to each growth factor; any positive value will allow the item to grow proportionally to the value

The available space, growth factors, and width of each growth factor are:

Available space: 750px - (100px + 250px + 100px) = 300px
Growth factors:  1 + 1 + 3 = 5
Width of each growth factor: 300px / 5 = 60px

When flexed, the width based on their original width and growth factors become:

item1 = 100px + (1 * 60px) = 160px
item2 = 250px + (1 * 60px) = 310px
item3 = 100px + (3 * 60px) = 280px

item1 + item2 + item3 = 160px + 310px + 280px = 750px

Growth Factors and the flex Property

The flex property takes up to three values—the growth factor, shrink factor, and basis. The first positive non-null float value, if there is one, is the growth factor. When the growth factor is omitted in the shorthand, it defaults to 1. Otherwise, if neither flex nor flex-grow is included, it defaults to 0.

In the second example in Figure 3-4, because we declared a value for flex-grow only, the flex basis was set to auto, as if we had declared:

#example2 flex-item {
  flex: 0 1 auto;
}
#example2 flex-item:last-child {
  flex: 1 1 auto;
}

Declaring flex-grow is strongly discouraged. Rather, declare the growth factor as part of the flex shorthand.

Had we declared flex: 0, flex: 0.5;, flex: 1;, flex: 1.5;, and flex: 3; in the examples in Figure 3-4 instead of ill-advisedly declaring flex-grow values, the flex basis would be set to 0%, and the width distribution would have been very different, as shown in Figure 3-6:

#example2  flex-item {
  flex: 0 1 0%;
}
#example2  flex-item:last-child {
  flex: 1 1 0%;
}

Figure 3-6. flex-grow looks different when the flex basis is 0, and some items are not allowed to grow

As the shrink factor defaults to 1 and the basis defaults to 0%, the following CSS is identical to the preceding code:

#example2  flex-item {
  flex: 0;
}
#example2  flex-item:last-child {
  flex: 1;
}

You may notice something odd: the flex basis has been set to zero, and only the last flex item has a positive value for flex grow. Logic would seem that the widths of the 3 flex items should be 0, 0, and 750 px, respectively. But logic would also dictate that it makes no sense to have content overflowing its flex item if the flex container has the room for all the content, even if the basis is set to zero.

The specification authors thought of this quandary. When the flex property declaration explicitly sets or defaults the flex-basis to 0 px and a flex item’s growth factor is 0, the length of the main-axis of the nongrowing flex items will shrink to the smallest width the content allows, or smaller. In our example, the width is the width of the widest word “flex:”.

As long as a flex item has a visible overflow and no min-width (or min-height for vertical main-axes) explicitly set, the minimum width (or minimum height) will be the smallest width (or height) that the flex item needs to be able to fit the content or the declared width (or height), whichever is smaller. In the first and second examples in Figure 3-6, even though the growth factor is 0, the flex items don’t shrink to 0. Rather, they shrink to the width of the widest nonbreakable word, as the word “flex-” is narrower than 100 px. Had width: 10px been set instead of width: 100px, the flex items would have narrowed down to whichever was smaller: the width of the word “flex-” or 10 px.

If all items are allowed to grow, and the flex basis for each flex item is 0%, all of the space—the entire 750 px rather than just excess space—is distributed proportionally based on the growth factors. In the examples the flex container is 750 px wide. In Figure 3-6, as the flex basis is zero, rather than auto, and with no positive shrink factors, the first two flex items are only as wide as their widest content (the word flex:), and all the extra space goes to the third flex item with a positive growth factor. This will make more sense after reading the flex-shrink section (see “The flex-shrink Property”). In the third example, with two flex items having growth factors of one, and one flex item having a growth factor of three, we have a total of five growth factors:

 (2 x 1) + (1 x 3) = 5

With 5 grows factors, and a total of 750 px, each growth factor is worth 150 px:

750px / 5 = 150px.

While the default flex item size was 100 px, the flex basis of 0 overrides that, leaving us with 2 flex items at 150 px each and the last flex item with a width of 450 px:

1 x 150px = 150px
3 x 150px = 450px
150px + 150px + 450px = 750px

Similarly, in the last example of Figure 3-6, with two flex items having growth factors of 0.5, and one flex item having a growth factor of 1.5, we have a total of 2.5 growth factors:

 (2 x 0.5) + (1 x 1.5) = 2.5

With 2.5 grows factors, and a total of 750 px, each growth factor is worth 300 px:

750px / 2.5 = 300px.

While the default flex item size was 100 px, the flex basis of 0% overrides that, leaving us with 2 flex items at 150 px each and the last flex item with a width of 450 px:

0.5 x 300px = 150px
1.5 x 300px = 450px
150px + 150px + 450px = 750px

This is different from declaring only flex-grow, as shown in Figure 3-7. Only declaring flex-grow means flex-basis defaults to auto. When set to auto, only the extra space, not all the space, is distributed proportionally. This lack of simplicity is why it is highly encouraged to always use the flex shorthand instead of flex-grow, flex-shrink, and flex-basis separately or not at all.

Figure 3-7. When using flex-grow instead of the flex shorthand, the flex basis will be auto instead of 0.

While the available space is distributed proportionally based on the flex items’ growth factor, the amount of available space is defined by the flex basis, which is discussed in a following section. Let’s first cover the shrinking factor.

Proportional Based on Width and Shrink Factor

The preceding code example was fairly simple because all the flex items started with the same width. But what if the widths were different? What if the first and last flex items had a width of 250 px and the middle flex item had a width of 500 px?

Flex items shrink proportionally relative to both the shrink factors and the flex item width, with the width often being content, the width of the flex item’s content with no wrapping. In Figure 3-9, we are trying to fit 1,000 pixels into a 750 px-width flex container. We have an excess of 250 px to be removed from five shrink factors. If this were a flex-grow concern, we would simply divide 250 px by 5, allocating 50 px per growth factor. If we shrank that way, we would see 200 px, 550 px, and 100 px wide flex items, respectively. But that’s not what we see.

Figure 3-9. Flex items shrink proportionally relative to their shrink factor

Instead we have 250 px of negative space to proportionally distribute. To get the shrink factor proportions, we divide the negative space by the actual space times their shrink factors:

Using this equation, we learn the shrink factor percent:

= 250px / ((250px * 1) + (500px * 1) + (250px * 3))
= 250px / 1500px
= 0.166666667

When we reduce each flex item by 16.67% times the shrink factor, we end up with flex items that are reduced by:

item1 = 250px * (1 * 16.67%) = 41.67px
item2 = 500px * (1 * 16.67%) = 83.33px
item3 = 250px * (3 * 16.67%) = 125px

We get flex items that are 208.33 px, 416.67 px, and 125 px wide, respectively.

In the Real World

Allowing flex items to shrink proportionally like this allows for responsive objects and layouts that can shrink proportionally without breaking.

For example, you can create a three-column layout that smartly grows and shrinks without media queries, as shown on a wide screen in Figure 3-10 and narrower screen in Figure 3-11):

nav {
  flex: 0 1 200px;
  min-width: 150px;
}
article {
  flex: 1 2 600px;
}
aside {
  flex: 0 1 200px;
  min-width: 150px;
}

Figure 3-10. By setting different values for growth, shrink, basis, and min-width, you can create responsive layouts, with or without media queries

Figure 3-11. With growth, shrink, basis, and min-width set, you can create responsive layouts that look great on narrower screens, without needing a multitude of media queries

In this example, if the viewport is greater than 1,000 px, only the middle column grows because only the middle column was provided with a positive growth factor. We also dictated that below the 1,000 px-width mark the right column shrinks twice as fast as the left 2 columns, using min-width to ensure the columns never shrinks below its narrowest word or that minimum width, whichever is greater.

Differing Bases

With a null shrink factor, if no width or basis is set on a flex item, its content will not wrap. When we have more content than could neatly fit on one line, a positive shrink value enables the content to wrap. Shrink factors enable proportional wrapping. Because shrinking is proportional based on shrink factor, if all the flex items have similar shrink factors, the content should wrap over a similar number of lines.

Unlike in the previous examples in this chapter, in the two examples in Figure 3-12, the flex items do not have a declared width. Rather, the width is based on the content—the width defaults to auto, as does the flex basis, as if flex-basis: content were set (see “The flex-basis Property”).

Figure 3-12. Flex items shrink proportionally relative to their shrink factor and content

You’ll note in the first example, all content wraps over four lines. In the second example, the first flex item, with a shrink factor half of value of the other flex items, wraps over half the number of lines. This is the power of the shrink factor.

In the third example, with a null shrink factor, the text doesn’t wrap and the flex items overflow the container.

Because the flex property’s shrink factor reduces the width of flex items proportionally, the number of lines of text in the flex items will grow or shrink as the width shrinks or grows, leading to similar height content within sibling flex items when the shrink factors are similar.

In the examples, the content of the flex items on my device are 280 px, 995 px, and 480 px, respectively—which is the width of the nonwrapping flex items in the third example (as measured by the developer tools, then rounded to make this example a little simpler). This means we have to fit 1,755 px of content into a 520 px-wide flex container by shrinking the flex items proportionally based on their shrink factor. This means we have 1,235 px of negative space to proportionally distribute.

Obviously you can’t rely on web inspector tools to figure out shrink factors for production. We’re going through this exercise to understand how shrink factors work. If minutia isn’t your thing, feel free to jump to “The flex-basis Property”.

Because flex items shrink proportionally, based on the width of their content, in our example, the single line of text flex items will end up with the same, or approximately the same, number of lines.

We didn’t declare a width, therefore we can’t simply use 300 px as the basis as we did in the previous examples. Rather, we distribute the 1,235 px of negative space proportionally based on the widths of the content—280 px, 995 px, and 480 px, respectively. We determine 520 is 29.63% of 1,755. To determine the width of each flex item with a shrink factor of 1, we multiply the content width of each flex item by 29.63%:

item1 = 280px * 29.63% =  83px
item2 = 995px * 29.63% = 295px
item3 = 480px * 29.63% = 142px

item1 +  item2 + item3  =  83px + 295px + 142px = 520px

With the default of align-items: stretch; (see “The align-items Property”), your three-column layout would have, by default, created three columns of equal height. By using a uniform shrink factor, you can dictate that the actual content of these three flex items be of approximately equal height: though, by doing this, the width of those columns will not be uniform. The width of the flex items is the purview of flex-basis.

In our second example in Figure 3-12, the flex items don’t all have the same shrink factor. The first flex item will, proportionally, shrink half as much as the others. We start with the same widths: 280 px, 995 px, and 480 px, respectively, but the shrink factors are 0.5, 1.0, and 1.0, respectively. As we know the widths of the content, the shrink factor (X) can be found mathematically:

(0.5X * 280px) + (1X * 995px) + (1X * 480px) = 1235px
1615X = 1235px
X = 1235px / 1615
X = 0.7647

We can find the final widths now that we know the shrink factor. If the shrink factor is 76.47%, it means that item2 and item3 will be 23.53% of their original widths, and item1, because it has a 0.5 shrink factor, will be 61.76% of its original width:

item1 = 280px * 0.6176 = 173px
item2 = 995px * 0.2354 = 234px
item3 = 480px * 0.2354 = 113px

item1 + item2 + item3 =  173px + 234px + 113px = 520px

The total combined widths of these 3 flex items is 520 px.

Adding in varying shrink and growth factors makes it all a little less intuitive. That’s why you likely want to always declare the flex shorthand, preferably with a width or basis set for each flex item.

If this doesn’t make sense yet, don’t worry, we’ll cover a few more examples of shrinking as we discuss flex-basis.

content

The content keyword value is not supported in most browsers at the time of this writing, with the exception of Microsoft Edge 12+, but is equal to the width or height of the content. When content is used and supported, the basis is the size of the flex item’s content—the value being the main-size of the longest line of content or widest (or tallest) media object.

Until support is complete, flex-basis: content; can be easily polly-filled as it is the equivalent of declaring flex-basis: auto; width: auto; on that flex item, or flex-basis: auto; height: auto; if the main-dimension is vertical. Unfortunately, using content in the shorthand in nonsupporting browsers invalidates the entire flex declaration. The entire declaration is invalidated when any value is not understood as per the specification.

The value of content is basically what we saw in the third example in Figure 3-12, and is shown in Figure 3-13.

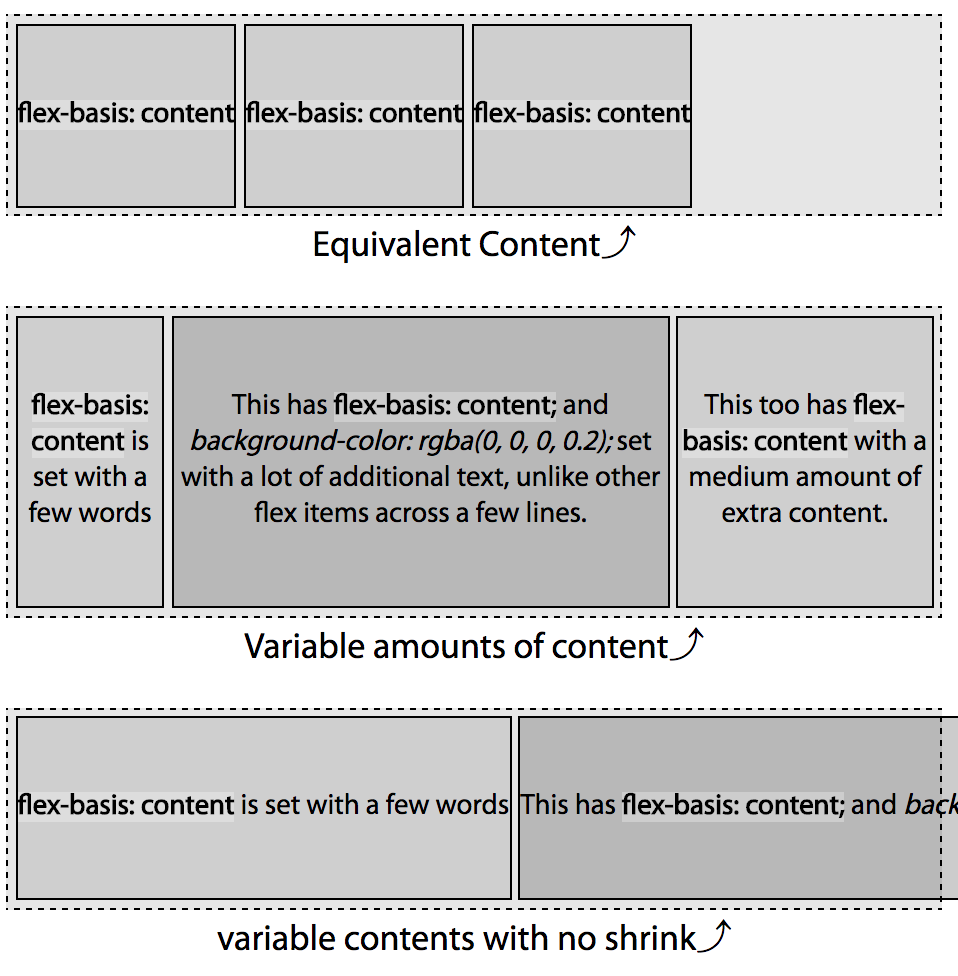

Figure 3-13. When set to content the basis is the width (or height) of the content

In the first and third examples in Figure 3-13, the width of the flex item is the size of the content; and the basis is also that width. In the first example, the flex items width and basis are approximately 132 px. The total width of the 3 flex items side by side is 396 px, fitting neatly into the parent container.

In the third example, we have set a null shrink factor: this means the flex items cannot shrink, so they won’t shrink or wrap to fit into the fixed-width flex container parent. Rather, they are the width of their nonwrapped text. That width is the value of the flex basis. The flex items’ width and basis are approximately 309 px, 1,037 px, and 523 px, respectively. You can’t see the full width of the second flex item or the third flex item at all, but they’re in the chapter files.

The second example contains the same content as the third example, but the flex items are defaulting to flex-shrink: 1: the text in this example wraps because the flex items can shrink. So while the width of the flex item is not the width of the content, the flex basis—the basis by which it will proportionally shrink—is the width of the content: 309 px, 1,037 px, and 523 px, respectively, as measured with developer tools.

When the shrink factors are the same, because flex items shrinking is proportional based on the content-width flex basis, they end up with the same or approximately the same number of lines.

It is the same as setting flex-basis: auto; width: auto; or flex-basis: auto; height: auto;.

auto

When set to auto, or omitted, the flex-basis is the main-size of the node had the element not been turned into a flex item. For length values, flex-basis resolves to the width or height value, with the exception that when the value of the width or height is auto, the value resolves to content.

If the basis is explicitly set to auto, or omitted and therefore defaults to auto, and all the flex items can fit within the parent flex container, the flex items will be their pre-flexed size, as seen in Figure 3-14. If the flex items don’t fit into their parent flex container, the flex items within that container will shrink proportionally based on their nonflexed main-sizes, unless the shrink factor is null.

Figure 3-14. When a flex basis is set, by default the item’s main-size will be the value declared

When there are no other properties setting the main-size of the flex items (there’s no width or even min-width set on these flex items), and flex-basis: auto; or flex: 0 1 auto; is set, the flex items will only be as wide as they need to be for the content to fit, as seen in the first example in Figure 3-14. In this case, they are the width of the text “flex-basis: auto”, which in this case, with this font, is approximately 110 px. The flex items are their pre-flexed size, as if set to display: inline-block;. In this example, they’re grouped at main-start because the flex container’s justify-content defaults to flex-start.

In the second example in Figure 3-14, each of the flex items has flex basis of auto and a declared width. The main-size of the nodes had the elements not been turned into a flex items would be 100 px, 150 px, and 200 px. In using flex-basis: auto we are telling it to use these underlying box-model properties to determine the flex basis.

There’s a little bit more to understanding of how auto works with the underlying width. While the examples in this section used percentages and auto, when we discussed the growth and shrink factors earlier, the flex items had underlying widths of 100 px and 300 px respectively. Because the basis was not explicitly set to a length, the width value was the basis in those scenarios.

Default Values

When neither flex-basis nor flex is set, the flex item’s main-size is the pre-flex size of the item, as their default value is auto.

In Figure 3-15 two things are happening: the flex bases are defaulting to auto, and the shrink factor of each item is defaulting to 1. That means the bases are being set to the values of the width properties: 100 px, 200 px, and 300 px in the first example and 200 px, 400 px, and 200 px in the second example, and they are all able to shrink. For each, the flex basis is their individual width value. As the combined widths are 600 px and 800 px, which are both greater than the main-size of the 540 px-wide containers, they are all shrinking proportionally to fit.

In the first example, we are trying to fit 600 px in 540 px, so each flex item will shrink by 10%, resulting in flex items that are 90 px, 180 px, and 270 px. In our second examples, we are trying to fit 800 px into 540 px, making the flex items 135 px, 270 px, and 135 px.

Figure 3-15. When no flex properties are set, the flex item’s main-size will be the pre-flex size of the item

Length Units

In the previous examples, the basis defaulted to the declared widths of the various flex items. We can use the same length units for our flex-basis value as we do for width and height.

When there are both flex-basis and width values, the basis trumps the width. Let’s add bases values to the first example from Figure 3-15. The flex items include the following CSS:

flex-container {
  width: 540px;
}
item1 {
  width: 100px;
  flex-basis: 300px;  /* flex: 0 1 300px; */
}
item2 {
  width: 200px;
  flex-basis: 200px;  /* flex: 0 1 200px; */
}
item3 {
  width: 300px;
  flex-basis: 100px;  /* flex: 0 1 100px; */
}

Figure 3-16. Note the main-size of the flex item is proportion to the flex-basis property, not the width property

The widths are overridden by the bases. The flex items shrunk down to 270 px, 180 px, and 90 px, respectively.

While the declared basis can override the main-size of flex items, the size can be impacted by other properties, such as min-width, min-height, max-width, and max-height. These are not ignored.

Length units: percentages

Percentage values for flex-basis are relative to the size of the main dimension of the flex container.

We’ve already seen the first example in Figure 3-17. I am including it here to recall that the width of the text “flex-basis: auto” in this case, with my OS, browser, and installed fonts, is approximately 110 px wide. In this case only, declaring flex-basis: auto looks the same as writing flex-basis: 110px:

flex-container {
  width: 540px;
}
flex-item:last-child {
  flex: 0 1 100%;
}

Figure 3-17. The percentage value for flex-basis is relative to the width of the flex container

In the second example in Figure 3-17, the first two have a flex basis of auto with a default width of auto, which is as if their flex basis were set to content. As we’ve noted previously, the flex-basis of the first 2 items ends up being the equivalent of 110 px as the content is 110 px wide.

The last item has its flex basis set to 100%. The percentage value is relative to the parent, which is 540 px. As the third item, with a basis of 100%, is not the only flex item within the non-wrapping flex container, it will not grow to be 100% of the width of the parent flex container unless its shrink factor is set with a null shrink factor (meaning it can’t shrink) or if it contains nonwrappable content that is as wide or wider than the parent container. This is not the case. Each flex item contains only wrappable content, and all three flex items are able to shrink as all have a default shrink factor of 1.

Note

Remember: when the flex basis is a percent value, the main-size is relative to the parent, which is the flex container.

If the content is indeed 110 px wide, and the container is 540 px wide (ignoring other box-model properties for simplicity’s sake), we have a total of 760 px to fit in a 540 px space in this second example. With three flex items with flex bases equivalent to 110 px, 110 px, and 540 px, respectively, we’re trying to fit 760 px of content into a 540 px-width container. We have 220 px of negative space to distribute proportionally. The shrink factor is:

Shrink factor = 220px / 760px = 28.95%

Each flex item will be shrunk by 28.95%, becoming 71.05% of the width they would have been had they not been allowed to shrink. We can figure the final widths:

item1 =  110px * 71.05% =  78.16px
item2 =  110px * 71.05% =  78.16px
item3 =  540px * 71.05% = 383.68px

item1 + item2 + item3 = 78.16px + 78.16px + 383.68px = 540px

These numbers hold true as long as the flex items can be that small: as long as none of the flex items contain media or nonbreaking text wider than 78.16 px or 383.68 px. This is the widest these flex items will be as long as the content can wrap to be that width or narrower. “Widest” because if one of the other two flex items can’t shrink to be as narrow as this value, they’ll have to absorb some of that negative space.

In our third example, the flex-basis: auto item wraps over three lines. The CSS for this example is the equivalent of:

flex-container {
  width: 540px;
}
item1 {
  flex: 0 1 70%;
}
item2 {
  flex: 0 1 auto;
}
item3 {
  flex: 0 1 80%;
}

We declared the flex-basis of the 3 flex items to be 70%, auto, and 80%, respectively. Remembering that “auto” is the width of the nonwrapping content, which in this case is approximately 110 px and our flex container is 540 px, the bases are the equivalent of:

item1 = 70% * 540px = 378px
item2 = widthOfText("flex-basis: auto") = 110px
item3 = 80% * 540px  =  432px

In this third example we have an item with a basis of 70%. This means the basis is 70% of the parent’s 540 px width, or 378 px. The second item is set to auto, which in this case means 110 px because of the width of the content. Lastly, we have flex item with a basis of 80%, meaning 80% of 540 px, or 432 px. When we add the widths of these 3 flex items, they have total combined width of 920 px, which needs to fit into a flex container 540 px wide. We have 380 px of negative space to remove proportionally among the 3 flex items. To figure out the ratio, we divide the available width of our flex container by the sum of widths of the flex items that they would have if they couldn’t shrink:

Proportional Width = 540px / 920px = 0.587

Because the shrink factors are all the same, this is fairly simple. Each item will be 58.7% of the width it would be if it had no flex item siblings:

item1 = 378px * 58.7% = 221.8px
item2 = 110px * 58.7% =  64.6px
item3 = 432px * 58.7% = 253.6px

What happens when the container is a different width? Say, 1,000 px? The flex basis would be 700 px (70% x 1,000 px), 110 px, and 800 px (80% x 1,000 px), respectively, for a total of 1,610 px:

Proportional Width = 1000px / 1610px = 0.6211


item1 = 700px * 62.11% = 434.8px
item2 = 110px * 62.11% =  68.3px
item3 = 800px * 62.11% = 496.9px

Because with a basis of 70% and 80%, the combined bases of the flex items will always be wider than 100%, no matter how wide we make the parent, all 3 items will always shrink.

If the first flex item couldn’t shrink, as shown in Figure 3-18, it would be 70% of the width of the parent—378 px in this case. The other 2 flex items will shrink proportionally to fit into the remaining 30%, or 162 px. In this case, you would expect widths to be 378 px, 32.875 px, and 129.125 px. As the text “basis:” is wider than that (at 42 px on my device) we get 378 px, 42 px, and 120 px.

Figure 3-18. While the percentage value for flex-basis is relative to the width of the flex container, the main-size is impacted by its siblings

Testing this out on your device will likely have slightly different results, as the width of the text “flex-basis: auto” may not be the same on your screen.

Zero Basis

If neither the flex-basis property nor the flex shorthand is included at all, the basis defaults to auto. When the flex property is included, but the basis component of the shorthand is omitted from the shorthand, the basis defaults to 0%. While on the surface you might think the two values of auto and 0 may seem similar, the 0 value is actually very different, and may not be what you expect. Once you understand it, you’ll realize it’s actually fairly intuitive.

The growth and shrink factors have completely different outcomes depending on whether the basis is set to 0 versus auto, as shown in Figure 3-19.

It is only the extra space that is distributed proportionally based on the flex growth factors. In the case of flex-basis: auto;, the basis is the main size of their content. If the basis of each of the flex items is 0, the “available” space is all the space, or main-size of the parent flex container. This “available” space is distributed proportionally based on the growth factors of each flex item. In the case of a basis of 0%, the size of the container is divided up and distributed proportionally to each flex item based on their growth factors—their default original main-size as defined by height, width, or content, is not taken into account, though min-width, max-width, min-height, and max-height do impact the flexed size.

Figure 3-19. flex-basis auto, versus 0

As shown in this example, when the basis is auto, it is just the extra space that is divided up proportionally and added to each flex item set to grow. Again, assuming the width of the text “flex: X X auto” is 110 px, in the first examples we have 210 px to distribute among 6 growth factors, or 35 px per growth factor. Our flex items are 180 px, 145 px, and 215 px wide, respectively.

In the second example, when the basis is 0, all 540 px of the width is distributable space. With 540 px of distributable space between 6 growth factors, each growth factor is worth 90 px. Our flex items are 180 px, 90 px, and 270 px wide, respectively. While our middle flex item is 90 px wide, the content in this example is narrower than the 110 px from our other examples, so the flex item didn’t wrap.

Common flex Values

The common flex values are four flex values providing the most commonly desired effects:

flex: initial

This value sizes flex items based on the width/height properties, while allowing shrinking.

flex: auto

This flex value also sizes flex items based on the width/height properties, but makes them fully flexible, allowing both shrinking and growing.

flex: none

This value again sizes flex items based on the width/height properties, but makes them completely inflexible: they can’t shrink or grow.

flex: n

This value doesn’t care about the width/height values as the shrink factor is set to 0. In this case, the flex item’s size is be proportional to the flex factor n.

flex: initial

Initial is a global CSS keyword, which means initial can be used on all properties to represent the property’s initial value:

flex: initial;
flex: 0 1 auto;

These lines are the same: flex: initial is the equivalent of flex: 0 1 auto. This means the flex items’ size will be based on its own width and height properties, or based on the contents if the main-size isn’t explicitly set (set or defaulting to auto). If the flex container is not large enough for the flex items, the flex items can be shrunk, but the flex items will not grow even if there extra distributable space available.

Declaring flex: initial sets a null growth factor, a shrink factor of 1, and sets the flex bases to auto. In Figure 3-20, we can see the effect of the auto flex bases. In the first two examples, the basis of each flex item is content—with each flex item having the width of the single line of letters that make up their content. In the last 2 examples, the flex bases of all the items are equal at 50 px, since width: 50px has been applied to all the flex items. The flex: initial declaration sets the flex-basis to auto, which we previously learned means it is the value of the width (or height), if declared, or content if not declared.

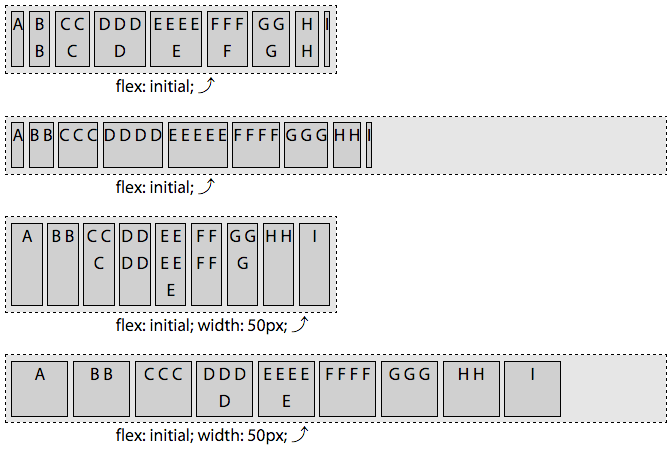

Figure 3-20. With containers of different main sizes, the flex items shrink but won’t grow when flex: initial is set on the flex items

In the first and third examples in Figure 3-20, we see how, if the flex container is too small to fit all the flex items at their default main-size, the flex items will shrink, with all the flex items fitting within the parent flex container. In these examples, the combined flex bases of all the flex items is greater than the main-size of the flex container. In the first example, the amount by which each flex item shrinks are all different. They all shrink proportionally based on their shrink factor. In the third example, with each flex item’s flex-basis being equal at 50 px, all the items shrink equally.

In the first example, you’ll note the last flex item, with the single narrow capital letter I, is the narrowest flex item in the group, followed by A (They would have been the same had we used a monospaced font family). B and H are wider than A and I, even with the wrapping caused by the flex items shrinking, because their bases are based on three characters (two letters and a space) rather than one. The shrinking results in these flex items having only one letter per line of text, but they are still wider than the flex items that have a single character as their bases.

The flex items with more characters are wider because flex-basis is based on the width of the content. A and I are one letter wide. The basis for B and H are based on the width of two space-separated letters. Similarly, D and F are wider than C and G. In the first example, with flex: initial, E ends up being the widest as it has the most characters creating the widest content of all the bases.

In the second and fourth examples, the flex items all fit, so there is no shrinkage. When flex: initial is set, the growth factor is null, so the flex items can’t grow, and therefore don’t grow, to fill up their container.

Flex items, by default, are grouped at main start, as flex-start is the default value of for the justify-content property. This is only noticable when the combined main-size of the flex items on a flex line are smaller than the main-size of the flex container.

flex: auto

Setting flex: auto; on a flex item is the same as setting flex: 1 1 auto. The following two statements are equivalent:

flex: auto;
flex: 1 1 auto;

flex: auto is similar to flex: initial, but makes the flex items flexible in both directions: they’ll shrink if there isn’t enough room to fit all the items within the container, and they’ll grow to take up all the extra space within the container if there is distributable space. The flex items absorb any free space along the main-axis.

You’ll note the first and third examples of Figure 3-21 are identical to the examples in Figure 3-20, as the shrinking and bases are the same. However, the second and fourth examples are different, as when flex: auto is set, the growth factor is not null, and the flex items therefore grow incorporating all the extra available space.

Figure 3-21. With flex: auto set on the flex items, they can grow and shrink

flex: none

Setting flex: none is equivalent to setting flex: 0 0 auto, making the following two lines of CSS equivalent:

flex: none;
flex: 0 0 auto;

The flex: none items are inflexible: the flex items will neither shrink nor grow.

As demonstrated in the first and third examples of Figure 3-22, if there isn’t enough space, the flex items overflow the flex container. This is different from flex: initial and flex: auto, which both set a positive shrink factor.

Figure 3-22. With flex: none, flex items will neither grow nor shrink

The basis resolves to auto, meaning each flex item’s main-size is determined by the main-size of the node had the element not been turned into a flex item: the flex-basis resolves to the width or height value. If that value resolved to auto, the basis would be the main-size of the content. In the first two examples, the basis—and the width, since there is no growing or shrinking—is the width of the content. In the third and fourth examples, the width and basis are all 50 px.

flex: n

When the values of the flex property is a single, positive numeric value, that value will be the growth factor, while the shrink factor will default to 0, and the basis will default to 0%:

flex-grow: n;
flex-shrink: 0;
flex-basis: 0%;

The following two CSS declarations are equivalent:

flex: 3;
flex: 3 0 0%;

Declaring flex: 3 is the same as declaring flex: 3 0 0%. This makes the flex item on which it is set flexible: it can grow. The shrink factor is actually moot, as the flex-basis was set to 0% and the flex item, even if a positive shrink factor were declared, cannot be less than 0 px wide or tall.

In the first two examples in Figure 3-23, all the flex items have a flex growth factor of 3. All the flex items in each example grew to be the same width. While in Figures 3-20, 3-21, and 3-22, the flex items shrank to fit the flex container parent, when you set flex: n, where n is any positive float, the basis is 0, so they didn’t “shrink”; they just grew equally from 0px wide until the sum of their main dimension grew to fill the container’s main dimension. With all the flex items having a basis of 0, 100% of the main dimension is distributable space. The main-size of the flex items are wider in this second example as the wider parent has more distributable space.

Any value for n that is greater than 0, even 0.1, means the flex item can grow. The n is the growth factor. When there is available space to grow, if only one flex item has a positive growth factor, that item will take up all the available space. If all the items can grow, the available extra space will be distributed proportionally to each flex item based on to their growth factor. In the case of all the flex items having flex: n declared, where n is a single or variety of positive numbers, the growth will be proportional based only on n, not on the underlying main size, as the basis for each flex item is 0.

In the last three examples of Figure 3-23, there are six flex items with flex: 0, flex: 1, flex: 2, flex: 3, flex: 4, and flex: 5 declared, respectively. These are the growth factors for the flex items, with each having a shrink factor of 0 and a basis of 0. The main-size of each is proportional to the specified flex growth factor.

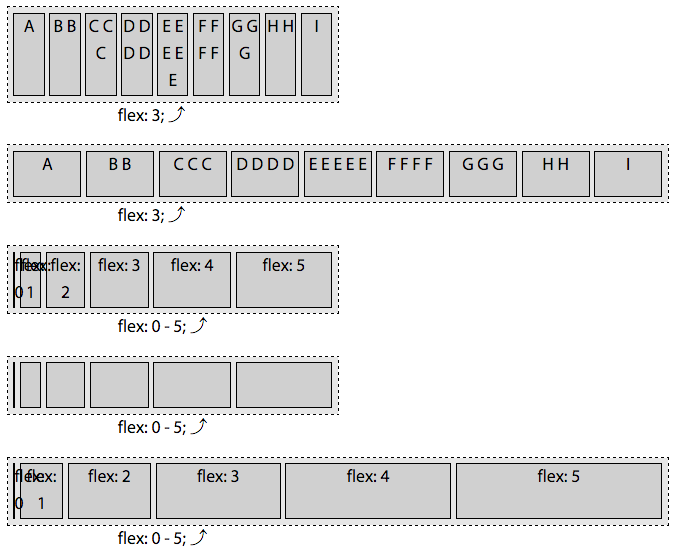

Figure 3-23. With flex: n, you’re declaring the flex items growth factor while setting the flex basis to zero

There are 15 total growth factors distributed across 6 flex items. The narrow flex container is 300 px wide, meaning each growth factor is worth 20 px. This means the widths of the flex items will be 0, 20 px, 40 px, 60 px, 80 px, and 100 px, for a total of 300 px. The last example has a width of 600 px, meaning each growth factor is worth 40 px. This leaves us with flex items that are 0, 40 px, 80 px, 120 px, 160 px, and 200 px, for a total of 600 px.

We added a bit of padding, margins, and borders on the example to make the visuals more pleasing. For this reason, the leftmost flex item, with flex: 0 declared, is visible: it has a 1 px border making it visible even though it’s 0 px wide.

If we had declared a width on these flex items, it would have made no difference. Setting flex: 0, flex: 5, or any other values for n in flex: n sets the flex-basis to 0%. You’ll see no difference between Figures 3-23 and 3-24, other than the “width: 50px” in the paragraph below each flex container.

Figure 3-24. With flex: n, the basis of the flex item is 0, not auto, so setting a width will not alter the appearance

Custom flex Values

flex: initial, flex: auto, flex: none, and flex: n are preset values. While these are provided as they are the most commonly used values, they may not meet all of your needs, and they don’t provide as much flexibility as defining your own custom flex values.

When flex-basis is set to auto, as shown in the first example in Figure 3-25, the main-size of each flex item is based on the content. Looking at the growth factor, you may have thought the middle item would be the narrowest as the growth factor is the smallest, but there is no “growing.” In this example there is no available distributable space. Rather, they’re all shrinking equally as they all have the same shrink factor and the basis of auto means the basis is the width of the content. In this case the flex items’ content are all of equal height, as the size of each is based on the flex basis, rather than the growth factor.

In the second example in Figure 3-25, the basis is 0%, so the main-size is determined by the various growth factors. In this case, the first flex item, with flex: 2 1 0% is twice as wide as the second flex item with flex: 1 1 0%. This second item, in turn, has a main-size that is one-third as wide as the last flex item with flex: 3 1 0%;.

Figure 3-25. flex-basis auto versus 0

We included a shrink factor in this example to make it parallel to the the first example, but it was completely not necessary. When using a 0 (or 0%) basis, the shrink factor has no impact on the main-size of the flex items. We could have included any of the three statements in each declaration:

item1 {
  flex: 2 1 0%;
  flex: 2 0 0%;
  flex: 2;
}
item2 {
  flex: 1 1 0%;
  flex: 1 0 0%;
  flex: 1;
}
item3 {
  flex: 3 1 0%;
  flex: 3 0 0%;
  flex: 3;
}

In these two examples, there was no width set on the flex items. By default, flex items won’t shrink below their minimum content size (the length of the longest word or fixed-size element). To change this, set the min-width or min-height property. For the examples in Figure 3-25, had min-width: 200px been set on the second flex item, in both cases, the width would have been 200 px.

How can this help in practice? In theory the similar height columns we get with auto seem like a good idea, but in reality controlling the widths of the columns in a multiple-column layout is likely a greater priority, as demonstrated by the difference in the two layouts in Figures 3-26 and 3-27.

Figure 3-26. A responsive three-column layout with just a few lines of code and flex: auto

Figure 3-27. Altering the proportion of a responsive layout by altering the flex value of the flex items

The first example’s flex basis, Figure 3-26, is based on the content. For the navigation, the longest line, and therefore the basis, is the link with the longest content. If the article or aside contained a line break in the long and longer paragraphs, their widths would change.

The following CSS was used to create the second example:

@media screen and (min-width: 500px) {

    main {
      display: flex;
    }
    nav {
      order: -1;
      flex: 2;
      min-width: 150px;
    }
    article {
      flex: 5;
    }
    aside {
      flex: 2;
      min-width: 150px;
    }

}

In the second example, Figure 3-27, in viewports that are 500 px or wider, the nav and aside will always each be 22% of the width of the main area, unless they contain a component that is wider than 22%. The main article will be 56% of the width. You can include a min-width on any or all of the items, like we did on the navigation and aside, to ensure the layout never gets too narrow. You can use media queries to let the sections of the layout drop on very narrow screens. So many options!

We’ll cover this example again when we discuss the order property “The order property”. Quickly: in the markup the nav is last, and it will come last on a viewport that is less than 500 px wide. On wider screens that have room for the three columns, it will come first in appearance. Screen readers will still read it in source order (except in Firefox at the moment). Tabbing will still make it appear last.

Tabbed Navigation Revisited

Adding to our tabbed navigation bar example in Figure 1-7, we can make the currently active tab appear first, as Figure 3-32 shows:

nav {
  display: flex;
  justify-content: flex-end;
  border-bottom: 1px solid #ddd;
}
a {
  margin: 0 5px;
  padding: 5px 15px;
  border-radius: 3px 3px 0 0;
  background-color: #ddd;
  text-decoration: none;
  color: black;
}
a:hover {
  background-color: #bbb;
  text-decoration: underline;
}
a.active {
  order: -1;
  background-color: #999;
}


<nav>
  <a href="/">Home</a>
  <a href="/about">About</a>
  >a class="active">Blog</a>
  <a href="/jobs">Careers</a>
  <a href="/contact">Contact Us</a>
</nav>

Figure 3-32. Changing the order will change the visual order, but not the tab order

The currently active tab has the .active class added, the href attribute removed, and the order set to -1, which is less than the default 0 of the other sibling flex items, meaning it appears first.

Why did we remove the href attribute? As the tab is the currently active document, there is no reason for the document to link to itself. But, more importantly, if it was an active link instead of a placeholder link, and the user was using the keyboard to tab through the navigation, the order of appearance is Blog, Home, About, Careers, and Contact Us, with the Blog appearing first; but the tab order would have been Home, About, Blog, Careers, and Contact Us, following the source order rather than the visual order, which can be confusing.

The order property can be used to enable marking up the main content area before the side columns for mobile devices and those using screen readers and other assistive technology, while creating the appearance of the common three-column layout: a center main content area, with site navigation on the left and a sidebar on the right, as we demonstrated in our “Custom flex Values”.

While you can put your footer before your header in your markup, and use the order property to reorder the page, this is an inappropriate use of the property. The order should only be used for visual reordering of content. Your underlying markup should always reflect the logical order of your content:

<header></header>                         <header></header>
<main>                                    <main>
   <article></article>                      <nav></nav>
   <aside></aside>                          <article></article>
   <nav></nav>                              <aside></aside>
</main>                                   </main>
<footer></footer>                         <footer></footer>

We’ve been marking up websites in the order we want them to appear, as shown on the right in the preceding code example, which is the same code as in our three-column layout example (Figure 3-10). It really would make more sense if we marked up the page as shown on the left, with the article content, which is the main content, first in the source order: this puts the article first for screen readers, search engines, and even mobile device, but in the middle for our sighted users on larger screens:

main {
  display: flex;
}
main > nav {
  order: -1;
}

By using the order: -1 declaration we are able to make the nav appear first, as it is the lone flex item in the ordinal group of -1. The article and aside, with no order explicitly declared, default to order: 0.

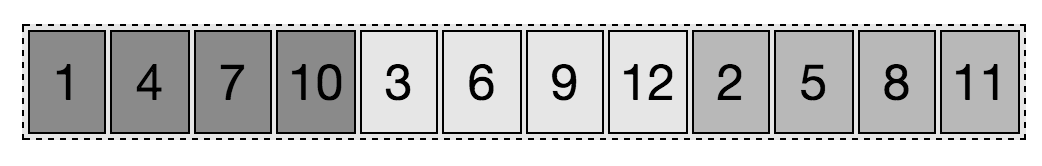

Remember, when more than one flex item is in the same ordinal group, the members of that group are displayed in source order in the direction of main-start to main-end, so the article is displayed before the aside.

Some developers, when changing the order of at least one flex item, like to give all flex items an order value for better markup readability.

main {
  display: flex;
}
main > nav {
  order: 1;
}
main > article {
  order: 2;
}
main > aside {
  order: 3;
}

In previous years, before browsers supported flex, all this could have been done with floats: we would have set float: right on the nav. While doable, flex layout makes it much simpler, especially if we want all three columns—the aside, nav, and article—to be of equal heights.

Wider Screen Layout

For devices with limited real estate, we want to content to appear before the links, aside, navigation, and footer. When we have more room available, we want the navigation bar to be directly below the header and the article and aside to share the main area, side by side.

While all the CSS for the responsive layout change is posted above, the important lines include:

@media screen and (min-width: 30rem) {
  body {
    display: flex;
    flex-direction: column;
    max-width: 75rem
    margin: auto;
  }
  main {
    display: flex;
  }
  nav, header {
    order: -1;
  }
  article {
    flex: 75%;
  }
  aside {
    flex: 25%;
  }
}

We used media queries to define a new layout when the viewport is 30 rem wide or greater. We defined the value in rems instead of pixels to improve the accessibility of the page for users increasing the font size. For most users with devices less than 500 px wide, which is approximately 30 rem when a rem is the default 16 px, the narrow layout will appear. However, if users have increased their font size, they may get the narrow layout on their tablet or even desktop monitor.

While we could have turned the body into a column-direction flex container, with only sectioning level children, that’s the default layout, so it wasn’t necessary on the narrow screen. However, when we have wider viewports, we want the navigation to be between the header and the main content, not between the main content and the footer, so we need to change the order of the appearance. We set nav, header { order: -1px; } to make the <header> and <nav> appear before all their sibling flex items. The siblings default to order: 0; which is the default and a greater value. The group order puts those two elements first, with header coming before nav, as that is the order of the source code, before all the other flex item siblings, in the order they appear in the source code.

We did want to prevent the layout from getting too wide as the navigational elements would get too wide, and long lines of text are hard to read. We limit the width of the layout to 75 rems, again, using rems to allow the layout to remain stable if the user grows or shrinks the font size. With a margin: auto; the body is centered within the viewport, which is only noticeable once the viewport is wider than 75 rems. This isn’t necessary, but demonstrates that flex containers do listen to width declarations.

We turn the main into a flex container with display: flex. It has two children. The article with flex: 75% and aside with flex: 25% will fit side by side as their combined flex bases equals 100%.

Had the nav been a child of main instead of body, we could use flex-wrap to maintain the same appearance. In this scenario, for the nav to come first on its own line, we would have made the navigation take up the full width of the parent main, wrapping the other two children onto the next flex line. We can force the flex container to allow its children to wrap over two lines with the flex-wrap property.

We could have resolved nav being a child of main by including:

main {
  flex-wrap: wrap;
}
nav {
  flex-basis: 100%;
  order: -1;
}

To ensure the nav was on its own line, we would have included a flex basis value of 100% with flex: 100%;. The order: -1 would have made it display before its sibling aside and article.

In our next example, our HTML is slightly different: instead of an article and an aside, we have three sections of content in the main part of the page.

Sections

By default, the three sections will stretch to be as tall as the flex line. That’s good. Their flex basis, which helps determine the width, is based on the content. In this case it is the width of the paragraph. As Figure 4-4 shows, that’s not what we want.

To set the width of those sections to be proportional, such as 1:1:1, 2:2:3, or 3:3:5, we set the basis to 0 and set growth values reflective of those proportions.

We want them to be of equal widths, so we give them all the same basis and growth factor (the two declarations are equal):

    main > section {
      flex: 1; /* is the same as */
      flex: 1 0 0%;
    }

Had we wanted the proportions to be 2:2:3, we could have written:

    main > section {
      flex: 2;
    }
    main > section:last-of-type {
      flex: 3;
    }

Remember, the flex property, including the basis (see “The flex-basis Property”), is set on the flex items, not the container.

In our home page example, the three <section>s are all both flex items and flex containers. We turned them into flex containers with a direction of column to enable forcing the buttons to the bottom. The paragraphs are of differing heights, so the buttons aren’t by default aligned at the bottom. By only allowing the paragraphs to grow by giving them a positive growth factor, while preventing the image and button from growing with a null growth factor, the paragraphs grow to take up all the distributable space, pushing the button down to the bottom of the section:

main > section > p {
  flex: 1;
}

Now the buttons are always flush to the bottom. The CSS to make the link look like a button is in the live example. When the link is not a flex item it is an inline item, so we change its display property so it heeds our width declaration. Now our layout is done, as shown in Figure 1-1. The relevant CSS for our power grid homepage is only a few lines:

nav {
    display: flex;
}
section > img, section > button, section a {
    width: 100%;
    display: inline-flex;
}
nav a {
    flex: 1;
}

@media screen and (min-width: 40em) {
  body, main, section {
    display: flex;
  }
  body, section {
    flex-direction: column;
  }
  main > section,
  main > section > p {
    flex: 1;
  }
  header, nav {
    order: -1;
  }
}

In “Sticky Footer with flex”, we showed a simple mobile example in which the footer would always be glued to the bottom of the page no matter the height of the device. That visually more complex example is equally easy to code: no matter how tall the browser got, and no matter how little content the main content had, the footer would always be glued to the bottom of the browser. As noted before, these are called “sticky footers” (see Figure 4-5).

Figure 4-5. Sticky header and footer on mobile using flexbox instead of position: fixed

Prior to flexbox being supported, we were able to create sticky footers, but it required hacks, including knowing the height of the footer. Flexbox makes creating sticky footers much simpler. In our first example, the footer always sticks to the bottom of the viewport. In our second example, the footer will stick to the bottom of the viewport if the page would otherwise be shorter than the viewport, but moves down off screen, sticking to the bottom of the page, not the viewport, if the content is taller than the viewport.

Both examples contain the same shell:

<body>
    <header>…</header>
    <main>…</main>
    <footer>…</footer>
</body>

We turn the body into a flex container with a column direction:

body {
    display: flex;
    flex-flow: column;
}

We also direct the <main> to take all the available space: it is the only flex item with a non-null growth factor.

The key difference between a permanent sticky footer and a page growing to push the footer to the bottom of the screen only when necessary is whether the height of the body is 100 vh or at minimum 100 vh, and whether the <main> is allowed to shrink.

In our first example, in Figure 4-6, we want the sticky footer to always be present. If there is too much content in the main area, it should shrink to fit. If there isn’t enough text to fill the screen, it should grow, making our footer always visible:

body {
  display: flex;
  flex-flow: column;
  height: 100vh;
}
  header, footer {
  flex: 0 0 content;
}
  main {
  flex: 1 1 0;
  overflow: scroll;
}

To create a sticky footer that is always visible, we set the height to always be exactly the height of the viewport with height: 100vh. We dictate that the header and footer can neither grow nor shrink, but rather must always be the height of the content. The <main> can both grow and shrink, absorbing all the distributable space, if any, scrolling if too tall.

In our second example, if we are OK with the footer being out of view, below the page fold, we set the minimum height to 100 vh, and dictate that the <main> can grow, but is not required to shrink:

body {
  display: flex;
  flex-flow: column;
  min-height: 100vh;
}
  header, footer {
  flex: 0 0 content;
}
  main {
  flex: 1;
}

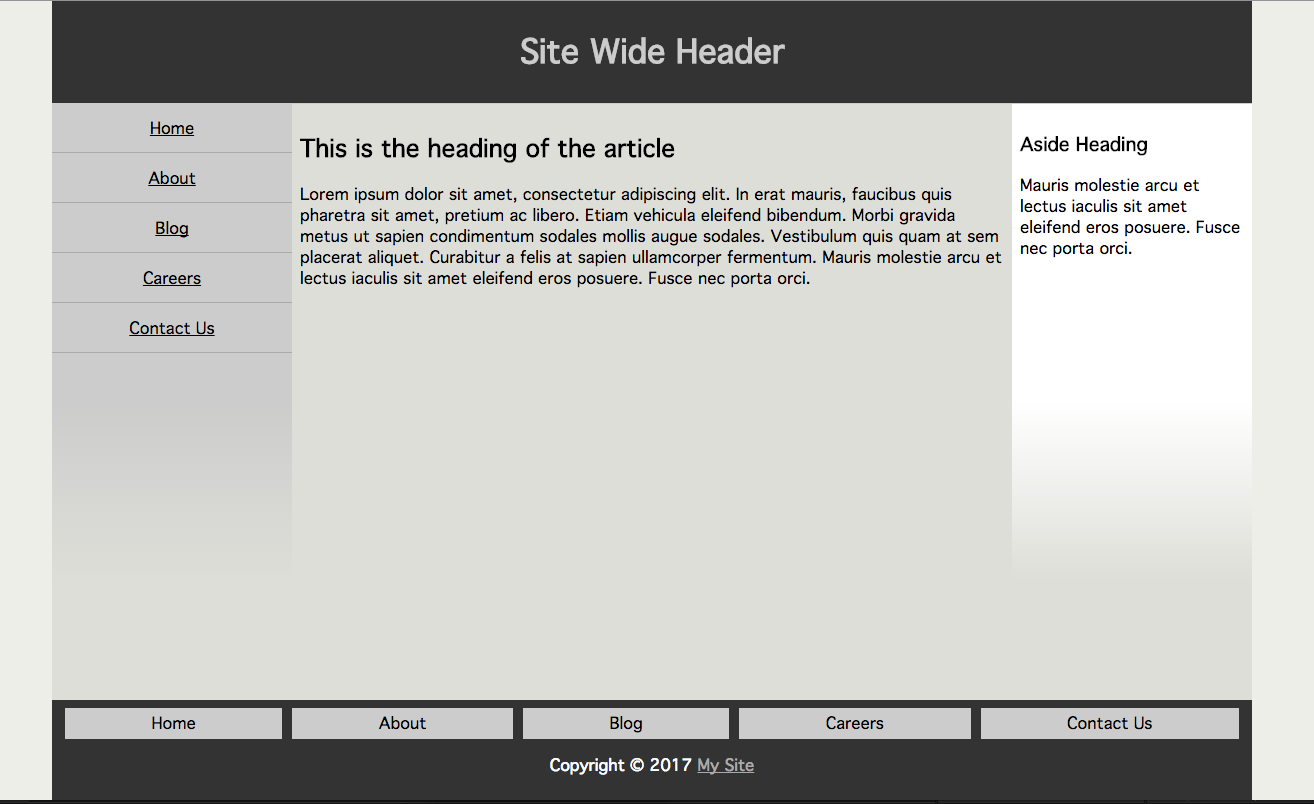

Figure 4-6. Complex page with a sticky footer

Using both a sticky footer and sticky header isn’t recommended: if the screen isn’t tall, and the user increases the font, they may end up unable to see any of the main content. For this reason, the second example, with min-height instead of height set—enabling the page to grow—is recommended.

Performance

While flexbox is a brilliant solution to many of your layout problems, Jake Archibald has argued you shouldn’t use it for laying out your entire application.

Browsers don’t wait for all of your content to finish loading before rendering content. Rather, they progressively render content as it arrives, enabling users to access your content before it is fully downloaded. With some flexbox layouts, however, your content may experience horizontal shifting and content misalignment on slower connections.

Why did the shifting happen? As content loads, you will first download the opening of the container and the first child. At this point, this first child is the only flex item, and, depending on your flex properties, will likely take up 100% of the available space. When the opening of the next flex item downloads, there are now two flex items. Again, depending on your declarations, the content that has already been rendered likely has to resize to make room for it, which causes re-layout. If the users connection is slow, this may be noticeable. If noticeable, it is likely ugly. If noticeable, there’s also likely something else going on with your server or code: a lower-hanging fruit in terms of performance that badly needs to be addressed.

Browsers have improved since Jake’s original post was published, so this is now less of an issue. Grid will be faster for these types of layouts, both in terms of performance and even in the time it takes to write the CSS, so it’s definitely worth learning and implementing, even though this performance problem is pretty much resolved.

Good to Go

That said, flexbox is well supported, so go ahead and use it.

When not supported (in older browsers that browser developers don’t support anymore), browsers must treat as invalid any declarations it doesn’t support. Browsers shouldn’t ignore unsupported values and honor supported values. In other words, if you’re going to include prefixed flexbox properties (not discussed in this book), put them before the nonprefixed standard versions. Also, there’s really no need to include prefixed properties.

And remember, in a single multivalue property declaration, like flex, if any value is invalid, CSS requires the entire declaration be ignored, so put flex: content last, after the fallback of flex: auto, so that browsers supporting content will get the content, and older browsers will fall back to auto.
