Introduction
In this book, we will take a tour of modern CSS. Whether you’re brand new to CSS or you have some experience and need a refresher, this book will have something for you.
However, this book will not teach you color theory or good design techniques. The intent of this book is to give you a strong foundation with the various CSS technologies.
In Chapter 1, we’ll start at the very beginning and talk about what CSS is and how it works. We’ll explore the DOM, the CSSOM, and the render tree as well as take a quick detour to look at CSS preprocessors (though we won’t cover them further in the book).
In Chapter 2, we will tackle CSS selectors. These are critical to understand. Selectors determine what CSS styles are applied to what elements. We’ll also explore the concept of specificity.
Once we’ve laid the groundwork, we’ll start to talk about CSS concepts in Chapter 3 like the box model, units, colors, and overflow. We’ll also look at CSS custom properties, better known as variables.
We’ll finally start applying styles in Chapter 4, where we’ll look at borders, box shadows, and opacity. We will see several ways to hide an element on the page.
In Chapter 5, we’ll learn all about backgrounds and gradients (which are actually a type of background image).
Chapter 6 deals with the important topic of styling text. We’ll learn about text styles and layout, as well as how to use web fonts.
We’ll see how to lay out and position elements in Chapter 7. This covers the different positions such as static, relative, absolute, fixed, and sticky. Also, in this chapter, we’ll see the topic of stacking contexts and Z-index, which often trip up even experienced developers.
In Chapter 8, we’ll cover CSS transforms. This allows you to apply transformations such as rotation, scale, and skew to elements. We’ll also see a few examples of creating shapes with CSS.
Transforms can be combined with transitions, which is one topic of Chapter 9, to create all kinds of interesting effects. Transitions can be applied to transforms or a slew of other CSS properties. Chapter 9 also covers animations, which takes the concepts of transitions to the next level.
Chapter 10 is dedicated to the flexible box layout, or flexbox, which is a powerful one-dimensional layout tool that has excellent browser support. With flexbox, we can finally easily center a div!
Chapter 11 is a gentle introduction to responsive design techniques. While it is not an exhaustive guide – entire books have been written on the subject – it lays a good foundation, covering topics such as media queries and fluid typography.
Finally, we save the best for last. Chapter 12 is all about CSS Grid, the latest and greatest layout tool in the CSS toolbox. It doesn’t have great Internet Explorer support, but all of the other major browsers have full support for it.
In Chapter 13 we’ll see some other topics for further learning, such as CSS methodologies like BEM and OOCSS, as well as utility-first CSS and Houdini, the future of CSS.
Let’s get started!
Acknowledgments
I’d like to start by thanking my wonderful wife, Liz, for her constant love and encouragement throughout the whole writing process – and for understanding when I locked myself away in solitude to write. And my little toddler, Benjamin, for giving me much-needed breaks from writing for play time.
Thanks to all my friends and family for always supporting and encouraging my interest in computers and technology.
This book began its life as a self-published work, and I’d like to thank Apress for making it what it is today. I’d also like to thank the awesome team at Apress – Louise Corrigan, Nancy Chen, and Jim Markham – for guiding me through the process every step of the way. I appreciate their patience with me as a first-time author.
Thanks to Alexander Nnakwue, the technical reviewer for this book, for his time and excellent feedback, helping make this book even better.
Special thanks also to Stephanie Eckles and Ellie Baker, two extremely talented CSS experts who reviewed some of the chapters in the previous, self-published version of this book.
is a software engineer specializing in front-end development. He has over 15 years’ experience working with JavaScript, HTML, and CSS and has worked extensively with front-end technologies such as Angular and React. He currently works at Salesforce and has worked in the past with companies such as Dell and Nortel. He is also the author of Using Gatsby and Netlify CMS, an Apress title. He lives in the Boston area with his wife and son. You can find him on Twitter at @JoeAttardi.
About the Technical Reviewer
Alexander Nnakwue
has a background in Mechanical Engineering from the University of Ibadan, Nigeria, and has been a front-end developer for over 3 years working on both web and mobile technologies. He also has experience as a technical author, writer, and reviewer. He enjoys programming for the Web, and occasionally, you can also find him playing soccer. He was born in Benin City and is currently based in Lagos, Nigeria.
Chances are that you already have some idea of what CSS is, or else you probably wouldn’t have been interested in this book. But let’s start at the beginning, to make sure we’re all on the same page.
CSS stands for Cascading Style Sheets. It’s a language for specifying how an HTML document is displayed. Without CSS, every website would just be Times New Roman with tiny buttons. It’s capable of much more than styling text, however. CSS lets us define entire layouts and position elements and even perform animations.
Style sheets are self-explanatory, but what is a cascading style sheet? Because more than one style rule could apply to a given HTML element, there needs to be some way to determine which rule should apply in the event of a conflict. The styles “cascade” from less specific to more specific selectors, and the most specific rule wins. Specificity is an important concept in CSS, and we will discuss that in more detail later.
A bit of history
Before CSS, support for styling in HTML was limited. The style information was included in the HTML markup. For example, the font face, size, and color were specified with the font tag and several different attributes, as shown in Listing 1-1.
<font face="Arial, sans-serif"
color="blue"
size="12">
Hello world!
</font>
Listing 1-1
Styling HTML with the font tag
This resulted in a tight coupling between the semantics and the presentation of a document, which made websites harder to maintain. There were some basic layout options, such as the center tag. For more advanced layouts, the only real option was to use HTML tables. Tables were meant to display tabular data. One disadvantage of using tables for layout is that someone using a screen reader will have a very hard time navigating the page.
There were several other proposals for style sheets for HTML documents as well, but CSS was first proposed at a conference in Chicago in 1994. The following year saw the birth of the World Wide Web Consortium (W3C), and the initial version of the CSS standard was published in late 1996. In the years since, CSS has evolved into a powerful tool for styling HTML documents.
Anatomy of a CSS rule
A CSS style sheet consists of rules. CSS rules target HTML elements by using selectors that describe the elements to which the styles should be applied. As we will see later, elements can be selected in many ways.
Rule syntax
A rule consists of a selector followed by a block of CSS properties contained inside curly braces. The properties consist of a property and value separated by a colon and are delimited with semicolons. A value may be a single value or a collection of multiple values, depending on the property.
Every element in the document that is matched by the selector has the properties in the CSS rule applied to it. An example of a CSS rule is shown in Figure 1-1.
Figure 1-1
The structure of a CSS rule
This rule targets any element with the class header (more on classes later). Any element with this class will have a red background and a 1-pixel solid blue border.
In the previous example, background-color and border are CSS properties. The border width is specified as 1px. px is a CSS unit. There are many units including em, rem, and %. We will learn more about the different CSS units later.
Property conflicts
If the same property is used more than once in a given rule, the last definition in the rule wins. An example of this is shown in Listing 1-2.
.header {
background-color: red;
background-color: blue;
}
Listing 1-2
A CSS rule with conflicting properties
In Listing 1-2, the element with the class header will have a blue background because it is the last one in the rule. The second background-color property overrides the first.
Comments
CSS can also contain comments, inside and outside of rules, as shown in Listing 1-3.
/* This is a comment outside of a rule */
.header {
/* This is a comment inside of a rule */
background-color: red;
}
Listing 1-3
A CSS style sheet with comments
At-rules
An at-rule is a special CSS rule that acts as a directive controlling the behavior of CSS. It is called an at-rule because it starts with the “at” sign (@). Here are some examples of at-rules:
@charset: Defines the character encoding used in the CSS file.
@import: Imports, or includes, the contents of another style sheet.
@media: Defines a media query. We will cover media queries in Chapter 11.
@keyframes: Defines a set of keyframes for a CSS animation. Animations will be covered in Chapter 9.
How CSS is used
There are several ways to use CSS in an HTML document. They all have the end result: a style sheet that is applied to the document.
Inline styles
Every HTML element supports the style attribute. Inline styles are specified as CSS properties in the value of the style attribute. An inline style does not contain selectors or curly braces; it is simply a collection of CSS properties. An example of an inline style is shown in Listing 1-4.
<div style="background-color: red;">
Hello world!
</div>
Listing 1-4
An element with inline styles
The element in Listing 1-4 will have a red background. The properties specified in an element’s inline style will apply to that element only. If there are conflicts in the rules that apply to an element, its inline style always takes precedence. For example, if there was a CSS rule somewhere that made all div elements have a blue background, this element’s inline style would override that and give it a red background.
Style blocks
CSS rules can also be specified inside a style sheet within the HTML document itself. This is done by adding CSS rules inside of a style element. Style blocks are typically added to the document’s head element. These are full style sheets with selectors and rules. Listing 1-5 shows an example HTML document containing a style element.
<!DOCTYPE html>
<html>
<head>
<style>
div {
background-color: red;
}
</style>
</head>
<body>
<div>Hello world!</div>
</body>
</html>
Listing 1-5
A style block inside an HTML document
In the preceding document, all div elements will have a red background.
External style sheets
Lastly, CSS rules can also be listed in a style sheet file with a .css extension. This style sheet is then referenced in the head of the HTML document using a link element. In the following example, using the code from Listing 1-6, all div elements in the document will have a red background. The linked CSS file is shown in Listing 1-7.
<!DOCTYPE html>
<html>
<head>
<link rel="stylesheet" href="/path/to/file.css">
</head>
<body>
<div>Hello world!</div>
</body>
</html>
Listing 1-6
An HTML document referencing an external style sheet
div {
background-color: red;
}
Listing 1-7
A simple external CSS file
Browser support
The CSS features discussed in this book are well supported in modern browsers: recent versions of Chrome, Firefox, Edge, and Safari. Some features have limited or no support in older browsers such as Internet Explorer 11. These compatibility issues will be called out where applicable.
Some features are supported but only with vendor-specific prefixes, but this is rare with modern browsers. For example, several years ago, the @keyframes rule (which we'll explore in Chapter 9) was still somewhat experimental, so in order to support it, prefixes had to be used. This is shown in Listing 1-8.
@keyframes spin {
from { transform: rotate(0); }
to { transform: rotate(360deg); }
}
@-moz-keyframes spin {
from { -moz-transform: rotate(0); }
to { -moz-transform: rotate(360deg); }
}
@-webkit-keyframes spin {
from { -webkit-transform: rotate(0); }
to { -webkit-transform: rotate(360deg); }
}
Listing 1-8
Using vendor prefixes
The main disadvantage of vendor prefixes is that they require duplication, as shown in Listing 1-8. For each block, the same keyframes have to be specified.
More recent browser versions tend to use experimental feature flags rather than vendor prefixes. These are special configuration flags that are exposed in an advanced configuration interface where experimental features can be turned on and off.
If you still need to support older browsers that use prefixes, there are tools such as Autoprefixer which lets you write prefix-free CSS. The tool then parses the CSS and generates a new style sheet containing the duplicated vendor-prefixed rules and properties.
Web resources
There are many resources and references that are useful when using CSS. Here are a few of the best.
CanIUse.com
The website CanIUse.com (https://caniuse.com) is a great resource for finding out the browser support of a given feature. This site maintains a database of up-to-date browser support information for different CSS features. Figure 1-2 shows a screenshot of an example query.

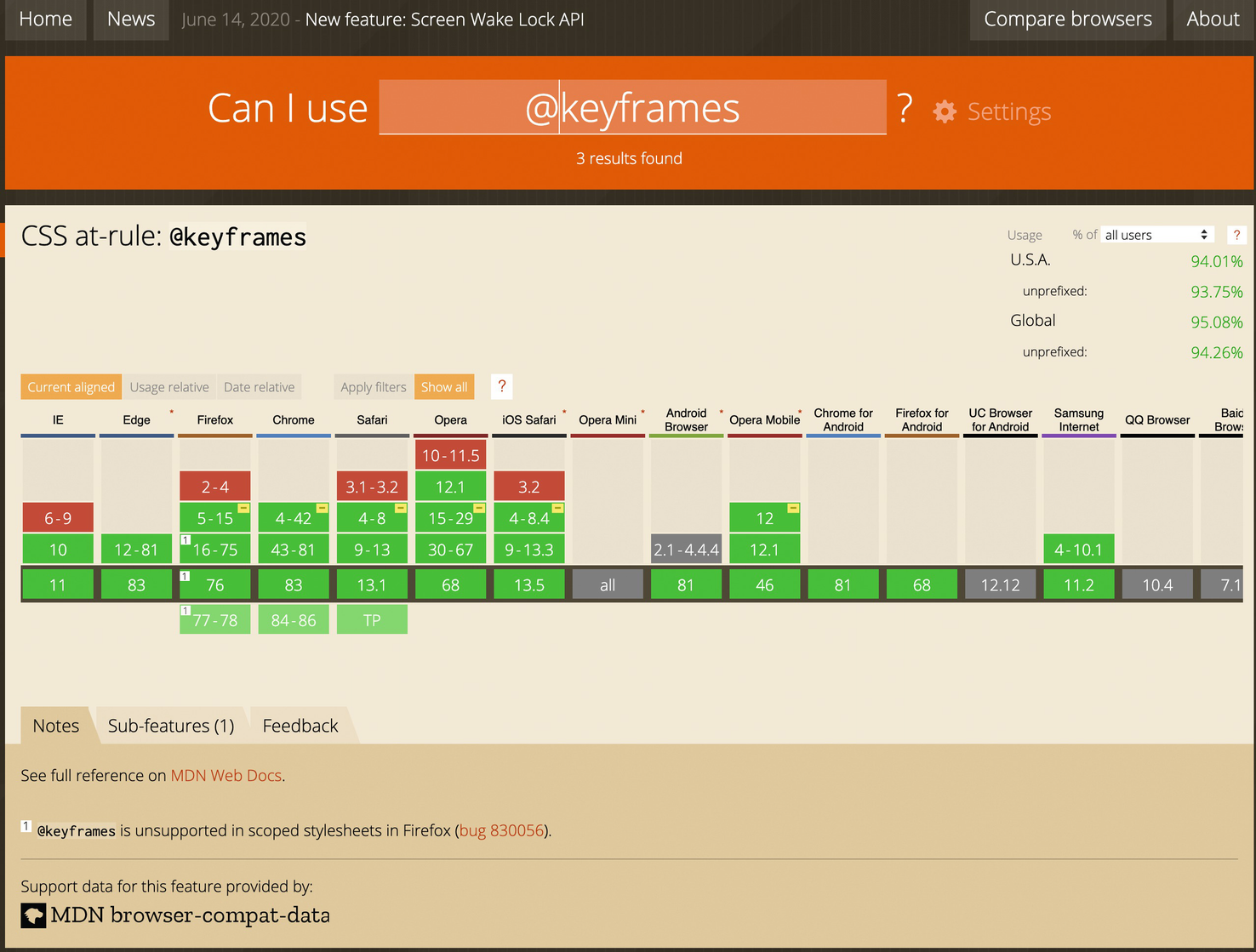

Figure 1-2
Screenshot of CanIUse.com
Mozilla Developer Network
Another useful resource is the Mozilla Developer Network (https://developer.mozilla.org), or MDN for short. MDN has a complete reference to HTML, CSS, JavaScript, and more. It is an exhaustive reference to all CSS properties.
CSS preprocessors
CSS is not without its limitations and pain points. CSS preprocessors, such as Sass, LESS, and Stylus, provide additional features not found in plain CSS. These tools provide an extended, or even completely different, syntax for writing CSS rules. When you build the application, the preprocessor takes your style sheets and converts them to plain CSS, ready to use in the browser.
We won’t cover CSS preprocessors in this book beyond this section, but here is a quick overview if you are interested in using them.
Nested rules
CSS rules don't support nesting. This means that a CSS rule with a selector cannot appear inside another CSS rule. Most preprocessors, however, allow this. For example, the Sass code in Listing 1-9 has nested rules.
.header {
background-color: red;
h1 {
font-size: 24px;
}
}
Listing 1-9
Nested selectors in Sass
The inner h1 selector will only match h1 elements that are a descendant of an element that matches the outer rule, which would be an element with the class header. The equivalent CSS for this nested rule would look like Listing 1-10.
.header {
background-color: red;
}
.header h1 {
font-size: 24px;
}
Listing 1-10
The equivalent CSS
Variables
If you are supporting modern browsers, this is not as compelling of a reason to use a preprocessor, because recent versions of Edge, Firefox, Chrome, and Safari all support native CSS variables. However, if you need to support older browsers such as IE11, this can be a useful feature.
In Sass, for example, variables are declared and referenced starting with a $ character, as shown in Listing 1-11.
$header-color: red;
.header {
background-color: $header-color;
}
Listing 1-11
Sass variable syntax
Mixins
A mixin allows you to write a set of CSS properties and values, then apply that entire set of properties to another CSS rule without having to repeat all the code. If you have to support older browsers that expect vendor prefixes on some properties, this can be useful.
For example, the Flexible Box Layout Module, or flexbox, is supported on all modern browsers. If you need to support older browsers, they may require vendor prefixes. Your CSS might look something like Listing 1-12.
.header {
display: -webkit-flex;
display: -ms-flexbox;
display: flex;
}
Listing 1-12
Vendor prefixes for flexbox
The given code will need to be repeated for every element using a flexbox layout. This can be simplified by creating a flexbox mixin in Sass, shown in Listing 1-13.
@mixin flexbox {
display: -webkit-flex;
display: -ms-flexbox;
display: flex;
}
.header {
@include flexbox;
}
Listing 1-13
Sass flexbox mixin
Mixins are very useful for cutting down on duplicated code. They can even take arguments to customize the resulting CSS.
How CSS works in the browser
Now, let’s take a look at how the browser renders a page with CSS.
The Document Object Model (DOM)
The Document Object Model, or DOM, is a data structure in the browser. It is a tree of objects that represent the elements in the document and their structure and hierarchy. This tree is composed of DOM nodes. The DOM is created by reading the HTML markup, tokenizing it, parsing it, and finally creating the object hierarchy that makes up the DOM.
Consider the example HTML document shown in Listing 1-14.
<html>
<body>
<h1>Hello World</h1>
<div>
<h2>Subtitle</h2>
<p>Hello world!</p>
</div>
</body>
</html>
Listing 1-14
A simple HTML document
The corresponding DOM tree is shown in Figure 1-3.
Figure 1-3
The DOM tree corresponds to the HTML document
The CSS Object Model (CSSOM)
Similar to the DOM, there is also a CSS Object Model, or CSSOM. This is another tree structure that represents the hierarchy of styles in the document. While they are both tree structures, the CSSOM is a separate structure from the DOM.
Listing 1-15 contains a CSS style sheet meant to be applied to the HTML document in Listing 1-14.
body {
font-size: 16px;
}
h1 {
font-size: 1.5rem;
color: orangered;
}
div {
padding: 1rem;
}
div h2 {
font-size: 1.2rem;
color: blue;
}
div p {
font-size: 0.9rem;
color: gray;
}
Listing 1-15
CSS style sheet
The browser parses the CSS (which blocks the rendering of the page) and creates the CSSOM. Figure 1-4 shows the structure of the CSSOM tree.
Figure 1-4
The CSSOM tree
The render tree
Once the DOM and CSSOM are complete, they are combined to form the render tree. The render tree contains all the information the browser needs to render the page. To do this, the browser calculates which CSS rules apply to which elements in the DOM.
Figure 1-5 shows the render tree resulting from combining the DOM and CSSOM trees.
Figure 1-5
The render tree
Layout and paint
Once the browser has created the render tree, it can begin laying out the elements on the page. This stage of the process looks at styles such as width, height, position, margin, and padding, to determine each element's size and location on the page. At the layout stage, however, nothing is actually shown on screen yet.
Once layout is complete, the browser can begin painting by applying styles such as color and font to determine the actual pixels to draw on the screen. Some types of styles, like gradients, have a higher performance impact than a solid color or image.
Summary
In this chapter, we learned about
The syntax and structure of CSS rules
How conflicts are handled
The three ways to use CSS in an HTML document – inline styles, style blocks, and external style sheets
CSS preprocessors
The critical rendering path – the DOM, CSSOM, and render tree
One of the core concepts in CSS is that of selectors. A selector determines which element(s) a CSS rule applies to. There are several ways an element can be targeted with a selector, which we will cover in this chapter.
CSS selectors can target multiple elements on the page. That is, a single CSS rule can apply to multiple elements. An element or class selector can select multiple different elements that have that class or element name.
Similarly, a single HTML element can be affected by multiple CSS rules. An element will have the properties from all applicable CSS rules applied to it.
Basic selector types
The basic types of selectors are
Universal
Element
ID
Class
Attribute
The universal selector
The universal selector, specified simply as an asterisk (*), matches all elements. This can be specified as a single selector, to select all elements in the document, or with combinators (discussed in the next section). Listing 2-1 shows an example usage of the universal selector.
* {
margin: 0;
}
Listing 2-1
Removing all margins with the universal selector
The CSS rule in Listing 2-1 will apply a margin of 0 to all elements in the document.
Element selectors
An element selector targets an HTML element by its tag name. The syntax of the selector is simply the name of the element. Listing 2-2 shows an example usage of an element selector.
p {
margin: 25px;
}
Listing 2-2
Applying a margin to all div elements
The CSS rule in Listing 2-2 will apply a margin of 25px to all p elements in the document.
ID selectors
An HTML element can have an id attribute. As a general rule, there should only be one element with a given id. If there are multiple elements with the same id, most browsers will match the rule with all elements having that id. However, this should be avoided as it violates the HTML specification.
An ID selector is specified with the # character followed by the id value, as shown in Listing 2-3.
#header {
padding: 25px;
}
Listing 2-3
Applying padding to the element with an id of header
The element with an id attribute whose value is header will receive 25px of padding. If there are other elements also having an id of header, they will receive 25px of padding in most browsers. Again, this should be avoided. If you need to apply a style to more than one element, you can use class selectors instead of ID selectors.
Class selectors
An HTML element can also have a class attribute. A class can be used to mark all elements of a related type.
While only a single element is intended to be targeted by an ID selector, any number of HTML elements can have the same class attribute. Similarly, a single HTML element can have any number of classes applied to it. Multiple classes are separated by a space in the value of the class attribute.
A class selector will match every element in the document with the given class. Class selectors are specified with a dot, followed by the name of the class, as shown in Listing 2-4.
.nav-link {
color: darkcyan;
}
Listing 2-4
Applying a color to all elements with the class nav-link
The rule in Listing 2-4 will match every element in the document with a class of nav-link and give it a color of darkcyan.
Attribute selectors
HTML elements can also be selected by their attribute values or by the presence of an attribute. The attribute is specified inside square brackets, and the attribute selector can take several forms.
[name]
Selects all elements that have the given attribute, regardless of its value.
[name="value"]
Selects all elements that have the given attribute, whose value is the string value.
[name~="value"]
Selects all elements that have the given attribute, whose value contains the string value separated by whitespace. Listing 2-5 contains two HTML elements with slightly different title attributes.
<div title="Hello World">Hello World</div>
<div title="HelloWorld">HelloWorld</div>
Listing 2-5
Example HTML elements
If we wrote a CSS rule with the selector [title~="World"], the first element would match but not the second. This is because in the second element, the word “World” in the title attribute is not surrounded by whitespace.
[name*="value"]
Selects all elements that have the given attribute, whose value contains the substring value. If we wrote another CSS rule, this time with the selector [title*="World"], it would match both of the preceding elements.
[name^="value"]
Selects all elements that have the given attribute, whose value begins with value.
[name$="value"]
Selects all elements that have the given attribute, whose value ends with value.
Compound selectors
Any of the preceding selectors (with the exception of the universal selector) can be used alone or in conjunction with other selectors to make the selector more specific. This is best illustrated with some examples:
div.my-class
Matches all div elements with a class of my-class.
span.class-one.class-two
Matches all span elements with a class of bothclass-one and class-two.
a.nav-link[href*="example.com"]
Matches all a elements with a class of nav-link that have an href attribute that contains the string example.com.
Multiple independent selectors
A CSS rule can have multiple selectors separated by a comma. The rule will be applied to any element that is matched by any one of the given selectors.
.class-one, .class-two
Matches all elements with a class of class-one as well as all elements with a class of class-two.
Selector combinators
There's even more you can do with selectors. Combinators are used to select more specific elements. Combinators are used in conjunction with the basic selectors discussed earlier. For a given rule, multiple basic selectors can be used, joined by a combinator.
Descendant combinator
The descendant combinator matches an element that is a descendant of the element on the left-hand side. Descendant means that the element exists somewhere within the child hierarchy – it does not have to be a direct child.
The descendant combinator is specified with a space character:
.header div
Matches all div elements that are direct or indirect children of an element with a class of header. If any of these div elements have children that are also divs, those divs will also be matched by the selector.
Child combinator
The child combinator matches an element that is a direct child of the element on the left-hand side. It is specified with a > character:
.header > div
Matches all div elements that are direct children of an element with a class of header. If those divs have children that are also divs, those divs will not be matched by the selector.
General sibling combinator
The general sibling combinator matches an element that is a sibling, but not necessarily an immediate sibling, of the element on the left-hand side. It is specified with a ~ character. Consider the example in Listing 2-6.
<div>
<div class="header"></div>
<div class="body"></div>
<div class="footer"></div>
</div>
Listing 2-6
Example HTML elements
The selector .header ~ div would match two div elements: the one with class body and the one with class footer. Note that it does not match the div with class header.
Adjacent sibling combinator
The adjacent sibling combinator is similar to the general sibling combinator, except it only matches elements that are an immediate sibling. It is specified with a + character.
Looking back at the HTML in Listing 2-6, the selector .header + div would only match the body element, because it is the adjacent sibling of the heading element.
Using multiple combinators
Just like basic selectors, combinators can be combined to form even more specific selectors. For example, this selector will match a button element that is an immediate sibling of a div element, which in turn is an immediate child of a div with the class header:
div.header > div + button
Pseudo-classes
Another tool in the CSS selector toolbox is the pseudo-class. A pseudo-class allows you to select elements based on some special state of the element, in addition to all the selectors previously discussed.
Pseudo-classes start with a colon and can be used alone or in conjunction with other selectors.
Some pseudo-classes let you select elements based on UI state, while others let you select elements based on their position in the document (with more precision than the combinators).
Matches an element that is currently being activated. For buttons and links, this usually means the mouse button has been pressed but not yet released.
:checked
Matches a radio button, checkbox, or option inside a select element that is checked or selected.
:focus
Matches an element that currently has the focus. This is typically used for buttons, links, and text fields.
:hover
Matches an element that the mouse cursor is currently hovering over. This is typically used for buttons and links but can be applied to any type of element.
:valid, :invalid
Used with form elements using HTML5 validation. The :valid pseudo-class matches an element which is currently valid according to the validation rules, and :invalid matches an element which is not currently valid.
:visited
Matches a link whose URL has already been visited by the user. To protect a user’s privacy, the browser limits what styling can be done on an element matched by this pseudo-class.
Document structure
These pseudo-classes are based on an element’s position in the document.
:first-child, :last-child
Matches an element that is the first or last child of its parent. Consider the example unordered list in Listing 2-7.
<ul class="my-list">
<li>Item one</li>
<li>Item two</li>
</ul>
Listing 2-7
A simple unordered list
The selector .my-list > li:first-child will match the first list item only, and the selector .my-list > li:last-child will match the last list item only.
:nth-child(n)
This pseudo-class takes an argument. It matches an element that is the nth child of its parent. The index of the first child is 1. Referring back to Listing 2-7, we could also select the first item with the selector .my-list > li:nth-child(1), or the second item with the selector .my-list > li:nth-child(2).
The :nth-child pseudo-class can also select children at a given interval. For example, in a longer list, we could select every other list item with the selector .my-list > li:nth-child(2n). Or we could select every four items with the selector .my-list > li:nth-child(4n). We can even select all odd-numbered children with the selector .my-list > li:nth-child(odd) or even-numbered children with .my-list > li:nth-child(even).
:nth-of-type(n)
Similar to :nth-child, except that it only considers children of the same type. For example, the selector div:nth-of-type(2) matches any div element that is the second div element among any group of children.
:root
Matches the root element of the document. This is usually the html element. This selector can be useful for several reasons, one of which is that it can be used to declare global variables (we will discuss CSS variables in Chapter 3).
Negating a selector
A selector can also include the :not() pseudo-class. :not accepts a selector as its argument and will match any element for which the selector does not match. For example, the selector div:not(.fancy) will match any div that does not have the fancy class.
Pseudo-elements
A pseudo-element lets you select only part of a matched element. Pseudo-elements are specified with a double colon (::) followed by the pseudo-element name.
We haven’t discussed block vs. inline elements yet, but it should be noted that some pseudo-elements only apply to block-level elements.
::first-line
Matches the first line of a block element.
::first-letter
Applies the styles only to the first letter of the first line of an element.
::before, ::after
Two special pseudo-elements are ::before and ::after. These pseudo-elements don’t select part of the element; rather, they actually create a new element as either the first child or the last child of the matched element, respectively. These pseudo-elements are typically used to decorate or add effects to an element.
Suppose we want to add an indicator next to all external links on our website. We can tag these external links using a class, say, external-link.
We can specify an external link as shown in Listing 2-8.
<a class="external-link"
href="https://google.com">
Google
</a>
Listing 2-8
An external link
Then we can add the indicator with the CSS rule in Listing 2-9. The content property defines what the text content of the pseudo-element should be.
The ::after pseudo-element added the content (external) and made it green.
Sometimes, you may want to use a ::before or ::after pseudo-element for decorative purposes. In this case, you must still provide a value for the content property or else the element will not be displayed. For decorative elements, this can be set to an empty string.
Specificity
An HTML element can have multiple CSS rules applied to it by matching different selectors. What happens if two or more of the rules applied to an element contain the same CSS property? How are such conflicts resolved? Listing 2-10 shows such a conflict.
<style>
.profile {
background-color: green;
}
div {
background-color: red;
color: white;
}
</style>
<div class="profile">My Profile</div>
Listing 2-10
Conflicting CSS rules
We have a conflict. Our HTML element matches both selectors – it is indeed a div element, and it also has the profile class. Each rule specifies a different value for the background-color property. When the page is rendered, which background color will this div element have?
You might think that, since the element selector rule comes after the class selector rule, the element selector rule will win the conflict. After all, this is how conflicting CSS properties within a rule work. Figure 2-2 shows the output of this code.
Figure 2-2
The rendered output
As you can see, the class selector rule’s background color was applied. This is because the class selector rule has a higher specificity. When there is a conflict of CSS properties across multiple rules, the rule with the most specific selector will be chosen. According to the rules of CSS, a class selector is more specific than an element selector.
Note that while the element has the background color from the class selector rule, it also has the color from the element selector rule. Specificity rules only matter for conflicting properties across multiple rules. Other properties in these multiple rules will still be applied.
Specificity rankings
The specificity rankings of CSS rules are as follows, from most specific to least specific:
1.
Inline styles in an element’s style attribute
2.
ID selectors
3.
Class selectors, attribute selectors, and pseudo-classes
4.
Element selectors and pseudo-elements
Neither the universal selector nor combinators factor into specificity.
Calculating specificity
There is a general algorithm for calculating a CSS rule's specificity. To calculate the specificity of a CSS rule, imagine four boxes, one for each type of style rule in the given list, as shown in Figure 2-3. Initially, each box has a zero in it.

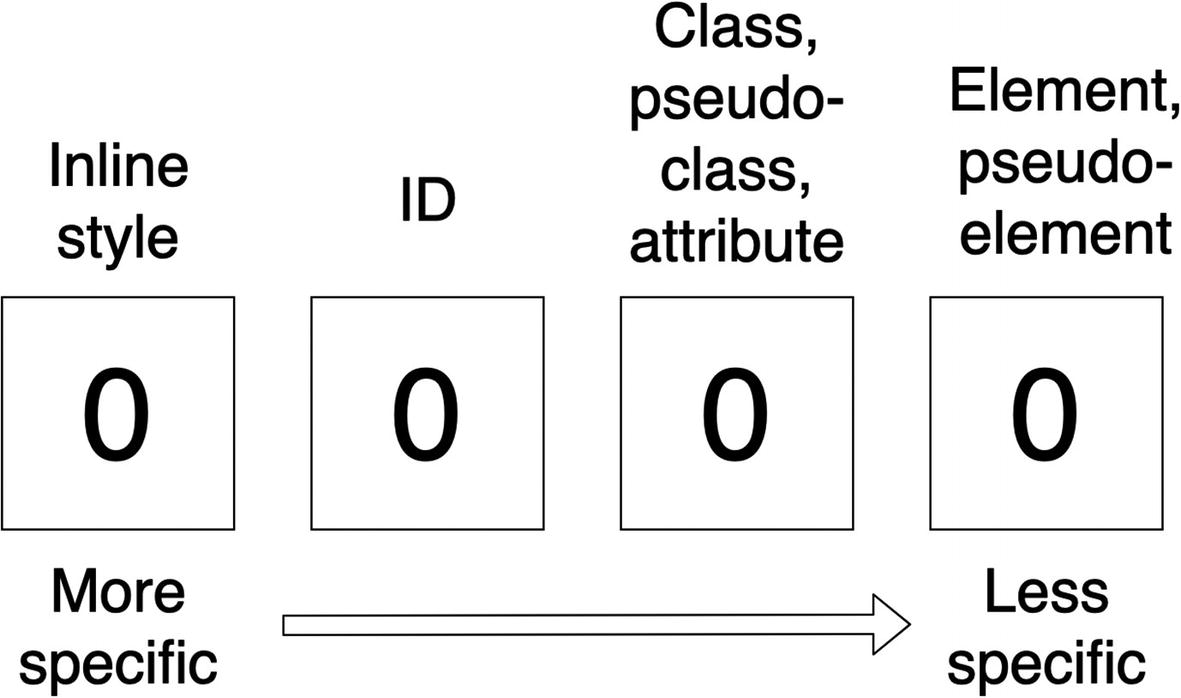

Figure 2-3
Specificity calculator
If the element has an inline style, add a 1 to the first box. In this case, the inline style automatically wins.
For each ID in the selector, add 1 to the value in the second box. For each class, pseudo-class, or attribute in the selector, add 1 to the value in the third box. Finally, for each element or pseudo-element in the selector, add 1 to the value in the last box.
Consider an example, the selector ul#primary-nav li.active. This would result in the specificity calculation shown in Figure 2-4.
Figure 2-4
Calculating the specificity of a selector
Let’s calculate the specificity of the two CSS selectors from Listing 2-10. Figure 2-5 shows the specificity values.
Figure 2-5
Calculating the specificity values of the example selectors
How do we interpret these specificity values? For most selectors, you can think of each number as the digit of a larger number and strip the leading zeros. The CSS specification states
Concatenating the four numbers a-b-c-d (in a number system with a large base) gives the specificity.
This would give us values of 10 for the class selector and 1 for the element selector. Looking at it this way, it is clear that the class selector is more specific.
Figure 2-6 shows a comparison of two very similar selectors.
Figure 2-6
Specificity calculation for two similar selectors
These selectors are very similar, but the one containing both an element and a class selector (specificity 11) is more specific than the one containing a class selector alone (specificity 10).
Lastly, if multiple conflicting rules are calculated to have the same specificity, the rule that appears last will win.
The escape hatch: !important
Any CSS property can have the keyword !important after it inside of a rule. This keyword will cause that property to always win in a conflict, even if the rule that contains it has lower specificity than another conflicting rule.
However, this is generally considered a bad practice. It can make CSS issues harder to debug and can make your style sheets less maintainable. In most cases, it’s better to determine the specificity of the rules you are trying to apply and use a more specific selector on the rule that you want to apply.
Summary
In this chapter, we learned all about CSS selector syntax and specificity rules. Some key takeaways are
The most commonly used selectors are element, ID, class, and attribute selectors.
Combinators can be used to create even more specific selectors.
Multiple selectors can match an element.
Conflicts are resolved by using the rule that is more specific.
Specificity can be overridden by using !important, but this should be avoided.
Now that we’ve looked in detail at how to select elements, let’s start to explore how to style them. The next step is to look at some of the basic concepts in CSS.
The box model
Every element in CSS is treated like a rectangular box. This is sometimes referred to as the box model. The box is made up of four parts. Starting from the outside and moving toward the center, these are the margin, border, padding, and content.
The margin is the space between an element’s border and its surrounding elements. It is specified with the margin property.
The border is an outline around the box. Borders can be styled with a thickness, style, and color. It is specified with several properties: border-style, border-width, border-color, and border.
The padding is the space between the element’s border and the content itself. It is specified with the padding property.
Figure 3-1 shows the different parts of the CSS box model.
Figure 3-1
The CSS box model
By default, most elements have no padding, border, or margin. There are some exceptions, like button elements. Listing 3-1 shows two div elements with some color to differentiate them but no other styling applied.
<style>
#div1 {
background-color: red;
}
#div2 {
background-color: green;
}
div {
color: white;
}
</style>
<div id="div1">Hello world!</div>
<div id="div2">Hello world!</div>
Listing 3-1
Two simple div elements
Figure 3-2 shows the rendered result of these two elements.
Figure 3-2
The rendered result
Notice how the elements run up against one another and generally look cramped. By adding padding, border, and margin to these elements, we can make it easier to read. Listing 3-2 adds these properties.
<style>
#div1 {
background-color: red;
}
#div2 {
background-color: green;
}
div {
color: white;
padding: 1rem;
margin: 1rem;
border: 2px solid black;
}
</style>
<div id="div1">Hello world!</div>
<div id="div2">Hello world!</div>
Listing 3-2
Applying padding, border, and margin
Figure 3-3 shows the elements with their new styling.
Figure 3-3
The same two elements with padding, border, and margin applied
Box sizing
The size of an element is specified with the width and height properties. How exactly this is interpreted, however, depends on the value of the box-sizing property. This property supports two values, content-box and border-box.
content-box
This is the default. With content-box, the width and height properties are treated as the width and height of the content area of the box only. The actual width and height taken up by the element’s box is the sum of the specified width and height (the content box), the padding on each side, and the border width on each side.
The actual width and height taken up by the rendered box will be 100px + 10px + 10px + 2px + 2px = 124 pixels, as visualized in Figure 3-4.

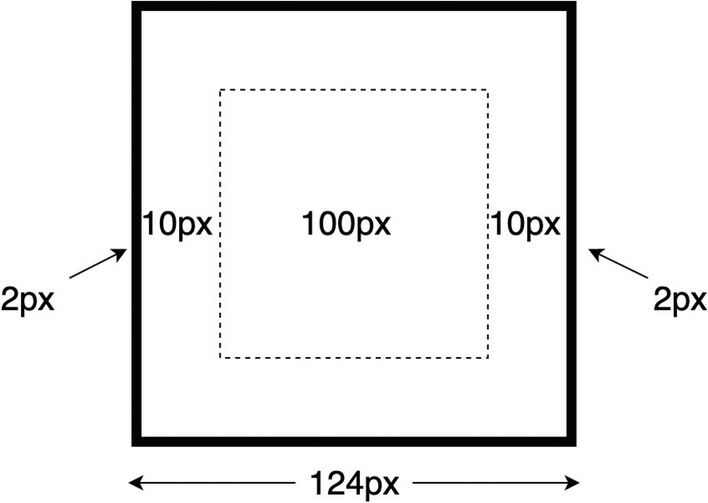

Figure 3-4
The full rendered size of the element using content-box
border-box
With border-box, the values of the width and height properties are treated as the size of the content box plus the padding and border width. Looking back at the example in Listing 3-3, and setting box-sizing to border-box, the total width and height of the rendered element is 100 pixels. To compensate for the extra 24 pixels taken up by the padding and border width, the size of the content box will shrink to 76 pixels, as visualized in Figure 3-5.

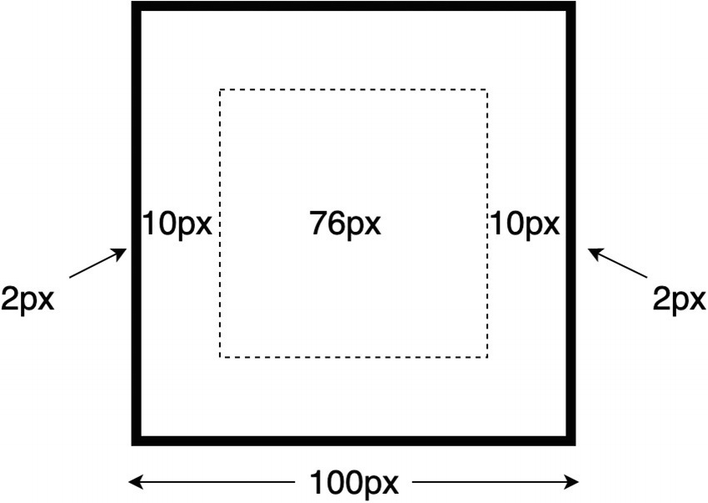

Figure 3-5
The full rendered size of the element using border-box
Block and inline elements
There are two types of HTML elements: block and inline (or a combination of the two, inline-block). Both block and inline elements follow the box model but are different in some important ways.
Some HTML elements are block elements (e.g., div) and some are inline elements (e.g., span). An element’s type can be changed by setting the display property to block, inline, or inline-block.
Block elements
A block element always appears on its own line and takes up the full width of its containing element, unless an explicit width is set with the width property. The height of a block element, by default, is just enough to fit the height of its content, but this height can also explicitly be set with the height property.
The example in Listing 3-4 contains some div elements, which are block elements.
The outer container element has an explicit width of 350px set, so it will be 350 pixels wide (technically, 354 pixels, since it is using content-box sizing).
The inner elements have no explicit width set, so they take up the full width of the container element. They also have no explicit height set, so they only take up enough vertical space to fit the text content.
Inline elements
Unlike block elements, an inline element is rendered inside the normal flow of text. They only take up enough width and height as necessary to contain their content. Setting the width or height properties of an inline element will have no effect. Listing 3-5 has an example of an inline element.
<style>
.highlight {
background-color: yellow;
}
</style>
Hello <span class="highlight">world</span>, I am demonstrating an inline element.
The span is an inline element, so its width and height are only enough to fit its content. As you can see, it does not appear on its own line. If we were to give the span an explicit width or height, it would be ignored.
There are some other differences between block and inline elements as well. When setting padding on the left and right of an inline element, it behaves as expected. The padding is applied, and the element takes up extra space. Listing 3-6 has an example that illustrates this.
<style>
.container {
width: 300px;
}
.highlight {
background-color: yellow;
padding-left: 50px;
padding-right: 50px;
}
</style>
<div class="container">
Hello <span class="highlight">world</span>, I am demonstrating an inline element.
As expected, the element’s width increases to accommodate the padding, and the surrounding content is pushed away to make room. However, an inline element behaves differently when setting top and bottom padding. Consider Listing 3-7.
<style>
.container {
width: 300px;
}
.highlight {
background-color: yellow;
padding-left: 50px;
padding-right: 50px;
padding-top: 50px;
padding-bottom: 50px;
}
</style>
<div class="container">
Hello <span class="highlight">world</span>, I am demonstrating an inline element.
</div>
Listing 3-7
Adding vertical padding to an inline element
The result, shown in Figure 3-9, may surprise you.
Figure 3-9
The odd behavior of vertical padding on an inline element
The padding was applied to the element, but no extra vertical space was made to accommodate the top and bottom padding. The background color of the span element bleeds into the adjacent content.
Inline elements behave similarly when it comes to margins – extra space is made for the horizontal margins but not the vertical ones.
Inline-block elements
The third element type is a combination of the first two. An inline-block element flows with the text like an inline element, but the width and height properties are respected, as are the vertical padding and margin.
Listing 3-8 takes the example from Listing 3-5 and makes the element an inline-block element and gives it an explicit width.
<style>
.container {
width: 300px;
}
.highlight {
background-color: yellow;
display: inline-block;
width: 100px;
padding-left: 50px;
padding-right: 50px;
padding-top: 50px;
padding-bottom: 50px;
}
</style>
<div class="container">
Hello <span class="highlight">world</span>, I am demonstrating an inline-block element.
The spanelement does not break onto a new line – it flows with the text like an inline element. However, its width and height properties are respected, as is the vertical padding. Extra space is made to account for the padding – it doesn’t bleed over into the surrounding content like with an inline element.
Units
To give an element a padding of 10 pixels, we would specify a value of 10px for the padding property. In this expression, we say that px is a unit. CSS units are equivalent to different units of measurement. In the physical world, measurements have units such as inches, feet, or meters. Similarly, CSS has units such as px, em, and rem. We will go over some of these in this section.
px
We’ve already seen the px unit in several examples. In the past, we could have said that this corresponds to physical pixels on the screen. However, in the modern age of ultrahigh-resolution displays, this is no longer exactly accurate. A CSS pixel does not necessarily have a one-to-one correspondence to a physical device pixel. On a very high-resolution 4K display, 1 pixel is so tiny that it would be hard to see with the naked eye. If CSS used device pixels, then a 1-pixel border would barely be visible to the user.
Instead, a so-called logical pixel corresponds to a certain number of physical device pixels. A 1px border looks roughly equivalent on a 4K display as it does on a lower resolution display, but it may use more physical device pixels.
It is generally not recommended to use px units in CSS. The main reason is that these pixel-based dimensions don’t always scale well when a user adjusts the browser zoom level. This can be an accessibility issue.
There is one property that is appropriate to use pixels for – the page’s base font size. In most browsers, this defaults to 16px. The base font size is set by applying the font-size property to the root html element.
It’s also appropriate to use pixels in media queries, which we will cover in Chapter 11.
em
The em unit is a relative unit. It is relative to the font size of the element. Listing 3-9 shows a rule using the em unit for padding.
.header {
font-size: 24px;
padding: 0.5em;
}
Listing 3-9
Using the em unit
The header element has a font size of 24px. The padding is specified as 0.5em, or half of the element’s font size. Therefore, the padding applied to this element will be 12px.
Listing 3-10 shows another example of using the em unit.
.header {
font-size: 24px;
padding: 0.5em;
}
.header li {
font-size: 0.75em;
}
.header li a {
font-size: 0.5em;
}
Listing 3-10
Specifying the font size in em units
Because font size is inherited, the li elements inside the header also start out with a font size of 24px. Then in the li element’s CSS rule, we set the font size to 0.75em. This is relative to the element’s current font size of 24px, so the actual font size of the li element would be 24px * 0.75 = 18px. Finally, the a elements inside the li elements have a font-size of 0.5em, which is relative to the li element’s font size of 18px, so its font size would be 18px * 0.5 = 9px.
Due to this cascading effect, sometimes using em units for nested elements can cause unintended effects to properties such as font size, padding, and margin.
rem
The rem unit is also a relative unit. It stands for “root em” and is relative to the page’s base font size. For example, if the base font size is 16px (remember that this usually doesn’t correspond to physical pixels), a size of 1rem is equal to 16px. 1.5rem would be 16px * 1.5 = 24px.
rem units are a good choice, especially for layout properties, since the size of 1rem remains constant throughout the document (unlike the em unit). If the browser is zoomed, everything resizes nicely because it’s all proportional to the base font size.
Because rem units are proportional to the base font size, there is no cascading effect like there is with em units.
Viewport units: vw and vh
The viewport is the area of the page that is currently visible in your web browser. CSS also has units that are relative to the viewport size: vw (viewport width) and vh (viewport height). Each of these units are 1% of the viewport size in that direction, that is, 1vw is 1% of the viewport width and 1vh is 1% of the viewport height.
If the viewport is resized, then any elements using vw units will have their sizes adjusted accordingly. Because vw and vh are relative to the viewport size, they are a good choice when using responsive design techniques.
There are also two related units, vmin and vmax. vmin is defined as whichever is smaller – the viewport width or the viewport height – and vmax is the larger of the two.
Percentage: %
The % unit is relative to the size of another value. What exactly this is relative to depends on the CSS property. For example, for the font-size property, the % unit is defined as a percentage of the parent element’s font size. However, for the padding property, % is defined as a percentage of the element’s width.
Like the viewport units, the percentage unit is very useful for responsive design, as we will see in Chapter 11.
No units
Some property values take no units at all but rather just a number. For example, the opacity property expects a number between 0 and 1. Another example of this is some flexbox properties such as flex-grow and flex-shrink, which expect integer numbers without units.
Other units
We have seen the most commonly used CSS units, but there are others as well. There are absolute units such as cm (centimeters), mm (millimeters), in (inches), and pt (points). These units are sometimes used for print style sheets but are rarely seen in screen style sheets.
There are also some experimental units that do not yet have wide browser support. For example, the lh unit is relative to the element’s line height, but this unit is currently not supported on any browsers.
Functions
CSS includes some helpful built-in functions.
calc
The calc function lets you combine the different units we saw earlier to calculate an exact amount. It can be used anywhere a value is expected. The real power of the calc function is that you can have mixed units in the calculation.
For example, suppose you want the height of an element to be 10 pixels short of 1.5rem. This can easily be accomplished with the calc function: calc(1.5rem - 10px). This is likely easier than doing the size calculations yourself to specify an exact pixel value.
Another very useful feature of the calc function is that it also works with CSS custom properties, or variables. We will look at variables in Chapter 6, but Listing 3-11 has an example.
:root {
--spacing: 0.5rem
}
.container {
padding: calc(var(--spacing) * 2);
}
Listing 3-11
Using CSS variables with the calc function
In this example, we establish a standard unit of spacing for the document as a variable and can reference that later in the call to the calc function. You might also notice the var function, which as we will see later is used to reference variables.
There are several other functions, which we will cover in the relevant sections. For example, there are some functions for defining colors, which we will explore in the next section.
Colors
One of the most common things done with CSS is to change colors. This can include background color, text color, and border color. There are a multitude of colors, and they can be expressed in multiple ways.
Predefined colors
CSS has many predefined color values. So far, all of the examples in the book have used these predefined color values. They range from basics like red and green to other shades like tomato, orangered, and skyblue. A full list of these colors can be found at https://developer.mozilla.org/en-US/docs/Web/CSS/color_value.
RGB colors
One of the ways to define a color is by the values of the color's red, green, and blue components. Any color can be expressed as a combination of RGB values. Each value of red, green, and blue is expressed as a number between 0 and 255.
One way that an RGB color can be specified is as a hexadecimal value. The red, green, and blue values are each converted to two hexadecimal digits. These digits are used in RGB order, preceded by a pound sign (#). The hex values can be specified with uppercase or lowercase letters. Table 3-1 shows a few examples of RGB hex notation.
Table 3-1
Example colors and their hex values
Color
Hex code
Black
#000000
White
#FFFFFF
Red
#FF0000
Green
#00FF00
Blue
#0000FF
The other way to specify an RGB color is by using the rgb function. Instead of hexadecimal digits, the red, green, and blue components of the color are specified as base-10 numbers between 0 and 255 or a percentage between 0% and 100%. Table 3-2 shows the usage of the rgb function.
Table 3-2
Example colors using the rgb function
Color
RGB notation
Black
rgb(0, 0, 0)
White
rgb(255, 255, 255)
Red
rgb(255, 0, 0)
Green
rgb(0, 255, 0)
Blue
rgb(0, 0, 255)
Alpha value
RGB colors can also specify an alpha value, which determines the opacity of the color. The alpha is a value between 0 (fully transparent) and 1 (fully opaque) or a percentage between 0% and 100%. To specify an alpha value, the rgba function is used. For example, for pure red with 50% opacity, the color would be defined as rgba(255, 0, 0, 0.5).
HSL colors
A color can also be expressed as a combination of hue, saturation, and lightness values. Hue is specified as a degree of an angle on the color wheel (from 0 to 360 degrees). 0 degrees is red, 120 degrees is green, and 240 degrees is blue.
Saturation is a percentage value of how much color is applied. 0% saturation is a shade of gray, and 100% saturation is the full color from the color wheel.
Finally, lightness is also a percentage value. 0% lightness is pure black, and 100% is pure white.
An HSL color is specified using the hsl function. For the color with a hue of 120 degrees, a saturation of 50% and a lightness of 50% would be specified as hsl(120, 50%, 50%).
Like RGB colors, HSL colors can also have an alpha value, specified using the hsla function. As described earlier, the alpha value can be a number between 0 and 1 or a percentage between 0% and 100%. For the color in the previous example to have 75% opacity, it would be specified as hsla(120, 50%, 50%, 0.75).
Transparent
Anywhere a color is expected, the transparent keyword can be used. This will apply no color. This can be useful when an element is positioned on top of another element, and you want the element underneath to show through. The background color of most elements defaults to transparent.
Newer color syntax
The usage of the rgb/rgba and hsl/hsla functions as previously described has been the standard for a long time. There is a newer syntax for these functions that are slightly different. This newer format is completely optional, and in fact, if you have to support older browsers, you won’t want to use it.
The new syntax makes a few changes:
There are no commas between the numbers.
If an alpha value is specified, it is separated from the three color values with a slash character:
Because of this, the rgba and hsla functions are no longer necessary. The alpha value can be specified with a slash in the base rgb and hsl functions.
The alpha value can also be specified on a hex color, for example, #FF00007F for pure red with 50% alpha.
Table 3-3 shows some comparisons between the old and new syntax.
Table 3-3
Comparison of old and new color syntax
Old syntax
Equivalent new syntax
rgb(0, 0, 0)
rgb(0 0 0)
rgba(255, 0, 0, 0.5)
rgb(255 0 0 / 0.5)
hsl(120, 50%, 50%)
hsl(120 50% 50%)
hsla(120, 50%, 50%, 0.75)
hsl(120 50% 50% / 0.75)
Compatibility note
This new color syntax is not supported in Internet Explorer.
Overflow
As discussed earlier, every HTML element is a rectangular box. Normally, the size of an element expands to fit its content, as we have seen in some earlier examples. However, what happens when an explicit height is set and the content does not fit inside the element's dimensions? This is a condition known as overflow. Listing 3-12 contains an example showing text overflowing its container.
<style>
.container {
background-color: skyblue;
height: 2rem;
width: 10rem;
}
</style>
<div class="container">
This is some really long text that will overflow the container.
We can clearly see that the text content is too long to fit in a 2rem by 10rem container, so the content overflows the container element. Note that the content only overflows vertically. This is because the default behavior is to wrap the text to the next line when it doesn’t fit on one line. This ensures it does not overflow horizontally, but because an explicit height is set, the container will not grow to fit its content.
If we insert a fixed-width element inside the container, as shown in Listing 3-13, the content will overflow both horizontally and vertically. We will add some padding to the container as well, to make the overflow more apparent.
<style>
.container {
background-color: skyblue;
height: 2rem;
width: 10rem;
padding: 1rem;
}
.container .banner {
background-color: #999999;
width: 15rem;
}
</style>
<div class="container">
<div class="banner">This is a banner</div>
This is some really long text that will overflow the container.
</div>
Listing 3-13
Adding a fixed-width element inside the container
Figure 3-12 shows that there is now horizontal as well as vertical overflow.
Figure 3-12
Horizontal and vertical overflow
As we now know, the content inside a block element will wrap to a new line when it doesn’t fit horizontally. We can change this behavior with the white-space property. If we set this property to nowrap in the first example from Listing 3-12, as shown in Listing 3-14, this will also cause horizontal overflow.
<style>
.container {
background-color: skyblue;
height: 2rem;
width: 10rem;
white-space: nowrap;
}
</style>
<div class="container">
This is some really long text that will overflow the container.
</div>
Listing 3-14
Setting white-space to nowrap
As Figure 3-13 shows, this has caused horizontal overflow.
Figure 3-13
Horizontal overflow of the container’s text content
Handling overflow
We have some control over how overflow is handled with the overflow property. This property handles both horizontal and vertical overflow together. They can also be handled independently with the overflow-x and overflow-y properties. The default value is visible, which results in what we saw in the previous examples. There are a few other options available.
hidden
When the overflow property is set to hidden, the overflowing content is simply not displayed. It is clipped by the bounds of the containing element, as shown in Figure 3-14.

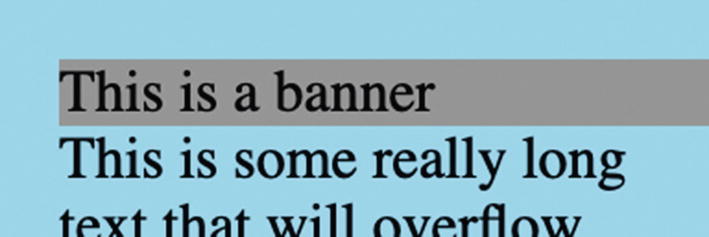

Figure 3-14
The overflowing content is clipped with overflow: hidden
scroll
When the overflow property is set to scroll, the overflowing content is initially not visible. However, there are scrollbars provided so that the user can scroll and view the overflowing content. The scrollbars are always provided, even if the content does not overflow.
auto
This behaves similarly to scroll. The difference is that when overflow is set to auto, the scrollbars are only provided if the content actually overflows.
CSS variables
Variables are a common feature in all programming languages. A variable is a way to store a piece of data, under a descriptive name, and that value can be referenced later by the variable name.
Variables have been available for many years with CSS preprocessing tools like Sass and Less. CSS variables, officially called CSS custom properties, were introduced later. Support for CSS variables was not great until more recently. They are now supported in all modern browsers.
Compatibility note
CSS variables are not supported in Internet Explorer.
Why would we want to use variables in CSS? Suppose you're designing a website for a company. You use their brand color, #3FA2D9, in many places throughout your CSS. Later, the site is going through a rebranding, and the brand color is changing. You now have to change the brand color in every place you used #3FA2D9.
Instead, you can define a brand-color variable and reference that variable everywhere you need to use the brand color. Later, when that color changes, you simply need to change the color value once – in the variable declaration.
Using variables
CSS variables are declared with two dashes followed by the variable name, such as
--brand-color: #3FA2D9;
To reference a variable’s value later, you need to pass the variable name to the varfunction:
background-color: var(--brand-color);
The var function also takes an optional second argument, which is a fallback value to use in case the variable isn't defined:
background-color: var(--brand-color, #3FA2D9);
Variable inheritance
A variable can be declared on any element or pseudo-element. Variables then cascade down to descendant elements, as demonstrated in Listing 3-15. The result is shown in Figure 3-15.
<style>
.container {
--heading-color: blue;
font-family: Arial, sans-serif;
}
.container h1 {
color: var(--heading-color);
}
</style>
<div class="container">
<h1>Welcome</h1>
</div>
Listing 3-15
Inheriting a parent’s variable
Figure 3-15
The rendered result
To make a variable apply to the entire document (a so-called global variable), you can set it using the special :root selector, as shown in Listing 3-16.
<style>
:root {
--text-color: red;
}
.container {
color: var(--text-color);
font-family: Arial, sans-serif;
}
</style>
<div class="container">Hello World!</div>
Listing 3-16
A global variable
Variables can also reference other variables, as shown in Listing 3-17. The result is shown in Figure 3-16.
<style>
:root{
--primary-border-color: red;
--primary-border-style: solid;
--primary-border-width: 3px;
--primary-border:
var(--primary-border-width)
var(--primary-border-style)
var(--primary-border-color);
}
.container {
border: var(--primary-border);
width: 10rem;
}
</style>
<div class="container">Hello World!</div>
Listing 3-17
Referencing variables inside other variables
Figure 3-16
The rendered result
Using variables in CSS calculations
Finally, you can even reference variables in the calc function. Consider the example in Listing 3-18. We have a container with six rows. We want the container to be tall enough to show three visible rows, and the rest should overflow and be accessed via scroll. The result is shown in Figure 3-17.
We set two variables: an explicit row height of 1.5rem and a visible row count of 3. The container should be as high as three rows, so in the .container rule, we use calc to multiply the --row-height variable by the --visible-rows variable, which will yield exactly the correct height.
We also apply overflow: auto, which as we saw earlier hides the overflow and makes it scrollable.
Summary
In this chapter, we learned about some of the basic concepts of CSS. Some key takeaways are
All elements are represented by a rectangular box with content, padding, border, and margin.
There are three main types of elements: block, inline, and inline-block.
There are many different units for CSS values:
px should be avoided except when setting the document’s base font size.
em is relative to the element’s font size.
rem is relative to the document’s base font size.
vw, vh, vmin, and vmax are relative to the viewport size.
The calc function is used to compute CSS values by performing calculations with multiple values, potentially with different units.
Colors can be defined in several ways.
Named colors: red, blue, and orangered
Hexadecimal RGB: #FF0000
rgb function: rgb(255, 0, 0)
hsl function: hsl(90, 50%, 25%)
If an element’s content cannot fit inside of it, the content will overflow.
Overflow handling can be changed with the overflow, overflow-x, and overflow-y properties.
A variable is declared with two leading slashes: --var-name.
A variable is referenced with the var function: var(--var-name).
Variable values are inherited by descendant elements.
By now, you have a solid grasp of the main underlying concepts of CSS. Now it's time to dive in and start learning some CSS properties and styling techniques. We'll start with the basics in this chapter.
Property values
First, a few notes on CSS property values.
Global keywords
Most CSS properties support several global keywords as their values:
initial: Uses the initial value set by the browser’s built-in style sheet.
inherit: Takes the value used by the element’s parent.
unset: If the property naturally inherits from its parent, such as font-size, it is set to the inherited value. Otherwise, it is set to the initial value from the browser’s style sheet.
Shorthand and multiple values
We’ve seen how many CSS properties, such as border-width, padding, and margin, can take a single value. These are known as shorthand properties. For these properties, the single value given will be used for the top, bottom, left, and right.
Each shorthand property has four equivalent properties for each side of the element. For example, for the padding shorthand element, there are also padding-top, padding-bottom, padding-left, and padding-right properties.
If you want to specify different values for different sides of the element, you can still use the shorthand property – just give it multiple values.
If one value is given, as we’ve seen, it applies to all four sides of the element. Listing 4-1 shows an example of this using the border-width property.
<style>
.container {
border-color: red;
border-style: solid;
border-width: 1px;
}
</style>
<div class="container">Hello world!</div>
Listing 4-1
A single value for the border-width property
You can see in Figure 4-1 that all four borders have the same width.
Figure 4-1
All four borders have the same width
If two values are specified, the first applies to the top and bottom, and the second applies to the left and right. An example of this is shown in Listing 4-2.
<style>
.container {
border-color: red;
border-style: solid;
border-width: 1px 5px;
}
</style>
<div class="container">Hello world!</div>
Listing 4-2
Two values for the border-width property
Note the different border widths in Figure 4-2 on the top and bottom compared to the left and right.
Figure 4-2
The rendered result
If three values are specified, the first applies to the top, the second applies to the left and right, and the third applies to the bottom. Listing 4-3 has an example of this, and the result is shown in Figure 4-3.
<style>
.container {
border-color: red;
border-style: solid;
border-width: 1px 5px 10px;
}
</style>
<div class="container">Hello world!</div>
Listing 4-3
Three values for the border-width property
Figure 4-3
The rendered result
Finally, if four values are specified, they are applied in clockwise order, starting at the top.
<style>
.container {
border-color: red;
border-style: solid;
border-width: 1px 5px 10px 20px;
}
</style>
<div class="container">Hello world!</div>
Listing 4-4
Four values for the border-width property
Figure 4-4
All borders have different widths
Borders
For most elements, the border is invisible by default. CSS has several properties for styling a border.
border-color
The border-color property, as its name implies, sets the color of the border.
border-width
The border-width property determines how thick the border is. The value of border-width can be a value like 3px. There are also some predefined values: thin, medium, and thick.
border-style
The border-style property determines the visual appearance of the border. In addition to none (the default), there are several available border styles, as shown in Figure 4-5.
Figure 4-5
The different border styles
border
The three preceding properties can be combined into a single property with the border shorthand property, as shown in Listing 4-5. The properties can be specified in any order.
.container {
border: 5px solid red;
}
Listing 4-5
The bordershorthand property
border-collapse
The border-collapse property only applies to table elements. It controls how borders are preserved or collapsed between adjoining table cells. The default value is separate. With this default behavior, a table's borders are not combined. Consider the table in Figure 4-6, where each cell has a different-colored border.

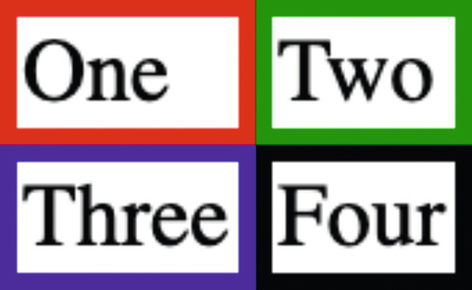

Figure 4-6
Borders are not collapsed
Notice that each cell’s border is seen in its entirety – the borders do not collapse. Figure 4-7 shows the result if we set border-collapse to collapse.

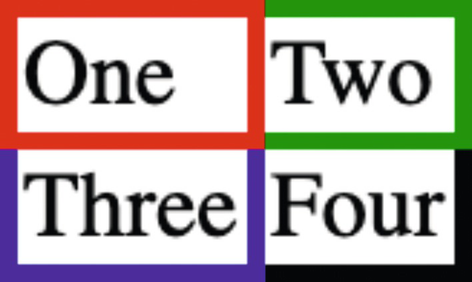

Figure 4-7
Borders are now collapsed
Any cell borders adjacent to another border have been collapsed into a single border.
border-radius
By default, blocks have 90-degree rectangular corners. That isn't always the most aesthetically pleasing design, though. To address this, CSS gives us the border-radius property. This property gives us rounded corners. The corners can be circular or elliptical. A simple example is shown in Listing 4-6.
<style>
.rounded-corners {
background-color: red;
border-radius: 10px;
height: 5rem;
width: 5rem;
}
</style>
<div class="rounded-corners"></div>
Listing 4-6
Setting a border radius
This creates rounded corners with a radius of 10px, as shown in Figure 4-8.
Figure 4-8
A box with rounded corners
What does it mean for the corner to have a radius of 10px? Imagine a circle drawn over each of the corners. That circle’s radius is 10px. This visualization is shown in Figure 4-9.

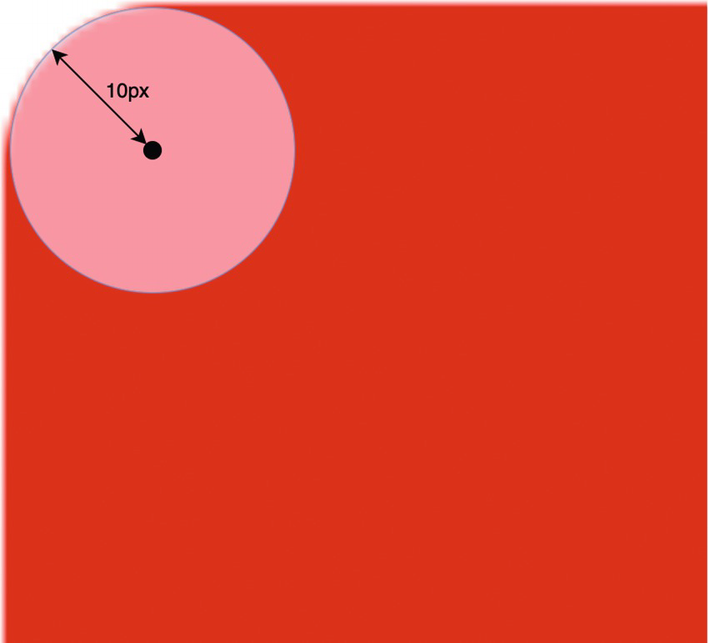

Figure 4-9
The meaning of border radius
The border-radius can be elliptical as well as circular. Each of the two radii of the ellipse is specified, separated by a slash, as shown in Listing 4-7.
Similar to the circular radius, the elliptical radius effect is applied with an ellipse in each corner. The horizontal radius is given first, followed by the vertical. This is illustrated in Figure 4-11.
Figure 4-11
Explanation of the elliptical border radius
You can also specify a different border-radius for each corner, as shown in Listing 4-8, creating some interesting shapes. Note that when you specify border-radius in this way, an elliptical border-radius does not have a slash separating the horizontal and vertical radius. The result is shown in Figure 4-12.
<style>
.rounded-corners {
background-color: red;
border-bottom-right-radius: 10px 20px;
border-bottom-left-radius: 5px;
border-top-left-radius: 20px 10px;
border-top-right-radius: 50%;
height: 5rem;
width: 5rem;
}
</style>
<div class="rounded-corners"></div>
Listing 4-8
Specifying different border radius properties

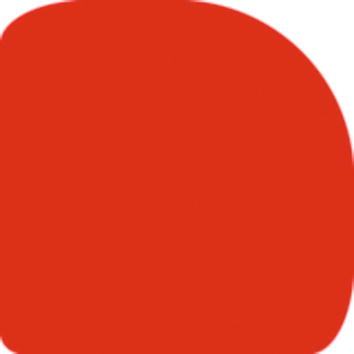

Figure 4-12
The resulting shape
Box shadows
Elements can also have a shadow. This is controlled by the box-shadow property. A box shadow has a color, and its dimensions can be specified with up to four values, which are
X offset
Y offset
Blur radius: How far out the shadow is blurred
Spread radius: How far the shadow extends beyond the element’s dimensions
At a minimum, the X and Y offsets must be given. By default, the blur and spread radius are zero. Listing 4-9 has a straightforward example. The result is shown in Figure 4-13.
<style>
.shadow {
box-shadow: 5px 5px black;
background: #CCCCCC;
width: 10rem;
height: 5rem;
}
</style>
<div class="shadow"></div>
Listing 4-9
A simple box shadow
Figure 4-13
The rendered result
We can also add a blur radius to blur the shadow, as demonstrated in Listing 4-10. The result is shown in Figure 4-14.
<style>
.shadow {
box-shadow: 5px 5px 10px black;
background: #CCCCCC;
width: 10rem;
height: 5rem;
}
</style>
<div class="shadow"></div>
Listing 4-10
Adding a blur radius
Figure 4-14
The rendered shadow with a blur radius
If we add a spread radius and set the blur radius to zero, as shown in Listing 4-11, we can see that the shadow size grows by the spread radius in all directions. The result is shown in Figure 4-15.
<style>
.shadow {
box-shadow: 5px 5px 0 5px black;
background: #CCCCCC;
width: 10rem;
height: 5rem;
}
</style>
<div class="shadow"></div>
Listing 4-11
Adding a spread radius without a blur radius
Figure 4-15
The rendered shadow
Finally, we can apply the blur radius again to see the full result.
<style>
.shadow {
box-shadow: 5px 5px 10px 5px black;
background: #CCCCCC;
width: 10rem;
height: 5rem;
}
</style>
<div class="shadow"></div>
Listing 4-12
Shadow with a blur and spread radius
Figure 4-16
The full rendered shadow
We could also set the X and Y offsets to zero, as shown in Listing 4-13, and let the shadow spread and blur evenly in all directions. The result is shown in Figure 4-17.
<style>
.shadow {
box-shadow: 0 0 5px 5px black;
background: #CCCCCC;
width: 10rem;
height: 5rem;
}
</style>
<div class=”shadow”></div>
Listing 4-13
Setting the X and Y offsets to zero
Figure 4-17
The rendered result
Box shadows can also be inside the element instead of behind it. To do this, specify the inset keyword, as shown in Listing 4-14. The result is shown in Figure 4-18.
<style>
.shadow {
box-shadow: 0 0 25px black inset;
background: #CCCCCC;
width: 10rem;
height: 5rem;
}
</style>
<div class="shadow"></div>
Listing 4-14
An inset box shadow
Figure 4-18
The rendered result
Finally, you can apply multiple shadows to an element, as shown in Listing 4-15. This could be used, for example, to apply both an inner and outer shadow. The resulting shadows are shown in Figure 4-19.
<style>
.shadow {
box-shadow: 0 0 10px 0 black, 0 0 25px red inset;
background: #CCCCCC;
width: 10rem;
height: 5rem;
}
</style>
<div class="shadow"></div>
Listing 4-15
Multiple box shadows
Figure 4-19
The rendered result, showing two box shadows
Opacity
By default, most elements start out with a transparent background. When a background color or image is assigned, that element becomes opaque. You cannot see through the element to what's behind it. Borders and text are also opaque.
You can change this behavior with the opacity property. opacity applies to the entire element – background, border, text, images, and any other content within that element or its children.
The opacity property takes a number between 0 and 1 or a percentage from 0% to 100%. This sets the level of transparency of the element. An opacity of 0.5, or 50%, is half transparent. Listing 4-16 shows an example of setting opacity. The result is shown in Figure 4-20.
<style>
.outer {
background: red;
height: 10rem;
width: 10rem;
}
.inner {
background: blue;
color: white;
height: 8rem;
width: 8rem;
opacity: 0.5;
}
</style>
<div class="outer">
<div class="inner">
Hello World!
</div>
</div>
Listing 4-16
Demonstration of opacity
Figure 4-20
The rendered result
Notice that the red background of the outer box partially shows through the inner box and its text. If we set opacity to 0.2, the inner box becomes even more transparent and is barely visible, as shown in Figure 4-21.
Figure 4-21
Decreasing the opacity
Hiding elements
There are a few ways you can hide an element on the page using CSS.
display: none
When the display property is set to none, the element is removed from the flow of the document as if it was never there. Other elements will move to fill in the space.
If we set the blue middle element’s display property to none, it is removed, and the other block moves to the left to fill the empty space, as shown in Figure 4-23.
visibility: hidden
Another way to hide an element is by setting the visibility property to hidden. This behaves a little differently than display: none – the flow of the document is not affected. This means that no elements will move to fill the empty space left by the hidden element.
If we change the middle box from Figure 4-22 to visibility: hidden, it will disappear, but an empty space will remain, as shown in Figure 4-24.
Figure 4-22
Three boxes

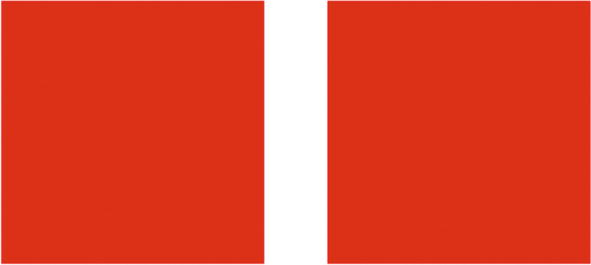

Figure 4-23
The middle element hidden with display: none
Figure 4-24
The empty space left by visibility: hidden
To restore the hidden element, we can set the visibility property back to visible.
opacity: 0
The last way to hide an element is to set its opacity property to 0. This has the same net effect as visibility: hidden – the element is effectively hidden, but the layout is unchanged. To show the element again, just set opacity back to 1.
One reason you may want to use opacity: 0 instead of visibility: hidden is while the visibility property will show or hide the element immediately, the opacity property can be transitioned gradually with a CSS transition, which we'll learn more about in Chapter 9. This can be used to create a subtle fade-in/fade-out effect.
Summary
In this chapter, we learned about some of the basic styling techniques with CSS:
A border has a style, width, and color.
Rounded corners can be created with the border-radius property.
An element can have an inner and/or outer box shadow.
The opacity property determines the transparency of an element.
An element can be hidden in three ways: display: none, visibility: hidden, or opacity: 0.
Any HTML element can have a background. Backgrounds can be images, solid colors, or even gradients.
Solid background colors
Solid background colors are applied using the background-color property. This accepts any valid CSS color expression.
<style>
.red-background {
background-color: #FF0000;
}
</style>
<div class="red-background">Hello world!</div>
Listing 5-1
A solid background color
Figure 5-1
The rendered result
Background images
Images can also be used as an element’s background. There are several properties that control the background image.
background-image
One or more background images can be applied using the background-image property. This accepts one or more image URLs. The background images will be stacked on top of each other, with the first image on top.
A background image’s URL is specified with the url function. It takes one argument, which is a string that can be an absolute or relative URL. Here are a few examples:
If an element is larger than its background image, by default the image will be repeated to fill the element.
<style>
.background-image {
background-image: url(tiles.jpg);
height: 50rem;
width: 100rem;
}
</style>
<div class="background-image"></div>
Listing 5-3
Using a background image on an element larger than the image itself

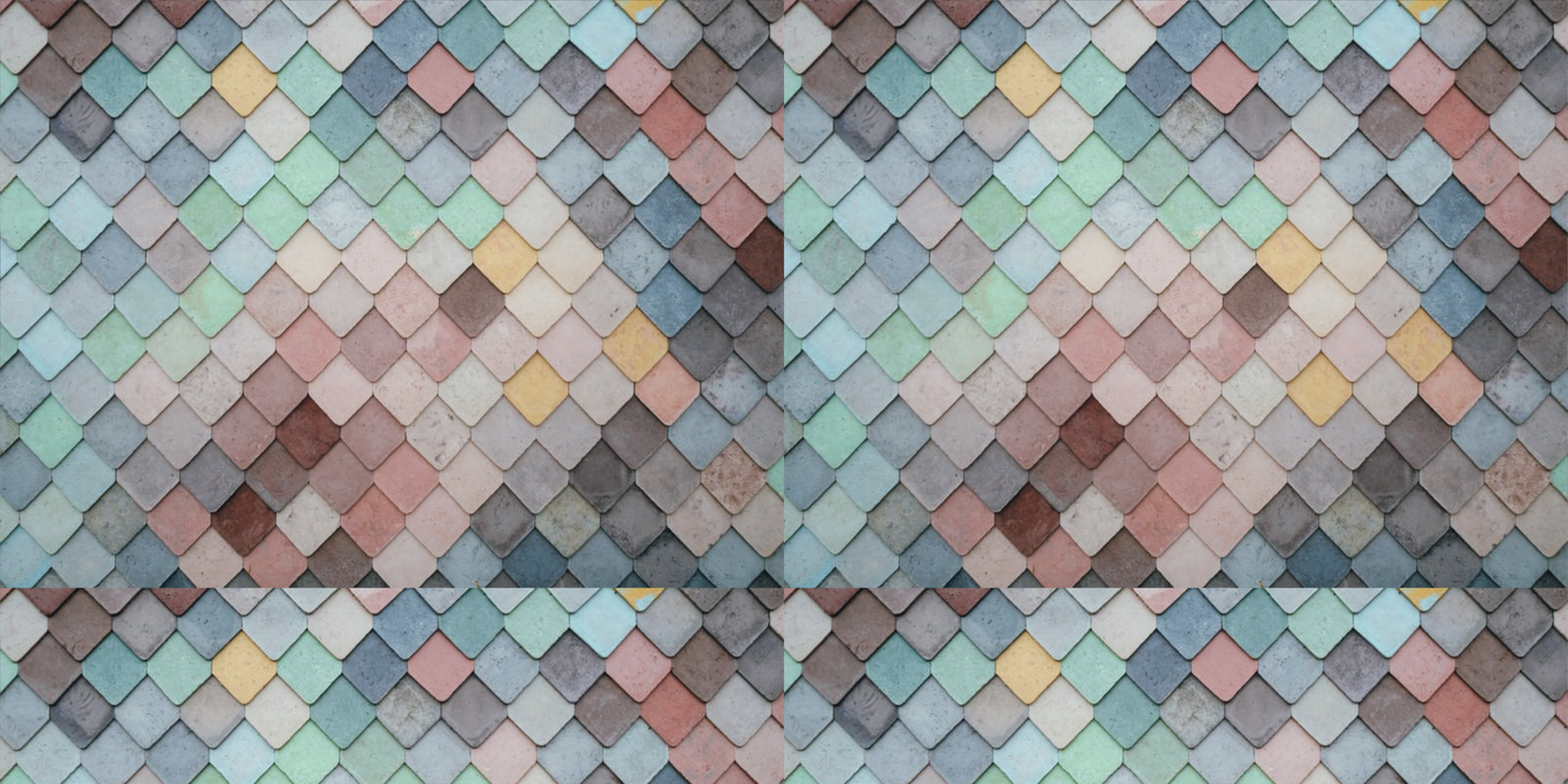

Figure 5-3
The tiled background image
This behavior can be changed with the background-repeat property. Repeating can be disabled by setting it to no-repeat. If the background isn't repeated to cover the entire element, the background color, if any, will show through.
<style>
.background-image {
background-color: #999999;
background-image: url('tiles.jpg');
background-repeat: no-repeat;
height: 50rem;
width: 100rem;
}
</style>
<div class="background-image"></div>
Listing 5-4
Disabling background repeat
Figure 5-4
The rendered result
The background image can be repeated just horizontally or just vertically by specifying a background-repeat of repeat-x or repeat-y.
<style>
.background-image {
background-color: #999999;
background-image: url('tiles.jpg');
background-repeat: repeat-y;
height: 50rem;
width: 100rem;
}
</style>
<div class="background-image"></div>
Listing 5-5
Repeating the background vertically only
Figure 5-5
The rendered result
background-position
The position of the background image can be changed with the background-position property.
<style>
.background-image {
background-color: #999999;
background-image: url('tiles.jpg');
background-repeat: no-repeat;
background-position: center;
height: 50rem;
width: 100rem;
}
</style>
<div class="background-image"></div>
Listing 5-6
The background-position property
Figure 5-6
The rendered result
A single value can be given such as top, bottom, left, right, or center, a length such as 50px, or a percentage. Two values can also be given. In this case, the first value is the position along the X-axis, and the second is the position along the Y-axis.
<style>
.background-image {
background-color: #999999;
background-image: url('tiles.jpg');
background-repeat: no-repeat;
background-position: 50px center;
height: 50rem;
width: 100rem;
}
</style>
<div class="background-image"></div>
Listing 5-7
Specifying two values for background-position
Figure 5-7
The background image in the specified position
background-size
By default, the background image will have its original size. This may not always be ideal and can be changed with the background-size property. Consider this example where the element is wider than the background image being used.
<style>
.header-image {
background-image: url('mountains.jpg');
height: 15rem;
border: 3px solid #000000;
}
</style>
<div class="header-image">
<h1>Welcome to my site</h1>
</div>
Listing 5-8
An element wider than its background image

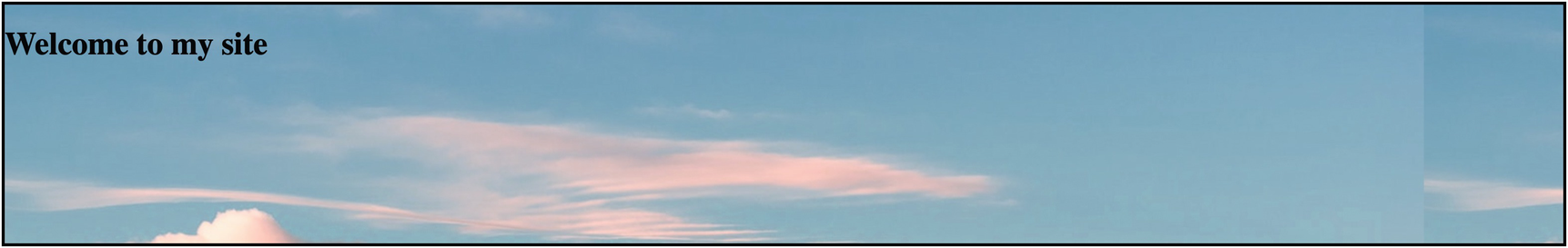

Figure 5-8
The background image is tiled
Since the element is wider than its background, the background is tiled, as we saw before. This doesn’t look good, though. Just like before, we can set background-repeat to no-repeat.
<style>
.header-image {
background-image: url('mountains.jpg');
background-repeat: no-repeat;
height: 15rem;
border: 3px solid #000000;
}
</style>
<div class="header-image">
<h1>Welcome to my site</h1>
</div>
Listing 5-9
Setting background-repeat to no-repeat
This fixes the tiling issue but creates a new issue. There is a big white gap inside the element between the background image and the border.

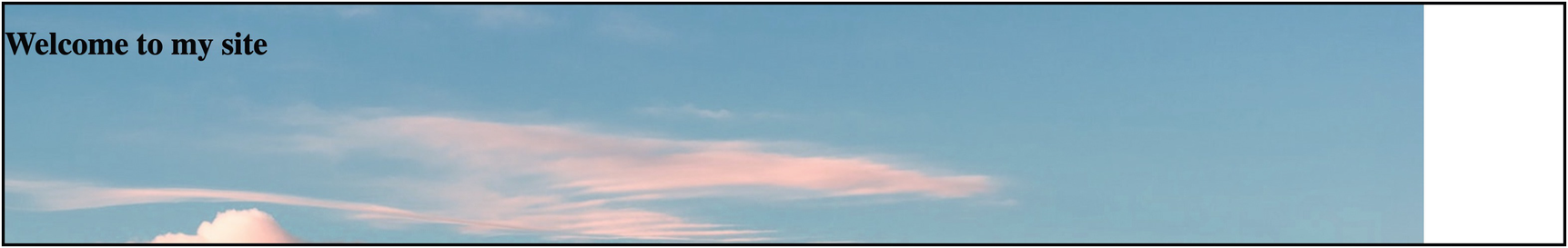

Figure 5-9
A gap inside the element
We can improve this further by setting the background-size property to cover. This will resize the background image to make sure that the element is fully covered. If the aspect ratio of the image doesn’t match that of the element, the image will be cropped.
<style>
.header-image {
background-image: url('mountains.jpg');
background-size: cover;
height: 15rem;
border: 3px solid #000000;
}
</style>
<div class="header-image">
<h1>Welcome to my site</h1>
</div>
Listing 5-10
Setting background-size to cover

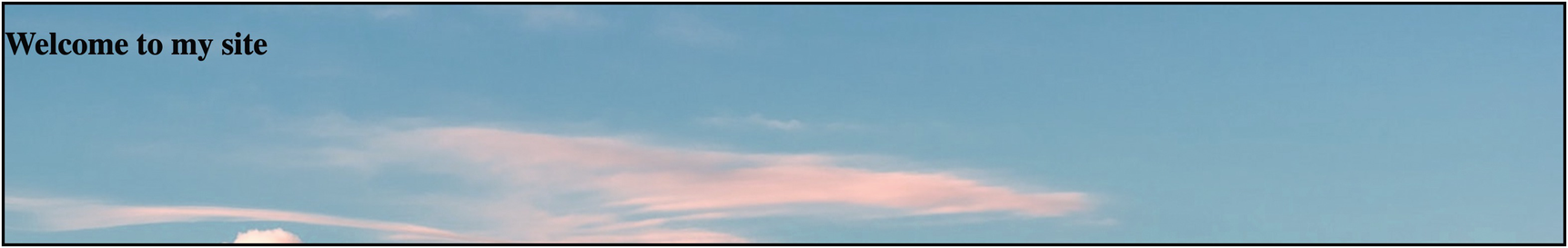

Figure 5-10
The rendered result
This looks better. The background fills the element without tiling or a gap. It’s still not ideal, though. Most of the image is cut off – we don’t see the mountains, which are the focal point of the image.
To fix this, we can combine the background-position property with background-size, setting the position to center to focus on the center of the image.
<style>
.header-image {
background-image: url('mountains.jpg');
background-size: cover;
background-position: center;
height: 15rem;
border: 3px solid #000000;
}
</style>
<div class="header-image">
<h1>Welcome to my site</h1>
</div>
Listing 5-11
Focusing on the center of the background image
Now, we get a much nicer result. The mountains at the center of the background image are visible.
Figure 5-11
A better view of the background image
There are some other useful values for background-size as well. One such value is contain, which will resize the background image so that the entire image fits within the element.
Figure 5-12
Setting background-size to contain
You can also set a specific size in pixels, which can cause strange results if the aspect ratio is not preserved.
<style>
.header-image {
background-image: url('mountains.jpg');
background-size: 100px 300px;
height: 15rem;
border: 3px solid #000000;
}
</style>
<div class="header-image">
<h1>Welcome to my site</h1>
</div>
Listing 5-12
Setting a specific background size
Because the given dimensions are not the same aspect ratio as the original image, it appears squashed in the horizontal direction, as seen in Figure 5-13.
Figure 5-13
The rendered result
background-clip
By default, an element’s background goes behind its border, padding, and content. If we add some padding to the header image, and change the border, we can see that behavior.
<style>
.header-image {
background-image: url('mountains.jpg');
background-size: cover;
background-position: center;
height: 15rem;
border: 5px dashed #000000;
padding: 2rem;
}
</style>
<div class="header-image">
<h1>Welcome to my site</h1>
</div>
Listing 5-13
Adding padding and changing border
This behavior can be changed with the background-clip property. It can take the following values.
border-box
The background will extend all the way to the border, as shown in Figure 5-14. This is the default behavior.
Figure 5-14
The background is behind the border and padding areas
padding-box
The background will extend to the padding area, but will not appear behind the border, as shown in Figure 5-15.
Figure 5-15
The background does not extend behind the border
content-box
The background will only be shown behind the content area. It will not extend into the padding area or the border, as shown in Figure 5-16.
Figure 5-16
The background only extends into the content area
background
Finally, there is also a backgroundshorthand property that lets you set several of these properties in a single value. A background color can also be included. The values can be given in any order, with a few exceptions:
The background-size must come directly after background-position, separated by a slash.
The background-color must come last.
<style>
.header-image {
background: url('mountains.jpg') center / cover;
height: 15rem;
border: 3px solid #000000;
}
</style>
<div class="header-image">
<h1>Welcome to my site</h1>
</div>
Listing 5-14
The background shorthand property
Gradients
In addition to solid colors and images, CSS also supports gradient backgrounds. In the past, this was achieved by creating an image containing the desired gradient and setting that as a background-image. With modern browsers, and even IE11, this is no longer needed, as gradients are natively supported.
There are two types of gradients supported in all browsers:
Linear gradients go along a straight line. They can go left to right, top to bottom, or at an arbitrary angle.
Radial gradients start at a central point and radiate outward.
There is no CSS property for gradients; they are treated as background images. Gradients are specified with the linear-gradient and radial-gradient functions in the value for the background-image property.
Linear gradients
A linear gradient gradually transitions between colors along a straight line. A gradient can have multiple "stops" or color transitions. Listing 5-15 shows the simplest possible linear gradient.
<style>
.gradient {
background-image: linear-gradient(red, blue);
width: 10rem;
height: 5rem;
}
</style>
<div class="gradient"></div>
Listing 5-15
A simple linear gradient
By default, a linear gradient goes from top to bottom, and the stops are evenly distributed. The gradient in Figure 5-17 has two stops. The first is red, and the second is blue.
Figure 5-17
The rendered gradient
Adding more stops
You can easily add more stops to a linear gradient.
<style>
.gradient {
background-image: linear-gradient(
red,
blue,
green
);
width: 10rem;
height: 5rem;
}
</style>
<div class="gradient"></div>
Listing 5-16
A gradient with three stops
Figure 5-18
The rendered gradient
Using transparency
You can even use transparency in a gradient.
<style>
.gradient {
background-image: linear-gradient(
transparent,
blue,
transparent
);
width: 10rem;
height: 5rem;
}
</style>
<div class="gradient"></div>
Listing 5-17
Specifying transparent as gradient stops
Figure 5-19
A gradient with transparent stops
Changing the direction
To change the direction of the gradient from its default of top to bottom, add an argument of the format: to <direction> at the beginning of the linear-gradient function. This specifies the direction of the gradient.
<style>
.gradient {
background-image: linear-gradient(
to right,
red,
blue
);
width: 10rem;
height: 5rem;
}
</style>
<div class="gradient"></div>
Listing 5-18
Specifying the gradient direction
This results in a horizontal gradient, starting from red on the left and moving to the right to blue, as shown in Figure 5-20.
Figure 5-20
A horizontal gradient
You can also specify an arbitrary angle for the linear gradient.
<style>
.gradient {
background-image: linear-gradient(
45deg,
red,
blue
);
width: 10rem;
height: 5rem;
}
</style>
<div class="gradient"></div>
Listing 5-19
Specifying an angle for the gradient
The code in Listing 5-19 results in a linear gradient that starts at the bottom left corner, and moves at a 45-degree angle, as shown in Figure 5-21.
Figure 5-21
A 45-degree gradient
Customizing stops
So far, the linear gradients we've seen have had an even distribution of colors. The color stops were spaced equally across the gradient. You can change the position along the gradient where the color changes happen by specifying a percentage after the color stop. Listing 5-20 shows an example of this.
<style>
.gradient {
background-image: linear-gradient(
to right,
red 0%,
blue 25%
);
width: 10rem;
height: 5rem;
}
</style>
<div class="gradient"></div>
Listing 5-20
Customizing gradient stops
Figure 5-22
The rendered gradient
Notice how the gradient starts with a solid red color, then gradually transitions to blue at the 25% mark.
Two adjoining stops with the same color will create a region of solid color.
<style>
.gradient {
background-image: linear-gradient(
to right,
red 0%,
green 25%,
green 75%,
blue 100%
);
width: 10rem;
height: 5rem;
}
</style>
<div class="gradient"></div>
Listing 5-21
A gradient with two adjacent stops of the same color
Figure 5-23
A gradient with a solid region in the middle
Note that between 25% and 75%, the color is solid green. Similarly, if the first stop is after 0%, or the last stop is before 100%, the remaining space before or after will be a solid color.
In addition to percentages, color stops can be specified with any valid length value in px, em, rem, or other units.
Radial gradients
A radial gradient starts at a central point and radiates outward. Listing 5-22 has an example of a simple radial gradient.
<style>
.gradient {
background-image: radial-gradient(red, blue);
width: 10rem;
height: 5rem;
}
</style>
<div class="gradient"></div>
Listing 5-22
A radial gradient
Figure 5-24
The rendered radial gradient
Customizing the shape and position
The shape of a radial gradient can be defined as an ellipse (the default), or a circle. The shape is defined as the name of the shape and a position such as top, right, left, center, or specific percentages or values. The shape is defined as <shape> at <position>. The position can be omitted, in which case it defaults to center.
<style>
.gradient {
background-image: radial-gradient(
circle,
red,
blue
);
width: 10rem;
height: 5rem;
}
</style>
<div class="gradient"></div>
Listing 5-23
Specifying a circle for the radial gradient shape
Figure 5-25
The circular gradient
We can move the circle to the left by specifying a position of 25%, as demonstrated in Listing 5-24.
<style>
.gradient {
background-image: radial-gradient(
circle at 25%,
red,
blue
);
width: 10rem;
height: 5rem;
}
</style>
<div class="gradient"></div>
Listing 5-24
Specifying the position of the gradient shape
Figure 5-26
The circle gradient at 25%
The center of the circle in Figure 5-26 is at the 25% mark along the horizontal axis.
Two values can also be given for the position, such as top left.
<style>
.gradient {
background-image: radial-gradient(
circle at top left,
red,
blue
);
width: 10rem;
height: 5rem;
}
</style>
<div class="gradient"></div>
Listing 5-25
Specifying two values for the position
Figure 5-27
The circle gradient in the top-left corner
Customizing the size
The size of the gradient can be further influenced by providing modifiers to the shape that define where the gradient should end. The options that can be set are
closest-side: The gradient ends at the side closest to the center of the gradient. For a wide rectangle, this would be the top or bottom.
farthest-side: The gradient ends at the side farthest from the center of the gradient. For a wide rectangle, this would be the left or right.
closest-corner: The gradient ends at the closest corner to its center.
farthest-corner: The gradient ends at the farthest corner from its center. This is the default.
Customizing stops
A radial gradient can also have multiple color stops.
<style>
.gradient {
background-image: radial-gradient(
red,
blue,
green 75%
);
width: 10rem;
height: 5rem;
}
</style>
<div class="gradient"></div>
Listing 5-26
A radial gradient with multiple color stops
Figure 5-28
The rendered gradient
Multiple gradients
You can even combine multiple radial gradients applied to an element if you use a transparent color as one of the stops.
<style>
.gradient {
background-image: radial-gradient(
ellipse at 25%,
red,transparent
), radial-gradient(
ellipse at 75%,
blue,
transparent
);
width: 10rem;
height: 5rem;
}
</style>
<div class="gradient"></div>
Listing 5-27
Multiple gradients
Figure 5-29
The rendered gradients
Combining backgrounds
Gradients and background images can be combined to achieve light and shadow effects. Listing 5-28 has an example of applying a lighting effect with a gradient that goes from white to transparent.
<style>
.header-image {
background-image:
radial-gradient(
ellipse at top left,
white 25%,
transparent
),
url('mountains.jpg');
background-size: cover;
background-position: center;
height: 15rem;
}
</style>
<div class="header-image"></div>
Listing 5-28
Applying a lighting effect with a gradient
Similarly, a shadow effect could be achieved by using a dark color such as gray or black instead of white.
Figure 5-30
The rendered result
Summary
In this chapter, we learned
An element’s background can be a solid color, an image, a gradient, or a combination of the three.
The display of a background image can be customized with the background-repeat, background-position, background-size, and background-clip properties.
Gradients can be linear or radial.
Gradients can be combined with background images or colors.
Now that we’ve covered the basics of styling, let’s explore the styling of text.
Fonts
You can use any font installed on your system for styling your website, but you should use a web-safe font. These are fonts that are generally considered safe to use because they are available on most users' systems.
Table 6-1 shows the generally accepted web-safe fonts along with their generic font family names.
Table 6-1
Web-safe fonts
Font
Family
Arial
Trebuchet MS
Verdana
sans-serif
Courier New
monospace
Georgia
Times New Roman
serif
Basic text styling
There are several CSS properties that control basic text styling. We’ll discuss a few of them in this section.
font-family
The font-family property sets the font to use for the element's text. This font is inherited by descendant elements.
font-family can be specified as a single value, the name of the font to use. More commonly, a comma-separated list of fonts is given. The browser will try each font, starting with the first, until a match is found. Generally, the list starts specific and gets more general. The last font family in the list is typically a generic one like monospace or sans-serif, where the browser will use a fallback font that approximates the desired appearance. Font names containing spaces should be enclosed in quotes, as shown in Listing 6-1.
.hello {
font-family:
Georgia,
'Times NewRoman',
serif;
}
Listing 6-1
Specifying multiple font names
In this example, the browser will try Georgia first. If Georgia is unavailable, it will try Times New Roman. Lastly, if that is not available, it will fall back to a built-in generic serif font. Custom web fonts can also be used. We will discuss that a little later.
font-size
An element inherits its parent's font size by default. This behavior can be overridden by using the font-size property, which sets the font size for the element. Recall that the document has a base font size - usually 16px. The value of font-size not only controls the size of the text, but it also determines base sizing for anything specified in em or other relative units. The em unit is not just for text. Borders, padding, and even width and height, can all be specified in ems.
In addition, there are several predefined font-size values, ranging from xx-small to xxx-large. A relative font size can also be specified, with a value of smaller or larger. A font-size can also be specified as a percentage of its parent's size.
As mentioned in Chapter 3, a font-size specified in em units has a compounding effect if its children also use em units. Listing 6-2 shows an example of this effect.
<style>
.parent {
font-size: 1.5em;
}
.child {
font-size: 1.5em;
}
</style>
<div class="parent">
I'm the parent
<div class="child">
I'm the child
</div>
</div>
Listing 6-2
Using em units on the parent and child
Figure 6-1
The parent and child have different font sizes
Note that while the parent and child elements both have a font-size of 1.5em, the child's text is larger. This is the compounding effect. The parent's font size is 1.5em, or 1.5 times its parent's font size, which is the root element's font size of 16px. This comes out to 24px.
The child element's font size is also 1.5em, 1.5 times of its parent, which we just calculated to be 24px. 24px * 1.5 = 36px.
If we used rem units for the parent and child, they would have the same font size because rem is relative to the root element's font size.
color
The color property controls the element's text color (and text decorations such as underlines). It also sets the current color. This is a special value called currentColor that resolves to the text color, which can be referenced from other properties. currentColor is also the default border color, if one is not specified. Listing 6-3 has an example of color and currentColor in action.
<style>
div {
border: 3px solid currentColor;
}
.one {
color: red;
}
.two {
color: blue;
}
</style>
<div class="one">One</div>
<div class="two">Two</div>
Listing 6-3
The color value and currentColorproperty
We gave one element a color of red and the other a color of blue. This set the currentColor value of each element. Then, we also had a rule that selected both div elements and used the currentColor as the border color. The red div gets a red border, and the blue div gets a blue border.
Figure 6-2
The rendered result
font-weight
The font-weight property defines how bold the text appears. This can be a simple value like normal or bold. It can also take numeric values: 100, 200, 300, 400, 500, 600, 700, 800, and 900. The higher the number, the bolder the font is. The normal value is equivalent to a weight of 400, and the bold value is equivalent to a weight of 700. Depending on the font used, not all weights may be available.
font-weight can also be specified as the values lighter or bolder. These values are relative to the weight of the element's parent.
font-style
The font-style property can be used to make text italic. It has three supported values: normal, italic, and oblique. Italic and oblique are similar but slightly different. Italic is typically an angled font face, sometimes with a completely different design than the normal version. On the other hand, oblique is typically just the normal version, slanted.
Not all fonts include both an italic and oblique version. In this case, the italic and oblique styles look the same.
text-decoration
The text-decoration property can be used to add decorative lines to text. These can be underlines, strikethrough lines, and even wavy lines (on most browsers).
The basic usage of text-decoration takes a simple value: none, underline, or line-through.
The text-decoration property can also take a color and a style. The available styles are solid, double, dotted, dashed, and wavy.
<style>
div {
font-size: 2rem;
}
.solid {
text-decoration: underline solid blue;
}
.double {
text-decoration: underline double green;
}
.dotted {
text-decoration: underline dotted;
}
.dashed {
text-decoration: underline dashed purple;
}
.wavy {
text-decoration: underline wavy red;
}
</style>
<div class="solid">Solid blue underline</div>
<div class="double">Double green underline</div>
<div class="dotted">Dotted black underline</div>
<div class="dashed">Dashed purple underline</div>
<div class="wavy">Wavy red underline</div>
Listing 6-5
The different options for text decoration style
The different rendered styles can be seen in Figure 6-4.
Figure 6-4
The various text decoration styles
Some elements, such as links, have an underline by default. This can be removed by setting text-decoration to none.
Compatibility note
In Internet Explorer 11, only the basic usage of text-decoration is supported. That is, text-decoration can be set to none, underline, or line-through. Colors and styles are not supported.
Other text effects
text-transform
The text-transform property can be used to transform the text to all uppercase.
<style>
.hello {
text-transform: uppercase;
}
</style>
<div class="hello">Hello world!</div>
Listing 6-6
Example usage of the text-transform property
Figure 6-5
The text is transformed to all uppercase letters
Some of the other values for text-transform are none, capitalize, and lowercase.
letter-spacing
The letter-spacing property can be used to adjust the space between each letter. The specified value is added to the normal spacing between letters.
<style>
.hello {
letter-spacing: 5px;
}
</style>
<div class="hello">Hello world!</div>
Listing 6-7
Example usage of the letter-spacing property
Figure 6-6
The letters are spaced an extra 5px apart
font-variant
The font-variant property can be set to small-caps for an interesting effect. All lowercase letters are transformed into smaller-sized capital letters.
<style>
.hello {
font-variant: small-caps;
}
</style>
<div class="hello">Hello world!</div>
Listing 6-8
Example usage of the font-variant property
Figure 6-7
The rendered text with small caps
Text layout
In addition to styling, there are also several useful properties that affect the text layout.
text-indent
The text-indent property is used to specify an indent on the first line of text in a block element.
<style>
.my-text {
border: 1px solid red;
text-indent: 50px;
width: 10rem;
}
</style>
<div class="my-text">Here is a brief paragraph that has enough content to wrap a few lines.</div>
Listing 6-9
Example usage of the text-indent property
Figure 6-8
The first line of text in the paragraph is indented by 50px
white-space
The white-space property is used to specify how whitespace is handled inside an element that contains text. The default value is normal. With this value, sequential whitespace characters are collapsed. If the text content exceeds the width of its container, it will be wrapped to the next line.
You may have seen this behavior before, when you have multiple consecutive spaces in your HTML, or line breaks, and they are ignored by the browser.
<style>
.my-text {
border: 1px solid red;
width: 10rem;
}
</style>
<div class="my-text">
Here is some text
with
whitespace.
</div>
Listing 6-10
An example with extra whitespace
Figure 6-9
The whitespace is ignored
The extra spaces and line breaks were ignored, and the text only breaks to the next line when it automatically wraps.
We can make the browser respect the whitespace by setting white-space to pre.
<style>
.my-text {
border: 1px solid red;
width: 10rem;
white-space: pre;
}
</style>
<div class="my-text">
Here is some text
with
whitespace.
</div>
Listing 6-11
Setting white-space to pre
Figure 6-10
The whitespace is preserved
Notice how the whitespace is preserved in the rendered output now. You might also notice that there is an extra blank line at the top of the element. This represents the first line break after the opening div tag.
When white-space is set to pre, lines of text are not automatically wrapped.
Some other accepted values for the white-space property are
normal: The default behavior. Whitespace is collapsed, and text is automatically wrapped as needed.
nowrap: Same as normal, except that lines of text do not wrap.
pre-wrap: Same as pre, except that lines of text are also wrapped.
pre-line: Same as pre-wrap, except that consecutive whitespace characters are collapsed. Line breaks are still preserved.
break-spaces: Same as pre-wrap, except that line wrapping behavior is slightly different. Not supported in Internet Explorer.
Truncating text
Your design may require that text must fit within its container without overflowing or wrapping. This can easily be accomplished by using the white-space, overflow, and text-overflow properties together.
First, white-space is set to nowrap. This ensures the text does not wrap but will in turn cause the text to overflow the container. By setting overflow to hidden, we can hide the overflowing content. However, then the text is abruptly cut off at the end of the container. Finally, we can set text-overflow to ellipsis to truncate the text and add an ellipsis at the end.
<style>
.my-text {
border: 1px solid red;
overflow: hidden;
text-overflow: ellipsis;
white-space: nowrap;
width: 10rem;
}
</style>
<div class="my-text">Here is a really really long string.</div>
Listing 6-12
Truncating text
Figure 6-11
The overflowing text is truncated with an ellipsis
line-height
The line-height property controls the height of each line of text. It can be used to add spacing between lines of text.
Horizontal alignment
Horizontal alignment is controlled by the text-align property. This only has an effect on block elements with a width greater than that of their content. Valid values are left, right, center, and justify.
<style>
.hello {
border: 2px solid red;
width: 30rem;
text-align: center;
}
</style>
<div class="hello">Hello world!</div>
Listing 6-13
Setting the text alignment
Figure 6-12
The text is horizontally centered
text-align doesn’t just affect text. It sets the horizontal alignment of any inline element inside the containing element on which text-align is set.
Vertical alignment
If a block element's height is taller than its content, by default the text will be aligned to the top of the container.
Figure 6-13
The text defaults to top vertical alignment
You might think the vertical-align property would help here but setting vertical-align: center would have no effect. One way to solve this problem is to set the line-height to the same as the container height, as shown in Listing 6-14.
<style>
.hello {
border: 2px solid red;
width: 15rem;
height: 5rem;
line-height: 5rem;
font-size: 2rem;
text-align: center;
}
</style>
<div class="hello">Hello world!</div>
Listing 6-14
Vertically centering text with the line-height property
Figure 6-14
The text is vertically centered
How does the vertical-align property work, then? It controls how inline elements are aligned vertically with each other. Listing 6-15 contains two span elements side by side with different heights inside a container element.
<style>
.container {
border: 2px dashed blue;
width: 20rem;
text-align: center;
}
.hello {
border: 2px solid red;
font-size: 2rem;
}
.world {
border: 2px solid red;
font-size: 4rem;
}
</style>
<div class="container">
<span class="hello">Hello</span>
<span class="world">World!</span>
</div>
Listing 6-15
Two span elements
Figure 6-15
The rendered result
In Figure 6-15, we can see that the elements are aligned along their baselines. A baseline is an invisible line along which most letters sit. If we set vertical-align to middle on both elements, they become vertically aligned with each other.
<style>
.container {
border: 2px dashed blue;
width: 20rem;
text-align: center;
}
.hello {
border: 2px solid red;
font-size: 2rem;
vertical-align: middle;
}
.world {
border: 2px solid red;
font-size: 4rem;
vertical-align: middle;
}
</style>
<div class="container">
<span class="hello">Hello</span>
<span class="world">World!</span>
</div>
Listing 6-16
Setting vertical-align to middle
Figure 6-16
The elements are vertically aligned
Using web fonts
If you don't want to use the web-safe fonts (and who wants to see another website in Arial or Times New Roman!), you are in luck. Web fonts allow the CSS to link to a font file that the browser can download. By using a web font, you can have a much more consistent look – plus, there are many beautiful web fonts out there that will enhance the look of your site or app.
There are several different supported web font formats:
Web Open Font Format version 1 or 2 (WOFF/WOFF2)
Embedded Open Type (EOT)
TrueType Font (TTF)
Scalable Vector Graphics (SVG)
Modern browsers support WOFF and WOFF2. The other font formats are for support with older browsers. A web font is typically packaged in several different formats, all of which can be referenced in the CSS.
@font-face
A web font is registered using the @font-face at-rule. A @font-face rule declares a new font. The desired name of the font is given with the font-family property, and one or more source URLs are given with the src property. Each source URL is followed by a format declaration which tells the browser which font format to expect for that file.
Once you have declared the font in a @font-face rule, you can then use the name you gave it in any font-family property in a CSS rule.
The example in Listing 6-17 will load the SomeWebFont font in WOFF2 and WOFF formats and set it as the font for the whole document. You should still provide a list of fallback fonts in case the font is not supported by the user's browser or could not be loaded.
@font-face {
font-family: 'SomeWebFont';
src:
url('/some-font.woff2') format('woff2'),
url('/some-font.woff') format('woff');
}
body {
font-family: SomeWebFont, Arial, sans-serif;
}
Listing 6-17
Using a web font
Declaring different web font styles
Usually, a given web font file is only a single weight or style version of the font. This means there is one font file for the normal version and another for the bold version. They both must be registered in a separate @font-face rule under the same font-family. The font weight and style are specified via the font-weight and font-style properties. This is shown in Listing 6-18.
Like any other resource, the browser must download the web font files before they can be used. If this is not done quickly, the browser may render the site in a fallback font while the web font is still loading. Once the font is loaded, the text is re-rendered in the new font. This results in unstyled text briefly appearing before being replaced by the correctly styled text – the so-called flash of unstyled text.
Some browsers will also hide the text (up to several seconds) until the font is loaded. This results in a different, but even more annoying, phenomenon – the "flash of invisible text."
The main issue with this is that the page may reflow once the font is loaded. If the user had already started reading the text rendered in the system fallback font, they may lose their place, and it can be jarring.
One way to address this issue is to use a tool like the Web Font Loader (https://github.com/typekit/webfontloader), a JavaScript library that manages the loading of web fonts. This tool gives you greater control over how fonts are used during the loading process. For example, a different fallback font that looks more similar to the actual font can be used, rather than the fallback used by the browser.
This will still result in a flash of unstyled text, however, which can affect the page layout. However, with Web Font Loader, you can also tweak the font-size and line-height of the fallback font. This can result in a smoother experience.
The flash of unstyled text can't be completely solved, but its severity can be greatly reduced by using a library like Web Font Loader.
A word of caution
Web fonts are great, but don't go overboard. The more fonts that are loaded, the longer the page takes to load, and the worse the flash of unstyled text can be. You should make sure to use only the web fonts that you absolutely need.
Text shadow
The text-shadow property allows you to add shadows to text. It works similarly to the box-shadow property we saw earlier. A text shadow has X and Y offsets, an optional blur radius, and a color. Unlike box-shadow, text-shadow does not have a spread radius.
Here are some examples of text shadows. Listing 6-19 uses a shadow with an offset but no blur.
<style>
.container {
font-size: 2rem;
font-family: Arial, sans-serif;
text-shadow: 2px 2px 0px red;
}
</style>
<div class="container">Hello World!</div>
Listing 6-19
A text shadow example
Figure 6-17
The rendered text with shadow
Listing 6-20 has another example of a text shadow, this time with no offset and a blur.
<style>
.container {
font-size: 2rem;
font-family: Arial, sans-serif;
text-shadow: 0px 0px 5px red;
}
</style>
<div class="container">Hello World!</div>
Listing 6-20
A second text shadow example
Figure 6-18
The rendered result
Summary
In this chapter, we learned
You can customize the font size, color, weight, and style of text.
The text-decoration property can add underlines and strikethroughs.
There are other text effect properties such as text-transform, letter-spacing, and font-variant.
The white-space property controls how the browser renders whitespace. It can be ignored or respected.
The vertical-align property controls how inline elements are vertically aligned with each other.
Fonts can be downloaded by the browser and used with a @font-face rule.
Text shadows can be applied with the text-shadow property.
We’ve looked a lot at how to style with CSS. Let’s switch gears now and look at how to lay out and position elements.
Padding
The padding is the spacing between an element’s content and its border. By default, most elements have zero padding. An element’s padding is not inherited by its children.
Padding can be specified with any size unit or with a percentage. When padding is specified as a percentage, the value used is the given percentage of the containing block’s width. Listing 7-1 has a simple example of this.
<style>
.container {
border: 1px solid red;
width: 200px;
}
.inner {
padding: 25%;
}
</style>
<div class="container">
<div class="inner">Hello world!</div>
</div>
Listing 7-1
Setting a percentage value for padding
Figure 7-1
The rendered result
If we examine the inner element with the browser’s developer tools, we see that the padding is 50px, or 25% of 200px, as shown in Figure 7-2.
Figure 7-2
The dimensions of the inner element
Margin
The margin is the space between an element’s border and other elements. The value of the margin property can be a size value, a percentage, or the keyword auto.
By default, most elements have no margin. An example of this is shown in Listing 7-2.
<style>
.container {
border: 5px solid red;
width: 10rem;
}
.inner {
border: 5px solid green;
}
</style>
<div class="container">
<div class="inner">Hello world!</div>
</div>
Listing 7-2
Elements with no margin
Figure 7-3
The rendered result
In Figure 7-3, there is no space between the red and green borders. This is because, by default, the elements have no margin. In Listing 7-3, we’ll add some margin to the inner element.
<style>
.container {
border: 5px solid red;
width: 10rem;
}
.inner {
border: 5px solid green;
margin: 1rem;
}
</style>
<div class="container">
<div class="inner">Hello world!</div>
</div>
Listing 7-3
Adding margin
Now there is a margin of 1rem between the inner and outer borders, as shown in Figure 7-4.
Figure 7-4
Margin between the inner and outer borders
Like padding, using a percentage for the margin property will set the given percentage of the containing block’s width as the margin.
Centering with margin: auto
The margin property also accepts the auto value. When the horizontal (left and right) margin is set to auto in a block or inline-block element, the element is centered horizontally within its containing element. The element takes up the specified width, and the margin is automatically distributed evenly between the left and right margins.
However, the same is not true for vertical margin. However, as we will see later, there are several other ways to vertically center a block-level element.
<style>
.container {
background-color: red;
height: 5rem;
padding: 1rem;
width: 20rem;
}
.inner {
background-color: blue;
height: 3rem;
margin: auto;
width: 5rem;
}
</style>
<div class="container">
<div class="inner"></div>
</div>
Listing 7-4
Horizontally centering with margin: auto
As Figure 7-5 shows, the blue box is centered horizontally due to the margin of auto but not vertically.
Figure 7-5
The element centered horizontally
Margin collapse
When two elements with a vertical margin meet vertically, the two margins are collapsed into a single margin. The size of the collapsed margin depends on the size of the two margins being collapsed. If they are the same size, then the collapsed margin will be the same size as the common margin. If they are different sizes, the collapsed margin will take the size of the larger margin.
Margin collapse applies to vertical margins only.
Another situation where the vertical margins collapse is when there is no border, padding, or other content between a parent and its child.
<style>
.container {
background: red;
margin: 1rem;
}
.inner {
background: blue;
color: white;
margin: 1rem;
}
</style>
<div class="container">
<div class="inner">Inner</div>
</div>
Listing 7-5
Demonstration of margin collapse
As Figure 7-6 shows, the inner element has left and right margin but not top and bottom margin, because the top and bottom margins have collapsed.
Figure 7-6
The margins of the inner element collapse
However, if we add padding to the container element, the margin no longer collapses, and we see that the inner element has a margin now as well.
<style>
.container {
background: red;
margin: 1rem;
padding: 1rem;
}
.inner {
background: blue;
color: white;
margin: 1rem;
}
</style>
<div class="container">
<div class="inner">Inner</div>
</div>
Listing 7-6
Adding padding
Figure 7-7
The margin no longer collapses
As Figure 7-7 shows, the margin no longer collapses. The numbered regions in the figure are
1.
The margin of the container element
2.
The padding of the container element
3.
The margin of the inner element
Positioning elements
The CSS position property determines how an element is positioned. The top, right, bottom, and left properties are used in conjunction with position to determine an element’s final position. The default position is static.
If an element’s position property is set to any value other than static, it is considered a positioned element. This has important implications about the positioning of descendant elements.
position: static
static is the default value of the position property. A statically positioned element is positioned in the normal flow of the document. When position is set to static, the top, right, bottom, and left properties have no effect.
position:relative
A relatively positioned element is positioned relative to where it would normally appear in the flow of the document. If position is set to relative, but top, right, bottom, or left are not specified, it essentially has the same effect as if position were set to static. The one difference would be that the element would now be considered a positioned element, which can affect child elements with other position values.
When an element has a position of relative, the other elements in the document flow are not affected, even if the element has an offset. The element’s original position remains in the document flow.
Listing 7-7 shows an example of a relatively positioned element.
<style>
.block {
background-color: red;
height: 3rem;
width: 3rem;
}
.green {
background-color: green;
}
.relative {
background-color: blue;
position: relative;
left: 10px;
top: 10px;
}
</style>
<div class="block"></div>
<div class="block relative"></div>
<div class="block green"></div>
Listing 7-7
An element with position set to relative
Figure 7-8
The blue square is offset from its original position
In Figure 7-8, the blue square is offset 10px below the top of its original position and 10px to the right of its original position. Note that the red and green squares remain in the same place they would be even if the blue square did not have the top and left offsets – they did not move to fill the space.
When a vertical or horizontal offset is given, the element is moved in the opposite direction. That is, top moves the element down, left moves the element to the right, right moves the element to the left, and bottom moves the element up.
What happens if you specify conflicting offsets? For example, an element can’t be 10 pixels below its top position and 10 pixels above its bottom position and have the correct size. Generally, if both top and bottom are specified, the top value is used, and the bottom value is ignored. Similarly, if both left and right are specified, left wins if the text direction is left to right and right wins if the text direction is right to left.
position: absolute
An absolutely positioned element can also have top, right, bottom, and left offsets that affect its position. There are two main differences, though.
First, an absolutely positioned element is removed from the document flow and “floats” above it. The layout of other elements will be adjusted as if the absolutely positioned element is not there.
The other difference is the interpretation of the offsets. While a relatively positioned element’s offsets are relative to the element’s original position in the document, an absolute positioned element’s offsets are relative to the closest ancestor positioned element. This is not necessarily the element’s direct parent.
Listing 7-8 sets up an example of absolute positioning.
<style>
.outer {
background-color: red;
height: 10rem;
width: 10rem;
}
.inner {
background-color: blue;
height: 7rem;
width: 7rem;
}
.core {
background-color: green;
height: 4rem;
width: 4rem;
}
</style>
<div class="outer">
<div class="inner">
<div class="core"></div>
</div>
</div>
Listing 7-8
Three boxes inside each other
Figure 7-9
The example setup
These elements are currently all statically positioned. Let’s add position: absolute to the core element and set its right property to 0.
This may not be what you expected. The green box is now all the way on the right-hand side of the screen. This is because it has no ancestor element that is positioned. Thus, it becomes positioned relative to the document.
Now let’s add position: relative to the outer box in Listing 7-10 and see what happens.
<style>
.outer {
background-color: red;
height: 10rem;
width: 10rem;
position: relative;
}
.inner {
background-color: blue;
height: 7rem;
width: 7rem;
}
.core {
background-color: green;
position: absolute;
right: 0;
height: 4rem;
width: 4rem;
}
</style>
<div class="outer">
<div class="inner">
<div class="core"></div>
</div>
</div>
Listing 7-10
Relatively positioning the outer box
Figure 7-11
The green box has changed position
Now the green box is absolutely positioned relative to the outer red box, because that is the closest ancestor that is a positioned element.
Lastly, let’s now relatively position the blue inner box in Listing 7-11.
<style>
.outer {
background-color: red;
height: 10rem;
width: 10rem;
position: relative;
}
.inner {
background-color: blue;
position: relative;
height: 7rem;
width: 7rem;
}
.core {
background-color: green;
position: absolute;
right: 0;
height: 4rem;
width: 4rem;
}
</style>
<div class="outer">
<div class="inner">
<div class="core"></div>
</div>
</div>
Listing 7-11
Relatively positioning the inner box
Figure 7-12
The green box has moved again
Now that the blue box is the nearest positioned ancestor of the green box, the green box is now positioned relative to the blue box.
position: fixed
Like absolute, a position of fixed removes the element from the document’s flow. Its position is determined by setting top, right, bottom, and left properties. The difference is that for a fixed element, these offsets are always relative to the viewport. This means that even if the page is scrolled, a fixed element will remain in the same position. This is useful, for example, for a fixed header or navigation bar.
A block element with a position of static or relative will, by default, take up the full width of its container. However, if an element is given a position of absolute or fixed, this will no longer be the case. It will only be as wide as it needs to be to fit its content. This can usually be solved by adding a width: 100% to the element if the full width behavior is still desired.
position: sticky
A sticky element is a combination of relative and fixed. The element acts as a relatively positioned element, scrolling with the document. When the element reaches a specified point, it turns into a fixed element. This point is specified via a top, right, bottom, or left value.
Compatibility note
position: sticky is not supported in Internet Explorer.
z-index and stacking contexts
When elements have a position of fixed, absolute, or sticky, they can obscure other elements. This may not always behave the way we want. For example, suppose you have a page with a fixed header. Later, you open a modal dialog with a semitransparent overlay behind it. However, the header is not obscured by the overlay; rather, it sits on top of it.
<style>
.header {
background-color: red;
color: white;
height: 1rem;
left: 0;
padding: 1rem;
position: fixed;
top: 0;
width: 100%;
}
.body {
margin-top: 3.5rem;
}
.overlay {
background-color: rgba(0, 0, 0, 0.5);
height: 100%;
left: 0;
position: absolute;
top: 0;
width: 100%;
}
</style>
<div class="overlay"></div>
<div class="container">
<div class="header">Header</div>
<div class="body">
Some other page content
</div>
</div>
Listing 7-12
An example of a z-index issue
Figure 7-13
The header is above the overlay
The main text content is covered by the overlay, but the header is not. This can be solved by giving these elements z-index values. z-index determines the stacking order of elements along the z-axis – which element is on top of which. z-index is a relative measure that can take any numeric value. Items with a higher z-index will appear on top of those with a lower one.
In Listing 7-13, we’ll give the header a z-index of 100 and the overlay a z-index of 200.
<style>
.header {
background-color: red;
color: white;
height: 1rem;
left: 0;
padding: 1rem;
position: fixed;
top: 0;
width: 100%;
z-index: 100;
}
.body {
margin-top: 3.5rem;
}
.overlay {
background-color: rgba(0, 0, 0, 0.5);
height: 100%;
left: 0;
position: absolute;
top: 0;
width: 100%;
z-index: 200;
}
</style>
<div class="overlay"></div>
<div class="container">
<div class="header">Header</div>
<div class="body">
Some other page content
</div>
</div>
Listing 7-13
Adding z-index properties
Figure 7-14
The overlay now covers all content
Because the overlay has a higher z-index than the header, it now appears on top of the header.
Stacking contexts
As it turns out, z-index doesn’t control an element’s z-axis ordering globally within the entire document. It only controls the z-index relative to other elements within a given stacking context.
Initially, there is one stacking context, formed by the root of the document (the html element). Within the document, there are certain other elements that will create a new stacking context:
Any element that has a position other than static and a z-index other than auto
Any element with an opacity less than 1
Any element that is a child of a flex or grid container and a z-index other than auto
There are others, but these are the most common. If no z-index is given, there are certain stacking rules that are applied inside a stacking context. These are, from bottom to top:
The background and borders of the element that creates the stacking context
Descendant elements of the element that creates the stacking context that are not positioned
Descendant elements of the element that creates the stacking context that are positioned
These rules, in conjunction with explicitly set z-index properties, determine the final stacking order of elements.
Let’s walk through a series of examples that illustrate z-index and stacking contexts.
<style>
.container-1 {
background-color: red;
width: 10rem;
height: 10rem;
position: relative;
z-index: 100;
}
.container-2 {
background-color: blue;
width: 10rem;
height: 10rem;
position: relative;
z-index: 100;
}
.inner-1 {
background-color: green;
width: 5rem;
height: 5rem;
position: relative;
top: 7.5rem;
}
.inner-2 {
background-color: orange;
width: 5rem;
height: 5rem;
position: relative;
top: -2.5rem;
}
</style>
<div class="container-1">
<div class="inner-1"></div>
</div>
<div class="container-2">
<div class="inner-2"></div>
</div>
Listing 7-14
A stacking context example
Figure 7-15
The rendered result
Note that the two container elements both have position set to relative and a z-index of 100. This means that each of these elements creates a new stacking context.
The two inner boxes – the green one and the orange one – have been positioned so that they are on top of each other. The orange one is on top. We can’t see the green one because it’s directly underneath. Figure 7-16 shows a cross-section view of the elements (dotted lines indicate stacking contexts):
Figure 7-16
A cross-section view
Suppose we want the green box to be on top. We can try adjusting the green box’s z-index to be 200, which is higher than all the others. Unfortunately, we get the same result as is shown in Figure 7-15. However, the cross-section has changed slightly, as is shown in Figure 7-17.
Figure 7-17
The changed cross-section
By setting the z-index property on the relatively positioned green box, we’ve created a new stacking context rooted at the green box. To demonstrate this further, let’s try changing the z-index of the green box to 50.
The result, and the cross-section, are the same as before. Even though the green box has a lower z-index (50) than the red box (100), it’s in a higher stacking context, so it will still appear above the red box.
As you can see, z-index issues can be difficult to debug. Understanding how stacking contexts work is critical to solving these issues.
Floats
You can use the float property to make an element “float” to the left or the right and text and other inline elements will flow around it.
<style>
.container {
width: 10rem;
}
.floating {
background-color: red;
float: right;
height: 3rem;
width: 3rem;
}
</style>
<div class="container">
<div class="floating"></div>
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec nec sapien
dolor. Nunc condimentum sem nec commodo sollicitudin.
</div>
Listing 7-15
A basic float
Figure 7-18
The floated red box
The red box is floated to the right, and the text flows around it. The float property can be set to left or right, or if you need to take text direction into account (left-to-right vs. right-to-left languages), you can use the more generic inline-start or inline-end.
When the float property is applied to an element, it is removed from the flow of the document. It then “floats” to the left or right, stopping when it reaches the edge of the containing element, or another floated element. In Figure 7-18, the red box moved to the edge of the container. Here’s another example with two floated elements.
<style>
.container {
width: 10rem;
}
.floating,
.floating-2 {
float: right;
height: 3rem;
width: 3rem;
}
.floating {
background-color: red;
}
.floating-2 {
background-color: blue;
}
</style>
<div class="container">
<div class="floating"></div>
<div class="floating-2"></div>
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec nec sapien
dolor. Nunc condimentum sem nec commodo sollicitudin.
</div>
Listing 7-16
Two floating elements
Figure 7-19
The two floating boxes
First, the red box is floated right, to the edge of the container. Next, the blue box is floated right, to the edge of the red box.
Clearing floats
The clear property can be used on an element to indicate that it can’t be alongside a floated element in a given direction. The clear property can be none (the default), left, right, both, inline-start, or inline-end. If an element is cleared in a given direction, and there is a floated element there, the element will be moved so that it is below the floated element. Consider Listing 7-17, where there is a floated element on each side. We use clear: right on the content.
<style>
.container {
width: 10rem;
}
.floating {
background-color: red;
float: right;
height: 3rem;
width: 3rem;
}
.floating-2 {
background-color: blue;
float: left;
height: 5rem;
width: 3rem;
}
.content {
clear: right;
}
</style>
<div class="container">
<div class="floating"></div>
<div class="floating-2"></div>
<div class="content">
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec nec sapien
dolor. Nunc condimentum sem nec commodo sollicitudin.
</div>
</div>
Listing 7-17
Clearing floats
Figure 7-20
The rendered result
The content has been moved to below the right-floated red box. Since the blue box on the left is taller, it is allowed to be floated alongside the content.
Summary
In this chapter, we looked at basic CSS layout and positioning:
Padding is the spacing between an element’s content and its border.
Margin is the spacing between an element’s border and other elements.
An element is said to be positioned if it has a position other than static.
Elements can have a position value of static, relative, absolute, fixed, or sticky:
Statically positioned elements flow normally.
Relatively positioned elements are positioned relative to their normal position in the document.
Absolutely positioned elements are positioned relative to their nearest positioned ancestor.
Fixed-positioned elements remain fixed to the viewport.
Sticky-positioned elements are a hybrid between relative and fixed position.
The z-index property controls the vertical stacking order of an element within a given stacking context.
The float property allows an element to be floated to the left or right sides of its container.
CSS transforms take an element and apply one of several possible transformation functions to it. For example, an element can be rotated in 2D or 3D space, scaled, skewed, or translated (moved). Transforms can be used to create all kinds of interesting effects on their own and become more powerful when combined with transitions and animations.
Transforms are specified with the transform property. Its value is one or more transform functions. Multiple transforms can be applied by providing a space-separated list of transform functions. The following sections will go over the most common classes of transform functions.
Perspective
The perspective transform activates 3D space for an element. It defines how “far away” the object is from the user, as if the screen had depth. Used by itself, the perspective transform has no visible effect. But when used in combination with other transforms, it can greatly affect the final result.
Rotation
The rotation functions rotate elements around a given axis. They take the angle to rotate as an argument. The angle can be whole or fractional and is given in one of several units:
deg: Degrees. A full circle is 360deg.
grad: Gradians. A full circle is 400grad.
rad: Radians. A full circle is approximately 2π radians, or approximately 6.28rad.
turn: Number of turns. A full circle is 1turn.
A positive angle rotates the element clockwise; a negative angle rotates it counterclockwise. Note that an element can be rotated more than one full circle.
Axis
There are three axes of rotation:
X-axis: Goes from left to right across the page
Y-axis: Goes from the top of the page to the bottom
Z-axis: 3D axis, goes from the “surface” of the page out toward you
A rotation also has an origin. The element is rotated around this origin point. By default, it is the center of the element, as shown in Figure 8-2.
Figure 8-2
The default rotation origin
However, a different origin may be specified via the transform-origin property. This will affect the final position of the element.
Figure 8-3
A different rotation origin
transform-origin is specified as one, two, or three values. These values correspond to the X, Y, and Z offsets of the transform origin point. These can be size values such as 10px or 25% or one of the keywords left, center, right, top, and bottom.
rotate/rotateZ
The rotate and rotateZ functions rotate an element around the Z-axis. They both have the same effect.
<style>
.rotate {
width: 10rem;
height: 5rem;
background: skyblue;
margin: 5rem;
transform: rotate(45deg);
}
</style>
<div class="rotate">Hello World!</div>
Listing 8-1
Rotating around the Z-axis
Figure 8-4
The rotated element
rotateX
The rotateX function rotates an element around the X-axis. It is best illustrated when used in combination with the perspective transform.
<style>
.rotate {
width: 10rem;
height: 5rem;
background: skyblue;
margin: 5rem;
transform: perspective(200px)
rotateX(45deg);
}
</style>
<div class="rotate">Hello World!</div>
Listing 8-2
Rotating around the X-axis
Figure 8-5
The rotated element
rotateY
The rotateY function rotates an element around the y-axis.
<style>
.rotate {
width: 10rem;
height: 5rem;
background: skyblue;
margin: 5rem;
transform: perspective(200px)
rotateY(45deg);
}
</style>
<div class="rotate">Hello World!</div>
Listing 8-3
Rotating an element around the Y-axis
Figure 8-6
The rotated element
rotate3d
The rotate3d function rotates an element around an arbitrary axis in 3D space. This is done by defining a direction vector in the 3D coordinate system. The vector is defined by specifying the component of the vector in each direction as a value between 0 and 1. The element is rotated around that vector by the given angle.
<style>
.rotate {
width: 10rem;
height: 5rem;
background: skyblue;
margin: 5rem;
transform: perspective(200px)
rotate3d(1, 1, 0, 45deg);
}
</style>
<div class="rotate">Hello World!</div>
Listing 8-4
Rotating an element in 3D space
Figure 8-7
The rotated element
Translation
The next type of transform we’ll look at is translation. Translating an element means moving it from its original position.
translate
The translate function moves an element in 2D space. It takes one or two arguments, corresponding to the X-axis and Y-axis, respectively. The flow of the document is not affected by translating an element; a blank space is left where the element’s original position was.
<style>
div {
width: 5rem;
height: 5rem;
display: inline-block;
}
.one {
background: orangered;
}
.two {
background: rebeccapurple;
transform: translate(2rem, 2rem);
}
.three {
background: skyblue;
}
</style>
<div class="one"></div>
<div class="two"></div>
<div class="three"></div>
Listing 8-5
Translating an element
The purple box in Figure 8-8 was translated 2rem to the left and 2rem down, but its original position leaves a “hole” in the layout. The red and blue boxes do not change their position to compensate for the translated element.
Figure 8-8
The translated element
The translateX and translateY functions perform translation horizontally and vertically, respectively. The effect is the same as when using the translate function. That is, translateX(1rem) is equivalent to translate(1rem, 0), and translateY(1rem) is equivalent to translate(0, 1rem).
translateZ
The translateZ function moves an element along the Z-axis. It has the effect of moving an element closer to or farther away from the user’s perspective. It only has a visible effect when used in combination with the perspective function.
<style>
div {
width: 5rem;
height: 5rem;
display: inline-block;
}
.one {
background: orangered;
}
.two {
background: rebeccapurple;
transform: perspective(200px)
translateZ(2rem);
}
.three {
background: skyblue;
}
</style>
<div class="one"></div>
<div class="two"></div>
<div class="three"></div>
Listing 8-6
Translating an element along the Z-axis
In Figure 8-9, the purple box has the appearance of being moved closer to the user.
Figure 8-9
The translated element
translate3d
Like rotate3d, translate3d allows you to specify a vector in 3D space. The element is then translated along that vector. The three arguments define the X, Y, and Z components of the vector.
<style>
div {
width: 5rem;
height: 5rem;
display: inline-block;
}
.one {
background: orangered;
}
.two {
background: rebeccapurple;
transform: perspective(200px)
translate3d(1rem, 2rem, 3rem);
}
.three {
background: skyblue;
}
</style>
<div class="one"></div>
<div class="two"></div>
<div class="three"></div>
Listing 8-7
Translating an element in 3D space
The purple box in Figure 8-10 has been translated along all three axes.
Figure 8-10
The translated element
Scaling
A scaling transform function alters the size of the element, scaling its contents as it grows or shrinks. Unlike the translation functions, which take a size value, the scaling functions take multiples of the original size as arguments. For example, scale(1, 1) would perform no scaling. scale(2, 3) would scale the element to two times as large in the horizontal direction and three times as large in the vertical direction.
The arguments to scaling functions do not have to be integers. For example, values such as scale(1.25, 2.6) are also accepted.
By default, the scaling functions perform the transform starting at the center at the element. This can be changed by giving a value for the transform-origin property. Also, note that scaling an element will not cause its container to grow to fit the new size. The flow of the document is not affected.
Figure 8-11
No scale (left), scale with origin at center (middle), and scale with origin at top (right)
scale
The scalefunction scales an element along just the X, or the X and Y axes in 2D space. It takes one or two arguments. When one argument is given, it is treated as the X value, and when two arguments are given, they are treated as the X and Y values, respectively.
<style>
.scale {
background: skyblue;
text-align: center;
transform: scale(2, 5);
margin: 5rem auto;
width: 10rem;
}
</style>
<div class="scale">Hello world!</div>
Listing 8-8
Scaling an element
Figure 8-12
The scaled element
If you only want to scale in one direction, you can also use the scaleX or scaleY functions.
scaleZ
scaleZ scales along the Z-axis. It has no noticeable effect when used alone. The effect is best seen when used in combination with perspective and another transform like rotateX.
Figure 8-13 shows an example of an element with and without the scaleZ transform.
Figure 8-13
The effect of the scaleZ function
scale3d
Like rotate3d and translate3d, there is also a scale3d function. As with the other related functions, scale3d scales along a vector with X, Y, and Z components. Different magnitudes can be given for the different axes, so an element can be scaled at different rates in all three directions.
Skewing
The last set of transform functions we’ll look at are the skewing functions. These functions distort an element by a given angle in the X and Y directions. Like the rotation functions, the angle can be given in one of several different units.
<style>
.skew {
background: skyblue;
transform: skew(45deg, 20deg);
width: 10rem;
font-size: 2rem;
text-align: center;
margin: 5rem;
}
</style>
<div class="skew">Hello world!</div>
Listing 8-9
An example of the skew function
Figure 8-14
The skewed element
There are also skewX and skewY functions as well, if you only want to skew an element in one direction.
Applying multiple transforms
As we have seen already, you can apply multiple transforms to a single element. The multiple transforms are passed as a space-separated list to the transform property. One important thing to note is when an element is rotated, the axes move with the element as well. This is best illustrated with an example. Listing 8-10 has simple box, rotated 45 degrees. We’ll put a container around it so we can see how it moves.
<style>
.container {
border: 1px solid black;
width: 15rem;
height: 15rem;
margin: 5rem;
}
.box {
transform: rotate(45deg);
background: skyblue;
width: 10rem;
height: 10rem;
}
</style>
<div class="container">
<div class="box"></div>
</div>
Listing 8-10
Rotating an element
Figure 8-15
The rotated box
Now that we have rotated the element, the element’s coordinate system has rotated as well, as shown in Figure 8-16.
Figure 8-16
The rotated box’s coordinate system
To illustrate this, we’ll add a translateX(100px) to the transform property:
transform: rotate(45deg) translateX(100px);
Figure 8-17
The element’s resulting position
Note that the box moved along the rotated X-axis rather than the page’s X-axis.
With multiple CSS transforms, the order the transforms are listed in matters. If we reverse the two transforms in the preceding example, so that the translateX comes first, the end result looks different, as shown in Figure 8-18.
transform: translateX(100px) rotate(45deg);
Figure 8-18
The element’s new position
This time, the order of transformations was different. The box was first translated along the X-axis, and then it was rotated. Because the box wasn’t rotated when it was translated, it moved along the page’s X-axis.
You can even specify multiple transforms of the same type. Let’s add another translateX transform to the previous example.
transform: translateX(100px)
rotate(45deg)
translateX(100px);
Figure 8-19
Applying three transforms to the element
We moved the element 100 pixels along the X-axis then rotated it 45 degrees, as before. When we rotated the box, its coordinate system changed. When we applied the second translateX transform, the box moved along its rotated X-axis.
Examples
Making a heart
We can utilize CSS transforms to make a heart shape. A heart is really just a rotated square with two circles, as shown in Figure 8-20.
Figure 8-20
The component parts of the heart shape
All we need to do is take a square, rotate it 45 degrees, and place two circles in the proper position. We can actually do this with a single div element. The div will make up the square part of the heart. We’ll then use the ::before and ::after pseudo-elements to draw the circles.
Let’s start with the rotated square, in Listing 8-11.
<style>
.heart {
border: 5px solid red;
transform: rotate(45deg);
width: 10rem;
height: 10rem;
margin: 10rem auto;
}
</style>
<div class="heart"></div>
Listing 8-11
The rotated square
Figure 8-21
The rotated square
Now we need to create the two circles by adding ::before and ::after pseudo-elements, which we do in Listing 8-12. A circle can easily be created by setting a square element’s border-radius property to 50%.
<style>
.heart {
border: 5px solid red;
transform: rotate(45deg);
width: 10rem;
height: 10rem;
margin: 10rem auto;
}
.heart::after,
.heart::before {
border-radius: 50%;
content: '';
width: 10rem;
height: 10rem;
position: absolute;
background: red;
}
</style>
<div class="heart"></div>
Listing 8-12
Adding the circles as pseudo-elements
Figure 8-22
The circle pseudo-elements
The circles are stacked on top of each other in the center of the square. Now we just need to move them out to either side. Remember that the coordinate system rotated with the square. The left-hand circle needs to be moved 5rem (half of the size of the square) to the left along the X-axis, and the right-hand circle needs to be moved 5rem higher along the Y-axis.
While we’re at it, we’ll fill in the square with red to complete the shape in Listing 8-13.
<style>
.heart {
background: red;
transform: rotate(45deg);
width: 10rem;
height: 10rem;
margin: 10rem auto;
}
.heart::after,
.heart::before {
border-radius: 50%;
content: '';
width: 10rem;
height: 10rem;
position: absolute;
background: red;
}
.heart::before {
transform: translateX(-5rem);
}
.heart::after {
transform: translateY(-5rem);
}
</style>
<div class="heart"></div>
Listing 8-13
Completing the code for the heart
Figure 8-23
The completed heart
Making a cube
Now let’s build something three-dimensional. A cube is a simple enough shape to make. There will be a container element for the cube, the cube itself, and one element for each of the six faces of the cube. Listing 8-14 has the initial markup and CSS.
<style>
.container {
width: 10rem;
height: 10rem;
perspective: 500px;
margin: 5rem;
}
.cube {
position: relative;
width: 10rem;
height: 10rem;
transform-style: preserve-3d;
transform: rotate3d(1, 1, 0, 45deg);
}
.face {
width: 10rem;
height: 10rem;
background: skyblue;
border: 2px solid black;
position: absolute;
opacity: 0.5;
text-align: center;
}
</style>
<div class="container">
<div class="cube">
<div class="face top">Top</div>
<div class="face bottom">Bottom</div>
<div class="face left">Left</div>
<div class="face right">Right</div>
<div class="face front">Front</div>
<div class="face back">Back</div>
</div>
</div>
Listing 8-14
The initial cube code
We’ve seen everything here except for the transform-style property. By default, an element’s children are flattened to be on the same plane. This means they are “squashed” down to 2D space. We want to make a 3D cube, so that won’t work here. Setting transform-style to preserve-3d will allow the cube’s child elements to exist in 3D space.
Compatibility note
transform-style: preserve-3d is not supported in Internet Explorer.
Currently, all of the faces of the cube are lying flat, stacked on top of one another since they are absolutely positioned. What we need to do is rotate the faces, in 3D space, so that they are facing the correct way, then move them out from the center to form the cube.
It’s a little difficult to see what’s going on when we’re looking head on at the cube, so we’ve rotated the cube element to see it at a 45-degree angle, which will let us better see its 3D structure. We’ve also set the opacity to 0.5 to help visualize the cube.
Figure 8-24
The cube faces all stacked on top of each other
Now we need to rotate the faces to their proper orientations. The front doesn’t need to be rotated, as it’s already facing forward. We need to rotate the back around the Y-axis by 180 degrees, the left and right around the Y-axis by 90 degrees (-90 and 90 respectively), and the top and bottom around the X-axis by 90 degrees (-90 and 90 respectively). Let’s do this in Listing 8-15.
<style>
.container {
width: 10rem;
height: 10rem;
perspective: 500px;
margin: 5rem;
}
.cube {
position: relative;
width: 10rem;
height: 10rem;
transform-style: preserve-3d;
transform: rotate3d(1, 1, 0, 45deg);
}
.face {
width: 10rem;
height: 10rem;
background: skyblue;
border: 2px solid black;
position: absolute;
opacity: 0.5;
text-align: center;
}
.back { transform: rotateY(180deg); }
.left { transform: rotateY(-90deg); }
.right { transform: rotateY(90deg); }
.top { transform: rotateX(90deg); }
.bottom { transform: rotateX(-90deg); }
</style>
<div class="container">
<div class="cube">
<div class="face top">Top</div>
<div class="face bottom">Bottom</div>
<div class="face left">Left</div>
<div class="face right">Right</div>
<div class="face front">Front</div>
<div class="face back">Back</div>
</div>
</div>
Listing 8-15
Rotating the cube faces
Figure 8-25
The rotated cube faces
Now all the faces are rotated properly, but they are still at the center of the cube. Since the cube’s size is 10rem, and the faces are in the middle, each face must be moved out by 5rem in the proper direction: the front and back along the Z-axis, the left and right along the X-axis, and the top and bottom along the Y-axis.
<style>
.container {
width: 10rem;
height: 10rem;
perspective: 500px;
margin: 5rem;
}
.cube {
position: relative;
width: 10rem;
height: 10rem;
transform-style: preserve-3d;
transform: rotate3d(1, 1, 0, 45deg);
}
.face {
width: 10rem;
height: 10rem;
background: skyblue;
border: 2px solid black;
position: absolute;
opacity: 0.5;
text-align: center;
}
.front{
transform: translateZ(5rem);
}
.back{
transform: translateZ(-5rem) rotateY(180deg);
}
.left{
transform: translateX(-5rem) rotateY(-90deg);
}
.right{
transform: translateX(5rem) rotateY(90deg);
}
.top{
transform: translateY(-5rem) rotateX(90deg);
}
.bottom{
transform: translateY(5rem) rotateX(-90deg);
}
</style>
<div class="container">
<div class="cube">
<div class="face top">Top</div>
<div class="face bottom">Bottom</div>
<div class="face left">Left</div>
<div class="face right">Right</div>
<div class="face front">Front</div>
<div class="face back">Back</div>
</div>
</div>
Listing 8-16
The final cube code
Figure 8-26
The completed cube
Summary
In this chapter, we learned about the CSS transform types:
Rotation
Translation
Scaling
Skewing
We also learned about concepts such as perspective, axes, transform origins, and 3D transformation vectors. Lastly, we saw a few practical examples of making shapes with CSS transforms.
CSS transforms are useful on their own, but they are even more powerful when used in combination with transitions and animations.
Transitions
A CSS transition is a way of animating an element from one state to another. They are similar to, but not quite the same as, CSS animations.
During the lifetime of a page, an element’s CSS properties can change. For example, the user could hover over an element, triggering the :hover pseudo-class, which could apply some different styling. Or, maybe, a class is added to or removed from an element with JavaScript. In both of these cases, any style changes are applied immediately.
Let’s take the example of a hover state. Suppose we have the styles for a button shown in Listing 9-1.
button.fancy-button {
background: blue;
}
button.fancy-button:hover {
background: red;
transform: scale(1.1);
}
Listing 9-1
Some button styles
When the user hovers over a fancy button with their mouse, two things will happen. The background color will immediately change from blue to red, and the button will immediately snap to a scale factor of 1.1. This can be visually jarring. We can improve this experience with CSS transitions.
It’s easy to add transitions with the transition property, as shown in Listing 9-2.
button.fancy-button {
background: blue;
transition: 500ms;
}
button.fancy-button:hover {
background: red;
transform: scale(1.1);
}
Listing 9-2
Adding a transition
Now, when the user hovers the mouse over a fancy button, it will behave differently. Instead of immediately snapping to the new background color and size, the element will gradually transition to the new color and scale over a period of 500 milliseconds. You can think of these two states (blue background/scale 1, red background/scale 1.1) as keyframes in an animation. You don’t have to define all the states in between the two keyframes – the browser will animate the transition between the two states.
The color will gradually change from blue to shades of purple to the final color of red. At the same time, the size will animate from scale(1) to scale(1.1), making the element appear to grow over the course of the 500 milliseconds.
This is the simplest possible transition. All properties on the element that support animations/transitions – and not all properties do; see https://developer.mozilla.org/en-US/docs/Web/CSS/CSS_animated_properties for an exhaustive list – will be transitioned to their new values over 500 milliseconds.
We can also have multistage transitions. For example, we could have the background color transition first, and then only after the color change is complete, we could then transition the scale transform.
The transition property takes a comma-separated list of transitions. When only a duration is given, like the given example, the transition property defaults to all. However, we can specify individual properties we want to transition along with a duration, and a delay. For this example, we want the following two transition stages:
Transition the color over 500 milliseconds.
Transform the scale over 500 milliseconds, with a 500-millisecond delay.
This will yield a total transition time of 1 second.
button.fancy-button {
background: blue;
transition: background-color 500ms,
transform 500ms 500ms;
}
button.fancy-button:hover {
background: red;
transform: scale(1.1);
}
Listing 9-3
A multistage transition
When specifying a transition in this way, the first argument is the name of the property, the second argument is the duration, and the third argument is the delay. Now, when we hover over the button, the color transitions from blue to red, while the scale remains unchanged. Once the color has transitioned after 500 milliseconds, then the scale transition begins, which lasts another 500 milliseconds.
The transition property is a shorthand property like border or background. The transition property earlier is actually shorthand for the following properties shown in Listing 9-4.
button.fancy-button {
background: blue;
transition-property: background-color, transform;
transition-duration: 500ms, 500ms;
transition-delay: 0ms, 500ms;
}
button.fancy-button:hover {
background: red;
transform: scale(1.1);
}
Listing 9-4
Using the separate transition-related properties
Time units
The timing for transitions (and animations, as we’ll see later) can be specified in either seconds (s) or milliseconds (ms). Fractional values can be used; that is, 500 milliseconds can be specified as 500ms or 0.5s.
Easing functions
If you tried the given example, you may have noticed that the transition does not happen at a linear rate. That is, it appears to start out slow, speed up in the middle, then slow down again at the end. This is the default transition timing function, which is called ease. There are other built-in timing functions as well. Formally, these are specified as easing functions. These functions are visualized by plotting a graph, with the time on the X-axis and the animation progress on the Y-axis.
These functions are usually given as Cubic Bezier curves. A Cubic Bezier curve is created by specifying four points on a graph. The points are plotted, and a curve is drawn. A good way to think of how the curve is drawn is like this: Think of a straight line drawn between the first and last points. Then, the second and third points “bend” the line up and down toward them to make a curve.
In a Cubic Bezier curve for a CSS easing function, the first point is always (0, 0) and represents the start state of the animation or transition. The last point is always (1, 1) and represents the end state. The X-coordinate of the two middle points must be between 0 and 1, or else it is not considered a valid easing function and will be ignored.
Since the first and last points of the curve are always (0, 0) and (1, 1), we only need to specify the X and Y coordinates of the two middle points that “bend” the curve:
transition-timing-function:
cubic-bezier(.17, .67, .9, .6);
The given cubic-bezier function yields the curve shown in Figure 9-1.
Figure 9-1
The plotted Bezier curve
There are several built-in easing functions which you can specify by name instead of a cubic-bezier function. These functions are shown in Table 9-1 with Figures 9-2 through 9-6.
Table 9-1
Built-in easing functions
Function
Equivalent
cubic-bezier values
Graph
linear
0.0, 0.0, 1.0, 1.0
ease
0.25, 0.1, 0.25, 1.0
ease-in
0.42, 0.0, 1.0, 1.0
ease-out
0.0, 0.0, 0.58, 1.0
ease-in-out
0.42, 0.0, 0.58, 1.0
The animation progress (the Y-axis) can also bend above 1 or below 0 to create a “bouncing” effect for some properties. For example, the easing function cubic-bezier(0.680, -0.550, 0.265, 1.550) results in the graph shown in Figure 9-7.
Figure 9-7
An easing function with a “bounce” effect
Notice how the high and low points cause the curve to bend above 1 and below 0. This means, for the earlier example, that the scale transform would drop below 1 (the initial value) and go above 1.1 (the end value).
It can be difficult to craft these functions by hand, so there are several great resources online to help you design custom ones:
Easing functions can also be specified as step functions. A step function divides the transition into equally sized steps in a given direction. Instead of a smooth transition like with a Bezier curve, they jump from step to step, skipping the intermediate states.
These are specified as steps(step-count, direction). step-count is a number indicating the number of these steps, and direction is one of the following values:
jump-start, start: The change in state happens at the beginning of each step, beginning with the start of the transition. Because the first “jump” happens immediately, the initial state of the transition is effectively lost.
jump-end, end: The change in state happens at the end of each step, ending with the end of the transition. With this value, the end state of the transition is lost.
jump-none: With this value, the start and end state of the transition are both preserved. The first step is the initial state, and the last step is the end state.
jump-both: With this value, the start and end state of the transition are both lost.
Compatibility note
The jump- keywords are not supported in Internet Explorer 11. Also, at the time of writing, they are not supported in Safari.
CSS transitions can be a powerful tool to add better interactivity to a website or app. However, they are limited in transitioning from one initial state to one final state. With CSS animations, which we’ll look at next, we can have an arbitrary number of states to create even more stunning effects.
Animations
Where CSS transitions provide an animated transition from a start state to an end state, animations provide animated transitions between any arbitrary number of states.
Like transitions, animations are specified by the properties that change. Instead of being specified in a property like transition, they are specified in special at-rules: @keyframes. The @keyframes rule defines the various CSS properties to be applied at given steps during the animation, and the browser will automatically animate between these states.
A @keyframes rule is given an identifier and contains two or more blocks of CSS properties. Each block is labeled with a percentage representing a fraction of the total animation duration. In the example from Listing 9-5, the element’s background color will change from red to blue to green.
@keyframes colors {
0% {
background: red;
}
50% {
background: blue;
}
100% {
background: green;
}
}
Listing 9-5
A basic CSS animation
Here, we are defining a @keyframes rule named colors. The initial state of an element using this animation will have a background color of red. At the halfway point of the animation, it will have a color of blue. Finally, at the end state, it will have a color of green. Like with transitions, the browser will automatically calculate all the intermediate colors for the animation.
0% can be replaced with the keyword from, and 100% can be replaced with the keyword to, but this is optional and has the same meaning.
Once an animation is defined in a @keyframes rule, we have to use it with an element. The @keyframes rule is referenced in the animation property of a regular CSS rule.
<style>
@keyframes colors {
0% {
background: red;
}
50% {
background: blue;
}
100% {
background: green;
}
}
.box {
animation: colors 2s;
width: 10rem;
height: 10rem;
}
</style>
<div class="box"></div>
Listing 9-6
Applying the animation to an element
The animation property can take many forms, as it is a shorthand for several animation-related properties. Here are some examples:
animation: color 2s ease-in-out 2s both
animation: pulse 2s linear infinite
When using the shorthand animation property, you can specify the values in almost any order, and the browser will figure out which argument means what. The one exception to this is the duration and delay. The first time value encountered is treated as the duration, and the second is treated as the delay.
Animation properties
As mentioned earlier, the animation property is a shorthand for specifying multiple animation-related properties. Here are some of the more commonly used ones.
animation-name
The identifier of the @keyframes rule that defines the animation that should be performed on the element.
animation-duration
The total duration of the animation. Can be specified in seconds (s) or milliseconds (ms).
animation-timing-function
The easing function to use for the animation.
animation-delay
By default, the animation will start immediately. Specifying an animation-delay will delay the start of the animation by the time given. Can be specified in seconds or milliseconds.
A negative value can be given for animation-delay. If a negative time value is given, the animation will start immediately at the given point of elapsed time. For example, if an animation has a duration of 1s, and the delay is given as -500ms, the animation will start immediately at the 500ms mark.
animation-fill-mode
If you try the example in Listing 9-6, you will observe some interesting behavior. The element cycles through the colors, from red to blue to green over 2 seconds, then it disappears. This is because, by default, the properties applied during the animation are no longer applied once the animation ends, and we didn’t define a background color in the rule for the element. It reverts back to whatever properties were defined on the element. If the .box CSS rule had a background-color of yellow, it would run the animation then turn yellow.
Like most things in CSS, this can be changed with a property. The animation-fill-mode property defines how properties from the keyframes are applied to an element before the animation starts or after the animation ends (or both).
We have a box that is yellow. It animates its background color starting from red, transitioning to blue. The animation happens over the course of two seconds, and there is a 2-second delay before it starts. Let’s examine the different values that animation-fill-mode accepts and what effect they will have on this element’s animation.
none
The element is yellow for 2 seconds. It then immediately switches to red, and over the next 2 seconds, it transitions to blue. After the animation completes, the background color immediately switches back to yellow. With none, the styles in the keyframes are only applied for the duration of the animation. This is the default behavior.
forwards
The element is yellow for 2 seconds. It then immediately switches to red, and the animation runs over the next 2 seconds, transitioning to blue. After the animation completes, the background color stays blue. With forwards, the styles from the last keyframe of the animation remain applied to the element after the animation ends.
backwards
The element immediately becomes red, which it remains for the next 2 seconds. Then the animation runs for 2 seconds, transitioning to blue. Once the animation is done, the background color immediately switches back to yellow. With backwards, the styles from the first keyframe are applied during the animation delay period.
both
The element immediately becomes red for 2 seconds. Then the animation runs for 2 seconds, transitioning to blue. Once the animation is done, the element remains blue. With both, you get the effects of forwards and backwards.
animation-iteration-count
By default, an animation runs only once. You can have the animation run several times by giving a number for animation-iteration-count, or you can have it loop forever by specifying the keyword infinite. Interestingly, this value does not have to be a whole number. For example, you can specify animation-iteration-count: 0.5, and the animation will play once to the halfway point only.
animation-direction
Defines whether the animation should run forward (the normal keyword) or backward (the reverse keyword). Other accepted values are alternate (runs the animation forward, then backward) and alternate-reverse (runs the animation backward, then forward).
animation-play-state
Defines whether or not the animation is currently playing. This could be manipulated with JavaScript to pause and resume an animation, for example. Accepted values are running and paused. When the animation is changed from running to paused, and later changed back to running, the animation will continue from where it left off – it won’t start over from the beginning.
Multiple animations
An element can have multiple animations applied to it. The animation shorthand property, as well as all the other animation properties, supports a comma-separated list of multiple values.
<style>
@keyframes color {
from {
background-color: red;
}
to {
background-color: blue;
}
}
@keyframes spin {
from {
transform: rotate(0);
}
to {
transform: rotate(360deg);
}
}
.animate {
width: 10rem;
height: 10rem;
animation: color 5s alternate infinite,
spin 1s linear infinite;
}
</style>
<div class="animate"></div>
Listing 9-8
Applying multiple animations to an element
This element’s color will cycle infinitely between blue and red every 5 seconds, while spinning at a rate of one rotation per 1 second, at the same time.
Figure 9-8
The multiple animations being applied
Performance implications
Transitions and animations are powerful. But with great power comes great responsibility. Overusing them, or using them for certain expensive properties, can result in poor performance of your page.
Property types
There are a few different categories we can put CSS properties into: layout, paint, and composite properties.
Layout properties
Layout properties are properties that affect how an element (and its surrounding content) is laid out on the page. This category includes properties like width, height, padding, and margin. These are generally the most expensive to animate.
If you animate the margin of an element, for every frame of the animation, the size taken up by the element changes. This will affect the layout of surrounding elements. When those elements’ layouts are adjusted, that could trigger even more elements to recalculate their layout. This chain reaction is known as layout thrashing and can be very costly for performance.
Paint properties
Paint properties affect how an element is painted on the screen, such as color or background-image. These properties don’t affect layout, so they aren’t as expensive as layout properties. However, if overused, they can still cause performance issues, particularly on mobile devices.
Composite properties
Composite properties are properties such as transform and opacity. These properties don’t affect layout and are much cheaper than the other property types. Additionally, the computer’s GPU can also assist with these animations, which takes a load off the CPU and makes the animations smoother.
If you’re interested in CSS performance, a good site to check out is https://csstriggers.com. This site catalogs commonly used CSS properties and shows which ones trigger layout, paint, or composite operations.
Figure 9-9
A screenshot of the CSS Triggers site
The will-change property
Animations can sometimes be improved by setting the will-change property on an element. This is a hint to the browser that a certain property or properties will be changing due to an animation or transition.
.my-element {
will-change: transform, opacity;
}
Listing 9-9
Example usage of the will-change property
This example provides a hint that the transform and opacity properties will be changing, so the browser can take that into account when optimizing for the animation.
However, this property should be used sparingly. The browser already does a good job optimizing layout, painting, and composite operations to help keep your animations and transitions smooth. Overusing will-change can interfere with that optimization and could actually make performance worse. It’s intended more as a last resort to improve performance.
Compatibility note
The will-change property is not supported in Internet Explorer.
Avoid simultaneous animations
Try to limit the number of animations running simultaneously. Even performant animations can cause performance issues when combined with several others at once, particularly if one or more of them already have performance issues, such as animating a layout property.
When you do perform multiple animations at once, it can be useful to test each in isolation to get an idea of which ones will contribute to the most performance problems.
Accessibility
Some users may have vestibular or seizure disorders that can be triggered by rapidly moving or flashing elements in your pages. You should be mindful of this when designing your animations. Most modern operating systems allow users to disable, or reduce, animations to help alleviate this.
Figure 9-10
The accessibility options in macOS
This setting, by default, will not be honored by the HTML and CSS content of your site. Even if a user has disabled animations, your CSS animations and transitions will still run.
You can, and should, detect this scenario by using the prefers-reduced-motionmedia query and adjusting (or disabling) your animations accordingly. We’ll get more into media queries in Chapter 11, but here’s how we use it.
This results in a square that spins very quickly, making one full rotation every 500ms. This could trigger seizures or other issues, as it moves very fast. We can conditionally disable the animation by using the prefers-reduced-motion media query.
@media (prefers-reduced-motion: reduce) {
.loader {
animation: none;
}
}
Listing 9-11
The prefers-reduced-motion media query
When this page is loaded on a system where the user has disabled motion, the box will not be animated.
The prefers-reduced-motion query has two supported values: reduce and no-preference.
Compatibility note
The prefers-reduced-motion media query is not supported in Internet Explorer.
Summary
In this chapter, we learned about CSS transitions and animations. Some key things to remember are
A transition is used to animate an element between two states, while an animation can use any number of states.
An easing function determines the timing of the animation progress:
There are several built-in easing functions: linear, ease, ease-in, ease-out, and ease-in-out.
Transitions and animations have a duration, and an optional delay.
Animations have the animation-fill-mode property, which determines how styles are applied before and after the animation is performed.
Try to avoid animating layout properties, as these can negatively affect performance.
Use the prefers-reduced-motion media query to improve the accessibility of your site.
The Flexible Box Layout Module, more commonly known as flexbox, is a powerful tool for building layouts with CSS. It is not quite as powerful as CSS Grid, which we’ll look at in Chapter 12, but it can solve many layout problems. Flexbox is a one-dimensional layout that can lay out elements either horizontally or vertically (but not both). An element using flexbox as its layout is referred to as a flex container, and the elements inside it are flex items.
Basic concepts
Let’s go over the basic concepts to understand flexbox.
Direction
A flex container has a direction, defined by the flex-direction property. It can be either a row (horizontal) or column (vertical). This is shown in Figure 10-1. There are actually four values for the flex-direction property: row, row-reverse, column, and column-reverse. The meaning of row/column and row-reverse/column-reverse depends on whether the system is using a left-to-right (LTR) language or a right-to-left (RTL) language. The following sections assume an LTR language; for an RTL language, they are reversed.
A flex container is created by setting an element’s display property to the value flex. This will create a block flex container. You can also create an inline flex container by setting display to inline-flex.
Figure 10-1
The different values for flex-direction
Axis
Related to the direction is the concept of the axis. The main axis points along the direction specified in flex-direction, and the cross axis points perpendicular to it. For example, if flex-direction is set to row, the main axis goes horizontally from left to right, and the cross axis goes vertically from top to bottom. The two flex axes are shown in Figure 10.2.
Figure 10-2
The main axis and cross axis
A basic flex layout
A basic flex layout is achieved by setting the container’s display property to flex and setting a flex-direction, as demonstrated in Listing 10-1.
We can observe a few things here. First, the height of the container is just enough to fit its content. We can also see that the items are right up against each other – the flex container does not add any gap between its items. There is actually a gap property that will make the flex container set a gap between its items, but it does not have wide browser support yet.
Normally, a block element would start on a new line. But inside a flex container, this doesn’t happen. The items are instead laid out along the main axis.
Sizing
What happens if the flex items don’t fit within the flex container? To better see the boundaries of the container in the next example, we’ll add some padding to it, as shown in Listing 10-2.
<style>
.container {
border: 1px solid black;
padding: 0.5rem;
width: 500px;
display: flex;
flex-direction: row;
}
.item {
width: 300px;
text-align: center;
color: white;
font-size: 2rem;
}
.one {
background: blue;
}
.two {
background: red;
}
.three {
background: green;
}
</style>
<div class="container">
<div class="item one">1</div>
<div class="item two">2</div>
<div class="item three">3</div>
</div>
Listing 10-2
A flex container that is not wide enough to fit its items
The preceding code results in the layout shown in Figure 10-4.
Figure 10-4
The rendered result
The container only has a width of 500px and contains three items, each with a width of 300px. Yet, the items fit neatly inside the container and don’t overflow. In cases like this, the browser will try to shrink flex items to fit the container.
Sometimes, the elements can be shrunk down as small as possible but still not fit within the container. When this happens, the items then will overflow the container. This is demonstrated in Listing 10-3.
<style>
.container {
border: 1px solid black;
padding: 0.5rem;
width: 120px;
display: flex;
flex-direction: row;
}
.item {
width: 300px;
text-align: center;
color: white;
font-size: 2rem;
}
.one {
background: blue;
}
.two {
background: red;
}
.three {
background: green;
}
</style>
<div class="container">
<div class="item one">Item 1</div>
<div class="item two">Item 2</div>
<div class="item three">Item 3</div>
</div>
Listing 10-3
Items that cannot be shrunk to fit inside the flex container
This results in the layout shown in Figure 10-5, where the contents overflow the container.
Figure 10-5
The items overflow the container
Properties
There are several properties that affect flex item sizing. Some of these properties are set on the flex container, and others are set on the flex items.
flex-wrap (container)
One possible solution to the preceding problem is to use the flex-wrap property. When flex-wrap is set to wrap on the flex container, its flex items will wrap to the next line. Listing 10-4 has an example of setting a container’s flex-wrap to wrap.
<style>
.container {
border: 1px solid black;
padding: 0.5rem;
width: 120px;
display: flex;
flex-direction: row;
flex-wrap: wrap;
}
.item {
width: 300px;
text-align: center;
color: white;
font-size: 2rem;
}
.one {
background: blue;
}
.two {
background: red;
}
.three {
background: green;
}
</style>
<div class="container">
<div class="item one">Item 1</div>
<div class="item two">Item 2</div>
<div class="item three">Item 3</div>
</div>
Listing 10-4
The flex-wrap property
This results in the flex items wrapping to the next line, as shown in Figure 10-6.
Figure 10-6
The flex items wrap to the next line
flex-grow (item)
By default, if the items are not large enough to fill the container, there will be empty space. An example of this is in Listing 10-5.
<style>
.container {
border: 1px solid black;
padding: 0.5rem;
width: 500px;
display: flex;
flex-direction: row;
}
.item {
width: 100px;
text-align: center;
color: white;
font-size: 2rem;
}
.one {
background: blue;
}
.two {
background: red;
}
.three {
background: green;
}
</style>
<div class="container">
<div class="item one">1</div>
<div class="item two">2</div>
<div class="item three">3</div>
</div>
Listing 10-5
Empty space in the container
Figure 10-7 shows the resulting layout. The items do not grow, and there is extra space in the container.
Figure 10-7
The rendered result
This behavior can be controlled with the flex-grow property, which is set on the flex item rather than the container. By default, this is 0, which means the items won’t grow at all. flex-grow is a relative measure. If all of the items are set to flex-grow: 1, they will all grow equally to fill the space. Let’s do that in Listing 10-6.
<style>
.container {
border: 1px solid black;
padding: 0.5rem;
width: 500px;
display: flex;
flex-direction: row;
}
.item {
width: 100px;
text-align: center;
color: white;
font-size: 2rem;
flex-grow: 1;
}
.one {
background: blue;
}
.two {
background: red;
}
.three {
background: green;
}
</style>
<div class="container">
<div class="item one">1</div>
<div class="item two">2</div>
<div class="item three">3</div>
</div>
Listing 10-6
Adding the flex-grow property
Figure 10-8 shows the resulting layout, where the flex items all grow equally to fill the available space in the container.
Figure 10-8
The flex items grow to fill the container
Suppose we want item 2 to grow twice as much as item 1 and item 3. We can specify different relative flex-grow values, and they will be sized accordingly. Listing 10-7 shows an example of this, setting flex-grow to 2 on the middle flex item.
<style>
.container {
border: 1px solid black;
padding: 0.5rem;
width: 500px;
display: flex;
flex-direction: row;
}
.item {
width: 100px;
text-align: center;
color: white;
font-size: 2rem;
flex-grow: 1;
}
.one {
background: blue;
}
.two {
background: red;
flex-grow: 2;
}
.three {
background: green;
}
</style>
<div class="container">
<div class="item one">1</div>
<div class="item two">2</div>
<div class="item three">3</div>
</div>
Listing 10-7
Specifying different flex-grow values
The result is shown in Figure 10-9, where the middle item is larger than the others.
Figure 10-9
Item 2 grows to take more of the available space
You might notice that item 2 is not twice as large as items 1 and 3. Items 1 and 3 are 150px wide, and item 2 is 200px wide. Instead, item 2 takes twice as much of the available space as items 1 and 3.
All three items started at 100px. Items 1 and 3 grew by 50px, while item 2 grew by 100px – twice that of the others.
flex-shrink (item)
We saw earlier that if the flex items exceed the size of the container, the browser will try to shrink them to fit. By default, it will try to shrink all elements evenly. Just like we can control growth with flex-grow, we can also control shrinking with flex-shrink.
The flex-shrink property specifies the amount of shrinking that can be done to a flex item relative to the other items. This defaults to 1, which is why all of the elements were shrunk evenly.
Listing 10-8 specifies a flex-shrink of 2 for item 2.
<style>
.container {
border: 1px solid black;
padding: 0.5rem;
width: 300px;
display: flex;
flex-direction: row;
}
.item {
width: 200px;
font-size: 2rem;
color: white;
text-align: center;
}
.one {
background: blue;
}
.two {
background: red;
flex-shrink: 2;
}
.three {
background: green;
}
</style>
<div class="container">
<div class="item one">1</div>
<div class="item two">2</div>
<div class="item three">3</div>
</div>
Listing 10-8
Specifying a flex-shrink of 2
The resulting layout is shown in Figure 10-10. This time, the middle item is smaller than the others.
Figure 10-10
Item 2 shrinks twice as much as items 1 and 3
Each item is 200px, which means the total width taken up by the items is 600px. But the container is only 300px wide, so the items have to be shrunk. With the default flex-shrink of 1 for all items, each item would be shrunk by 100px, to be 100px wide. But because item 2 has a flex-shrink of 2, it will shrink twice as much as the others.
flex-basis (item)
The flex-basis property sets the initial size of a flex item along the main axis before flex-grow and flex-shrink factors are applied.
Alignment and spacing
So far, we’ve seen how to size the flex items in a flexbox layout. In this section, we’ll look at alignment (what happens when all the items are not the same size in the cross axis?) and spacing (how is leftover space distributed?).
The writing mode
Some of the values for these properties depend on the writing mode. The writing mode is defined by the writing-mode property. This property determines the way block elements are laid out, and how inline elements flow inside them.
Furthermore, the way the writing mode behaves depends on the user’s language. In some languages, text flows from left to right (LTR); in others, it flows from right to left (RTL).
The default value is horizontal-tb. For LTR languages, elements flow from left to right; for RTL languages, elements flow from right to left. Block elements and lines of text flow from top to bottom.
Other values include vertical-rl and vertical-lr. For these values, elements flow vertically from top to bottom (for LTR languages) or bottom to top (for RTL languages). With vertical-rl, block elements and lines of text flow from right to left (for LTR languages) or left to right (for RTL languages). Finally, with vertical-lr, block elements and lines of text flow from left to right (for LTR languages), or right to left (for RTL languages).
Properties
Like with sizing properties, some of these properties are applied to the flex container, and others are applied to the flex items.
justify-content (container)
The justify-content property, set on the container, controls how flex items are aligned/spaced along the main axis. By default, this is set to flex-start. This means the items are bunched together at the beginning of the main axis. The following examples demonstrate some of the commonly used values for justify-content, on an element with flex-direction: row and assuming a left-to-right language. The supported values for justify-content are shown in Table 10-1.
Table 10-1
The values for the justify-content property
Value
Description
Example
flex-start
Lays out all the items next to each other at the beginning of the main axis
flex-end
Lays out all the items next to each other at the end of the main axis
center
Lays out all the items next to each other, centered along the main axis
space-between
Maximizes the space between the items. The first item is flush with the start of the main axis, the last item is flush with the end of the main axis, and the other items are distributed evenly
space-around
Similar to space-between, except items have space on both ends. These spacings are not collapsed between the middle items. The end result is a smaller space before the first item and after the last item
space-evenly
Similar to space-around, except the space is even on all sides of all items
align-items (container)
The align-items property is also set on the container. It controls how flex items are aligned along the cross axis. The default value is stretch, which will stretch items along the cross axis to fill the container’s size, while respecting height and width constraints. The different options for align-items are shown in Table 10-2.
Table 10-2
Values of the align-items property
Value
Description
Example
stretch
Stretches the items to fill all available space along the cross axis. An element won't be stretched beyond its height or max-height
flex-start
Items are aligned to the start of the cross axis
flex-end
Items are aligned to the end of the cross axis
center
Items are aligned to the center of the cross axis
baseline
Items are aligned along the baseline of their text
align-content (container)
When there are multiple rows (or columns in a column flexbox layout), and there is extra space in the cross axis, align-content specifies how this space is distributed. The default is stretch, which, like with align-items, stretches the items along the cross axis. The values for align-content are shown in Table 10-3.
Table 10-3
Values of the align-content property
Value
Description
Example
stretch
Stretches the items to fill all available space along the cross axis. An element won't be stretched beyond its height or max-height
flex-start
Aligns the rows at the beginning of the cross axis
flex-end
Aligns the rows at the end of the cross axis
center
Aligns the rows at the center of the cross axis
space-between
Maximizes the spacing between the rows
space-around
Spacing around the rows, with half spaces at the beginning and end
space-evenly
Equal spacing around all the rows
align-self (item)
The align-items property applies the alignment to all of the flex items, but an individual item can specify its own individual alignment that overrides what was set on the container with the align-self property.
The order property
By default, items are laid out according to two factors:
The order they occur in the HTML
The value of the flex-direction property
This ordering can be changed by using the order property on flex items. This property, when set on a flex item, defines the order in which it appears.
Multiple flex items can have the same value for the order property. If more than one item has the same order, those items will be laid out in the order they appear in the source HTML.
Accessibility tip
The order property only affects the displayed order on screen. It does not affect the order of the elements in other contexts. A screen reader, for example, will read the elements in their source order, not the displayed order.
This makes the display of the items out of sync from how they are displayed on screen, which could be confusing. For this reason, the order property is best used sparingly.
Examples
The following sections show some examples of what can be achieved with a flexbox layout.
Absolute centering
With flexbox, the problem of absolute (horizontal and vertical) centering is easily solved by setting both align-items and justify-content to center. We do this in Listing 10-9.
<style>
.container {
background: skyblue;
display: flex;
align-items: center;
justify-content: center;
width: 10rem;
height: 10rem;
}
.item {
background: orangered;
width: 5rem;
height: 5rem;
}
</style>
<div class="container">
<div class="item"></div>
</div>
Listing 10-9
Absolute centering with flexbox
The resulting layout is shown in Figure 10-11, where the inner box is horizontally and vertically centered within the outer box.
Figure 10-11
The inner box is centered on both the main axis and cross axis
Page layout
Nesting flexbox layouts allows you to create all kinds of layouts. Listing 10-10 has an example of a full-page layout using flexbox.
<style>
body {
margin: 0;
}
.container {
display: flex;
flex-direction: column;
height: 100vh;
border: 5px dashed black;
box-sizing: border-box;
}
.header {
background: skyblue;
padding: 1rem;
}
.main {
display: flex;
flex-direction: row;
flex-grow: 1;
border: 5px dashed blue;
}
.sidebar {
background: cornflowerblue;
padding: 1rem;
}
.content {
flex-grow: 1;
background: beige;
padding: 1rem;
}
.sidebar-2 {
background: turquoise;
padding: 1rem;
}
.footer {
background: orange;
padding: 1rem;
}
</style>
<div class="container">
<header class="header">Header</header>
<main class="main">
<div class="sidebar">Sidebar</div>
<div class="content">Content</div>
<div class="sidebar-2">Sidebar 2</div>
</main>
<footer class="footer">Footer</footer>
</div>
Listing 10-10
A full-page layout with flexbox
The resulting full-page layout is shown in Figure 10-12.
Figure 10-12
The flexbox layout
The root container defines a column flexbox layout (the black border). It contains a header, a main element which contains the other content (the blue border), and a footer. The main element gets a flex-grow of 1. This means that while the header and footer use just enough space for their content, the main element will grow to fill the remaining space.
Then, the main element has a row flexbox layout. The two sidebars on either end just use their natural width, and the content area in the middle again uses a flex-grow of 1 to fill horizontally.
We could have even deeper nesting. For example, the header could contain a row flexbox layout with navigation links, or the sidebar could contain a column flexbox layout.
Summary
In this chapter, we learned all about flexbox layouts:
A flexbox layout is made up of a flex container and its flex items.
A flexbox layout is one-dimensional; it is either a single row or a single column.
A flex container is created by setting display to flex or inline-flex.
A flex container has a direction and two axes, the main axis and the cross axis.
Flex containers can be nested inside other flex containers.
Flexbox can be used to absolutely center an element inside its container.
Responsive design is a technique for designing page layouts so that they are usable on devices with a variety of different screen sizes. Media queries are one of the main tools used for responsive design, as are flexbox and CSS Grid.
A layout that looks good on a high-resolution desktop display might not look so good on an iPhone. Media queries allow you to apply different CSS rules, or even entire style sheets, depending on the size of the viewport.
Media queries have other uses, too. For example, you can apply a different set of styles for when a page is printed than when it is displayed on a screen by using the print medium.
The viewport meta tag
In order for a site to look correctly on mobile devices, you will need to add the viewport meta tag to your HTML inside the head element:
<meta
name="viewport"
content="width=device-width, initial-scale=1.0">
This tells the browser how to set the page’s dimensions and zoom level. The typical value used for width is device-width; however, this could also be set to an explicit pixel width as well.
Media queries
A media query is defined as an at-rule, @media. It specifies a medium (all, print, screen, or speech) and a condition. If no medium is specified, it defaults to all. If the condition is met, the CSS rules inside the block are applied to the document. If it is not met, the CSS rules are ignored.
In a viewport that has a width of 400px or less, h1 elements will be blue. Otherwise, they will be red. Media queries are constantly being evaluated and styles conditionally applied. They aren’t only calculated when the page first loads. You can test the given CSS by opening the page using it and notice the h1 elements are red. If you resize the window to below 400px, the h1 elements will change from red to blue. Resize the screen back above 400px, and they will turn red again.
With responsive design, the min-width and max-width rules are commonly used, as they are good indicators of viewport size. There are many other media query rules. For example, this rule will apply only when the user’s device is in landscape orientation:
@media (orientation: landscape)
Some queries are based on physical attributes of the device (such as width or orientation), but others are based on settings the user has configured in their operating system. In Chapter 9, we saw the prefers-reduced-motion query. Another example of a preference-based query is prefers-color-scheme. On platforms that support “dark mode,” such as macOS, this can be used to query if the user is using dark mode:
@media (prefers-color-scheme: dark)
Media queries also support logical operators such as and, or, and not:
@media screen
and (min-width: 600px)
and (orientation: landscape)
The only operator is also supported. Using only assures that a media query’s rules are not applied on older browsers that don’t understand the full query.
Media queries can also be used to conditionally load an entire style sheet. For example, you may want to apply an entirely different style sheet if the page is being printed using the HTML in Listing 11-2.
<link rel="stylesheet"
href="style.css"
media="screen">
<link rel="stylesheet"
href="print.css"
media="print">
Listing 11-2
Conditionally loading style sheets
Breakpoints
A breakpoint is the threshold at which a page’s layout will change due to the viewport size with a media query. Defining your breakpoints is not an exact science, as there are many different devices in use today, all with different screen sizes. It’s better to set breakpoints based on the content. That is, you should try to avoid targeting specific devices with media queries. Instead, experiment with different viewport sizes, and find the points where your layout and design start looking cramped. Then you know where to set your breakpoints.
Figure 11-1 shows an example layout, with a viewport width of 1,000 pixels.
Figure 11-1
An example layout
The only CSS that has been applied is that the h1 element at the top has been set to a font-size of 5rem.
If we start to shrink the viewport, we’ll see that the heading text wraps at around 785 pixels, as shown in Figure 11-2.
Figure 11-2
The heading text wrapped
The headline takes up a lot of vertical space now, so this might be a good place for a breakpoint. We can make its font smaller when the viewport is 785 pixels or less by using the media query in Listing 11-3.
@media screen and (max-width: 785px) {
h1 {
font-size: 3rem;
}
}
Listing 11-3
Applying a media query to make the heading font smaller
Figure 11-3 shows the resulting layout. Now when we view the site at that viewport size, the heading is smaller and takes up less vertical space, since it doesn’t wrap.
Figure 11-3
The heading text is smaller at this viewport size
This will result in more content being visible on devices with a smaller viewport. If we start resizing the viewport again, we’ll find that the heading is wrapping again at around 480 pixels, as shown in Figure 11-4.
Figure 11-4
The heading is wrapping again
We can specify another breakpoint here to again prevent the heading from wrapping in Listing 11-4.
@media screen and (max-width: 785px) {
h1 {
font-size: 3rem;
}
}
@media screen and (max-width: 480px) {
h1 {
font-size: 2rem;
}
}
Listing 11-4
Adding another media query
The result is shown in Figure 11-5, where the heading text is very small.
Figure 11-5
The heading text gets even smaller at this viewport size
At this breakpoint, the image looks really big compared to the heading size. We can make the image a little smaller at this breakpoint inside the same media query. This is done in Listing 11-5.
@media screen and (max-width: 785px) {
h1 {
font-size: 3rem;
}
}
@media screen and (max-width: 480px) {
h1 {
font-size: 2rem;
}
img {
width: 250px;
}
}
Listing 11-5
Adjusting the image size
The resulting layout is shown in Figure 11-6, where the image is smaller.
Figure 11-6
The image is smaller at this viewport size
Now, the image looks better sized relative to the rest of the content.
Responsive layouts with flexbox
Some responsive layouts can be achieved without even using media queries. For example, we can use the flex-wrap property on a flex container to automatically wrap elements to the next line if the viewport is too narrow, in order to prevent the need for horizontal scrolling. Listing 11-6 contains an example flexbox layout.
<style>
.container {
display: flex;
flex-direction: row;
justify-content: center;
background: skyblue;
padding: 0.25rem;
}
.item {
background: red;
color: white;
text-align: center;
margin: 0.25rem;
font-size: 2rem;
}
.wide {
width: 300px;
}
</style>
<div class="container">
<div class="item">Flex Item 1</div>
<div class="item wide">Flex Item 2</div>
<div class="item">Flex Item 3</div>
<div class="item">Flex Item 4</div>
<div class="item wide">Flex Item 5</div>
<div class="item">Flex Item 6</div>
</div>
Listing 11-6
An example layout
With a wide enough viewport, this results in the layout shown in Figure 11-7.
Figure 11-7
The rendered layout with a wide viewport
This looks pretty good. Let’s see how this looks with a narrower viewport, shown in Figure 11-8.
Figure 11-8
The layout with a narrower viewport
Now it’s looking a little cramped. Let’s go even narrower, like if we were viewing this layout on a mobile device, shown in Figure 11-9.
Figure 11-9
The layout with an even narrower viewport
The flex items have shrunk as much as possible, but the viewport still isn’t wide enough, so the first and last items get cut off. We can easily solve this problem by setting flex-wrap to wrap on the container. This is shown in Listing 11-7.
<style>
.container {
display: flex;
flex-direction: row;
justify-content: center;
flex-wrap: wrap;
background: skyblue;
padding: 0.25rem;
}
.item {
background: red;
color: white;
text-align: center;
margin: 0.25rem;
font-size: 2rem;
}
.wide {
width: 300px;
}
</style>
<div class="container">
<div class="item">Flex Item 1</div>
<div class="item wide">Flex Item 2</div>
<div class="item">Flex Item 3</div>
<div class="item">Flex Item 4</div>
<div class="item wide">Flex Item 5</div>
<div class="item">Flex Item 6</div>
</div>
Listing 11-7
Adding flex-wrap: wrap
The resulting layout is shown in Figure 11-10, where the layout items now wrap.
Figure 11-10
The wrapped layout with a narrow viewport
Now, it looks much better in the narrow viewport. If we go even narrower, the layout will change to accommodate the new size, as shown in Figure 11-11.
Figure 11-11
The layout on an even narrower viewport
Fluid typography
Earlier, we saw how to leverage media queries to adjust the font size as the viewport size changes. With fluid typography, it’s possible to automatically scale the font size to viewport size without having to use media queries.
Earlier in the book, we discussed the vw unit, which is equal to 1% of the viewport width. We can use vw to specify a font size as a proportion of the viewport width. For example, for a 1,000-pixel-wide viewport, 1vw is equal to 10px. Suppose that we want our header to have a font size of 48px for a 1,000-pixel-wide viewport. We can specify the font-size as 4.8vw. Figure 11-12 shows what that looks like.
Figure 11-12
Using a variable font size proportional to the viewport width
However, there’s a problem. If the viewport becomes very wide, the font size of the heading becomes very large – at a viewport size of 2,000 pixels, the font size becomes 96px. Look at the font size of the heading in Figure 11-13 compared to the body text size.
Figure 11-13
A very large font size
On the other extreme, if the viewport is very narrow, the heading’s font size becomes very small – almost as small as the body text, shown in Figure 11-14.
Figure 11-14
The heading font is very small for a narrow viewport
The clamp function
We can fix this by using the clamp function. clamp takes three arguments: the minimum size, the preferred size, and the maximum size. We can keep our font size of 4.8vw as the preferred size and add a lower bound of 48px and an upper bound of 64px:
font-size: clamp(48px, 4.8vw, 64px);
Now the font size adjusts automatically with the viewport width as before, but now it will never drop below 48px or go above 64px.
Responsive images
Previously, we used a media query to change the size of an image if the viewport was narrower than a certain threshold. There is another technique we can use that allows images to scale with the viewport width without using media queries.
Figure 11-15 shows our layout from before, using an image that is 800 pixels wide.
Figure 11-15.
An 800 pixel wide image
It looks good at this width, but what happens if the viewport is less than 800 pixels wide? This is illustrated in Figure 11-16.
Figure 11-16
The image with a viewport width of less than 800 pixels
At this viewport size, the image is cut off and requires horizontal scrolling to view the rest of it. We can change this behavior so that the image resizes along with the viewport (or its container) with two CSS properties:
img {
max-width: 100%;
height: auto;
}
This sets the image so that its width never exceeds the width of its container. The height: auto makes sure that the image retains its aspect ratio.
Now, as we resize the viewport, the image is resized and maintains the proper aspect ratio, as shown in Figure 11-17.
Figure 11-17
The image now resizes with the viewport
After making these changes, the CSS for our responsive page is very simple, shown in Listing 11-8.
img {
max-width: 100%;
height: auto;
}
h1 {
font-size: clamp(48px, 4.8vw, 64px);
}
Listing 11-8
The final CSS for this layout
Adapting a layout with media queries
There are still good use cases for media queries with responsive design, however. Let’s look at the page layout in Listing 11-9.
If we decrease the viewport width, the main content area gets squashed between the two sidebars, as seen in Figure 11-19.
Figure 11-19
The narrow layout
We can improve this by adding a media query and making a few overrides. Let’s set the breakpoint at 700 pixels. Below this threshold, we’ll change the main element to have a flex-direction of column rather than row. This will stack the three regions vertically, allowing them each to take up the full width of the container. The media query is shown in Listing 11-10.
@media screen and (max-width: 700px) {
.main {
flex-direction: column;
}
}
Listing 11-10
Adding a media query to the main element
Now the content takes up the full width and is no longer constrained horizontally, as shown in Figure 11-20. The new layout takes effect at 700 pixels or less.
Figure 11-20
The adjusted layout at its threshold of 700 pixels
The navigation is taking up a lot of vertical space now, though. We can add another override inside the media query, shown in Listing 11-11, to change the navigation links to be horizontal.
This responsive layout looks a lot better with a narrower viewport. But this is still a wider viewport than that of a mobile device. Let’s shrink it down further, to 350 pixels, in Figure 11-22.
Figure 11-22
The layout as it might appear on a mobile device
Now the navigation links are overflowing the viewport. We can fix this by setting flex-wrap to wrap in Listing 11-12.
@media screen and (max-width: 700px) {
.main {
flex-direction: column;
}
.sidebar {
flex-direction: row;
justify-content: center;
flex-wrap: wrap;
}
}
Listing 11-12
Adding flex-wrap: wrap
In Figure 11-23, we can see that the navigation links now wrap.
Figure 11-23
The wrapped navigation links
This looks better – the navigation links no longer overflow the viewport. There are still some other ways we could improve on this design. For example, at the narrow viewport size, we could replace the navigation links with a dropdown or popup menu. This would probably involve some JavaScript and DOM manipulation for toggling the menu.
We could also try to get this to fit on one line by making the navigation links smaller, removing the padding, as shown in Figure 11-24. This would work, but would probably be frustrating for mobile users, as the touch targets on the screen would be very small.
Figure 11-24
The layout with smaller links, which are not ideal for mobile
In this instance, the best option would probably be to add a menu of some kind in place of the navigation links on a narrow viewport like on a mobile device.
Summary
We have seen just a few of the tools at your disposal to adapt your layouts and designs to different screen sizes:
Media queries allow CSS rules to be applied conditionally.
A breakpoint is a threshold used in a media query, where there is a layout change.
An element’s font size can be proportional to the width of the viewport and limited by using the clamp function.
Sometimes, only minor changes are needed inside a media query, such as setting flex-wrap to wrap or the flex-direction from row to column in a flex container.
Images can automatically resize to the viewport by setting max-width to 100% and height to auto.
We’ve looked at flexbox layouts in depth and have seen how powerful they can be. Still, there are limitations. Flexbox is a one-dimensional layout where items are arranged horizontally or vertically in rows or columns.
CSS Grid is a relatively new feature that allows you to create two-dimensional grid layouts with rows and columns. It is the most powerful layout system available with CSS today. CSS Grid enjoys wide browser support – even IE11 supports it, although its support is only partial and uses an older version of the specification.
Basic concepts
Let’s start with the basic concepts of CSS Grid.
Grid container
The grid container is the outer element that contains the grid layout. All of its direct children are grid items. To make an element a grid container, set its display property to grid or inline-grid. The difference is an element with display: grid will be a block element, where an element with display: inline-grid will be an inline element.
Grid item
All immediate children of the grid container are grid items. Beyond the immediate children, descendant elements are not grid items. No special CSS properties need to be applied to make an item a grid item. The child elements automatically become grid items, and by default they are laid out in the order that they appear in the HTML markup.
Grid lines
Grid lines divide the rows and columns of the grid (Figure 12-1). The grid lines are numbered starting with 1.
Figure 12-1
Grid lines
Grid tracks
The tracks of the grid are the rows and columns between the grid lines. The tracks are what contain the grid items. Like with grid lines, the numbering of tracks starts at 1. In Figure 12-2, row track 1 is highlighted.
Figure 12-2
Grid tracks
Grid areas
A grid area is the space enclosed by any four grid lines. It can contain a single cell or multiple cells. A 4x4 grid area is highlighted in Figure 12-3.
Figure 12-3
A grid area
Explicit grid
When grid rows and columns are explicitly defined with CSS properties, this is known as the explicitgrid.
Implicit grid
If more items are added than are accounted for in the explicit grid, the grid layout creates additional rows and/or columns to fit these extra items. This is the implicitgrid.
The fr unit
Grid sizes can be specified with any of the units we’ve looked at so far – px, em, rem, even percentages. CSS Grid introduces a new unit, the fr unit. This is a fractional unit that refers to a fraction of the free space. For example, if there are four columns each at a width of 1fr, then each column will take up 25% of the total width of the grid.
Basic grids
To set up the rows and columns of the explicit grid, the grid-template-rows and grid-template-columns properties are used. These are used to specify the widths of the rows and the heights of the columns, respectively. Technically speaking, they are used to specify the size of the grid tracks.
Like with flexbox, by default grid items are flush up against one another. With grid items, we can use the gap property to add a gap between grid items. This can help us better visualize the grid layout.
This results in the grid layout shown in Figure 12-4.
Figure 12-4
The rendered grid
We have defined an explicit grid with two 10rem column tracks and two 5rem row tracks. As you can see, you don’t need to specify a row or column in the grid – by default, the grid container places its children in order, starting at the first column of the first row.
Right now, we have two rows and two columns – a total of four items. What happens if we add more children to the container? Let’s add some more children in Listing 12-2.
<style>
.container {
display: grid;
grid-template-columns: 10rem 10rem;
grid-template-rows: 5rem 5rem;
gap: 5px;
}
.item {
background: lightgray;
text-align: center;
}
</style>
<div class="container">
<div class="item">1</div>
<div class="item">2</div>
<div class="item">3</div>
<div class="item">4</div>
<div class="item">5</div>
<div class="item">6</div>
</div>
Listing 12-2
Adding two more grid items
This results in the somewhat odd-looking grid shown in Figure 12-5.
Figure 12-5
The rendered grid
We see items 5 and 6 in the grid. These items are in the implicit grid. Also notice that they are automatically sized to fit their content. This is the default behavior for implicit grid items. This behavior can be controlled with the grid-auto-rows property, where we specify the sizing for implicit grid rows. An example of this is shown in Listing 12-3.
<style>
.container {
display: grid;
grid-template-columns: 10rem 10rem;
grid-template-rows: 5rem 5rem;
grid-auto-rows: 5rem;
gap: 5px;
}
.item {
background: lightgray;
text-align: center;
}
</style>
<div class="container">
<div class="item">1</div>
<div class="item">2</div>
<div class="item">3</div>
<div class="item">4</div>
<div class="item">5</div>
<div class="item">6</div>
</div>
Listing 12-3
Specifying grid-auto-rows
The resulting grid layout is shown in Figure 12-6.
Figure 12-6
The rendered grid
Now, all of the grid items are the same size.
Grid sizing
Let’s look at grid sizing in more detail, starting with the fr unit.
Using the fr unit
Listing 12-4 adapts the previous example to use the fr unit for grid sizing.
<style>
.container {
display: grid;
grid-template-columns: 1fr 1fr 1fr;
grid-template-rows: 5rem 5rem;
grid-auto-rows: 5rem;
gap: 5px;
width: 30rem;
}
.item {
background: lightgray;
text-align: center;
}
</style>
<div class="container">
<div class="item">1</div>
<div class="item">2</div>
<div class="item">3</div>
<div class="item">4</div>
<div class="item">5</div>
<div class="item">6</div>
</div>
Listing 12-4
Using the fr unit
The resulting grid layout is shown in Figure 12-7.
Figure 12-7
The grid using the fr unit
Each of the three columns is set to 1fr. This means the free space will be divided evenly between all three columns. If we set the middle column to 2fr, it would be twice as wide as the other columns, as shown in Figure 12-8.
Figure 12-8
The middle column using 2fr
We can mix fr units with other units as well, as shown in Listing 12-5.
.container {
display: grid;
grid-template-columns: 200px 1fr 5rem;
grid-template-rows: 5rem 5rem;
}
Listing 12-5
Mixing units
The repeat function
Sometimes, defining grid sizes can be repetitive, as seen in Listing 12-6.
.container {
display: grid;
grid-template-columns: 1fr 1fr 1fr 1fr;
grid-template-rows: 5rem;
}
Listing 12-6
A repetitive grid definition
For these cases, we can use the repeat function, demonstrated in Listing 12-7.
.container {
display: grid;
grid-template-columns: repeat(4, 1fr);
grid-template-rows: repeat(2, 5rem);
}
Listing 12-7
Using the repeat function
The minmax function
If we use a fixed size for a row track, and a cell’s contents do not fit within the cell, the contents will overflow, as shown in Figure 12-9.
Figure 12-9
Overflowing cell content
To fix this scenario, we can use the minmax function. The function takes two arguments – the minimum size of the track and the maximum size. This is demonstrated in Listing 12-8.
The resulting grid layout is shown in Figure 12-10.
Figure 12-10
The rendered grid
Now the rows have a minimum height of 3rem but can grow to automatically fit the content if necessary.
auto-fill and auto-fit
Sometimes, we may not want to specify an exact number of rows or columns in a grid. For example, we may want to simply fit as many columns as will fit into the container’s width. For this, we can use the auto-fill keyword in combination with the repeat function, as demonstrated in Listing 12-9.
<style>
.container {
display: grid;
grid-template-columns: repeat(auto-fill, 5rem);
grid-template-rows: 5rem;
grid-auto-rows: 5rem;
gap: 5px;
}
.item {
background: lightgray;
}
</style>
<div class="container">
<div class="item">1</div>
<div class="item">2</div>
<div class="item">3</div>
<div class="item">4</div>
<div class="item">5</div>
<div class="item">6</div>
<div class="item">7</div>
</div>
Listing 12-9
Using the auto-fill keyword
If the viewport is wide enough, all seven items will appear in a single row, as shown in Figure 12-11.
Figure 12-11
The grid in a wide viewport
However, if we resize the viewport so that they don’t all fit, the grid will set as many columns as will fit in the available space. The remaining grid items will wrap to the next row, as shown in Figure 12-12.
Figure 12-12
The grid items automatically wrap with auto-fill
auto-fill can even be combined with minmax. Let’s add a border around the container from the previous example so we can better visualize the layout, shown in Figure 12-13.
Figure 12-13
The same example, with a border around the container
Note the gap on the right side of the first row. This is part of the container, but there is no column there. In Listing 12-10, we add the minmax function to the column sizing.
.container {
border: 5px solid black;
display: grid;
grid-template-columns: repeat(
auto-fill,
minmax(5rem, 1fr)
);
grid-template-rows: 5rem;
grid-auto-rows: 5rem;
gap: 5px;
}
Listing 12-10
Adding the minmax function
Now the behavior is slightly different, as shown in Figure 12-14.
Figure 12-14
The grid using auto-fill and minmax
The browser is using a minimum size of 5rem. However, when there’s space left over, using 1fr for each column means that each column will grow equally to use up the extra space.
Figure 12-15 shows a grid container using auto-fill.
Figure 12-15
The auto-fill behavior
When there is more space than there are columns, with auto-fill, new columns are created which take up space in the container. With auto-fit, however, it instead sizes the items to fit within the available space without adding more columns. The auto-fit behavior is shown in Figure 12-16.
Figure 12-16
The auto-fit behavior
Grid positioning
By default, the grid items are placed automatically, filling each column then each row. There are options that can be used to customize the positioning of grid items.
Specifying row and column
You can override the default grid positioning and specify specific grid row and column indices for grid items using the grid-row and grid-column properties. Row and column numbers start at 1. An example of this is shown in Listing 12-11.
.item1 {
background: skyblue;
grid-row: 2;
grid-column: 3;
}
Listing 12-11
Specifying the row and column for an item
The first grid item is shown in blue, in Figure 12-17.
Figure 12-17
The rendered result
The first grid item is positioned in row 2, column 3. The rest of the grid items are automatically placed.
Spanning multiple rows or columns
A grid item can be made to span multiple rows and/or columns by using the grid-row-start, grid-row-end, grid-column-start, and grid-column-end properties. These properties reference the grid line numbers. For an item to span across column 3 and 4, it would start at line 3 and end at line 5, as demonstrated in Listing 12-12.
.item1 {
background: skyblue;
grid-row: 2;
grid-column-start: 3;
grid-column-end: 5;
}
Listing 12-12
Using grid-column-start and grid-column-end
The resulting grid layout is shown in Listing 12-18.
Figure 12-18
Spanning two columns
The grid-row or grid-column properties can also be used as a shorthand for these properties. The expected format is the starting grid line, a slash, and the ending line. The preceding CSS block is equivalent to the code in Listing 12-13.
.item1 {
grid-row: 2;
grid-column: 3 / 5;
}
Listing 12-13
Using the grid-column shorthand
Instead of specifying an ending row or column line number, we can also use the span keyword. This specifies that the item spans that number of rows or columns, starting at the specified start index, as shown in Listing 12-14.
.item1 {
grid-row: 2;
grid-column: 3 / span 2;
}
Listing 12-14
Using the span keyword
Named grid lines
Grid lines can be referenced by their numerical index, as we have already seen. But we can also assign names to the grid lines and reference those names instead. The grid lines are named within a grid-template-rows or grid-template-columns expression, in between the grid track definitions. The grid line names are placed inside square brackets.
These grid line names can then be referenced from the grid-row and grid-column properties.
Listing 12-15 has a basic page layout defined using named grid lines.
In addition to named grid lines, we can also define named grid areas. This allows us to place grid items in the desired areas without having to specify start and end lines. The areas are defined with the grid-template-areas property. If two adjacent areas have the same name, then an item placed in that area will span those areas.
grid-template-areas can also be combined with the grid sizing properties shown earlier, as demonstrated in Listing 12-16.
Just like with flexbox, CSS Grid gives you total control over the alignment of items when they don’t fill their container. There are several properties that control this.
justify-items
The justify-items property defines how grid items are aligned along the row axis when there is extra space left inside a grid cell. This property is defined on the container and applies to all the items within that container. It has the following values shown in Table 12-1.
Table 12-1
The values for the justify-items property
Value
Description
Example
stretch
Items are stretched along the row axis to fill the entire width of the cell. This is the default
start
Items are aligned with the starting edge of the cell along the row axis
end
Items are aligned with the ending edge of the cell along the row axis
center
Items are centered along the row axis in their cells
align-items
The align-items property defines how grid items are aligned in the opposite direction, along the column axis. Like justify-items, this property is set on the container. Its values are listed in Table 12-2.
Table 12-2
The values for the align-items property
Value
Description
Example
stretch
The default value. Items are stretched along the column axis to fill the entire height of the cell
start
Items are aligned at the top edge of the cell
end
Items are aligned at the bottom edge of the cell
center
Items are centered vertically in the cell
justify-content
If the grid rows and/or columns aren’t sized with relative/flexible units like fr, we could end up with empty space in the grid container. If this happens, the justify-content property defines where within the grid container the grid items will be aligned along the row axis. The values for justify-content are listed in Table 12-3.
Table 12-3
The values for the justify-content property
Value
Description
Example
start
Aligns the grid at the start of the row axis
end
Aligns the grid at the end of the row axis
center
Aligns the grid in the center of the row axis
stretch
Stretches the grid columns to fill the row axis, if the columns are set to auto
space-around
Adds even spacing between columns, with half-sized spaces at the start and end
space-evenly
Adds even spacing between columns, with full-sized spaces at the start and end
space-between
Places the first column flush with the start of the container and the last column flush with the end of the container and adds even spacing in between the other columns
align-content
align-content is like justify-content, only it determines how the grid rows are aligned along the column axis instead of columns along the row axis. Its values are listed in Table 12-4.
Table 12-4
The values for the align-content property
Value
Description
Example
start
Aligns the grid rows at the start of the column axis
end
Aligns the grid rows at the end of the column axis
center
Aligns the grid rows at the center of the column axis
stretch
Stretches the rows to fill the column axis, if the rows are set to auto
space-around
Adds even spacing between rows, with half-sized spaces at the start and end
space-evenly
Adds even spacing between rows, with full-sized spaces at the start and end
space-between
Places the first row flush with the top of the container and the last row flush with the bottom of the container and adds even spacing in between the other rows
Overriding for individual grid items
The justify-items and align-items properties of the grid container define the alignment of the grid items along the row and column axis, respectively. These alignments can be overridden for an individual grid item by setting the following properties on the grid item itself.
justify-self
Sets the alignment of an item inside its cell along the row axis.
align-self
Sets the alignment of an item inside its cell along the column axis.
Summary
In this chapter, we learned how to use CSS Grid:
An element can be made a grid container by setting its display property to grid or inline-grid.
A grid container’s immediate children become grid items.
A grid has lines, tracks, and areas.
The explicit grid is made up of the rows and columns defined by the grid-template-rows and grid-template-columns properties.
The implicit grid contains any elements placed after all explicit grid areas are filled.
The fr unit uses a fraction of the available free space.
A grid item can span multiple rows and/or columns.
Grid lines and areas can have names. These names can then be referenced when placing grid items.
The justify-items, align-items, justify-content, and align-content properties define how extra space is handled in grids.
An individual grid item can override its alignment with the justify-self and align-self properties.
We have reached the end of our exploration of modern CSS. We have covered a lot of topics, starting from the basics, to layout, to transitions and animations, to more advanced layouts with flexbox and CSS Grid.
The goal of this book was to make CSS less intimidating and more accessible. I hope you have learned something of value by reading this book.
There are some other parts of the CSS ecosystem that we haven’t looked at, that you should definitely look into for further learning.
CSS methodologies
As a CSS codebase grows, it can quickly get out of control. There are many solutions out there for organizing and architecting CSS code, and here are just a few of them:
BEM (Block Element Modifier): Uses strict naming rules. Each element’s name has a block, element, and modifier. An example of this is form__button--red. In this example form is the block, button is the element, and red is the modifier.
OOCSS (Object-Oriented CSS): Applies object-oriented principles to CSS. Separates container elements, or “skins,” from content.
SMACSS (Scalable and Modular Architecture for CSS): Categorizes CSS rules into five categories: base, layout, module, state, and theme.
Utility-first CSS
Utility-first CSS frameworks, such as Tailwind, are fairly new but are a very different way of thinking about CSS. Instead of writing your own CSS rules that apply styles to elements, there are predefined “utility” rules that apply different types of styling. For example, using Tailwind, you might have the following:
<div class="p-6 bg-white rounded-lg">Hello!</div>
This would apply the following styles to the div element:
padding: 1.5rem (from p-6)
background-color: white (from bg-white)
border-radius: 0.5rem (from rounded-lg)
Frameworks like Tailwind allow you to style your document without writing a single line of CSS.
Houdini
Houdini is a work-in-progress set of APIs that expose various parts of the CSS Object Model, and new APIs, to the developer. This allows for the creation of custom CSS properties, layouts, and more. Browser support is currently very limited, and some of the specifications are still at an early stage.
There are many new and exciting developments in the world of CSS on the way that will give you, the web developer, more power and control over styling your websites and apps. I hope this book has helped you chart your journey into further exploration of CSS.
