If you’re an existing Java developer who wants to go full stack or pick up another frontend framework, this book is your concise introduction to React. In this three-part build-along, you’ll create a robust Spring Boot backend, a React frontend, and then deploy them together.
This new edition is updated to Spring Boot 3 and includes expanded content on security and testing. For the first time ever, it also covers React development with the in-demand TypeScript.
You’ll explore the elements that go into creating a REST API and testing, securing, and deploying your applications. You’ll learn about custom Hooks, third-party components, and MUI.
By the end of this book, you’ll be able to build a full stack application using the latest tools and modern best practices.
Who this book is for
This book is for Java developers who have basic familiarity with Spring Boot but don’t know where to start when it comes to building full stack applications. Basic knowledge of JavaScript and HTML will help you to follow along.
You’ll also find this book useful if you’re a frontend developer with knowledge of JavaScript basics and looking to learn full stack development, or a full stack developer experienced in other technology stacks looking to learn a new one.
What this book covers
Part 1: Backend Programming with Spring Boot
Chapter 1, Setting Up the Environment and Tools – Backend, explains how to install the software needed in this book for backend development and how to create your first Spring Boot application.

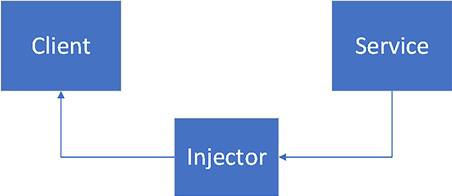

Chapter 2, Understanding Dependency Injection, explains the basics of dependency injection and how it is achieved in Spring Boot.
Chapter 3, Using JPA to Create and Access a Database, introduces JPA and explains how to create and access databases with Spring Boot.
Chapter 4, Creating a RESTful Web Service with Spring Boot, explains how to create RESTful web services using Spring Data REST.

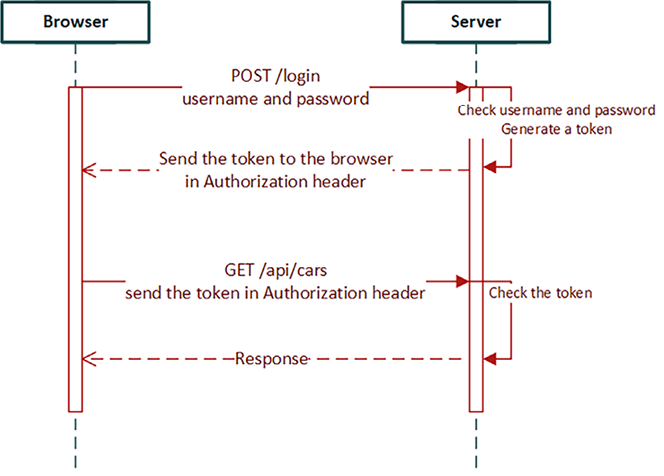

Chapter 5, Securing Your Backend, explains how to secure your backend using Spring Security and JWTs.
Chapter 6, Testing Your Backend, covers testing in Spring Boot. We will create a few unit and integration tests for our backend and learn about test-driven development.
Part 2: Frontend Programming with React
Chapter 7, Setting Up the Environment and Tools – Frontend, explains how to install the software needed in this book for frontend development.
Chapter 8, Getting Started with React, introduces the basics of the React library.
Chapter 9, Introduction to TypeScript, covers the basics of TypeScript and how to use it to create React apps.
Chapter 10, Consuming the REST API with React, shows how to use REST APIs with React using the Fetch API.
Chapter 11, Useful Third-Party Components for React, demonstrates some useful components that we’ll use in our frontend development.
Part 3: Full Stack Development
Chapter 12, Setting Up the Frontend for Our Spring Boot RESTful Web Service, explains how to set up the React app and Spring Boot backend for frontend development.
Chapter 13, Adding CRUD Functionalities, shows how to implement CRUD functionalities to the React frontend.
Chapter 14, Styling the Frontend with MUI, shows how to polish the user interface using the React MUI component library.
Chapter 15, Testing Your Frontend, explains the basics of React frontend testing.
Chapter 16, Securing Your Application, explains how to secure the frontend using JWTs.
Chapter 17, Deploying Your Application, demonstrates how to deploy an application with AWS and Netlify, and how to use Docker containers.
To get the most out of this book
You will need Spring Boot version 3.x in this book. All code examples are tested using Spring Boot 3.1 and React 18 on Windows. When installing any React libraries, you should check the latest installation command from their documentation and see whether there are any major changes related to the version used in this book.
The technical requirements for each chapter are stated at the start of the chapter.
We also provide a PDF file that has color images of the screenshots and diagrams used in this book. You can download it here: https://packt.link/gbp/9781805122463
Conventions used
There are a number of text conventions used throughout this book.
Code in text: Indicates code words in text, database table names, folder names, filenames, file extensions, pathnames, dummy URLs, user input, and Twitter handles. Here is an example: “Import Button into the AddCar.js file.”
Any command-line input or output is written as follows:
npm install component_name
Bold: Indicates a new term, an important word, or words that you see onscreen. For instance, words in menus or dialog boxes appear in bold. Here is an example: “You can select the Run menu and press Run as | Java Application.”
IMPORTANT NOTES
Appear like this.
TIPS
Appear like this.
Get in touch
Feedback from our readers is always welcome.
General feedback: If you have questions about any aspect of this book, email us at customercare@packtpub.com and mention the book title in the subject of your message.
Errata: Although we have taken every care to ensure the accuracy of our content, mistakes do happen. If you have found a mistake in this book, we would be grateful if you would report this to us. Please visit www.packtpub.com/support/errata and fill in the form.
Piracy: If you come across any illegal copies of our works in any form on the internet, we would be grateful if you would provide us with the location address or website name. Please contact us at copyright@packt.com with a link to the material.
If you are interested in becoming an author: If there is a topic that you have expertise in and you are interested in either writing or contributing to a book, please visit authors.packtpub.com.
Share your thoughts
Once you’ve read Full Stack Development with Spring Boot 3 and React, Fourth Edition, we’d love to hear your thoughts! Please click here to go straight to the Amazon review page for this book and share your feedback.
Your review is important to us and the tech community and will help us make sure we’re delivering excellent quality content.
Download a free PDF copy of this book
Thanks for purchasing this book!
Do you like to read on the go but are unable to carry your print books everywhere?
Is your eBook purchase not compatible with the device of your choice?
Don’t worry, now with every Packt book you get a DRM-free PDF version of that book at no cost.
Read anywhere, any place, on any device. Search, copy, and paste code from your favorite technical books directly into your application.
The perks don’t stop there, you can get exclusive access to discounts, newsletters, and great free content in your inbox daily
That’s it! We’ll send your free PDF and other benefits to your email directly
Part I
Backend Programming with Spring Boot
1
Setting Up the Environment and Tools – Backend
In this book, we will learn about full stack development using Spring Boot in the backend and React in the frontend. The first part of this book focuses on backend development. The second part of this book focuses on frontend programming with React. In the third part, we will implement the frontend.
In this chapter, we will set up the environment and tools needed for backend programming with Spring Boot. Spring Boot is a modern Java-based backend framework that makes development faster than traditional Java-based frameworks. With Spring Boot, you can make a standalone web application that has an embedded application server.
There are a lot of different integrated development environment (IDE) tools that you can use to develop Spring Boot applications. In this chapter, we will install Eclipse, which is an open-source IDE for multiple programming languages. We will create our first Spring Boot project by using the Spring Initializr project starter page. Reading the console logs is a crucial skill when developing Spring Boot applications, which we will also cover.
In this chapter, we will look into the following topics:
Installing Eclipse
Understanding Gradle
Using Spring Initializr
Installing MariaDB
Technical requirements
The Java software development kit (JDK), version 17 or higher, is necessary to use with Eclipse and Spring Boot 3. In this book, we are using the Windows operating system, but all tools are available for Linux and macOS as well. You can get the JDK installation package from Oracle (https://www.oracle.com/java/technologies/downloads/) or you can use OpenJDK versions as well. You can check the version of the installed Java SDK by typing the java –version command in your terminal.
Eclipse is an open-source programming IDE developed by the Eclipse Foundation. An installation package or installer can be downloaded from https://www.eclipse.org/downloads. Eclipse is available for Windows, Linux, and macOS. You can also use other IDE tools like IntelliJ or VS Code if you are familiar with them.
You can either download a ZIP package of Eclipse or an installer package that executes the installation wizard. In the installer, you should select Eclipse IDE for Enterprise Java and Web Developers, as shown in the following screenshot:

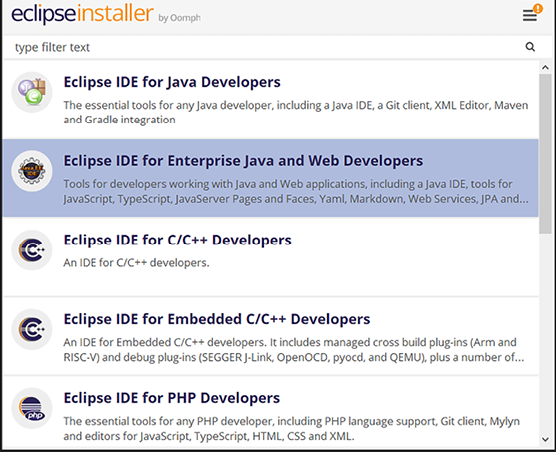

Figure 1.1: Eclipse installer
If using the ZIP package, you have to extract the package to your local disk, and it will contain an executable eclipse.exe file, which you can run by double-clicking on the file. You should download the Eclipse IDE for Enterprise Java and Web Developers package.
Eclipse is an IDE for multiple programming languages, such as Java, C++, and Python. Eclipse contains different perspectives for your needs, which are a set of views and editors in the Eclipse workbench. The following screenshot shows common perspectives for Java development:
Figure 1.2: Eclipse workbench
On the left-hand side, we have the Project Explorer, where we can see our project structure and resources. The Project Explorer is also used to open files by double-clicking on them. The files will be opened in the editor, which is in the middle of the workbench. The Console view can be found in the lower section of the workbench. This view is really important because it shows application logging messages.
IMPORTANT NOTE
You can get Spring Tool Suite (STS) for Eclipse if you want, but we are not going to use it in this book because the plain Eclipse installation is enough for our purposes. STS is a set of plugins that makes Spring application development simple, and you can find more information about it here: https://spring.io/tools.
Now that we have installed Eclipse, let’s take a quick look at what Gradle is and how it helps us.
Understanding Gradle
Gradle is a build automation tool that makes the software development process simpler and also unifies the development process. It manages our project dependencies and handles the build process.
IMPORTANT NOTE
You can also use another project management tool called Maven with Spring Boot, but we will focus on using Gradle in this book because it’s faster and more flexible than Maven.
We don’t need to perform any installations to use Gradle in our Spring Boot project since we are utilizing the Gradle wrapper within our project.
The Gradle configuration is done in the project’s build.gradle file. The file can be customized to fit the specific needs of the project and can be used to automate tasks such as building, testing, and deploying the software. The build.gradle file is an important part of the Gradle build system and is used to configure and manage the build process for a software project. The build.gradle file typically includes information about the project’s dependencies, like external libraries and frameworks that are needed for the project to compile. You can use either the Kotlin or Groovy programming languages to write build.gradle files. In this book, we are using Groovy. The following is one example of a Spring Boot project’s build.gradle file:
plugins {
id 'java'
id 'org.springframework.boot' version '3.1.0'
id 'io.spring.dependency-management' version '1.1.0'
}
group = 'com.packt'
version = '0.0.1-SNAPSHOT'sourceCompatibility = '17'repositories {
mavenCentral()
}
dependencies {
implementation 'org.springframework.boot:spring-boot-starter-web'
developmentOnly 'org.springframework.boot:spring-boot-devtools'
testImplementation 'org.springframework.boot:spring-boot-starter- test'
}
tasks.named('test') {
useJUnitPlatform()
}
The build.gradle file typically contains the following parts:
Plugins: The plugins block defines the Gradle plugins that are used in the project. In this block, we can define the version of Spring Boot.
Repositories: The repositories block defines the dependency repositories that are used to resolve dependencies. We are using the Maven Central repository, from which Gradle pulls the dependencies.
Dependencies: The dependencies block specifies the dependencies that are used in the project.
Tasks: The tasks block defines the tasks that are part of the build process, such as testing.

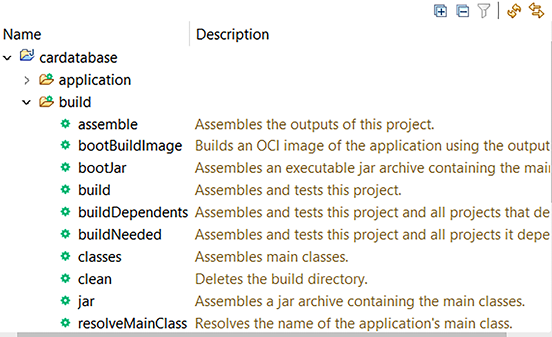

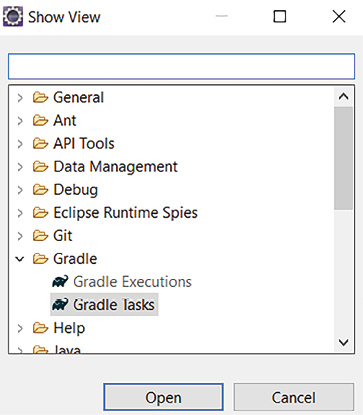

Gradle is often used from the command line, but we are using the Gradle wrapper and Eclipse, which handles all the Gradle operations we need. The wrapper is a script that invokes a declared version of Gradle, and it standardizes your project to a given Gradle version. Therefore, we are not focusing on Gradle command-line usage here. The most important thing is to understand the structure of the build.gradle file and how to add new dependencies to it. We will learn how to add dependencies using Spring Initializr in the next section. Later in this book, we will also add new dependencies manually to the build.gradle file.
In the next section, we will create our first Spring Boot project and see how we can run it using the Eclipse IDE.
Using Spring Initializr
We will create our backend project using SpringInitializr, a web-based tool that’s used to create Spring Boot projects. Then, we will learn how to run our Spring Boot project using the Eclipse IDE. At the end of this section, we will also look at how you can use Spring Boot logging.
Creating a project
To create our project using Spring Initalizr, complete the following steps:
Open Spring Initializr by navigating to https://start.spring.io using your web browser. You should see the following page:

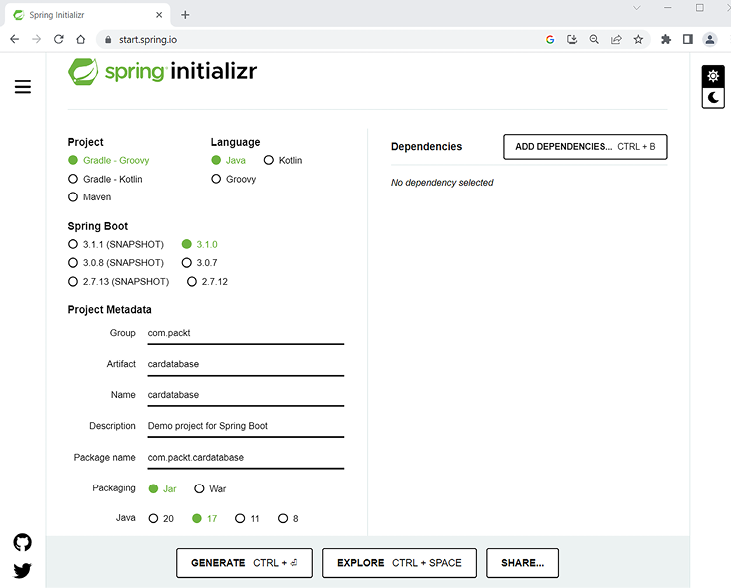

Figure 1.3: Spring Initializr
We will generate a Gradle - Groovy project with Java and the latest stable Spring Boot 3.1.x version. If you are using a newer major or minor version, you should check the release notes about what’s changed. In the Group field, we will define our group ID (com.packt), which will also become a base package in our Java project. In the Artifact field, we will define an artifact ID (cardatabase), which will also be the name of our project in Eclipse.
IMPORTANT NOTE
Select the correct Java version in Spring Initializr. In this book, we are using Java version 17. In Spring Boot 3, the Java baseline is Java 17.
By clicking the ADD DEPENDENCIES… button, we will select the starters and dependencies that are needed in our project. Spring Boot provides starter packages that simplify your Gradle configuration. Spring Boot starters are actually a set of dependencies that you can include in your project. We will start our project by selecting two dependencies: Spring Web and Spring Boot DevTools. You can type the dependencies into the search field or select from a list that appears, as illustrated in the following screenshot:

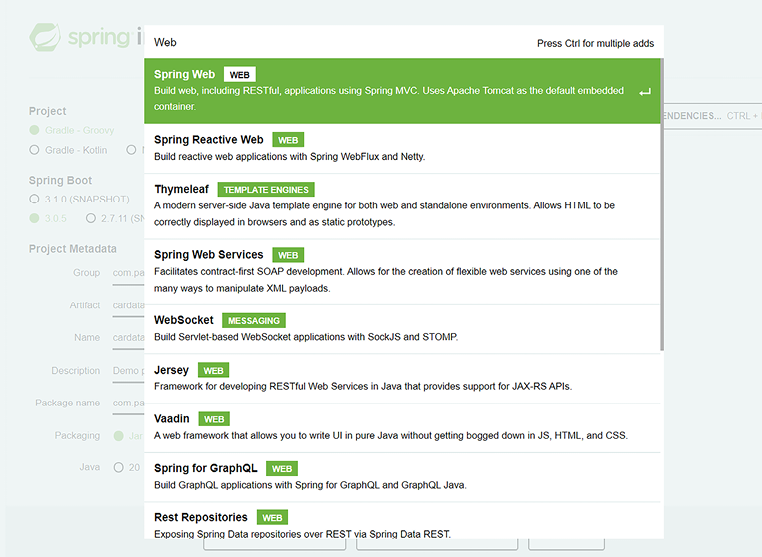

Figure 1.4: Adding dependencies
The Spring Boot DevTools dependency gives us the Spring Boot developer tools, which provide an automatic restart functionality. This makes development much faster because the application is automatically restarted when changes have been saved.
The Spring Web starter pack is a base for full stack development and provides an embedded Tomcat server. After you have added dependencies, your Dependencies section in Spring Initializr should look like this:
Figure 1.5: Spring Initializr dependencies
Finally, click on the GENERATE button, which generates a project starter ZIP package for us.
Next, we will learn how to run our project using the Eclipse IDE.
Running the project
Perform the following steps to run the Gradle project in the Eclipse IDE:
Extract the project ZIP package that we created in the previous section and open Eclipse.
We are going to import our project into the Eclipse IDE. To start the import process, select the File | Import menu and the import wizard will be opened. The following screenshot shows the first page of the wizard:
Figure 1.6: Import wizard (step 1)
In the first phase, you should select Existing Gradle Project from the list under the Gradle folder, and then click the Next > button. The following screenshot shows the second step of the import wizard:

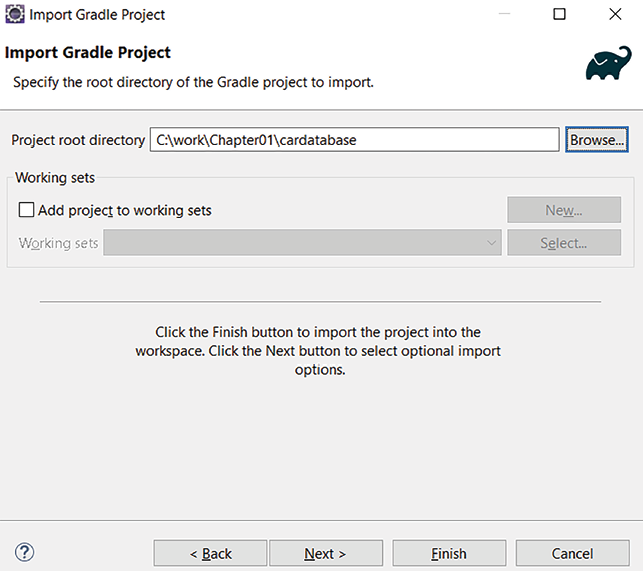

Figure 1.7: Import wizard (step 2)
In this phase, click the Browse... button and select the extracted project folder.
Click the Finish button to finalize the import. If everything ran correctly, you should see the cardatabase project in the Eclipse IDE Project Explorer. It takes a while before the project is ready because all the dependencies will be downloaded by Gradle after importing them. You can see the progress of the dependency download in the bottom-right corner of Eclipse. The following screenshot shows the Eclipse IDE Project Explorer after a successful import:

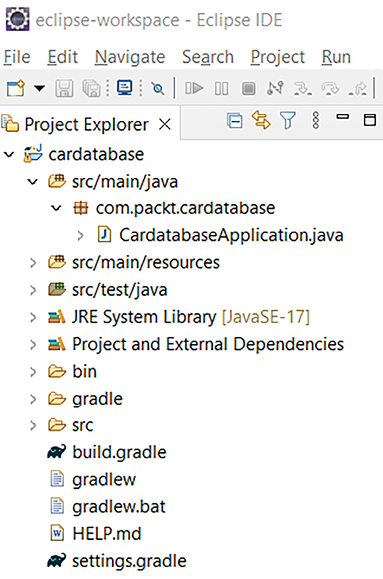

Figure 1.8: Project Explorer
The Project Explorer also shows the package structure of our project. In the beginning, there is only one package called com.packt.cardatabase. Under that package is our main application class, called CardatabaseApplication.java.
Now, we don’t have any functionality in our application, but we can run it and see whether everything has started successfully. To run the project, open the main class by double-clicking on it, as shown in the following screenshot, and then click the Run button (the play icon) in the Eclipse toolbar. Alternatively, you can select the Run menu and click Run as | Java Application:

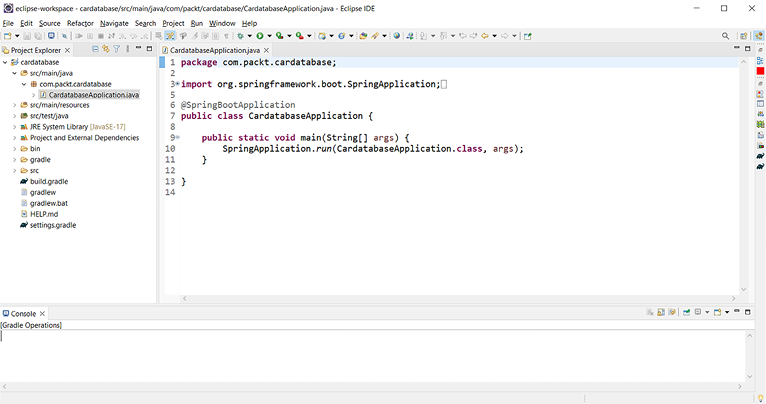

Figure 1.9: The Cardatabase project
You can see the Console view open in Eclipse, which contains important information about the execution of the project. As we discussed before, this is the view where all log text and error messages appear, so it is really important to check the content of the view when something goes wrong.
If the project was executed correctly, you should see the started CardatabaseApplication class in the text at the end of the console. The following screenshot shows the content of the Eclipse console after our Spring Boot project has been started:

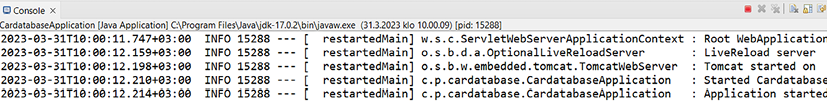

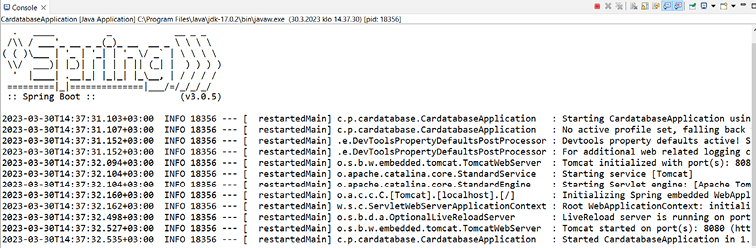

Figure 1.10: Eclipse console
You can also run your Spring Boot Gradle project from the command prompt or terminal using the following command (in your project folder):
gradlew bootRun
In the root of our project, there is the build.gradle file, which is the Gradle configuration file for our project. If you look at the dependencies inside the file, you can see that there are now dependencies that we selected on the Spring Initializr page. There is also a test dependency included automatically, as illustrated in the following code snippet:
In the following chapters, we are going to add more functionality to our application, and then we will add more dependencies manually to the build.gradle file.
Let’s look at the Spring Boot main class more carefully:
At the beginning of the class, there is the @SpringBootApplication annotation, which is actually a combination of multiple annotations:
Annotation
Description
@EnableAutoConfiguration
This enables Spring Boot’s automatic configuration, so your project will automatically be configured based on dependencies. For example, if you have the spring-boot-starter-web dependency, Spring Boot assumes that you are developing a web application and configures your application accordingly.
@ComponentScan
This enables the Spring Boot component scan to find all the components of your application.
@Configuration
This defines a class that can be used as a source of bean definitions.
Table 1.1: SpringBootApplication annotations
The execution of the application starts from the main() method, as in standard Java applications.
IMPORTANT NOTE
It is recommended that you locate the main application class in the root package above other classes. All packages under the package containing the application class will be covered by Spring Boot’s component scan. A common reason for an application not working correctly is due to Spring Boot being unable to find critical classes.
Spring Boot development tools
Spring Boot development tools make the application development process simpler. The most important feature of the development tools is automatic restart whenever files on the classpath are modified. Projects will include the developer tools if the following dependency is added to the Gradle build.gradle file:
Development tools are disabled when you create a fully packaged production version of your application. You can test automatic restart by adding one comment line to your main class, as follows:
package com.packt.cardatabase;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplicationpublicclassCardatabaseApplication {
publicstaticvoidmain(String[] args) {
// After adding this comment the application is restarted
SpringApplication.run(CardatabaseApplication.class, args);
}
}
After saving the file, you can see in the console that the application has restarted.
Logs and problem-solving
Logging can be used to monitor your application flow, and it is a good way to capture unexpected errors in your program code. The Spring Boot starter package provides the Logback, which we can use for logging without any configuration. The following sample code shows how you can use logging. The Logback uses Simple Logging Façade for Java (SLF4J) as its native interface:
The logger.info method prints a log message to the console. Log messages can be seen in the console after you run a project, as shown in the following screenshot:
Figure 1.11: Log message
There are seven different levels of logging: TRACE, DEBUG, INFO, WARN, ERROR, FATAL, and OFF. You can configure the level of logging in your Spring Boot application.properties file. The file can be found in the /resources folder inside your project, as illustrated in the following screenshot:
Figure 1.12: Application properties file
If we set the logging level to DEBUG, we can see log messages from levels that are log level DEBUG or higher (that is DEBUG, INFO, WARN, and ERROR). In the following example, we set the log level for the root, but you can also set it at the package level:
logging.level.root=DEBUG
Now, when you run the project, you can no longer see TRACE messages. The TRACE level contains all application behavior details, which is not needed unless you need full visibility of what is happening in your application. It might be a good setting for a development version of your application. The default logging level is INFO if you don’t define anything else.
There is one common failure that you might encounter when running a Spring Boot application. Spring Boot uses Apache Tomcat (http://tomcat.apache.org/) as an application server by default, which runs on port 8080 by default. You can change the port in the application.properties file. The following setting will start Tomcat on port 8081:
server.port=8081
If the port is occupied, the application won’t start, and you will see the following APPLICATION FAILED TO START message in the console:

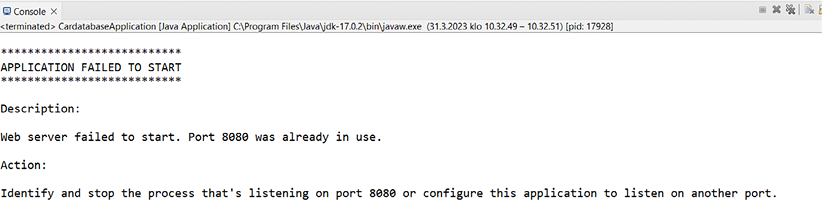

Figure 1.13: Port already in use
If this happens, you will have to stop the process that is listening on port 8080 or use another port in your Spring Boot application. You can avoid this by clicking the Terminate button (red square) in the Eclipse console before running the application.
In the next section, we will install a MariaDB database to use as a database in our backend.
Installing MariaDB
In Chapter 3, Using JPA to Create and Access a Database, we are going to use MariaDB, so you will need to install it locally on your computer. MariaDB is a widely used open-source relational database. MariaDB is available for Windows, Linux, and macOS, and you can download the latest stable community server at https://mariadb.com/downloads/community/. MariaDB is developed under a GNUGeneral Public License, version 2 (GPLv2) license.
The following steps guide you to install MariaDB:
For Windows, there is the Microsoft Installer (MSI), which we will use here. Download the installer and execute it. Install all features from the installation wizard, as illustrated in the following screenshot:
Figure 1.14: MariaDB installation (step 1)

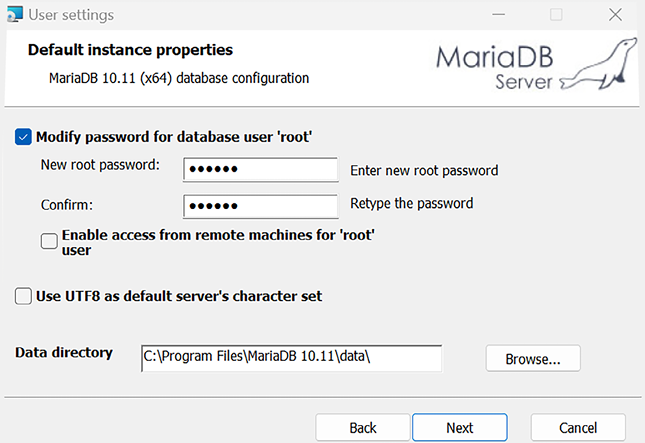

In the next step, you should give a password for the root user. This password is needed in the next chapter when we connect our application to the database. The process is illustrated in the following screenshot:
Figure 1.15: MariaDB installation (step 2)

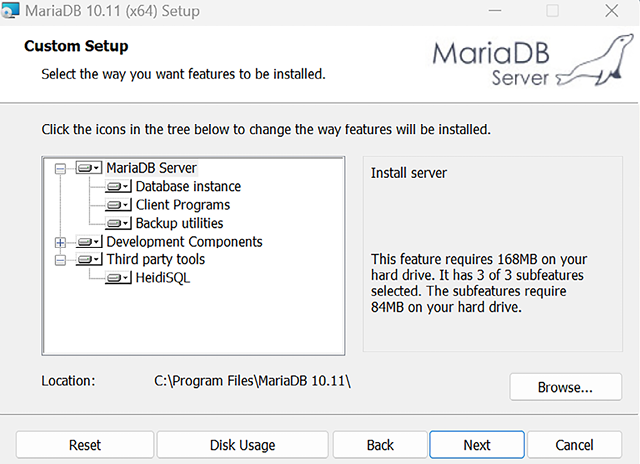

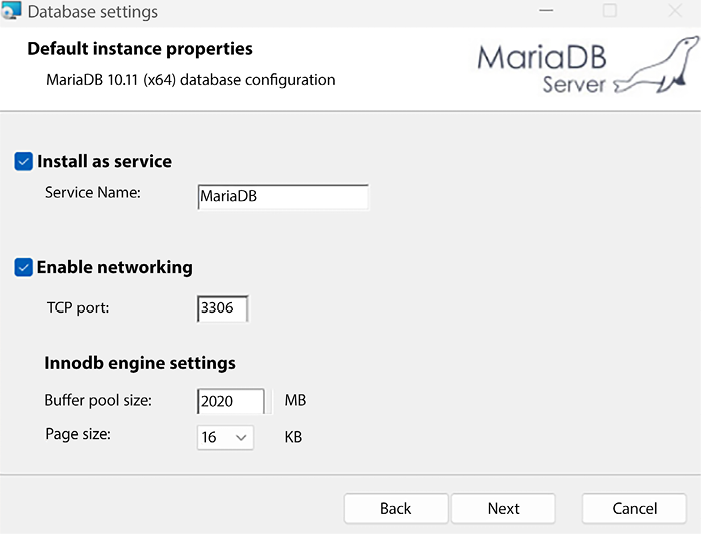

In the next phase, we can use the default settings, as illustrated in the following screenshot:
Figure 1.16: MariaDB installation (step 3)
Now, the installation will start, and MariaDB will be installed on your local computer. The installation wizard will install HeidiSQL for us. This is an easy-to-use, graphical database client. We will use this to add a new database and make queries to our database. You can also use the Command Prompt included in the installation package.

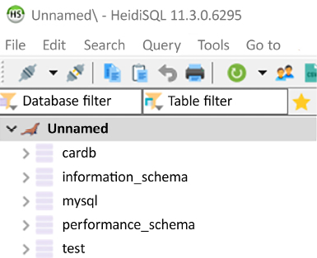

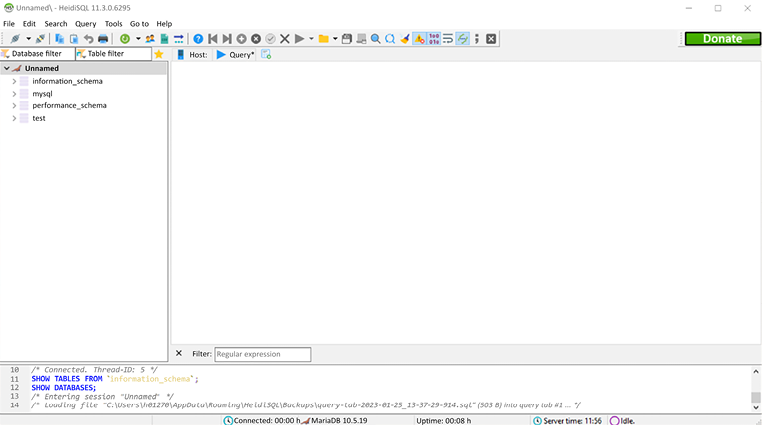

Open HeidiSQL and log in using the password that you gave in the installation phase. You should then see the following screen:
Figure 1.17: HeidiSQL
IMPORTANT NOTE
HeidiSQL is only available for Windows. If you are using Linux or macOS, you can use DBeaver (https://dbeaver.io/) instead.
We now have everything needed to start the implementation of the backend.
Summary
In this chapter, we installed the tools that are needed for backend development with Spring Boot. For Java development, we set up Eclipse, a widely used programming IDE. We created a new Spring Boot project using the Spring Initializr page. After creating the project, it was imported to Eclipse and executed. We also covered how to solve common problems with Spring Boot and how to find important error and log messages. Finally, we installed a MariaDB database, which we are going to use in the following chapters.
In the next chapter, we will understand what dependency injection (DI) is and how it can be used with the Spring Boot framework.
Questions
What is Spring Boot?
What is the Eclipse IDE?
What is Gradle?
How do we create a Spring Boot project?
How do we run a Spring Boot project?
How do we use logging with Spring Boot?
How do we find error and log messages in Eclipse?
Further reading
Packt has other resources for learning about Spring Boot, as listed here:
To join the Discord community for this book – where you can share feedback, ask the author questions, and learn about new releases – follow the QR code below:
In this chapter, we will learn what dependency injection (DI) is and how we can use it with the Spring Boot framework. The Spring Boot framework provides DI; therefore, it is good to understand the basics. DI allows for loose coupling between components, making your code more flexible, maintainable, and testable.
Dependency injection is a software development technique whereby we can create objects that depend on other objects. DI helps with interaction between classes, but at the same time keeps the classes independent.
There are three types of classes in DI:
A service is a class that can be used (this is the dependency).
The client is a class that uses the dependency.
The injector passes the dependency (the service) to the dependent class (the client).
The three types of classes in DI are shown in the following diagram:
Figure 2.1: DI classes
DI makes classes loosely coupled. This means that the creation of client dependencies is separated from the client’s behavior, which makes unit testing easier.
Let’s take a look at a simplified example of DI using Java code. In the following code, we don’t have DI, because the Car client class is creating an object of the service class:
The service class can also be an abstract class; we can then use any implementation of that in our client class and use mocks when testing.
There are different types of dependency injection; let’s take a look at two of them here:
Constructor injection: Dependencies are passed to a client class constructor. An example of constructor injection was already shown in the preceding Car code. Constructor injection is recommended to use for mandatory dependencies. All dependencies are provided using the class constructor and an object cannot be created without its required dependencies.
Setter injection: Dependencies are provided through setters. The following code shows an example of setter injection:
Here, the dependency is now passed in the setter as an argument. Setter injection is more flexible because objects can be created without all their dependencies. This approach allows for optional dependencies.
The DI reduces dependencies in your code and makes your code more reusable. It also improves the testability of your code. We have now learned the basics of DI. Next, we will look at how DI is used in Spring Boot.
Using dependency injection in Spring Boot
In the Spring Framework, dependency injection is achieved through the Spring ApplicationContext. ApplicationContext is responsible for creating and managing objects – beans – and their dependencies.
Spring Boot scans your application classes and registers classes with certain annotations (@Service, @Repository, @Controller, and so on) as Spring beans. These beans can then be injected using dependency injection.
Spring Boot supports several dependency injection mechanisms, and the most common ones are:
Constructor injection: Dependencies are injected through a constructor. This is the most recommended way because it ensures that all required dependencies are available when the object is created. A fairly common situation is when we need database access for some operations. In Spring Boot, we use repository classes for that. In this situation, we can inject the repository class using constructor injection and start using its methods, as shown in the code example below:
// Constructor injectionpublicclassCar {
privatefinal CarRepository carRepository;
publicCar(CarRepository carRepository) {
this.carRepository = carRepository;
}
// Fetch all cars from db
carRepository.findAll();
}
If you have multiple constructors in your class, you have to use the @Autowired annotation to define which constructor is used for dependency injection:
// Constructor to used for dependency injection@AutowiredpublicCar(CarRepository carRepository) {
this.carRepository = carRepository;
}
Setter injection: Dependencies are injected through setter methods. Setter injection is useful if you have optional dependencies or if you want to modify dependencies at runtime. Below is an example of setter injection:
// Setter injection@ServicepublicclassAppUserService {
private AppUserRepository userRepository;
@AutowiredpublicvoidsetAppUserRepository( AppUserRepository userRepository) {
this.userRepository = userRepository;
}
// Other methods that use userRepository
}
Field injection: Dependencies are injected directly into fields. The benefit of field injection is its simplicity, but it has some drawbacks. It can cause runtime errors if the dependency is not available. It is also harder to test your class because you can’t mock the dependencies for testing. Here is an example:
// Field injection@ServicepublicclassCarDatabaseServiceimplementsCarService {
// Car database services
}
publicclassCarController {
@Autowiredprivate CarDatabaseService carDatabaseService;
//...
}
You can read more about Spring Boot injection in the Spring documentation: https://spring.io/guides.
Summary
In this chapter, we learned what dependency injection is and how to use it in the Spring Boot framework, which we are using in our backend.
In the next chapter, we will look at how we can use the Java Persistent API (JPA) with Spring Boot and how to set up a MariaDB database. We will also learn about the creation of CRUD repositories and the one-to-many connection between database tables.
Questions
What is dependency injection?
How does the @Autowired annotation work in Spring Boot?
How do you inject resources in Spring Boot?
Further reading
Packt has some video resources for learning about Spring Boot:
To join the Discord community for this book – where you can share feedback, ask the author questions, and learn about new releases – follow the QR code below:
This chapter covers how to use Jakarta Persistence API (JPA) with Spring Boot and how to define a database by using entity classes. In the first phase, we will be using the H2 database. H2 is an in-memory SQL database that is good for fast development or demonstration purposes. In the second phase, we will move from H2 to MariaDB. This chapter also describes the creation of CRUD repositories and a one-to-many connection between database tables.
In this chapter, we will cover the following topics:
Basics of ORM, JPA, and Hibernate
Creating the entity classes
Creating CRUD repositories
Adding relationships between tables
Setting up the MariaDB database
Technical requirements
The Spring Boot application we created in previous chapters is required.
A MariaDB installation is necessary to create the database application: https://downloads.mariadb.org/. We went through the installation steps in Chapter 1.
ORM and JPA are widely used techniques in software development for handling relational databases. You don’t have to write complex SQL queries; instead, you can work with objects, which is more natural for Java developers. In this way, ORM and JPA can speed up your development process by reducing the time you spend writing and debugging SQL code. Many JPA implementations can also generate a database schema automatically based on your Java entity classes. In brief:
Object-Relational Mapping (ORM) is a technique that allows you to fetch from and manipulate a database by using an object-oriented programming paradigm. ORM is really good for programmers because it relies on object-oriented concepts rather than database structures. It also makes development much faster and reduces the amount of source code. ORM is mostly independent of databases, and developers don’t have to worry about vendor-specific SQL statements.
Jakarta Persistence API (JPA, formerly Java Persistence API) provides object-relational mapping for Java developers. The JPA entity is a Java class that represents the structure of a database table. The fields of an entity class represent the columns of the database tables.
Hibernate is the most popular Java-based JPA implementation and is used in Spring Boot by default. Hibernate is a mature product and is widely used in large-scale applications.
Next, we will start to implement our first entity class using the H2 database.
Creating the entity classes
An entity class is a simple Java class that is annotated with JPA’s @Entity annotation. Entity classes use the standard JavaBean naming convention and have proper getter and setter methods. The class fields have private visibility.
JPA creates a database table with the same name as the class when the application is initialized. If you want to use some other name for the database table, you can use the @Table annotation in your entity class.
At the beginning of this chapter, we will use the H2 database (https://www.h2database.com/), which is an embedded in-memory database. To be able to use JPA and the H2 database, we have to add the following dependencies to the build.gradle file:

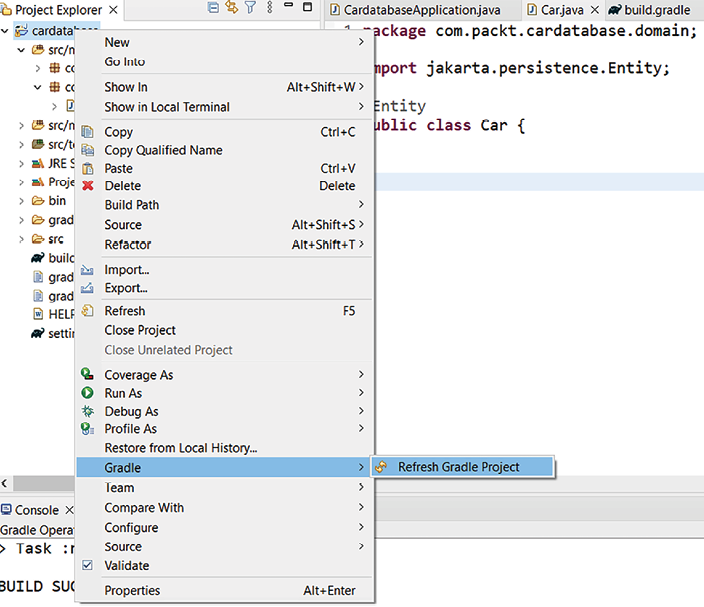

After you have updated the build.gradle file, you should update your dependencies by selecting the project in Eclipse’s Project Explorer and right-clicking to open the context menu. Then, select Gradle | Refresh Gradle Project, as shown in the next screenshot:
Figure 3.1: Refresh Gradle Project

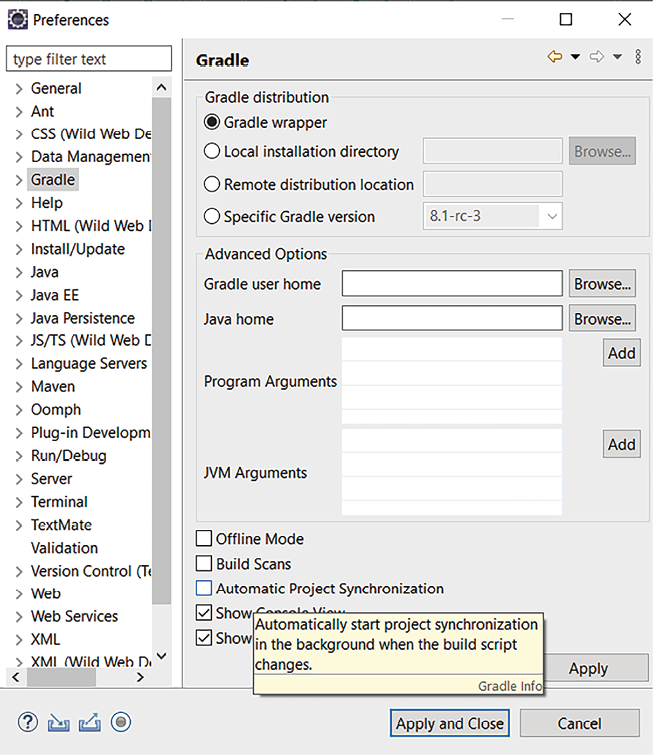

You can also enable automatic project refresh by opening the Window | Preferences menu. Go to the Gradle settings and there is an Automatic Project Synchronization checkbox that you can check. Then, your project will be synchronized automatically if you make changes to your build script file. This is recommended and means you don’t have to manually refresh the project when you update your build script:
Figure 3.2: Gradle wrapper settings
You can find the project dependencies from the Project and External Dependencies folder in the Eclipse Project Explorer. Now, you should find spring-boot-starter-data-jpa and h2 dependencies there:
Figure 3.3: Project dependencies
Let’s look at the following steps to create entity classes:
To create an entity class in Spring Boot, we must create a package for entities. The package should be created under the root package. To begin this process, activate the root package in Eclipse’s Project Explorer and right-click to make a context menu appear.

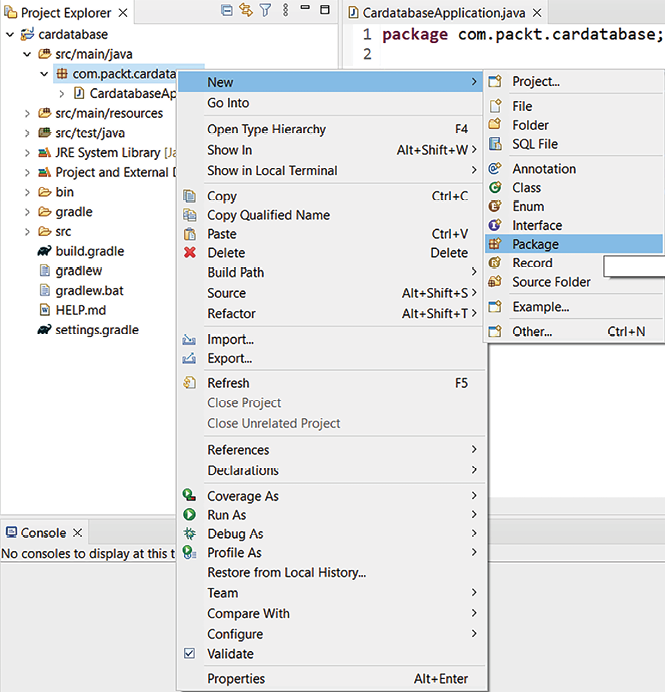

From this menu, select New | Package. The following screenshot shows how to create a package for entity classes:
Figure 3.4: New package

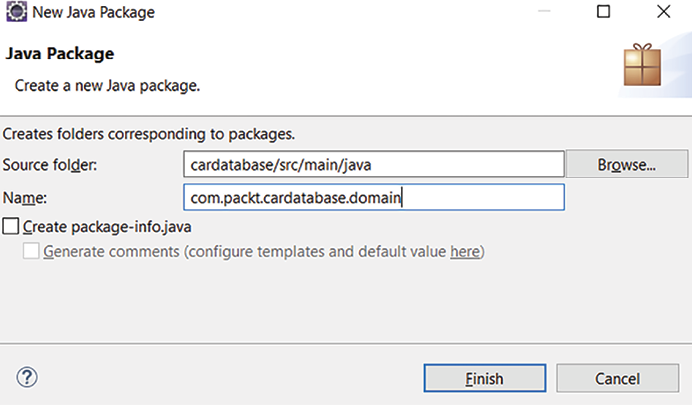

We will name our package com.packt.cardatabase.domain:
Figure 3.5: New Java package

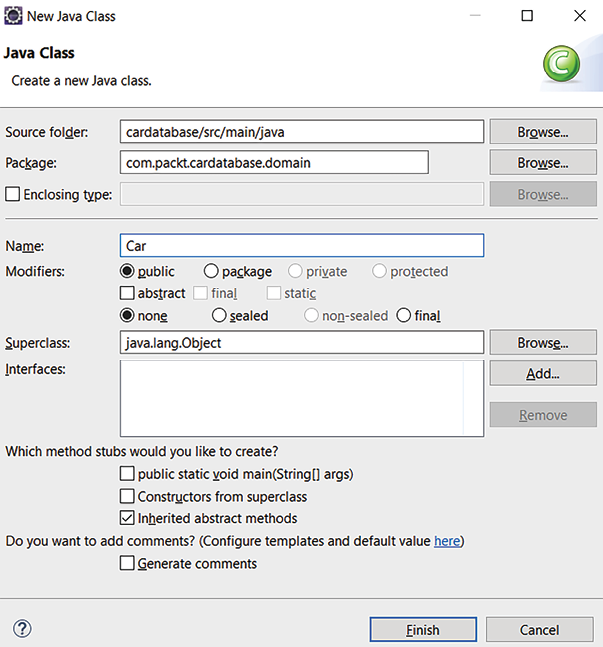

Next, we will create our entity class. Activate the new com.packt.cardatabase.domain package, right-click it, and select New | Class from the menu.
Because we are going to create a car database, the name of the entity class will be Car. Type Car into the Name field and then press the Finish button, as shown in the following screenshot:
Figure 3.6: New Java class
Open the Car class file in the editor by double-clicking it in the Project Explorer. First, we must annotate the class with the @Entity annotation. The @Entity annotation is imported from the jakarta.persistence package:
You can use the Ctrl + Shift + O shortcut in the Eclipse IDE to import missing packages automatically. In some cases, there might be multiple packages that contain the same identifier, so you have to be careful to select the correct import. For example, in the next step, Id can be found in multiple packages, but you should select jakarta.persistence.Id.
Next, we must add some fields to our class. The entity class fields are mapped to database table columns. The entity class must also contain a unique ID that is used as a primary key in the database:
The primary key is defined by using the @Id annotation. The @GeneratedValue annotation defines that the ID is automatically generated by the database. We can also define our key generation strategy; the AUTO type means that the JPA provider selects the best strategy for a particular database and it is also the default generation type. You can create a composite primary key by annotating multiple attributes with the @Id annotation.
The database columns are named according to class field naming conventions by default. If you want to use some other naming convention, you can use the @Column annotation. With the @Column annotation, you can define the column’s length and whether the column is nullable. The following code shows an example of using the @Column annotation. With this definition, the column’s name in the database is explanation, the length of the column is 512, and it is not nullable:
Finally, we must add getters, setters, a default constructor, and constructors with attributes to the entity class. We don’t need an ID field in our constructor due to automatic ID generation. The source code of the Car entity class constructors is as follows:
Eclipse provides the automatic addition of getters, setters, and constructors. Activate your cursor in the place where you want to add the code and right-click. From the menu, select Source | Generate Getters and Setters... or Source | Generate Constructor using Fields....
The following is the source code for the Car entity class’s getters and setters:
public Long getId() {
return id;
}
public String getBrand() {
return brand;
}
publicvoidsetBrand(String brand) {
this.brand = brand;
}
public String getModel() {
return model;
}
publicvoidsetModel(String model) {
this.model = model;
}
// Rest of the setters and getters. See the whole source code from GitHub
We also have to add new properties to the application.properties file. This allows us to log the SQL statements to the console. We also have to define the data source URL. Open the application.properties file and add the following two lines to the file:
When you are editing the application.properties file, you have to make sure that there are no extra spaces at the end of the lines. Otherwise, the settings won’t work. This might happen when you copy/paste settings.

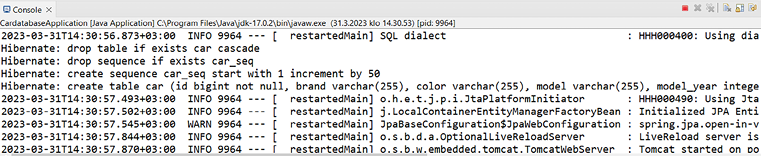

Now, the car table will be created in the database when we run the application. At this point, we can see the table creation statements in the console:
Figure 3.7: Car table SQL statements
If spring.datasource.url is not defined in the application.properties file, Spring Boot creates a random data source URL that can be seen in the console when you run the application; for example, H2 console available at '/h2-console'. Database available at 'jdbc:h2:mem:b92ad05e-8af4-4c33-b22d-ccbf9ffe491e'.
The H2 database provides a web-based console that can be used to explore a database and execute SQL statements. To enable the console, we have to add the following lines to the application.properties file. The first setting enables the H2 console, while the second defines its path:

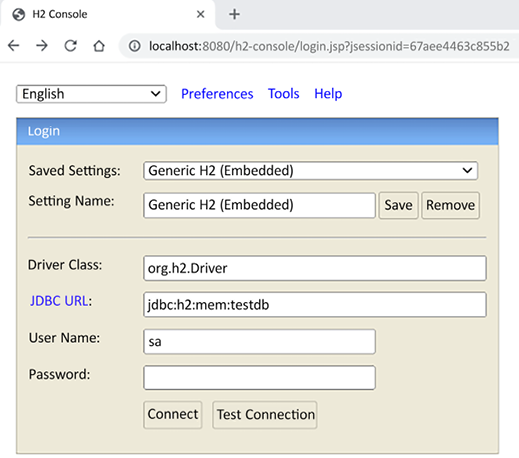

You can access the H2 console by starting your application and navigating to localhost:8080/h2-console using your web browser. Use jdbc:h2:mem:testdb as the JDBC URL and leave the Password field empty in the Login window. Press the Connect button to log in to the console, as shown in the following screenshot:
Figure 3.8: H2 console login
You can also change the H2 database username and password by using the following settings in the application.properties file: spring.datasource.username and spring.datasource.password.
Now, you can see our CAR table in the database. You may notice that the registration number and model year have an underscore between the words. The reason for the underscore is the camel case naming of the attribute (registrationNumber):
Figure 3.9: H2 console
Now, we have created our first entity class and learned how JPA generates a database table from the entity class. Next, we will create a repository class that provides CRUD operations.
Creating CRUD repositories
The Spring Boot Data JPA provides a CrudRepository interface for Create, Read, Update, and Delete (CRUD) operations. It provides CRUD functionalities to our entity class.
Let’s create our repository in the domain package, as follows:
Create a new interface called CarRepository in the com.packt.cardatabase.domain package and modify the file according to the following code snippet:
CarRepository now extends the Spring Boot JPA CrudRepository interface. The <Car, Long> type arguments define that this is the repository for the Car entity class and that the type of the ID field is Long.
The CrudRepository interface provides multiple CRUD methods that we can now start to use. The following table lists the most commonly used methods:
Method
Description
long count()
Returns the number of entities
Iterable<T> findAll()
Returns all items of a given type
Optional<T> findById(ID Id)
Returns one item by ID
void delete(T entity)
Deletes an entity
void deleteAll()
Deletes all the entities in the repository
<S extends T> save(S entity)
Saves an entity
List<S> saveAll(Iterable<S> entities)
Saves multiple entities
Table 3.1: CRUD methods
If the method returns only one item, Optional<T> is returned instead of T. The Optional class was introduced in Java 8 SE and is a type of single-value container that either contains a value or doesn’t. If there is a value, the isPresent() method returns true and you can get it by using the get() method; otherwise, it returns false. By using Optional, we can prevent null pointer exceptions. Null pointers can lead to unexpected and often undesirable behavior in Java programs.

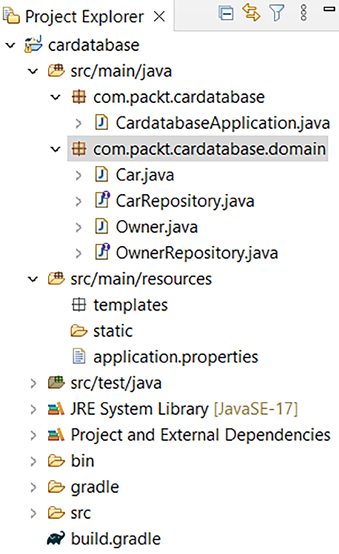

After adding the CarRepository class, your project structure should look as follows:
Figure 3.10: Project structure
Now, we are ready to add some demonstration data to our H2 database. For that, we will use the Spring Boot CommandLineRunner interface. The CommandLineRunner interface allows us to execute additional code before the application has fully started. Therefore, it is a good point to add demo data to your database. Your Spring Boot application’s main class implements the CommandLineRunner interface. Therefore, we should implement the run method, as shown in the following CardatabaseApplication.java code:
Next, we have to inject our car repository into the main class to be able to save new car objects to the database. We use constructor injection to inject CarRepository. We will also add a logger to our main class (the code for which we saw in Chapter 1):
Once we have injected the repository class, we can use the CRUD methods it provides in the run method. The following sample code shows how to insert a few cars into the database using the save method. We will also use the repository’s findAll() method to fetch all the cars from the database and print them to the console using the logger:
// CardataseApplication.java run method@Overridepublicvoidrun(String... args)throws Exception {
repository.save(newCar("Ford", "Mustang", "Red","ADF-1121", 2023, 59000));repository.save(newCar("Nissan", "Leaf", "White","SSJ-3002", 2020, 29000));repository.save(newCar("Toyota", "Prius","Silver", "KKO-0212", 2022, 39000));// Fetch all cars and log to consolefor (Car car : repository.findAll()) {logger.info("brand: {}, model:{}",car.getBrand(), car.getModel());}
}

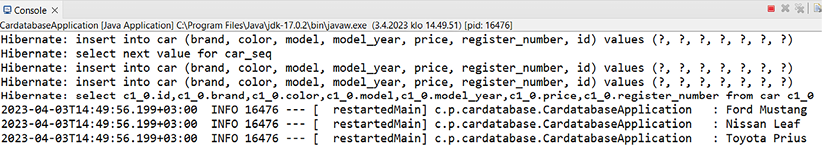

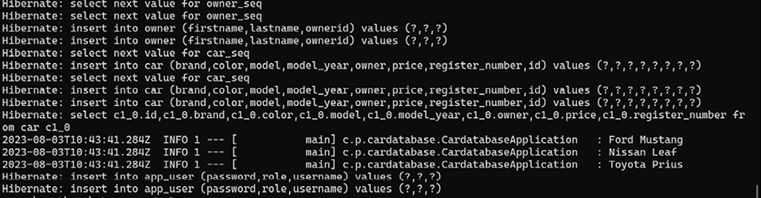

The insert statements and cars we logged can be seen in the Eclipse console once the application has been executed:
Figure 3.11: Insert statements
You can now use the H2 console to fetch cars from the database, as shown in the following screenshot:
Figure 3.12: H2 console: Select cars
You can define queries in the Spring Data repositories. A query must start with a prefix, for example, findBy. After the prefix, you must define the entity class fields that are used in the query. The following is some sample code for three simple queries:
package com.packt.cardatabase.domain;
import java.util.List;
import org.springframework.data.repository.CrudRepository;
publicinterfaceCarRepositoryextendsCrudRepository <Car, Long> {
// Fetch cars by brandList<Car> findByBrand(String brand);// Fetch cars by colorList<Car> findByColor(String color);// Fetch cars by model yearList<Car> findByModelYear(int modelYear);
}
There can be multiple fields after the By keyword, concatenated with the And and Or keywords:
package com.packt.cardatabase.domain;
import java.util.List;
import org.springframework.data.repository.CrudRepository;
publicinterfaceCarRepositoryextendsCrudRepository <Car, Long> {
// Fetch cars by brand and modelList<Car> findByBrandAndModel(String brand, String model);// Fetch cars by brand or colorList<Car> findByBrandOrColor(String brand, String color);
}
Queries can be sorted by using the OrderBy keyword in the query method:
package com.packt.cardatabase.domain;
import java.util.List;
import org.springframework.data.repository.CrudRepository;
publicinterfaceCarRepositoryextendsCrudRepository <Car, Long> {
// Fetch cars by brand and sort by yearList<Car> findByBrandOrderByModelYearAsc(String brand);
}
You can also create queries by using SQL statements via the @Query annotation. The following example shows the usage of a SQL query in CrudRepository:
package com.packt.cardatabase.domain;
import java.util.List;
import org.springframework.data.jpa.repository.Query;import org.springframework.data.repository.CrudRepository;
publicinterfaceCarRepositoryextendsCrudRepository <Car, Long> {
// Fetch cars by brand using SQL@Query("select c from Car c where c.brand = ?1")List<Car> findByBrand(String brand);
}
With the @Query annotation, you can use more advanced expressions, such as like. The following example shows the usage of the like query in CrudRepository:
package com.packt.cardatabase.domain;
import java.util.List;
import org.springframework.data.jpa.repository.Query;import org.springframework.data.repository.CrudRepository;
publicinterfaceCarRepositoryextendsCrudRepository <Car, Long> {
// Fetch cars by brand using SQL@Query("select c from Car c where c.brand like %?1")
List<Car> findByBrandEndsWith(String brand);
}
If you use the @Query annotation and write SQL queries in your code, your application might be less portable across different database systems.
Spring Data JPA also provides PagingAndSortingRepository, which extends CrudRepository. This offers methods to fetch entities using pagination and sorting. This is a good option if you are dealing with larger amounts of data because you don’t have to return everything from a large result set. You can also sort your data into some meaningful order. PagingAndSortingRepository can be created in a similar way to how we created CrudRepository:
In this case, you now have the two new additional methods that the repository provides:
Method
Description
Iterable<T> findAll(Sort sort)
Returns all entities sorted by the given options
Page<T> findAll(Pageable pageable)
Returns all entities according to the given paging options
Table 3.2: PagingAndSortingRepository methods
At this point, we have completed our first database table and we are ready to add relationships between the database tables.
Adding relationships between tables
We will create a new table called owner that has a one-to-many relationship with the car table. In this case, a one-to-many relationship means that the owner can own multiple cars, but a car can only have one owner.
The following Unified Modeling Language (UML) diagram shows the relationship between the tables:
Figure 3.13: One-to-many relationship
The following are the steps to create a new table:
First, we must create the Owner entity and repository classes in the com.packt.cardatabase.domain package. The Owner entity and repository are created in a similar way to the Car class.
The following is the source code for the Owner entity class:
Now, we should check that everything is working. Run the project and check that both database tables have been created and that there are no errors in the console. The following screenshot shows the console messages when the tables are created:
Figure 3.14: The car and owner tables
Now, our domain package contains two entity classes and repositories:
Figure 3.15: The Project Explorer
The one-to-many relationship can be added by using the @ManyToOne and @OneToMany annotations (jakarta.persistence). In the car entity class, which contains a foreign key, you must define the relationship with the @ManyToOne annotation. You should also add the getter and setter for the owner field. It is recommended that you use FetchType.LAZY for all associations. For the toMany relationships, that is the default value, but for the toOne relationships, you should define it. FetchType defines the strategy for fetching data from the database. The value can be either EAGER or LAZY. In our case, the LAZY strategy means that when the owner is fetched from the database, the cars associated with the owner will be fetched when needed. EAGER means that the cars will be fetched immediately by the owner. The following source code shows how to define a one-to-many relationship in the Car class:
On the owner entity site, the relationship is defined with the @OneToMany annotation. The type of field is List<Car> because an owner may have multiple cars. Add the getter and setter for this, as follows:
The @OneToMany annotation has two attributes that we are using. The cascade attribute defines how cascading affects the entities in the case of deletions or updates. The ALL attribute setting means that all operations are cascaded. For example, if the owner is deleted, the cars that are linked to that owner are deleted as well. The mappedBy="owner" attribute setting tells us that the Car class has the owner field, which is the foreign key for this relationship.
When you run the project, by looking in the console, you will see that the relationship has been created:
Figure 3.16: Console
Now, we can add some owners to the database with CommandLineRunner. Let’s also modify the Car entity class constructor and add an owner object there:
First, we will create two owner objects and save these to the database using the repository’s saveAll method, which we can use to save multiple entities at once. To save the owners, we have to inject OwnerRepository into the main class. Then, we must connect the owners to the cars by using the Car constructor. First, let’s modify the CardatabaseApplication class by adding the following imports:
At this point, we must modify the run method to save owners and link owners and cars:
@Overridepublicvoidrun(String... args)throws Exception {
// Add owner objects and save these to dbOwner owner1 = new Owner("John" , "Johnson");Owner owner2 = new Owner("Mary" , "Robinson");orepository.saveAll(Arrays.asList(owner1, owner2));
repository.save(newCar("Ford", "Mustang", "Red",
"ADF-1121", 2023, 59000, owner1));
repository.save(newCar("Nissan", "Leaf", "White",
"SSJ-3002", 2020, 29000, owner2));
repository.save(newCar("Toyota", "Prius", "Silver",
"KKO-0212", 2022, 39000, owner2));
// Fetch all cars and log to consolefor (Car car : repository.findAll())
{
logger.info("brand: {}, model: {}", car.getBrand(),
car.getModel());
}
}
Now, if you run the application and fetch cars from the database, you will see that the owners are now linked to the cars:
Figure 3.17: OneToMany relationship
If you want to create a many-to-many relationship instead, which means, in practice, that an owner can have multiple cars and a car can have multiple owners, you should use the @ManyToMany annotation. In our example application, we will use a one-to-many relationship. The code that you have completed here will be needed in the next chapter.
Next, you will learn how to change the relationship to many-to-many. In a many-to-many relationship, it is recommended that you use Set instead of List with Hibernate:
In the Car entity class’s many-to-many relationship, define the getters and setters in the following way:
Now, if you run the application, there will be a new join table called car_owner that is created between the car and owner tables. The join table is a special kind of table that manages the many-to-many relationship between two tables.
The join table is defined by using the @JoinTable annotation. With this annotation, we can set the name of the join table and join columns. The following screenshot shows the database structure when using a many-to-many relationship:

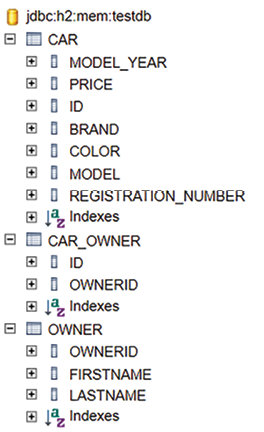

Figure 3.18: Many-to-many relationship

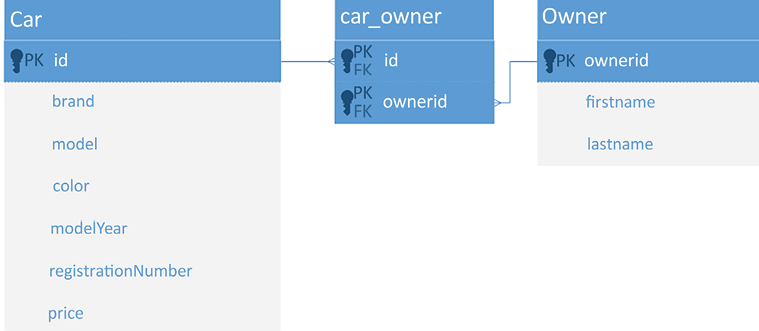

Now, the database UML diagram looks as follows:
Figure 3.19: Many-to-many relationship
We have used an in-memory H2 database in the chapter so far. In the next section, we will be using a one-to-many relationship, so change your code back if you followed the previous many-to-many example.
Next, we are going to look at how to use a MariaDB database instead.
Setting up a MariaDB database
Now, we will switch the database we are using from H2 to MariaDB. H2 is a good database for test and demonstration purposes, but MariaDB is a better option for a proper production database when applications require performance, reliability, and scalability.
In this book, we are using MariaDB version 10. The database tables are still created automatically by JPA. However, before we run our application, we have to create a database for it.
In this section, we will be using the one-to-many relationship from the previous section.
The database can be created using HeidiSQL (or DBeaver, if you are using Linux or macOS). Open HeidiSQL and follow these steps:
Activate the top database connection name (Unnamed) and right-click it.

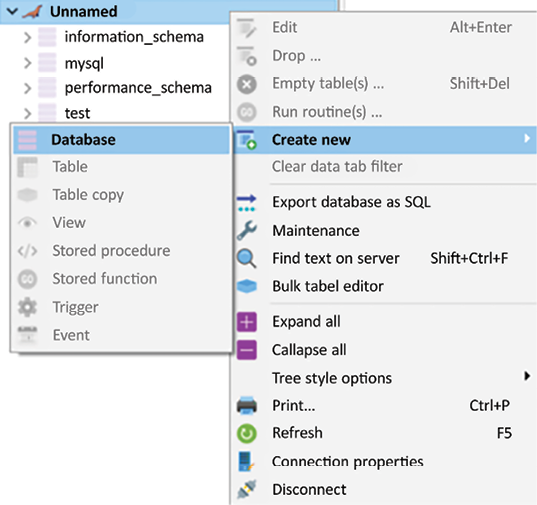

Then, select Create new | Database:
Figure 3.20: Create new database
Let’s name our database cardb. After clicking OK, you should see the new cardb database in the database list:
Figure 3.21: The cardb database
In Spring Boot, add a MariaDB Java client dependency to the build.gradle file and remove the H2 dependency since we don’t need it anymore. Remember to refresh your Gradle project after you have modified your build.gradle file:
In the application.properties file, you must define the database connection for MariaDB. In this phase, you should remove the old H2 database settings. First, you must define the database’s URL, username, password (defined in Chapter 1), and database driver class:
In this example, we are using the database root user, but in production, you should create a user for your database that doesn’t have all root database rights.
Add the spring.jpa.generate-ddl setting, which defines whether JPA should initialize the database (true/false). Also add the spring.jpa.hibernate.ddl-auto setting, which defines the behavior of the database initialization:
The possible values for spring.jpa.hibernate.ddl-auto are none, validate, update, create, and create-drop. The default value depends on your database. If you are using an embedded database such as H2, the default value is create-drop; otherwise, the default value is none. create-drop means that the database is created when an application starts, and it is dropped when the application is stopped. The create value only creates the database when the application is started. The update value creates the database and updates the schema if it has changed.
Check that the MariaDB database server is running and restart your Spring Boot application. After running the application, you should see the tables in MariaDB. You might have to refresh the database tree in HeidiSQL first by pressing the F5 key. The following screenshot shows the HeidiSQL user interface once the database has been created:

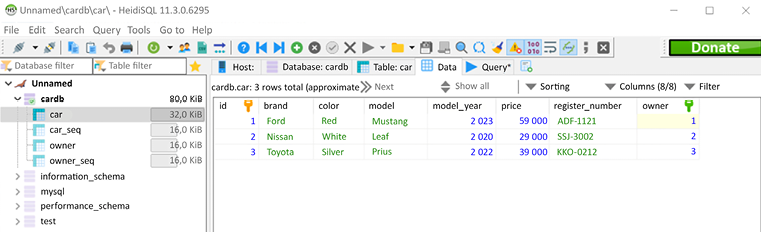

Figure 3.22: MariaDB cardb You can also run SQL queries in HeidiSQL.
Now, your application is ready to use with MariaDB.
Summary
In this chapter, we used JPA to create our Spring Boot application database. First, we created entity classes, which are mapped to database tables.
Then, we created a CrudRepository for our entity class, which provides CRUD operations for the entity. After that, we managed to add some demo data to our database by using CommandLineRunner. We also created one-to-many relationships between two entities. At the beginning of this chapter, we used the H2 in-memory database, and we switched the database to MariaDB at the end.
In the next chapter, we will create a RESTful web service for our backend. We will also look at testing the RESTful web service with the cURL command-line tool and the Postman GUI.
Questions
What are ORM, JPA, and Hibernate?
How can you create an entity class?
How can you create a CrudRepository?
What does a CrudRepository provide for your application?
How can you create a one-to-many relationship between tables?
How can you add demo data to a database with Spring Boot?
How can you access the H2 console?
How can you connect your Spring Boot application to MariaDB?
Further reading
Packt has other resources for learning more about MariaDB, Hibernate, and JPA:
To join the Discord community for this book – where you can share feedback, ask the author questions, and learn about new releases – follow the QR code below:
Web services are applications that communicate over the internet using the HTTP protocol. There are many different types of web service architectures, but the principal idea across all designs is the same. In this book, we will create a RESTful web service: nowadays, a really popular design.
In this chapter, we will first create a RESTful web service using a controller class. Then, we will use Spring Data REST to create a RESTful web service that also provides all CRUD functionalities automatically, and document it with OpenAPI 3. After you have created a RESTful API for your application, you can implement the frontend using a JavaScript library such as React. We will be using the database application that we created in the previous chapter as a starting point.
In this chapter, we will cover the following topics:
Basics of REST
Creating a RESTful web service with Spring Boot
Using Spring Data REST
Documenting a RESTful API
Technical requirements
The Spring Boot application created in the previous chapters is required.
You will also need Postman, cURL, or another suitable tool for transferring data using various HTTP methods.
Representational State Transfer (REST) is an architectural style for creating web services. REST is neither language- nor platform-dependent; different clients like mobile apps, browsers, and other services can communicate with each other. RESTful services can be scaled easily to fulfill increased demand.
REST is not a standard but a set of constraints, defined by Roy Fielding. The constraints are as follows:
Stateless: The server shouldn’t hold any information about the client state.
Client-server independence: The client and server should act independently. The server should not send any information without a request from the client.
Cacheable: Many clients often request the same resources; therefore, caching should be applied to resources in order to improve performance.
Uniform interface: Requests from different clients should look the same. Clients may include, for example, a browser, a Java application, and a mobile application.
Layered system: Components can be added or modified without affecting the entire service. This constraint affects scalability.
Code on demand: This is an optional constraint. Most of the time, the server sends static content in the form of JSON or XML. This constraint allows the server to send executable code if needed.
The uniform interface constraint is important, and it means that every REST architecture should have the following elements:
Identification of resources: Resources should be identified by unique identifiers, for example, URIs in web-based REST services. REST resources should expose easily understood directory structure URIs. Therefore, a good resource-naming strategy is very important.
Resource manipulation through representation: When making a request to a resource, the server should respond with a representation of the resource. Typically, the format of the representation is JSON or XML.
Self-descriptive messages: Messages should contain enough information that the server knows how to process them.
Hypermedia as the Engine of Application State (HATEOAS): Responses should contain links to other areas of the service.
The RESTful web service that we are going to develop in the next sections follows the REST architectural principles above.
Creating a RESTful web service with Spring Boot
In Spring Boot, all HTTP requests are handled by controller classes. To be able to create a RESTful web service, first, we have to create a controller class. We will create our own Java package for the controller:
Activate the root package in the Eclipse Project Explorer and right-click. Select New | Package from the menu. We will name our new package com.packt.cardatabase.web:
Figure 4.1: New Java package

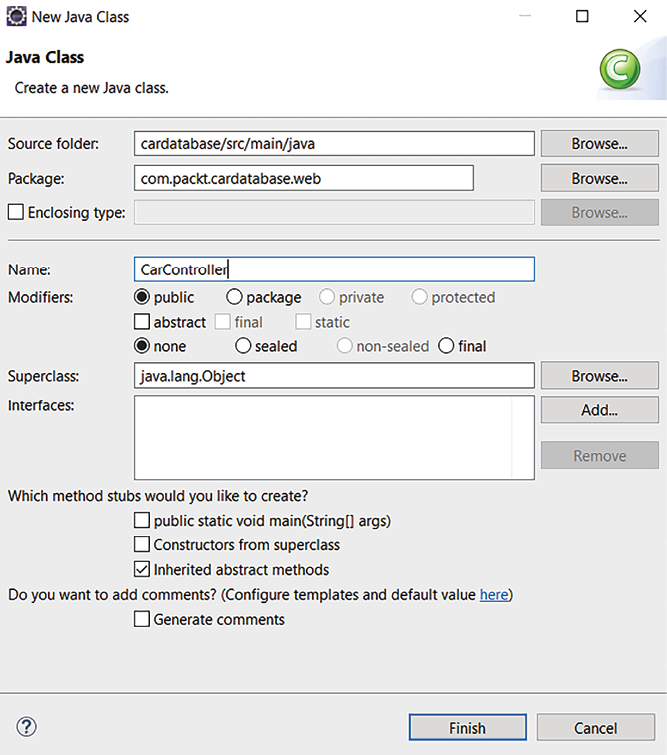

Next, we will create a new controller class in a new web package. Activate the com.packt.cardatabase.web package in the Eclipse Project Explorer. Right-click and select New | Class from the menu; we will name our class CarController:
Figure 4.2: New Java class
Now, your project structure should look like the following screenshot:
Figure 4.3: Project structure
If you create classes in the wrong package accidentally, you can drag and drop the files between packages in the Project Explorer. Sometimes, the Project Explorer view might not be rendered correctly when you make some changes. Refreshing the Project Explorer helps (activate the Project Explorer and press F5).
Open your controller class in the editor window and add the @RestController annotation before the class definition. Refer to the following source code. The @RestController annotation identifies that this class will be the controller for the RESTful web service:
Next, we add a new method inside our controller class. The method is annotated with the @GetMapping annotation, which defines the endpoint that the method is mapped to. In the following code snippet, you can see the sample source code. In this example, when a user makes a GET request to the /cars endpoint, the getCars() method is executed:
The getCars() method returns all the car objects, which are then marshaled to JSON objects automatically by the Jackson library (https://github.com/FasterXML/jackson).
Now, the getCars() method handles only GET requests from the /cars endpoint because we are using the @GetMapping annotation. There are other annotations for the different HTTP methods, such as @GetMapping, @PostMapping, @DeleteMapping, and so on.
To be able to return cars from the database, we have to inject CarRepository into the controller. Then, we can use the findAll() method that the repository provides to fetch all cars. Due to the @RestController annotation, the data is now serialized to JSON format in the response. The following source code shows the controller code:
Now, we are ready to run our application and navigate to localhost:8080/cars. We can see that there is something wrong, and the application seems to be in an infinite loop. This happens on account of our one-to-many relationship between the car and owner tables. So, what happens in practice? First, the car is serialized, and it contains an owner who is then serialized, and that, in turn, contains cars that are then serialized, and so on. There are different solutions for avoiding this. One way is to use the @JsonIgnore annotation on the cars field in the Owner class, which ignores the cars field in the serialization process. You can also solve this by avoiding bidirectional mapping if it is not needed. We will also use the @JsonIgnoreProperties annotation to ignore fields that are generated by Hibernate:
Now, when you run the application and navigate to localhost:8080/cars, everything should go as expected and you will get all the cars from the database in JSON format, as shown in the following screenshot:
Figure 4.4: GET request to http://localhost:8080/cars
Your output might differ from the screenshot due to browser differences. In this book, we are using the Chrome browser and the JSON Viewer extension, which makes JSON output more readable. JSON Viewer can be downloaded from the Chrome Web Store for free.
We have written our first RESTful web service. By leveraging the capabilities of Spring Boot, we were able to quickly implement a service that returns all the cars in our database. However, this is just the beginning of what Spring Boot has to offer for creating robust and efficient RESTful web services, and we will continue to explore its capabilities in the next section.
Using Spring Data REST
Spring Data REST (https://spring.io/projects/spring-data-rest) is part of the Spring Data project. It offers an easy and fast way to implement RESTful web services with Spring. Spring Data REST provides HATEOAS (Hypermedia as the Engine of Application State) support, an architectural principle that allows clients to navigate the REST API dynamically using hypermedia links. Spring Data REST also provides events that you can use to customize the business logic of your REST API endpoints.
You can read more about events in the Spring Data REST documentation: https://docs.spring.io/spring-data/rest/docs/current/reference/html/#events.
To start using Spring Data REST, you have to add the following dependency to the build.gradle file:
Refresh your Gradle project from Eclipse after you have modified the build.gradle file. Select the project in Eclipse’s Project Explorer and right-click to open the context menu. Then, select Gradle | Refresh Gradle Project.
By default, Spring Data REST finds all public repositories from the application and creates RESTful web services for your entities automatically. In our case, we have two repositories: CarRepository and OwnerRepository; therefore, Spring Data REST creates RESTful web services automatically for those repositories.
You can define the endpoint of the service in your application.properties file as follows. You might need to restart your application for the changes to take effect:
spring.data.rest.basePath=/api

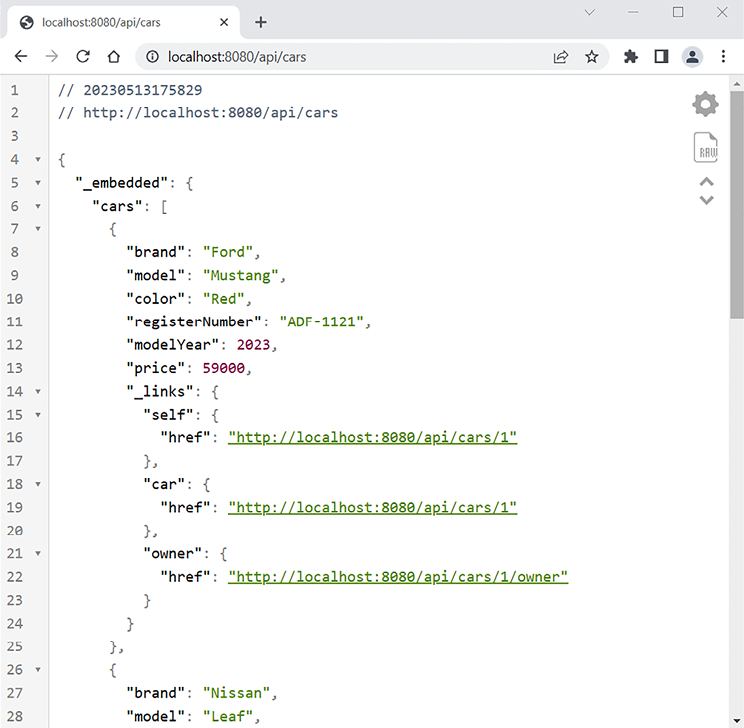

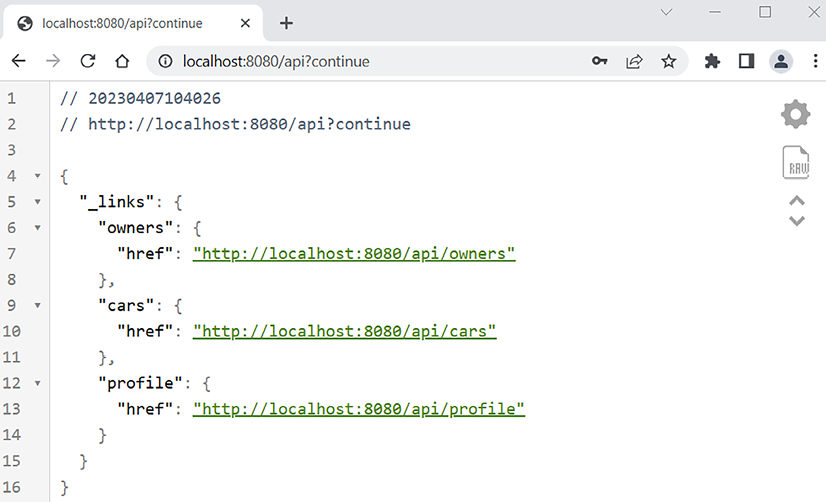

Now, you can access the RESTful web service from the localhost:8080/api endpoint. By calling the root endpoint of the service, it returns the resources that are available. Spring Data REST returns JSON data in the Hypertext Application Language (HAL) format. The HAL format provides a set of conventions for expressing hyperlinks in JSON and it makes your RESTful web service easier to use for frontend developers:
Figure 4.5: Spring Boot Data REST resources
We can see that there are links to the car and owner entity services. The Spring Data REST service path name is derived from the entity class name. The name will then be pluralized and uncapitalized. For example, the entity Car service path name will become cars. The profile link is generated by Spring Data REST and contains application-specific metadata. If you want to use different path naming, you can use the @RepositoryRestResource annotation in your repository class, as shown in the next example:

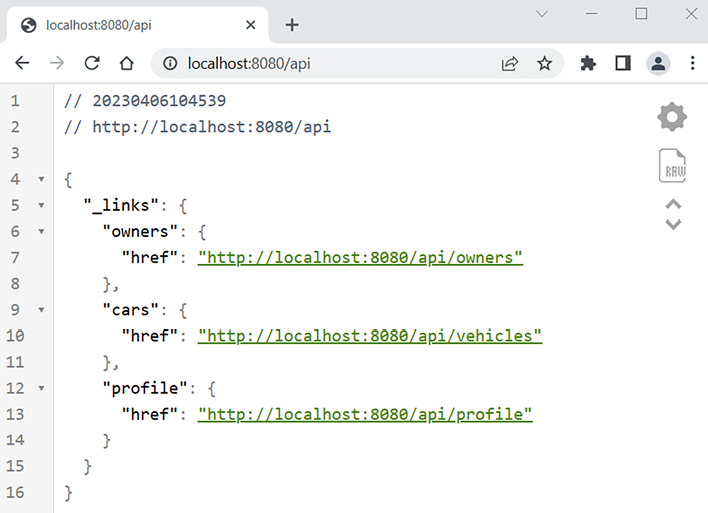

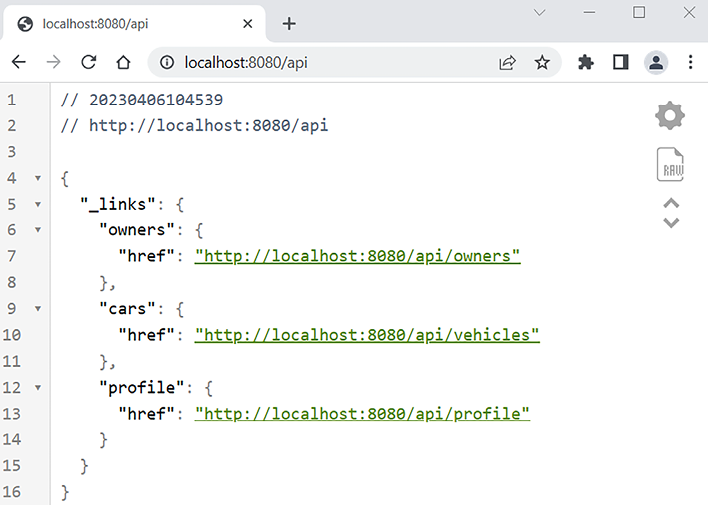

Now, if you call the endpoint localhost:8080/api, you can see that the endpoint has been changed from /cars to /vehicles.
Figure 4.6: Spring Boot Data REST resources
You can remove the different naming, and we will continue with the default endpoint name, /cars.
Now, we’ll start to examine different services more carefully. There are multiple tools available for testing and consuming RESTful web services. In this book, we are using the Postman (https://www.postman.com/downloads/) desktop app, but you can use tools that you are familiar with, such as cURL. Postman can be acquired as a desktop application or as a browser plugin. cURL is also available for Windows by using Windows Ubuntu Bash (Windows Subsystem for Linux, WSL).

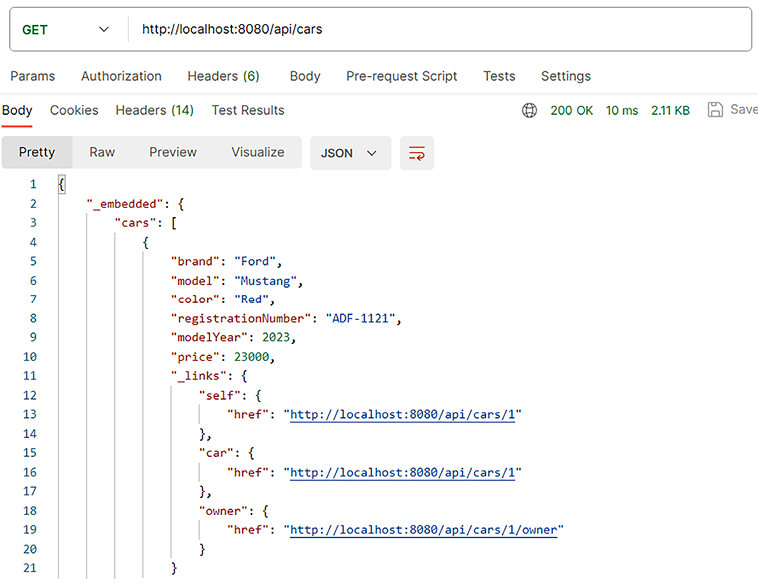

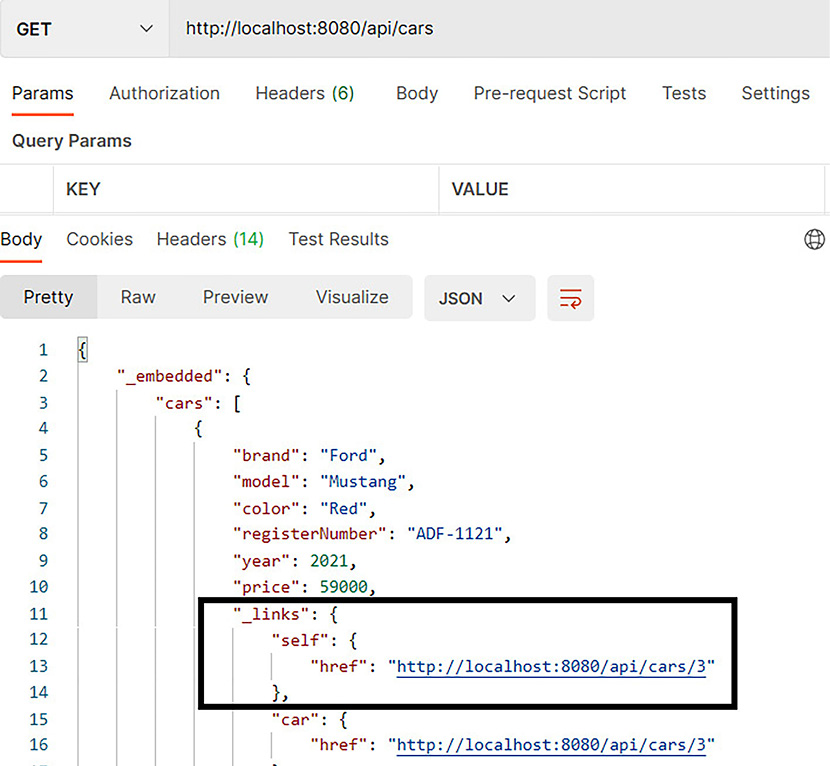

If you make a request to the /cars endpoint (http://localhost:8080/api/cars) using the GET method (note: you can use a web browser for GET requests), you will get a list of all the cars, as shown in the following screenshot:
Figure 4.7: Fetch cars
In the JSON response, you can see that there is an array of cars, and each car contains car-specific data. All the cars also have the _links attribute, which is a collection of links, and with these links, you can access the car itself or get the owner of the car. To access one specific car, the path will be http://localhost:8080/api/cars/{id}.
The GET request to http://localhost:8080/api/cars/3/owner returns the owner of the car with id 3. The response now contains owner data, a link to the owner, and links to the owner’s other cars.
The Spring Data REST service provides all CRUD operations. The following table shows which HTTP methods you can use for different CRUD operations:
HTTP method
CRUD
GET
Read
POST
Create
PUT/PATCH
Update
DELETE
Delete
Table 4.1: Spring Data REST operations
Next, we will look at how to delete a car from the database by using our RESTful web service. In a delete operation, you have to use the DELETE method and the link to the car that will be deleted (http://localhost:8080/api/cars/{id}).

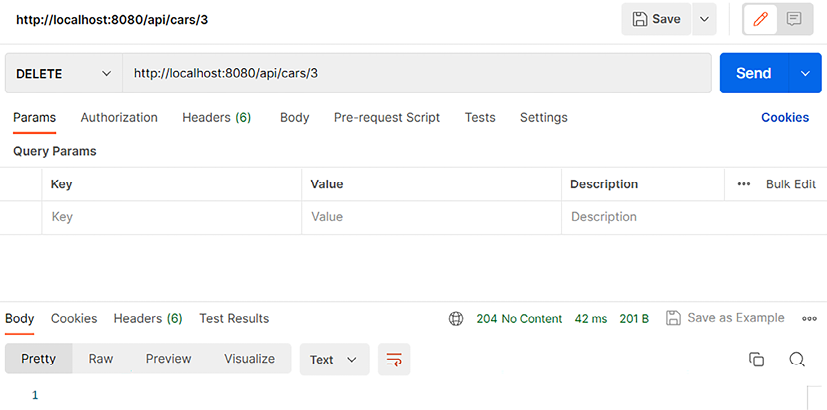

The following screenshot shows how you can delete one car with id 3 by using the Postman desktop app. In Postman, you have to select the correct HTTP method from the drop-down list, enter the request URL, and then click the Send button:
Figure 4.8: DELETE request to delete car
If everything goes correctly, you will see the response status 200 OK in Postman. After the successful DELETE request, you will also see that there are now two cars left in the database if you make a GET request to the http://localhost:8080/api/cars/ endpoint. If you got the 404 Not Found status in the DELETE response, check that you are using a car ID that exists in the database.
When we want to add a new car to the database, we have to use the POST method, and the request URL is http://localhost:8080/api/cars. The header must contain the Content-Type field with the value application/json, and the new car object will be embedded in the request body in JSON format.

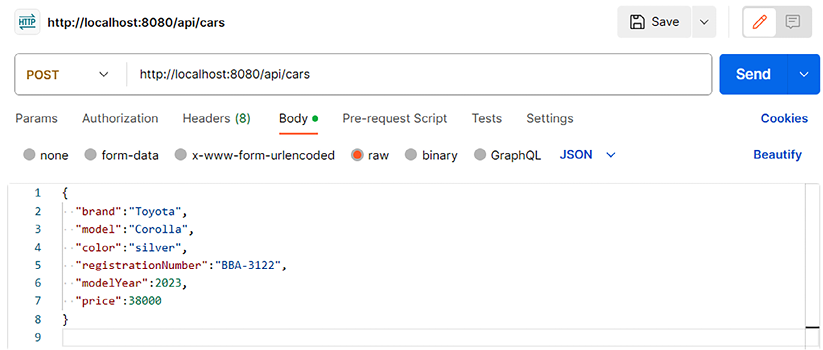

If you click the Body tab and select raw in Postman, you can type a new car JSON string under the Body tab. Also select JSON from the drop-down list, as shown in the following screenshot:
Figure 4.9: POST request to add a new car

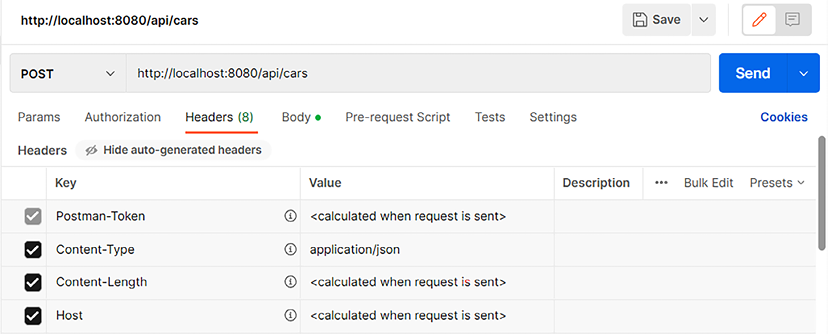

You also have to set a header by clicking the Headers tab in Postman, as shown in the following screenshot. Postman adds some headers automatically based on your request selections. Check that the Content-Type header is in the list and the value is correct (application/json). If it doesn’t exist, you should add it manually. Automatically added headers might be hidden by default, but you can see these by clicking the hidden button. Finally, you can press the Send button:
Figure 4.10: POST request headers
The response will send a newly created car object back and the status of the response will be 201 Created if everything went correctly. Now, if you make a GET request again to the http://localhost:8080/api/cars path, you will see that the new car exists in the database.
To update entities, we can use the PATCH method and the link to the car that we want to update (http://localhost:8080/api/cars/{id}). The header must contain the Content-Type field with the value application/json, and the car object with edited data will be given inside the request body.
If you are using PATCH, you have to send only fields that are updated. If you are using PUT, you have to include all fields in the request body.
Let’s edit the car that we created in the previous example, changing the color to white. We are using PATCH, so the payload contains only the color property:
{"color":"white"}

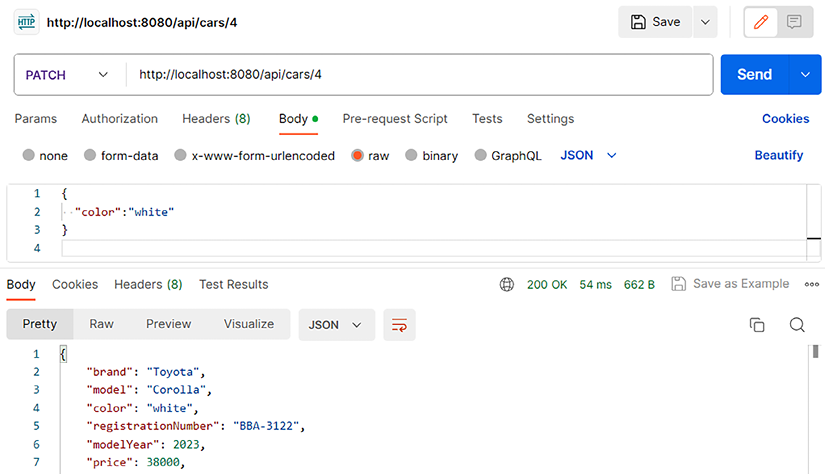

The Postman request is shown in the following screenshot (note: we set the header as in the POST example and use the car id in the URL):
Figure 4.11: PATCH request to update existing car
If the update succeeded, the response status is 200 OK. If you now fetch the updated car using a GET request, you will see that the color has been updated.

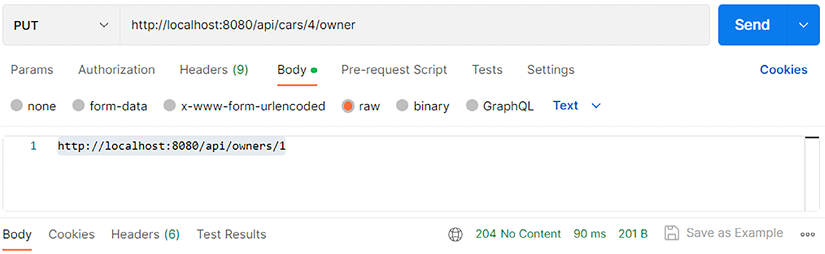

Next, we will add an owner to the new car that we just created. We can use the PUT method and the http://localhost:8080/api/cars/{id}/owner path. In this example, the ID of the new car is 4, so the link is http://localhost:8080/api/cars/4/owner. The content of the body is now linked to an owner, for example, http://localhost:8080/api/owners/1.
Figure 4.12: PUT request to update owner
The Content-Type value of the headers should be text/uri-list in this case. If you can’t modify the automatically added header, you can disable it by unchecking it. Then, add a new one, like shown in the next image, and press the Send button:

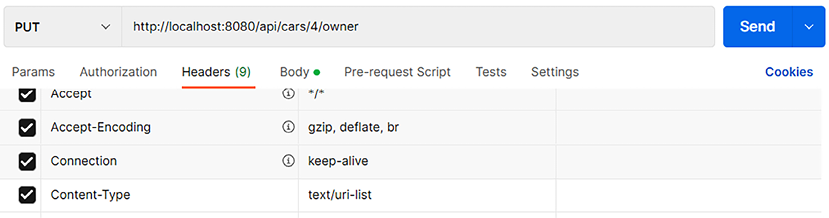

Figure 4.13: PUT request headers
Finally, you can make a GET request for the car’s owner, and you should now see that the owner is linked to the car.
In the previous chapter, we created queries for our repository. These queries can also be included in our service. To include queries, you have to add the @RepositoryRestResource annotation to the repository class. Query parameters are annotated with the @Param annotation. The following source code shows CarRepository with these annotations:
Now, when you make a GET request to the http://localhost:8080/api/cars path, you can see that there is a new endpoint called /search. Calling the http://localhost:8080/api/cars/search path returns the following response:
Figure 4.14: REST queries
From the response, you can see that both queries are now available in our service. The following URL demonstrates how to fetch cars by brand: http://localhost:8080/api/cars/search/findByBrand?brand=Ford. The output will only contain cars with the brand Ford.
At the beginning of this chapter, we introduced the REST principles, and we can see that our RESTful API fulfills several aspects of the REST specification. It is stateless and requests from different clients look the same (uniform interface). The response contains links that can be used to navigate between related resources. Our RESTful API provides a URI structure that reflects the data model and relationship between resources.
We have now created the RESTful API for our backend, and we will consume it later with our React frontend.
Documenting a RESTful API
A RESTful API should be properly documented so that developers who are consuming it understand its functionality and behavior. The documentation should include what endpoints are available, what data formats are accepted, and how to interact with the API.
In this book, we will use the OpenAPI 3 library for Spring Boot (https://springdoc.org) to generate documentation automatically. The OpenAPI Specification (formerly Swagger Specification) is an API description format for RESTful APIs. There are other alternatives, such as RAML (https://raml.org/), that can be used as well. You can also document your REST API using some other documentation tools, which provide flexibility but require more manual work. The use of the OpenAPI library automates this work, allowing you to focus on development.
The following steps demonstrate how you can generate documentation for your RESTful API:
First, we have to add the OpenAPI library to our Spring Boot application. Add the following dependency to your build.gradle file:
Next, we create a configuration class for our documentation. Create a new class called OpenApiConfig in the com.packt.cardatabase package of your application. Below is the code for the configuration class where we can configure, for example, the REST API title, description, and version. We can use the info() method to define these values:
In the application.properties file, we can define the path for our documentation. We can also enable Swagger UI, a user-friendly tool for visualizing RESTful APIs that are documented using the OpenAPI Specification (https://swagger.io/tools/swagger-ui/). Add the following settings to your application.properties file:
Now, we are ready to run our project. When your application is running, navigate to http://localhost:8080/swagger-ui.html and you will see the documentation in Swagger UI, as shown in the following screenshot:
Figure 4.15: Car RESTful API documentation
You can see all the endpoints that are available in your RESTful API. If you open any of the endpoints, you can even try them out by pressing the Try it out button. The documentation is also available in JSON format at http://localhost:8080/api-docs.
Now that you have provided documentation for your RESTful API, it is much easier for developers to consume it.
In the next chapter, we will secure our RESTful API, which will break access to Swagger UI. You can allow access again by modifying your security configuration (allow the "/api-docs/**" and "/swagger-ui/**" paths). You can also use Spring Profiles, but that is out of scope for this book.
Summary
In this chapter, we created a RESTful web service with Spring Boot. First, we created a controller and one method that returns all cars in JSON format. Next, we used Spring Data REST to get a fully functional web service with all CRUD functionalities. We covered different types of requests that are needed to use the CRUD functionalities of the service that we created. We also included our queries in the RESTful web service. Finally, we learned how to document our API properly with OpenAPI 3.
We will use this RESTful web service with our frontend later in this book, and now you can also easily implement a REST API for your own needs.
In the next chapter, we will secure our backend using Spring Security. We will learn how to secure our data by implementing authentication. Then, only authenticated users will be able to access the RESTful API’s resources.
Questions
What is REST?
How can you create a RESTful web service with Spring Boot?
How can you fetch items using our RESTful web service?
How can you delete items using our RESTful web service?
How can you add items using our RESTful web service?
How can you update items using our RESTful web service?
How can you use queries with our RESTful web service?
What is the OpenAPI Specification?
What is Swagger UI?
Further reading
Packt has other resources available for learning about Spring Boot RESTful web services:
To join the Discord community for this book – where you can share feedback, ask the author questions, and learn about new releases – follow the QR code below:
This chapter explains how to secure your Spring Boot backend. Securing your backend is a crucial part of code development. It is essential for protecting sensitive data, complying with regulations, and preventing unauthorized access. The backend often handles the user authentication and authorization process. Securing these aspects properly ensures that only authorized users can access the application and perform specific actions. We will use the database application that we created in the previous chapter as a starting point.
In this chapter, we will cover the following topics:
Understanding Spring Security
Securing your backend with a JSON Web Token
Role-based security
Using OAuth2 with Spring Boot
Technical requirements
The Spring Boot application that we created in the previous chapters is required.
Spring Security (https://spring.io/projects/spring-security) provides security services for Java-based web applications. The Spring Security project was started in 2003 and was previously named Acegi Security System for Spring.
By default, Spring Security enables the following features:
An AuthenticationManager bean with an in-memory single user. The username is user and the password is printed to the console output.
Ignored paths for common static resource locations, such as /css and /images. HTTP basic authentication for all other endpoints.
Security events published to Spring’s ApplicationEventPublisher interface.
Common low-level features turned on by default, including HTTP Strict Transport Security (HSTS), cross-site scripting (XSS), and cross-site request forgery (CSRF).

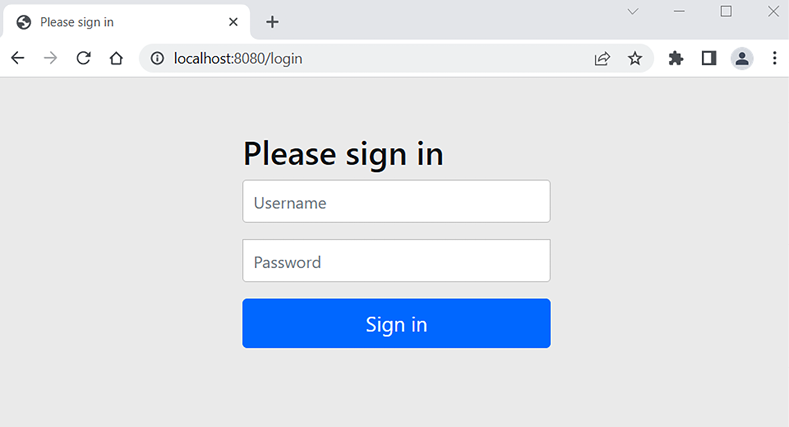

A default autogenerated login page.
You can include Spring Security in your application by adding the following highlighted dependencies to the build.gradle file. The first dependency is for the application and the second is for testing:
If you haven’t enabled automatic refresh, remember to refresh the Gradle project from Eclipse after you have modified your build.gradle file.

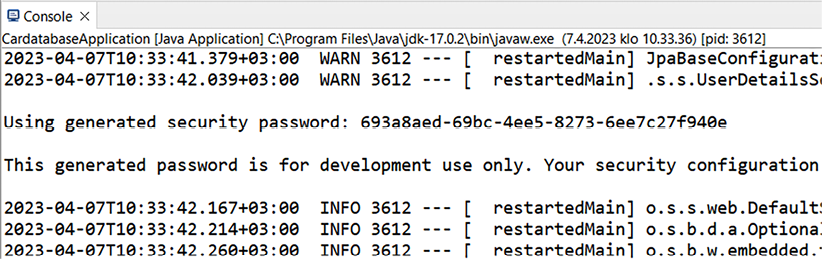

When you start your application, you can see from the console that Spring Security has created an in-memory user with a username of user. The user’s password can be seen in the console output, as illustrated here:
Figure 5.1: Spring Security enabled
If there is no password in the console, try to restart your project by pressing the red Terminate button in the console and re-running it.
The Eclipse console has limited output, and the default buffer size is 80,000 characters, so the output might be truncated before the password statement can appear. You can change this setting from the Window | Preferences | Run/Debug | Console menu.
Now, if you make a GET request to your REST API root endpoint, you will see that it has been secured. Open your web browser and navigate to http://localhost:8080/api. You will be redirected to the Spring Security default login page, as illustrated in the following screenshot:
Figure 5.2: Secured REST API
To be able to make a successful GET request, we have to authenticate to our RESTful API. Type user into the Username field and copy the generated password from the console to the Password field. With authentication, we can see that the response contains our API resources, as illustrated in the following screenshot:
Figure 5.3: Basic authentication
To configure how Spring Security behaves, we have to add a new configuration class for Spring Security. The security configuration file can be used to define which URLs or URL patterns are accessible to which roles or users. You can also define the authentication mechanism, the login process, session management, and so on.
Create a new class called SecurityConfig in your application root package (com.packt.cardatabase). The following source code shows the structure of the security configuration class:
The @Configuration and @EnableWebSecurity annotations switch off the default web security configuration, and we can define our own configuration in this class. Inside the filterChain(HttpSecurity http) method that we will see in action later, we can define which endpoints in our application are secure and which are not. We don’t actually need this method yet because we can use the default settings where all the endpoints are secured.
We can also add in-memory users to our application by using Spring Security’s InMemoryUserDetailsManager,which implements UserDetailsService. Then we can implement user/password authentication that is stored in memory. We can also use PasswordEncoder to encode passwords using the bcrypt algorithm.
The following highlighted source code will create an in-memory user with a username of user, a password of password, and a role of USER:
Now, restart the application, and you will be able to test authentication using the in-memory user. The use of in-memory users is fine in the development phase, but a proper application should save users in the database.
To save users to the database, you have to create a user entity class and repository. Passwords shouldn’t be saved to the database in plaintext format. If a database containing user passwords is hacked, attackers will be able to get the passwords directly in plaintext. Spring Security provides multiple hashing algorithms, such as bcrypt, that you can use to hash passwords. The following steps show you how to implement this:
Create a new class called AppUser in the com.packt.cardatabase.domain package. Activate the domain package and right-click it. Select New | Class from the menu and name the new class User. After that, your project structure should look like this:
Figure 5.4: Project structure
Annotate the AppUser class with the @Entity annotation. Add the ID, username, password, and role class fields. Finally, add the constructors, getters, and setters. We will set all the fields to be not nullable. This means that database columns cannot hold null values. We will also specify that the username must be unique by using unique=true in the username’s @Column annotation. Refer to the following AppUser.java source code for the fields:
Create a new interface called AppUserRepository in the domain package. To do this, activate the domain package and right-click it. Select New | Interface from the menu and name it AppUserRepository.
The source code for the repository class is similar to what we saw in the previous chapter, but there is one query method, findByUsername, that we need for the steps that follow. This method is used to find a user from the database in the authentication process. The method returns Optional to prevent a null exception. Refer to the following AppUserRepository source code:
Next, we will create a class that implements the UserDetailsService interface that’s provided by Spring Security. Spring Security uses this for user authentication and authorization. Create a new service package in the root package. To do this, activate the root package and right-click it. Select New | Package from the menu and name the new package service, as illustrated in the following screenshot:
Figure 5.5: The service package
Create a new class called UserDetailsServiceImpl in the service package we just created. Now, your project structure should look like this (in Eclipse, refresh the Project Explorer by pressing F5):
Figure 5.6: Project structure
We have to inject the AppUserRepository class into the UserDetailsServiceImpl class because it is needed to fetch the user from the database when Spring Security handles authentication. The findByUsername method that we implemented earlier returns Optional, therefore we can use the isPresent() method to check if the user exists. If the user doesn’t exist, we throw a UsernameNotFoundException exception. The loadUserByUsername method returns the UserDetails object, which is required for authentication. We are using the Spring Security UserBuilder class to build the user for the authentication. Here is the source code for UserDetailsServiceImpl.java:
In our security configuration class, we have to specify that Spring Security should use users from the database instead of in-memory users. Delete the userDetailsService() method from the SecurityConfig class to disable in-memory users. Add a new configureGlobal method to enable users from the database.
We should never save the password as plaintext to the database. Therefore, we will define a password hashing algorithm in the configureGlobal method. In this example, we are using the bcrypt algorithm. This can be easily implemented with the Spring Security BCryptPasswordEncoder class, which encodes a hashed password during the authentication process. Here is the SecurityConfig.java source code:
Now, the password must be hashed using bcrypt before it’s saved to the database.
Finally, we can save a couple of test users to the database using the CommandLineRunner interface. Open the CardatabaseApplication.java file and inject AppUserRepository into the main class:
Let’s save two users to the database with bcrypt hashed passwords. You can find bcrypt calculators or generators on the internet. These generators allow you to input a plaintext password, and they will produce the corresponding bcrypt hash:
@Overridepublicvoidrun(String... args)throws Exception {
// Add owner objects and save these to dbOwnerowner1=newOwner("John", "Johnson");
Ownerowner2=newOwner("Mary", "Robinson");
orepository.saveAll(Arrays.asList(owner1, owner2));
repository.save(newCar(
"Ford", "Mustang", "Red", "ADF-1121",
2023, 59000, owner1));
repository.save(newCar(
"Nissan", "Leaf", "White", "SSJ-3002",
2020, 29000, owner2));
repository.save(newCar(
"Toyota", "Prius", "Silver", "KKO-0212",
2022, 39000, owner2));
// Fetch all cars and log to consolefor (Car car : repository.findAll()) {
logger.info(car.getBrand() + " " + car.getModel());
}
// Username: user, password: userurepository.save(newAppUser("user","$2a$10$NVM0n8ElaRgg7zWO1CxUdei7vWoPg91Lz2aYavh9.f9q0e4bRadue","USER"));// Username: admin, password: adminurepository.save(newAppUser("admin","$2a$10$8cjz47bjbR4Mn8GMg9IZx.vyjhLXR/SKKMSZ9.mP9vpMu0ssKi8GW", "ADMIN"));
}
bcrypt is a strong hashing function that was designed by Niels Provos and David Mazières. Here is an example of a bcrypt hash that is generated from the admin string:
$2a represents the algorithm version, and $10 represents the strength of the algorithm. The default strength of Spring Security’s BcryptPasswordEncoder class is 10. bcrypt generates a random salt in hashing, so the hashed result is always different.

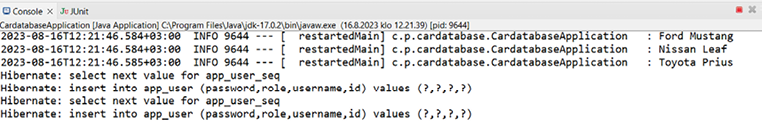

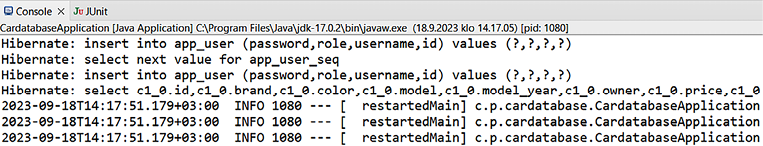

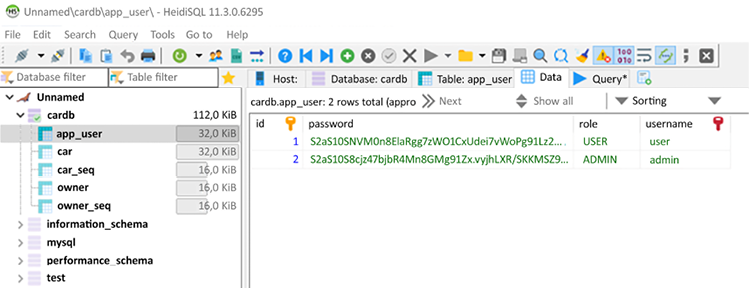

After running your application, you will see that there is now an app_user table in the database and that two user records are saved with hashed passwords, as illustrated in the following screenshot:
Figure 5.7: Users
Now, you should restart the application and you will get a 401 Unauthorized error if you try to send a GET request to the http://localhost:8080/api path without authentication. You must authenticate to be able to send a successful request. The difference, when compared with the previous example, is that we are using the users from the database to authenticate.

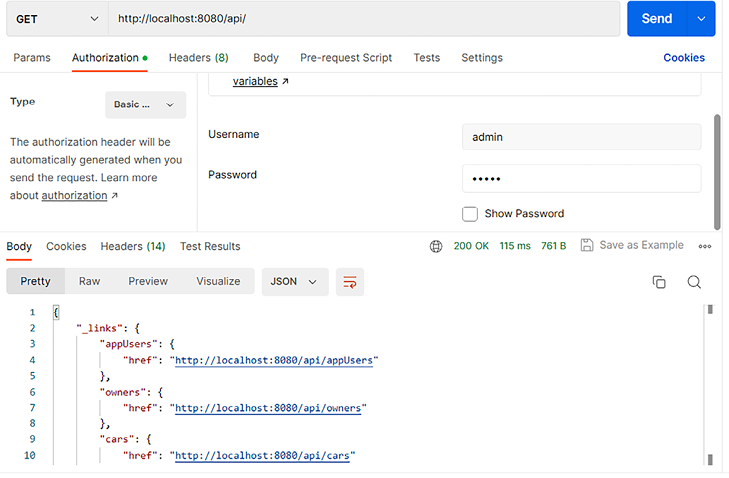

Now, you can log in by sending a GET request to the /api endpoint using the browser, or we can use Postman and basic authentication, as shown in the following screenshot:
Figure 5.8: GET request authentication
You can see that we currently get users by calling the api/appUsers endpoint in our RESTful web service, which is something we want to avoid. As mentioned in Chapter 4, Spring Data REST generates a RESTful web service from all public repositories by default. We can use the exported flag of the @RepositoryRestResource annotation and set it to false, which means the following repository is not exposed as a REST resource:
Now, if you restart the application and send a GET request to the /api endpoint, you will see that the /appUsers endpoint is not visible anymore.
Next, we will start to implement authentication using a JSON Web Token.
Securing your backend with a JSON Web Token
In the previous section, we covered how to use basic authentication with a RESTful web service. Basic authentication doesn’t provide a way to handle tokens or manage sessions. When a user logs in, the credentials are sent with each request, which can cause session management challenges and potential security risks. This method is not usable when we develop our own frontend with React, so we are going to use JSON Web Token (JWT) authentication instead (https://jwt.io/). This will also give you an idea of how you can configure Spring Security in more detail.
The other option for securing your RESTful web service is OAuth 2. OAuth2 (https://oauth.net/2/) is the industry standard for authorization and it can be used quite easily in Spring Boot applications. There is a section later on in the chapter that will give you a basic idea about how to use it in your applications.
JWTs are commonly used in RESTful APIs for authentication and authorization purposes. They are a compact way to implement authentication in modern web applications. A JWT is really small in size and can therefore be sent in the URL, in the POST parameter, or inside the header. It also contains all the necessary information about the user, such as their username and role.
A JWT contains three different parts, separated by dots: xxxxx.yyyyy.zzzzz. These parts are broken up as follows:
The first part (xxxxx) is the header, which defines the type of token and the hashing algorithm.
The second part (yyyyy) is the payload, which, typically, in the case of authentication, contains user information.
The third part (zzzzz) is the signature, which is used to verify that the token hasn’t been changed along the way.

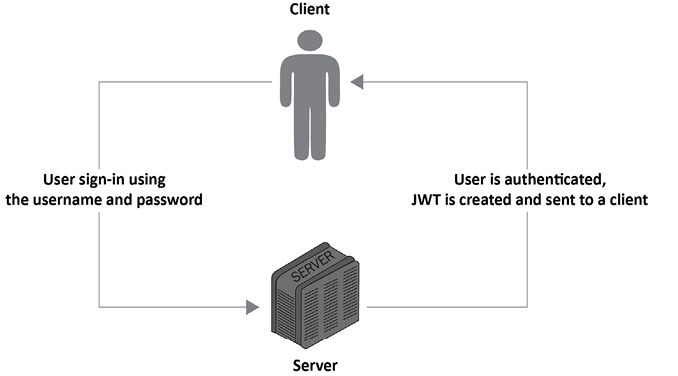

The following diagram shows a simplified representation of the authentication process using a JWT:
Figure 5.9: JWT authentication process
After successful authentication, the requests sent by the client should always contain the JWT that was received in the authentication.
We will use jjwt (https://github.com/jwtk/jjwt), which is the JWT library for Java and Android for creating and parsing JWTs. Therefore, we have to add the following dependencies to the build.gradle file:
Remember to refresh the Gradle project from Eclipse after you have updated the dependencies.
The following steps demonstrate how to enable JWT authentication in our backend.
Securing the login
We will start with the login functionality:
First, we will create a class that generates and verifies a signed JWT. Create a new class called JwtService in the com.packt.cardatabase.service package. At the beginning of the class, we will define a few constants: EXPIRATIONTIME defines the expiration time of the token in milliseconds, PREFIX defines the prefix of the token, and the "Bearer" schema is typically used. A JWT is sent in the Authorization header and the content of the header looks like the following when using the Bearer schema:
Authorization: Bearer <token>
The JwtService source code looks like the following:
package com.packt.cardatabase.service;
import org.springframework.stereotype.Component;
@ComponentpublicclassJwtService {
staticfinallongEXPIRATIONTIME=86400000; // 1 day in ms. Should be shorter in production.staticfinalStringPREFIX="Bearer";
}
We will create a secret key using the jjwt library’s secretKeyFor method. This is only for demonstration purposes. In a production environment, you should read your secret key from the application configuration. The getToken method then generates and returns the token. The getAuthUser method gets the token from the response Authorization header. Then, we will use the parserBuilder method provided by the jjwt library to create a JwtParserBuilder instance. The setSigningKey method is used to specify a secret key for token verification. The parseClaimsJws method removes the Bearer prefix from the Authorization header. Finally, we will use the getSubject method to get the username. The whole JwtService source code follows:
package com.packt.cardatabase.service;
import io.jsonwebtoken.Jwts;import io.jsonwebtoken.SignatureAlgorithm;import io.jsonwebtoken.security.Keys;import java.security.Key;import org.springframework.http.HttpHeaders;import org.springframework.stereotype.Component;import jakarta.servlet.http.HttpServletRequest;import java.util.Date;@ComponentpublicclassJwtService {
staticfinallongEXPIRATIONTIME=86400000; // 1 day in ms. Should be shorter in production.staticfinalStringPREFIX="Bearer";
// Generate secret key. Only for demonstration purposes.// In production, you should read it from the application // configuration.staticfinalKeykey= Keys.secretKeyFor (SignatureAlgorithm.HS256);// Generate signed JWT tokenpublic String getToken(String username) {Stringtoken= Jwts.builder().setSubject(username).setExpiration(newDate(System.currentTimeMillis() +EXPIRATIONTIME)).signWith(key).compact(); return token;}// Get a token from request Authorization header,// verify the token, and get usernamepublic String getAuthUser(HttpServletRequest request) {Stringtoken= request.getHeader(HttpHeaders.AUTHORIZATION);if (token != null) {Stringuser= Jwts.parserBuilder().setSigningKey(key).build().parseClaimsJws(token.replace(PREFIX, "")).getBody().getSubject();if (user != null)return user;}returnnull;}
}
Next, we will add a new class to store credentials for authentication. Here we can use a Java record, which was introduced in Java 14. A record is a good choice if you need a class that only holds data; you can avoid a lot of boilerplate code. Create a new record (New | Record) called AccountCredentials in the com.packt.cardatabase.domain package:

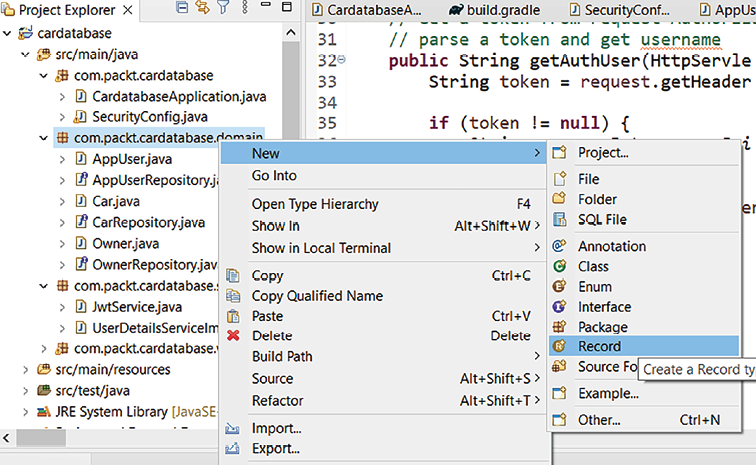

Figure 5.10: Create a new record
The record has two fields: username and password. Here is the source code for the record. As you can see, we don’t have to write getters and setters when using it:
Now, we will implement the controller class for login. Login is done by calling the /login endpoint using the POST method and sending the username and password inside the request body. Create a class called LoginController inside the com.packt.cardatabase.web package. We have to inject a JwtService instance into the controller class because that is used to generate a signed JWT in the case of a successful login. The code is illustrated in the following snippet:
Next, we will implement the getToken method that handles the login functionality. We get a JSON object from the request body that contains the username and password. AuthenticationManager is used to perform authentication and it uses credentials that we get from the request. Then, we use the JwtService class’ getToken method to generate a JWT. Finally, we build an HTTP response that contains the generated JWT in the Authorization header:
We have also injected AuthenticationManager into the LoginController class, therefore we have to add the following highlighted code to the SecurityConfig class:
In this step, we have to configure Spring Security functionality. Spring Security’s SecurityFilterChain bean defines which paths are secured and which are not. Add the following filterChain method to the SecurityConfig class. In the method, we define that the POST method request to the /login endpoint is allowed without authentication and that requests to all other endpoints require authentication. We will also define that Spring Security will never create a session, and therefore we can disable cross-site request forgery (csrf). JWTs are designed to be stateless, which reduces the risk of session-related vulnerabilities. We will use Lambdas in the HTTP security configuration:
In some other programming languages, Lambdas are called anonymous functions. The usage of Lambdas makes code more readable and reduces boilerplate code.

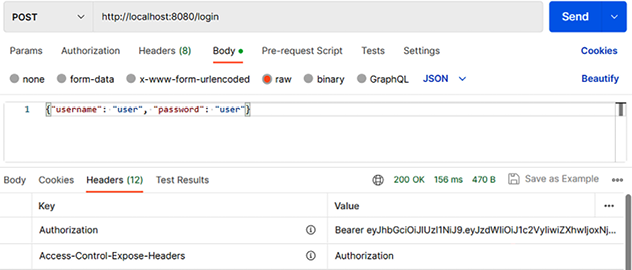

Finally, we are ready to test our login functionality. Open Postman and make a POST request to the http://localhost:8080/login URL. Define a valid user inside the request body, for example, {"username":"user", "password":"user"} and select JSON from the drop-down list. Postman will then set the Content-Type header to application/json automatically. You should check from the Headers tab that the Content-Type header is set correctly. Now, you should see an Authorization header in the response that contains the signed JWT, like the one shown in the following screenshot:
Figure 5.11: Login request
You can also test the login by using the wrong password and seeing that the response doesn’t contain the Authorization header.
Securing the other requests
We have now finalized the login step, and we will move on to handling authentication for the rest of the incoming requests. In the authentication process, we are using filters that allow us to perform some operations before a request goes to the controller or before a response is sent to a client.
The following steps demonstrate the rest of the authentication process:
We will use a filter class to authenticate all other incoming requests. Create a new class called AuthenticationFilter in the root package. The AuthenticationFilter class extends Spring Security’s OncePerRequestFilter interface, which provides a doFilterInternal method where we implement our authentication. We have to inject a JwtService instance into the filter class because it is needed to verify a token from the request. The SecurityContextHolder is where Spring Security stores the details of the authenticated user. The code is illustrated in the following snippet:
Next, we have to add our filter class to the Spring Security configuration. Open the SecurityConfig class and inject the AuthenticationFilter class that we just implemented, as shown in the highlighted code:
Then, modify the filterChain method in the SecurityConfig class and add the following lines of code:
//Add the following importimport org.springframework.security.web.authentication. UsernamePasswordAuthenticationFilter;
// Modify the filterChain method@Beanpublic SecurityFilterChain filterChain(HttpSecurity http)throws Exception {
http.csrf((csrf) -> csrf.disable())
.sessionManagement((sessionManagement) -> sessionManagement. sessionCreationPolicy(SessionCreationPolicy.STATELESS))
.authorizeHttpRequests((authorizeHttpRequests) -> authorizeHttpRequests.requestMatchers(HttpMethod.POST, "/login").permitAll().anyRequest().authenticated())
.addFilterBefore(authenticationFilter,UsernamePasswordAuthenticationFilter.class);return http.build();
}
Now, we are ready to test the whole workflow. After we run the application, we can first log in by calling the /login endpoint with the POST method and, in the case of a successful login, we will receive a JWT in the Authorization header. Remember to add a valid user inside the body and set the Content-Type header to application/json if it is not done automatically by Postman. The following screenshot illustrates the process:
Figure 5.12: Login request
Following a successful login, we can call the other RESTful service endpoints by sending the JWT that was received from the login in the Authorization header. Copy the token from the login response (without the Bearer prefix) and add the Authorization header with the token in the VALUE column. Refer to the example in the following screenshot where a GET request to the /cars endpoint is done:
Figure 5.13: Authenticated GET request
Each time the application is restarted, you must authenticate again because a new JWT is generated.
The JWT is not valid forever because an expiration date was set for it. In our case, we set a long expiration time for demonstration purposes. In production, the time should preferably be minutes, depending on the use case.
Handling exceptions
We should also handle exceptions in the authentication. At the moment, if you try to log in using the wrong password, you get a 403 Forbidden status without any further clarification. Spring Security provides an AuthenticationEntryPoint interface that can be used to handle exceptions. Let’s see how it works:
Create a new class named AuthEntryPoint in the root package that implements AuthenticationEntryPoint. We will implement the commence method, which gets an exception as a parameter. In the case of an exception, we set the response status to 401 Unauthorized and write an exception message to the response body. The code is illustrated in the following snippet:
Then, we have to configure Spring Security for the exception handling. Inject our AuthEntryPoint class into the SecurityConfig class, as shown in the following highlighted code:
Now, if you send a login POST request with the wrong credentials, you will get a 401 Unauthorized status in the response and an error message in the body, as shown in the following screenshot:

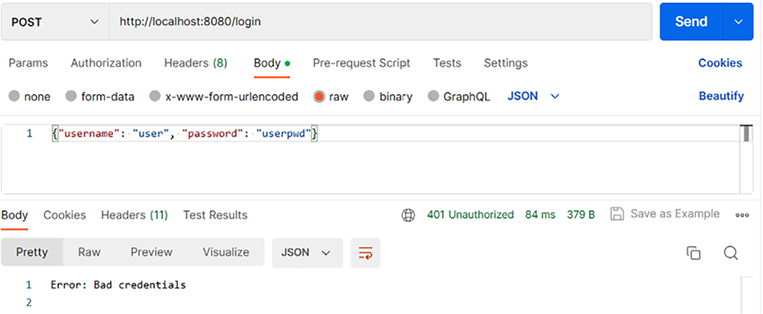

Figure 5.14: Bad credentials
Adding a CORS filter
We will also add a cross-origin resource sharing (CORS) filter to our security configuration class. CORS introduces certain headers that help the client and server decide if cross-origin requests should be allowed or denied. The CORS filter is needed for the frontend, which is sending requests from the other origin. The CORS filter intercepts requests, and if these are identified as cross-origin, it adds proper headers to the request. For that, we will use Spring Security’s CorsConfigurationSource interface.
In this example, we will allow all origins’ HTTP methods and headers. You can define a list of permissible origins, methods, and headers here if you require a more finely graded definition. Let’s begin:
Add the following imports and methods to your SecurityConfig class to enable the CORS filter:
// SecurityConfig.java// Add the following importsimport java.util.Arrays;
import org.springframework.web.cors.CorsConfiguration;
import org.springframework.web.cors.CorsConfigurationSource;
import org.springframework.web.cors.UrlBasedCorsConfigurationSource;
// Add Global CORS filter inside the class@Beanpublic CorsConfigurationSource corsConfigurationSource() {
UrlBasedCorsConfigurationSourcesource=newUrlBasedCorsConfigurationSource();
CorsConfigurationconfig=newCorsConfiguration();
config.setAllowedOrigins(Arrays.asList("*"));
config.setAllowedMethods(Arrays.asList("*"));
config.setAllowedHeaders(Arrays.asList("*"));
config.setAllowCredentials(false);
config.applyPermitDefaultValues();
source.registerCorsConfiguration("/**", config);
return source;
}
If you want to explicitly define the origins, you can set this in the following way:
// localhost:3000 is allowed
config.setAllowedOrigins(Arrays.asList ("http://localhost:3000"));
We also have to add the cors() function to the filterChain method, as shown in the following code snippet:
Now, we have secured our backend. In the next section, we will introduce the basics of role-based security, which you can use to get more fine-grained access control in your Spring Boot application.
Role-based security
In Spring Security, roles can be used to define coarse-grained role-based security, and users can be assigned to one or multiple roles. Roles often have a hierarchical structure, for example, ADMIN, MANAGER, USER. Spring Security also provides authorities, which can be used for more fine-grained access control. We have defined simple roles for our users, ADMIN and USER, and we don’t use role-based security in our sample backend application. This section introduces the different ways to implement role-based security in your Spring Boot applications.
You can define role-based access control at the request level in your security configuration class. In the following example code, we define which endpoints require specific roles for access. The /admin/** endpoint requires the ADMIN role for access and the /user/** endpoint requires the USER role for access. We use the Spring Security hasRole() method, which returns true if the user has the specified role:
You can read more about request authorization in the Spring Boot documentation: https://docs.spring.io/spring-security/reference/servlet/authorization/authorize-http-requests.html.
Spring Security provides the @PreAuthorize, @PostAuthorize, @PreFilter, @PostFilter, and @Secured annotations, which are used to apply method-level security. Method-level security is not enabled by default in spring-boot-starter-security. You have to enable it in your Spring configuration class, for example, in top-level configuration, by using the @EnableMethodSecurity annotation:
Then, you will be able to use the method-level security annotations in your methods. In the following example, users with the USER role can execute the updateCar() method and users with the ADMIN role can execute the deleteOwner() method. The @PreAuthorize annotation checks the rule before the method is executed. If the user does not have a specified role, Spring Security prevents method execution, and an AccessDeniedException is thrown:
@ServicepublicclassCarService {
@PreAuthorize("hasRole('USER')")publicvoidupdateCar(Car car) {
// This method can be invoked by user with USER role.
}
@PreAuthorize("hasRole('ADMIN')")publicvoiddeleteOwner(Car car) {
// This method can be invoked by user with ADMIN role.
}
}
The @PreAuthorize annotation replaces the @Secured annotation, and its use is recommended instead.
The @PostAuthorize annotation can be used to check authorization after the method is executed. You can use this, for example, to check that the user has permission to access the object that the method returns, or you can filter the data returned based on the user’s authorization.
The @PreFilter and @PostFilter annotations can be used to filter lists of objects, but they are not typically used for role-based access control. The rules used with these annotations are more fine-grained.
In the next section, we will introduce the basics of OAuth with Spring Boot.
Using OAuth2 with Spring Boot
It is really challenging to implement fully secure authentication and authorization in your application. In a production environment, it is recommended that you do it using an OAuth2 provider. This actually simplifies the authentication process, and providers typically have excellent security practices.
These are not detailed instructions for implementing OAuth 2.0 authorization, but they will give you an idea of the process.
OAuth (Open Authorization) is a standard for secure access to protected resources on the internet. The OAuth standard version 2.0 is commonly used nowadays. There are several OAuth 2.0 providers that implement OAuth authorization for third-party applications. Some common providers are listed here:
You can implement social logins using OAuth2, after which users can log in with their existing credentials from social media platforms such as Facebook. OAuth also defines mechanisms for revoking access tokens and handling token expiration.
If you want to use OAuth in your Spring Boot applications, the first step is to select an OAuth provider. All providers in the list above can be used with your Spring Boot applications.
In the OAuth2 process, the term resource owner refers typically to an end user and the authorization server is part of the OAuth provider’s service. The client is an application that wants to get access to protected resources. The resource server commonly refers to an API that the client wants to use.
The simplified version of the OAuth2 authentication process with a REST API contains the following steps:
Authentication: The third-party application authenticates by requesting access to protected resources.
Authorization: The resource owner authorizes access to their resources, commonly through user login.
The authorization server authorizes the resource owner and redirects the user back to the client with an authorization code.
The client requests an access token from the authorization server using the authorization code. The access token format is not specified in the standard, and JWTs are quite commonly used.
The authorization server validates the access token. If the token is valid, the client application receives an access token.
The client can start to use the access token to access protected resources, for example, calling REST API endpoints.
After you have selected a provider and know how its service works, you have to configure your Spring Boot application. Spring Boot provides the spring-boot-starter-oauth2-client dependency for OAuth2 authentication and authorization. It is used to simplify OAuth 2.0 integration in your Spring Boot application. Quite a few OAuth providers have documentation for different technologies, such as Spring Boot.
The implementation will differ depending on the provider. Here are some useful links:
Spring also has a tutorial on how to implement social login using GitHub: https://spring.io/guides/tutorials/spring-boot-oauth2.
We recommend reading these to get a better idea of using OAuth 2.0 in your own applications.
Now, we have finished securing our backend using the JWT, and we will use this version when we start to develop our frontend.
Summary
In this chapter, we focused on making our Spring Boot backend more secure. We started by adding extra protection using Spring Security. Then, we implemented JWT authentication. JWTs are commonly used to secure RESTful APIs and it is a lightweight authentication method suitable for our needs. We also covered the basics of the OAuth 2.0 standard and how to start using it in your Spring Boot application.
In the next chapter, we will learn the basics of testing in Spring Boot applications.
Questions
What is Spring Security?
How can you secure your backend with Spring Boot?
What is a JWT?
How can you secure your backend with a JWT?
What is OAuth 2.0?
Further reading
Packt has other resources available for you to learn about Spring Security. For instance:
To join the Discord community for this book – where you can share feedback, ask the author questions, and learn about new releases – follow the QR code below:
This chapter explains how to test your Spring Boot backend. The backend of an application is responsible for handling business logic and data storage. Proper testing of the backend ensures that the application works as intended, is secure, and is easier to maintain. We will create some unit and integration tests in relation to our backend, using the database application that we created earlier as a starting point.
In this chapter, we will cover the following topics:
Testing in Spring Boot
Creating test cases
Test-driven development
Technical requirements
The Spring Boot application that we created in the previous chapters is required.
The Spring Boot test starter package is automatically added to the build.gradle file by Spring Initializr when we create our project. The test starter dependency can be seen in the following snippet:
The Spring Boot test starter provides lots of handy libraries for testing, such as JUnit, Mockito, and AssertJ. Mockito is a mocking framework that is often used alongside testing frameworks like JUnit. AssertJ is a popular library for writing assertions in Java testing. In this book, we will use JUnit 5. The JUnit Jupiter module is part of JUnit 5 and provides annotations for more flexible testing.
If you take a look at your project structure, you’ll see that it already has its own package created for test classes:
Figure 6.1: Test classes
By default, Spring Boot uses an in-memory database for testing. We are using MariaDB at this point in the book, but we can use H2 for testing if we add the following dependency to the build.gradle file:
testRuntimeOnly 'com.h2database:h2'
This specifies that the H2 database will only be used to run tests; otherwise, the application will use the MariaDB database.
Remember to refresh your Gradle project in Eclipse after you have updated the build.gradle file.
Now, we can start to create test cases for our application.
Creating test cases
There are many different types of software tests, and each has its own specific objectives. Some of the most important test types are:
Unit tests: Unit tests focus on the smallest component of software. This could be, for example, a function, and a unit test will ensure that it works correctly in isolation. Mocking is often used in unit testing to replace the dependencies of the unit that is being tested.
Integration tests: Integration tests focus on the interaction between individual components, ensuring that individual components work together as expected.
Functional tests: Functional testing focuses on business scenarios that are defined in functional specifications. Test cases are designed to verify that software meets the specified requirements.
Regression tests: Regression tests are designed to verify that new code or code updates do not break existing functionality.
Usability tests: Usability tests verify that software is user-friendly, intuitive, and easy to use from an end-user perspective. Usability tests focus more on the frontend and user experience.
For unit and integration testing, we are using JUnit, a popular Java-based unit testing library. Spring Boot has built-in support for JUnit, making it easy to write tests for your application.
The following source code shows an example skeleton for the Spring Boot test class. The @SpringBootTest annotation specifies that the class is a regular test class that runs Spring Boot-based tests. The @Test annotation before the method specifies to JUnit that the method can be run as a test case:
@SpringBootTestpublicclassMyTestsClass {
@TestpublicvoidtestMethod() {
// Test case code
}
}
Assertions in unit testing are statements that can be used to verify whether the actual output of a code unit matches the expected output. In our case, the assertions are implemented using the AssertJ library that the spring-boot-starter-test artifact automatically includes. The AssertJ library provides an assertThat() method that you can use to write assertions. You pass an object or a value to the method, allowing you to compare values with the actual assertions. The AssertJ library contains multiple assertions for different data types. The next sample demonstrates some example assertions:
// String assertion
assertThat("Learn Spring Boot").startsWith("Learn");
// Object assertion
assertThat(myObject).isNotNull();
// Number assertion
assertThat(myNumberVariable).isEqualTo(3);
// Boolean assertion
assertThat(myBooleanVariable).isTrue();
We will now create our initial unit test case, which checks that our controller instance is correctly instantiated and is not null. Proceed as follows:
Open the CardatabaseApplicationTests test class that has already been made for your application by the Spring Initializr starter project. There is one test method called contextLoads in here, and this is where we will add the test. Write the following test, which checks that the instance of the controller was created and injected successfully. We use an AssertJ assertion to test that the injected controller instance is not null:
To run tests in Eclipse, activate the test class in the Project Explorer and right-click. Select Run As | JUnit test from the menu. You should now see the JUnit tab in the lower part of the Eclipse workbench. The test results are shown in this tab, and the test case has been passed, as illustrated in the following screenshot:
Figure 6.2: JUnit test run
You can use the @DisplayName annotation to give a more descriptive name to your test case. The name defined in the @DisplayName annotation is shown in the JUnit test runner. The code is illustrated in the following snippet:
@Test@DisplayName("First example test case")voidcontextLoads() {
assertThat(controller).isNotNull();
}
Now, we will create integration tests for our owner repository to test create, read, update, and delete (CRUD) operations. This test verifies that our repository interacts correctly with a database. The idea is to simulate database interactions and verify that your repository methods behave as expected:
Create a new class called OwnerRepositoryTest in the root test package. Instead of the @SpringBootTest annotation, the @DataJpaTest annotation can be used if the test is focused on Jakarta Persistence API (JPA) components. When using this annotation, the H2 database and Spring Data are automatically configured for testing. SQL logging is also turned on. The code is illustrated in the following snippet:
In this example, we use the root package for all test classes and name our classes logically. Alternatively, you can create a similar package structure for your test classes as we did for our application classes.
We will add our first test case to test the addition of a new owner to the database. Add the following query to your OwnerRepository.java file. We will use this query in our test case:
A new Owner object is created and saved to the database using the save method. Then, we check that the owner can be found. Add the following test case method code to your OwnerRepositoryTest class:
The second test case will test the deletion of the owner from the database. A new Owner object is created and saved to the database. Then, all owners are deleted from the database, and finally, the count() method should return zero. The following source code shows the test case method. Add the following method code to your OwnerRepositoryTest class:
Run the test cases and check the Eclipse JUnit tab to find out whether the tests passed. The following screenshot shows that they have indeed passed:
Figure 6.3: Repository test cases
Next, we will demonstrate how to test your RESTful web service JWT authentication functionality. We will create an integration test that sends an actual HTTP request to the login endpoint and verifies the response:
Create a new class called CarRestTest in the root test package. To test the controllers or any endpoint that is exposed, we can use a MockMvc object. By using the MockMvc object, the server is not started, but the tests are performed in the layer where Spring handles HTTP requests, and therefore it mocks the real situation. MockMvc provides the perform method to send these requests. To test authentication, we have to add credentials to the request body. We print request and response details to the console using the andDo() method. Finally, we check that the response status is Ok using the andExpect() method. The code is illustrated in the following snippet:
Now, when we run the authentication tests, we will see that the test passes, as the following screenshot confirms:
Figure 6.4: Login test
You can run all tests at once by selecting the test package from the Project Explorer and running the JUnit tests (Run As | JUnit test). In the image below, you can see the result when all test cases have been passed:
Figure 6.5: Running tests
Testing with Gradle
All tests run automatically when you build your project using Gradle. We will go into more detail about building and deployment later in this book. In this section, we will only cover some basics:
You can run different predefined Gradle tasks using Eclipse. Open the Window | Show View | Other… Menu. That opens the Show View window, where you should select Gradle Tasks:
Figure 6.6: Gradle tasks
You should see the list of Gradle tasks, as shown in the following image. Open the build folder and double-click the build task to run it:
Figure 6.7: Build task
The Gradle build task creates a build folder in your project, where your Spring Boot project is built. The build process runs all the tests from your project. If any of the tests fail, the build process also fails. The build process creates a test summary report (an index.html file), which you can find in the build\reports\tests\test folder. If any of your tests fail, you can find the reason from the summary report. In the image below, you can see an example of a test summary report:
Figure 6.8: Test summary
The build task creates an executable jar file in the \build\libs folder. You can now run your built Spring Boot application using the following command in the \build\libs folder (you should have the JDK installed):
java -jar .\cardatabase-0.0.1-SNAPSHOT.jar
Now, you can write unit and integration tests for your Spring Boot application. You have also learned how to run tests using the Eclipse IDE.
Test-driven development
Test-driven development (TDD) is a practice in software development where you write tests before writing the actual code. The idea is to ensure that your code meets the criteria or requirements that are set. Let’s see one example of how TDD works in practice.
Our goal is to implement a service class that manages messages in our application. You can see the common steps of TDD below:
The following code is not fully functioning. It is just an example for you to get a better idea of the TDD process.
The first functionality to be implemented is a service that can be used to add new messages. Therefore, in TDD, we will create a test for adding new messages to a list of messages. In the test code, we first create an instance of the message service class. Then, we create a test message that we want to add to the list. We call the addMsg method of the messageService instance, passing the msg as an argument. This method is responsible for adding messages to a list. Finally, the assertion checks if the message added to the list matches the expected message, "Hello world":
Now, if you run the test again, it should pass if your code works as expected.
If the test does not pass, you should refactor your code until it does.
Repeat these steps for each new feature.
TDD is an iterative process that helps to ensure that your code works and that new features don’t break other parts of the software. This is also called regression testing. By writing a test before implementing the functionality, we can catch bugs early in the development phase. Developers should understand feature requirements and expected outcomes before actual development.
At this point, we have covered the basics of testing in Spring Boot applications, and you have gained the knowledge you need to implement more test cases for your applications.
Summary
In this chapter, we focused on testing the Spring Boot backend. We used JUnit for testing and implemented test cases for JPA and RESTful web service authentication. We created one test case for our owner repository to verify that repository methods behave as expected. We also tested the authentication process by using our RESTful API. Remember that testing is an ongoing process throughout the development life cycle. You should update and add tests to cover new features and changes when your application evolves. Test-driven development is one way of doing this.
In the next chapter, we will set up the environment and tools related to frontend development.
Questions
How can you create unit tests with Spring Boot?
What is the difference between unit and integration tests?
How can you run and check the results of unit tests?
What is TDD?
Further reading
There are many other good resources available to learn about Spring Security and testing. A few are listed here:
To join the Discord community for this book – where you can share feedback, ask the author questions, and learn about new releases – follow the QR code below:
This chapter describes the development environment and tools that are needed for React so that you can start frontend development. In this chapter, we will create a simple starter React app by using the Vite frontend tooling.
In this chapter, we will cover the following topics:
Node.js is an open-source, JavaScript-based, server-side environment. It is available for multiple operating systems, such as Windows, macOS, and Linux, and is required to develop React apps.
The Node.js installation package can be found at https://nodejs.org/en/download/. Download the latest Long-Term Support (LTS) version for your operating system. In this book, we are using the Windows 10 operating system, and you can get the Node.js MSI installer for it, which makes installation really straightforward.
When you execute the installer, you will go through the installation wizard, and you can do so using the default settings:
Figure 7.1: Node.js installation
Once the installation is complete, we can check that everything proceeded correctly. Open PowerShell, or whatever terminal you are using, and type the following commands:
node --version
npm --version
These commands should show you the installed versions of Node.js and npm:
Figure 7.2: Node.js and npm versions
npm comes with the Node.js installation and is a package manager for JavaScript. We will use this a lot in the following chapters when we install different Node.js modules in our React app.
There is another package manager called Yarn that you can use as well, but we will use npm because it comes with the Node.js installation. Yarn has some advantages, such as better overall performance due to its caching mechanism.
Next, we will install a code editor.
Installing Visual Studio Code
Visual Studio Code (VS Code) is an open-source code editor for multiple programming languages. It was developed by Microsoft. There are many different code editors available, such as Atom and Sublime, and you can use something other than VS Code if you are familiar with it.
Eclipse, which we used for backend development, is optimized for Java development. VS Code can also be used for Java and Spring Boot development, so it is possible to use only one editor for both backend and frontend development if you prefer.
VS Code is available for Windows, macOS, and Linux, and you can download it from https://code.visualstudio.com/. Installation for Windows is done with the MSI installer, and you can execute the installation with default settings.
The following screenshot shows the workbench for VS Code. On the left-hand side is the activity bar, which you can use to navigate between different views. Next to the activity bar is a sidebar that contains different views, such as the project file explorer. The editor takes up the rest of the workbench:
Figure 7.3: VS Code workbench
VS Code provides an integrated terminal that you can use to create and run React apps. The terminal can be found in the View | Terminal menu. You can use this in later chapters when we create more React apps.
VS Code extensions
There are a lot of extensions available for different programming languages and frameworks. If you open Extensions from the activity bar, you can search for different ones.
One really useful extension for React development is Reactjs code snippets, which we recommend installing. It has multiple code snippets available for React.js apps, which makes the development process faster. VS Code code snippet extensions can significantly enhance your workflow by saving time, promoting consistency, and reducing errors.
The following screenshot shows the Reactjs code snippets installation page:
Figure 7.4: React js code snippets
The ESLint extension helps you find typos and syntax errors quickly and makes formatting source code easier:
Figure 7.5: ESLint extension
ESLint (https://eslint.org/) is an open-source linter for JavaScript, and it helps you to find and fix problems in your source code. ESLint can highlight errors and warnings directly within the VS Code editor to help you identify and fix issues as you write code. Errors and warnings are shown in red or yellow underlines, and if you hover over these lines, you can see information about the specific error or warning. VS Code also provides a Problems panel that shows all ESLint errors and warnings. ESLint is flexible, and it can be configured using the .eslintrc file. You can define which rules are enabled and at what error level.
Prettier is a code formatter. With the Prettier extension, you can get automatic code formatting:
Figure 7.6: Prettier extension
You can set it in VS Code so that code is formatted automatically after you save it, by going to Settings from the File | Preferences menu and then searching for Format On Save.
These are just a few examples of the great extensions you can get for VS Code. We recommend you install all of them and test them out yourself.
In the next section, we will create our first React app and learn how to run and modify it.
Creating and running a React app
Now that we have Node.js and our code editor installed, we are ready to create our first React.js app. We will use the Vite frontend tool (https://vitejs.dev/) for this. There are excellent React frameworks available, like Next.js or Remix, that can be used as well, but Vite is a good option to learn React basics. Vite provides a really fast development server, and you don’t have to do any complex configuration to start coding.
In the past, Create React App (CRA) was the most popular tool for creating React projects, but its usage has decreased, and it is no longer recommended by official documentation. Vite offers many advantages over CRA (such as its faster development server).
We are using Vite version 4.3 in this book. You should verify the commands against the Vite documentation if you are using some other version. Also, check the Node.js version requirements, and upgrade your Node.js installation if your package manager warns you about it.
Here are the steps you need to follow to make your first React project using Vite:
Open PowerShell, or another terminal that you are using, and move to a folder where you want to create your project.
Type the following npm command, which uses the latest version of Vite:
npm create vite@latest
To use the same Vite major version that we are using in this book, you can also specify the Vite version in the command:
npm create vite@4.3
The command starts the project creation wizard. If this is the first time you are creating a Vite project, you will get a message prompting you to install the create-vite package. Press y to proceed.
In the first phase, type your project name – in this case, myapp:
Figure 7.7: Project name
Then, you will select a framework. In this phase, select the React framework. Note that Vite isn’t tied to React and can be used to bootstrap projects in lots of different frontend frameworks:
Figure 7.8: Framework selection
In the final step, you will select a variant. We’ll first learn the basics of React with JavaScript and later move on to TypeScript. So, in this phase, we will select JavaScript:
Figure 7.9: Project variant
SWC (Speedy Web Compiler) is a fast JavaScript and TypeScript compiler written in Rust. It is a faster alternative to Babel, which is normally used.
Once the app has been created, move into your app folder:
cd myapp
Then, install dependencies using the following command:
npm install
Finally, run your app using the following command, which starts the app in development mode:
npm run dev
Now, you should see the following message in your terminal:
Figure 7.10: Run your project
Open your browser and navigate to the URL that is shown in your terminal after the Local: text (in the example, it is http://localhost:5173/, but it might be different in your case):
Figure 7.11: React app
You can stop the development server by pressing q in your terminal.
To build a minified version of your app for production, you can use the npm run build command, which builds your app in the build folder. We will look more closely at deployment in Chapter 17, Deploying Your Application.
Modifying a React app
Now, we will learn how to modify the React app that we created using Vite. We will use VS Code, which we installed earlier:
Open your React project folder with VS Code by selecting File | Open folder. You should see the app’s structure in the file explorer. The most important folder in this phase is the src folder, which contains the JavaScript source code:
Figure 7.12: Project structure
You can also open VS Code by typing the code . command into the terminal. This command opens VS Code and the folder where you are located.
Open the App.jsx file from the src folder in the code editor. Modify the text inside the <h1> element to Hello React and save the file. You don’t need to know anything else about this file at the moment. We will go deeper into this topic in Chapter 8, Getting Started with React:
Figure 7.13: App.js code
Now, if you look at the browser, you should immediately see that the header text has changed. Vite provides the Hot Module Replacement (HMR) feature, which updates a React component automatically when you modify its source code or styles in your React project, without the need for manual page refreshing:
Figure 7.14: Modified React app
Debugging a React app
To debug React apps, we should also install React Developer Tools, which is available for Chrome, Firefox, and Edge browsers. Chrome plugins can be installed from the Chrome Web Store (https://chrome.google.com/webstore/category/extensions), while Firefox add-ons can be installed from the Firefox add-ons site (https://addons.mozilla.org). After you have installed React Developer Tools, you should see a new Components tab in your browser’s developer tools once you navigate to your React app.
You can open the developer tools by pressing Ctrl + Shift + I (or F12) in the Chrome browser. The following screenshot shows the developer tools in the browser. The Components tab shows a visual representation of the React component tree, and you can use the search bar to find components. If you select a component in the component tree, you will see more specific information about it in the right-hand panel:
Figure 7.15: React Developer Tools
We will see that the browser’s developer tools are really important, and it is useful to open them during development so that you can see errors and warnings immediately. The Console in developer tools is where you can log messages, warnings, and errors from your JavaScript or TypeScript code. The Network tab shows all the requests made by a web page, including their status codes, response times, and content. This is good for optimizing the performance of your web app and diagnosing network-related issues.
Summary
In this chapter, we installed everything that is needed to start our frontend development with React. First, we installed Node.js and the VS Code editor. Then, we used Vite to create our first React app. Finally, we ran the app, demonstrated how to modify it, and introduced debugging tools. We will continue to use Vite in the following chapters.
In the next chapter, we will familiarize ourselves with the basics of React programming.
Questions
What are Node.js and npm?
How do you install Node.js?
What is VS Code?
How do you install VS Code?
How do you create a React app with Vite?
How do you run a React app?
How do you make basic modifications to your app?
Further reading
Here are some useful resources that will extend the knowledge we have learned in this chapter:
To join the Discord community for this book – where you can share feedback, ask the author questions, and learn about new releases – follow the QR code below:
This chapter describes the basics of React programming. We will cover the skills that are required to create basic functionalities for our React frontend. In JavaScript, we use the ECMAScript 2015 (ES6) syntax because it provides many features that make coding cleaner.
In this chapter, we will look at the following topics:
Creating React components
Useful ES6 features
JSX and styling
Props and state
Conditional rendering
React hooks
The Context API
Handling lists, events, and forms with React
Technical requirements
For our work, React version 18 or higher will be required. We set up our environment correctly in Chapter 7.
React is a JavaScript library for user interfaces (UIs). Since version 15, React has been developed under the MIT license. React is component-based, and the components are independent and reusable. Components are the basic building blocks of React. When you start to develop a UI with React, it is good to start by creating mock interfaces. That way, it will be easy to identify what kinds of components you have to create and how they interact.
From the following mock UI, we can see how the UI can be split into components. In this case, there will be an application root component, a search bar component, a table component, and a table row component:
Figure 8.1: React components
The components can then be arranged in a tree hierarchy, as shown in the following screenshot:
Figure 8.2: Component tree
The root component has two child components: the search component and the table component. The table component has one child component: the table row component. The important thing to understand with React is that the data flow goes from a parent component to a child component. We will learn later how data can be passed from a parent component to a child component using props.
React uses the virtual document object model (VDOM) for selective re-rendering of the UI, which makes it more cost-effective. The document object model (DOM) is a programming interface for web documents that represents the web page as a structured tree of objects. Each object in a tree corresponds to a part of the document. Using the DOM, programmers can create documents, navigate their structure, and add, modify, or delete elements and content. The VDOM is a lightweight copy of the DOM, and manipulation of the VDOM is much faster than it is with the real DOM. After the VDOM is updated, React compares it to a snapshot that was taken of the VDOM before updates were run. After the comparison, React will know which parts have been changed, and only these parts will be updated to the real DOM.
A React component can be defined either by using a JavaScript function – a functional component – or the ES6 JavaScript class – a class component. We will go more deeply into ES6 in the next section.
Here is some simple component source code that renders the Hello World text. This first code block uses a JavaScript function:
// Using JavaScript functionfunctionApp() {
return<h1>Hello World</h1>;
}
The mandatory return statement in the React function component defines what the component looks like.
Alternatively, the following code uses the ES6 class to create a component:
The class component contains the required render() method, which shows and updates the rendered output of the component. If you compare the functional and class App components, you can see that the render() method is not needed in the functional component. Before React version 16.8, you had to use class components to be able to use states. Now, you can use hooks to create states with functional components as well. We will learn about states and hooks later in this chapter.
In this book, we will create components using functions, which means we have to write less code. Functional components are a modern way to write React components, and we recommend avoiding using classes.
The name of the React component should start with a capital letter. It is also recommended to use the PascalCase naming convention, whereby each word starts with a capital letter.
Imagine we are making changes to our example component’s return statement and adding a new <h2> element to it, as follows:
functionApp() {
return (
<h1>Hello World</h1><h2>This is my first React component</h2>
);
}
Now, if the app is run, we will see an Adjacent JSX elements must be wrapped in an enclosing tag error, as indicated in the following screenshot:
Figure 8.3: Adjacent JSX elements error
If your component returns multiple elements, you have to wrap these inside one parent element. To fix this error, we have to wrap the header elements in one element, such as a div, as illustrated in the following code snippet:
// Wrap elements inside the divfunctionApp() {
return (
<div><h1>Hello World</h1><h2>This is my first React component</h2></div>
);
}
We can also use a React fragment, as shown in the following code snippet. Fragments don’t add any extra nodes to the DOM tree:
// Using fragmentsfunctionApp() {
return (
<React.Fragment><h1>Hello World</h1><h2>This is my first React component</h2></React.Fragment>
);
}
There is also shorter syntax for fragments, which looks like empty JSX tags. This is shown in the following code snippet:
// Using fragments short syntaxfunctionApp() {
return (
<><h1>Hello World</h1><h2>This is my first React component</h2></>
);
}
Examining our first React app
Let’s look more carefully at the first React app we created in Chapter 7, Setting Up the Environment and Tools – Frontend, using Vite.
The source code of the main.jsx file in the root folder looks like this:
At the beginning of the file, there are import statements that load components and assets to our file. For example, the second line imports the react-dom package from the node_modules folder, and the third line imports the App component (the App.jsx file in the src folder). The fourth line imports the index.css style sheet that is in the same folder as the main.jsx file.
The react-dom package provides DOM-specific methods for us. To render the React component to the DOM, we can use the render method from the react-dom package. React.StrictMode is used to find potential problems in your React app and these are printed in the browser console. Strict Mode only runs in development mode and renders your components extra time, so it has time to find bugs.
The root API is used to render React components inside a browser DOM node. In the following example, we first create a root by passing the DOM element to the createRoot method. The root calls the render method to render an element to the root:
importReactDOMfrom'react-dom/client';
importAppfrom'./App';
const container = document.getElementById('root');
// Create a rootconst root = ReactDOM.createRoot(container);
// Render an element to the root
root.render(<App />);
The container in the root API is the <div id="root"></div> element, which can be found in the index.html file inside the project root folder. Look at the following index.html file:
The following source code shows the App.jsx component from our first React app. You can see that import also applies to assets, such as images and style sheets. At the end of the source code, there is an export default statement that exports the component, and it can be made available to other components by using the import statement:
import { useState } from'react'import reactLogo from'./assets/react.svg'import viteLogo from'/vite.svg'import'./App.css'functionApp() {
const [count, setCount] = useState(0)
return (
<divclassName="App"><div><ahref="https://vitejs.dev"target="_blank"><imgsrc={viteLogo}className="logo"alt="Vite logo" /></a><ahref="https://reactjs.org"target="_blank"><imgsrc={reactLogo}className="logo react"alt="React logo" /></a></div><h1>Hello React</h1><divclassName="card"><buttononClick={() => setCount((count) => count + 1)}>
count is {count}
</button><p>
Edit <code>src/App.jsx</code> and save to test HMR
</p></div><pclassName="read-the-docs">
Click on the Vite and React logos to learn more
</p></div>
)
}
exportdefaultApp
You can see that in the App component that Vite has created, we don’t have semicolons at the end of statements. It is optional in JavaScript but, in this book, we will use semicolons to terminate statements when we start to create our own React components.
There can only be one export default statement per file, but there can be multiple named export statements. Default exports are commonly used to export React components. Named exports are commonly used to export specific functions or objects from a module.
The following example shows how to import default and named exports:
importReactfrom'react'// Import default valueimport { name } from … // Import named value
The exports look like this:
exportdefaultReact// Default exportexport { name } // Named export
Now that we have covered the basics of React components, let’s take a look at the basic features of ES6.
Useful ES6 features
ES6 was released in 2015, and it introduced a lot of new features. ECMAScript is a standardized scripting language, and JavaScript is one implementation of it. In this section, we will go through the most important features released in ES6 that we will be using in the following sections.
Constants and variables
Constants, or immutable variables, can be defined by using a const keyword, as shown in the following code snippet. When using the const keyword, the variable content cannot be reassigned:
constPI = 3.14159;
Now, you will get an error if you try to reassign the PI value, as indicated in the following screenshot:
Figure 8.4: Assignment to constant variable
The const is block-scoped. This means that the const variable can only be used inside the block in which it is defined. In practice, the block is the area between curly brackets {}. If const is defined outside of any function or block, it becomes a global variable, and you should try to avoid this situation. Global variables make code harder to understand, maintain, and debug. The following sample code shows how the scope works:
let count = 10;
if (count > 5) {
const total = count * 2;
console.log(total); // Prints 20 to console
}
console.log(total); // Error, outside the scope
The second console.log statement gives an error because we are trying to use the total variable outside its scope.
The following example demonstrates what happens when const is an object or array:
const myObj = {foo: 3};
myObj.foo = 5; // This is ok
When const is an object or array, its properties or elements can be updated.
The let keyword allows you to declare mutable block-scoped variables. The variable declared using let can be used inside the block in which it is declared (it can also be used inside sub-blocks).
Arrow functions
The traditional way of defining a function in JavaScript is by using a function keyword. The following function takes one argument and returns the argument value multiplied by 2:
function(x) {
return x * 2;
}
When we use the ES6 arrow function, the function looks like this:
x => x * 2
As we can see, by using the arrow function, we have made the declaration of the same function more compact. The function is a so-called anonymous function, and we can’t call it. Anonymous functions are often used as an argument for other functions. In JavaScript, functions are first-class citizens and you can store functions in variables, as illustrated here:
constcalc = x => x * 2
Now, you can use the variable name to call the function, like this:
calc(5); // returns 10
When you have more than one argument, you have to wrap the arguments in parentheses and separate the arguments with a comma to use the arrow function effectively. For example, the following function takes two parameters and returns their sum:
constcalcSum = (x, y) => x + y
// function callcalcSum(2, 3); // returns 5
If the function body is an expression, then you don’t need to use the return keyword. The expression is always implicitly returned from the function. When you have multiple lines in the function body, you have to use curly brackets and a return statement, as follows:
If the function doesn’t have any arguments, then you should use empty parentheses, like so:
constsayHello = () => "Hello"
We are going to use lots of arrow functions later in our frontend implementation.
Template literals
Template literals can be used to concatenate strings. The traditional way to concatenate strings is to use the + operator, as follows:
let person = {firstName: 'John', lastName: 'Johnson'};
let greeting = "Hello " + ${person.firstName} + " " + ${person.lastName};
With template literals, the syntax looks like this. You have to use backticks (``) instead of single or double quotes:
let person = {firstName: 'John', lastName: 'Johnson'};
let greeting = `Hello ${person.firstName}${person.lastName}`;
Next, we will learn how to use object destructuring.
Object destructuring
The object destructuring feature allows you to extract values from an object and assign them to a variable. You can use a single statement to assign multiple properties of an object to individual variables. For example, if you have this object:
Next, we will learn how to create classes using JavaScript ES6 syntax.
Classes and inheritance
Class definition in ES6 is similar to other object-oriented languages such as Java or C#. We saw an ES6 class when we looked at how to create React class components earlier. But, as we said earlier, classes are no longer recommended for creating React components.
The keyword for defining classes is class. A class can have fields, constructors, and class methods. The following sample code shows an ES6 class:
Inheritance is performed with an extends keyword. The following sample code shows an Employee class that inherits a Person class. This means that it inherits all fields from the parent class and can have its own fields that are specific to Employee. In the constructor, we first call the parent class constructor by using the super keyword. That call is required by the rest of the code, and you will get an error if it is missing:
Although ES6 is already quite old, some of its features are still only partially supported by modern web browsers. Babel is a JavaScript compiler that is used to compile ES6 (or newer versions) to an older version that is compatible with all browsers. You can test the compiler on the Babel website (https://babeljs.io). The following screenshot shows the arrow function compiling back to the older JavaScript syntax:
Figure 8.5: Babel
Now that we have learned about the basics of ES6, let’s take a look at what JSX and styling are all about.
JSX and styling
JavaScript XML (JSX) is the syntax extension for JavaScript. It is not mandatory to use JSX with React, but there are some benefits that make development easier. For example, JSX prevents injection attacks because all values are escaped in JSX before they are rendered. The most useful feature is that you can embed JavaScript expressions in JSX by wrapping them with curly brackets; this technique will be used a lot in the following chapters. JSX is compiled into regular JavaScript by Babel.
In the following example, we can access a component’s props when using JSX:
functionApp(props) {
return<h1>Hello World {props.user}</h1>;
}
Component props are covered in the next section.
You can also pass a JavaScript expression as props, as shown in the following code snippet:
<Hello count={2+2} />
You can use both inline and external styling with React JSX elements. Here are two examples of inline styling. This first one defines the style inside the div element:
As shown in a previous section, you can import a style sheet into a React component. To reference classes from an external CSS file, you should use a className attribute, as shown in the following code snippet:
import'./App.js';
...
<div className="App-header"> This is my app</div>
In the next section, we will learn about React props and state.
Props and state
Props and state are the input data for rendering a component. The component is re-rendered when the props or state change.
Props
Props are inputs to components, and they are a mechanism to pass data from a parent component to its child component. Props are JavaScript objects, so they can contain multiple key-value pairs.
Props are immutable, so a component cannot change its props. Props are received from the parent component. A component can access props through the props object that is passed to the function component as a parameter. For example, let’s take a look at the following component:
functionHello() {
return<h1>Hello John</h1>;
}
The component just renders a static message, and it is not reusable. Instead of using a hardcoded name, we can pass a name to the Hello component by using props, like this:
In React, the component state is an internal data store that holds information that can change over time. The state also affects the rendering of the component. When the state is updated, React schedules a re-render of the component. When the component re-renders, the state retains its latest values. State allows components to be dynamic and responsive to user interactions or other events.
It’s generally a good practice to avoid introducing unnecessary states in your React components. Unnecessary states increase the complexity of your components and can cause unwanted side effects. Sometimes, a local variable can be a better option. But you have to understand that changes to local variables won’t trigger re-rendering. Each time a component re-renders, local variables are reinitialized, and their values don’t persist between renders.
The state is created using the useState hook function. It takes one argument, which is the initial value of the state, and returns an array of two elements. The first element is the name of the state, and the second element is a function that is used to update the state value. The syntax of the useState function is shown in the following code snippet:
The next code example creates a state variable called name, and the initial value is Jim:
const [name, setName] = React.useState('Jim');
You can also import the useState function from React, like so:
importReact, { useState } from'react';
Then, you don’t need to type the React keyword, as indicated here:
const [name, setName] = useState('Jim');
The value of the state can now be updated by using the setName function, as illustrated in the following code snippet. This is the only way to modify the state value:
// Update name state valuesetName('John');
You should never update the state value directly using the = operator. If you update the state directly, as shown next, React won’t re-render the component and you will also get an error because you cannot reassign the const variable:
// Don't do this, UI won't re-render
name = 'John';
If you have multiple states, you can call the useState function multiple times, as shown in the following code snippet:
// Create two states: firstName and lastNameconst [firstName, setFirstName] = useState('John');
const [lastName, setLastName] = useState('Johnson');
Now, you can update states using the setFirstName and setLastName functions, as shown in the following code snippet:
// Update state valuessetFirstName('Jim');
setLastName('Palmer');
You can also define state using an object, as follows:
Now, you can update both the firstName and lastName state object parameters using the setName function, as follows:
setName({ firstName: 'Jim', lastName: 'Palmer' })
If you want to do a partial update of the object, you can use the spread operator. In the following example, we use the object spread syntax (...) that was introduced in ES2018. It clones the name state object and updates the firstName value to be Jim:
setName({ ...name, firstName: 'Jim' })
A state can be accessed by using the state name, as shown in the next example. The scope of the state is the component, so it cannot be used outside the component in which it is defined:
We have now learned the basics of state and props, and we will learn more about states later in this chapter.
Stateless components
The React stateless component is just a pure JavaScript function that takes props as an argument and returns a React element. Here’s an example of a stateless component:
Our HeaderText example component is also called a pure component. A component is said to be pure if its return value is consistently the same given the same input values. React provides React.memo(), which optimizes the performance of pure functional components. In the following code snippet, we wrap our component using memo():
Now, the component is rendered and memoized. In the next render, React renders a memoized result if the props are not changed. The React.memo() phrase also has a second argument, arePropsEqual(), which you can use to customize rendering conditions, but we will not cover that here. The one benefit of using functional components is unit testing, which is straightforward because their return values are always the same for the same input values.
Conditional rendering
You can use a conditional statement to render different UIs if a condition is true or false. This feature can be used, for example, to show or hide some elements, handle authentication, and so on.
In the following example, we will check if props.isLoggedin is true. If so, we will render the <Logout /> component; otherwise, we render the <Login /> component. This is now implemented using two separate return statements:
Hooks were introduced in React version 16.8. Hooks allow you to use state and some other React features in functional components. Before hooks, you had to write class components if states or complex component logic were needed.
There are certain important rules for using hooks in React. You should always call hooks at the top level in your React function component. You shouldn’t call hooks inside loops, conditional statements, or nested functions. Hook names begin with the word use, followed by the purpose they serve.
useState
We are already familiar with the useState hook function that is used to declare states. Let’s look at one more example of using the useState hook. We will create an example counter that contains a button, and when it is pressed, the counter is increased by 1, as illustrated in the following screenshot:
Figure 8.6: Counter component
First, we create a Counter component and declare a state called count with the initial value 0. The value of the counter state can be updated using the setCount function. The code is illustrated in the following snippet:
import { useState } from'react';
functionCounter() {
// count state with initial value 0const [count, setCount] = useState(0);
return<div></div>;
};
exportdefaultCounter;
Next, we render a button element that increments the state by 1. We use the onClick event attribute to call the setCount function, and the new value is the current value plus 1. We will also render the counter state value. The code is illustrated in the following snippet:
Now, our Counter component is ready, and the counter is incremented by 1 each time the button is pressed. When the state is updated, React re-renders the component and we can see the new count value.
In React, events are named using camelCase, for example, onClick.
Note that the function must be passed to an event handler, and then React will call the function only when the user clicks the button. We use an arrow function in the following example because it is more compact to write and improves code readability. If you call the function in the event handler, then the function is called when the component is rendered, which can cause an infinite loop:
// Correct -> Function is called when button is pressed
<button onClick={() =>setCount(count + 1)}>
// Wrong -> Function is called in render -> Infinite loop<buttononClick={setCount(count + 1)}>
State updates are asynchronous, so you have to be careful when a new state value depends on the current state value. To be sure that the latest value is used, you can pass a function to the update function. You can see an example of this here:
setCount(prevCount => prevCount + 1)
Now, the previous value is passed to the function, and the updated value is returned and saved to the count state.
There is also a hook function called useReducer that is recommended when you have a complex state, but we won’t cover that in this book.
Batching
React uses batching in state updates to reduce re-renders. Before React version 18, batching only worked in states updated during browser events – for example, a button click. The following example demonstrates the idea of batch updates:
From React version 18 onward, all state updates will be batched. If you don’t want to use batch updates in some cases, you can use the react-dom library’s flushSync API to avoid batching. For example, you might have a case where you want to update some state before updating the next one. It can be useful when incorporating third-party code, such as browser APIs.
You should use flushSync only if it is needed, because it can affect the performance of your React app.
useEffect
The useEffect hook function can be used to perform side effects in the React function component. The side effect can be, for example, a fetch request. The useEffect hook takes two arguments, as shown here:
useEffect(callback, [dependencies])
The callback function contains side-effect logic, and [dependencies] is an optional array of dependencies.
The following code snippet shows the previous counter example, but we have added the useEffect hook. Now, when the button is pressed, the count state value increases, and the component is re-rendered. After each render, the useEffect callback function is invoked and we can see Hello from useEffect in the console, as illustrated in the following code snippet:
import { useState, useEffect } from'react';
functionCounter() {
const [count, setCount] = useState(0);
// Called after every renderuseEffect(() => {
console.log('Hello from useEffect')
});
return (
<><p>{count}</p><buttononClick={() => setCount(count + 1)}>Increment
</button></>
);
};
exportdefaultCounter;
In the following screenshot, we can see what the console now looks like, and we can see that the useEffect callback is invoked after each render. The first log row is printed after the initial render, and the rest are printed after the button is pressed two times and the component is re-rendered due to state updates:
Figure 8.7: useEffect
The useEffect hook has a second optional argument (a dependency array) that you can use to prevent it from running in every render. In the following code snippet, we define that if the count state value is changed (meaning that the previous and current values differ), the useEffect callback function will be invoked. We can also define multiple states in the second argument. If any of these state values are changed, the useEffect hook will be invoked:
// Runs when count value is changed and component is re-rendereduseEffect(() => {
console.log('Counter value is now ' + count);
}, [count]);
If you pass an empty array as the second argument, the useEffect callback function runs only after the first render, as shown in the following code snippet:
// Runs only after the first renderuseEffect(() => {
console.log('Hello from useEffect')
}, []);
Now, you can see that Hello from useEffect is printed only once after the initial render, and if you press the button, the text is not printed. The message is printed twice after the first render due to React Strict Mode. Strict Mode renders your component twice in development mode to find bugs and does not impact the production build:
Figure 8.8: useEffect with an empty array
The useEffect function can also return a cleanup function that will run before every effect, as shown in the following code snippet. With this mechanism, you can clean up each effect from the previous render before running the effect next time. It is useful when you are setting up subscriptions, timers, or any resource that needs to be cleaned up to prevent unexpected behavior. The cleanup function is also executed after your component is removed from the page (or unmounted):
useEffect(() => {
console.log('Hello from useEffect');
return() => {
console.log('Clean up function');
});
}, [count]);
If you run the counter app with these changes, you can see what happens in the console, as shown in the following screenshot. The component is rendered twice at the beginning due to Strict Mode. After the initial render, the component is unmounted (removed from the DOM), and therefore, the cleanup function is called:
Figure 8.9: Cleanup function
useRef
The useRef hook returns a mutable ref object that can be used, for example, to access DOM nodes. You can see it in action here:
const ref = useRef(initialValue)
The ref object returned has a current property that is initialized with the argument passed (initialValue). In the next example, we create a ref object called inputRef and initialize it to null. Then, we use the JSX element’s ref property and pass our ref object to it. Now, it contains our input element, and we can use the current property to execute the input element’s focus function. Now, when the button is pressed, the input element is focused:
In this section, we have learned the basics of React hooks, and we will use them in practice when we start to implement our frontend. There are other useful hook functions available in React, and next you will learn how to create your own hooks.
Custom hooks
You can build your own hooks in React. As we have seen already, hooks’ names should start with the use word, and they are JavaScript functions. Custom hooks can also call other hooks. With custom hooks, you can reduce your component code complexity.
Let’s go through a simple example of creating a custom hook:
We will create a useTitle hook that can be used to update a document title. We will define it in its own file called useTitle.js. First, we define a function, and it gets one argument named title. The code is illustrated in the following snippet:
// useTitle.jsfunctionuseTitle(title) {
}
Next, we will use a useEffect hook to update the document title each time the title argument is changed, as follows:
Now, we can start to use our custom hook. Let’s use it in our counter example and print the current counter value into the document title. First, we have to import the useTitle hook into our Counter component, like this:
Then, we will use the useTitle hook to print the count state value into the document title. We can call our hook function in the top level of the Counter component function, and every time the component is rendered, the useTitle hook function is called and we can see the current count value in the document title. The code is illustrated in the following snippet:
Now, if you click the button, the count state value is also shown in the document title using our custom hook, as illustrated in the following screenshot:
Figure 8.10: Custom hook
You now have basic knowledge of React hooks and how you can create your own custom hooks.
The Context API
Passing data using props can be cumbersome if your component tree is deep and complex. You have to pass data through all components down the component tree. The Context API solves this problem, and it is recommended for use with global data that you might need in multiple components throughout your component tree – for example, a theme or authenticated user.
Context is created using the createContext method, which takes an argument that defines the default value. You can create your own file for the context, and the code looks like this:
Next, we will use a context provider component, which makes our context available for other components. The context provider component has a value prop that will be passed to consuming components. In the following example, we have wrapped <MyComponent /> using the context provider component, so the userName value is available in our component tree under <MyComponent />:
importReactfrom'react';
importAuthContextfrom'./AuthContext';
importMyComponentfrom'./MyComponent';
functionApp() {
// User is authenticated and we get the usernameconst userName = 'john';
return (
<AuthContext.Providervalue={userName}><MyComponent /></AuthContext.Provider>
);
};
exportdefaultApp;
Now, we can access the value provided in any component in the component tree by using the useContext() hook, as follows:
For list handling, we will learn about the JavaScript map() method, which is useful when you have to manipulate a list. The map() method creates a new array containing the results of calling a function on each element in the original array. In the following example, each array element is multiplied by 2:
The following example code demonstrates a component that transforms an array of integers into an array of list items and renders these inside the ul element:
The following screenshot shows what the component looks like when it is rendered. If you open the console, you can see a warning (Each child in a list should have a unique "key" prop):
Figure 8.11: React list component
List items in React need a unique key that is used to detect rows that have been updated, added, or deleted. The map() method also has index as a second argument, which we use to handle the warning:
Now, after adding the key, there is no warning in the console.
The usage of index is not recommended because it can cause bugs if the list is reordered or if you add or delete list items. Instead of that, you should use a unique key from the data if that exists. There are also libraries available that you can use to generate unique IDs, like uuid (https://github.com/uuidjs/uuid).
If the data is an array of objects, it would be nicer to present it in table format. We do this in roughly the same way as we did with the list, but now we just map the array to table rows (tr elements) and render these inside the table element, as shown in the following component code. Now we have a unique ID in the data so we can use it as a key:
The following screenshot shows what the component looks like when it is rendered. You should see the data in the HTML table:
Figure 8.12: React table
Now, we have learned how to handle list data using the map() method and how to render it using, for example, an HTML table element.
Handling events with React
Event handling in React is similar to handling DOM element events. The difference compared to HTML event handling is that event naming uses camelCase in React. The following sample component code adds an event listener to a button and shows an alert message when the button is pressed:
functionMyComponent() {
// This is called when the button is pressedconsthandleClick = () => {
alert('Button pressed');
}
return (
<><buttononClick={handleClick}>Press Me</button></>
);
};
exportdefaultMyComponent;
As we learned earlier in the counter example, you have to pass a function to the event handler instead of calling it. Now, the handleClick function is defined outside the return statement, and we can refer to it using the function name:
In React, you cannot return false from the event handler to prevent the default behavior. Instead, you should call the event object’s preventDefault() method. In the following example, we are using a form element, and we want to prevent form submission:
functionMyForm() {
// This is called when the form is submittedconsthandleSubmit = (event) => {
event.preventDefault(); // Prevents default behavioralert('Form submit');
}
return (
<formonSubmit={handleSubmit}><inputtype="submit"value="Submit" /></form>
);
};
exportdefaultMyForm;
Now, when you press the Submit button, you can see the alert and the form will not be submitted.
Handling forms with React
Form handling is a little bit different with React. An HTML form will navigate to the next page when it is submitted. In React, often, we want to invoke a JavaScript function that has access to form data after submission, and avoid navigating to the next page. We already covered how to avoid submission in the previous section using preventDefault().
Let’s first create a minimalistic form with one input field and a Submit button. In order to get the value of the input field, we use the onChange event handler. We use the useState hook to create a state variable called text. When the value of the input field is changed, the new value will be saved to the state. This component is called a controlled component because form data is handled by React. In an uncontrolled component, the form data is handled only by the DOM.
The setText(event.target.value) statement gets the value from the input field and saves it to the state. Finally, we will show the typed value when a user presses the Submit button. Here is the source code for our first form:
import { useState } from'react';
functionMyForm() {
const [text, setText] = useState('');
// Save input element value to state when it has been changedconsthandleChange = (event) => {
setText(event.target.value);
}
consthandleSubmit = (event) => {
alert(`You typed: ${text}`);
event.preventDefault();
}
return (
<formonSubmit={handleSubmit}><inputtype="text"onChange={handleChange}value={text}/><inputtype="submit"value="Press me"/></form>
);
};
exportdefaultMyForm;
Here is a screenshot of our form component after the Submit button has been pressed:
Figure 8.13: Form component
You can also write an inline onChange handler function using JSX, as shown in the following example. This is quite common practice if you have a simple event handler function, and it makes your code more readable:
Now is a good time to look at React Developer Tools, which are useful for debugging React apps.
If you haven’t installed React Developer Tools yet, you can find the instructions in Chapter 7, Setting Up the Environment and Tools – Frontend.
If we open the React Developer Tools Components tab with our React form app and type something into the input field, we can see how the value of the state changes, and we can inspect the current value of both the props and the state.
The following screenshot shows how the state changes when we type something into the input field:
Figure 8.14: React Developer Tools
Typically, we have more than one input field in the form. Let’s look at how we can handle that using an object state. First, we introduce a state called user using the useState hook, as shown in the following code snippet. The user state is an object with three attributes: firstName, lastName, and email:
One way to handle multiple input fields is to add as many change handlers as we have input fields, but this creates a lot of boilerplate code, which we want to avoid. Therefore, we add name attributes to our input fields. We can utilize these in the change handler to identify which input field triggers the change handler. The name attribute value of the input element must be the same as the name of the state object property in which we want to save the value, and the value attribute should be object.property, for example, in the last name input element. The code is illustrated here:
Now, if the input field that triggers the handler is the last name field, then event.target.name is lastName, and the typed value will be saved to the state object’s lastName field. Here, we will also use the object spread notation that was introduced in the Props and state section. In this way, we can handle all input fields with the one change handler:
import { useState } from'react';
functionMyForm() {
const [user, setUser] = useState({
firstName: '',
lastName: '',
email: ''
});
// Save input box value to state when it has been changedconsthandleChange = (event) => {
setUser({...user, [event.target.name]:
event.target.value});
}
consthandleSubmit = (event) => {
alert(`Hello ${user.firstName} ${user.lastName}`);
event.preventDefault();
}
return (
<formonSubmit={handleSubmit}><label>First name </label><inputtype="text"name="firstName"onChange={handleChange}value={user.firstName}/><br/><label>Last name </label><inputtype="text"name="lastName"onChange={handleChange}value={user.lastName}/><br/><label>Email </label><inputtype="email"name="email"onChange={handleChange}value={user.email}/><br/><inputtype="submit"value="Submit"/></form>
);
};
exportdefaultMyForm;
Here is a screenshot of our form component after the Submit button has been pressed:
Figure 8.15: React form component
In the previous example, it is better to create one object state because all three values belong to one user. It could also be implemented using separate states instead of one state and object. The following code snippet demonstrates this. Now, we have three states, and in the input element’s onChange event handler, we call the correct update function to save values into the states. In this case, we don’t need the name input element’s name attribute:
We now know how to handle forms with React, and we will use these skills later when we implement our frontend.
Summary
In this chapter, we started to learn about React, which we will be using to build our frontend. In our frontend development, we will use ES6, which makes our code cleaner, as we saw in the chapter. Before starting to develop with React, we covered the basics, such as the React component, JSX, props, state, and hooks. We then went through the features we need for further development. We learned about conditional rendering and context, as well as how to handle lists, forms, and events with React.
In the next chapter, we will focus on TypeScript with React. We will learn the basics of TypeScript and how to use it in our React projects.
Questions
What is a React component?
What are states and props?
How does data flow in a React app?
What is the difference between stateless and stateful components?
What is JSX?
How are React hooks named?
How does context work?
Further reading
Here are some other good resources for learning about React:
To join the Discord community for this book – where you can share feedback, ask the author questions, and learn about new releases – follow the QR code below:
This chapter introduces TypeScript. We will cover the basic skills that are required to use TypeScript with React and create our first React app with TypeScript.
In this chapter, we will look at the following topics:
Understanding TypeScript
Using TypeScript features with React
Creating a React app with TypeScript
Technical requirements
For our work, React version 18 or higher will be required.
TypeScript (https://www.typescriptlang.org/) is a strongly typed superset of JavaScript, developed by Microsoft. TypeScript adoption has grown a lot in recent years and it is widely used in the industry. It has an active development community and is supported by most popular libraries. In the JetBrains 2022 Developer Ecosystem report, TypeScript was named the fastest-growing programming language (https://www.jetbrains.com/lp/devecosystem-2022/).
TypeScript offers several advantages compared to JavaScript, mostly due to strong typing:
TypeScript allows you to define types for variables, functions, and classes. This allows you to catch errors early in the development process.
TypeScript improves the scalability of your app, as well as making your code easier to maintain.
TypeScript improves code readability and makes your code more self-documenting.
Compared to JavaScript, the TypeScript learning curve can be steeper if you are not familiar with static typing.
The easiest way to try TypeScript is to use an online environment such as TypeScript Playground (https://www.typescriptlang.org/play). If you want to code TypeScript locally, you can install the TypeScript compiler on your computer using npm. This will not be needed for our React project because Vite comes with built-in TypeScript support. TypeScript is transpiled to plain JavaScript and can then be executed in a JavaScript engine.
The following npm command installs the latest version of TypeScript globally, allowing you to use TypeScript anywhere in your terminal:
npm install -g typescript
You can check the installation by checking the TypeScript version number:
tsc --version
If you are using Windows PowerShell, you might get an error stating that running scripts is disabled on this system. In this case, you have to change the execution policy to be able to run the installation command. You can read more at https://go.microsoft.com/fwlink/?LinkID=135170.
Like JavaScript, TypeScript has good IDE support that makes your coding more productive, with features like linting and code autocompletion – for example, IntelliSense in Visual Studio Code.
Common types
TypeScript will automatically define the type of a variable when you initialize it. This is called type inference. In the following example, we declare a message variable and assign it to a string value. If we try to reassign it with another type, we get an error, as shown in the following image:
Figure 9.1: Type inference
TypeScript has the following primitive types: string, number, and boolean. The number type represents both integer and floating-point numbers. You can also set an explicit type for a variable using the following syntax:
The variables’ types can be checked using the typeof keyword, which returns a string representing the type of the variable it is applied to:
// Check variable typeconsole.log(typeof email); // Output is "string"typeof email === "string"// truetypeof age === "string"// false
If you don’t know the type of a variable, you can use the unknown type. It can be used when you get a value, for example, from some external source, and you don’t know its type:
letexternalValue: unknown;
When a value is assigned to the unknown variable, you can check the type using the typeof keyword.
TypeScript also provides the any type. If you define a variable using the any type, TypeScript doesn’t perform a type check or inference on that variable. You should avoid using the any type whenever possible, since it negates the effectiveness of TypeScript.
Arrays can be declared in the same way as in JavaScript, but you have to define the type of the elements in the array:
Type inference also works with objects. If you create the following object, TypeScript creates an object with these inferred types: id: number, name: string, and email: string:
You can also define an object using the interface or type keyword, which describes the object’s shape. The type and interface are quite similar, and most of the time you are free to choose which one you use:
// Using interface
interface Student {
id: number;
name: string;
email: string;
};
// Or using type
type Student = {
id: number;
name: string;
email: string;
};
Then, you can declare an object that conforms to the Student interface or type:
Now, if you try to create an object that doesn’t match the interface or type, you will get an error. In the next image, we create an object where the id property value is string, but it is defined as number in the interface:
Figure 9.2: Interface
You can define optional properties by using the question mark (?) at the end of the property name. In the following example, we mark email to be optional. Now, you can create a student object without an email because it is an optional property:
The optional chaining operator (?.) can be used to safely access object properties and methods that can be null or undefined without causing an error. It is really useful with optional properties. Let’s look at the following type, where address is optional:
type Person = {
name: string,
email: string;
address?: {
street: string;
city: string;
}
}
You can create an object based on the Person type that doesn’t have the address property defined:
constperson: Person = {
name: "John Johnson",
email: "j.j@mail.com"
}
Now, if you try to access the address property, an error is thrown:
// Error is thrownconsole.log(person.address.street);
However, if you use optional chaining, the value undefined is printed to the console and an error is not thrown:
// Output is undefinedconsole.log(person.address?.street);
There are also many ways to compose types in TypeScript. You can use the | operator to create a union type, a type that handles different types. For example, the following example defines a type that can contain a string or number:
type InputType = string | number;
// Use your typeletname: InputType = "Hello";
letage: InputType = 12;
You can also use union types to define sets of strings or numbers, as shown in the following example:
type Fuel = "diesel" | "gasoline" | "electric ";
type NoOfGears = 5 | 6 | 7;
Now, we can use our union types in the following way:
type Car = {
brand: string;
fuel: Fuel;
gears: NoOfGears;
}
If you create a new Car object and try to assign some other value than what is defined in the Fuel or NoOfGears union types, you will get an error.
Functions
When you define functions, you can set parameter types in the following way:
Now, you have encountered some TypeScript basics, and we will learn how to apply these new skills in our React apps.
Using TypeScript features with React
TypeScript is a valuable addition to your React projects, especially when they grow in complexity. In this section, we will learn how we can get prop and state type validation in our React components and detect potential errors early in development.
State and props
In React, you have to define the type of component props. We have already learned that component props are JavaScript objects, so we can use type or interface to define the prop type.
Let’s look at one example where a component receives a name (string) and age (number) prop:
functionHelloComponent({ name, age }) {
return(
<> Hello {name}, you are {age} years old!</>
);
}
exportdefaultHelloComponent;
Now, we can render our HelloComponent and pass props to it:
If we use TypeScript, we can first create a type that describes our props:
type HelloProps = {
name: string;
age: number;
};
Then, we can use our HelloProps type in the component props:
functionHelloComponent({ name, age }: HelloProps) {
return(
<> Hello {name}, you are {age} years old!</>
);
}
exportdefaultHelloComponent;
Now, if we pass props using the wrong type, we will get an error. This is great because, now, we can catch potential errors in the development phase:
Figure 9.4: Typing props
If we had used JavaScript instead, we wouldn’t have seen an error in this phase. In JavaScript, if we had passed a string as the age prop instead of a number, it would still have worked, but we might have encountered unexpected behavior or errors if we had tried to perform numerical operations on it later on.
If there are optional props, you can mark these using the question mark in your type where you define the props – for example, if age is optional:
type HelloProps = {
name: string;
age?: number;
};
Now, you can use your component with or without age props.
If you want to pass a function using the props, you can define it in your type using the following syntax:
// Function without parameters
type HelloProps = {
name: string;
age: number;
fn: () =>void;
};
// Function with parameters
type HelloProps = {
name: string;
age: number;
fn: (msg: string) => void;
};
Quite often, you will want to use the same type in multiple files in your app. In that case, it is a good practice to extract types into their own file and export them:
Then, you can import the type into any component where you need it:
// Import type and use it in your componentimport { HelloProps } from ./types;
functionHelloComponent({ name, age }: HelloProps) {
return(
<> Hello {name}, you are {age} years old!</>
);
}
exportdefaultHelloComponent;
As we touched on in Chapter 8, you can also use the arrow function to create a functional component. There is a standard React type, FC (function component), that we can use with arrow functions. This type takes a generic argument that specifies the prop type, which is HelloProps in our case:
importReactfrom'react';
import { HelloProps } from'./types';
constHelloComponent: React.FC<HelloProps> = ({ name, age }) => {
return (
<> Hello {name}, you are {age} years old!</>
);
};
exportdefaultHelloComponent;
Now, you have learned how to define prop types in your React app, so we will move on to states. When you create states using the useState hook we learned about in Chapter 8, type inference handles typing when you are using common primitive types. For example:
If you try to update the state using a different type, you will get an error:
Figure 9.5: Typing state
You can also explicitly define state types. You have to do this if you want to initialize your state to null or undefined. In this case, you can use the union operator, and the syntax is the following:
If you have a complex state, you can use a type or interface. In the following example, we create a type that describes a user. Then, we create a state and initialize it with an empty User object. If you want to allow null values, you can use a union to allow either a User object or a null value:
type User = {
id: number;
name: string;
email: number;
};
// Use type with state, the initial value is an empty User objectconst [user, setUser] = useState<User>({} asUser);
// If null values are acceptedconst [user, setUser] = useState<User | null>(null);
Events
In Chapter 8, we learned how to read user input in a React app. We used the input element’s onChange event handler to save typed data to the state. When using TypeScript, we have to define the types of events. In the following screenshot, you can see that we get an error if types are not defined:
Figure 9.6: Typing events
Let’s see how we can handle an input element’s change event. Let’s see one example where the input element code in the return statement looks like the following:
The form submission handler function handles the form submission. This function should take an event parameter of the type React.FormEvent<HTMLFormElement>:
Now, we know how to handle events when using TypeScript in our React apps. Next, we will learn how to actually create a React app that uses TypeScript.
Creating a React app with TypeScript
Now, we will create a React app using Vite, and we will use TypeScript instead of JavaScript. We will use TypeScript later when we develop the frontend for our car backend. As we mentioned earlier, Vite comes with built-in TypeScript support:
Create a new React app using the following command:
npm create vite@latest
Next, name your project tsapp, and select the React framework and the TypeScript variant:
Figure 9.7: React TypeScript app
Then, move to your app folder, install dependencies, and run your app using the following commands:
cd tsapp
npm install
npm run dev
Open your app folder in VS Code, and you will see that the filename of our App component is App.tsx:
Figure 9.8: App.tsx
The file extension of TypeScript React files is .tsx (combining JSX with TypeScript). The regular file extension of TypeScript files is .ts.
Locate the tsconfig.json file in the root of your project. This is a configuration file used by TypeScript to specify compiler options, such as the target version of the compiled JavaScript output or the module system that is used. We can use the default settings defined by Vite.
Let’s create the React app that we used as an example in an earlier section, when we defined types for events. The user can enter a name, and when the button is pressed, a hello message is shown using an alert:
First, we will remove the code from the App.tsx file’s return statement and leave only fragments. After also removing all unused imports (except the useState import), your code should look like the following:
Try typing your name into the input element and pressing the Submit button. You should see the hello message showing your name:
Figure 9.9: React TypeScript app
Vite and TypeScript
Vite transpiles TypeScript files to JavaScript, but it doesn’t perform type checking. Vite uses esbuild to transpile TypeScript files because that is much faster than the TypeScript compiler (tsc).
The VS Code IDE handles type checking for us, and you should fix all errors that are shown in the IDE. You can also use a Vite plugin called vite-plugin-checker (https://github.com/fi3ework/vite-plugin-checker). Type checking is done when we build a Vite app to production, and all errors should be fixed before the production build. We will build our Vite app later in this book.
Summary
In this chapter, we started to learn TypeScript and how to use it in our React apps. Now, we know how to use common types in TypeScript and how to define types for React component props and states. We also learned to define types for events, and created our first React app with TypeScript using Vite.
In the next chapter, we will focus on networking with React. We will also use the GitHub REST API to learn how to consume a RESTful web service with React.
Questions
What is TypeScript?
How do we define variable types?
How do we define types in functions?
How do we define types for React props and states?
How do we define types for events?
How do we create a React TypeScript app using Vite?
Further reading
Here are some other useful resources for learning about React with TypeScript:
To join the Discord community for this book – where you can share feedback, ask the author questions, and learn about new releases – follow the QR code below:
This chapter explains networking with React. This is a really important skill that we need in most React apps. We will learn about promises, which make asynchronous code cleaner and more readable. For networking, we will use the fetch and Axios libraries. As an example, we will use the OpenWeather and GitHub REST APIs to demonstrate how to consume RESTful web services with React. We will also see the React Query library in action.
In this chapter, we will cover the following topics:
The traditional way to handle an asynchronous operation is to use callback functions for the success or failure of the operation. If the operation succeeds, the success function is called; otherwise, the failure function is called. The following (abstract) example shows the idea of using a callback function:
functiondoAsyncCall(success, failure) {
// Do some API callif (SUCCEED)
success(resp);
elsefailure(err);
}
success(response) {
// Do something with response
}
failure(error) {
// Handle error
}
doAsyncCall(success, failure);
Nowadays, promises are a fundamental part of asynchronous programming in JavaScript. A promise is an object that represents the result of an asynchronous operation. The use of promises simplifies the code when you’re executing asynchronous calls. Promises are non-blocking. If you are using an older library for asynchronous operations that doesn’t support promises, the code becomes much more difficult to read and maintain. In that case, you will end up with multiple nested callbacks that are really hard to read. Error handling will also be hard because you will have to check for errors in each callback.
With promises, we can execute asynchronous calls if the API or library we are using to send requests supports promises. In the following example, an asynchronous call is made. When the response is returned, the callback function inside the then method is executed, taking the response as an argument:
doAsyncCall()
.then(response =>// Do something with the response)
The then method returns a promise. A promise can be in one of three states:
Pending: Initial state
Fulfilled (or Resolved): Successful operation
Rejected: Failed operation
The following code demonstrates a simple promise object, where setTimeout simulates an asynchronous operation:
The promise is in the pending state when the promise object is created and while the timer is running. After 500 milliseconds, the resolve function is called with the value "Hello" and the promise enters the fulfilled state. If there is an error, the promise state changes to rejected, and that can be handled using the catch() function, which we’ll show later.
You can chain many instances of then together, which means that you can run multiple asynchronous operations one after another:
doAsyncCall()
.then(response =>// Get some data from the response)
.then(data =>// Do something with the data
You can also add error handling to promises by using catch(). The catch() is executed if any error occurs in the preceding then chain:
doAsyncCall()
.then(response =>// Get some data from the response)
.then(data =>// Do something with data)
.catch(error =>console.error(error))
async and await
There is a more modern way to handle asynchronous calls that involves async/await, which was introduced in ECMAScript 2017. The async/await method is based on promises. To use async/await, you must define an async() function that can contain await expressions.
The following is an example of an asynchronous call containing async/await. As you can see, you can write the code in a similar way to synchronous code:
constdoAsyncCall = async () => {
const response = awaitfetch('http://someapi.com');
const data = await response.json();
// Do something with the data
}
The fetch() function returns a promise, but now it is handled using await instead of the then method.
For error handling, you can use try...catch with async/await, as shown in the following example:
constdoAsyncCall = async () => {
try {const response = awaitfetch('http://someapi.com');
const data = await response.json();
// Do something with the data}catch(err) {console.error(err);
}}
Now that we understand promises, we can start learning about the fetch API, which we can use to make requests in our React apps.
Using the fetch API
With the fetch API, you can make web requests. The idea of the fetch API is similar to the traditional XMLHttpRequest or jQuery Ajax API, but the fetch API also supports promises, which makes it more straightforward to use. You don’t have to install any libraries if you are using fetch and it is supported by modern browsers natively.
The fetch API provides a fetch() method that has one mandatory argument: the path of the resource you are calling. In the case of a web request, it will be the URL of the service. For a simple GET method call, which returns a response, the syntax is as follows:
The fetch() method returns a promise that contains the response. You can use the json() method to extract the JSON data from a response, and this method also returns a promise.
The response that is passed to the first then statement is an object that contains the properties ok and status, which we can use to check whether the request was successful. The ok property value is true if the response status is in the form 2XX:
fetch('http://someapi.com')
.then(response => {
if (response.ok)
// Successful request -> Status 2XXelse// Something went wrong -> Error response
})
.then(data =>console.log(data))
.catch(error =>console.error(error))
To use another HTTP method, such as POST, you must define it in the second argument of the fetch() method. The second argument is an object where you can define multiple request settings. The following source code makes the request using the POST method:
You can also add headers inside the second argument. The following fetch() call contains the 'Content-Type':'application/json' header. It is recommended that you add the 'Content-Type' header because then the server can interpret the request body correctly:
The fetch API is not the only way to execute requests in the React app. There are other libraries that you can use as well. In the next section, we will learn how to use one such popular library: axios.
Using the Axios library
You can also use other libraries for network calls. One very popular library is axios (https://github.com/axios/axios), which you can install in your React app with npm:
npm install axios
You must add the following import statement to your React component before using it:
import axios from'axios';
The axios library has some benefits, such as automatic transformation of the JSON data, so you don’t need the json() function when using axios. The following code shows an example call being made using axios:
The axios library has its own call methods for the different HTTP methods. For example, if you want to make a POST request and send an object in the body, axios provides the axios.post() method:
The example code above sends a POST request to the https://myapi.com/api/cars endpoint. The request body contains an object and Axios automatically stringifies the data.
Now, we are ready to look at a few practical examples involving networking with React.
Practical examples
In this section, we will go through two examples of using public REST APIs in your React apps. In the first example, we use the OpenWeather API to fetch the current weather for London and render it in the component. In the second example, we use the GitHub API and allow the user to fetch repositories by keyword.
OpenWeather API
First, we will make a React app that shows the current weather in London. We will show the temperature, description, and weather icon in our app. This weather data will be fetched from OpenWeather (https://openweathermap.org/).
You need to register with OpenWeather to get an API key. A free account will be sufficient for our needs. Once you have registered, navigate to your account information to find the API keys tab. There, you’ll see the API key that you need for your React weather app:
Figure 10.1: The OpenWeather API key
Your API key will be activated automatically, up to 2 hours after your successful registration, so you may have to wait a while before you can use it in this section.
Let’s create a new React app with Vite:
Open a terminal in Windows or Terminal in macOS/Linux, and type the following command:
npm create vite@latest
Name your app weatherapp and select the React framework and JavaScript variant.
Navigate to the weatherapp folder and install dependencies:
cd weatherapp
npm install
Start your app with the following command:
npm run dev
Open your project folder with VS Code and open the App.jsx file in the editor view. Remove all the code inside the fragment (<></>)and remove unused imports. Now, your source code should look as follows:
First, we must add the states that are needed to store response data. We will show the temperature, description, and weather icon in our app. We have three related values, so it is better to create one state that is an object instead of creating multiple individual states:
If you copy the URL into a browser, you can view the JSON response data:
Figure 10.2: Get weather by city
From the response, you can see that temp can be accessed using main.temp. You can also see that description and icon are inside the weather array, which has only one element, and that we can access it using weather[0].description and weather[0].icon.
We will implement the fetch call in the next few steps, inside the useEffect hook function. Import useEffect from React:
import { useState, useEffect } from'react';
The REST API call is executed using fetch in the useEffect hook function, using an empty array as the second argument. Therefore, the fetch is done once, after the first render. After a successful response, we save the weather data to the states. Once the state values have been changed, the component will be re-rendered. The following is the source code for the useEffect hook function. It will execute the fetch() function once after the first render (Note! Use your own API key in the code.):
Once you have added the useEffect function, the request is executed after the first render. We can check that everything has been done correctly using React Developer Tools. Open your app in a browser and open your React Developer Tools Components tab. Now, you can see that the states have been updated with the values from the response:
Figure 10.3: Weather component
You can also check that the request status is 200 OK from the Network tab.
Finally, we will implement the return statement to show the weather values. We will use conditional rendering here; otherwise, we will get an error because we don’t have image code in the first render call and the image upload won’t succeed.
To show the weather icon, we must add https://openweathermap.org/img/wn/ before the icon code, and @2x.png after the icon code.
Then, we can set the concatenated image URL as the img element’s src attribute. Temperature and description are shown in the paragraph element. °C is the degrees Celsius symbol:
In our example, we checked that the weather icon was loaded to check if the fetch was completed. This is not the optimal solution because if the fetch ends in an error, our component still renders a loading message. The boolean state is used a lot in scenarios like this, but it doesn’t solve the problem either. The best solution would be a status that indicates the exact state of the request (pending, resolved, rejected). You can read more about this in Kent C. Dodds’ blog post, Stop using isLoading Booleans: https://kentcdodds.com/blog/stop-using-isloading-booleans. This problem is solved by the React Query library, which we will use later in this chapter.
GitHub API
In the second example, we are going to create an app that uses the GitHub API to fetch repositories by keyword. The user enters a keyword, and we fetch repositories that contain that keyword. We will use the axios library for web requests, and we will also practice using TypeScript in this example.
Let’s first see how you can send a GET request using axios with TypeScript. You can make a GET request and specify the expected data type using TypeScript generics, as shown in the following example:
If you try to access some field that is not present in the expected data type, you will get an error early in the development phase. At this point, it is important to understand that TypeScript is compiled to JavaScript and all type information is removed. Therefore, TypeScript doesn’t have a direct impact on runtime behavior. If a REST API returns data of a different type than expected, TypeScript won’t catch this as a runtime error.
Now, we can start to develop our GitHub app:
Create a new React app called restgithub using Vite, selecting the React framework and TypeScript variant.
Install dependencies, start the app, and open the project folder with VS Code.
Install axios using the following npm command in your project folder:
npm install axios
Remove the extra code inside the fragment <></> from the App.tsx file. Your App.tsx code should look as follows:
Let’s inspect the JSON response by typing the URL into a browser and using the react keyword:
Figure 10.5: GitHub REST API
From the response, we can see that repositories are returned as a JSON array called items. From the individual repositories, we will show the full_name and html_url values.
We will present the data in the table and use the map() function to transform the values into table rows, as shown in Chapter 8. The id can be used as a key for a table row.
We are going to make the REST API call with the keyword from the user input. One way to implement this is to create an input field and button. The user types the keyword into the input field, and the REST API call is made when the button is pressed.
We can’t make the REST API call in the useEffect() hook function because, in that phase, the user input isn’t available when the component is rendered the first time.
We will create two states, one for the user input and one for the data from the JSON response. When we are using TypeScript, we have to define a type for the repository, as shown in the following code. The repodata state is an array of Repository type because repositories are returned as JSON arrays in the response. We only need to access three fields; therefore, only these fields are defined in the type. We will also import axios, which we’ll use later when sending a request:
Next, we will implement the input field and the button in the return statement. We also have to add a change listener to our input field to be able to save the input value to a state called keyword. The button has a click listener, which invokes the function that will make the REST API call with the given keyword:
In the handleClick() function, we will concatenate the url and keyword states using template literals (Note! Use backticks ``). We will use the axios.get() method to send a request. As we learned earlier, Axios does not require the .json() method to be called on the response. Axios automatically parses the response data, and then we save the items array from the response data to the repodata state. We also use catch() to handle errors. Since we are using TypeScript, we will define the expected data type in the GET request. We have seen that the response is an object that contains an item property. The content of the item property is an array of repository objects; therefore, the data type is <{ items: Repository[] }>:
In the return statement, we will use the map() function to transform the data state into table rows. The url property of a repository will be the href value of the <a> element. Each repository has a unique id property, which we can use as a key for a table row. We use conditional rendering to handle cases where the response doesn’t return any repositories:
There is an API rate limit (number of daily requests without authentication) for the GitHub API, so if your code stops working, the reason might be here. The search endpoint that we are using has a limit of 10 requests per minute. If you exceed the limit, you have to wait one minute.
Handling race conditions
If your component makes several requests quickly, it can lead to a race condition that can create unpredictable or incorrect results. Network requests are asynchronous; therefore, requests don’t necessarily finish in the same order as they were sent.
The following example code sends a network request when the props.carid value changes:
Now, if carid changes quickly multiple times, the data that is rendered might not be from the last request that was sent.
We can use the useEffect cleanup function to avoid race conditions. First, we create a boolean variable named ignore inside the useEffect(), with an initial value of false. Then, we update the ignore variable value to true in the cleanup function. In the state update, we check the value of the ignore variable, and the state is updated only if the value is false, which means that no new value has replaced props.carid and the effect is not cleaned up:
Now, each time a component is re-rendered, the cleanup function is called and ignore is updated to true, and the effect is cleaned up. Only the result from the last request is rendered, and we can avoid race conditions.
React Query, which we will start to use next, provides some mechanisms for handling race conditions, such as concurrency control. It takes care that only one request is sent at a time for a given query key.
Using the React Query library
In proper React apps where you make a lot of network calls, the use of third-party networking libraries is recommended. The two most popular libraries are React Query (https://tanstack.com/query), also known as Tanstack Query, and SWR (https://swr.vercel.app/). These libraries provide a lot of useful features, such as data caching and performance optimization.
In this section, we will learn how you can use React Query to fetch data in your React app. We will create a React app that fetches repositories from the GitHub REST API using the react keyword:
First, create a React app called gitapi using Vite and select the React framework and JavaScript variant. Install dependencies and move to your project folder.
Next, install React Query and axios using the following commands in your project folder (Note! In this book, we are using Tanstack Query v4):
React Query provides the QueryClientProvider and QueryClient components, which handle data caching. Import these components into your App component. Then, create an instance of QueryClient and render QueryClientProvider in our App component:
isSuccess: The query ended successfully and query data is available.
The query object’s data property contains the data that the response returns.
With this information, we can continue our GitHub example using useQuery.
We will create a new component for fetching data. Create a new file called Repositories.jsx in the src folder, and fill it with the following starter code:
Import the useQuery hook and create a function called getRepositories() that invokes axios.get() on the GitHub REST API. Here, we use async/await with Axios. Call the useQuery hook function and make the value of the queryFn property our fetch function, getRepositories:
Next, implement the conditional rendering. The repositories are rendered when the data is available. We also render a message if the REST API call ends with an error:
Now, your app should look like the following, and repositories are fetched using the React Query library. We also managed to handle request status easily using its built-in features. We don’t need any states to store response data because React Query handles data management and caching:
Figure 10.7: Tanstack Query
You should also see that refetching is done automatically by React Query when the browser is refocused (when the user returns to the application’s window or tab). This is a good feature; you can see the updated data each time you refocus the browser. You can change this default behavior globally or per query.
Refetching is also done automatically when the network is reconnected, or a new instance of the query is mounted (component is inserted into the DOM).
React Query has an important property called staleTime that defines how long data is considered fresh before it becomes stale and triggers a re-fetch in the background. By default, staleTime is 0, which means that data becomes stale immediately after a successful query. By setting the staleTime value, you can avoid unnecessary re-fetches if your data is not changing so often. The following example shows how you can set staleTime in your query:
There is also a cacheTime property that defines when inactive queries are garbage collected, and the default time is 5 minutes.
React Query simplifies handling data mutations by providing a useMutation hook for creating, updating, and deleting data, along with built-in error handling and cache invalidation. Below is an example of useMutation that adds a new car. Now, because we want to add a new car, we use the axios.post() method:
In the case of updating or deleting, you can use the axios.put(), axios.patch(), or axios.delete() methods.
The mutationFn property value is a function that sends a POST request to the server and returns a promise. React Query mutation also provides side effects, such as onSuccess and onError, that can be used in mutations. onSuccess is used to define a callback function that can perform any necessary actions, such as updating the UI or displaying a success message, based on a successful mutation response. onError is used to specify a callback function that will be executed if the mutation operation encounters an error.
Then, we can execute mutation in the following way:
mutation.mutate(newCar);
QueryClient provides an invalidateQueries() method that can be used to invalidate queries in the cache. If the query is invalidated in the cache, it will be fetched again. In the previous example, we used useMutation to add a new car to the server. If we have a query that fetches all cars and the query ID is cars, we can invalidate it in the following way after the new car has been added successfully:
This means that the cars will be fetched again after a new car has been added to the server.
By using React Query, we have to write less code to get proper error handling, data caching, and so on, due to the built-in functionalities that it provides. Now that we have learned about networking with React, we can utilize these skills in our frontend implementation.
Summary
In this chapter, we focused on networking with React. We started with promises, which make asynchronous network calls easier to implement. This is a cleaner way to handle calls, and it’s much better than using traditional callback functions.
In this book, we are using the Axios and React Query libraries for networking in our frontend. We went through the basics of using these libraries. We implemented two React example apps using the fetch API and Axios to call REST APIs, and we presented the response data in the browser. We learned about race conditions and looked at how to fetch data using the React Query library.
In the next chapter, we will look at some useful React components that we are going to use in our frontend.
Questions
What is a promise?
What are fetch and axios?
What is React Query?
What are the benefits of using a networking library?
Further reading
There are other good resources available for learning about promises and asynchronous operations. A couple are as follows:
To join the Discord community for this book – where you can share feedback, ask the author questions, and learn about new releases – follow the QR code below:
React is component-based, and we can find a lot of useful third-party components that we can use in our apps. In this chapter, we will look at several components that we are going to use in our frontend. We will examine how to find suitable components and how you can then use them in your own apps.
In this chapter, we will cover the following topics:
There are lots of useful React components available for different purposes. You can save time by not doing everything from scratch. Well-known third-party components are also well tested, and there is good community support for them.
Our first task is to find a suitable component for our needs. One good site to search for components on is JS.coach (https://js.coach/). You just have to type in a keyword, search, and select React from the list of libraries.
In the following screenshot, you can see search results for table components for React:
Components often have good documentation that helps you use them in your own React app. Let’s see how we can install a third-party component in our app and start to use it:
Navigate to the JS.coach site, type date in the search input field, and filter by React.
In the search results, you will see a list component called react-date-picker (with two hyphens). Click the component link to see more detailed information about the component.
You should find the installation instructions on the info page, and some simple examples of how to use the component. You should also check that the development of a component is still active. The info page often provides the address of a component’s website or GitHub repository, where you can find the full documentation. You can see the info page for react-date-picker in the following screenshot:
Figure 11.2: react-date-picker info page
As you can see from the component’s info page, components are installed using the npm package. The syntax of the command to install components looks like this:
npm install component_name
Or, if you use yarn, it looks like this:
yarn add component_name
The npminstall and yarnadd commands save the component’s dependency to the package.json file that is in the root folder of your React app.
Now, we will install the react-date-picker component to the myapp React app that we created in Chapter 7, Setting Up the Environment and Tools – Frontend. Move to your app root folder and type the following command:
npm install react-date-picker
If you open the package.json file from your app root folder, you can see that the component has now been added to the dependencies section, as illustrated in the following code snippet:
As shown, you can find the installed version number from the package.json file.
If you want to install a specific version of a component, you can use the following command:
npm install component_name@version
And if you want to remove an installed component from your React app, you can use the following command:
npm uninstall component_name
Or, if you use yarn:
yarn remove component_name
You can see what components are outdated by using the following command in your project root directory. If the output is empty, all components are in the latest version:
npm outdated
You can update all outdated components by using the following command in your project root directory:
npm update
You should first ensure that there are no changes that might break your existing code. Proper components have a changelog or release notes available, where you can see what has changed in the new version.
Installed components are saved to the node_modules folder in your app. If you open that folder, you should find the react-date-picker folder, as illustrated in the following screenshot:
Figure 11.3: node_modules
You can get the list of your project dependencies by using the following npm command:
npm list
If you push your React app source code to GitHub, you should not include the node_modules folder because it contains a significant number of files. The Vite project contains a .gitignore file that excludes the node_modules folder from the repository. A section of the .gitignore file looks like this, and you can see that node_modules is found in the file:
The idea is that when you clone a React app from the GitHub repository, you type the npm install command, which reads dependencies from the package.json file and downloads them to your app.
To start using your installed component, import it into the file(s) where you want to use it. The code to achieve this is illustrated in the following snippet:
importDatePickerfrom 'react-date-picker';
You have now learned how to install React components in your React app. Next, we will start to use a third-party component in our React app.
Working with AG Grid
AG Grid (https://www.ag-grid.com/) is a flexible data grid component for React apps. It is like a spreadsheet that you can use to present your data, and it can contain interactivity. It has many useful features, such as filtering, sorting, and pivoting. We will use the Community version, which is free (under an MIT license).
Let’s modify the GitHub REST API app that we created in Chapter 10, Consuming the REST API with React. Proceed as follows:
To install the ag-grid community component, open the command line or terminal and move to the restgithub folder, which is the root folder of the app. Install the component by typing the following command:
npm install ag-grid-community ag-grid-react
Open the App.tsx file with Visual Studio Code (VS Code) and remove the table element inside the return statement. The App.tsx file should now look like this:
ag-grid provides different predefined styles. We are using a Material Design style.
Next, we will add the imported AgGridReact component to the return statement. To fill the ag-grid component with data, you have to pass the rowData prop to the component. Data can be an array of objects, so we can use our state, repodata. The ag-grid component should be wrapped inside the div element that defines the style. The code is illustrated in the following snippet:
Next, we will define columns for the ag-grid. We will define a state called columnDefs, which is an array of column definition objects. ag-grid provides a ColDef type that we can use here. In a column object, you have to define the data accessor by using the required field props. The field value is the property name in the REST API response data that the column should display:
The function in the cell renderer accepts params as an argument. The type of params is ICellRendererParams, which we have to import. The params.value will be the value of the full_name cell, which is defined in the field property of the column definition. If you need access to all values in a row, you can use params.row, which is the whole row object. This is useful if you need to pass a whole row of data to some other component. When the button is pressed, it will open an alert that shows the value of the full_name cell.
Here is a screenshot of the table with buttons:
Figure 11.7: Grid with buttons
If you press any button, you should see an alert that shows the value of the full_name cell.
The button column has a Full_name header because, by default, the field name is used as the header name. If you want to use something else, you can use the headerName prop in the column definition, as shown in the following code:
In the next section, we will start to use the Material UI component library, which is one of the most popular React component libraries.
Using the Material UI component library
Material UI (https://mui.com/), or MUI, is the React component library that implements Google’s Material Design language (https://m2.material.io/design). Material Design is one of the most popular design systems today. MUI contains a lot of different components – such as buttons, lists, tables, and cards – that you can use to achieve a nice and uniform user interface (UI).
In this book, we will use MUI version 5. If you want to use another version, you should follow the official documentation (https://mui.com/material-ui/getting-started/). MUI version 5 supports Material Design version 2.
In this section, we will create a small shopping list app and style the UI using MUI components. In our app, a user can enter shopping items that contain two fields: product and amount. Entered shopping items are displayed in the application as a list. The final UI looks like the following screenshot. The ADD ITEM button opens a modal form, where the user can enter a new shopping item:
Figure 11.8: Shopping List UI
Now, we are ready to start the implementation:
Create a new React app called shoppinglist (select the React framework and TypeScript variant) and install dependencies by running the following commands:
npm create vite@latest
cd shoppinglist
npm install
Open the shopping list app with VS Code. Install MUI by typing the following command in the project root folder in PowerShell or any suitable terminal:
MUI uses the Roboto font by default, but it is not provided out of the box. The easiest way to install Roboto fonts is by using Google Fonts. To use Roboto fonts, add the following line inside the head element of your index.html file:
Open the App.tsx file and remove all the code inside the fragment (<></>). Also, remove unused code and imports. Now, your App.tsx file should look like this:
MUI provides different layout components, and the basic layout component is the Container. This is used to center your content horizontally. You can specify the maximum width of a container using the maxWidth prop; the default value is lg (large), which is suitable for us. Let’s use the Container component in our App.tsx file, as follows:
Remove the index.css file import from the main.tsx file so that we get full screen for our app. We also don’t want to use predefined styles from Vite:
// main.tsximportReactfrom'react'importReactDOMfrom'react-dom/client'importAppfrom'./App.jsx'import'./index.css'// REMOVE THIS LINEReactDOM.createRoot(document.getElementById('root')).render(
<React.StrictMode><App /></React.StrictMode>,
)
Next, we will use the MUI AppBar component to create the toolbar in our app. Import the AppBar, ToolBar, and Typography components into your App.tsx file. Also, import useState from React, which we will need later. The code is illustrated in the following snippet:
Render the AppBar by adding the following code to your App component’s return statement. The Typography component provides predefined text sizes, and we will use this in our toolbar text. variant props can be used to define text size:
In the App component, we need one array state to save the shopping list items. One shopping list item contains two fields: product and amount. We have to create a type for the shopping items, Item, which we will also export because we need it in other components later:
Next, we will create the state where we save our shopping items. Create a state called items, whose type is an array of Item types:
const [items, setItems] = useState<Item[]>([]);
Then, create a function that adds a new item to the items state. In the addItem function, we will use spread notation (...) to add a new item at the beginning of an existing array:
We need to add a new component for adding shopping items. Create a new file called AddItem.tsx in the root folder of the app, and add the following code to your AddItem.tsx file. The AddItem component function receives props from its parent component. The code is illustrated in the following snippet. We will define the props type later:
The AddItem component will use the MUI modal dialog to collect data. In the form, we will add two input fields, product and amount, and a button that calls the App component’s addItem function. To be able to call the addItem function, which is in the App component, we have to pass it in props when rendering the AddItem component. Outside the modal Dialog component, we will add a button that opens the modal form where the user can enter a new shopping item. This button is the only visible element when the component is rendered initially.
The following steps describe the implementation of the modal form.
We have to import the following MUI components for the modal form: Dialog, DialogActions, DialogContent, and DialogTitle. For the UI of the modal form, we require the following components: Button and TextField. Add the following imports to your AddItem.tsx file:
The Dialog component has one prop called open, and if the value is true, the dialog is visible. The default value of open props is false, and the dialog is hidden. We will declare one state called open and two functions to open and close the modal dialog. The default value of the open state is false. The handleOpen function sets the open state to true, and the handleClose function sets it to false. The code is illustrated in the following snippet:
We will add Dialog and Button components inside the return statement. We have one button outside the dialog that will be visible when the component is rendered for the first time. When the button is pressed, it calls the handleOpen function, which opens the dialog. Inside the dialog, we have two buttons: one for canceling and one for adding a new item. The Add button calls the addItem function, which we will implement later. The code is illustrated in the following snippet:
To collect data from a user, we have to declare one more state. This state is used to store a shopping item that the user enters, and its type is Item. We can import the Item type from the App component:
// Add the following import to AddItem.tsximport { Item } from'./App';
Add the following state to the AddItem component. The type of the state is Item, and we initialize it to an empty item object:
Inside the DialogContent component, we will add two inputs to collect data from a user. There, we will use the TextField MUI component that we have already imported. The margin prop is used to set the vertical spacing of text fields, and the fullwidth prop is used to make input take up the full width of its container. You can find all the props in the MUI documentation. The value props of the text fields must be the same as the state where we want to save the typed value. The onChange event listener saves the typed value to the item state when the user types something into the text fields. In the product field, the value is saved to the item.product property, and in the amount field, the value is saved to the item.amount property. The code is illustrated in the following snippet:
Finally, we have to create a function that calls the addItem function that we receive in the props. The function takes a new shopping item as an argument. First, we define a type for the props. The addItem function that is passed from the App component accepts one argument of type Item, and the function doesn’t return anything. The type definition and prop typing look like the following:
The new shopping item is now stored in the item state and contains the values that the user typed in. Because we get the addItem function from the props, we can call it using the props keyword. We will also call the handleClose function, which closes the modal dialog. The code is illustrated in the following snippet:
// Calls addItem function and passes item state into itconstaddItem = () => {
props.addItem(item);
// Clear text fields and close modal dialogsetItem({ product: '', amount: '' });
handleClose();
}
Our AddItem component is now ready, and we have to import it into our App.tsx file and render it there. Add the following import statement to your App.tsx file:
importAddItemfrom'./AddItem';
Add the AddItem component to the return statement in the App.tsx file. Pass the addItem function in a prop to the AddItem component, as follows:
// App.tsxreturn (
<Container><AppBarposition="static"><Toolbar><Typographyvariant="h6">
Shopping List
</Typography></Toolbar></AppBar><AddItemaddItem={addItem}/></Container>
);
Now, open your app in the browser and press the ADD ITEM button. You will see the modal form opening, and you can type in a new item, as illustrated in the following screenshot. The modal form is closed when you press the ADD button:
Figure 11.10: Modal dialog
Next, we will add a list to the App component that shows our shopping items. For that, we will use the MUI List, ListItem, and ListItemText components. Import the components into the App.tsx file:
Then, we will render the List component. Inside that, we will use the map function to generate ListItem components. Each ListItem component should have a unique key prop, and we use a divider prop to get a divider at the end of each list item. We will display the product in the primary text and the amount in the secondary text of the ListItemText component. The code is illustrated in the following snippet:
The MUI Button component has three variants: text, contained, and outlined. The text variant is the default, and you can change it using the variant prop. For example, if we wanted to have an outlined ADD ITEM button, we could change the button’s variant prop in the AddItem.ts file, like this:
In this section, we learned how to get a consistent design in our React app by using the Material UI library. You can easily get a polished and professional look to your apps with MUI. Next, we will learn how to use React Router, a popular routing library.
Managing routing with React Router
There are a few good libraries available for routing in React. React frameworks such as Next.js and Remix provide built-in routing solutions. The most popular library, which we are using, is React Router (https://github.com/ReactTraining/react-router). For web applications, React Router provides a package called react-router-dom. React Router uses URL-based routing, which means that we can define which component is rendered based on the URL.
To start using React Router, we have to install dependencies using the following command. In this book, we will use React Router version 6:
npm install react-router-dom@6
The react-router-dom library provides components that are used to implement routing. BrowserRouter is the router for web-based applications. The Route component renders the defined component if the given locations match.
The following code snippet provides an example of the Route component. The element prop defines a rendered component when the user navigates to the contact endpoint that is defined in the path prop. The path is relative to the current location:
<Route path="contact" element={<Contact />} />
You can use a * wildcard at the end of the path prop, like this:
<Route path="/contact/*" element={<Contact />} />
Now, it will match all endpoints under the contact – for example, contact/mike, contact/john, and so on.
The Routes component wraps multiple Route components. The Link component provides navigation to your application. The following example shows the Contact link and navigates to the /contact endpoint when the link is clicked:
<Link to="/contact">Contact</Link>
Let’s see how we can use these components in practice:
Create a new React app called routerapp using Vite, selecting the React framework and the TypeScript variant. Move to your project folder and install dependencies. Also install the react-router-dom library:
npm create vite@latest
cd routerapp
npm install
npm install react-router-dom@6
Open the src folder with VS Code and open the App.tsx file in the editor view. Import components from the react-router-dom package and remove extra code from the return statement, along with unused imports. After these modifications, your App.tsx source code should look like this:
Let’s first create two simple components that we can use in routing. Create two new files, Home.tsx and Contact.tsx, in the application src folder. Then, add headers to the return statements to show the name of the component. The code of the components looks like this:
Now, when you start the app, you will see the links and the Home component, which is shown in the root endpoint (localhost:5173), as defined in the first Route component. You can see a representation of this in the following screenshot:
Figure 11.12: React Router
When you click the Contact link, the Contact component is rendered, as illustrated here:
Figure 11.13: React Router (continued)
You can create a PageNotFound route by using a * wildcard at the path prop. In the following example, if any other route doesn’t match, the last one is used. First, create a component to show when a page is not found:
// Create PageNotFound componentfunctionPageNotFound() {
return<h1>Page not found</h1>;
}
exportdefaultPageNotFound;
Then, import the PageNotFound component into the App component, and create a new route:
// Import PageNotFound component into App.tsximportPageNotFoundfrom'./PageNotFound';
// Add new page not found route <Routes><Routepath="/"element={<Home />} />
<Routepath="contact"element={<Contact />} />
<Routepath="*"element={<PageNotFound />} /></Routes>
You can also have nested routes, such as the ones shown in the next example. Nested routing means that different parts of the app can have their own routing configuration. In the following example, Contact is the parent route, and it has two child routes:
You can use a useRoutes() hook to declare routes using JavaScript objects instead of React elements, but we will not cover that in this book. You can find more information about hooks in the React Router documentation:https://reactrouter.com/en/main/start/overview.
So far, you have learned how to install and use a variety of third-party components with React. These skills will be required in the following chapters when we start to build our frontend.
Summary
In this chapter, we learned how to use third-party React components. We familiarized ourselves with several components that we will use in our frontend. ag-grid is a data grid component with built-in features like sorting, paging, and filtering. MUI is a component library that provides multiple UI components that implement Google’s Material Design language. We also learned how to use React Router for routing in React applications.
In the next chapter, we will create an environment to develop the frontend for our existing car backend.
Questions
How can you find components for React?
How should you install components?
How can you use the ag-grid component?
How can you use the MUI component library?
How can you implement routing in a React application?
To join the Discord community for this book – where you can share feedback, ask the author questions, and learn about new releases – follow the QR code below:
Setting Up the Frontend for Our Spring Boot RESTful Web Service
This chapter explains the steps that are required to start the development of the frontend part of our car database application. We will first define the functionalities that we are developing. Then, we will do a mock-up of the UI. As a backend, we will use our Spring Boot application from Chapter 5, Securing Your Backend. We will begin development using the unsecured version of the backend. Finally, we will create the React app that we will use in our frontend development.
In this chapter, we will cover the following topics:
Mocking up the UI
Preparing the Spring Boot backend
Creating the React project for the frontend
Technical requirements
The Spring Boot application that we created in Chapter 5, Securing Your Backend, is required.
In the first few chapters of this book, we created a car database backend that provides the RESTful API. Now, it is time to start building the frontend for our application.
We will create a frontend with the following specifications:
It lists cars from the database in a table and provides paging, sorting, and filtering.
There is a button that opens a modal form to add new cars to the database.
In each row of the car table, there is a button to edit the car or delete it from the database.
There is a link or button to export data from the table to a CSV file.
UI mock-ups are often created at the beginning of frontend development to provide customers with a visual representation of what the user interface will look like. Mock-ups are quite often done by designers and then provided to developers. There are lots of different applications for creating mock-ups, such as Figma, Balsamiq, and Adobe XD, or you can even use a pencil and paper. You can also create interactive mock-ups to demonstrate a number of functionalities.
If you have done a mock-up, it is much easier to discuss requirements with the client before you start to write any actual code. With the mock-up, it is also easier for the client to understand the idea of the frontend and suggest corrections for it. Changes to mock-ups are really easy and fast to implement, compared to modifications involving actual frontend source code.
The following screenshot shows the example mock-up of our car list frontend:
Figure 12.1: The frontend mock-up
The modal form that is opened when the user presses the + CREATE button looks like the following:
Figure 12.2: The modal form mock-up
Now that we have a mock-up of our UI ready, let’s look at how we can prepare our Spring Boot backend.
Preparing the Spring Boot backend
We will begin frontend development in this chapter with the unsecured version of our backend. Then:
In Chapter 13, Adding CRUD Functionalities, we will implement all the CRUD functionalities.
In Chapter 14, Styling the Frontend with MUI, we will continue to polish our UI using Material UI components.
Finally, in Chapter 16, Securing Your Application, we will enable security in our backend, make some modifications that are required, and implement authentication.
In Eclipse, open the Spring Boot application that we created in Chapter 5, Securing Your Backend. Open the SecurityConfig.java file that defines the Spring Security configuration. Temporarily comment out the current configuration and give everyone access to all endpoints. Refer to the following modifications:
Now, if you start the MariaDB database, run the backend, and send the GET request to the http:/localhost:8080/api/cars endpoint, you should get all the cars in the response, as shown in the following screenshot:
Figure 12.3: The GET request
Now, we are ready to create our React project for the frontend.
Creating the React project for the frontend
Before we start coding the frontend, we have to create a new React app. We will use TypeScript in our React frontend:
Open PowerShell, or any other suitable terminal. Create a new React app by typing the following command:
npm create vite@4
In this book, we are using Vite version 4.4. You can also use the latest version, but then you have to check for changes in the Vite documentation.
Name your project carfront, and select the React framework and TypeScript variant:
Figure 12.4: Frontend project
Move to the project folder and install dependencies by typing the following commands:
cd carfront
npm install
Install the MUI component library by typing the following command, which installs the Material UI core library and two Emotion libraries. Emotion is a library designed for writing CSS with JavaScript (https://emotion.sh/docs/introduction):
Run the app by typing the following command in the project’s root folder:
npm run dev
Open the src folder with Visual Studio Code and remove any superfluous code from the App.tsx file. The file extension is now .tsx because we are using TypeScript. Also, remove the App.css style sheet file import. We will use the MUI AppBar component in the App.tsx file to create the toolbar for our app.
We have already looked at the MUI AppBar in Chapter 11, Useful Third-Party Components for React, if you would like a reminder.
As shown in the code below, wrap the AppBar component inside the MUI Container component, which is a basic layout component that centers your app content horizontally. We can use the position prop to define the positioning behavior of the app bar. The value static means that the app bar is not fixed to the top when the user scrolls. If you use position= "fixed", it will fix the app bar at the top of the page. You also have to import all the MUI components that we are using:
The maxWidth prop defines the maximum width of our app, and we have used the largest value. We have also used the MUI CssBaseline component, which is used to fix inconsistencies across browsers, ensuring that the React app’s appearance is uniform across different browsers. It is typically included at the top level of your application to ensure that its styles are applied globally.
We will remove all predefined styling. Therefore, remove the index.css style sheet import from the main.tsx file. The code should look like the following:
Now, your frontend starting point should look like this:
Figure 12.5: Car Shop
We have now created the React project for our frontend and can continue with further development.
Summary
In this chapter, we started the development of our frontend using the backend that we created in Chapter 5, Securing Your Backend. We defined the functionalities of the frontend and created a mock-up of the UI. We started frontend development with an unsecured version of the backend and, therefore, made some modifications to our Spring Security configuration class. We also created the React app that we will use during development.
In the next chapter, we will add create, read, update, and delete (CRUD) functionalities to our frontend.
Questions
Why should you do a mock-up of the UI?
How do you disable Spring Security from the backend?
Further reading
There are many other good resources available for learning about UI design and MUI. A few are listed here:
To join the Discord community for this book – where you can share feedback, ask the author questions, and learn about new releases – follow the QR code below:
This chapter describes how we can implement Create, Read, Update, and Delete (CRUD) functionalities in our frontend. We are going to use the components that we learned about in Chapter 11, Useful Third-Party Components for React. We will fetch data from our backend and present the data in a table. Then, we will implement the delete, edit, and create functionalities. In the final part of this chapter, we will add features so that we can export our data to a CSV file.
In this chapter, we will cover the following topics:
Creating the list page
Adding the delete functionality
Adding the add functionality
Adding the edit functionality
Exporting the data to CSV
Technical requirements
The Spring Boot cardatabase application that we created in Chapter 12, Setting Up the Frontend for Our Spring Boot RESTful Web Service, (the unsecured backend) is required, as is the React app that we created in the same chapter, carfront.
In this first section, we will create the list page to show cars with paging, filtering, and sorting features:
Run your unsecured Spring Boot backend. The cars can be fetched by sending the GET request to the http://localhost:8080/api/cars URL, as shown in Chapter 4, Creating a RESTful Web Service with Spring Boot. Now, let’s inspect the JSON data from the response. The array of cars can be found in the _embedded.cars node of the JSON response data:
Figure 13.1: Fetching cars
Open the carfront React app with Visual Studio Code (the React app we created in the previous chapter).
We are using React Query for networking, so we have to initialize the query provider first.
You learned the basics of React Query in Chapter 10, Consuming the REST API with React.
The QueryClientProvider component is used to connect and provide QueryClient to your application. Open your App.tsx file and add the highlighted imports and components to your App component:
Once we know how to fetch cars from the backend, we will be ready to implement the list page to show the cars. The following steps describe this in practice:
When your app has multiple components, it is recommended that you create a folder for them. Create a new folder called components in the src folder. With Visual Studio Code, you can create a folder by right-clicking the folder in the sidebar file explorer and selecting New Folder... from the menu:
Figure 13.2: New folder
Create a new file called Carlist.tsx in the components folder. Your project structure should look like the following:
Figure 13.3: Project structure
Open the Carlist.tsx file in the editor view and write the base code of the component, as follows:
Now, when we are using TypeScript, we have to define the type for our car data. Let’s create a new file where we define our types. Create a file called types.ts in the src folder of your project. From the response, you can see that the car object looks like the following, and it contains all the car properties and also links:
Next, we will create a function that fetches cars from our backend by sending a GET request to the http://localhost:8080/api/cars endpoint. The function returns a promise that contains an array of CarResponse objects that we defined in our types.ts file. We can use the Promise<Type> generic, where Type indicates the resolved value type of the promise. Open the Carlist.tsx file and add the following imports and function:
The useQuery hook uses TypeScript generics because it doesn’t fetch data and doesn’t know the type of your data. However, React Query can infer the type of the data, so we don’t have to do it manually here using generics. If you explicitly set generics, the code looks like this:
useQuery<CarResponse[], Error>
We will use conditional rendering to check if the fetch is successful and if there are any errors. If isSuccess is false, it means the data fetching is still in progress and, in this case, a loading message is returned. We also check if error is true, which indicates there’s an error, and an error message is returned. When data is available, we use the map function to transform car objects into table rows in the return statement and add the table element:
Finally, we have to import and render the Carlist component in our App.tsx file. In the App.tsx file, add the import statement, and then render the Carlist component inside the QueryClientProvider component, as highlighted. QueryClientProvider is a component that provides the React Query context to your components, and it should wrap the components where you are making REST API requests from:
Now, if you start the React app using the npm run dev command, you should see the following list page. Note that your backend should also be running:
Figure 13.4: Car frontend
Using environment variables
Let’s do some code refactoring before we move on. The server URL can be repeated multiple times in the source code when we create more CRUD functionalities, and it will change when the backend is deployed to a server other than the local host; therefore, it is better to define it as an environment variable. Then, when the URL value changes, we only have to modify it in one place.
When using Vite, environment variable names should start with the text VITE_. Only variables prefixed with VITE_ are exposed to your source code:
Create a new .env file in the root folder of our app. Open the file in the editor and add the following line to the file:
VITE_API_URL=http://localhost:8080
We will also separate all API call functions into their own module. Create a new folder named api in the src folder of your project. Create a new file called carapi.ts in the api folder, and now your project structure should look like the following:
Figure 13.5: Project structure
Copy the getCars function from the Carlist.tsx file to the carapi.ts file. Add export at the beginning of the function so that we can use it in other components. In Vite, the environment variables are exposed to your app source code via import.meta.env as strings. Then, we can import the server URL environment variable to our getCars function and use it there. We also need to import axios and the CarResponse type into the carapi.ts file:
Now, we can remove the getCars function and unused axios import from the Carlist.tsx file and import it from the carapi.ts file. The source code should appear as follows:
After these refactoring steps, you should see the car list page like previously.
Adding paging, filtering, and sorting
We have already used the ag-grid component to implement a data grid in Chapter 11, Useful Third-Party Components for React, and it could be used here as well. Instead, we will use the new MUI DataGrid component to get paging, filtering, and sorting features out of the box:
Stop the development server by pressing Ctrl + C in the terminal.
We will install the MUI data grid community version. The following is the installation command at the time of writing, but you should check the latest installation command and usage from the MUI documentation:
npm install @mui/x-data-grid
After installation, restart the app.
Import the DataGrid component into your Carlist.tsx file. We will also import GridColDef, which is a type for the column definitions in the MUI data grid:
The grid columns are defined in the columns variable, which has the type GridColDef[]. The column field property defines where data in the columns is coming from; we are using our car object properties. The headerName prop can be used to set the title of the columns. We will also set the width of the columns. Add the following column definition code inside the Carlist component:
Then, remove the table and all its child elements from the component’s return statement and add the DataGrid component. Also remove the unused CarResponse import that we used in the map function. The data source of the data grid is the data, which contains fetched cars and is defined using the rows prop. The DataGrid component requires all rows to have a unique ID property that is defined using the getRowId prop. We can use the link field of the car object because that contains the unique car ID (_links.self.href). Refer to the source code of the following return statement:
With the MUI DataGrid component, we implemented all the necessary features for our table with only a small amount of coding. Now, the list page looks like the following:
Figure 13.6: Car frontend
Data grid columns can be filtered using the column menu and clicking the Filter menu item. You can also set the visibility of the columns from the column menu:
Figure 13.7: Column menu
Next, we will implement the delete functionality.
Adding the delete functionality
Items can be deleted from the database by sending the DELETE method request to the http://localhost:8080/api/cars/{carId} endpoint. If we look at the JSON response data, we can see that each car contains a link to itself, which can be accessed from the _links.self.href node, as shown in the following screenshot:
Figure 13.8: Car link
We already used the link field in the previous section to set a unique ID for every row in the grid. That row ID can be used in deletion, as we will see later.
The following steps demonstrate how to implement the delete functionality:
First, we will create a button for each row in the MUI DataGrid. When we need more complex cell content, we can use the renderCell column property to define how a cell’s contents are rendered.
Let’s add a new column to the table using renderCell to render the button element. The params argument that is passed to the function is a row object that contains all values from a row. The type of params is GridCellParams, which is provided by MUI. In our case, it contains a link to a car in each row, and that is needed in the deletion. The link is in the row’s _links.self.href property, and we will pass this value to a delete function. Let’s first show an alert with the ID when a button is pressed to test that the button is working properly. Refer to the following source code:
We don’t want to enable sorting and filtering for the button column, so the filterable and sortable props are set to false. We also disable the column menu in this column by setting the disableColumnMenu prop to true. The button invokes the onDelClick function when pressed and passes a link (row.id) to the function as an argument, and the link value is shown in an alert.
Now, you should see a delete button in each row. If you press any of the buttons, you can see an alert that shows the link for the car. To delete a car, we should send a DELETE request to its link:
Figure 13.9: Delete button
Next, we will implement the deleteCar function, which sends the DELETE request to a car link using the Axios delete method. A DELETE request to the backend returns a deleted car object. We will implement the deleteCar function in the carapi.ts file and export it. Open the carapi.ts file and add the following function there:
We use the React Query useMutation hook to handle deletion. We saw an example in Chapter 10. First, we have to add the useMutation import to the Carlist.tsx file. We will also import the deleteCar function from the carapi.ts file:
Now, if you start the app and press the delete button, the car is deleted from the database, but it still exists in the frontend. You can manually refresh the browser, after which the car disappears from the table.
We can also refresh the frontend automatically when a car is deleted. In React Query, the fetched data is saved to a cache that the query client handles. The QueryClient has a query invalidation feature that we can use to fetch data again. First, we have to import and call the useQueryClient hook function, which returns the current query client:
The queryClient has an invalidateQueries method that we can call to re-fetch our data after successful deletion. You can pass the key of the query that you want to re-fetch. Our query key for fetching cars is cars, which we defined in our useQuery hook:
Now, every time a car is deleted, all the cars are fetched again. The car disappears from the list when the Delete button is pressed. After a deletion, you can restart the backend to re-populate the database.
You can also see that when you click any row in the grid, the row is selected. You can disable that by setting the disableRowSelectionOnClick prop in the grid to true:
It would be nice to show the user some feedback in the case of a successful deletion, or if there are any errors. Let’s implement a toast message to show the status of the deletion. For this, we are going to use the MUI Snackbar component:
First, we have to import the Snackbar component by adding the following import statement to our Carlist.tsx file:
importSnackbarfrom'@mui/material/Snackbar';
The Snackbar component’s open prop value is a boolean, and if it is true, the component is shown; otherwise, it is hidden. Let’s import the useState hook and define a state called open to handle the visibility of our Snackbar component. The initial value is false because the message is shown only after the deletion:
Next, we add the Snackbar component in the return statement after the MUI DataGrid component. The autoHideDuration prop defines the time in milliseconds after which the onClose function is called automatically and the message disappears. The message prop defines the message to display. We also have to wrap the DataGrid and Snackbar components inside the fragment (<></>):
Now, you will see the toast message when the car is deleted, as shown in the following screenshot:
Figure 13.10: Toast message
Adding a confirmation dialog window
To avoid accidental deletion of a car, it would be useful to have a confirmation dialog after the Delete button has been pressed. We will implement this using the window object’s confirm method. It opens a dialog with an optional message and returns true if you press the OK button. Add confirm to the delete button’s onClick event handler:
In the confirmation message, we have used ES6 string interpolation to display the car’s brand and model. (Note! Remember to use backticks.)
If you press the Delete button now, the confirmation dialog will open and the car will only be deleted if you press the OK button:
Figure 13.11: Confirmation dialog
Next, we will begin the implementation of the functionality to add a new car.
Adding the add functionality
The next step is to add an add functionality to the frontend. We will implement this using the MUI modal dialog.
We went through the MUI modal form in Chapter 11, Useful Third-Party Components for React.
We will add the New Car button to the user interface, which opens the modal form when it is pressed. The modal form contains all the fields that are required to add a new car, as well as the buttons for saving and canceling.
The following steps show you how to create the add functionality using the modal dialog component:
Create a new file called AddCar.tsx in the components folder and write some functional component base code to the file, as shown here. Add the imports for the MUI Dialog component:
We have already defined the type for our Car response data (a car object with links). Let’s also create a type for the car object that doesn’t contain links, because the user doesn’t enter links in the form. We need this for the state where we will save a new car. Add the following Car type to your types.ts file:
Declare a state of type Car that contains all car fields using the useState hook. For the dialog, we also need a boolean state to define the visibility of the dialog form:
Next, we add two functions to close and open the dialog form. The handleClose and handleOpen functions set the value of the open state, which affects the visibility of the modal form:
// AddCar.tsx// Open the modal formconsthandleClickOpen = () => {
setOpen(true);
};
// Close the modal formconsthandleClose = () => {
setOpen(false);
};
Add the Dialog component inside the AddCar component’s return statement. The form contains the MUI Dialog component with buttons and the input fields that are required to collect the car data. The button that opens the modal window, which will be shown on the car list page, must be outside of the Dialog component. All input fields should have a name attribute with a value that is the same as the name of the state the value will be saved to. Input fields also have the onChange prop, which saves the value to the car state by invoking the handleChange function. The handleChange function dynamically updates the car state by creating a new object with the existing state properties and updating a property based on the input element’s name and the new value entered by the user:
Implement the addCar function in the carapi.ts file, which will send the POST request to the backend api/cars endpoint. We are using the Axios post method to send POST requests. The request will include the new car object inside the body and the 'Content-Type':'application/json' header. We also need to import the Car type because we are passing a new car object as an argument to the function:
Next, we use the React Query useMutation hook, like we did in the delete functionality. We also invalidate the cars query after the car has been added successfully. The addCar function that we use in the useMutation hook is imported from the carapi.ts file. Add the following imports and the useMutation hook to your AddCar.tsx file. We also need to get the query client from the context using the useQueryClient hook. Remember that context is used to provide access to the query client to components deep in the component tree:
Import the AddCar component into the Carlist.tsx file:
// Carlist.tsximportAddCarfrom'./AddCar';
Add the AddCar component to the Carlist.tsx file’s return statement. You also have to import the AddCar component. Now, the return statement of the Carlist.tsx file should appear as follows:
// Carlist.tsx// Add the following importimportAddCarfrom'./AddCar';
// Render the AddCar component return (
<><AddCar /><DataGridrows={data}columns={columns}disableRowSelectionOnClick={true}getRowId={row => row._links.self.href}/>
<Snackbaropen={open}autoHideDuration={2000}onClose={() => setOpen(false)}
message="Car deleted"
/>
</>
);
If you start the car shop app, it should now look like the following:
Figure 13.12: Car Shop
If you press the New Car button, it should open the modal form.
To save a new car, create a function called handleSave in the AddCar.tsx file. The handleSave function calls mutate. Then, we set the car state back to its initial state, and the modal form is closed:
// AddCar.tsx// Save car and close modal formconsthandleSave = () => {
mutate(car);
setCar({ brand: '', model: '', color: '', registrationNumber:'',
modelYear: 0, price: 0 });
handleClose();
}
Finally, we have to change the AddCar component’s onClick save button to call the handleSave function:
Now, you can open the modal form by pressing the New Car button. You will see that there is placeholder text in each field when it is empty. You can fill out the form with data and press the Save button. At this point, the form doesn’t have a nice appearance, but we are going to style it in the next chapter:
Figure 13.13: Add new car
After saving, the list page is refreshed, and the new car can be seen in the list:
Figure 13.14: Car Shop
Now, we can do some code refactoring. When we start to implement the edit functionality, we will actually need the same fields in the Edit form as in the New Car form. Let’s create a new component that renders the text fields in our New Car form. The idea is that we are splitting the text fields into their own component, which can then be used in both the New Car and Edit forms. Create a new file called CarDialogContent.tsx in the components folder. We have to pass the car object and the handleChange function to the component using props. To do that, we create a new type called DialogFormProps. We can define this type in the same file because we don’t need it in any other file:
Now, we can import the CarDialogContent to the AddCar component and render it inside the Dialog component. Pass the car state and the handleChange function to the component using props. Also, remove the unused MUI DialogContent import from the AddCar component:
// AddCar.tsx// Add the following import // and remove unused imports: DialogContentimportCarDialogContentfrom'./CarDialogContent';// render CarDialogContent and pass propsreturn(
<div><ButtononClick={handleClickOpen}>New Car</Button><Dialogopen={open}onClose={handleClose}><DialogTitle>New car</DialogTitle><CarDialogContentcar={car}handleChange={handleChange}/><DialogActions><ButtononClick={handleClose}>Cancel</Button><ButtononClick={handleSave}>Save</Button></DialogActions></Dialog></div>
);
Try to add a new car, and it should work like it did before the refactoring.
Next, we will begin to implement the edit functionality.
Adding the edit functionality
We will implement the edit functionality by adding the Edit button to each table row. When the row Edit button is pressed, it opens a modal form where the user can edit the existing car and save their changes. The idea is that we pass car data from the grid row to the edit form, and the form fields are populated when the form is opened:
First, create a file called EditCar.tsx in the components folder. We have to define a FormProps type for our props, and this can be defined inside our component because we don’t need this type anywhere else. The type of data that will be passed to the EditCar component is the CarResponse type. We will also create a state for car data like we did in the add functionality section. The code for the EditCar.tsx file looks like the following:
We will create a dialog that will be opened when the Edit button is pressed. We need the open state to define if the dialog is visible or hidden. Add the functions that open and close the Dialog component and save updates:
Next, we will import the CarDialogContent component and render it inside the Dialog component. We also need to add the handleChange function, which saves edited values to the car state. We pass in the car state and the handleChange function using the props, as we did earlier with the add functionality:
Our form will be populated with the values from the car object that is passed to the component in props.
In this step, we will add the edit functionality to our data grid in the Carlist component. Open the Carlist.tsx file and import the EditCar component. Create a new column that renders the EditCar component using the renderCell column property, as we did in the delete functionality section. We pass the row object to the EditCar component, and that object contains the car object:
Now, you should see the Edit button in each table row in your car list. When you press the Edit button, it should open the car form and populate fields using the car from the row where you pressed the button:
Figure 13.15: Edit button
Next, we have to implement the update request that sends an updated car to the backend. To update the car data, we have to send a PUT request to the http://localhost:8080/api/cars/[carid] URL. The link will be the same as it is for the delete functionality. The request contains the updated car object inside the body, and the 'Content-Type':'application/json' header that we also set for the add functionality. For the update functionality, we need a new type. In React Query, the mutation function can only take one parameter, but in our case, we have to send the car object (Car type) and its link.
We can solve that by passing an object that contains both values. Open the types.ts file and create the following type, called CarEntry:
exporttypeCarEntry = {
car: Car;
url: string;
}
Then, open the carapi.ts file, create the following function, and export it. The function gets the CarEntry type object as an argument and it has car and url properties, where we get the values that are needed in the request:
Next, we import the updateCar function into the EditCar component and use the useMutation hook to send a request. We invalidate the cars query to re-fetch the list after a successful edit; therefore, we also have to get the query client:
Then, we call mutate in the handleSave function. As was already mentioned, mutate only accepts one parameter, and we have to pass the car object and URL; therefore, we create an object that contains both values and pass that one. We also need to import the CarEntry type:
Finally, if you press the Edit button in the table, it opens the modal form and displays the car from that row. The updated values are saved to the database when you press the Save button:
Figure 13.16: Edit car
Similarly, if you press the New Car button, it will open an empty form and save the new car to the database when the form is filled and the Save button is pressed. We used one component to handle both use cases by using the component props.
You can also see what happens in the backend when you edit a car. If you look at the Eclipse console after a successful edit, you can see that there is an update SQL statement that updates the database:
Figure 13.17: Update car statement
Now, we have implemented all the CRUD functionalities.
Exporting the data to CSV
One feature that we will also implement is a comma-separated values (CSV) export of the data. We don’t need any extra libraries for the export because the MUI data grid provides this feature. We will activate the data grid toolbar, which contains a lot of nice features:
Add the following import to the Carlist.tsx file. The GridToolbar component is a toolbar for the MUI data grid that contains nice functionalities, such as export:
We need to enable our toolbar, which contains the Export button and other buttons. To enable the toolbar in the MUI data grid, you have to use the slots prop and set the value to toolbar: GridToolbar. The slots prop can be used to override the data grid’s internal components:
Now, you will see the EXPORT button in the grid. If you press the button and select Download as CSV, the grid data is exported to a CSV file. You can Print your grid using the EXPORT button, and you will get a printer-friendly version of your page (you can also hide and filter columns and set row density using the toolbar):
Figure 13.18: Export CSV
You can change the page title and icon by editing the index.html page, as shown in the following code. The icon can be found in your project’s public folder, and you can use your own icon instead of Vite’s default one:
Now, all the functionalities have been implemented. In Chapter 14, Styling the Frontend with React MUI, we will focus on styling the frontend.
Summary
In this chapter, we implemented all the functionalities for our app. We started with fetching the cars from the backend and showing these in the MUI DataGrid, which provides paging, sorting, and filtering features. Then, we implemented the delete functionality and used the SnackBar component to give feedback to the user.
The add and edit functionalities were implemented using the MUI modal dialog component. Finally, we implemented the ability to export data to a CSV file.
In the next chapter, we are going to style the rest of our frontend using the React Material UI component library.
Questions
How do you fetch and present data using the REST API with React?
How do you delete data using the REST API with React?
How do you show toast messages with React and MUI?
How do you add data using the REST API with React?
How do you update data using the REST API with React?
How do you export data to a CSV file with React?
Further reading
There are other good resources available for learning about React and React Query. For example:
To join the Discord community for this book – where you can share feedback, ask the author questions, and learn about new releases – follow the QR code below:
This chapter explains how to use Material UI (MUI) components in our frontend. We will use the Button component to show styled buttons. We will also use MUI icons and the IconButton component. The input fields in our modal forms will be replaced by TextField components.
In this chapter, we will cover the following topics:
Using the MUI Button component
Using the MUI Icon and IconButton components
Using the MUI TextField component
At the end of the chapter, we will have a professional and polished user interface with minimal code changes in our React frontend.
Technical requirements
The Spring Boot application that we created in Chapter 5, Securing Your Backend, is required, together with the modification from Chapter 12, Setting Up the Frontend for Our Spring Boot RESTful Web Service (the unsecured backend).
We also need the React app that we used in Chapter 13, Adding CRUD Functionalities.
Our frontend already uses some Material UI components, such as AppBar and Dialog, but we are still using a lot of HTML elements without any styling. First, we will replace HTML button elements with the Material UI Button component.
Execute the following steps to implement the Button component in our New car and Edit car modal forms:
Import the MUI Button component into the AddCar.tsx and EditCar.tsx files:
Change the buttons in the EditCar component to the Button component. We will set the Edit button’s size to "small" because the button is shown within the car grid. The following code shows the EditCar component’s return statements with the changes:
Now, the car list looks like the following screenshot:
Figure 14.1: The Carlist buttons
The modal form buttons should look like the following:
Figure 14.2: The form buttons
Now, the buttons in the add and edit form have been implemented using the MUI Button component.
Using the MUI Icon and IconButton components
In this section, we will use the IconButton component for the EDIT and DELETE buttons in the grid. MUI provides pre-built SVG icons that we have to install by using the following command in the terminal:
npm install @mui/icons-material
Let’s first implement the DELETE button in the grid. The MUI IconButton component can be used to render icon buttons. The @mui/icons-material package, which we just installed, contains lots of icons that can be used with MUI.
You can find a list of icons available in the MUI documentation (https://mui.com/material-ui/material-icons/). There is a search functionality, and if you click any of the icons in the list, you can find the correct import statement for a specific icon:
Figure 14.3: Material Icons
We need an icon for our DELETE button, so we will use an icon called DeleteIcon:
Open the Carlist.tsx file and add the following imports:
Next, we will render the IconButton component in our grid. We will modify the DELETE button in the code where we define the grid columns. Change the button element to the IconButton component and render the DeleteIcon inside the IconButton component. Set both the button and icon size to small. The icon buttons don’t have an accessible name, so we will use aria-label to define a string that labels our delete icon button. The aria-label attribute is only visible to assistive technologies such as screen readers:
Now, the DELETE button in the grid should look like the following screenshot:
Figure 14.4: The Delete icon button
Next, we will implement the EDIT button using the IconButton component. Open the EditCar.tsx file and import the IconButton component and the EditIcon icon:
Finally, you will see both buttons are rendered as icons, as shown in the following screenshot:
Figure 14.5: Icon buttons
We can also add tooltips to our edit and delete icon buttons using the Tooltip component. The Tooltip component wraps the component to which you want to attach the tooltip. The following example shows how to add a tooltip to the edit button:
First, import the Tooltip component by adding the following import to your EditCar component:
importTooltipfrom'@mui/material/Tooltip';
Then, use the Tooltip component to wrap the IconButton component. The title prop is used to define the text that is shown in the tooltip:
Now, if you hover your mouse over the edit button, you will see a tooltip, as shown in the following screenshot:
Figure 14.6: Tooltip
Next, we will implement text fields using the MUI TextField component.
Using the MUI TextField component
In this section, we’ll change the text input fields in the modal forms to the MUI TextField and Stack components:
Add the following import statements to the CarDialogContent.tsx file. Stack is a one-dimensional MUI layout component that we can use to set spaces between text fields:
Then, change the input elements to the TextField components in the add and edit forms. We are using the label prop to set the labels of the TextField components. There are three different variants (visual styles) of text input available, and we are using the outlined one, which is the default variant. The other variants are standard and filled. You can use the variant prop to change the value. The text fields are wrapped inside the Stack component to get some spacing between the components and to set the top margin:
After the modifications, both the add and edit modal forms should look like the following because we are using the CarDialogContent component in both forms:
Figure 14.7: Text fields
Now, we have completed the styling of our frontend using MUI components.
Summary
In this chapter, we finalized our frontend using MUI, which is the React component library that implements Google’s Material Design. We replaced the buttons with the MUI Button and IconButton components. Our modal form got a new look with the MUI TextField component. After these modifications, our frontend looks more professional and uniform.
In the next chapter, we will focus on frontend testing.
To join the Discord community for this book – where you can share feedback, ask the author questions, and learn about new releases – follow the QR code below:
This chapter explains the basics of testing React apps. It will give us an overview of using Jest, which is a JavaScript testing framework. We will look at how you can create and run new test suites and tests. To test our React Vite project, we will also learn how to use the React Testing Library together with Vitest.
In this chapter, we will cover the following topics:
Using Jest
Using the React Testing Library
Using Vitest
Firing events in tests
End-to-end testing
Technical requirements
The Spring Boot application that we created in Chapter 5, Securing Your Backend, is required, as is the React app that we used in Chapter 14, Styling the Frontend with React MUI.
Jest is a testing framework for JavaScript, developed by Meta Inc. (https://jestjs.io/). It is widely used with React and provides lots of useful features for testing. For example, you can create a snapshot test, whereby you can take snapshots from React trees and investigate how states are changing. Jest has mocking functionalities that you can use to test, for example, your asynchronous REST API calls. It also provides functions that are required for assertions in your test cases.
To demonstrate the syntax, we will see how to create a test case for a basic TypeScript function that performs some simple calculations. The following function takes two numbers as arguments and returns the product of the numbers:
// multi.tsexportconst calcMulti = (x: number, y: number): number => {
return x * y;
}
The following code snippet shows a Jest test for the preceding function:
The test case starts with a test() method that runs the test case. The test() method takes two required arguments: the test name (a descriptive string) and the anonymous function that contains the test code. The expect() function is used when you want to test values, and it gives you access to multiple matchers. The toBe() function is one matcher that checks whether the result from the function equals the value in the matcher.
describe() is a function that’s used in test suites to group related test cases together. It helps you to organize tests based on their functionality, or in React, based on the component being tested. In the following example, we have a test suite that contains two test cases for the App component:
describe("App component", () => {
test("App component renders", () => {
// 1st test case
})
test("Header text", () => {
// 2nd test case
})
});
Using the React Testing Library
The React Testing Library (https://testing-library.com/) is a set of tools and APIs for testing React components. It can be used for DOM testing and queries. The React Testing Library provides a set of query functions that help you search elements based on their text content, label, and so on. It also provides tools to simulate user actions such as clicking a button and typing into input fields.
Let’s go through some important concepts in the React Testing Library. The Testing Library provides a render() method that renders a React element into the DOM and makes it available for testing:
Queries can be used to find elements on the page. The screen object is a utility for querying the rendered components. It provides a set of query methods that can be used to find elements on the page. There are different types of queries that start with various keywords: getBy, findBy, or queryBy. The getBy and findBy queries throw an error if no element is found. The queryBy queries return null if no element is found.
For example, the getByText() method queries the document for an element that contains the specified text:
import { render, screen } from'@testing-library/react'render(<MyComponent />);
// Find text Hello World (case-insensitive)
screen.getByText(/Hello World/i);
The forward slash (/) in /Hello World/i is used to define a regular expression pattern, and the i-flag at the end stands for case-insensitive. This means it is looking for rendered content that contains the “Hello World” text in a case-insensitive matter. You can also use a full string match that is case-sensitive by passing a string as an argument:
screen.getByText("Hello World");
Then, we can use expect to make an assertion. jest-dom is a companion library for the React Testing Library, and it provides custom matchers that are useful when testing React components. For example, its toBeInTheDocument() matcher checks if the element is present in the document. If the following assertion passes, the test case will pass; otherwise, it will fail:
We have now learned the basics of Jest and the React Testing Library. Both libraries are needed to test React applications. Jest is a testing framework that provides a testing environment and assertion library. The React Testing Library is a utility library designed for testing React components. Next, we will learn how to start testing in a Vite project.
Using Vitest
Vitest (https://vitest.dev/) is the testing framework for Vite projects. It is also possible to use Jest in Vite projects, and there are libraries that provide Vite integration for Jest (for example, https://github.com/sodatea/vite-jest). In this book, we will use Vitest because it is easier to start using it with Vite. Vitest is similar to Jest, and it provides test, describe, and expect, which we learned about in the Jest section.
In this section, we will create tests with Vitest and the React Testing Library for the frontend project that we used in Chapter 14, Styling the Frontend with MUI.
Installing and configuring
The first step is installing Vitest and the React Testing Library to our project:
Open the project in Visual Studio Code. Move to your project folder in the terminal and execute the following npm command inside your project folder:
npm install -D vitest @testing-library/react @testing-library/jest-
dom jsdom
The -D flag in the npm command means that a package should be saved as a development dependency in the devDependencies section of the package.json file. These packages are necessary for development and testing but are not required for the production runtime of the application.
Next, we have to configure Vitest by using a Vite configuration file, vite.config.ts. Open the file and add a new test property with the following changes:
By default, Vitest does not provide a global API. The globals: true setting allows us to reference APIs globally (test , expect, and so on), like Jest. The environment: 'jsdom ' setting defines that we are using the browser environment instead of Node.js.
Now, you can see a TypeScript type error in the test property because the test type doesn’t exist in Vite’s configuration. You can import extended Vite configuration from Vitest to get rid of the error. Modify the defineConfig import as shown in the following code:
We will name our test files using the component.test.tsx naming convention.
Running our first test
Now, we will create our first test case to verify that our App component is rendered and that the app header text can be found:
Create a new file called App.test.tsx in the src folder of your React app and create a new test case. We are using Vitest, so we import describe and test from vitest:
import { describe, test } from'vitest';
describe("App tests", () => {
test("component renders", () => {
// Test case code
})
});
Then, we can use the render method from the React Testing Library to render our App component:
If you want to use jest-dom library matchers such as toBeInTheDocument(), which we used earlier, you should import the jest-dom/vitest package, which extends matchers:
Finally, we can run our test by typing the following command in the terminal:
npm run test
We should see that the test passes:
Figure 15.1: Test run
Tests are run in watch mode, meaning each time you make changes to your source code, the tests that are related to the code changes are rerun. You can quit watch mode by pressing q, as shown in the figure. You can also invoke test reruns manually by pressing r.
If you need, you can create a test setup file that can be used to set up the environment and configuration required for running tests. The setup file will be run before each test file.
You have to specify the path to the test setup file in the vite.config.ts file, inside the test node:
You can also perform tasks that are required before or after test cases. Vitest provides the beforeEach and afterEach functions that you can use to invoke code before or after your test cases. For example, you can run the React Testing Library’s cleanup function after each test case to unmount React components that were mounted. If you only want to invoke some code once before or after all test cases, you can use the beforeAll or afterAll functions.
Testing our Carlist component
Let’s now make a test for our Carlist component. We will use our backend REST API, and in this section, you should run the backend that we used in the previous chapter. Using a real API in your tests is closer to a real-world scenario and allows end-to-end integration testing. However, real APIs always have some latency and make your tests slower to run.
You can alternatively use a mock API. This is common if the developer doesn’t have access to the real API. Using a mock API requires creating and maintaining the mock API implementation. There are several libraries that you can use for this with React, such as msw (Mock Service Worker) and nock.
Let’s begin:
Create a new file called Carlist.test.tsx in your src folder. We will import the Carlist component and render it. The component renders the 'Loading...' text when data from the backend is not available yet. The starter code looks like the following:
Now, if you run your test cases, you will get the following error: No QueryClient set, use QueryClientProvider to set one. We used React Query for networking in our Carlist component; therefore, we need QueryClientProvider in our component. The source code below shows how we can do that. We have to create a new QueryClient and set retries to false. By default, React Query retries queries three times, which might cause timeouts in your test case if you want to test error cases:
We also created a wrapper that returns a QueryClientProvider component. Then, we used the render function’s second argument and passed our wrapper, which is a React component, so that the wrapper wraps the Carlist component. This is useful functionality when you want to wrap your component with additional wrappers. The final result is that the Carlist component is wrapped inside the QueryClientProvider.
Now, if you rerun your tests, you won’t get an error and your new test case will pass. The test run now includes two test files and two tests:
Figure 15.2: Test run
Next, we will test that our getCars fetch is invoked and the cars are rendered in the data grid. The network calls are asynchronous, and we don’t know when the response will arrive. We will use the React Testing Library’s waitFor function to wait until the NEW CAR button is rendered because then we know that the network request has succeeded. The test will proceed after the condition is met.
Finally, we will use a matcher to check that the Ford text can be found in the document. Add the following highlighted import to the Carlist.test.tsx file:
If you rerun the tests, you can see that three tests pass now:
Figure 15.3: Test run
We have now learned the basics of Vitest and how to create and run test cases in a Vite React app. Next, we will learn how to simulate user actions in our test cases.
Firing events in tests
The React Testing Library provides a fireEvent() method that can be used to fire DOM events in your test cases. The fireEvent() method is used in the following way. First, we have to import it from the React Testing Library:
Next, we have to find the element and trigger its event. The following example shows how to trigger an input element’s change event and a button’s click event:
// Find input element by placeholder textconst input = screen.getByPlaceholderText('Name');
// Set input element's value
fireEvent.change(input, {target: {value: 'John'}});
// Find button element by textconst btn = screen.getByText('Submit');
// Click button
fireEvent.click(btn);
After the events are triggered, we can assert the expected behavior.
There is also a companion library for the Testing Library that is called user-event. The fireEvent function triggers element events, but browsers do more than only triggering one event. For example, if a user types some text into an input element, it is first focused, and then keyboard and input events are fired. user-event simulates the full user interaction.
To use the user-event library, we have to install it in our project with the following npm command:
npm install -D @testing-library/user-event
Next, we have to import userEvent in the test file:
Then, we can create an instance of userEvent using the userEvent.setup() function. We can also call the API directly, which will call userEvent.setup() internally, and this is how we will use it in the following examples. The userEvent provides multiple functions to interact with the UI, such as click() and type():
// Click a buttonawait userEvent.click(element);
// Type a value into an input elementawait userEvent.type(element, value);
As an example, we will create a new test case that simulates a NEW CAR button press in our Carlist component and then checks that the modal form is opened:
Open the Carlist.test.tsx file and import userEvent:
Create a new test inside the describe() function where we have our Carlist component tests. In the test, we will render the Carlist component and wait until the NEW CAR button is rendered:
test("Open new car modal", async () => {
render(<Carlist />, { wrapper });
awaitwaitFor(() => screen.getByText(/New Car/i));
})
Then, find the button using the getByText query and use the userEvent.click() function to press the button. Use a matcher to verify that the SAVE button can be found in the document:
Now, rerun your tests and see that four test cases pass:
Figure 15.4: Test run
We can use the getByRole query to find elements based on their roles, such as buttons, links, and so on. Below is an example of how to find a button that contains the text Save by using the getByRole query. The first argument defines the role, and the second argument’s name option defines the button text:
screen.getByRole('button', { name: 'Save' });
We can also test how a failed test looks by changing the text in the test matcher, for example:
Now, if we rerun the tests, we can see that one test fails, along with the reason for the failure:
Figure 15.5: Failed test
Now, you know the basics of testing user interactions in your React components.
End-to-end testing
End-to-end (E2E) testing is a methodology that focuses on testing an entire application’s workflow. We will not cover it in detail in this book, but we will give you an idea about it and cover some tools that we can use.
The goal is to simulate user scenarios and interactions with the application to make sure that all components work together correctly. E2E testing covers frontend, backend, and all interfaces or external dependencies of the software that is being tested. The E2E testing scope can also be cross-browser or cross-platform, where an application is tested using multiple different web browsers or mobile devices.
There are several tools available for end-to-end testing, such as:
Cypress (https://www.cypress.io/): This is a tool that can be used to create E2E tests for web applications. Cypress tests are simple to write and read. You can see your application’s behavior during the test execution in the browser and it also helps you to debug if there are any failures. You can use Cypress for free, with some limitations.
Playwright (https://playwright.dev/): This is a test automation framework designed for E2E testing, and it is developed by Microsoft. You can get a Visual Studio Code extension for Playwright and start to use it in your project. The default language for writing tests with Playwright is TypeScript, but you can also use JavaScript.
E2E testing helps to verify that your application meets its functional requirements.
Summary
In this chapter, we provided a basic overview of how to test React apps. We introduced Jest, a JavaScript testing framework, and the React Testing Library, which can be used to test React components. We also learned how to create and run tests in our Vite React app using Vitest, and finished off with a brief discussion on E2E testing.
In the next chapter, we will secure our application and add the login functionality to the frontend.
Questions
What is Jest?
What is the React Testing Library?
What is Vitest?
How can you fire events in test cases?
What is the purpose of E2E testing?
Further reading
Here are some other resources for learning about React and testing:
To join the Discord community for this book – where you can share feedback, ask the author questions, and learn about new releases – follow the QR code below:
We will learn how to secure our application in this chapter. This chapter will explain how to implement authentication in our frontend when we are using JSON Web Token (JWT) authentication in the backend. First, we will switch on security in our backend to enable JWT authentication. Then, we will create a component for the login functionality. Finally, we will modify our CRUD functionalities to send the token in the request’s authorization header to the backend, and implement the logout functionality.
In this chapter, we will cover the following topics:
In Chapter 13, we implemented CRUD functionalities in our frontend using an unsecured backend. Now, it is time to switch on security for our backend and go back to the version that we created in Chapter 5, Securing Your Backend:
Open your backend project with the Eclipse IDE and open the SecurityConfig.java file in the editor view. We have commented the security out and allowed everyone access to all endpoints. Now, we can remove that line and also remove the comments from the original version. Now, the filterChain() method of your SecurityConfig.java file should look like the following:
Let’s test what happens when the backend is secured again. Run the backend by pressing the Run button in Eclipse, and check from the console view that the application started correctly. Run the frontend by typing the npm run dev command into your terminal, and the browser should be opened to the address localhost:5173.
You should now see that the list page and the car list are loading. If you open the developer tools and the Network tab, you will notice that the response status is 401 Unauthorized. This is actually what we want because we haven’t yet executed authentication in relation to our frontend:
Figure 16.1: 401 Unauthorized
Now, we are ready to work with the frontend.
Securing the frontend
In Chapter 5, Securing Your Backend, we created JWT authentication and allowed everyone access to the /login endpoint without authentication. Now, on the frontend login page, we have to send a POST request to the /login endpoint using user credentials to get a token. After that, the token will be included in all requests that we send to the backend, as demonstrated in the following figure:
Figure 16.2: Secured application
With this knowledge, we will start to implement login functionality on our frontend. We will implement the login page where the user enters credentials, and then we will send a login request to get a token from the server. We will use the stored token in the requests that we send to the server.
Creating a login component
Let’s first create a login component that asks for credentials from the user to get a token from the backend:
Create a new file called Login.tsx in the components folder. Now, the file structure of the frontend should be the following:
Figure 16.3: Project structure
Open the file in the VS Code editor view and add the following base code to the Login component. We need axios to send POST requests to the /login endpoint:
We need two states for the authentication: one for the credentials (username and password), and one boolean value to indicate the status of the authentication. We also create a type for the user state. The initial value of the authentication status state is false:
In the user interface, we are going to use the Material UI (MUI) component library, as we did with the rest of the user interface. We need TextField components for the credentials, the Button component to call a login function, and the Stack component for layout. Add imports for the components to the Login.tsx file:
We have already used all three of these component types in Chapter 14, Styling the Frontend with MUI, to style our UI.
Add the imported components to the return statement. We need two TextField components: one for the username and one for the password. One Button component is needed to call the login function that we are going to implement later in this section. We use the Stack component to align our TextField components to the center and to get spacing between them:
Implement the change handler function for the TextField components, in order to save typed values to the states. You have to use the spread syntax because it ensures that you retain all the other properties of the user object that are not modified in this update:
As shown in Chapter 5, Securing Your Backend, the login is done by calling the /login endpoint using the POST method and sending the user object inside the body. If authentication succeeds, we get a token in a response Authorization header. We will then save the token to session storage and set the isAuthenticated state value to true.
Session storage is similar to local storage, but it is cleared when a page session ends (when the page is closed). localStorage and sessionStorage are properties of the Window interface.
When the isAuthenticated state value is changed, the user interface is re-rendered:
We will implement some conditional rendering that renders the Login component if the isAuthenticated state is false, or the Carlist component if the isAuthenticated state is true. First, import the Carlist component into the Login.tsx file:
importCarlistfrom'./Carlist';
Then, implement the following changes to the return statement:
To show the login form, we have to render the Login component instead of the Carlist component in the App.tsx file. Import and render the Login component and remove the unused Carlist import:
Now, when your frontend and backend are running, your frontend should look like the following screenshot:
Figure 16.4: Login page
If you log in using the user/user or admin/admin credentials that we have inserted into the database, you should see the car list page. If you open the developer tools’ Application tab, you can see that the token is now saved to session storage:
Figure 16.5: Session storage
Implementing REST API calls
At the end of the previous section, the car list is still loading and we can’t fetch cars. This is the correct behavior because we haven’t included the token in any requests yet. That is required for JWT authentication, which we will implement in the next phase:
Open the carapi.ts file in the VS Code editor view. To fetch the cars, we first have to read the token from session storage and then add the Authorization header with the token value to the GET request. You can see the source code for the getCars function here:
If you log in to your frontend, you should see the car list populated with cars from the database.
Check the request content from the developer tools; you can see that it contains the Authorization header with the token value:
Figure 16.6: Request headers
Modify the other CRUD functionalities in the same way so they work correctly. The source code for the deleteCar function appears as follows, after the modifications:
Now, all the CRUD functionalities will work after you have logged in to the application. But, as you can see, we have quite a lot of duplicate code, such as the lines where we retrieve our token from session storage. We can do some refactoring to avoid repeating the same code and make our code easier to maintain:
First, we will create a function that retrieves the token from session storage and creates a configuration object for Axios requests that contains headers with the token. Axios provides the AxiosRequestConfig interface, which can be used to configure requests we send using Axios. We also set the content-type header value to application/json:
Then, we can use the getAxiosConfig() function without retrieving a token in each function, by removing the configuration object and calling the getAxiosConfig() function instead, as shown in the following code:
Axios also provides interceptors that can be used to intercept and modify requests and responses before they are handled by then or catch. You can read more about interceptors in the Axios documentation: https://axios-http.com/docs/interceptors.
Displaying an error message
In this phase, we are going to implement an error message that is shown to a user if authentication fails. We will use the Snackbar MUI component to show the message:
Add the following import to the Login.tsx file:
importSnackbarfrom'@mui/material/Snackbar';
Add a new state called open to control the visibility of the Snackbar:
const [open, setOpen] = useState(false);
Add the Snackbar component to the return statement, inside the stack just under the Button component. The Snackbar component is used to show toast messages. The component is shown if the open prop value is true. The autoHideDuration defines the number of milliseconds to wait before the onClose function is called:
<Snackbar
open={open}
autoHideDuration={3000}
onClose={() =>setOpen(false)}
message="Login failed: Check your username and password"
/>
Open the Snackbar component if authentication fails by setting the open state value to true:
If you now try to log in with the wrong credentials, you will see the following message in the bottom-left corner of the screen:
Figure 16.7: Login failed
Logging out
In this last section, we will implement the logout functionality in the Login component. The logout button is rendered on the car list page. The Carlist component is a child component of the Login component; therefore, we can pass the logout function to the car list using the props. Let’s do this:
First, we create a handleLogout() function for the Login component, which updates the isAuthenticated state to false and clears the token from session storage:
We have to create a new type for the props that we receive in the Carlist component. The prop name is logOut, which is a function that takes no arguments, and we mark this prop as optional. Add the following type to the Carlist component and receive the logOut prop in the function arguments:
Now, we can call the logout function and add the logout button. We use the Material UI Stack component to align the buttons so that the NEW CAR button is on the left and the LOG OUT button is on the right side of the screen:
// Carlist.tsx// Add the following importsimportButtonfrom'@mui/material/Button';
importStackfrom'@mui/material/Stack';
// Render the Stack and Button if (!isSuccess) {
return<span>Loading...</span>
}
elseif (error) {
return<span>Error when fetching cars...</span>
}
else {
return (
<><Stackdirection="row"alignItems="center"justifyContent="space-between"><AddCar /><ButtononClick={logOut}>Log out</Button></Stack><DataGridrows={data}columns={columns}disableRowSelectionOnClick={true}slots={{toolbar:GridToolbar }}getRowId={row => row._links.self.href} /> <Snackbaropen={open}autoHideDuration={2000}onClose={() => setOpen(false)} message="Car deleted" /></>
);
}
Now, if you log in to your frontend, you can see the LOG OUT button on the car list page, as shown in the following screenshot. When you click the button, the login page is rendered because the isAuthenticated state is set to false and the token is cleared from session storage:
Figure 16.8: Log out
If you have a more complicated frontend with multiple pages, it would be wise to render the logout button in the app bar so that it is shown on each page. Then, you can use a state management technique to share a state with the whole component tree in your app. One solution would be to use the React Context API that we introduced in Chapter 8, Getting Started with React. In this scenario, you could use context to share the isAuthenticated state in your application’s component tree.
As your application grows in complexity, managing state becomes crucial to ensuring that your components can access and update data efficiently. There are also other alternatives to the React Context API to manage states that you can study. The most common state management libraries are React Redux (https://react-redux.js.org) and MobX (https://github.com/mobxjs/mobx).
In the previous chapter, we created test cases for the CarList component, and at that point the app was unsecured. At this stage, our CarList component test cases will fail, and you should refactor them. To create a React test that simulates a login process and then tests whether data is fetched from a backend REST API, you can also use libraries like axios-mock-adapter (https://github.com/ctimmerm/axios-mock-adapter). Mocking Axios allows you to simulate the login process and data fetching without making actual network requests. We are not going into the details here, but we recommend you explore this further.
Now, we are ready with our car application.
Summary
In this chapter, we learned how to implement a login and logout functionality for our frontend when we are using JWT authentication. Following successful authentication, we used session storage to save the token that we received from the backend. The token was then used in all requests that we sent to the backend; therefore, we had to modify our CRUD functionalities to work with authentication properly.
In the next and final chapter, we will deploy our backend and frontend and also demonstrate how to create Docker containers.
Questions
How should you create a login form?
How should you log in to the backend using JWT?
What is session storage?
How should you send a token to the backend in CRUD functions?
Further reading
Here are some other resources for learning about React and state management:
To join the Discord community for this book – where you can share feedback, ask the author questions, and learn about new releases – follow the QR code below:
This chapter will explain how to deploy your backend and frontend to a server. Successful deployment is a key part of the software development process, and it is important to learn how a modern deployment process works. There are a variety of cloud servers or PaaS (short for Platform-as-a-Service) providers available, such as Amazon Web Services (AWS), DigitalOcean, Microsoft Azure, Railway, and Heroku.
In this book, we are using AWS and Netlify, which support multiple programming languages that are used in web development. We will also show you how to use Docker containers in deployments.
In this chapter, we will cover the following topics:
A Docker installation is necessary for the final section of the chapter.
Deploying the backend with AWS
If you are going to use your own server, the easiest way to deploy a Spring Boot application is to use an executable Java ARchive (JAR) file. With Gradle, an executable JAR file can be created using the Spring Boot Gradle wrapper. You can build your project using the following Gradle wrapper command in your project folder:
./gradlew build
Alternatively, you can run a Gradle task in Eclipse by right-clicking Project in the Project Explorer, navigating to Window | Show View | Other, and selecting Gradle | Gradle Tasks from the list. This opens a list of Gradle tasks, and you can start the build process by double clicking the build task, as illustrated in the following screenshot. If the Gradle tasks window is empty, click the root folder of the project in Eclipse:
Figure 17.1: Gradle tasks
This creates a new build/libs folder to your project, where you will find JAR files. By default, two JAR files are created:
The file with extension .plain.jar contains Java bytecode and other resources, but it doesn’t contain any application framework or dependencies.
The other .jar file is a fully executable archive that you can run using the java -jar your_appfile.jar Java command, as illustrated in the following screenshot:
Figure 17.2: Running the executable JAR file
Nowadays, cloud servers are the principal means of providing your application to end users. We are going to deploy our backend to Amazon Web Services (AWS) (https://aws.amazon.com/). The AWS Free Tier offers users an opportunity to explore products for free.
Create a Free Tier account and log in to AWS. You have to enter your contact information, including a functioning mobile phone number. AWS will send you an SMS confirmation message to verify your account. You must add a valid credit card, debit card, or another payment method for your accounts covered under the AWS Free Tier.
In this first section, we will deploy our MariaDB database to AWS. Amazon Relational Database Service (RDS) can be used to set up and operate relational databases. Amazon RDS supports several popular databases, including MariaDB. The following steps will take you through the process that creates a database in RDS:
After you have created a Free Tier account with AWS, log in to the AWS website. The AWS dashboard contains a search bar that you can use to find different services. Type RDS into the search bar and find RDS, as illustrated in the following screenshot. Click on RDS in the Services list:
Figure 17.3: RDS
Click the Create database button to begin the database creation process:
Figure 17.4: Create database
Select MariaDB from the database engine options:
Figure 17.5: Engine options
Select Free tier from the templates.
Type a name for your database instance and the password for the database master user. You can use the default username (admin):
Figure 17.6: Database instance name
Select Yes under the Public access section to allow public access to your database:
Figure 17.7: Public access
In the Additional configuration section at the bottom of the page, name your database cardb:
Figure 17.8: Additional configuration
Note! The database will not be created if the name is left empty.
Finally, click the Create database button. RDS will start to create your database instance, which might take a few minutes.
After your database is successfully created, you can press the View connection details button to open a window that shows the connection details to your database. The Endpoint is the address of your database. Copy the connection details for later use:
Figure 17.9: Connection details
Now, we are ready to test our database. In this phase, we will use our local Spring Boot application. For this, we have to allow access to our database from outside. To change this, click on your database in the RDS database list. Then, click VPC security groups, as shown in the next screenshot:
Figure 17.10: Connectivity & security
On the opening page, click the Edit inbound rules button from the Inbound rules tab. Click the Add rule button to add a new rule. For the new rule, select the MySQL/Aurora type and the My IP destination under the Source column. The My IP destination automatically adds the current IP address of your local computer as an allowed destination:
Figure 17.11: Inbound rules
After you have added a new rule, press the Save rules button.
Open the Spring Boot application that we created in Chapter 5, Securing Your Backend. Change the url, username, and password database settings in the application.properties file to match your Amazon RDS database. The format of the spring.datasource.url property value is jdbc:mariadb://your_rds_db_domain:3306/your_db_name, as shown in the following screenshot:
Figure 17.12: The application.properties file
Now, if you run your application, you can see from the console that database tables are created and demo data is inserted into our Amazon RDS database:
Figure 17.13: Console
In this phase, you should build your Spring Boot application. Run a Gradle build task in Eclipse by right-clicking Project in the Project Explorer, navigating to Window | Show View | Other, and selecting Gradle | Gradle Tasks from the list. This opens a list of Gradle tasks, and you can start the build process by double-clicking the build task. It will create a new JAR file in the build/libs folder.
We now have proper database settings, and we can use our newly built application when we deploy our application to AWS.
Deploying our Spring Boot application
After we have deployed our database to Amazon RDS, we can start to deploy our Spring Boot application. The Amazon service that we are using is Elastic Beanstalk, whichcan be used to run and manage web apps in AWS. There are other alternatives, such as AWS Amplify, that can be used as well. Elastic Beanstalk is available for the Free Tier, and it also supports a wide range of programming languages (for example, Java, Python, Node.js, and PHP).
The following steps will take you through the process of deploying our Spring Boot application to Elastic Beanstalk:
First, we have to create a new role for our application deployment. The role is needed to allow Elastic Beanstalk to create and manage your environment. You can create a role using the Amazon IAM (Identity and Access Management) service. Use the AWS search bar to navigate to the IAM service. In the IAM service, select Roles and press the Create role button. Select AWS Service and EC2, as shown in the following screenshot, and press the Next button:
Figure 17.14: Create role
In the Add Permissions step, select the following permission policies: AWSElasticBeanstalkWorkerTier, AWSElasticBeanstalkWebTier, and AWSElasticBeanstalkMulticontainerDocker, then press the Next button. You can use the search bar to find the correct policies:
Type a name for your role, as illustrated in the next screenshot, and finally press the Create role button:
Figure 17.16: Role name
The new role that we just created allows Elastic Beanstalk to create and manage our environment. Now, we can start to deploy our Spring Boot application.
Use the AWS dashboard search bar to find the Elastic Beanstalk service. Click the service to navigate to the Elastic Beanstalk page:
Figure 17.17: Elastic Beanstalk service
Click Applications in the left side menu, and press the Create application button to create a new application. Type a name for your application, as shown in the following screenshot, and press the Create button:
Figure 17.18: Create application
Next, we have to create an environment for our application. An environment is a collection of AWS resources running an application version. You can have multiple environments for one application: for example, development, production, and testing environments. Click the Create new environment button to configure a new environment:
Figure 17.19: Create new environment
In the environment configuration, you first have to set the platform. In the Platform type section, select Java and the first version 17 for the branch, as shown in the following screenshot. The Platform version is a combination of specific versions of an operating system, runtime, web server, application server, and Elastic Beanstalk components. You can use the recommended Platformversion:
Figure 17.20: Platform type
Next, go to the Application code section in the configuration page. Select Upload your code and Local file. Click the Choose file button and select the Spring Boot .jar file that we built earlier. You also have to type in a unique Version label. Finally, press the Next button:
Figure 17.21: Create new environment
In the Configuration service access step, select the role that you created earlier from the EC2 instance profile dropdown list, as shown in the following screenshot. Then, press the Next button:
Figure 17.22: Service access
You can skip the optional Set up networking, database, and tags and Configure instance traffic and scaling steps.
Next, move to the Configure updates, monitoring, and logging step. In the Environment properties section, we have to add the following environment properties. You can add new properties by pressing the Add environment property button at the bottom of the page. There are already some predefined properties that you don’t have to modify (GRADLE_HOME, M2 and M2_HOME):
SERVER_PORT: 5000 (Elastic beans have a Nginx reverse proxy that will forward incoming requests to internal port 5000).
SPRING_DATASOURCE_URL: The database URL you need to use here is identical to the database URL value we previously configured in the 'application.properties' file when we initially tested the AWS database integration.
SPRING_DATASOURCE_USERNAME: The username of your database.
SPRING_DATASOURCE_PASSWORD: The password of your database.
The following screenshot shows the new properties:
Figure 17.23: Environment properties
Finally, in the Review step, press the Submit button, and your deployment will start. You have to wait until your environment is successfully launched, as illustrated in the next screenshot. The Domain in the Environment overview is the URL of your deployed REST API:
Figure 17.24: Environment successfully launched
Now, we have deployed our Spring Boot application, but the application can’t access the AWS database yet. For this, we have to allow access from the deployed application to our database. To do this, navigate to Amazon RDS and select your database from the RDS database list. Then, click VPC security groups and click the Edit inbound rules button, like we did earlier. Delete the rule that allows access from your local IP address.
Add a new rule whose Type is MySQL/Aurora. In the Destination field, type in sg. This will open a list of environments, as shown in the following screenshot. Select the environment where your Spring Boot application is running (it begins with the “awseb” text and has a subtitle that shows the name of your environment) and press the Save rules button:
Figure 17.25: Inbound rules
Now, your application is properly deployed, and you can log in to your deployed REST API using Postman and the URL that you got from the domain in step 12. The following screenshot shows the POST request that is sent to the aws_domain_url/login endpoint:
Figure 17.26: Postman authentication
You can also configure a custom domain name for your Elastic Beanstalk environment, and then you can use HTTPS to allow users to connect to your website securely. If you don’t own a domain name, you can still use HTTPS with a self-signed certificate for development and testing purposes. You can find the configuration instructions in the AWS documentation: https://docs.aws.amazon.com/elasticbeanstalk/latest/dg/configuring-https.html.
Note! You should delete AWS resources that you have created to avoid being charged unexpectedly. You will get a reminder email from AWS to delete resources before the end of your Free Tier period.
Now, we are ready to deploy our frontend.
Deploying the frontend with Netlify
Before we deploy with Netlify, we will learn how you can build your React project locally. Move to your frontend project folder and execute the following npm command:
npm run build
By default, your project is built in the /dist folder. You can change the folder by using the build.outDir property in your Vite configuration file.
First, the build process compiles your TypeScript code; therefore, you have to fix all TypeScript errors or warnings, if there are any. A commonly encountered error occurs when you forget to remove unused imports, as illustrated in the example error below:
src/components/AddCar.tsx:10:1 - error TS6133: 'Snackbar' is declared but its value is never read.
10 import Snackbar from '@mui/material/Snackbar';
This indicates that the AddCar.tsx file imports the Snackbar component, but the component isn’t actually utilized. Therefore, you should remove this unused import. Once all errors have been resolved, you can proceed to rebuilding your project.
Vite uses Rollup (https://rollupjs.org/) to bundle your code. Test files and development tools are not included in the production build. After you have built your app, you can test your local build using the following npm command:
npm run preview
The command starts a local static web server that serves your built app. You can test your app in a browser by using the URL that is shown in the terminal.
You could deploy your frontend to AWS as well, but we will use Netlify (https://www.netlify.com/) for our frontend deployment. Netlify is a modern web development platform that is easy to use. You can use the Netlify command-line interface (CLI) or GitHub to deploy your project. In this section, we will use Netlify’s GitHub integration to deploy our frontend:
First, we have to change our REST API URL. Open your frontend project with VS Code and open the .env file in the editor. Change the VITE_API_URL variable to match your backend’s URL, as follows, and save the changes:
Create a GitHub repository for your frontend project. Execute the following Git commands in your project folder using the command line. These Git commands create a new Git repository, make an initial commit, set up a remote repository on GitHub, and push the code to your remote repository:
Sign up and log in to Netlify. We will use a free Starter account that has limited features. With this account, you can build one concurrent build for free, and there is some limitation in bandwidth.
Open the Sites from the left side menu and you should see the Import an existing project panel, as shown in the following screenshot:
Figure 17.27: Import an existing project
Click the Import from Git button and select Deploy with GitHub. In this phase, you have to authorize your GitHub to get access to your repositories. After you have authorized successfully, you should see your GitHub username and repository search field, as shown in the following screenshot:
Figure 17.28: GitHub repository
Search for your frontend repository and click it.
Next, you will see the deployment settings. Continue with the default settings by pressing the Deploy <your_repository_name> button:
Figure 17.29: Deployment settings
After the deployment has finished, you will see the following dialog. Press the View site deploy button, as shown in the following figure, and you will be redirected to the Deploys page. Netlify generates a random site name for you, but you can use your own domain as well:
Figure 17.30: Deploy success
On the Deploys page, you will see your deployed site, and you can access your frontend by clicking the Open production deploy button:
Figure 17.31: Deploys
Now, you should see the login form, as follows:
Figure 17.32: Login screen
You can delete your Netlify deployment from the Site configuration in the left side menu.
We have now deployed our frontend, and we can move on to learning about containers.
Using Docker containers
Docker (https://www.docker.com/) is a container platform that makes software development, deployment, and shipping easier. Containers are lightweight and executable software packages that include everything that is needed to run software. Containers can be deployed to cloud services, such as AWS, Azure, and Netlify, and they offer many benefits for deploying applications:
Containers are isolated, which means each container runs independently of the host system and other containers.
Containers are portable because they contain everything an application needs to run.
Containers can also be used to ensure consistency between development and production environments.
Note! To run Docker containers on Windows, you need the Windows 10 or 11 Professional or Enterprise versions. You read more about this in the Docker installation documentation: https://docs.docker.com/desktop/install/windows-install/.
In this section, we will create a container for our MariaDB database and Spring Boot application, as follows:
Install Docker on your workstation. You can find installation packages for multiple platforms at https://www.docker.com/get-docker. If you have a Windows operating system, you can go through the installation wizard using the default settings.
After the installation, you can check the current version by typing the following command in the terminal. Note! When you run Docker commands, you should start Docker Engine if it is not running (on Windows and macOS, you start Docker Desktop):
docker --version
First, we create a container for our MariaDB database. You can pull the latest MariaDB database image version from Docker Hub using the following command:
docker pull mariadb:latest
After the pull command has finished, you can check that a new mariadb image exists by typing the docker image ls command, and the output should look as follows. A Docker image is a template that contains instructions for creating a container:
Figure 17.33: Docker images
Next, we will run the mariadb container. The docker run command creates and runs a container based on the given image. The following command sets the root user password and creates a new database, called cardb, that we need for our Spring Boot application (Note! Use your own MariaDB root user password that you are using in your Spring Boot application):
docker run --name cardb -e MYSQL_ROOT_PASSWORD=your_pwd -e MYSQL_
DATABASE=cardb mariadb
Now, we have created our database container, and we can start to create a container for the Spring Boot application. First, we have to change the data source URL of our Spring Boot application. Open the application.properties file of your application and change the spring.datasource.url value to the following:
This is because our database is now running in the cardb container and the port is 3306.
Then, we have to create an executable JAR file from our Spring Boot application, just as we did at the beginning of this chapter. You can also run a Gradle task in the Eclipse by right-clicking Project in the Project Explorer, selecting Window | Show View | Gradle and then Gradle Tasks from the list. This opens a list of Gradle tasks, and you can start the build process by double clicking the build task. Once the build is finished, you can find the executable JAR file from the build/libs folder inside your project folder.
Containers are defined by using Dockerfiles. Create a new Dockerfile using Eclipse in the root folder of your project (cardatabase) and name it Dockerfile. The following lines of code show the contents of the Dockerfile:
FROM eclipse-temurin:17-jdk-alpine
VOLUME /tmp
EXPOSE8080COPY build/libs/cardatabase-0.0.1-SNAPSHOT.jar app.jar
ENTRYPOINT ["java","-jar","/app.jar"]
Let’s examine each line:
FROM defines the Java Development Kit (JDK) version, and you should use the same version that you used to build your JAR file. We are using Eclipse Temurin, which is an open-source JDK, and version 17, which we used when we developed our Spring Boot application.
Volumes are used for persistent data generated by and used by Docker containers.
EXPOSE defines the port that should be published outside of the container.
COPY copies the JAR file to the container’s filesystem and renames it app.jar.
Lastly, ENTRYPOINT defines the command-line arguments that the Docker container runs.
Build an image with the following command in the folder where your Dockerfile is located. With the -t argument, we can give a friendly name to our container:
docker build -t carbackend .
At the end of the build, you should see a Building [...] FINISHED message, as illustrated in the following screenshot:
Figure 17.34: Docker build
Check the list of images using the docker image ls command. You should see two images now, as shown in the following screenshot:
Figure 17.35: Docker images
Now, we can run our Spring Boot container and link the MariaDB container to it using the following command. This command specifies that our Spring Boot container can access the MariaDB container using the mariadb name:
docker run -p 8080:8080 --name carapp --link cardb:mariadb -d
carbackend
When our application and database are running, we can access the Spring Boot application logs using the following command:
docker logs carapp
We can see here that our application is up and running:
Figure 17.36: Application log
Our application has started successfully, and the demonstration data has been inserted into the database that exists in the MariaDB container. Now, you can use your backend, as seen in the following screenshot:
Figure 17.37: Application login
We have learned a few different ways to deploy your full-stack application and how to containerize your Spring Boot application. As a next step, you could study how to deploy Docker containers. For example, AWS has a guide to deploying containers on Amazon ECS: https://aws.amazon.com/getting-started/hands-on/deploy-docker-containers/.
Summary
In this chapter, you learned how to deploy our application. We deployed the Spring Boot application to AWS Elastic Beanstalk. Next, we deployed our React frontend using Netlify. Finally, we used Docker to create containers for our Spring Boot application and the MariaDB database.
As we reach the final pages of this book, I hope you’ve had an exciting journey through the world of full-stack development with Spring Boot and React. As you continue your full-stack development journey, remember that technologies are evolving all the time. For a developer, life is constant learning and innovation – so stay curious and keep building.
Questions
How should you create a Spring Boot executable JAR file?
What AWS services you can use to deploy a database and Spring Boot application to AWS?
What command can you use to build your Vite React project?
What is Docker?
How should you create a Spring Boot application container?
How should you create a MariaDB container?
Further reading
Packt Publishing has other resources available for learning about React, Spring Boot, and Docker. A few of them are listed here:
To join the Discord community for this book – where you can share feedback, ask the author questions, and learn about new releases – follow the QR code below:
Subscribe to our online digital library for full access to over 7,000 books and videos, as well as industry leading tools to help you plan your personal development and advance your career. For more information, please visit our website.
Why subscribe?
Spend less time learning and more time coding with practical eBooks and Videos from over 4,000 industry professionals
Improve your learning with Skill Plans built especially for you
Get a free eBook or video every month
Fully searchable for easy access to vital information
Copy and paste, print, and bookmark content
At www.packt.com, you can also read a collection of free technical articles, sign up for a range of free newsletters, and receive exclusive discounts and offers on Packt books and eBooks.
Other Books You May Enjoy
If you enjoyed this book, you may be interested in these other books by Packt:
Microservices with Spring Boot 3 and Spring Cloud - Third Edition
Magnus Larsson
ISBN: 9781805128694
Build reactive microservices using Spring Boot
Develop resilient and scalable microservices using Spring Cloud
Use OAuth 2.1/OIDC and Spring Security to protect public APIs
Implement Docker to bridge the gap between development, testing, and production
Deploy and manage microservices with Kubernetes
Apply Istio for improved security, observability, and traffic management
Write and run automated microservice tests with JUnit, test containers, Gradle, and bash
Use Spring AOT and GraalVM to native compile the microservices
Use Micrometer Tracing for distributed tracing
React 18 Design Patterns and Best Practices, 4e
Carlos Santana Roldán
ISBN: 9781803233109
Get familiar with the new React 18 and Node 19 features
Explore TypeScript’s basic and advanced capabilities
Make components communicate with each other by applying various patterns and techniques
Dive into MonoRepo architecture
Use server-side rendering to make applications load faster
Write a comprehensive set of tests to create robust and maintainable code
Build high-performing applications by styling and optimizing React components
Packt is searching for authors like you
If you’re interested in becoming an author for Packt, please visit authors.packtpub.com and apply today. We have worked with thousands of developers and tech professionals, just like you, to help them share their insight with the global tech community. You can make a general application, apply for a specific hot topic that we are recruiting an author for, or submit your own idea.
Share Your Thoughts
Now you’ve finished Full Stack Development with Spring Boot 3 and React, Fourth Edition, we’d love to hear your thoughts! If you purchased the book from Amazon, please click here to go straight to the Amazon review page for this book and share your feedback or leave a review on the site that you purchased it from.
Your review is important to us and the tech community and will help us make sure we’re delivering excellent quality content.
